Duct fan coil unit cassette fcu floor standing fan coil wall mounted fan coil unit Midea with standard remote control
- Category: >>>
- Supplier: Henan Abot Trading Co. Ltd.Henan Ltd.
Share on (1601251008190):
Product Overview
Description
Product Description

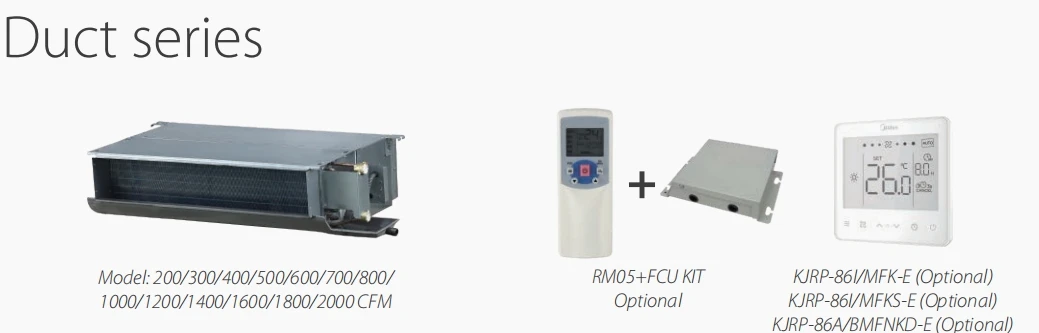

Features for duct type fan coil:
1. 3 or 4 row for 2-pipe system and 3 row for 4-pipe system.
2. Versions for standard, A4 and large difference temperature type.
3. Washable filter: Iron frame filter is standard, and aluminum frame filter can be customized.
4. Compatible with two types of air return: Back return is standard ,bottom return is optional.
5. Left or right hand piping connections are easily change in filed.
6. AEH is optional (for 3-Row, 4-Row Duct).
7. All the units are 241mm hight，easy for limited space to installation.
8. The AC Series comes with 3 fan speed option to meet the needs of different indoor conditions.
9. Slim, compact design for limited space with duct distribution to the indoor space.

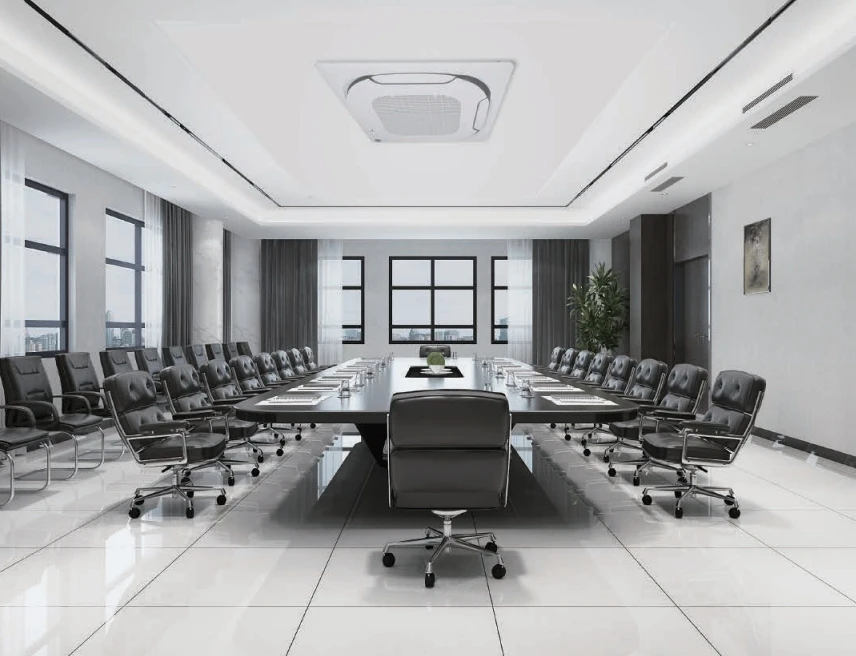

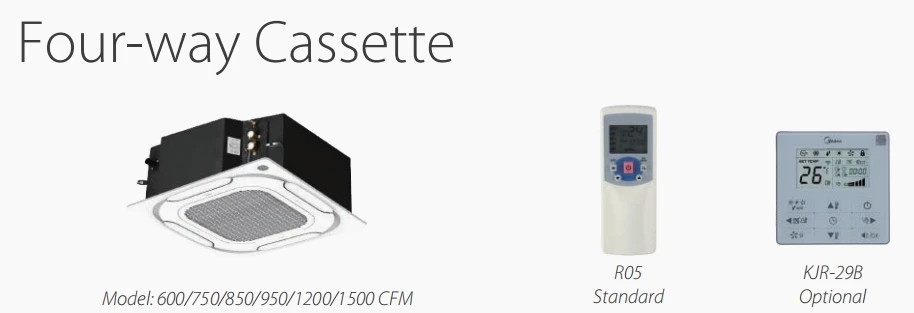

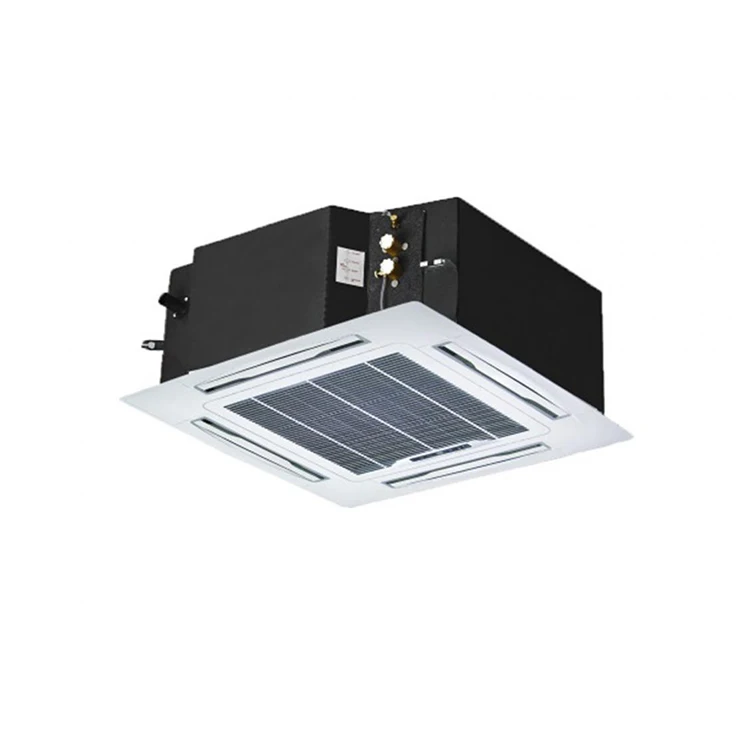

Features for 4-way cassette type fan coil:
1. 4-way air supply panel as standard, new 360°air supply panel is optional.
2. Built-in PCB and drain pump with pump head-750mm.
3. Remote controller with LED display is standard, wired controller is optional.
4. Safety grill for safety maintenance.
5. Optional extended drainage pan for protecting your ceiling better.
6. Compatible with 0-10V output function(customized).
7. Available for 2/4 pipe system.
8. Auxiliary electric heater (AEH) is optional (for 2-Pipe 4-Way Cassette).
9. 360° airflow for immediate, equal distribution of wider-angle cooling and heating, ideal for standard ceilings.
3. Remote controller with LED display is standard, wired controller is optional.
4. Safety grill for safety maintenance.
5. Optional extended drainage pan for protecting your ceiling better.
6. Compatible with 0-10V output function(customized).
7. Available for 2/4 pipe system.
8. Auxiliary electric heater (AEH) is optional (for 2-Pipe 4-Way Cassette).
9. 360° airflow for immediate, equal distribution of wider-angle cooling and heating, ideal for standard ceilings.
10. In the event of a sudden power failure during operation,unit restarts automatically and the unit will operate based on the previous setting (operating mode, temperature setting and fan speed).
11. The height of models 600 to 750 is just 230mm whilst models 850 to 1500 is 300mm, making the Four-way Cassette ideal for standard ceilings.
12. The Individual louver control can control the motors separately, making it possible to control all four louvers independently

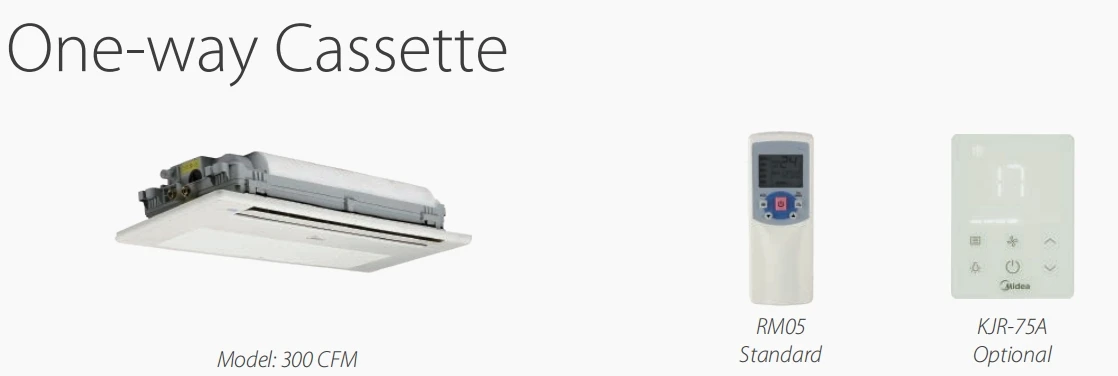

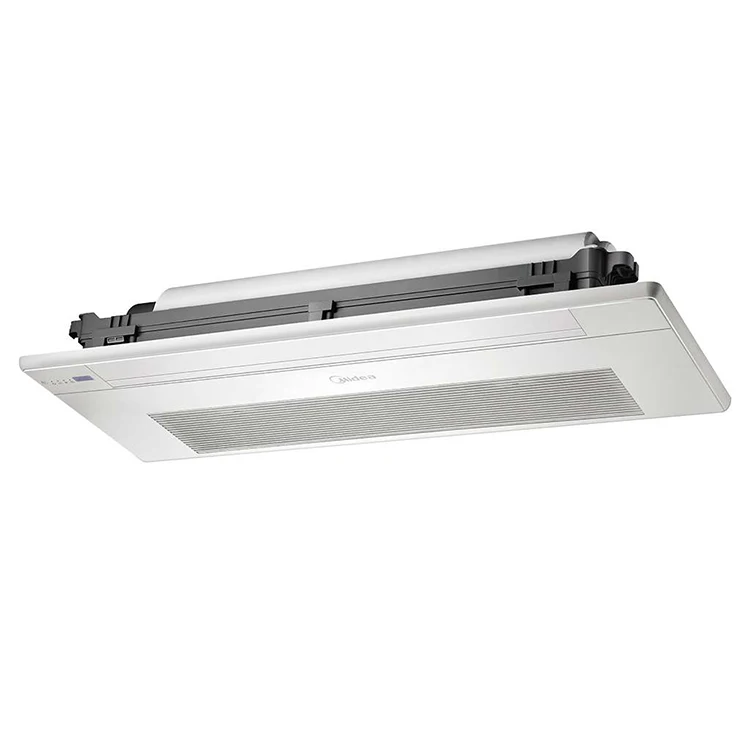

Features for 1-way cassette type fan coil:
1. The central controllers can be connected through the customized Network Module MD-NIM01.
2. Remote on/off function can be applied to turn on/off the unit.
3. Wired controller KJR-75A is optional.
4. Compact design, ultra slim body with a minimum thickness of 153mm.
3. Wired controller KJR-75A is optional.
4. Compact design, ultra slim body with a minimum thickness of 153mm.
5. Standard built-in drain pump with 750mm pump head.

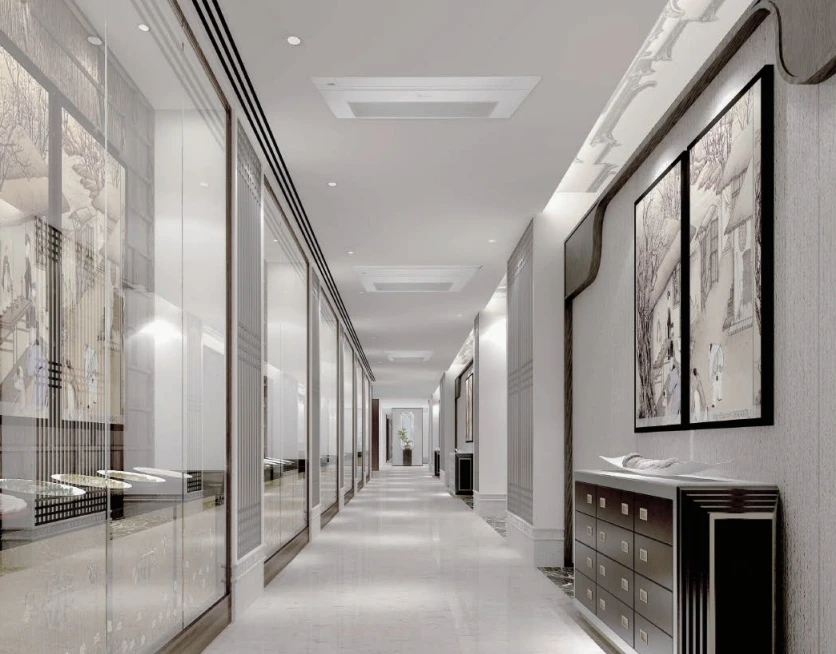

6. One way cassette has a compact size, it's suitable for applicaion in narrow space such as the aisle, small office, elevator space etc.
7. The AC Series comes with 3 fan speed option to meet the needs of different indoor conditions.
8. One direction air flow guarantees quick cooling, flexible installation positioning.
9. Compact design, ultra slim body with a minimum thickness of 153mm, especially suitable for narrow ceiling, such as in lobbies and small meeting rooms.
10. In the event of a sudden power failure during operation,unit restarts automatically and the unit will operate based on the previous setting (operating mode, temperature setting and fan speed).
6. One way cassette has a compact size, it's suitable for applicaion in narrow space such as the aisle, small office, elevator space etc.
7. The AC Series comes with 3 fan speed option to meet the needs of different indoor conditions.
8. One direction air flow guarantees quick cooling, flexible installation positioning.
9. Compact design, ultra slim body with a minimum thickness of 153mm, especially suitable for narrow ceiling, such as in lobbies and small meeting rooms.
10. In the event of a sudden power failure during operation,unit restarts automatically and the unit will operate based on the previous setting (operating mode, temperature setting and fan speed).

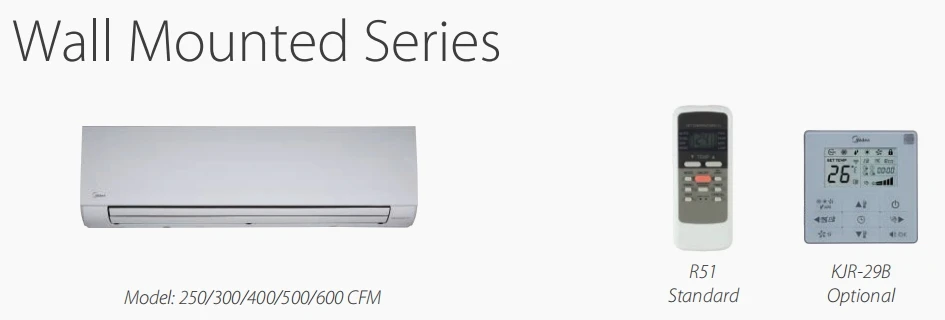

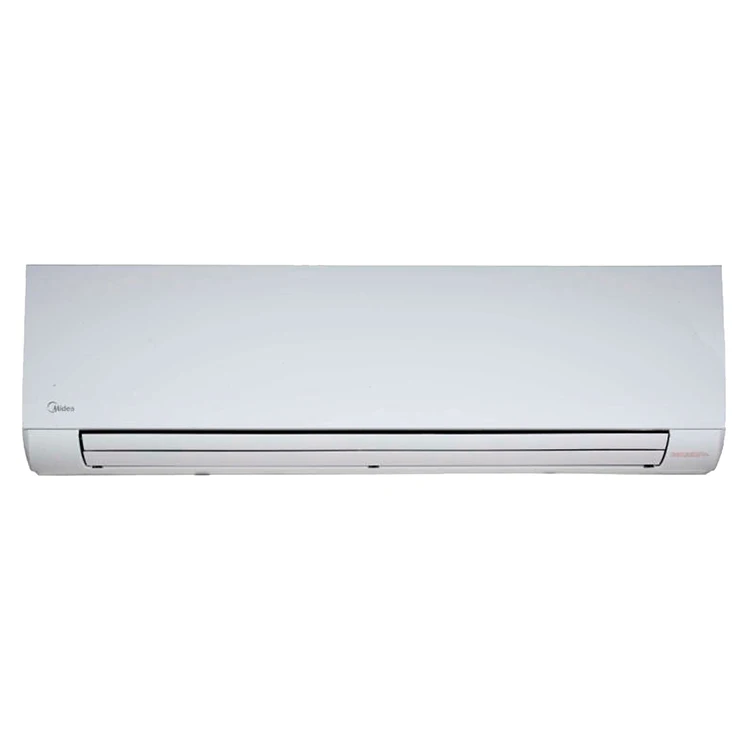

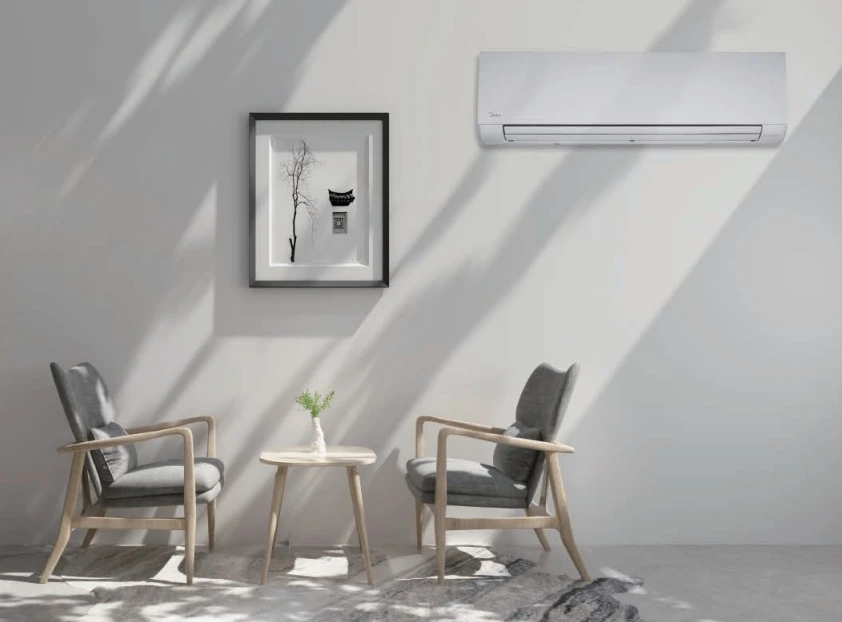

Features of wall mounted fan coil unit:
1.Display shut off (for Type A and P panels though Wireless Remote Controllers RM12F/BGF-E ).
2. Built-in 3-way electromagnetic valve.
3. Remote controller as standard, wired controller is optional.
4. Easy and low cost installation.
5. The panel can be easily removed, simple maintenance and easy to change filter.
6. Multi-directional outlet pipe feature: left/right/rear, to meet the needs of different rooms.
7. Compatible with 0-10V output function(Customized)
8. Auxiliary electric heater (AEH) is optional.
9. Stylish panel, ideal for rooms with no or narrow ceilings.
10. Indoor unit displays can be shut off at night, creating a better environment for rest.
3. Remote controller as standard, wired controller is optional.
4. Easy and low cost installation.
5. The panel can be easily removed, simple maintenance and easy to change filter.
6. Multi-directional outlet pipe feature: left/right/rear, to meet the needs of different rooms.
7. Compatible with 0-10V output function(Customized)
8. Auxiliary electric heater (AEH) is optional.
9. Stylish panel, ideal for rooms with no or narrow ceilings.
10. Indoor unit displays can be shut off at night, creating a better environment for rest.
11. The AC Series supplies 3 indoor fan speeds to meet the needs of different indoor conditions.
12. The Auto Swing Louver function ensures that the air direction corresponds to the mode selected.
13. Removable front panel making maintenance convenient.
14. The Wall Mounted can be installed against wall, no need ceilings, simplifying installation.

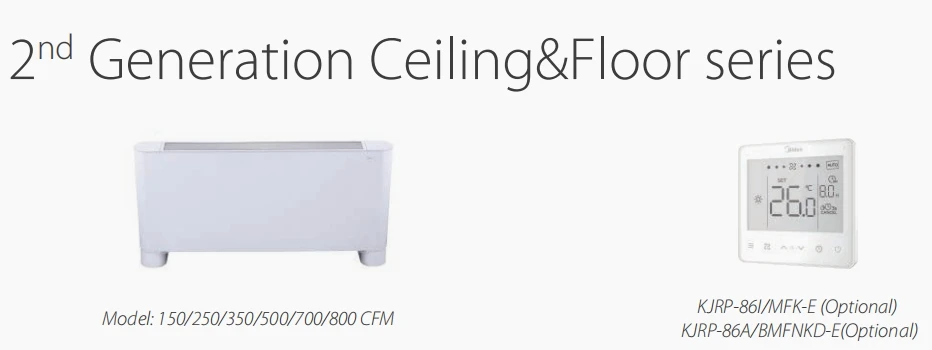

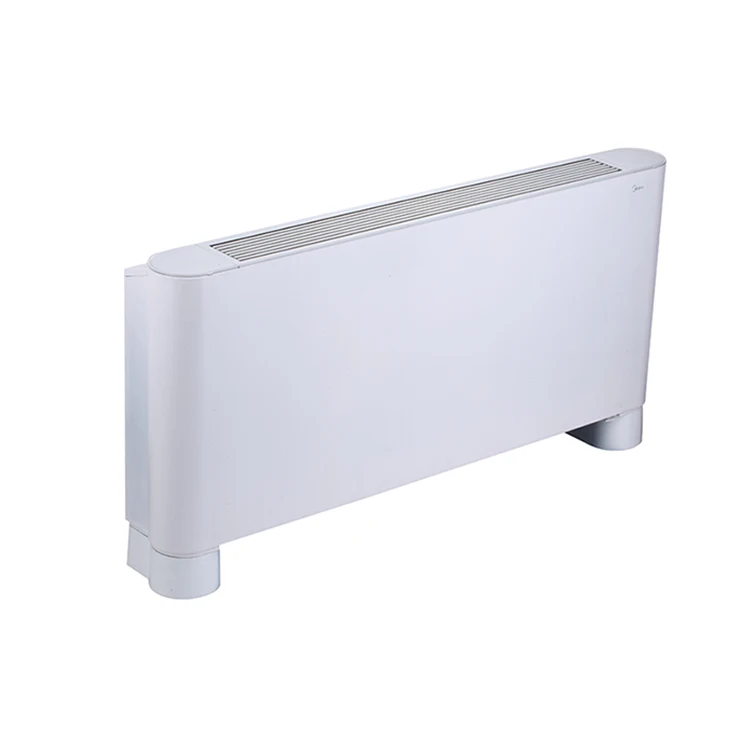

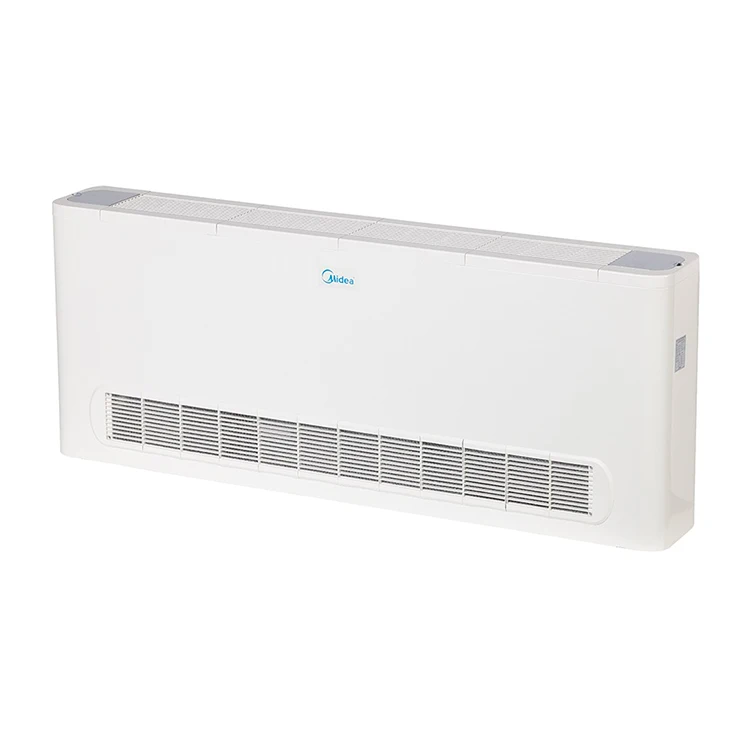

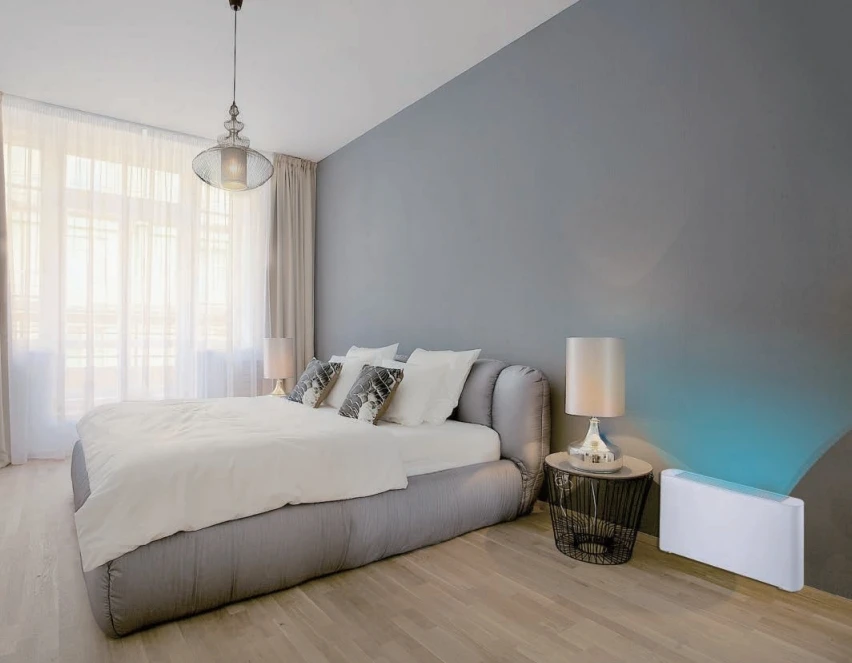

Features for floor ceiling type fan coil unit:
1.3 or 4 rows coil are optional for whole series .
2. 2-Pipe and 4-Pipe are optional for whole series.
3. Ultra-thin with 200 mm thickness.
4. Floor standing/Horizontal/ Concealed type installation available (For floor standing : The footing is optional).
5. The wired controller(KJRP-86I/MFK-E or KJRP-86A/BMFNKD-E) can be installed inside the unit.
6. Floor standing unit with multi casing options can be installed quickly and easily in new or existing facilities in a variety of applications.
7. The AC Series comes with 3 fan speed option to meet the needs of different indoor conditions.
8. The Floor Standing Unit has three appearance options to meet different installation requirement, the H3 (concealed)
unit is designed to be concealed in wall while the H1 (front air intake) and H2 (underside air intake) offer a choice of air intake options.
9. The ceiling and floor unit offers exposed installation. The installation and maintenance is easy. The maintenance of the
machine is quite easy and the key components can be accessed from the bottom of the machine.
10. The unit is uniquely designed with the possibility to be installed beneath the ceiling or sitting on the floor to suit any
interior design requirements.
3. Ultra-thin with 200 mm thickness.
4. Floor standing/Horizontal/ Concealed type installation available (For floor standing : The footing is optional).
5. The wired controller(KJRP-86I/MFK-E or KJRP-86A/BMFNKD-E) can be installed inside the unit.
6. Floor standing unit with multi casing options can be installed quickly and easily in new or existing facilities in a variety of applications.
7. The AC Series comes with 3 fan speed option to meet the needs of different indoor conditions.
8. The Floor Standing Unit has three appearance options to meet different installation requirement, the H3 (concealed)
unit is designed to be concealed in wall while the H1 (front air intake) and H2 (underside air intake) offer a choice of air intake options.
9. The ceiling and floor unit offers exposed installation. The installation and maintenance is easy. The maintenance of the
machine is quite easy and the key components can be accessed from the bottom of the machine.
10. The unit is uniquely designed with the possibility to be installed beneath the ceiling or sitting on the floor to suit any
interior design requirements.
