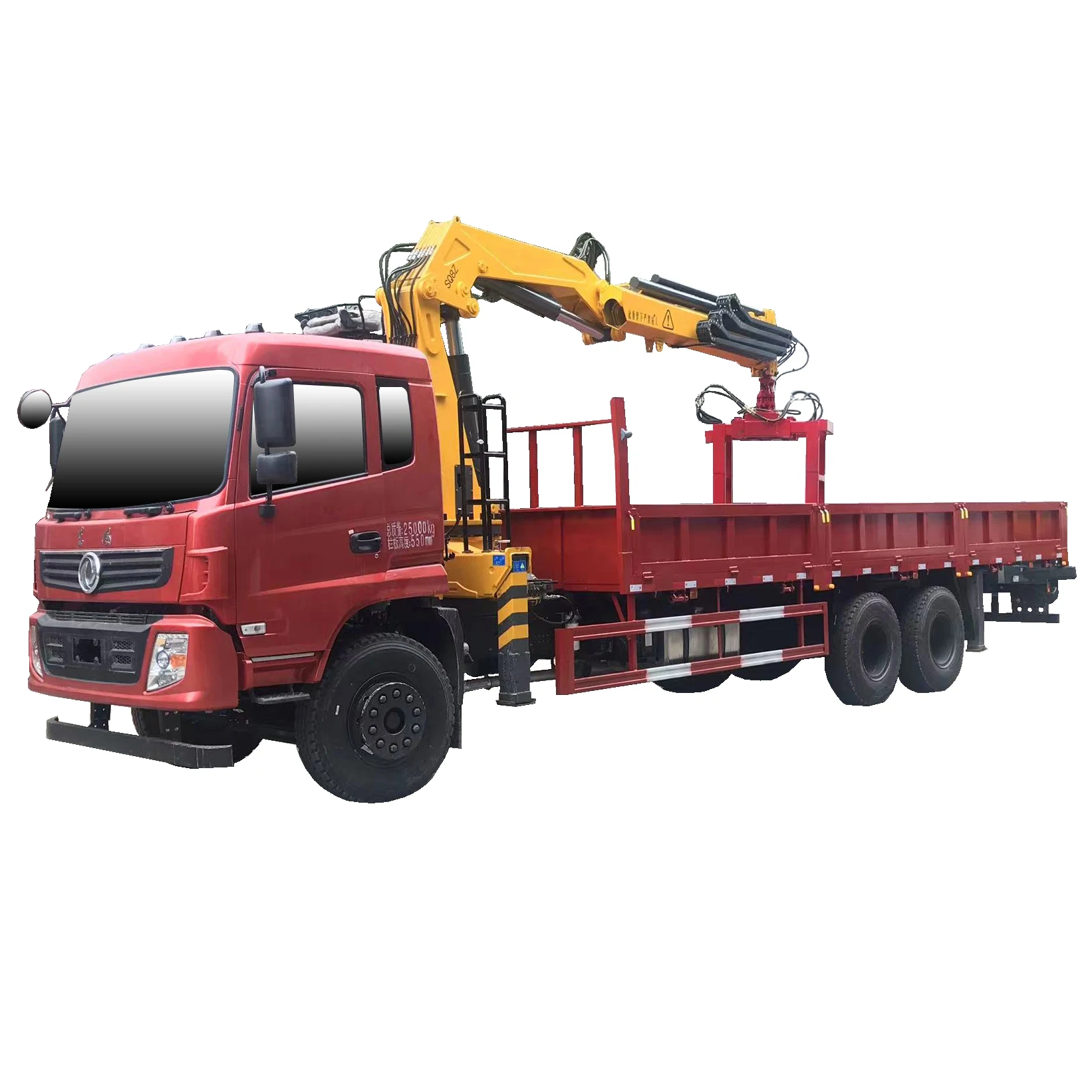

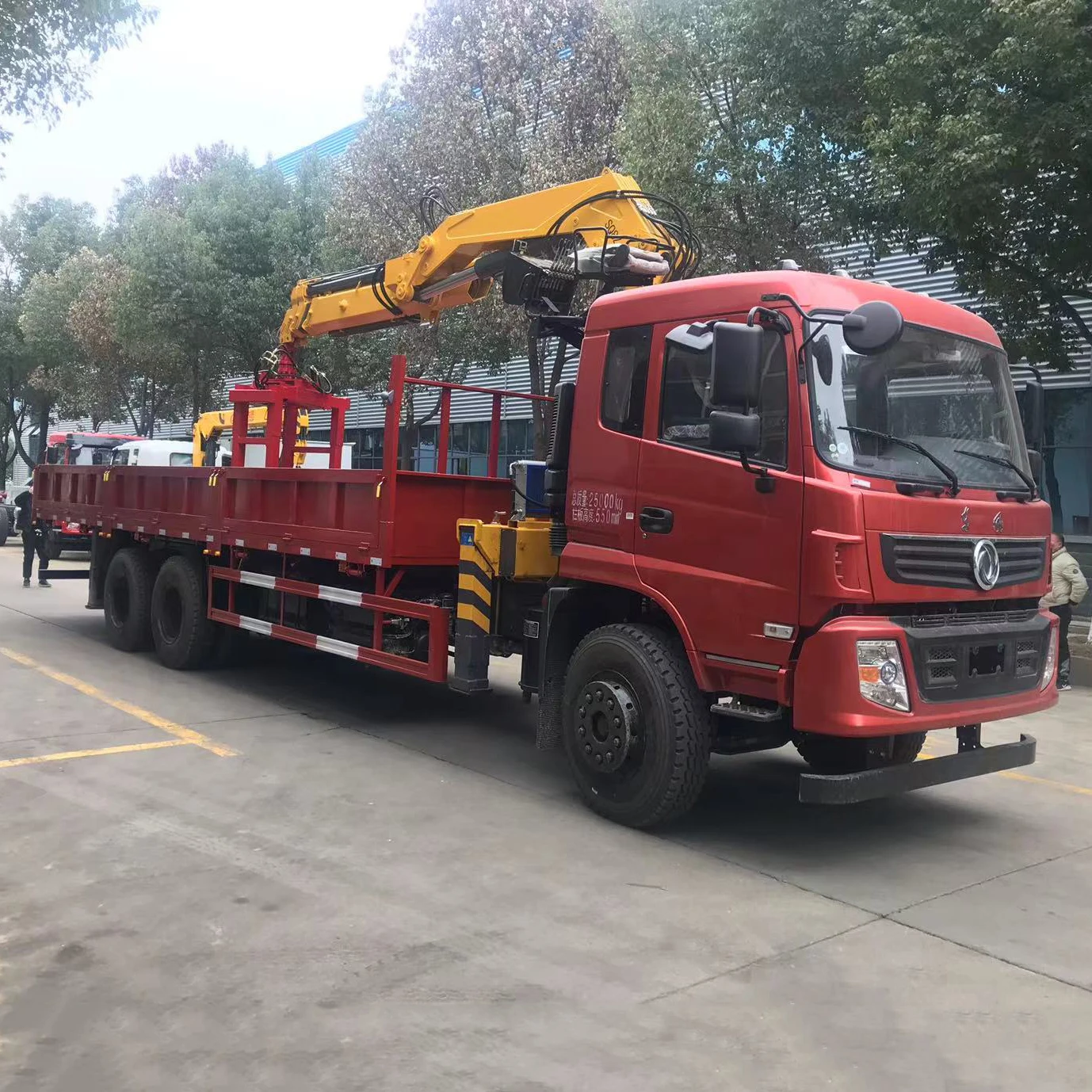

China Forestry Machinery Forest Timber Crane Hydraulic Grabber Grab Loader Hydraulic Crane Brick Pallet Grab
- Category: >>>
- Supplier: Xuzhou Zory Construction Machinery Co. Ltd.Xuzhou Ltd.
Share on (1601251072989):
Product Overview
Description

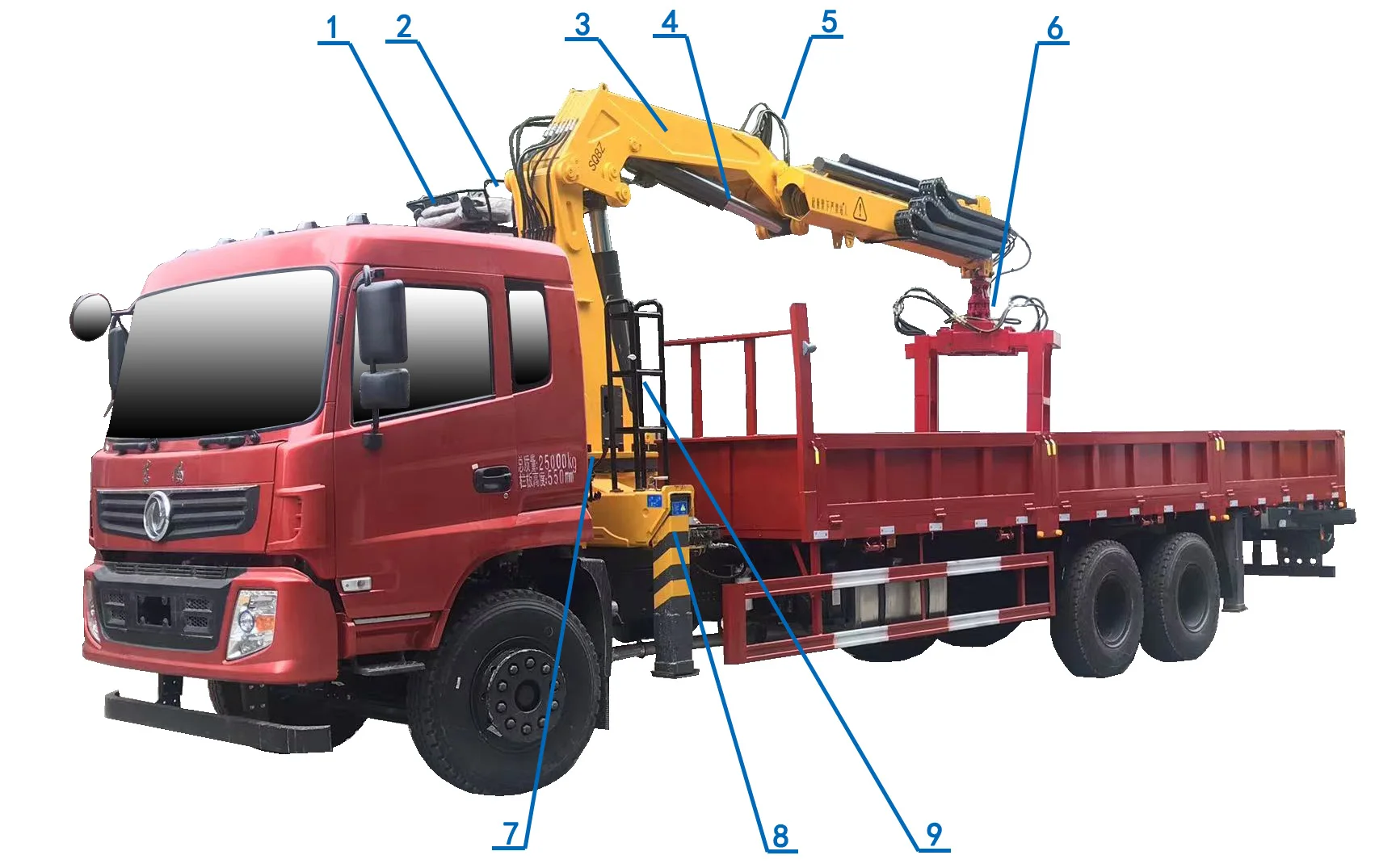

Product Advantage
Seat operation
Seat operation, good vision, easy to operate.
Four-way operated valves
Two sets of four-position operating handle, can be operated at the same time, flexible operation, high efficiency.
High Strength Steel Plate
The arm is made of 960 high-strength plate with high strength, strong lifting capacity and long service life.
SEALS
Adopting seals produced by first-class manufacturers, with fine workmanship, reliable quality and long service life.
Hydraulic hoses
We use the highest quality high pressure hoses with a maximum burst pressure of 120 MPa.

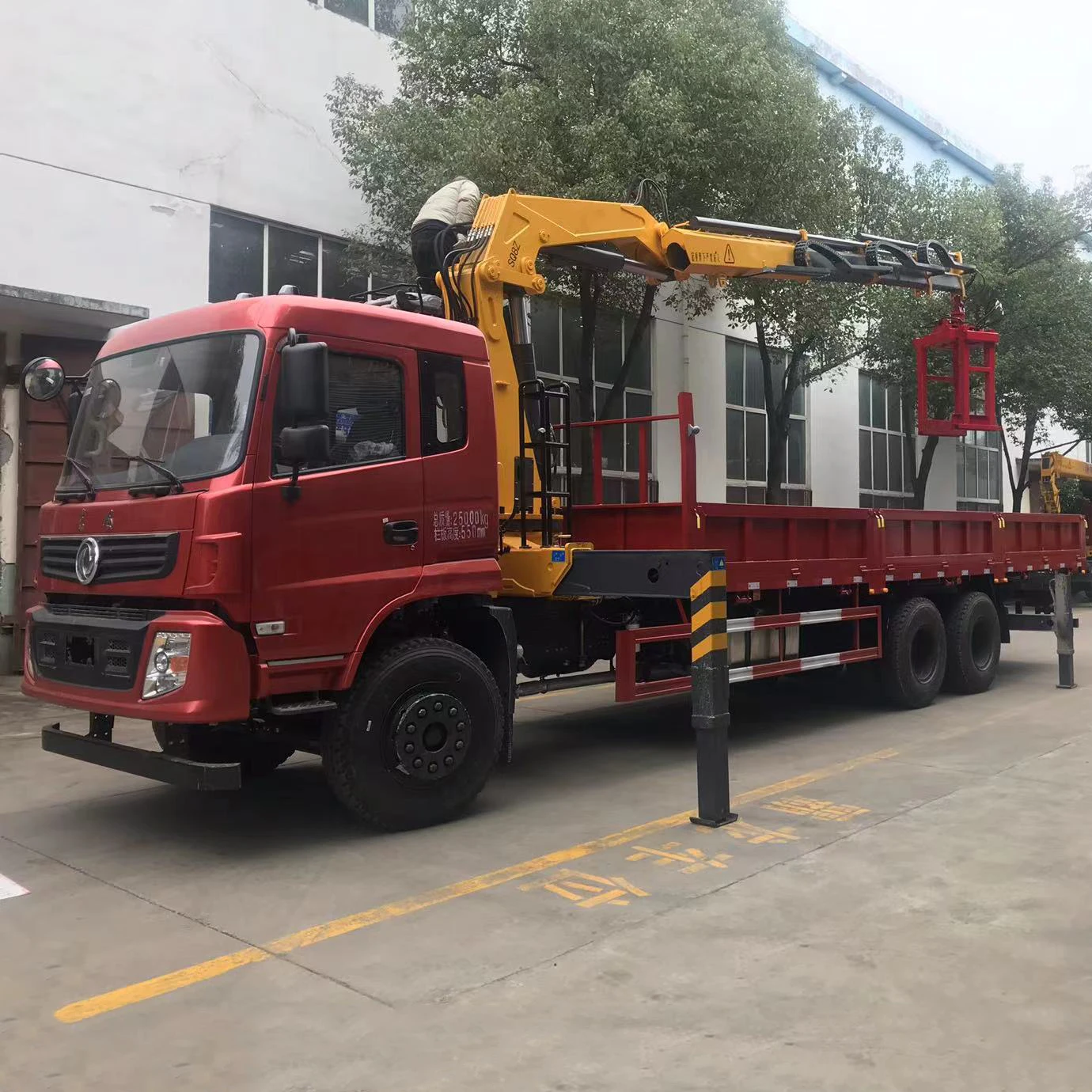

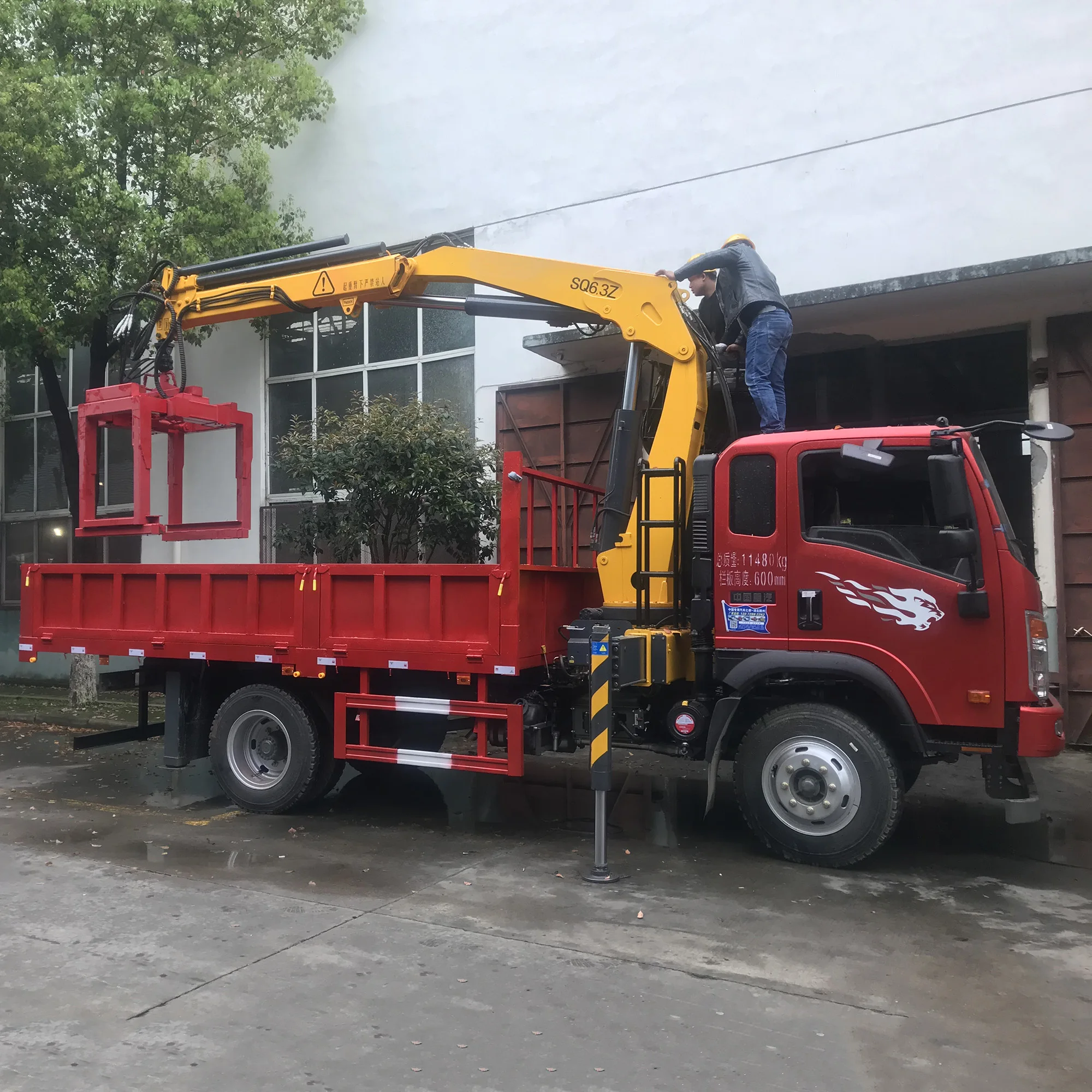

Brick pallet grab
Fitted with a brick stack grab for all types of brick stacks, size and load can be customised.
Radiator
The radiator reduces the temperature of the hydraulic oil for more efficient and stable use.
Fully enclosed legs
Full-enclosure structure, stronger load-bearing capacity, effectively preventing collision, providing better protection.
Safety valve lock
Adopting domestic first-class manufacturers, High level of safety by effectively locking up the oil circuit.

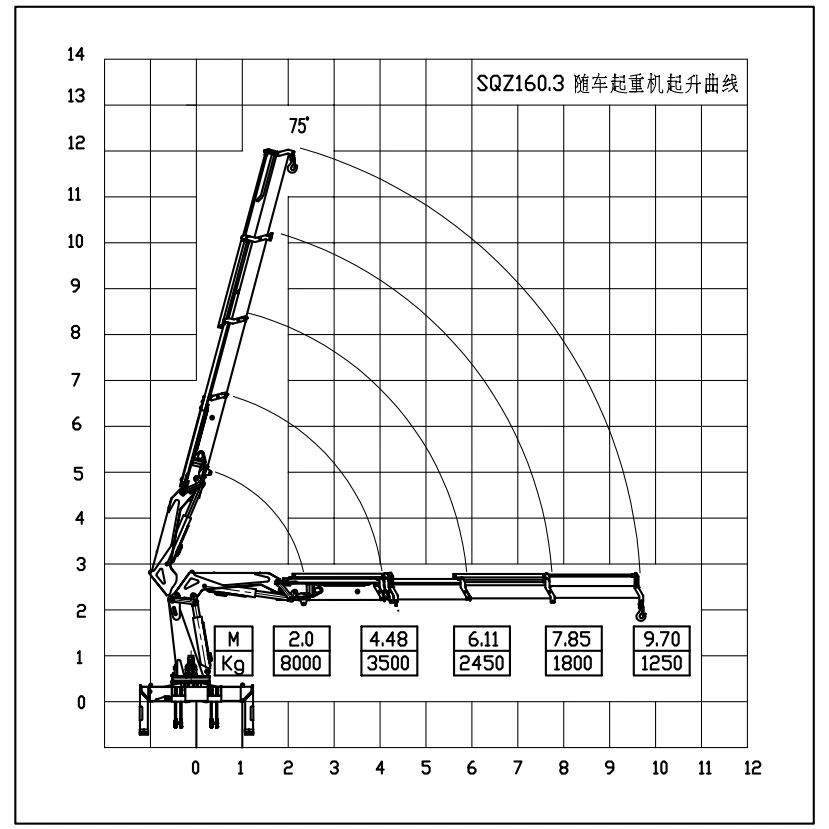

Product Paramenters & Images
Item | Unit | SQZ160A-3+Brick pallet grab |
Max. Lifting Moment | Ton.M | 16.0 |
Max. Lifting Weight | Kg | 8000 |
Max. Working Radius | M | 9.7 |
Crane Rotation Angle | ° | 360°Continuous Rotation |
Crane Self Weight | Kg | 3300 |
Outtrigger Span | mm | 5230 |
Hydraulic System Flow | L/Min | 40 |
Installation Space | mm | 1200 |
Grabs:Max.Gripping Weight | Kg | 800~2000(Customisable) |
Grabs:Max.Opening Size | mm | 1200*1200*1200（Customisable） |
Grabs:Rotation Angle | ° | 360°Continuous Rotation |
Max.gripping weight of the gripper at max.working radius | Kg | 800 |
1.Coverage radius 100M.
2.Multi-motion synchronized operation.

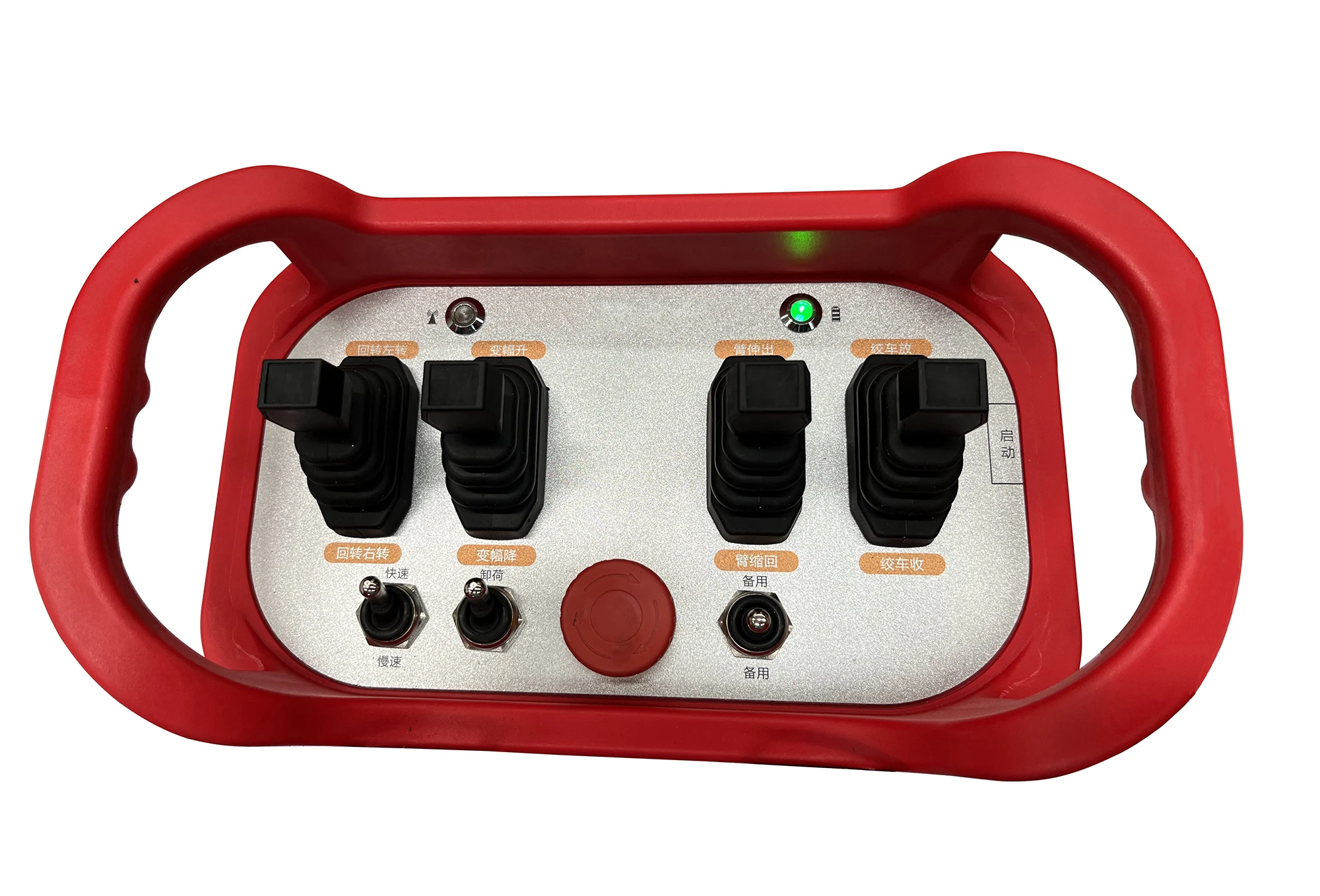

Wireless remote control operation，savelabor, save cost,and open the field ofvision Wider,more efficient and safer.
2.Multi-motion synchronized operation.
Wireless remote control operation，savelabor, save cost,and open the field ofvision Wider,more efficient and safer.

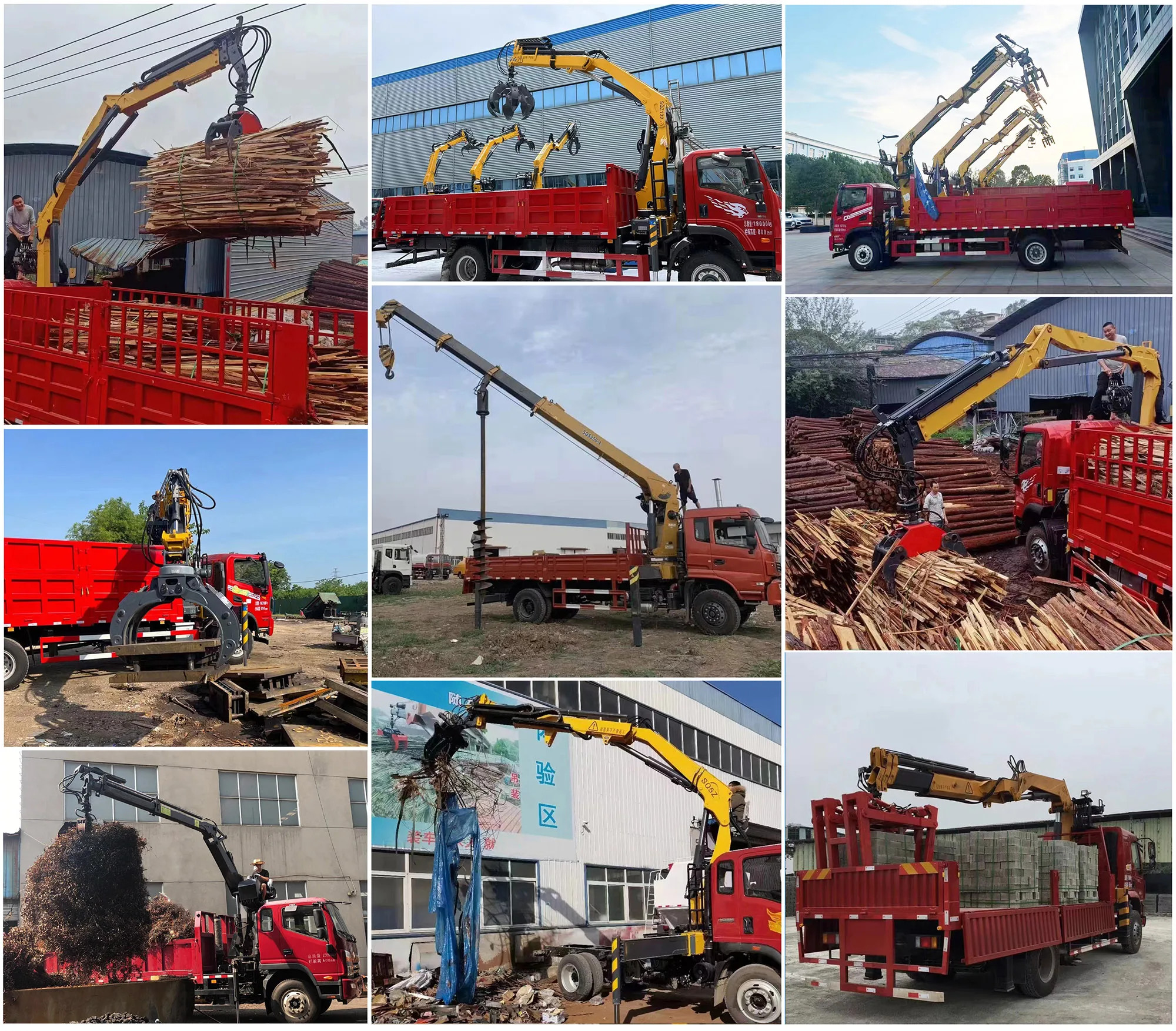

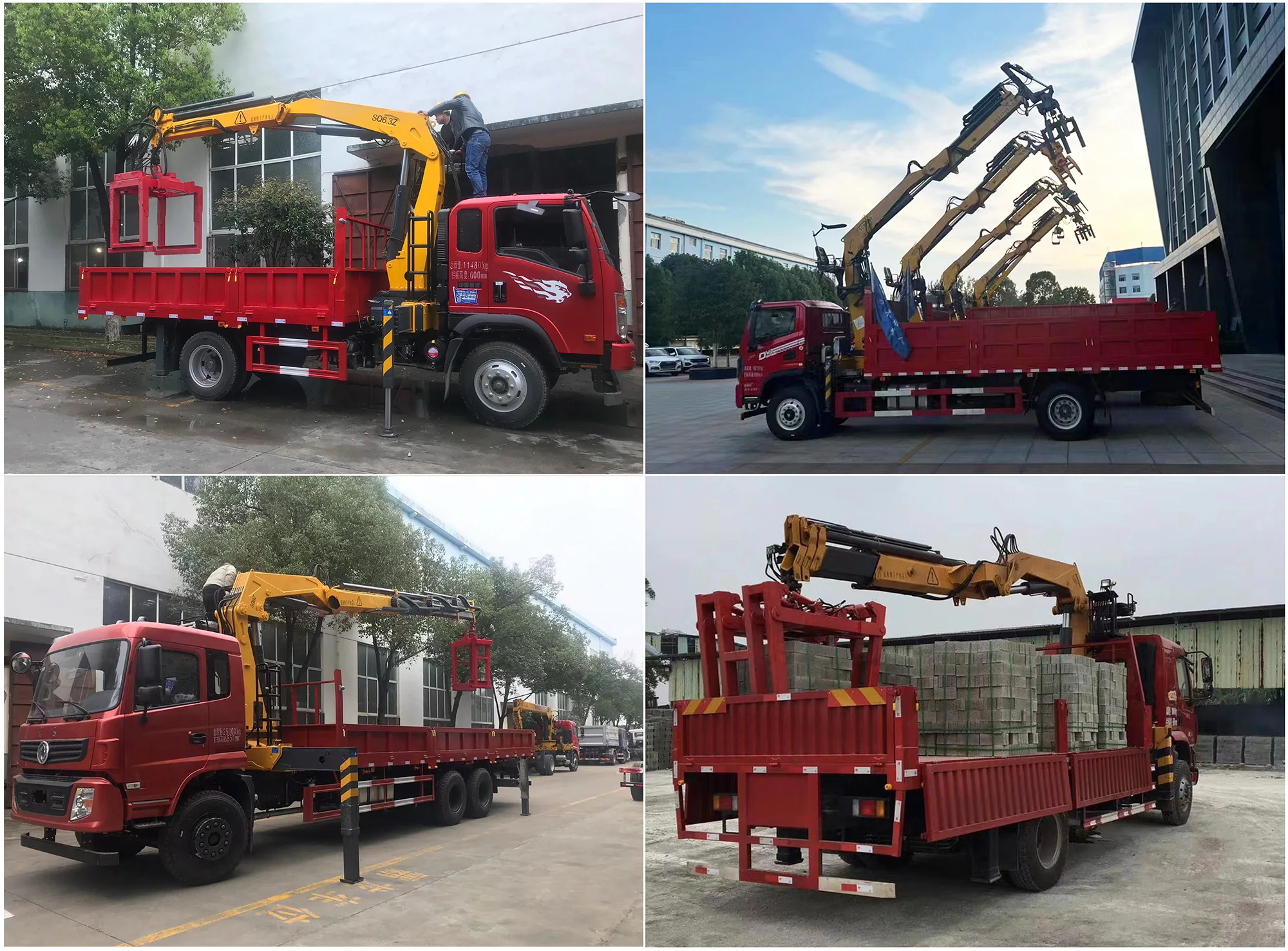

Products Case
Products Recommended
Customer Visit
Company Profile & Certifications
Xuzhou ZORY Construction Machinery Co., Ltd. specializes in designing, developing, and manufacturing truck-mounted cranes, with a focus on innovation and technology. Our product range, spanning over 22579 square meters of factory space, includes the SQ01-SQ55 series of truck-mounted cranes, marine cranes, pickup cranes, and Aerial Working Platforms.
Strict quality control system makes us pass ISO quality management system and CE certificate to ensure our product quality
Now 90% we have been exporting in bulk to EU, America, Africa, Middle east, Southeast Asia and Russia, India, Pakistan and Hong Kong etc. Over 120 countries and regions. Our products are highly praised by foreign clients.
Strict quality control system makes us pass ISO quality management system and CE certificate to ensure our product quality
Now 90% we have been exporting in bulk to EU, America, Africa, Middle east, Southeast Asia and Russia, India, Pakistan and Hong Kong etc. Over 120 countries and regions. Our products are highly praised by foreign clients.

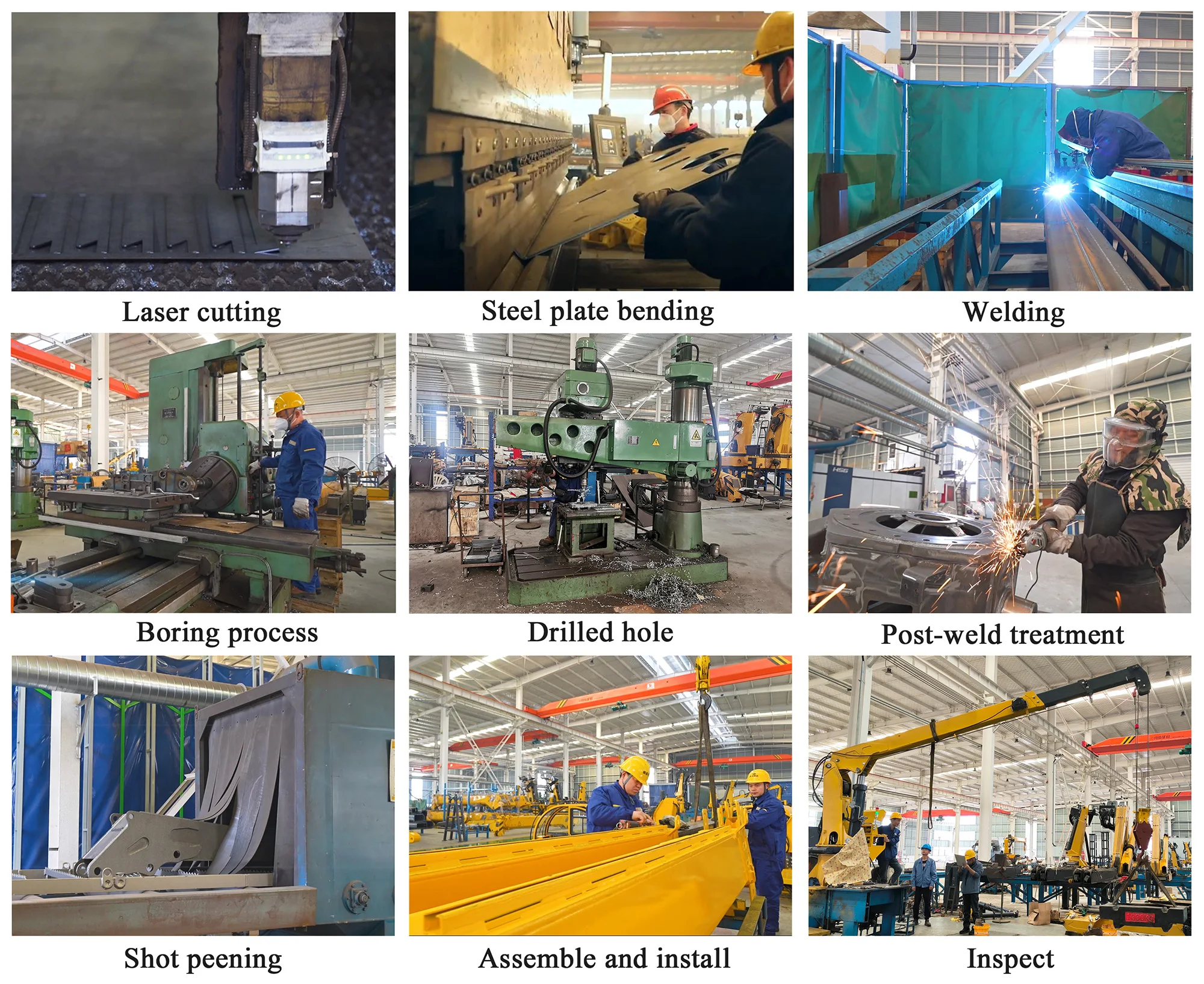

Assembly workshop
Welding Workshop
Bending workshop
Automatic laser cutting workshop
Spray painting workshop
Finished goods workshop

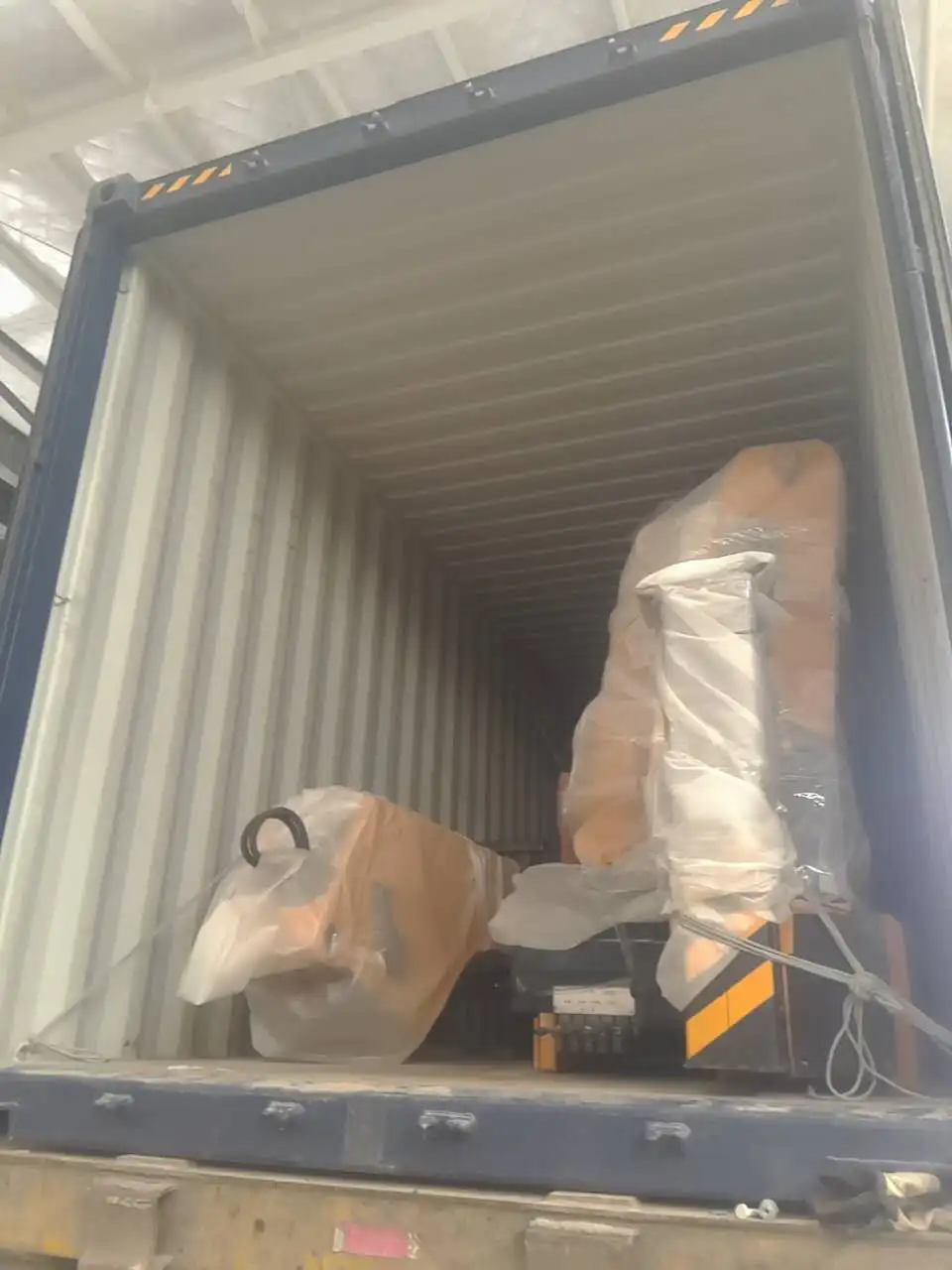

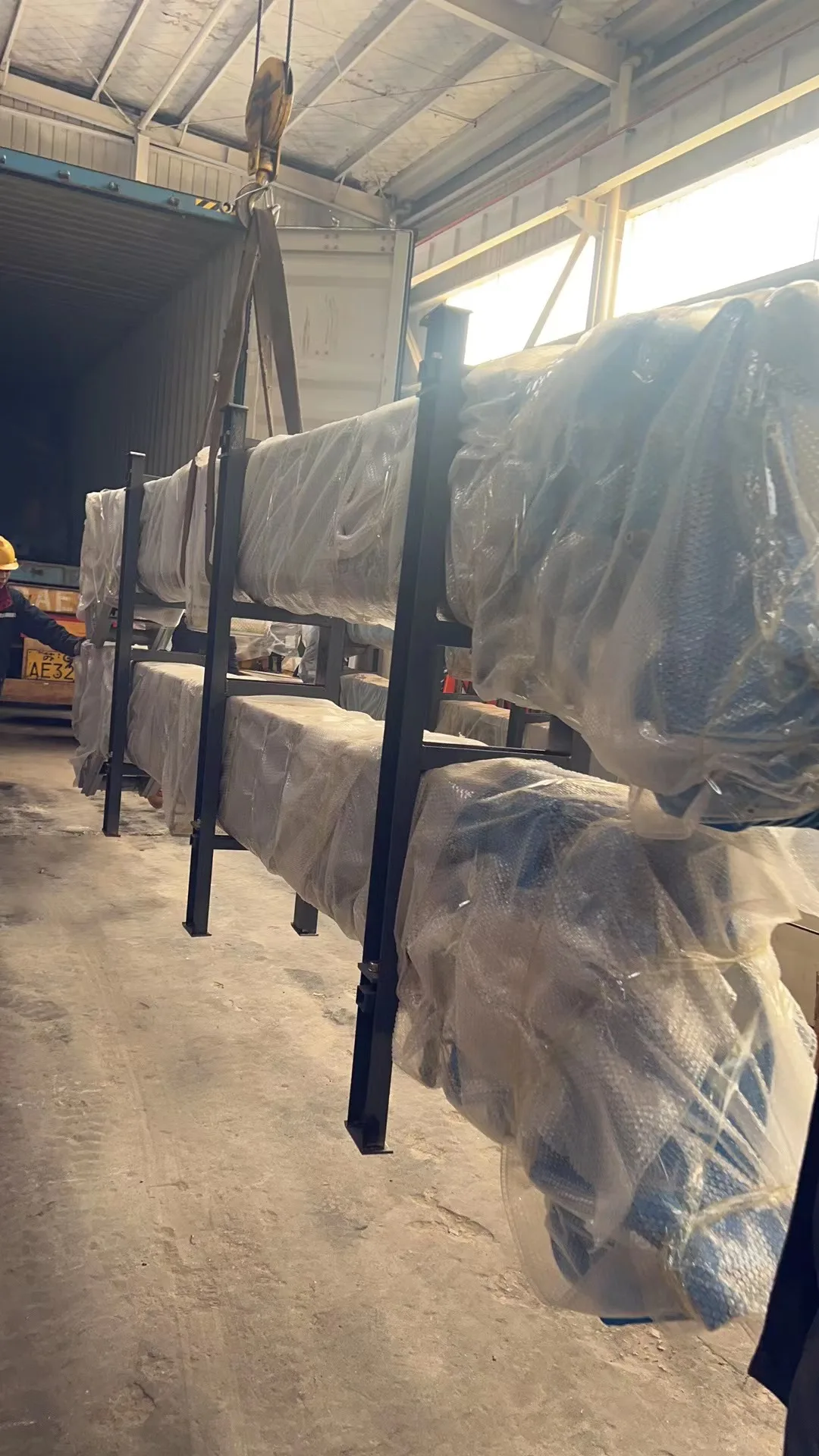

Product packaging & shipping
The transportation route is long, and we use
professional packaging to ensure the safe arrival of the crane
Preventing wear and tear
Wooden cases are packed to prevent collision
Stable transportatin arrived safely
FAQ
1) How many years of your factory?
We have 16 years production and nearly 10 years experience, we exported to more than 50 countries & regions.
2) Which kind of payment you can be accepted?
Normally both of T/T & L/C at sight are ok for us.
3) How about the delivery time?
20-40 working days after received 30% T/T or L/C.
4) What's your warranty?
Normally is 1 year, if large quantities we can negotiate.We will mail the accessories to you for free if have problems within one year.
5) What's your MOQ?
MOQ: 1 set
6) Can you accept OEM service?
Yes for sure my friend.

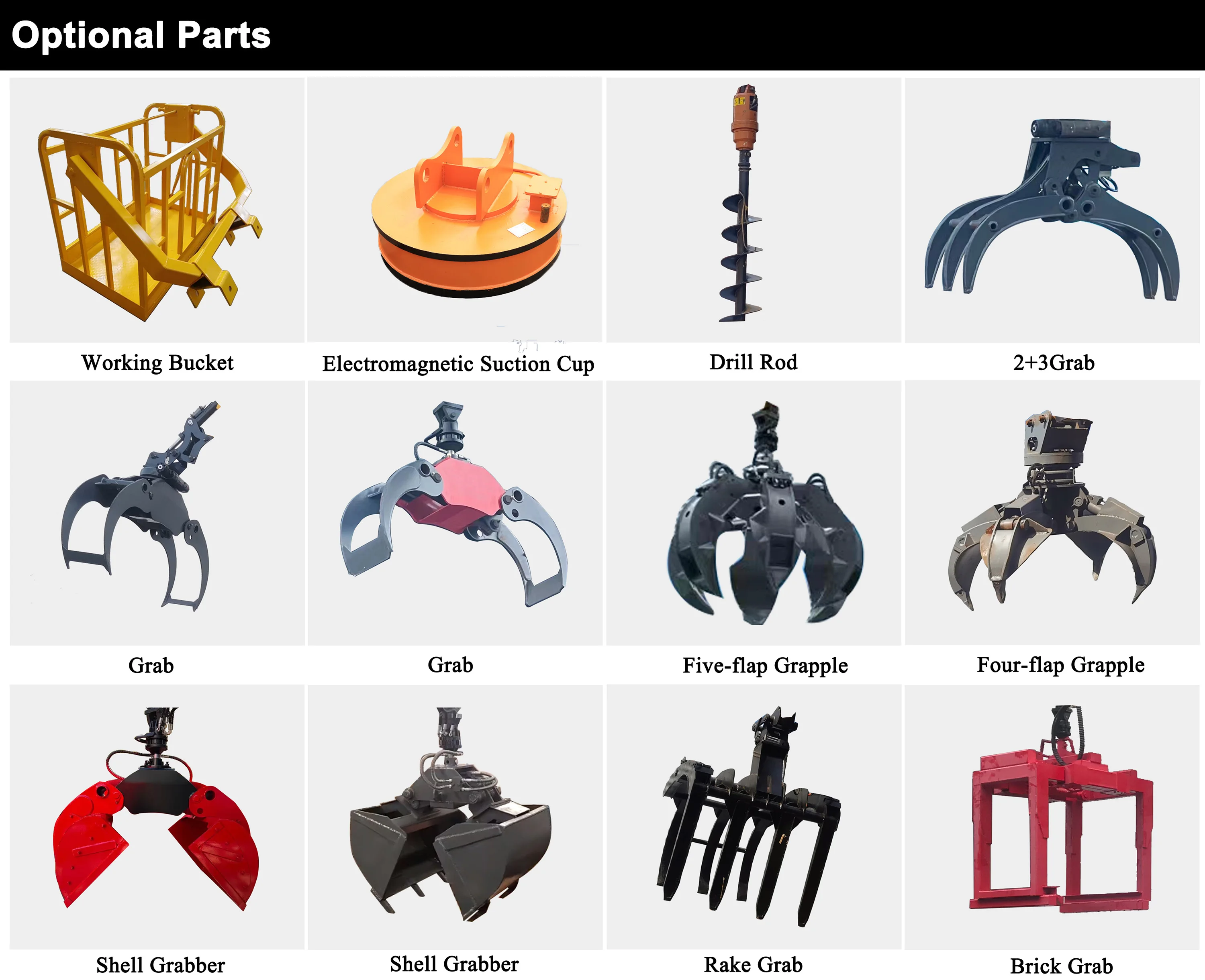

7) Optional Attachment?
Remote Control, Basket, Auger, Grapple, Top Seat, Rear Legs
We have 16 years production and nearly 10 years experience, we exported to more than 50 countries & regions.
2) Which kind of payment you can be accepted?
Normally both of T/T & L/C at sight are ok for us.
3) How about the delivery time?
20-40 working days after received 30% T/T or L/C.
4) What's your warranty?
Normally is 1 year, if large quantities we can negotiate.We will mail the accessories to you for free if have problems within one year.
5) What's your MOQ?
MOQ: 1 set
6) Can you accept OEM service?
Yes for sure my friend.
7) Optional Attachment?
Remote Control, Basket, Auger, Grapple, Top Seat, Rear Legs
