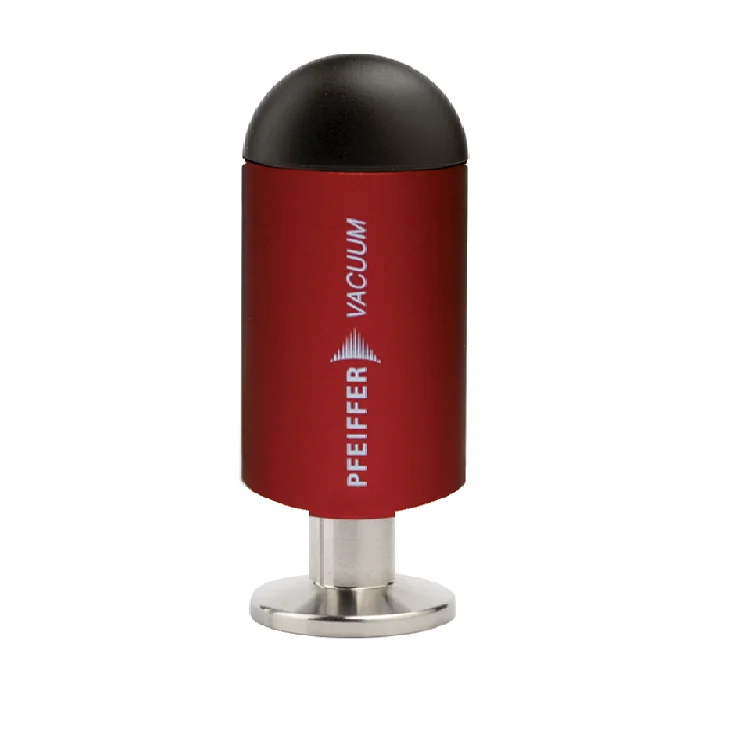

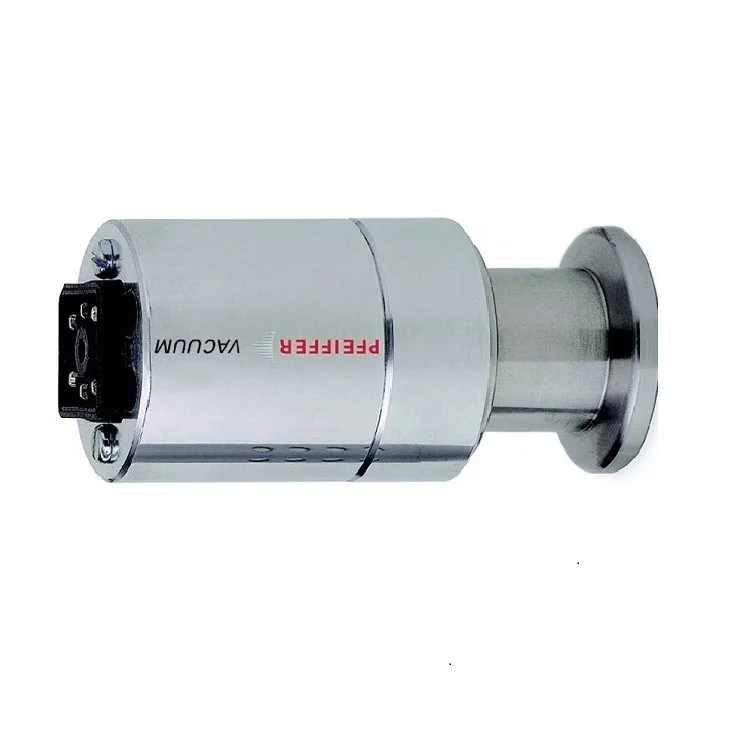

Pirani Vacuum Gauge TPR 280, 80 °C, DN 16 ISO KF PT R26 950 A
- Category: >>>
- Supplier: Xiamen Mibay Technology Co. Ltd.
Share on (1601251083788):
Product Overview
Description
Product information
* Flange size DN 16 ISO-KF
* For general vacuum applications
* Compact and rugged
* Maximum pressure refers to inert gases
* For general vacuum applications
* Compact and rugged
* Maximum pressure refers to inert gases
Product Informatlon vacuum gauge TPR 280
Accuracy of measurement in range 1 | 15%(1E-3 hPa-1E2 hPa) 11.25-75 Torr 15-100 mbar | Ambient temperature | 5-60℃I41-140°F I 278.15-333.15 K | |
Attribute | Stainless steel,metalsealed | Bakeout temperature at the flange | ≤80℃I≤176°F|≤353.15K | |
Connection flange | DN 16 IS0-KF | Feedthrough | Glass | |
Filament | Tungsten | Flange,material | Stainless steel | |
Input voltage(s) | 14-30 V DC | Measurement cable length | 200m | |
Measuring method | Pirani | Measuring range | 1E-4 – 1E3 hPa | 7.5 · 10-5 – 750 Torr | 1 · 10-4 – 1,000 mbar | |
Output signal:Measuring range | 1.5-8.5V | Output signal:Minimum load | 10kQ | |
Power consumption max. | 1 W | Pressure max | 10000 hPa|7,500 TorrI 10,000 mbar | |
Protection degree | IP40 | Repeatability in range 1 | 2%(1E-3 hPa-1E2 hPa)I 1.5-75 Torr I 2-100 mbar | |
Resolution | 1%of reading | Response time | 80 ms | |
Seal | Metal | Volume | 1.5cm³ | |
Weight 80 g | ||||

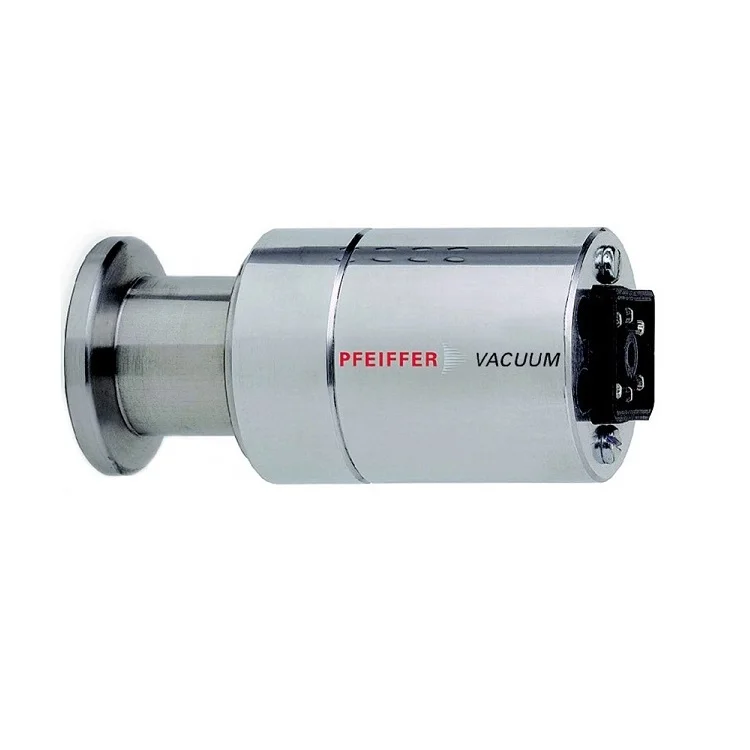

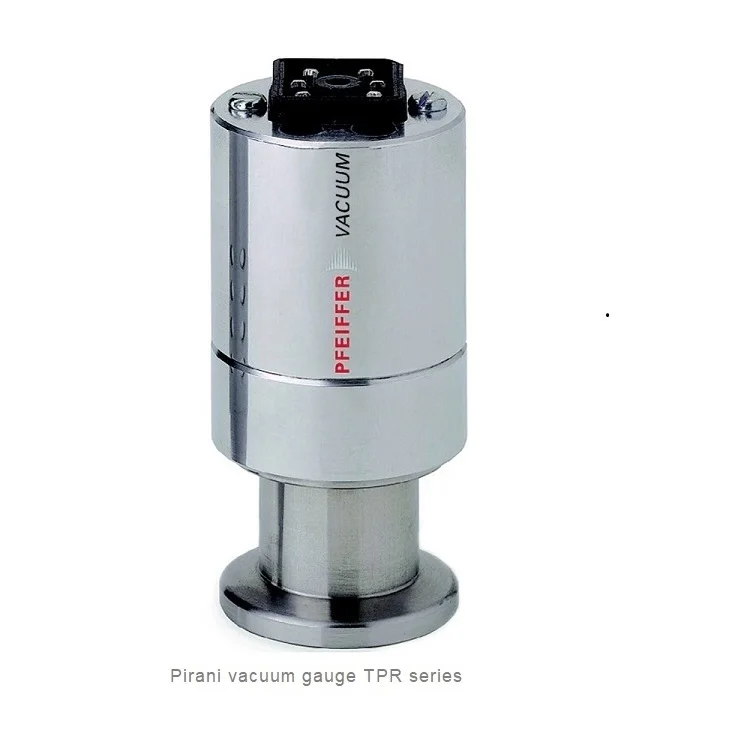

Pirani Vacuum Gauge TPR Series
Product description
Pirani Gauge TPR series measuring range from 1000 hPa to 5 X 10-4 hPa, compact design, easy to use, especially suitable for low
and medium vacuum applications, Pirani Gauge TPR series with a variety of interfaces. Models include vacuum gauge TPR 280, vacuum
gauge TPR 281, vacuum gauge TPR 270, vacuum gauge output analog signal: 0-10V, can be used with vacuum gauge display TPG. Can
assist customers to select and provide perfect after-sales maintenance services.
Pirani Gauge TPR series measuring range from 1000 hPa to 5 X 10-4 hPa, compact design, easy to use, especially suitable for low
and medium vacuum applications, Pirani Gauge TPR series with a variety of interfaces. Models include vacuum gauge TPR 280, vacuum
gauge TPR 281, vacuum gauge TPR 270, vacuum gauge output analog signal: 0-10V, can be used with vacuum gauge display TPG. Can
assist customers to select and provide perfect after-sales maintenance services.

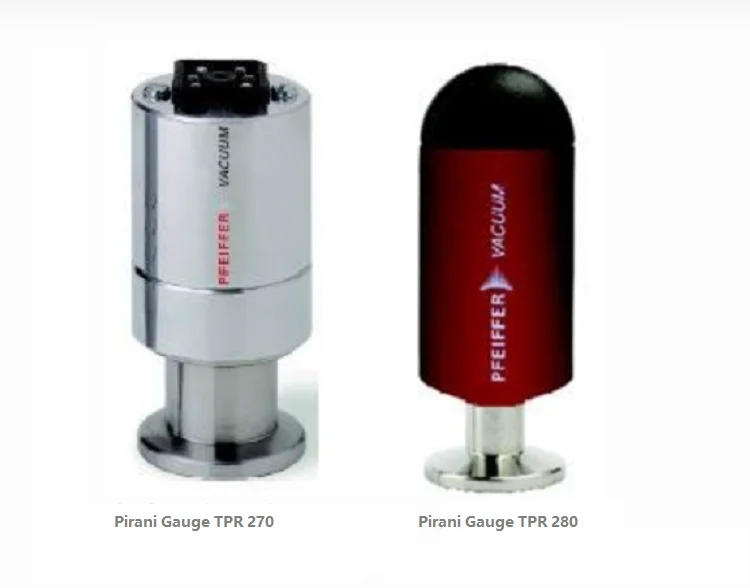

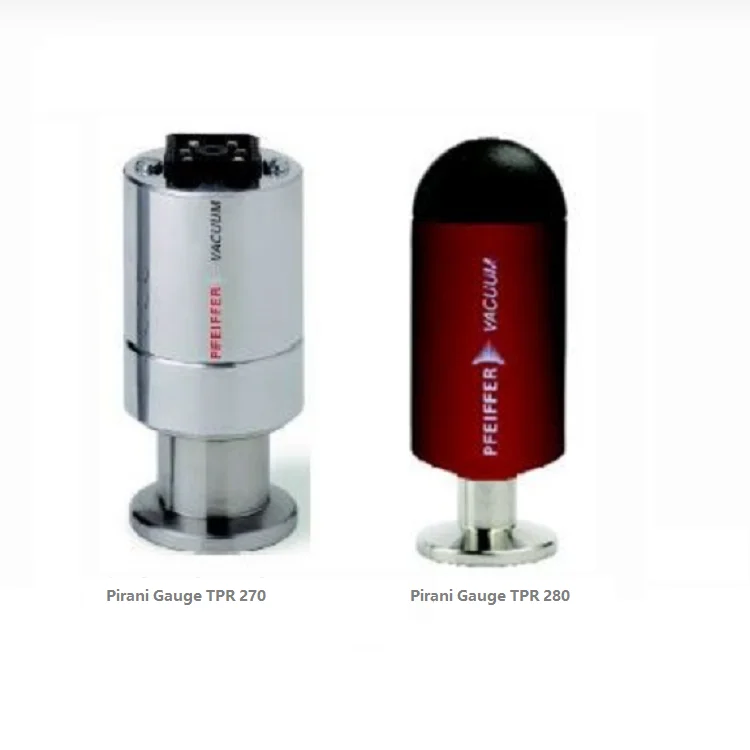

Pirani Vacuum Gauge TPR Series Available Models:
Pirani vacuum gauge TPR 270 DN 16 ISO-KF
Pirani vacuum gauge TPR 270 DN 16 CF-F
Pirani vacuum gauge TPR 271, DN 16 ISO-KF
Pirani vacuum gauge TPR 280 80°C DN 16 ISO-KF
Pirani gauge TPR 280 80°C DN 16 CF-R
Pirani Gauge TPR 280 80°C 1/8" NPT
Pirani Gauge TPR 280 80°C 8 VCR
Pirani vacuum gauge TPR 280 250°C DN 16 ISO-KF
Pirani Gauge TPR 280 250°C DN 16 CF-R
Pirani vacuum gauge TPR 281 80°C DN 16 ISO-KF
Pirani Gauge TPR 281 80°C DN 16 CF-R
Pirani vacuum gauge TPR 281 250°C DN 16 ISO-KF
Pirani gauge TPR 281 250°C DN 16 CF-R
Pirani vacuum gauge TPR 270 DN 16 ISO-KF
Pirani vacuum gauge TPR 270 DN 16 CF-F
Pirani vacuum gauge TPR 271, DN 16 ISO-KF
Pirani vacuum gauge TPR 280 80°C DN 16 ISO-KF
Pirani gauge TPR 280 80°C DN 16 CF-R
Pirani Gauge TPR 280 80°C 1/8" NPT
Pirani Gauge TPR 280 80°C 8 VCR
Pirani vacuum gauge TPR 280 250°C DN 16 ISO-KF
Pirani Gauge TPR 280 250°C DN 16 CF-R
Pirani vacuum gauge TPR 281 80°C DN 16 ISO-KF
Pirani Gauge TPR 281 80°C DN 16 CF-R
Pirani vacuum gauge TPR 281 250°C DN 16 ISO-KF
Pirani gauge TPR 281 250°C DN 16 CF-R
* * Pirani Vacuum Gauge TPR Series Technical Parameters:
Model | Interface | Measuring range hPa of vacuum gauge: | Operating temperature | Vacuum gauge measurement accuracy | Ultimate pressure | Weight g |
TPR 270 | DN 16 ISO-KF DN 16 CF-F | 1X10-4 to1000 | 80 °C | ± 10 % | 400 kPa | 135 |
TPR 271 (corrosion resistant) | DN 16 ISO-KF | 5X10-4 to 1000 | 80 °C | ± 10 % | 1000 hPa | 105 |
TPR 280 | DN 16 ISO-KF DN 16 CF-R 1/8" NPT 8 VCR | 5X10-4 to 1000 | 80 °C | ± 15 % | 1000 kPa | 80 |
TPR 280 | DN 16 ISO-KF DN 16 CF-R | 5X10-4 to 1000 | 250°C | ± 15 % | 1000 kPa | 130 |
TPR 281 (corrosion resistant) | DN 16 ISO-KF DN 16 CF-R | 5X10-4 to 1000 | 80 °C 250°C | ± 15 % | 1000 kPa | 80 |
