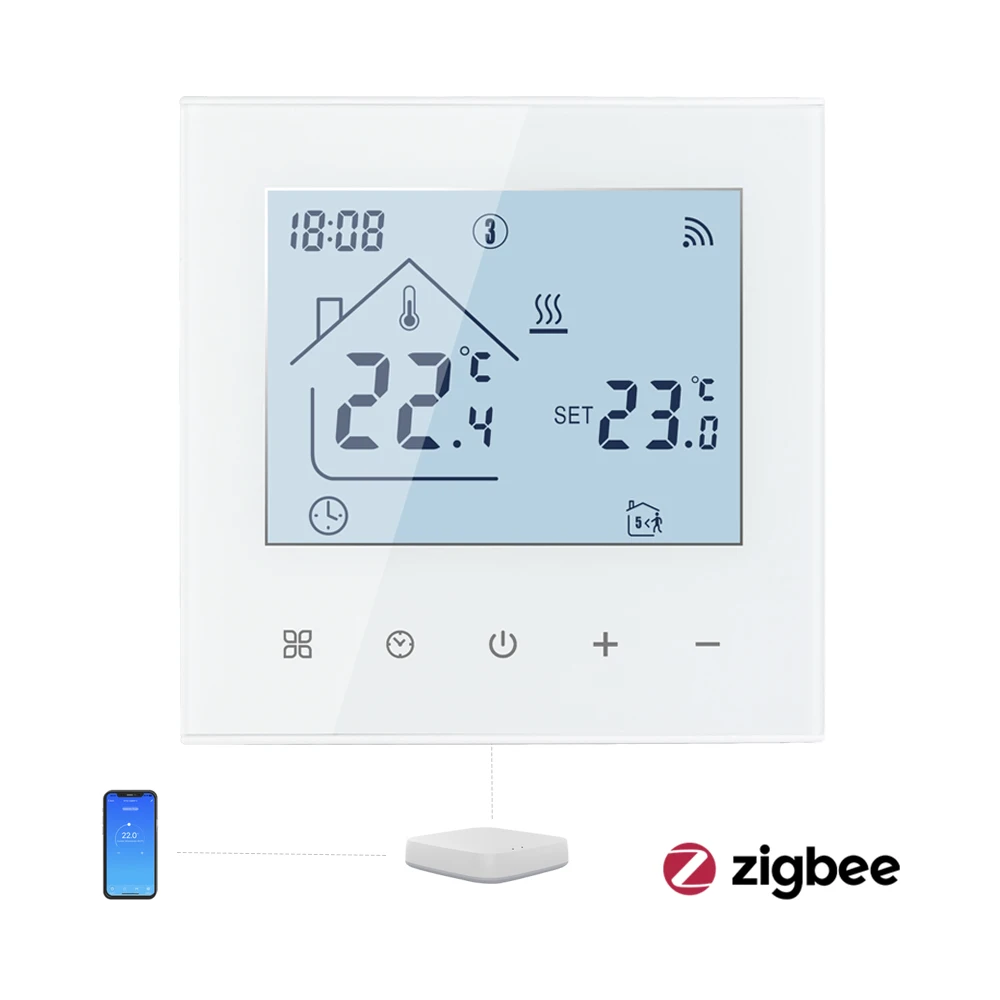

3A water underfloor heating room thermostat Zigbee smart Tuya thermostat for hydraulic water heating system
- Category: >>>
- Supplier: Shanghai Beok Industry Co. Ltd.
Share on (1601251106802):
Product Overview
Description
Product Introduction
TDR89-ZB-WP smart Zigbee thermostat Wifi water underfloor heating floor heating Tuya temperature regulator works with Yandex Alice, Amazon Alexa and Google Home. It has white and black color for option. It is 110-240Vac power supply so it suitable for a wild using range for hydraulic water underfloor heating system.

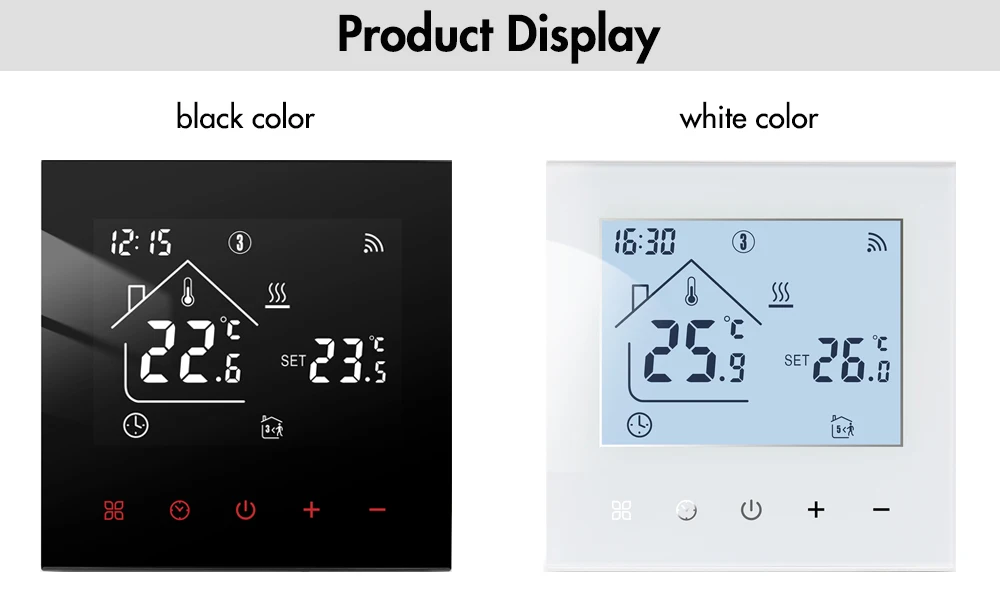

This model has two colors for option, the white and the black,suitable for different house decoration style.
Features | Specifications |
Power Supply | AC110-240 |
Max Current Load | 16Amp for Electrical Floor Heating |
Sensor Type | External Floor Sensor and Internal Air Sensor |
Back Light Adjustable | Yes |
Sensor Type | Floor External Sensor and Air Internal Sensor |
Application | Underfloor Heating System |
Temperature Range | 5~99℃ |
Temperature Accuracy | +/-0.5℃ |
Material | Anti-flammable PC |
Programmable function | 5+2/6+1/7 Weekly Program optional |
Gross Weight | 350g |
Package Include | Thermostat; Screws; 3m Floor Sensor; Manual |
Warranty | 24 months |

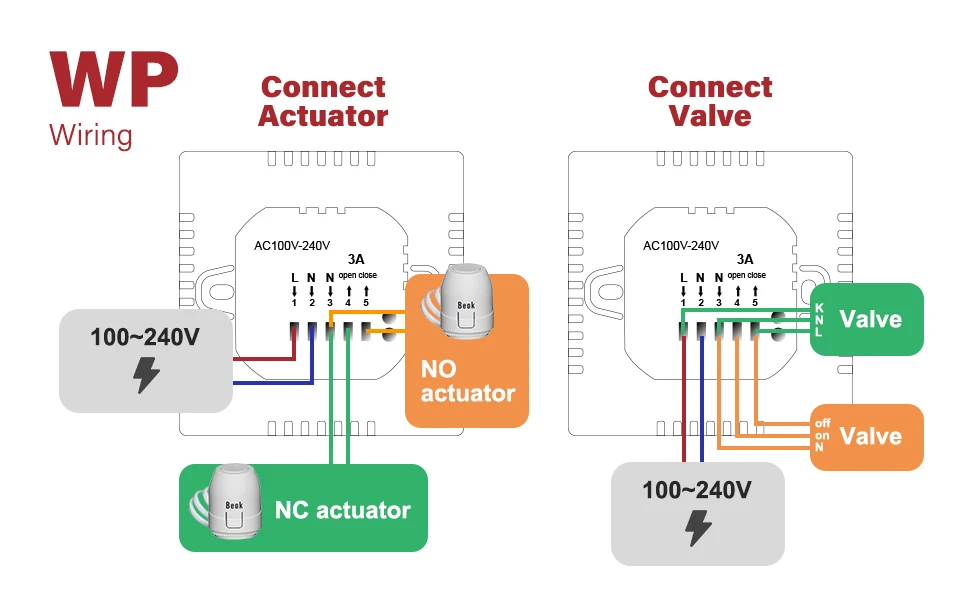

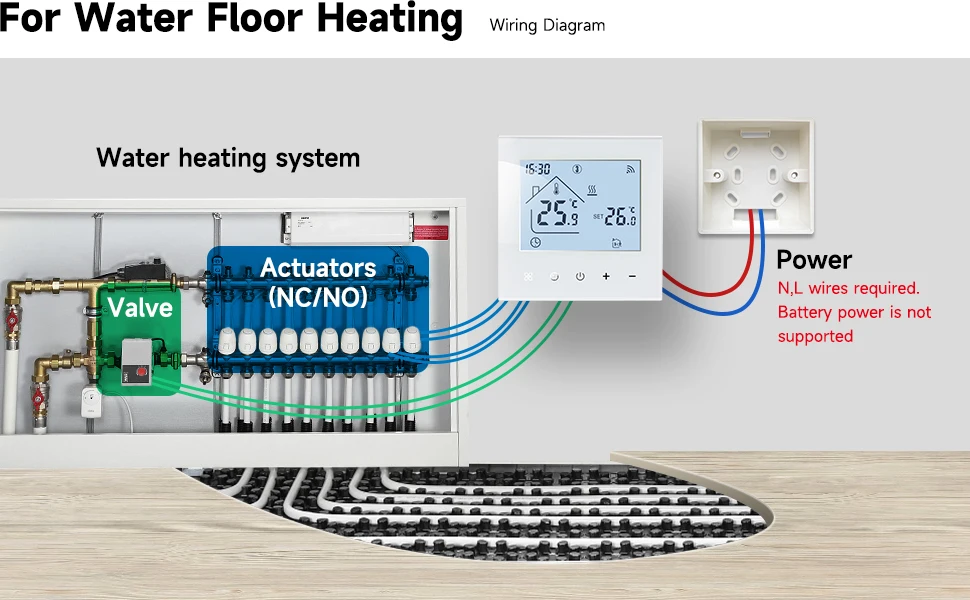

Wire Connection
TDR89-ZB-WP is 3Amp water floor heating room thermostat, it use to control thermal actuators and valves for hydraulic water heating system. And it can control normally opened and normally closed type electric thermal actuators. The specific wire connect way is on above.
Main Functions
1. Work with Zigbee gateway hub
2. Tuya App remote control
3.Google Home, Amazon Alex Voice Control
4. Programmable Function

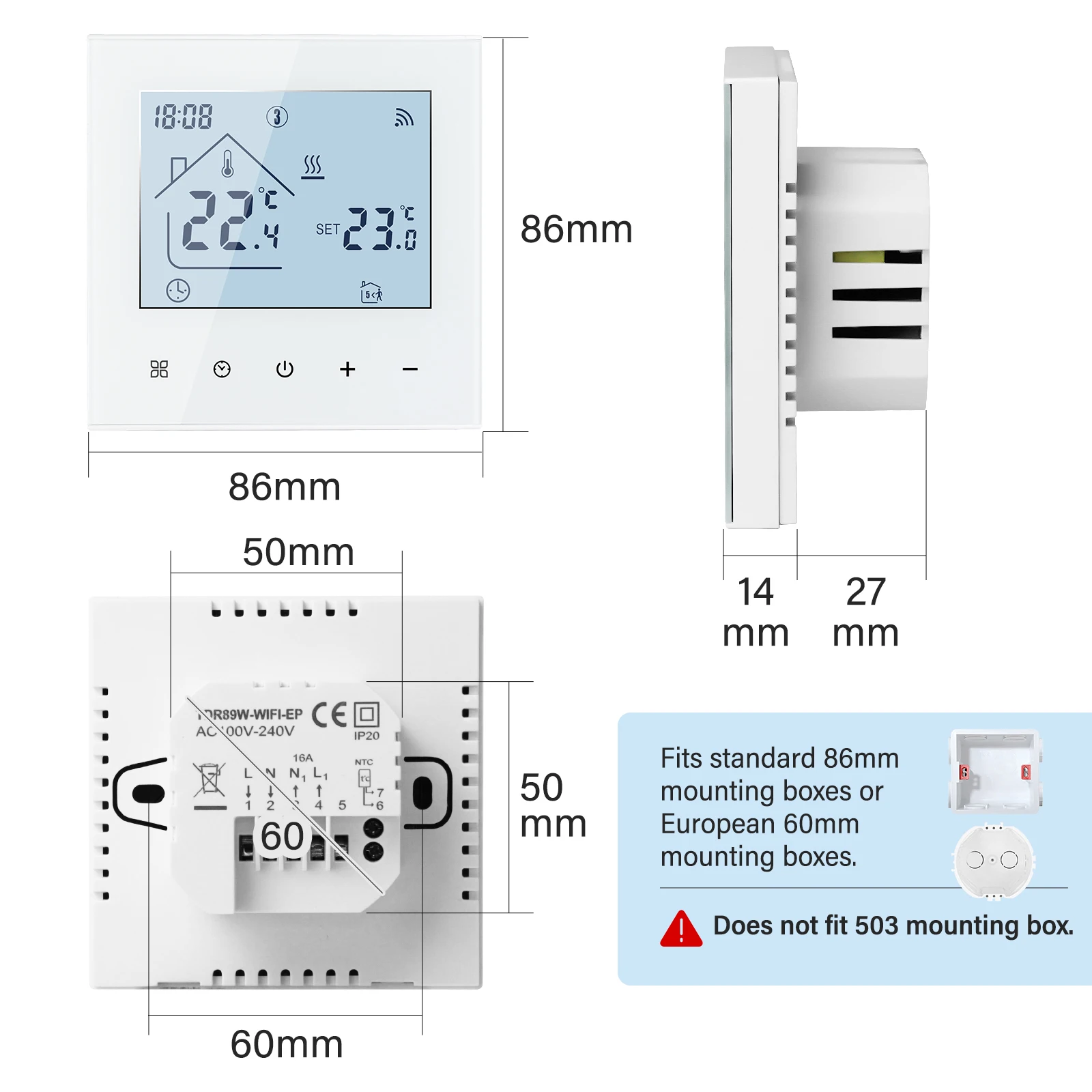

Dimension
OEM & ODM Service
About BEOK
Certification
Exhibition
Package and Transportation
FAQ
About OEM
Except our own brand "Beok", we can also supply the OEM service to our customers.To meet your need,we can print your Logo or Design on thermostat.
For big quantity order, OEM service ,User Manual, Inner Packing Box are all Free
About Samples
1. For our own brand "Beok"
We'll deliver the goods in 2 days after we confirm the payment, and normally 4 to 7 days will arrive at your place.
2. For the samples of your own Logo or design/ OEM
For big quantity OEM order, we will provide you samples according to your requirements. After you confirm samples, we will start mass production. The samples and shipping cost are paid by us!!!
About MOQ
1. For Thermostats, our MOQ is 50pcs. Because 50pcs thermostats are packed into one cartion.
2. For Actuators, our MOQ is 100pcs. Because 100pcs actuators are packed into one carton.
Retail is also available, because we have a retail online store. Ali-express, Amazon..
If you would like a trail order, and quantity is less than MOQ, you can contact with us, we will arrange service.
About Payment
T/T is the common payment way. If you like, Paypal, Western Union, and MoneyGram is also available.
About Lead Time
For normal order:
If quantity is less than 1000pcs, the lead time is about 10-12 working days after your payment;
If quantity is more than 1000pcs, the lead time is about 15-25 working days after your payment.
For OEM order:
The lead time is about 15-25 working days after your payment.
About Shipment
For samples/ Trail order less than 100pcs, we suggest you choose EXPRESS delivery. DHL, FEDEX, TNT, UPS, EMS, ePacket are available.
For large order, we suggest you choose shippment by sea, or by air.
If you have special shippment requirements, just tell us.
About Grantee
1. We offer the warranty of 24 months since the sales day.
2. Durrant the warraty, if belong to the quality issue, we will fix or replace them for you by free after test them. If it is not
the problem of quality or beyond the warranty time, we will charge for the after-sale service.
