high strength aramid fabric 1414 para aramid fiber fabric
- Category: >>>
- Supplier: Zhangjiagang City Yudun Special Fiber Co. Ltd.
Share on (1601251110831):
Product Overview
Description
Introduction:

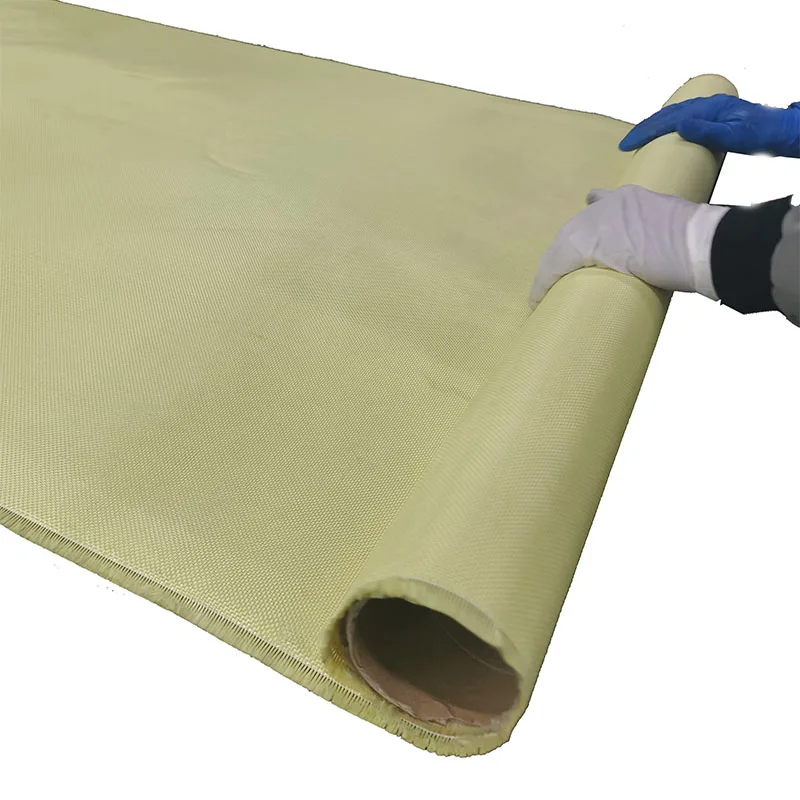

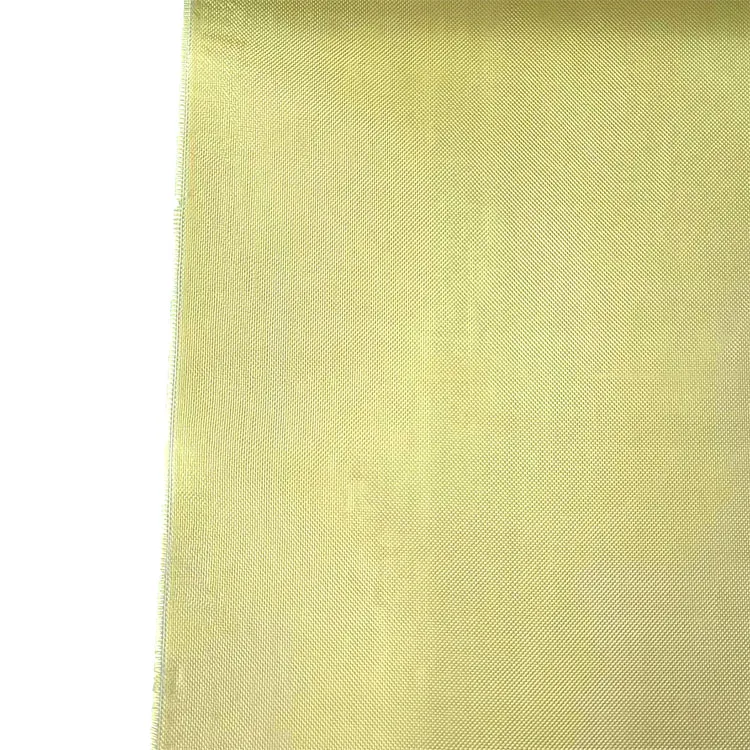

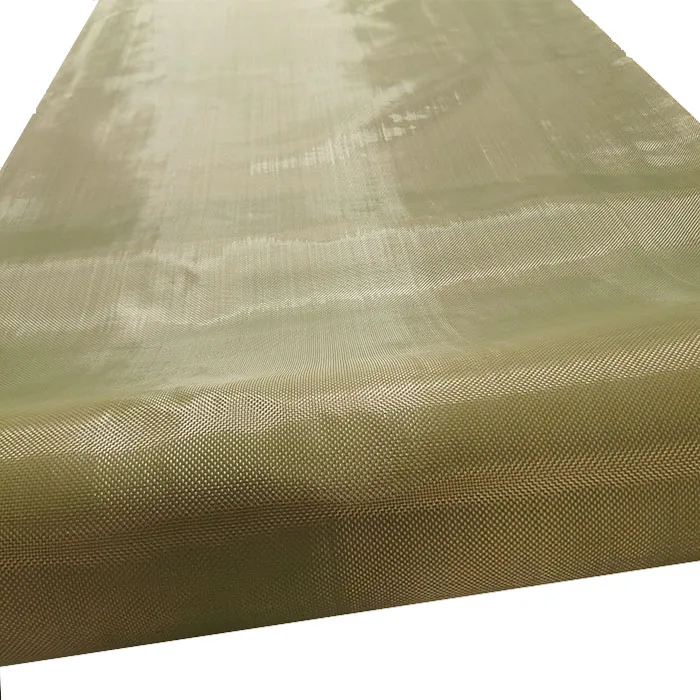

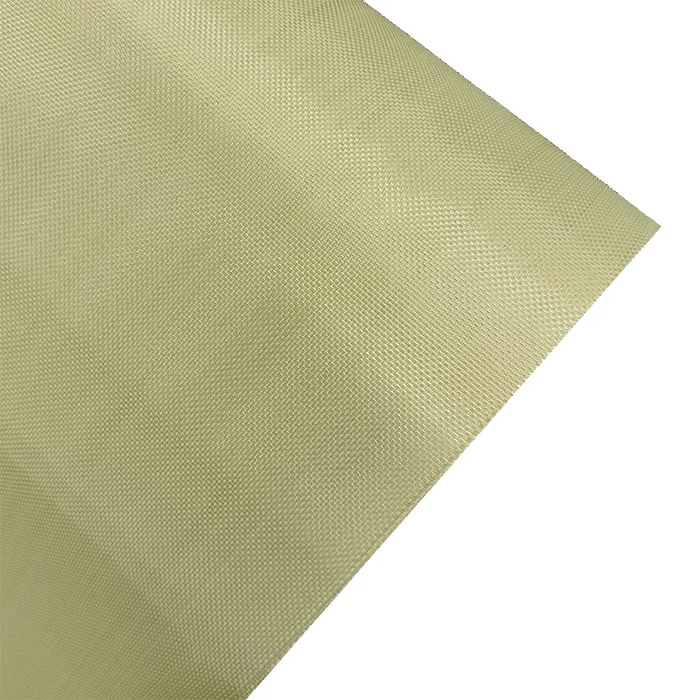

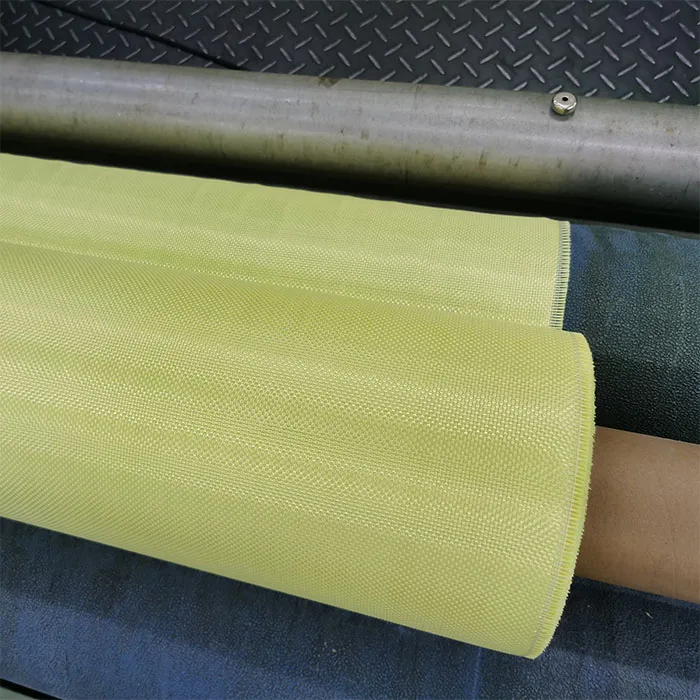

1. Aramid Fabric is plain woven from continuous aramid fiber yarn, which can be custom made to twill weave cloth and uni-directional cloth. It is mainly applied in the insulation, aerospace and construction fields.
2. Aramid fabric is one of the most commonly used composite materials, it has many outstanding characteristics, high toughness, high tearing strength, flame resistant, heat resistant, and shock-absorbing.
Performance and characteristics
High strength: 23-26D/G, the strength is 6 times that of ordinary fibers,
High temperature resistance: The long-term use temperature is 220 degrees, and it will not burn in case of fire. The maximum temperature resistance is 550 degrees, and it will not decompose or melt.
High wear resistance: excellent wear resistance, aging resistance. longer life
Acid and alkali resistance: acid and alkali resistance, not easy to corrode
main specifications:
Commodity | Aramid woven fabric | Aramid woven fabric | Aramid woven fabric |
Model | YD1000/200 | YD1000/220 | YD1500/410 |
structure | Plain /twill | Plain /twill | Plain /twill |
Denier(D) | Warp 1000 | Warp 1000 | Warp 1500 |
| Weft 1000 | Weft 1000 | Weft 1500 |
Yarn type | Warp TF100 | Warp TF100 | Warp TF100 |
| Weft TF100 | Weft TF100 | Weft TF100 |
Yarn count (per10cm) | Warp(S) 85 | Warp(S) 96 | Warp(S) 124 |
| Weft(S) 85 | Weft(S) 96 | Weft(S) 124 |
Breaking strength (N/5cm) | Warp ≥6500 | Warp ≥7100 | Warp ≥13500 |
| Weft ≥6500 | Weft ≥7100 | Weft ≥13500 |
Gram weight(gsm) | 200g | 220gsm | 410g |
Provide tailoring:

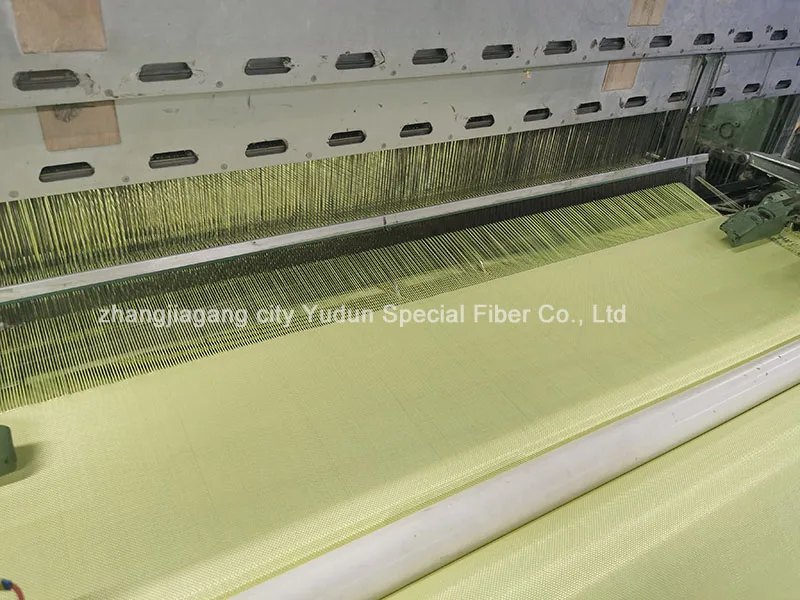

prodution processing:

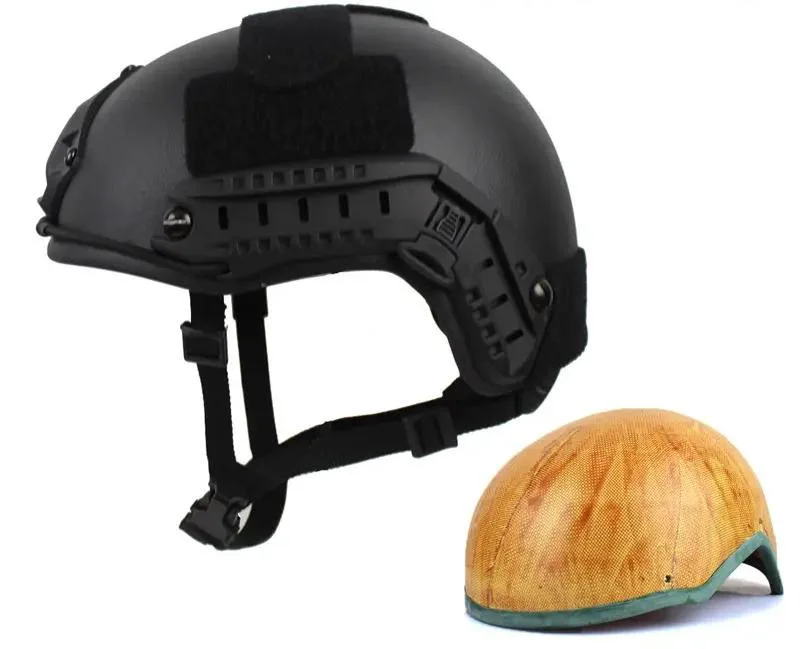

main application:
Company introduction
FAQ
Q: Are you trading company or manufacturer factory?
A:we are factory.
Q: Do you provide sample? How long it takes?
A: Sample can be provided.
Delivery time: regular item in stock can be delivered in 3 days.Customize samples takes about 10-20days based on different quantity and requires .
Q:What’s your terms of payment?
A: EXW, FOB, CIF payment terms etc.We usually accept 30% prepayment and the balance before shipment
