Simple Operation Printing Machine For Latex Balloon / Foil Balloon Printing Machine / Latex Balloon Machine



Product Description





1.Microcomputer control each function action, easy to operate, five automatic counter.


2.All pneumatic components using well-known brands, to ensure the quality of the machine.


3.The front and rear scraping oil cylinder + linear bearing drive, to ensure smooth and smooth running.


4.Screen lifting using cylinder + guide column drive.


5.The table adopts four-station design, rotate a station every 90 degrees, automatic blowing, balloon blowing size can be adjusted.


6.Oil-free three-point combination does not produce exhaust oil fog pollution, suitable for clean room use.


7.It can be customized according to customer requirements, to meet different requirements.





Technical Parameters

























































Model



HT-QQ1515



Printing table size



200*200mm



Printing area size



150*150mm



Printing screen frame size



300*400mm



Printed balloon diameter



200mm



Machine size



1030*520*1250mm



Fastest printing speed (full speed)



600pcs/h



Voltage



220V 50Hz single phase



Air pressure



5~6kgf/cm²



Power



100W



Control method



Microcomputer control



Net Weight



60kg

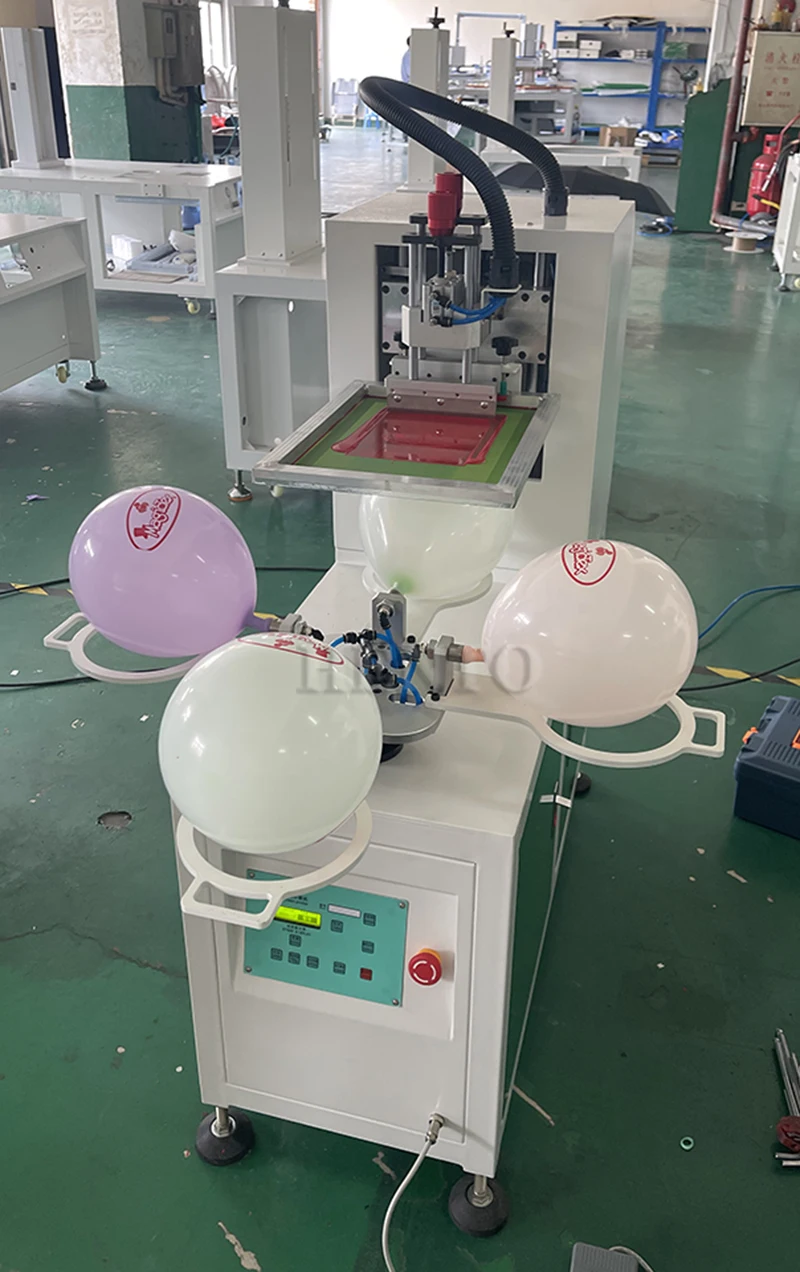

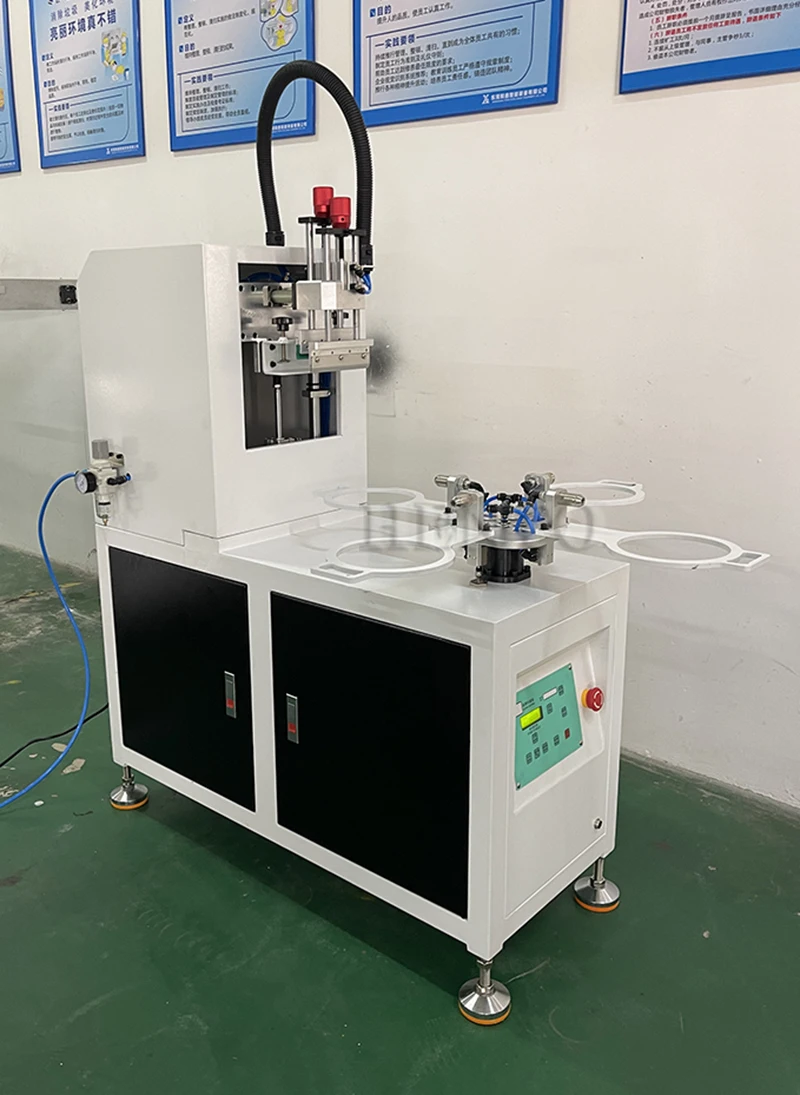

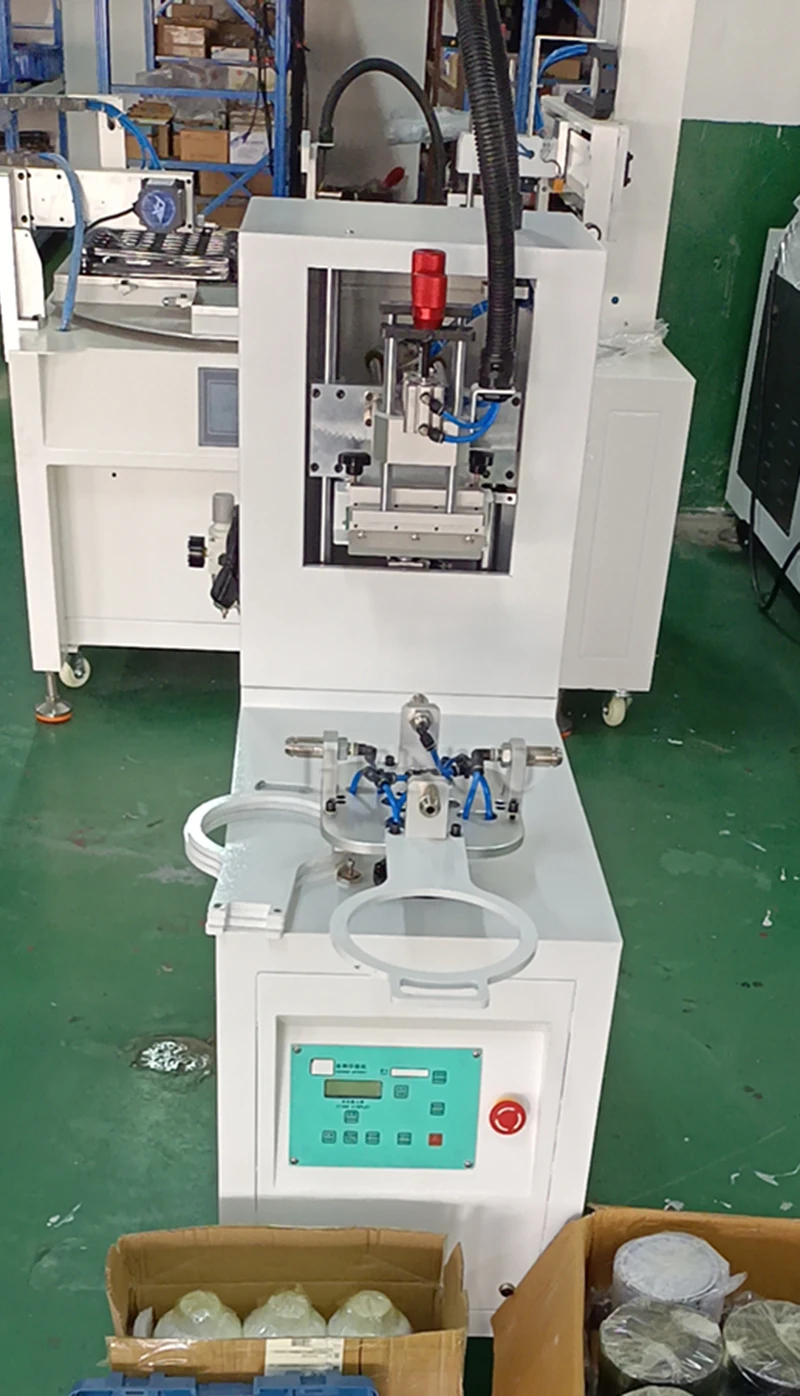

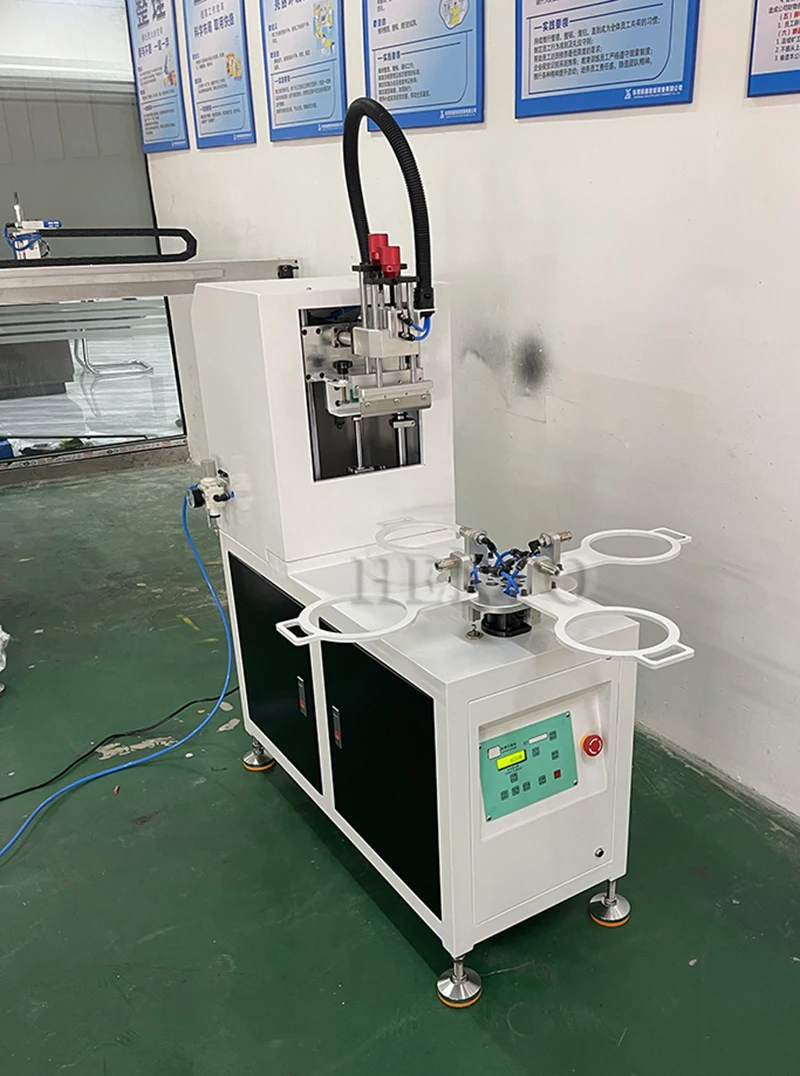

Pictures of Product


 HENTO (6)HENTO (11)HENTOHENTO (9)HENTO (10)





Packaging & Shipping


HENTO1 (7)





Company Certificates


HENTO





Our Customer


HENTO- (2)HENTO- (4)





Contact us


If you need further information, please contact us freely, we will do our best to cooperate with you.
