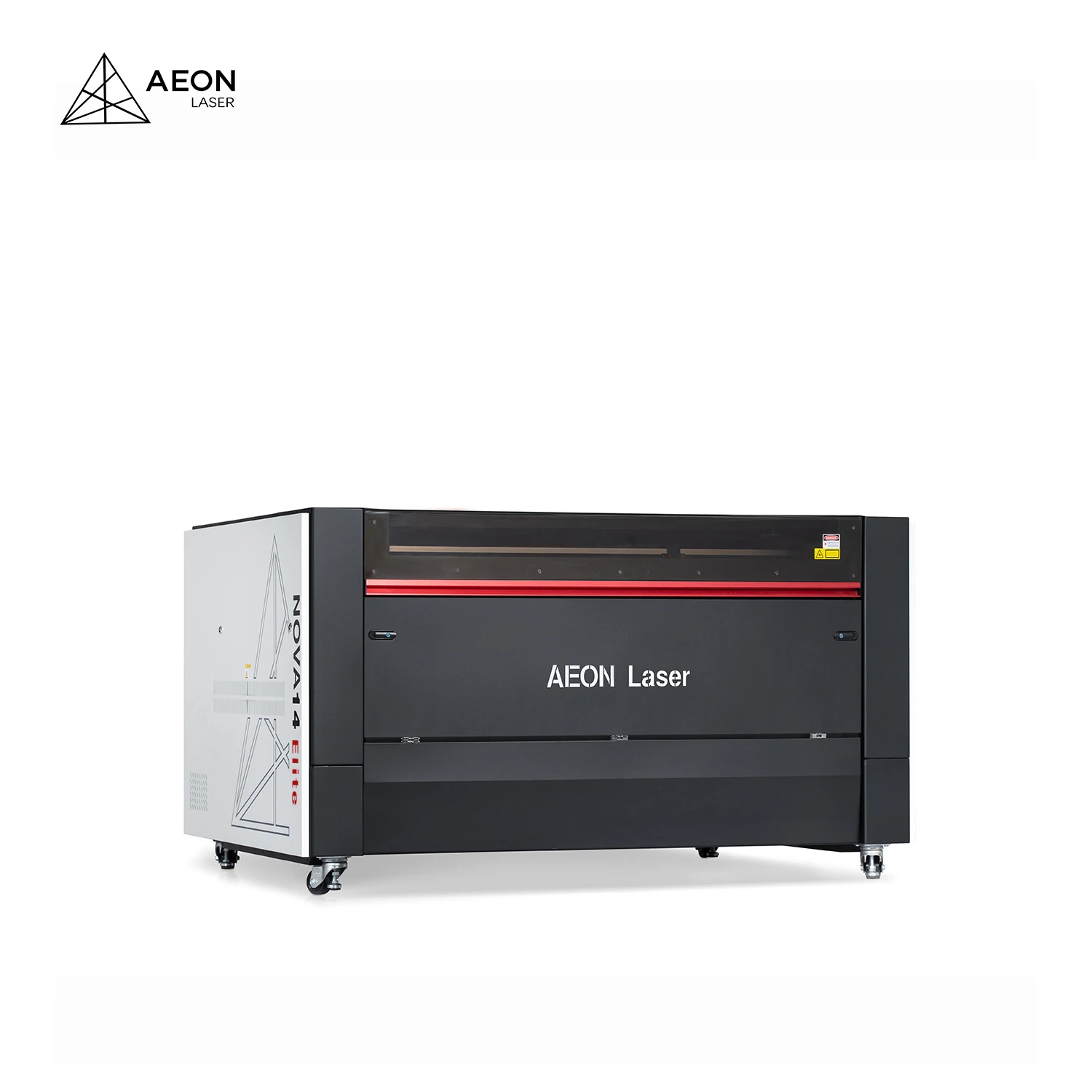

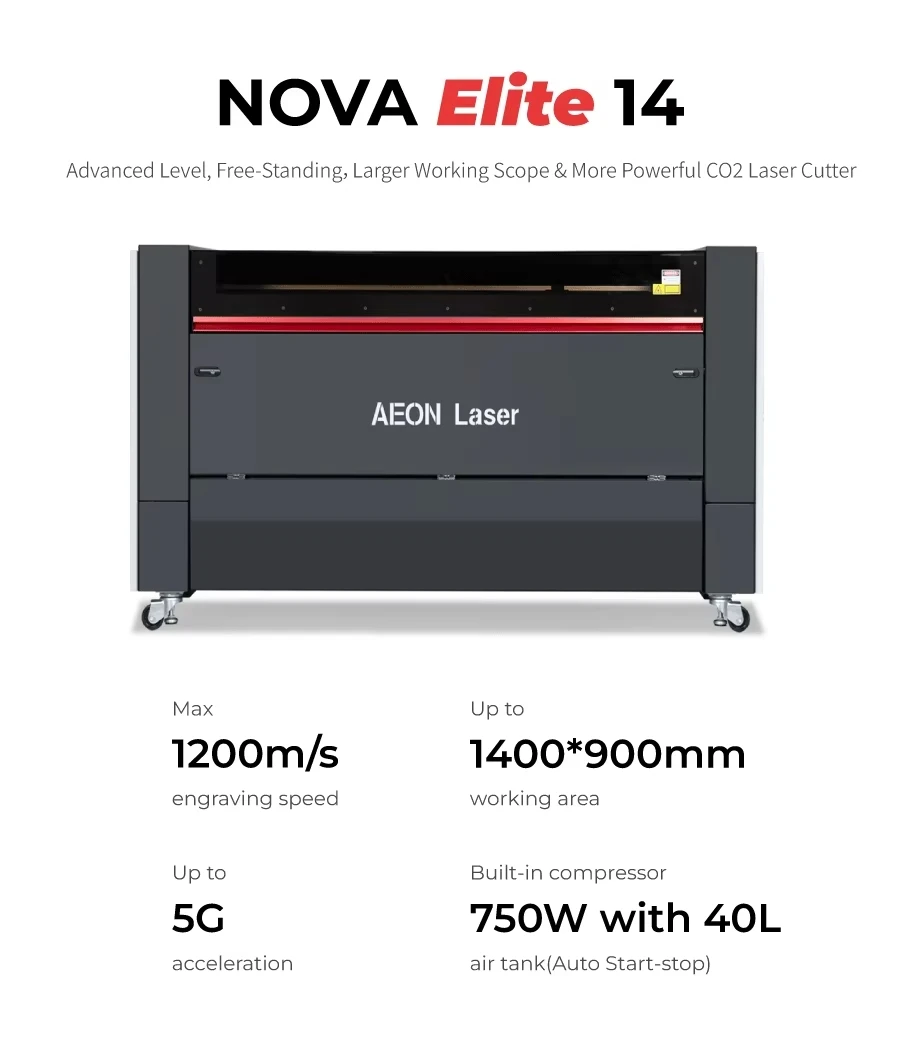

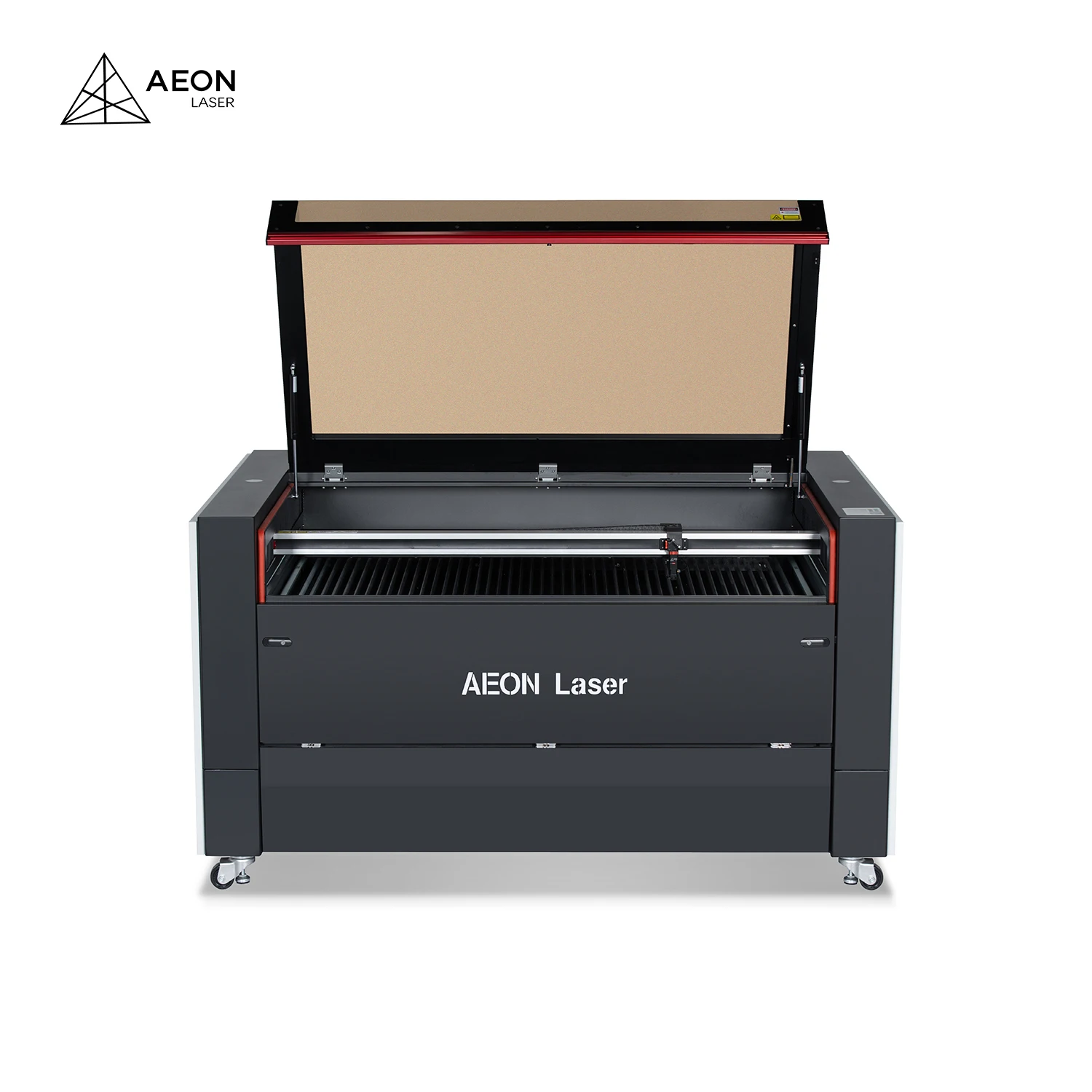

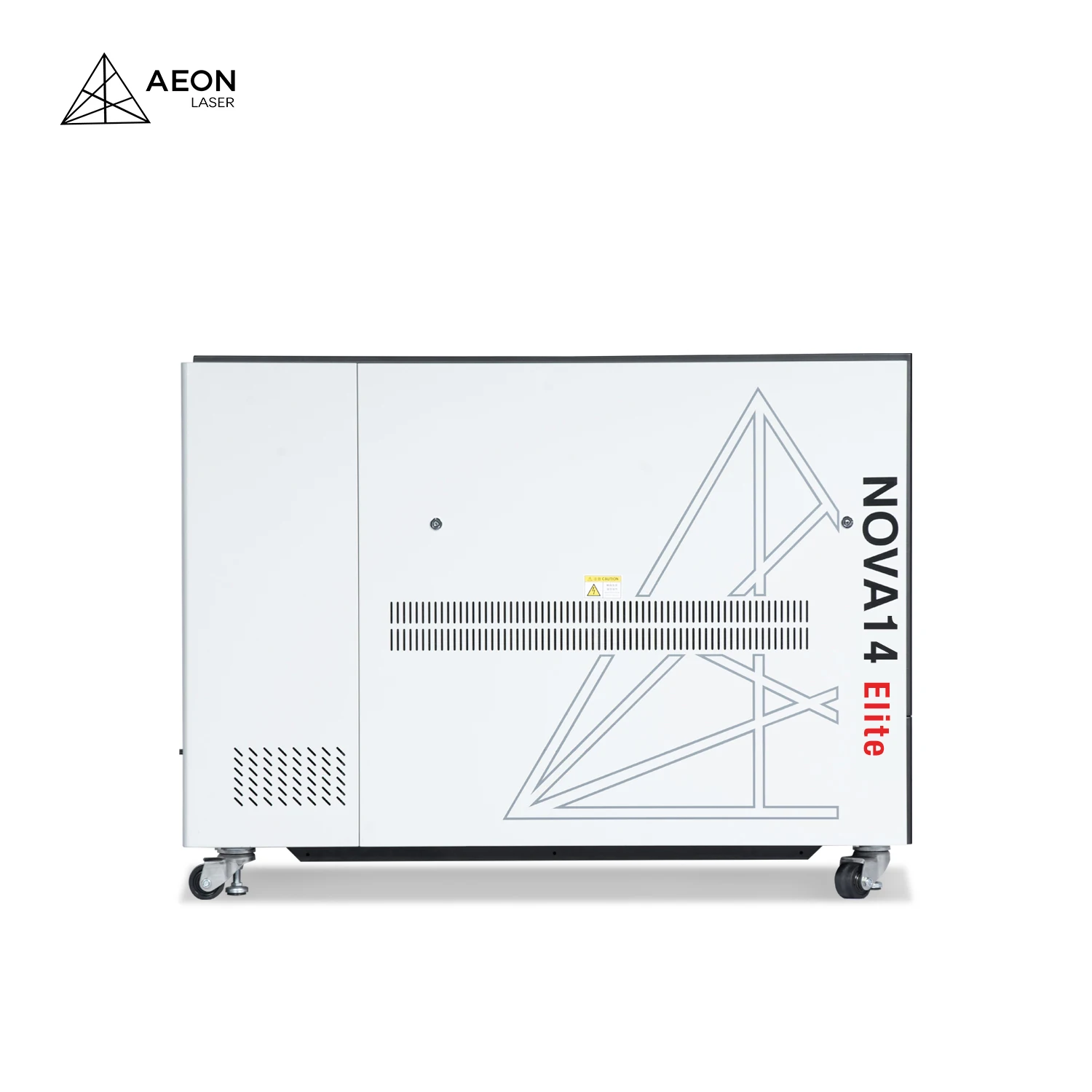

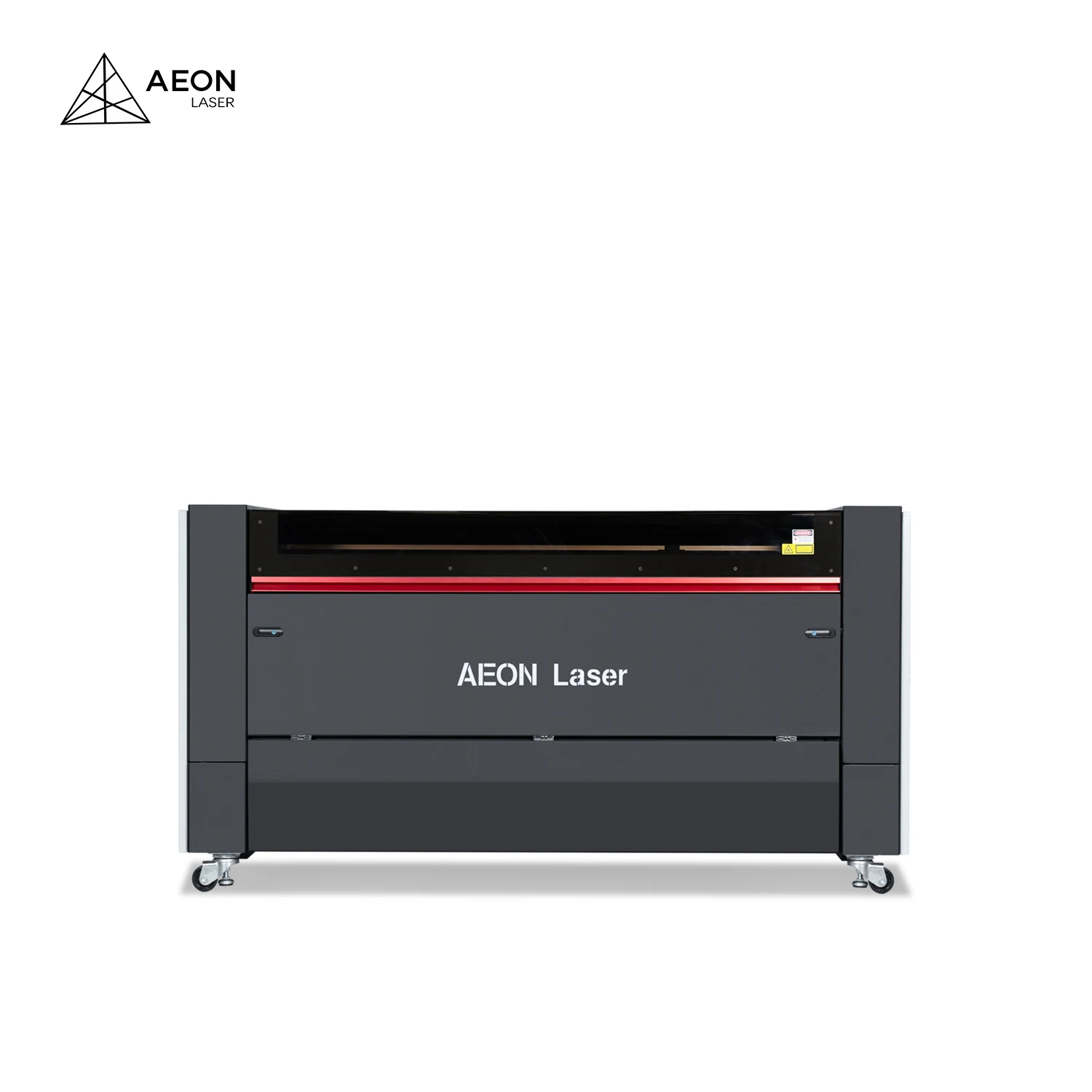

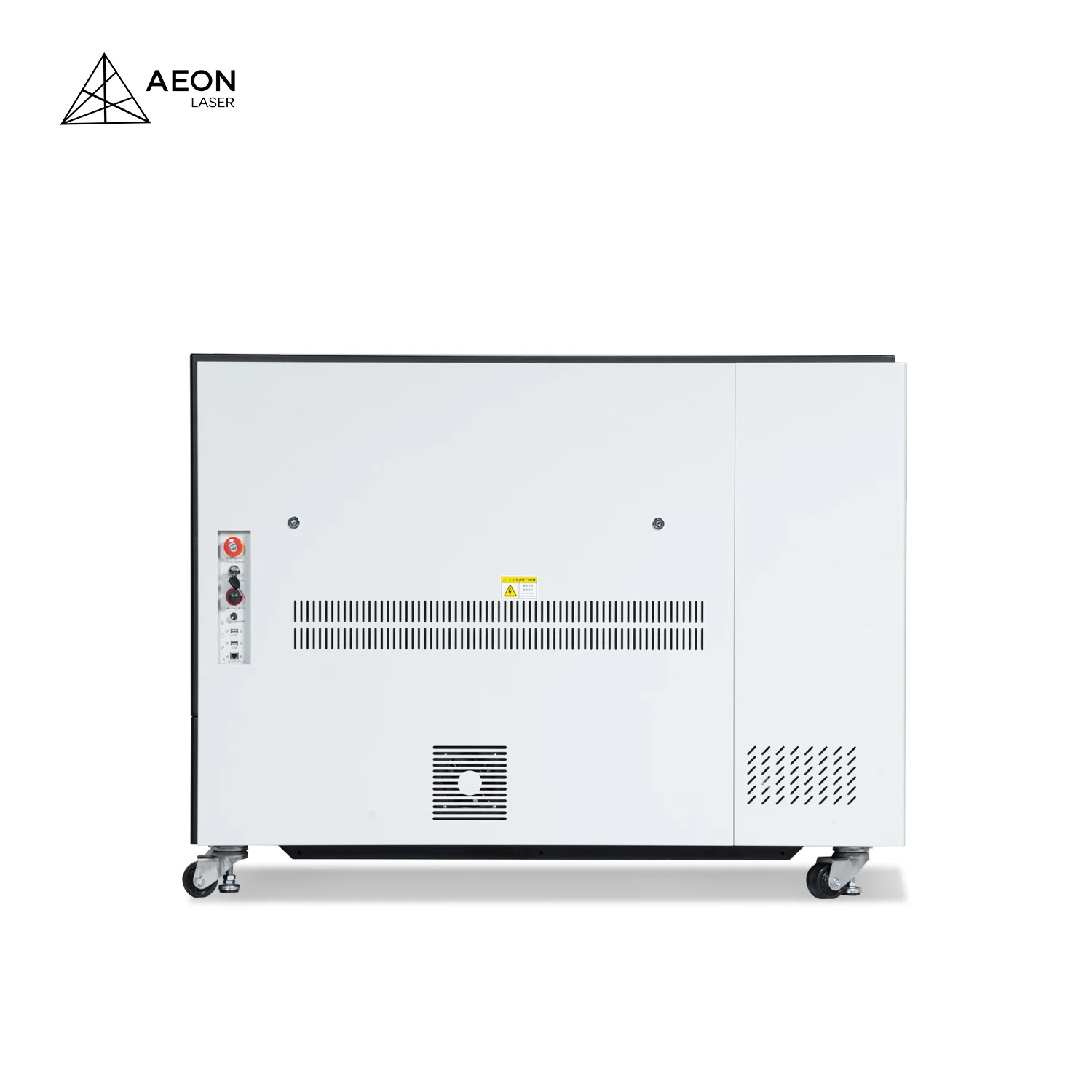

Smart system NOVA Elite14 1490 90W 100w 130w 1400*900 co2 laser with camera
- Category: >>>
- Supplier: Suzhou Aeon Laser Technology Co. Ltd.Suzhou Ltd.
Share on (1601251326823):
Product Overview
Description
Parameters | Model | Nova10 Super/Elite | Nova14 Super/Elite | Nova16 Super/Elite | |||
Working Area (mm) | 1000*700mm | 1400*900mm | 1600*1000mm | ||||
Z Axis Lifting Space | 200mm | 200mm | 200mm | ||||
Max Lifting Capacity | 120KG | 120KG | 120KG | ||||
RF: 30W/60W | Glass:90W/100W/130W RF: 30W/60W | RF: 30W/60W | |||||
Max Engraving Speed | 4000mm/s (Super) 1200mm/s (Elite) | 4200mm/s (Super) 1200mm/s (Elite) | 4200mm/s (Super) 1200mm/s (Elite) | ||||
Acceleration | 8G (Super) 5G (Elite) | 8G (Super) 5G (Elite) | 8G (Super) 5G (Elite) | ||||
Accuracy | Minimum Font Size(RF Tube) | 1.0x1.0mm | 1.0x1.0mm | 1.0x1.0mm | |||
Positioning Accuracy | <=0.1mm | <=0.1mm | <=0.1mm | ||||
Configuration | Working Table | Honeycomb + Blade table | Honeycomb + Blade table | Honeycomb + Blade table | |||
Cooling system | Glass: Built-in 5000 chiller RF: Air-cooled | Glass: Built-in 5200 chiller RF: Air-cooled | Glass: Built-in 5200 chiller RF: Air-cooled | ||||
Fume Exhaust Fan | Built-in 500W (Auto Start-stop) | Built-in 500W (Auto Start-stop) | Built-in 500W (Auto Start-stop) | ||||
Air Assist | Built-in compressor 750W with 24L air tank (Auto Start-stop) | Built-in compressor 750W with 40L air tank (Auto Start-stop) | Built-in compressor 750W with 40L air tank (Auto Start-stop) | ||||
Auto Focus | √ | √ | √ | ||||
Wireless Connectivity | √ | √ | √ | ||||
Red Dot Positioning | √ | √ | √ | ||||
Camera | 100° 8 MP (3840x2160) | 100° 8 MP (3840x2160) | 100° 8 MP(3840x2160) | ||||
Internal Memory | 1G | 1G | 1G | ||||
Operating Software | Rdworks/Lighburn(Optional) | Rdworks/Lighburn(Optional) | Rdworks/Lighburn(Optional) | ||||
Compatible Design Software | CorelDraw/Illustrator/AutoCAD | CorelDraw/Illustrator/AutoCAD | CorelDraw/Illustrator/AutoCAD | ||||
Package | Machine Dimension(mm) | 1500*1210*1125 | 1900*1410*1125 | 2100*1510*1125 | |||
Net Weight (KG) | 415KG | 560KG | 566KG | ||||
Gross Weight(KG) | 532KG | 683KG | 730KG | ||||
Optionals | Rotary Clamp/Lightburn Software /Air Purifier | ||||||
