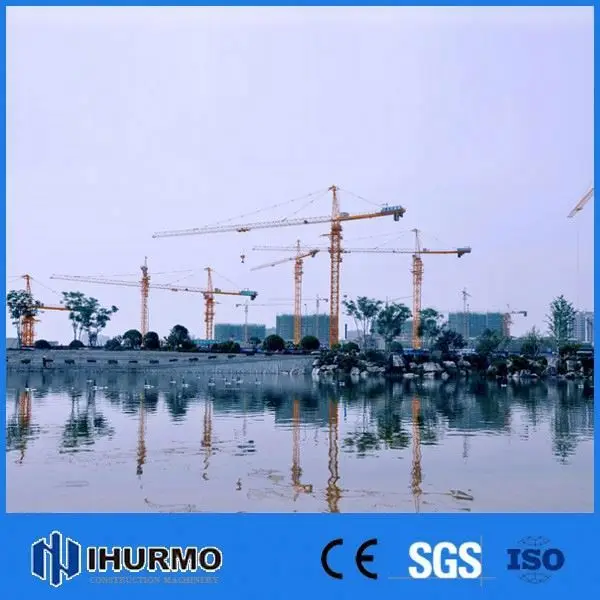

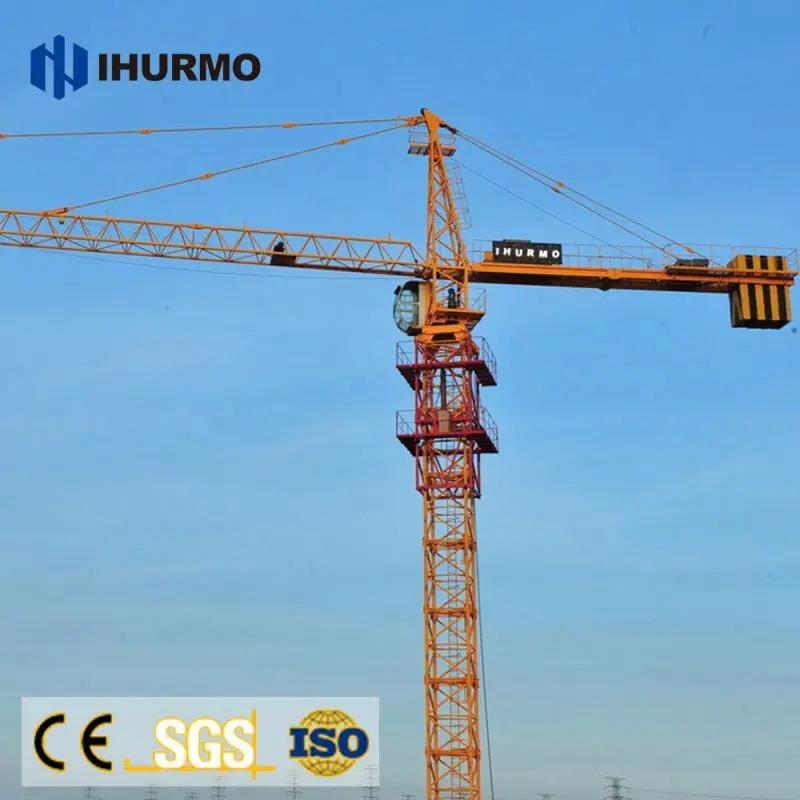

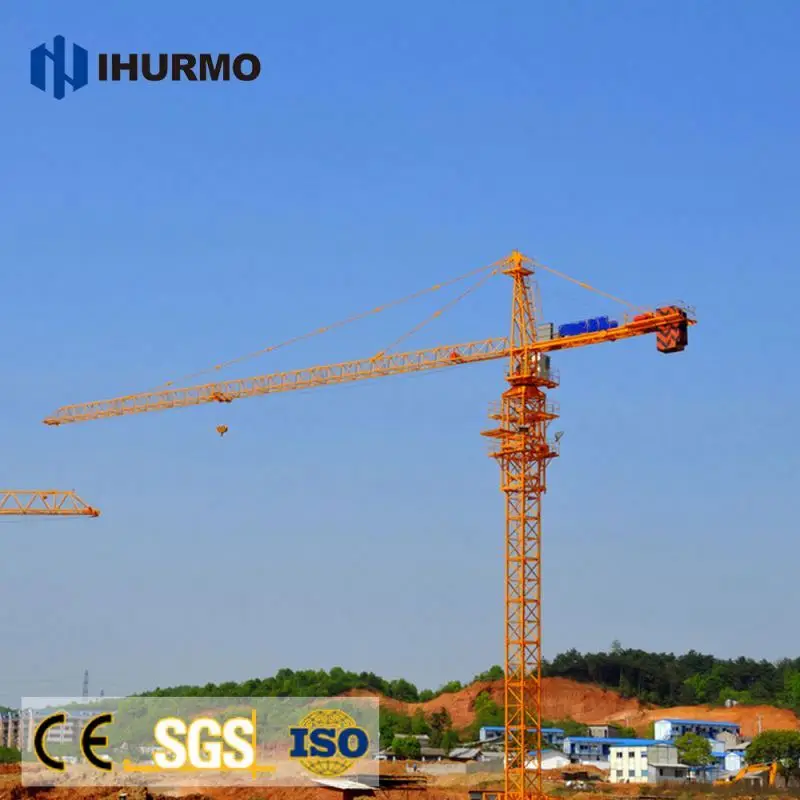

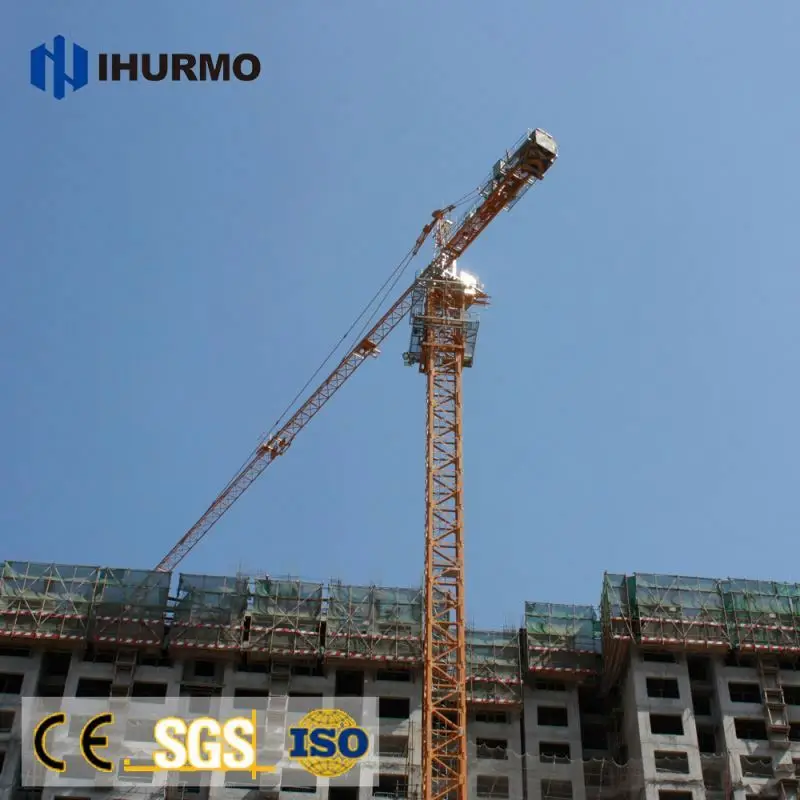

Manufacturer stock CE approved QTZ63 (5810) Tower Crane
- Category: >>>
- Supplier: Beijing Ihurmo Industry Co. Ltd.Beijing Ltd.
Share on (1601251380101):
Product Overview
Description
Product Description
The tower crane is composed of a horizontal arm bracket, an radius changing device for the
arm-trolley, and a hydraulic self-lifting mechanism. It incorporates such advantages as original design, reliable operation, and satisfactory appearance. Equipped with necessary safety devices, this balance crane shows good speed-control capacity, excellentoperational stability, and high working efficiency.
arm-trolley, and a hydraulic self-lifting mechanism. It incorporates such advantages as original design, reliable operation, and satisfactory appearance. Equipped with necessary safety devices, this balance crane shows good speed-control capacity, excellentoperational stability, and high working efficiency.
The tower crane is widely used in the construction of high-rise hotels, residential
buildings, industrial buildings, and tower-like buildings like tall chimneys.
buildings, industrial buildings, and tower-like buildings like tall chimneys.
Specification
Model | QTZ63 (5810) |
Max working radius (m) | 58 |
Free height (m) | 41 |
Max. height (m) | 161 |
Max. load (T) | 6 |
Tip load (T) | 1.0 |
Wall ties for Max. height (sets) | 7 |
Main material specs (mm) | Standard Mast Section 135×135×10 (Square Steel Tube) Reinforcing Mast Section 135×135×12 (Square Steel Tube) |
Mast section dimensions (m) | 1.835×1.835 ×2.5 |
Hoisting speed (a=2) (m/min) | 80/40/10 |
Min. steady falling speed (m/min) | 5 |
Slewing speed (r/min) | 0-0.62 |
Radius-changing speed (m/min) | 40/20 |
Jacking speed (m/min) | 0.6 |
Total motor power (kW) | 55.2 |
Power supply (V) | 220,380,415,440 |
Weight of independent structure (T) | 36.90 |
Counter weight (T) | 14.85 |
Containers for shipment (free height) | 6 * 40HC containers |
Details Images
Features
1. The tower crane is a combination of advanced technologies of the present day. It is equipped with a hydraulic self-raising mechanism and a frequency-converting slewing mechanism.
2. The electric control system of the tower crane adopts the advanced “PLC + frequency converter” control mode of the present day, which has realized the stepless speed regulation and greatly improves the reliability, maneuverability and stability of the
control system and the work efficiency of the tower crane.
3. The tower crane is equipped with all kinds of reliable safety devices, such as hoisting height limiter, slewing range limiter and multifunctional limiter to control the load moment, hoisting capacity and trolley traveling range. Its PLC (Programmable Logic Controller) unit can diagnose the cause of breakdowns. Its Safety Monitoring System (also known as Black Box) displays the data of working radiuses, heights, moments and weights.
4. The use of world-famous electric components such as OMRON, YASKAWA, Schneider (TE) and MEAN WELL greatly reduces the failure rate of the electric control system and improves the work efficiency of the users.
5. Besides, there are also electric safety devices like anemoscopes and obstacle lights and mechanical safety devices to prevent the breaking of trolley axles and wireropes.
control system and the work efficiency of the tower crane.
3. The tower crane is equipped with all kinds of reliable safety devices, such as hoisting height limiter, slewing range limiter and multifunctional limiter to control the load moment, hoisting capacity and trolley traveling range. Its PLC (Programmable Logic Controller) unit can diagnose the cause of breakdowns. Its Safety Monitoring System (also known as Black Box) displays the data of working radiuses, heights, moments and weights.
4. The use of world-famous electric components such as OMRON, YASKAWA, Schneider (TE) and MEAN WELL greatly reduces the failure rate of the electric control system and improves the work efficiency of the users.
5. Besides, there are also electric safety devices like anemoscopes and obstacle lights and mechanical safety devices to prevent the breaking of trolley axles and wireropes.
Certifications
Company Profile

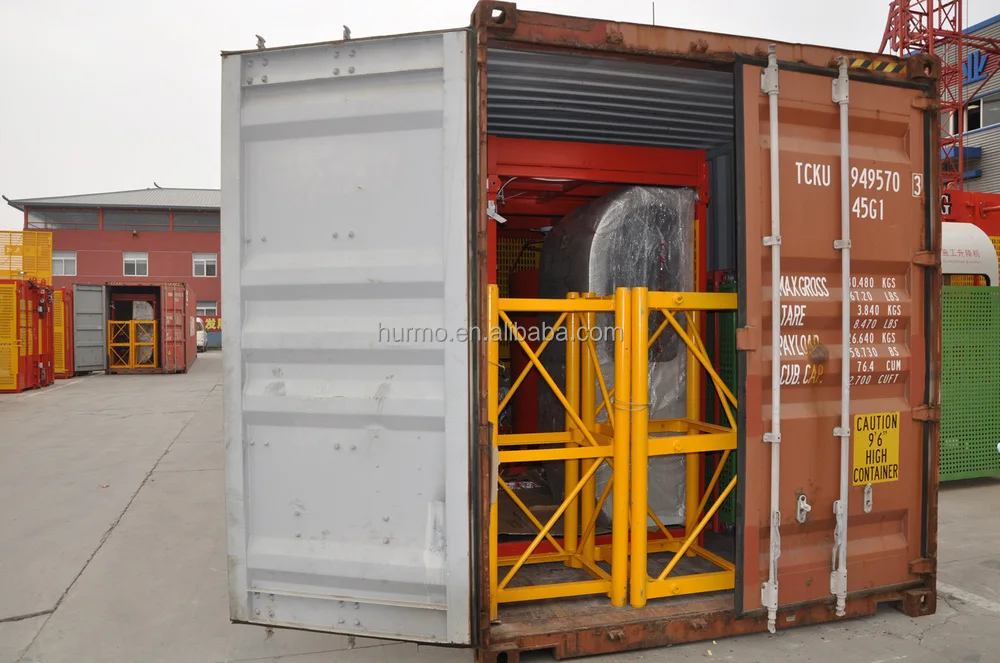

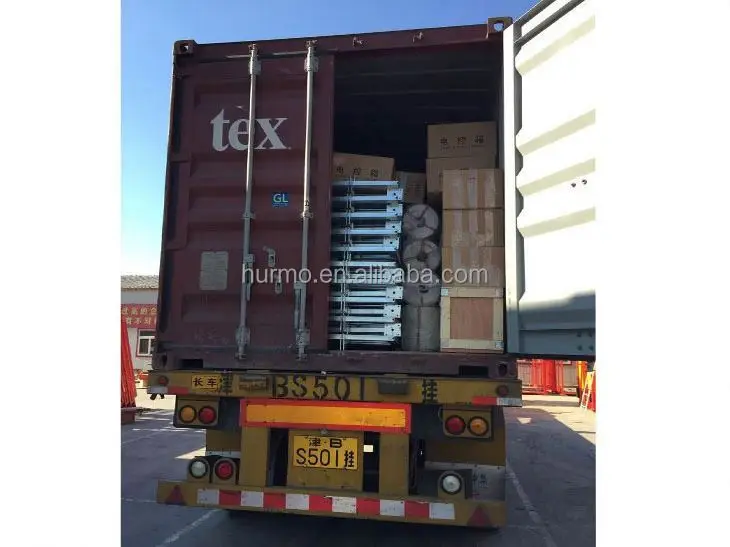

Packing & Delivery
