Construction Aerogel Blanket Thermal Blanket 3mm White Aerogel Airgel Insulation Sheet For Insulation
- Category: >>>
- Supplier: Tianjin Glory Tang New Material Co. Ltd.Tianjin Ltd.
Share on (1601251477670):
Product Overview
Description
Product Description

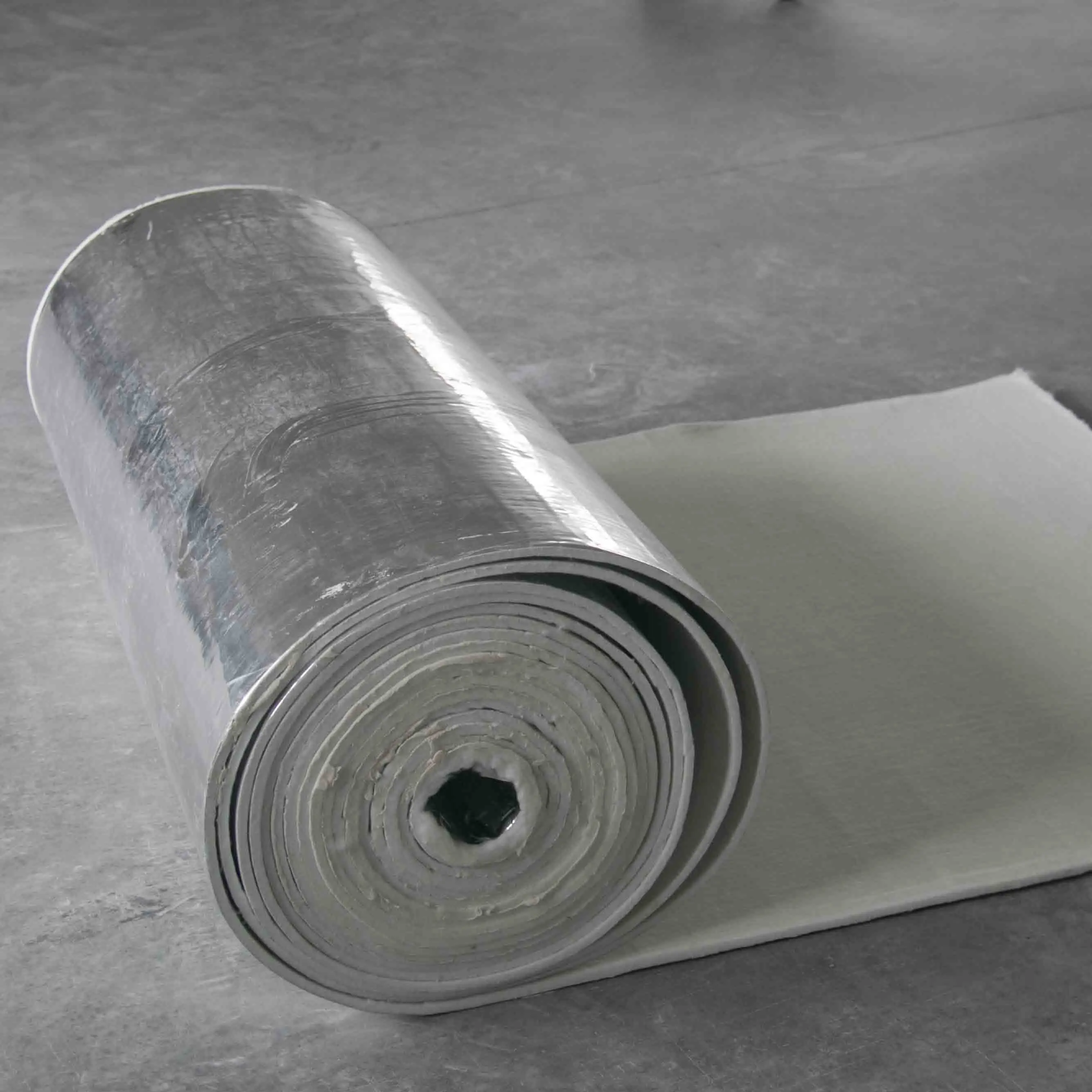

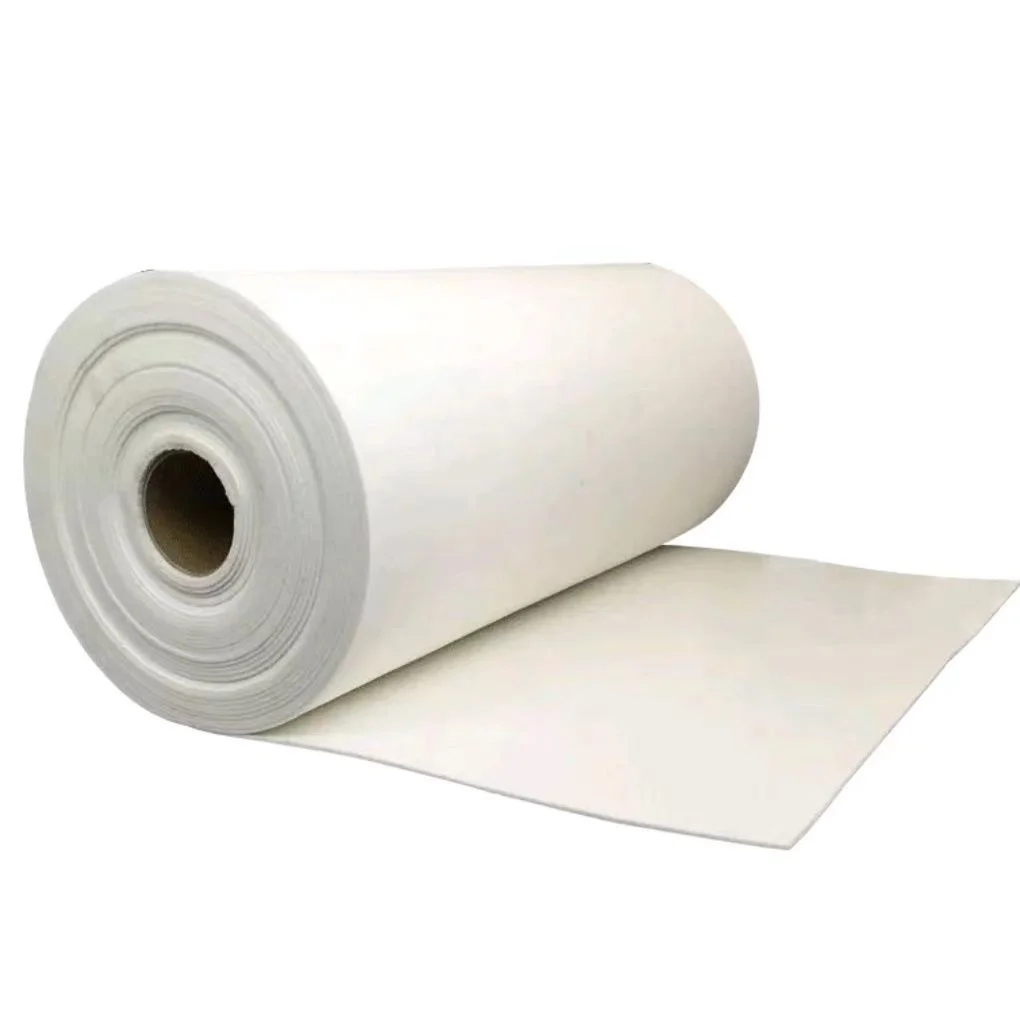

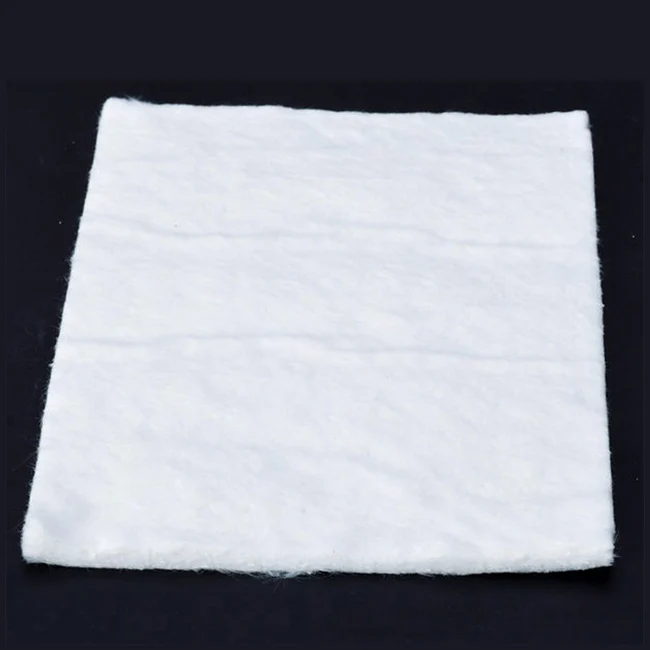

GLORY TANG's Aerogel Felt is a flexible and highly efficient insulation blankets in which silica aerogel is composite with fibers, Perfect for the insulation in pipes, tanks, vessels, and other applications.
It is the ideal option for those in need of better insulation performance and lower energy consumption.
Aerogel is the lowest thermal conductivity of any present-recognized solid, with this super nano-granule, HT800 Series is a flexible, environmentally- friendly easy-handled insulation material which makes it the leading product in the industry.
It was an Aerogel insulation blanket with fiberglass, similar to Pyrogel XT and Spaceloft ( mainly used for hot &heat insulation and building insulation, working temperature from -200ºC to 800ºC), the thermal conductivity from 0.017-0.023 W/m.k
It is the ideal option for those in need of better insulation performance and lower energy consumption.
Aerogel is the lowest thermal conductivity of any present-recognized solid, with this super nano-granule, HT800 Series is a flexible, environmentally- friendly easy-handled insulation material which makes it the leading product in the industry.
It was an Aerogel insulation blanket with fiberglass, similar to Pyrogel XT and Spaceloft ( mainly used for hot &heat insulation and building insulation, working temperature from -200ºC to 800ºC), the thermal conductivity from 0.017-0.023 W/m.k
Color | Maroon, White, Grey, Black |
Thickness | 3mm / 5mm / 6mm / 10 mm |
Roll Size | 10mm: Width 1500mm x 30m |
6mm: Width 1500mm x 38m | |
5mm: Width 1500mm x 42m | |
3mm: Width 1500mm x 45m | |
Hydrophobic | Yes |
Use of Temperature | -50ºC - 800ºC |
25ºC Thermal Conductivity W/(m·K) | 0.017 ~0.023 W/(m·K) |
OEM | Yes |

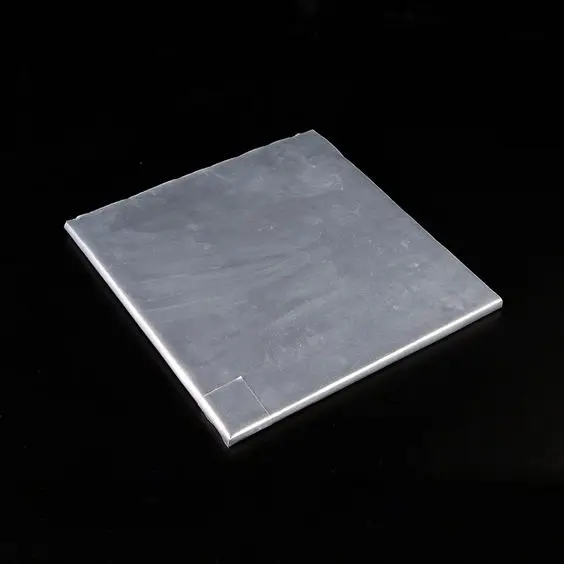

ODM | Yes, cut into sheets, round, composite with 3M Brand adhesive, etc. |
Excellent thermal insulation performance at ultra-high temperature
With nanoporous silica (SiO2) aerogel as the core material, and composited with ceramic fiber, its thermal conductivity is extremely low even at ultra-high temperatures up to 1300℃.
Easy to install and extremely low thermal bridge
The thickness of its insulation layer is only 1/5~1/3 of that of conventional insulation materials. Therefore, the thermal insulation blanket is easy to cut and install, and easy to overlap the edges, which can minimize thermal bridges.
Waterproof
Hydrophobic rate ≥99%. Does not absorb water or moisture. The thermal insulation blanket can prevent CUI from occurring in pipes and equipment and extend their service life.
Flame retardant
Flame retardant grade: Grade A. It can effectively prevent open flames and fires in pipes and equipment.
Durable and long service life
The thermal insulation blanket is an aging-resistant inorganic material with a dense and stable material structure, high compression resilience and high hydrophobicity, and its service life can be the same as that of pipes and equipment.
Non-toxic and environmentally friendly
It does not contain harmful substances such as asbestos, benzene, formaldehyde, etc. The entire production process and application process are non-toxic and environmentally friendly. It can be reused after dismantling, no need to worry about industrial waste disposal.
With nanoporous silica (SiO2) aerogel as the core material, and composited with ceramic fiber, its thermal conductivity is extremely low even at ultra-high temperatures up to 1300℃.
Easy to install and extremely low thermal bridge
The thickness of its insulation layer is only 1/5~1/3 of that of conventional insulation materials. Therefore, the thermal insulation blanket is easy to cut and install, and easy to overlap the edges, which can minimize thermal bridges.
Waterproof
Hydrophobic rate ≥99%. Does not absorb water or moisture. The thermal insulation blanket can prevent CUI from occurring in pipes and equipment and extend their service life.
Flame retardant
Flame retardant grade: Grade A. It can effectively prevent open flames and fires in pipes and equipment.
Durable and long service life
The thermal insulation blanket is an aging-resistant inorganic material with a dense and stable material structure, high compression resilience and high hydrophobicity, and its service life can be the same as that of pipes and equipment.
Non-toxic and environmentally friendly
It does not contain harmful substances such as asbestos, benzene, formaldehyde, etc. The entire production process and application process are non-toxic and environmentally friendly. It can be reused after dismantling, no need to worry about industrial waste disposal.
Specification
Product Paramenters | ||||||
Thickness | 3-20mm | |||||
Width | 1500mm or customied | |||||
Color | White | |||||
Suggested WorkingTemperature | -50℃-650℃ | |||||
Density | 250kg/m³ | |||||
Shrinkage Temp Under Pressure | 800℃ | GB/T 11835 | ||||
Compressive Property | @10% 100KPa | GB/T 13480 | ||||
@20% 200KPa | ||||||
Fire Rating | A | GB/T 8624 | ||||
Hydrophobic | 99 .5% | GB/T 10299 | ||||
Thermal Conductivity | 25℃ 0.020 | GB/T 10295 | ||||
Model Technical index | QY-JJ-AR01 | QY-JJ-AR01 | QY-JJ-AR01 | |||
Thickness(mm) | 3 | 6 | 10 | |||
Width(mm) | 1400/1500 or customized | |||||
Colour | White | White | White | |||
Permitted useful temperature range(℃) | -200-650 | -200-650 | -200-650 | |||
Density(kg/m3) | 200±20 | 200±20 | 200±20 | |||
Linear expansivity | 4.2×10-6 | |||||
Dimensional stability(max) | 1% | Test method GB/T 8811-2008 | ||||
Compressive property | (min),kpa,@10% | 60 | Test method GB/T 13480-2014 | |||
(min),kpa,@25% | 120 | |||||
Burning behavior class | S4 | Test method GB/T20285-2006 | ||||
The smoke performance level | SR-2 | Test method GB/T20285-2006 | ||||
Drip content level | SR-2 | |||||
Smoke toxicity of the FED's value, max | 0.1 | |||||
Corrosion resistance | Pass | Test method GB/T 3810.1-2006 | ||||
Hydrophobicity ,% | >99 | Test method GB/T10299-2011 | ||||
Application
Application Advantages of HT800 Aerogel Blanket for Heat Thermal Insulation
1. Superior Insulation Performance
2~5 times better than traditional insulation products with longer service life
2. Reduced Insulation Thickness
For the same insulation performance, just take a portion of the thickness of traditional material
3. Hydrophobicity and Fire-proof
Repel water from penetrating into pipes, and equipment, A1 rating of fire-proof
4. Easy Handling
Lightweight, easily cut and sewn to fit different shapes of pipes and equipment, Less labor for installation
5. Transportation Costs Savings
Lower packing volume and lower weight can greatly cut down logistics costs
1. Superior Insulation Performance
2~5 times better than traditional insulation products with longer service life
2. Reduced Insulation Thickness
For the same insulation performance, just take a portion of the thickness of traditional material
3. Hydrophobicity and Fire-proof
Repel water from penetrating into pipes, and equipment, A1 rating of fire-proof
4. Easy Handling
Lightweight, easily cut and sewn to fit different shapes of pipes and equipment, Less labor for installation
5. Transportation Costs Savings
Lower packing volume and lower weight can greatly cut down logistics costs

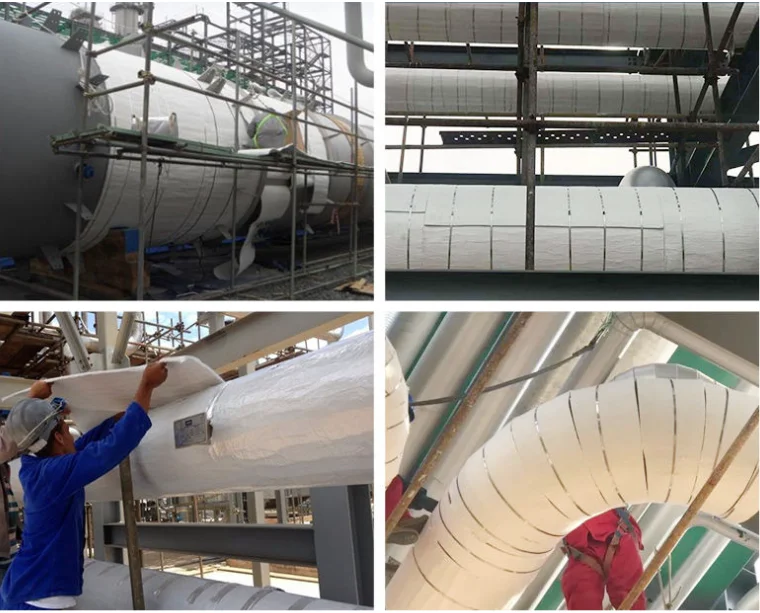

APPLICATION
High temperature or ultra-high temperature industrial pipelines such as exhaust pipes
High temperature or ultra-high temperature industrial equipment such as kilns
Fire protection and body insulation of special military equipment, etc.
It can not only reduce the energy loss of high temperature and ultra-high temperature pipelines and equipment, bring direct economic benefits to customers, but also improve the high temperature or ultra-high temperature working environment and protect workers from burns.
High temperature or ultra-high temperature industrial equipment such as kilns
Fire protection and body insulation of special military equipment, etc.
It can not only reduce the energy loss of high temperature and ultra-high temperature pipelines and equipment, bring direct economic benefits to customers, but also improve the high temperature or ultra-high temperature working environment and protect workers from burns.

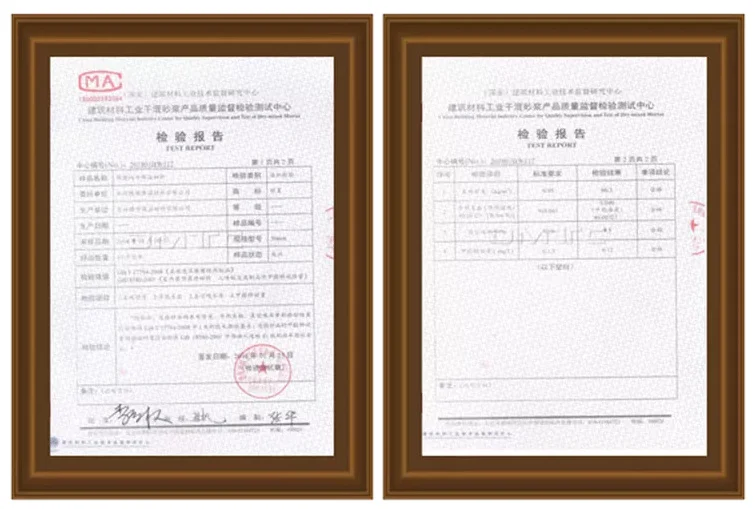

Certifications
