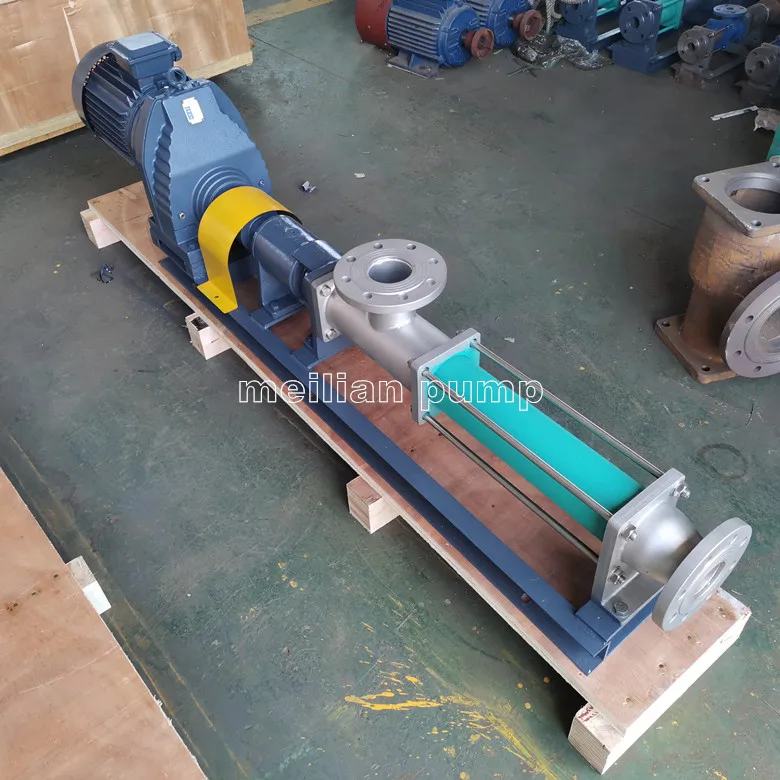

Screw Pump mud progressive cavity pump helical rotor mono screw oil slurry sludge pump G30 1

Product Overview

Description

                                                                    Screw Pump

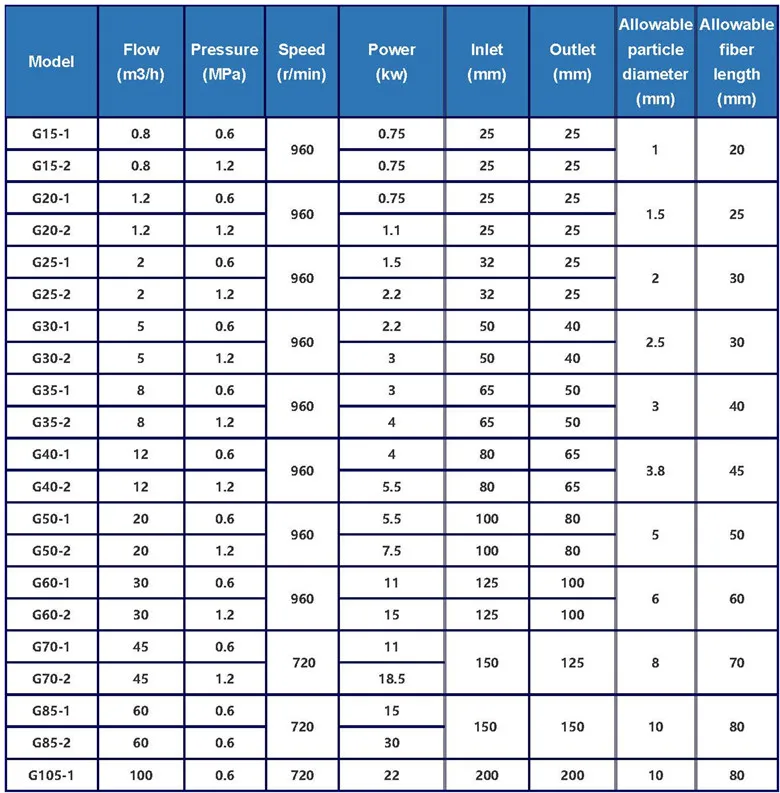

Specification table:

Summarize:

Single Screw Pump with solid is a positive displacement pump that use one or several screws to move fluids or solids along the screw(s) axis. In its simplest form (the Archimedes' screw pump), a single screw rotates in a cylindrical cavity, thereby moving the material along the screw's spindle. This ancient construction is still used in many low-tech applications, such as irrigation systems and in agricultural machinery for transporting grain and other solids.



Product details:

Working Principle:	Screw
Driver:	Electric Motor or Diesel Engine
Flow rate range:	0.8-150m3/h (3.5-660US. GPM)
Maximum head:	120m (393 feet)
Casing parts material:	Cast Iron / Stainless Steel
Screw material:	SS201 / SS304 / SS316
Stator material:	NBR / Silicon Gel.
Seal:	Packing seal
Motor type:	YX3 Series motor / Gear box and YX3 series motor / Explosion proof motor
Max.permissible fluid temperature:	150°C(302°F)
Type of connection:	Flange
Advantage:	1. High sellf-suction. 2. No eddy flow and stirring. 3. Transport high viscosity liquid with solid. 4. Stable flow and pressure pulsation.
