Factory Customized Household 20KW With MPPT Controller Power Frequency Pure Sine Wave Photovoltaic Control Inverter

Share on (1601251607445):


Price:$2,932.50 - $2,963.43

Quantity:


Product Overview

Description



Products Description



Main characteristics

(1) Using MPPT (Maximum Power Point Tracking) algorithm makes full use of solar photovoltaic energy.
(2) Three-stage charging(constant current, constant voltage, float charge), effectively extending the battery life.
(3) Capacity of the battery depending on the configuration, to automatically adjust the battery charging current.
(4) Pure sine wave output, enough power output.(5) LCD display interface can real-time monitor
the parameters of battery voltage, load current, temperature inside, AC output voltage, AC output current etc.



Main characteristics
(6) Protection function: output overload protection, output short circuit protection, reverse polarity protection, input over
voltage, over temperature protection and series of alarm and protection functions
(7) Installation and maintenance easy and fast, to meet indoor and outdoor installation requirements.
(8) Intelligent empty load automatic sleep function.
(9) Using the battery or Grid priority can be flexibly adjusted.
(10) Remote monitoring via GPRS(Selectable).




Project Cases






Specification


product line
GSA96
GSA220

6-15KVA
Output power (kVA)
6/8
10/15
20/25/30
Accumulator
Rated voltage (VDC)
96
220
PV input
Maximum input power (kWp)
6
12/24
Maximum charging current (A)
50/100
Starting voltage (VDC)
120
270
MPPT Voltage Range (VDC)
110~280
260~450


Maximum open circuit voltage (VDC)
300
480


Floating charge voltage (VDC)
108.0
216.0/243.0


Equalizing voltage (VDC)
113.6
227.2/255.6


Mains bypass (optional)




Input Voltage Allowable Range (VAC)
220±15%/110±15%(other output voltages can be customized)



Input frequency (Hz)
50/60±3%



Mains charging
opention



Ac output




output waveform
pure sine wave



Output Voltage (VAC)
220±1%; 110±1%(other output voltages can be customized)



Output frequency (Hz)
50/60HZ



Output waveform distortion rate (THD)
≤2%



Inverter efficiency (80% resistive load)
≥85%



Peak current coefficient
3:1



surge capability
105%~110%,10min;110%~125%,1min;>125%,1s



Display usage
LCD+LED



Defencive function
Input reverse protection, input undervoltage protection, input overvoltage protection, output overload protection, output
short-circuit protection (Does not automatically recover, need to restart the machine), machine overheating protection



Communicating function
opention



Circumstance




level of protection
IP20



Altitude (m)
5000(capacity reduction above 2000 meters)



Allowable relative humidity (%RH)
<95%



Ambient temperature (℃)
-10~40



Noise (dB)
≤60

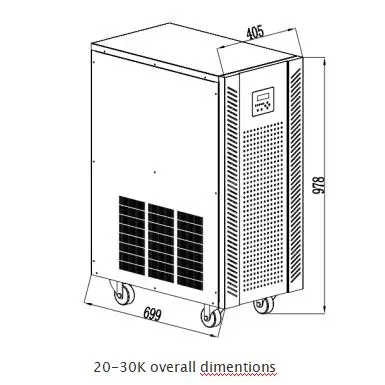

Dimension data
Dimensions (mm)
645*305*770
645*305*770
645*305*770
700*405*980
Weight(kg)
80~85
90~100
90~100
135~155


Above information is just for reference, no inform if there is any change.
Special voltage can be customized.




Application

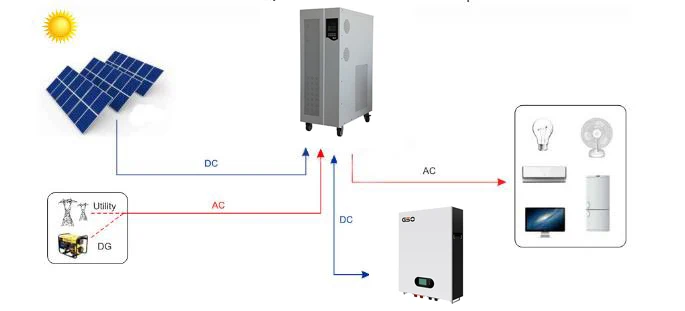

Photovoltaic controller&inverter integrated power supply is the power of new energy power generation system. It is designed and manufactured for characteristics and requirements of new energy power generation system, suitable for solar photovoltaic power generation system for power supply equipment of high quality, high reliability requirements, system change sunlight to electricity by PV battery, through the charging circuit to charge the battery, at the same time, the battery supply power to the part of Iinverter which supply the AC power to the AC load.


Product packaging






Company Profile










FAQ


1. Why choose us?
1.Higher power generation 2.Competitive price 3.High quality standard 4.Customized service
2. How is your technical support?
We provide lifetime online support. Any problem after delivery, we will help solve.
3. Can you get the the solar inverter customized for us ?
LOGO, machine color, designed unique patterns and packing available for customization.
4. How to become your agent?
Contact us through Alibaba, we will give you the best price and look forward to your greetings.
5. Combien de modes de sortie la machine a-t-elle?
Three output modes:When the grid-connected function is enabled, grid-connected power generation or anti-reverse-current can be set, and it can also be set to off-grid output mode.
6. Protection function.
Perfect hardware and software protection function, can display the fault type for easy removal.
7. Parallel function
It can be flexibly combined to achieve up to 9 parallel machines, and the parallel system can output single-phase and
three-phase AC voltage.
8. The host computer and the APP cloud communication
The host computer and the APP cloud can display the operating data and status of the system in real time and control and modify the parameters.
