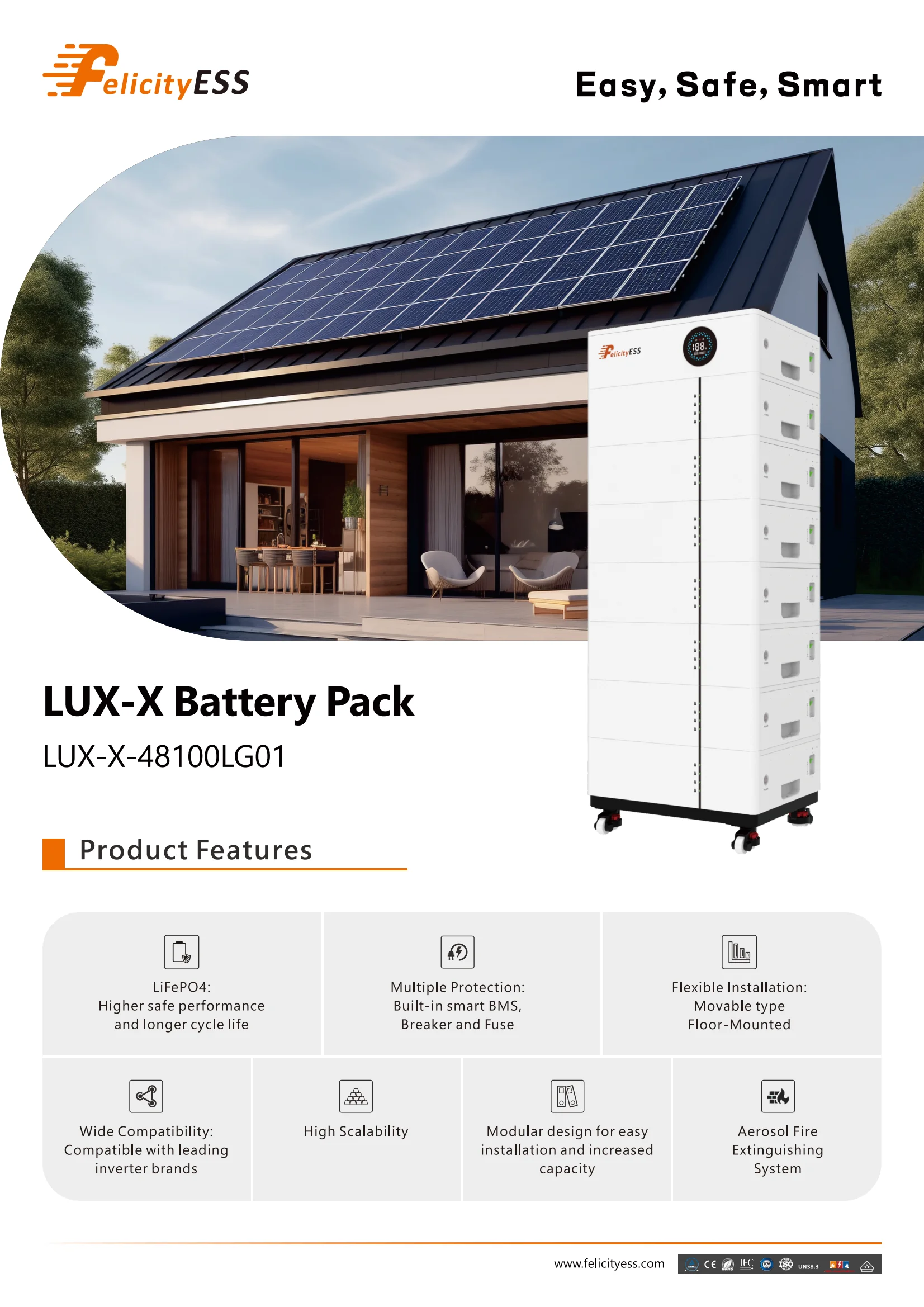

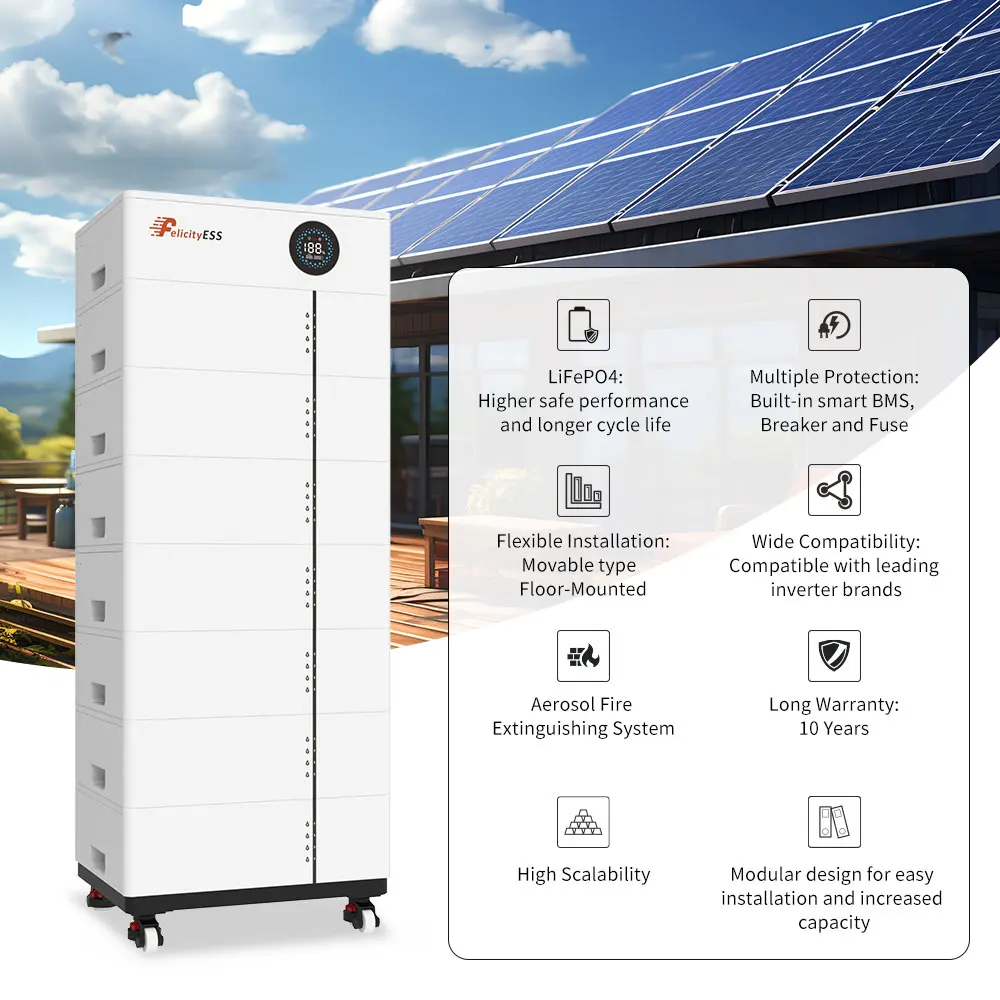

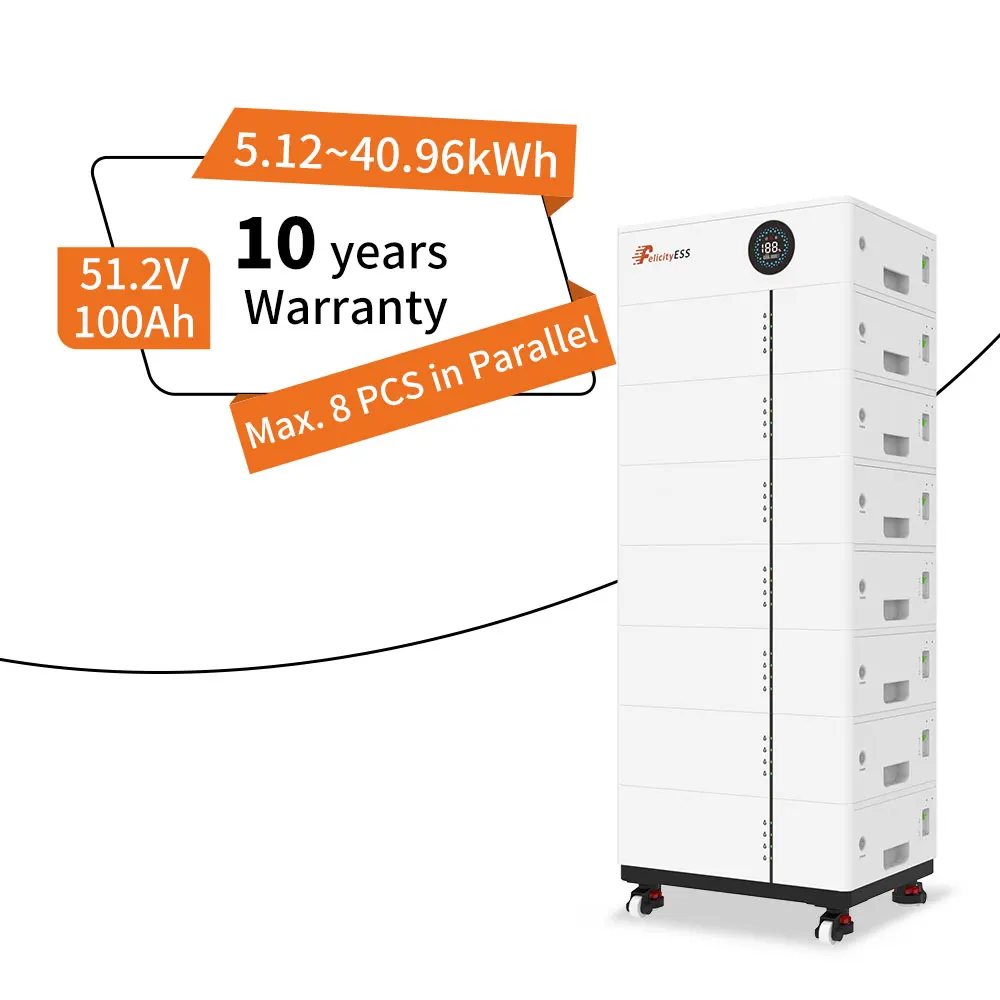

FelicityESS 5.12kWh to 40.96kWh High Capacity Lithium Batteries for Solar Energy Storage Systems and Long Term Reliability
FelicityESS 5.12kWh to 40.96kWh High Capacity Lithium Batteries for Solar Energy Storage Systems and Long Term Reliability
FelicityESS 5.12kWh to 40.96kWh High Capacity Lithium Batteries for Solar Energy Storage Systems and Long Term Reliability
FelicityESS 5.12kWh to 40.96kWh High Capacity Lithium Batteries for Solar Energy Storage Systems and Long Term Reliability
FelicityESS 5.12kWh to 40.96kWh High Capacity Lithium Batteries for Solar Energy Storage Systems and Long Term Reliability
FelicityESS 5.12kWh to 40.96kWh High Capacity Lithium Batteries for Solar Energy Storage Systems and Long Term Reliability
FelicityESS 5.12kWh to 40.96kWh High Capacity Lithium Batteries for Solar Energy Storage Systems and Long Term Reliability

FelicityESS 5.12kWh to 40.96kWh High Capacity Lithium Batteries for Solar Energy Storage Systems and Long Term Reliability

Share on (1601252059699):


Price:

Quantity:


Product Overview

Description



Product Parameters




Model
LUX-X-48100LG01
Battery Type
LiFePO4
Module Nominal Energy
5.12kWh
Module Nominal Capacity
100Ah
Module Nominal Voltage
51.2V
Numberof Battery Modules
1
2
3
4
5
6
7
8

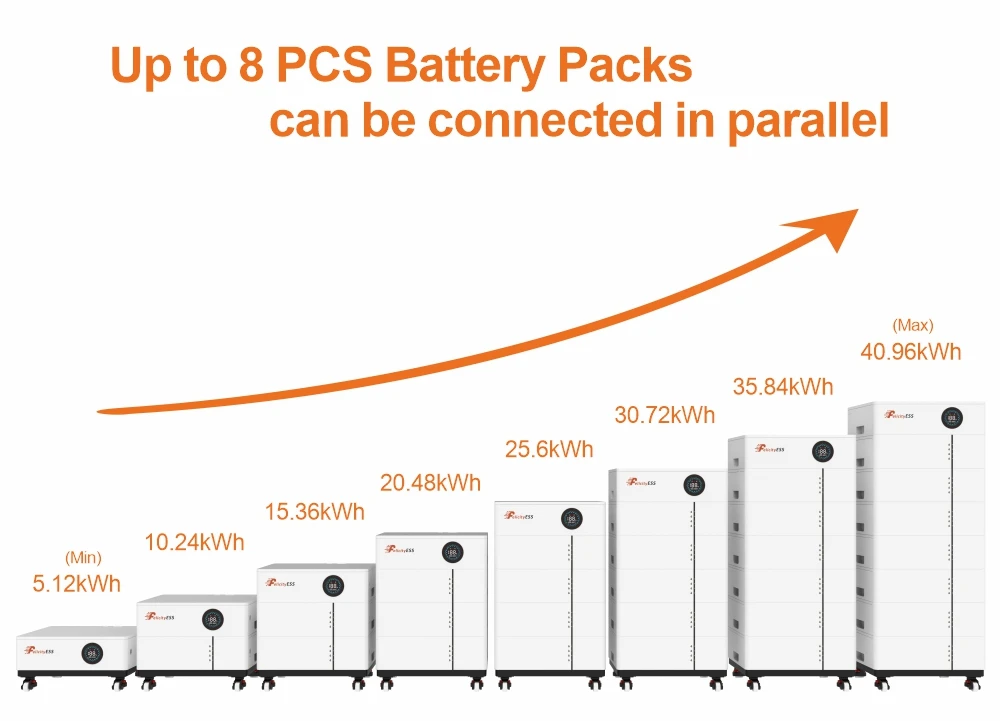

System Nominal Energy
5.12kWh
10.24kWh
15.36kWh
20.48kWh
25.6kWh
30.72kWh
35.84kWh
40.96kWh
Scalability
Max.8 PCSin Parallel
Depth of discharge(DoD)
≥95%







Display type
Control Module:LCD/Battery Module:LED*4







Protection Level
p21
Working Temperature Range
Charge:0~+55°C/Discharge:-20°C~+55°C







storge Temperature Range
0°C~+35C







Humidity
5%~95%
Altitude
≤2000m
Communication
RS485/CAN
Cycle Life[2]
≥6000Cycles
Installation
Wall-Mounted /Floor-Mounted
Protection
Built-in smart BMS,Breaker,Fuse
Warranty Period[3]
10 Year


Control Module
LUX-X-48100LCG01
Product Weight Approximate
46kg
Package Weight Approximate(with base)
60kg

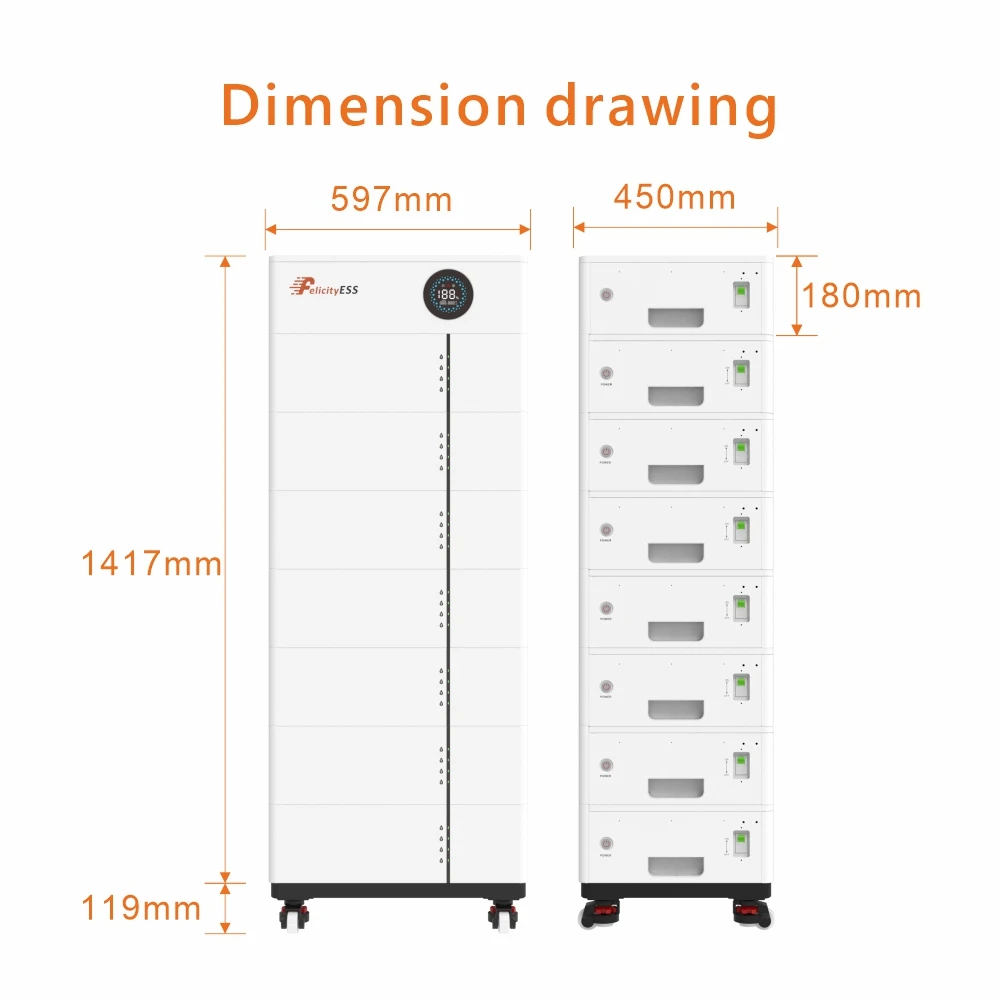

Product Dimension
600x450x180mm
Package Dimension(with base)
712x562x333mm


Battery Module
LUX-X-48100LMG01
Product Weight Approximate
46kg
Package Weight Approximate
50kg
Product Dimension
600x450x180mm
Package Dimension
712x562x298mm
[1] Max.continuous charge/discharge currentis affected by temperature and SOC
[2] Test conditions:0.2C charging/Discharging @25°C,80% DoD
[3] Conditions apply,refer to FelicityEss Warranty Letter








Company Profile

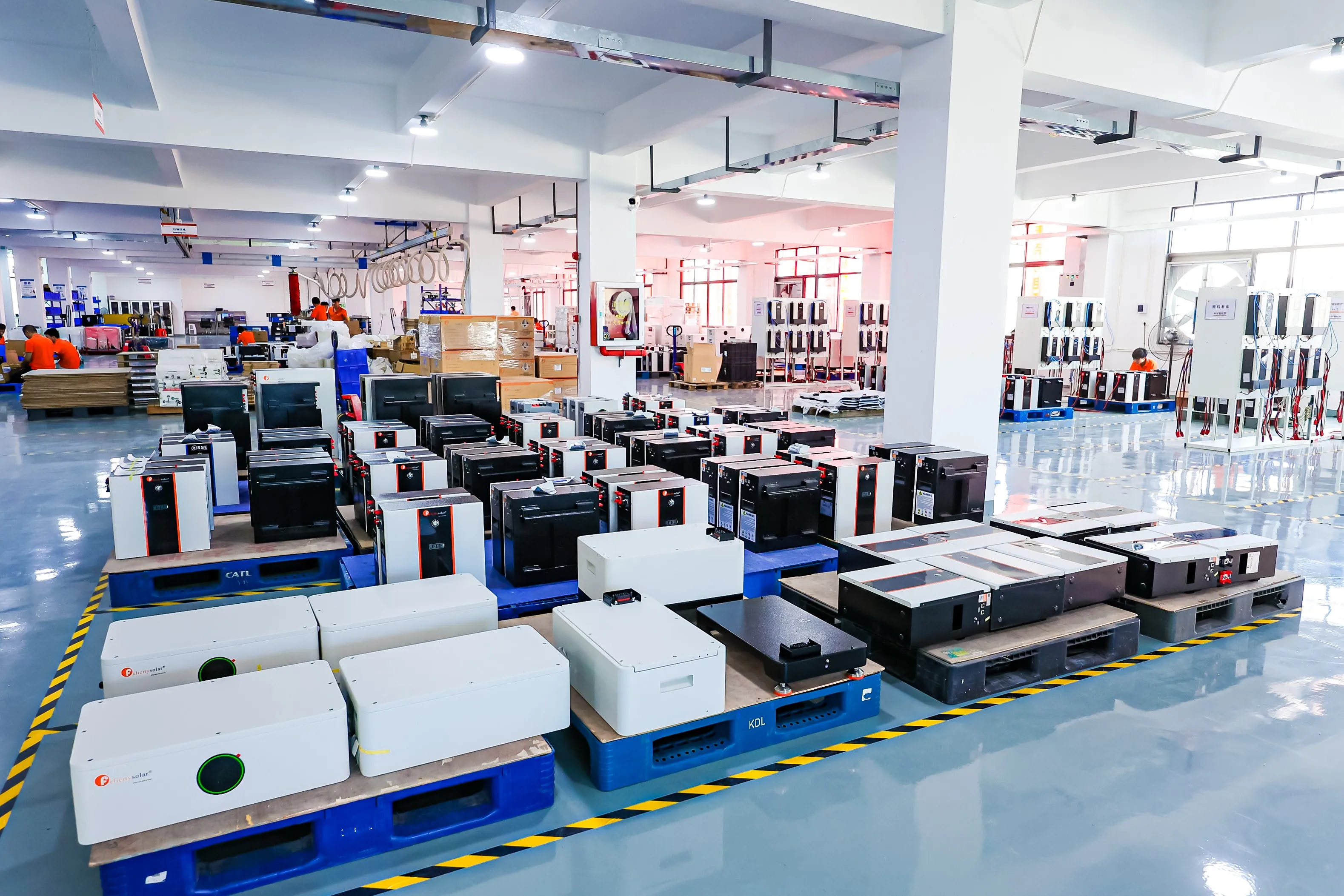

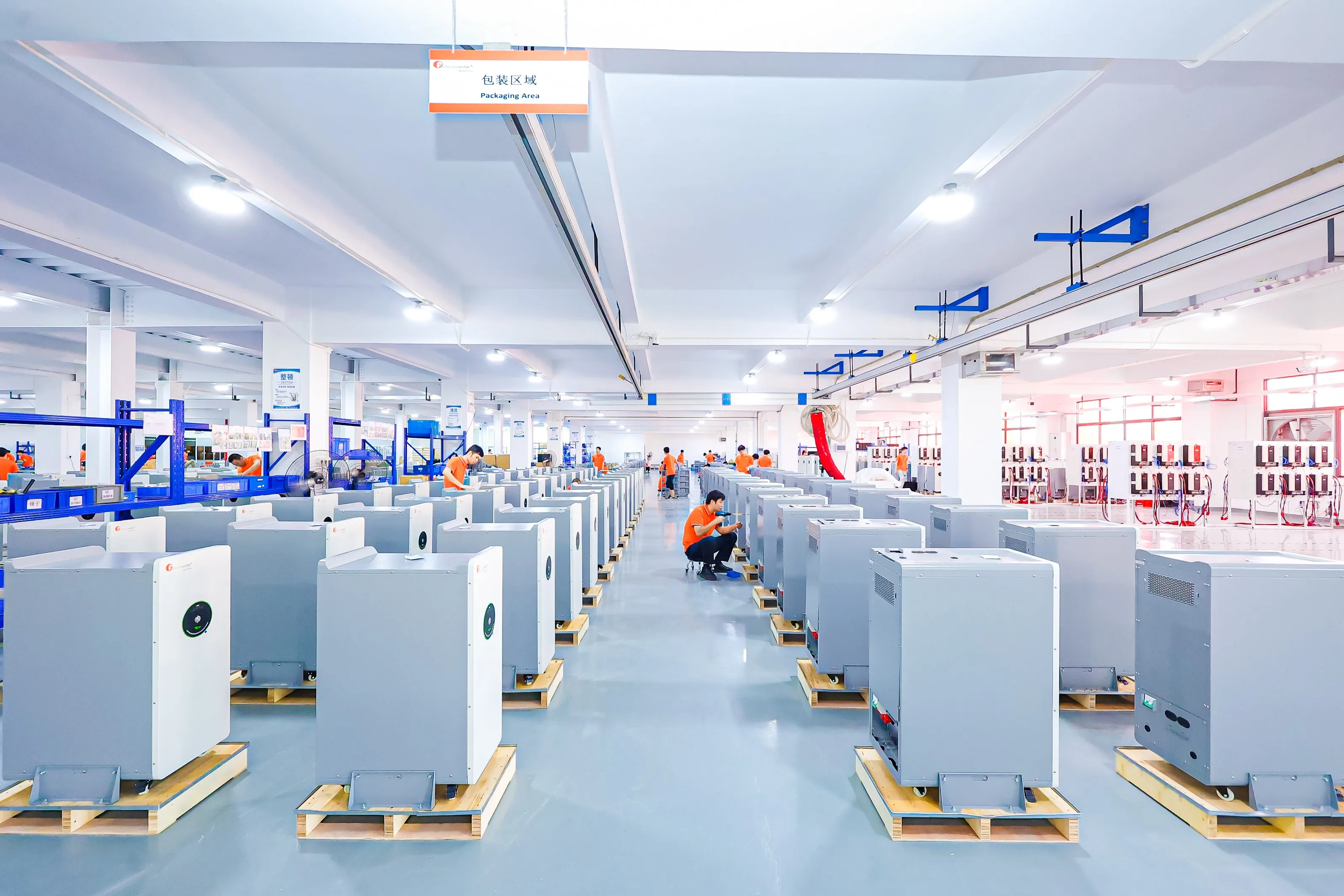

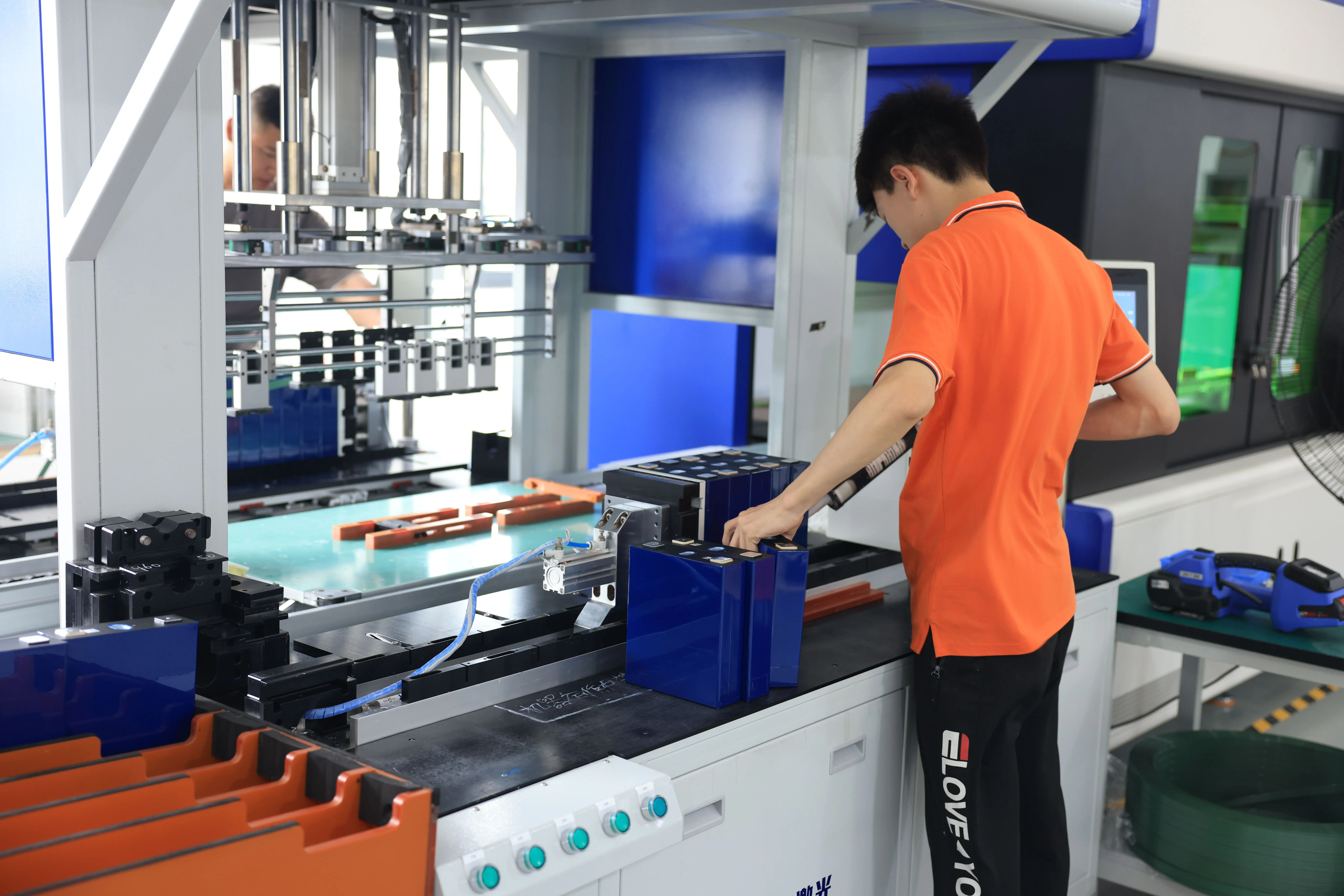

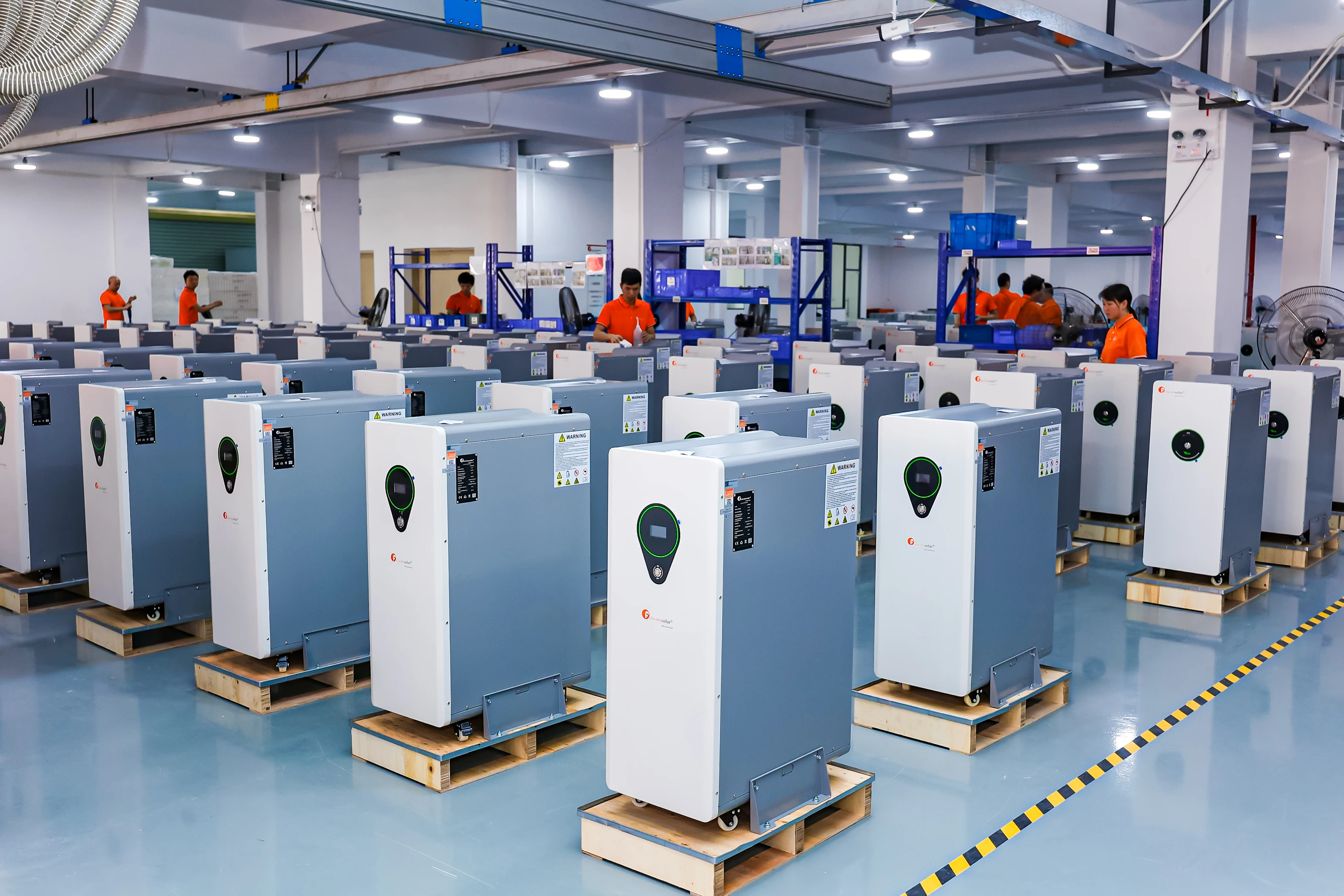

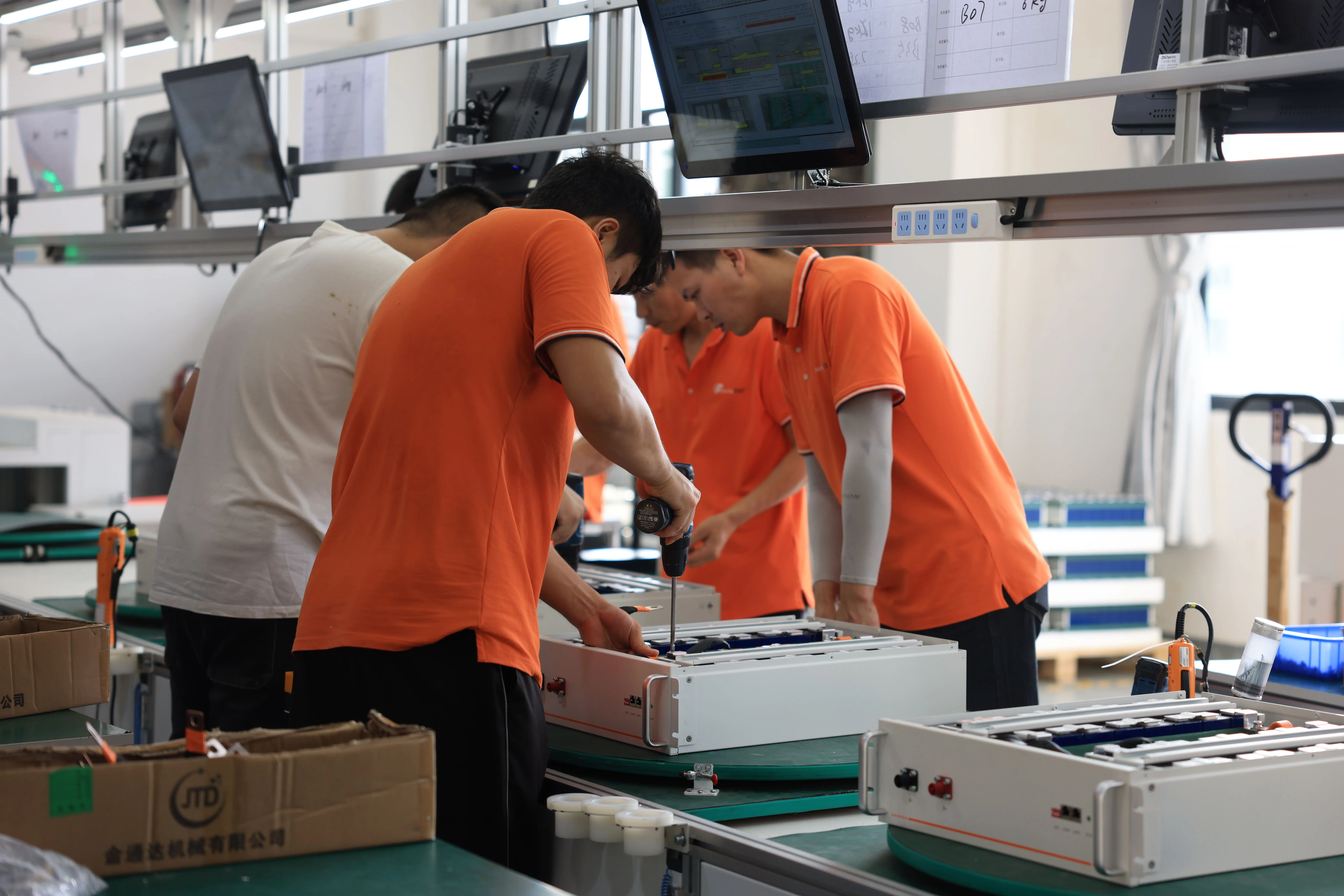

Our factory






Why Choose Us








The headquarters has gathered over 100 senior experts and professional technical talents in the field of new energy,Responsible for product technical architecture design, development framework construction, performance analysis and optimization, etc Toensure timely provision of technologically innovative and forward-looking products, please rest assured to cooperate with FelicityESS!!!

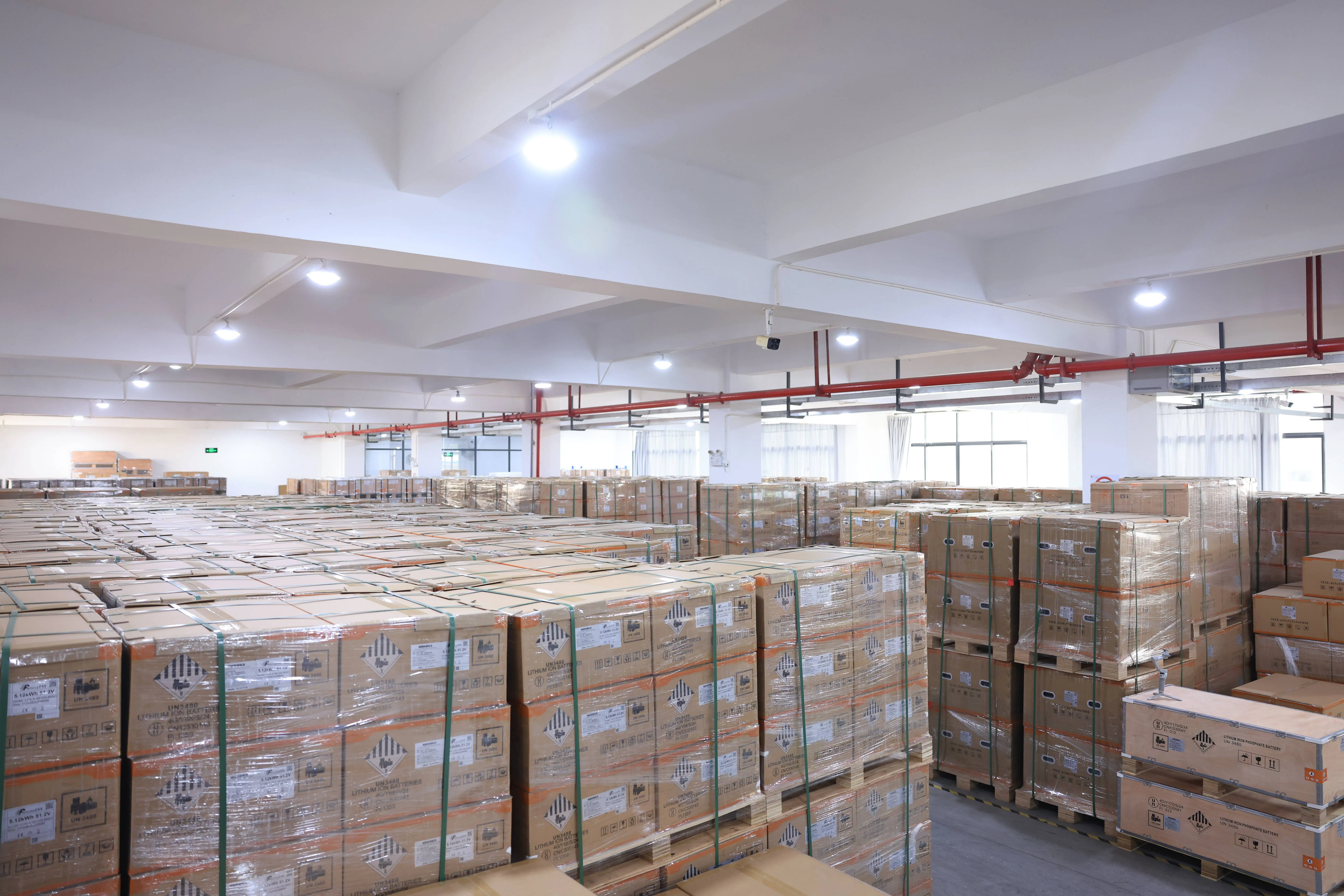

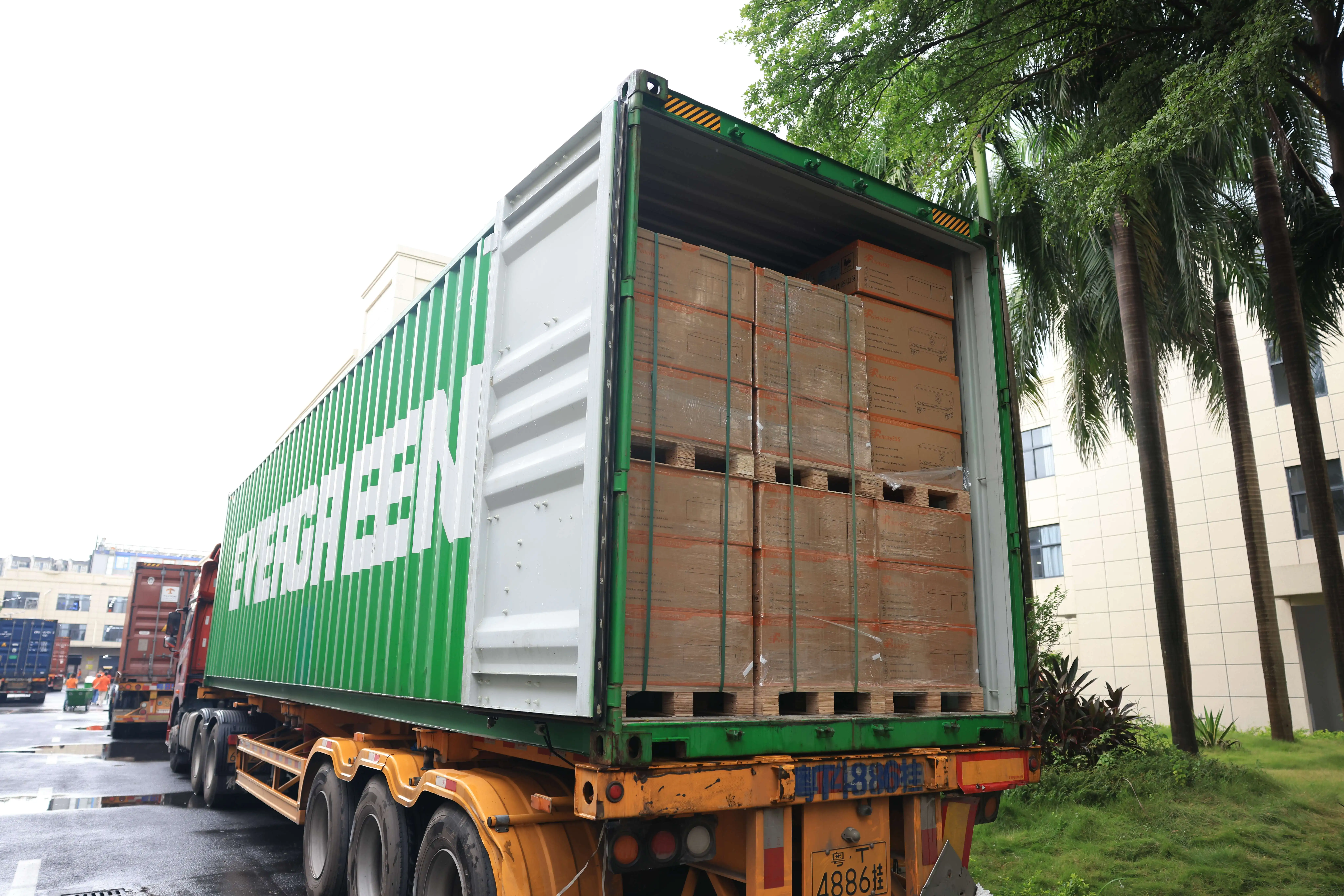

Product packaging






Exhibition


FelicityESS have participated in over 100 exhibitions in different countries: SOLAR & STORAGE LIVE CAPE TOWN 2024、MEXICO INTER SOLAR、RE+ 2024、SOLAR & STORAGE LIVE UK 2024、CHINA IMPORT AND EXPORT FAIR、ELECTRICITY TRANSFORMATION CANADA、ALL-ENERGY AUSTRALIA、EUROPE ENERGY STORAGE、The Solar Show、INTER SOLAR EUROPE
You can directly contact us regarding exhibition issues.




Certifications



FelicityESS can provide a complete set of testing reports from the National Quality Supervision and Inspection Center for the renewable energy industry: ISO9001 UN38.3, MSDC, CE, CB, VDE, G99, EMC, ROHS, hazardous packaging certificate... Please rest assured to purchase!




The T-REX Series Inverter adopts a multi-channel MPPT design, which enables it to flexibly adapt to rooftop photovoltaic systems in different orientations and maximize the use of solar energy resources. It supports lithium battery activation function and has several functions to effectively ensure the stability and safety of battery. T-REX series inverter is equipped with a remote real-time monitoring platform, users can monitor and manage the inverter anytime and anywhere through mobile phones, computers and other terminal devices. Its natural cooling design reduces the noise level. Whether in home photovoltaic systems or industrial photovoltaic power stations, T-REX series inverter can provide users with the best energy solutions with its excellent performance and reliable quality. T-REX-5KLP1G01 is 5kW with Single Phase Low Voltage, built-in 2 MPPT Trackers.




FAQ


Q1: How to install and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.

Q2: What if I don't have export experience ?
A2: We have over 30 overseas offices and warehouses which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the most suitable shipping service.

Q3: How is your technical support?
A3:We have 30+ offices overseas，There are professional technical engineers and sales team stationed overseas all year round to serve our customers. that can solve your pre-sales and post-sales problems. If there is any problem after delivery, we can sendn our technical engineers to solve the problem for you, you can also contact us online via Whatsapp/ Skype/ Wechat/ Email.

Q4: Can you get to the Battery Pack customized for us ?
A4: Of course, Product Specification, brand name, machine color, designed unique patterns available for customization.

Q5:How to become your agent?
A5:Contact us , We'll tell you about the detailed dealer programme.

Q6: What is the warranty of inverter?
A6: 10 Year Warranty.
