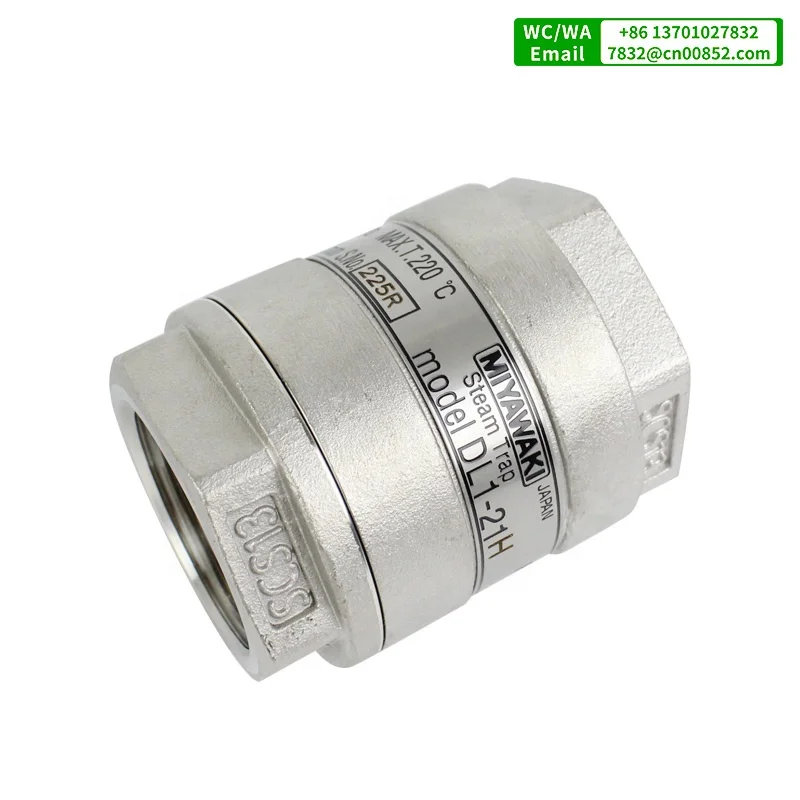

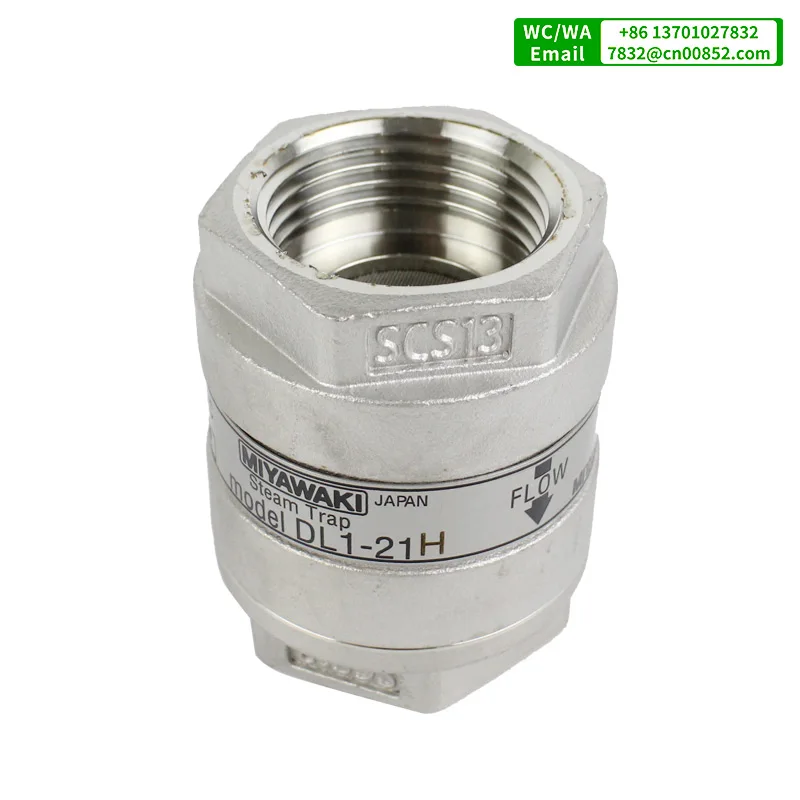

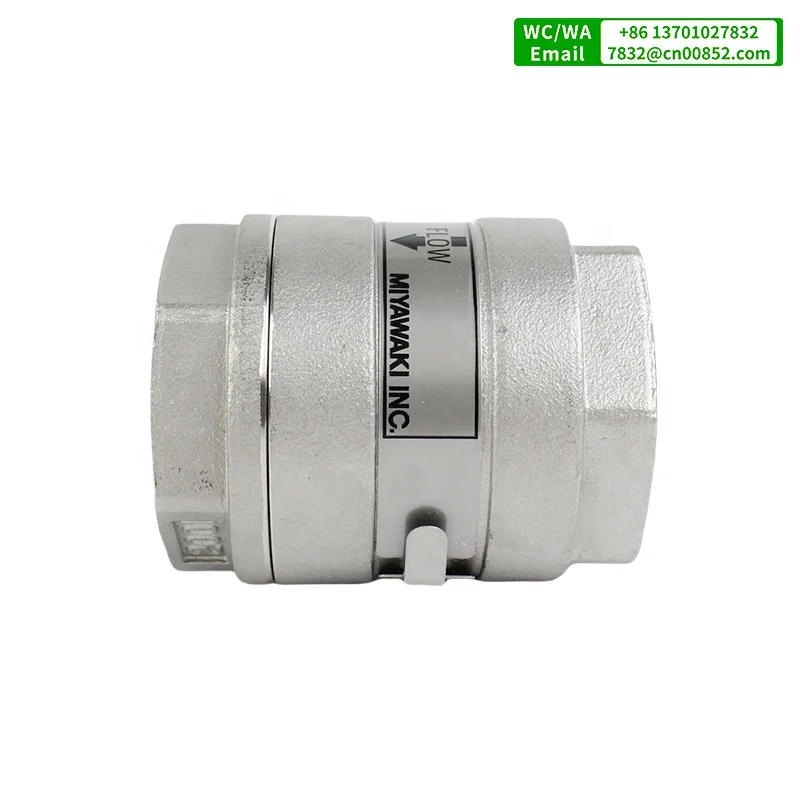

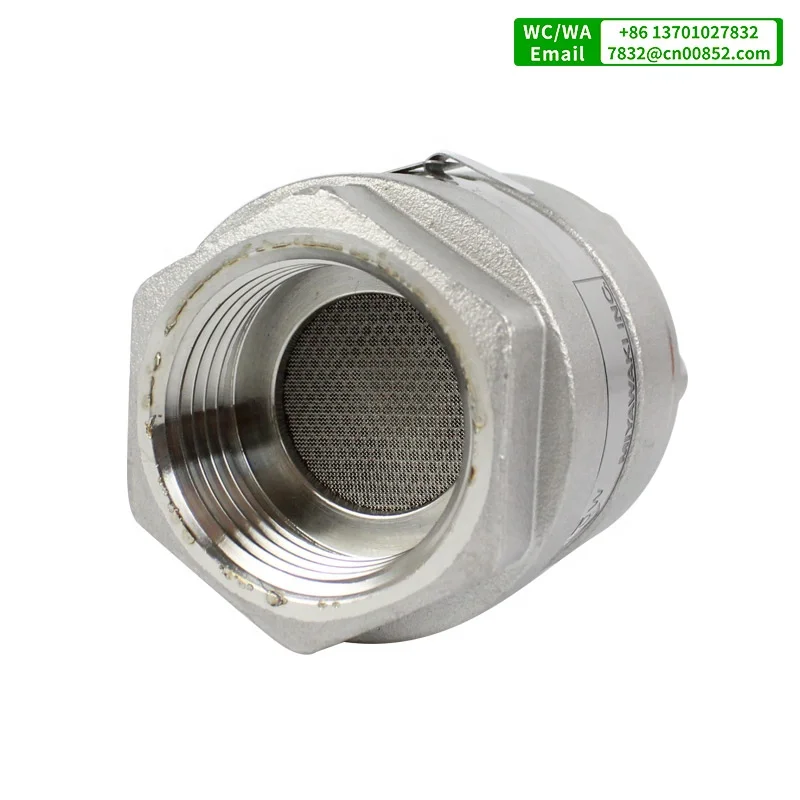

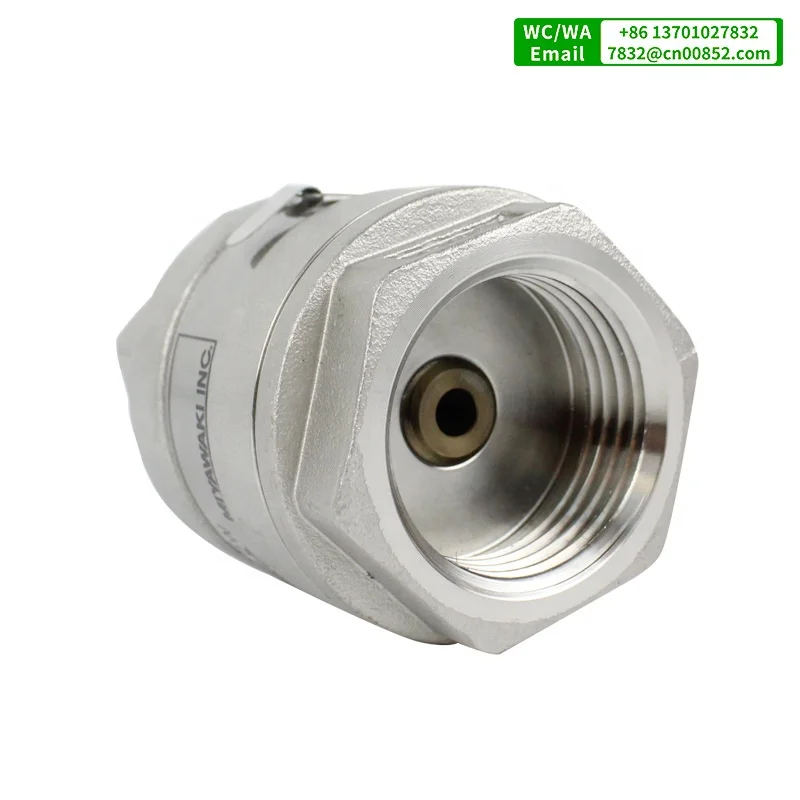

MIYAWAKI original DL1 21H Balanced Pressure Thermostatic Steam Trap
- Category: >>>
- Supplier: Beijing Ymer Technology Co. Ltd.
Share on (1601252065239):
Product Overview
Description
Advantages/Performance
1. Compact design
Can be installed in small spaces.
2. Made of stainless steel
Excellent corrosion resistance.
3. No steam leakage
Working temperature below saturation temperature, no steam leakage, excellent energy-saving effect.
4. Easy to maintain
The number of parts is small, making it easy to maintain and inspect.
5. Optional vertical/horizontal installation.
Can be installed in small spaces.
2. Made of stainless steel
Excellent corrosion resistance.
3. No steam leakage
Working temperature below saturation temperature, no steam leakage, excellent energy-saving effect.
4. Easy to maintain
The number of parts is small, making it easy to maintain and inspect.
5. Optional vertical/horizontal installation.
application
Suitable for food equipment, biological equipment, small heat exchangers, tank heating, steam headers, steam tracing pipelines, and washing/clothing equipment, etc
Model | Connections | Size | Max. Operating Pressure | Max. Operating Temperature | Body Material | Weight（kg） |
DL1-21 | Screwed Rc, NPT | 1/4‘’ | 0.01~2.1 MPa | 220℃ | Stainless Steel SCS13 | 0.7 |
3/8‘’ | ||||||
1/2‘’ | ||||||
3/4‘’ | ||||||
1‘’ |

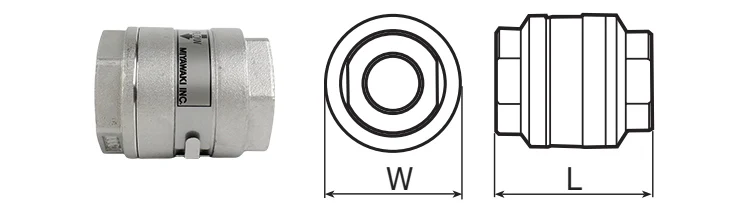

Dimensions (mm) | ||||||
Model | L | W | Weight（kg） | |||
8 | 60 | 48 | 0.7 | |||
10 | ||||||
15 | ||||||
20 | ||||||
25 | ||||||
Q1：Do you have your products in stock ?
A1：Yes . We have a large warehouse in Beijing
Q2：What is your mode of transportation ?
A2：You can choose any mode of transportation you want . For example , express airand shipping.
Q3：What's the minimum quantity ?
A3：According to the product , the quantity is different.
Q4：Are your products guaranteed ?
A4：All our products have a one-year warranty period.
Q5：How long will the product be ordered ?
A5：Spot products can be shipped at any time . Futures products can be orderedording to different products and different relatives . You can send an email for detailed inquiries.
