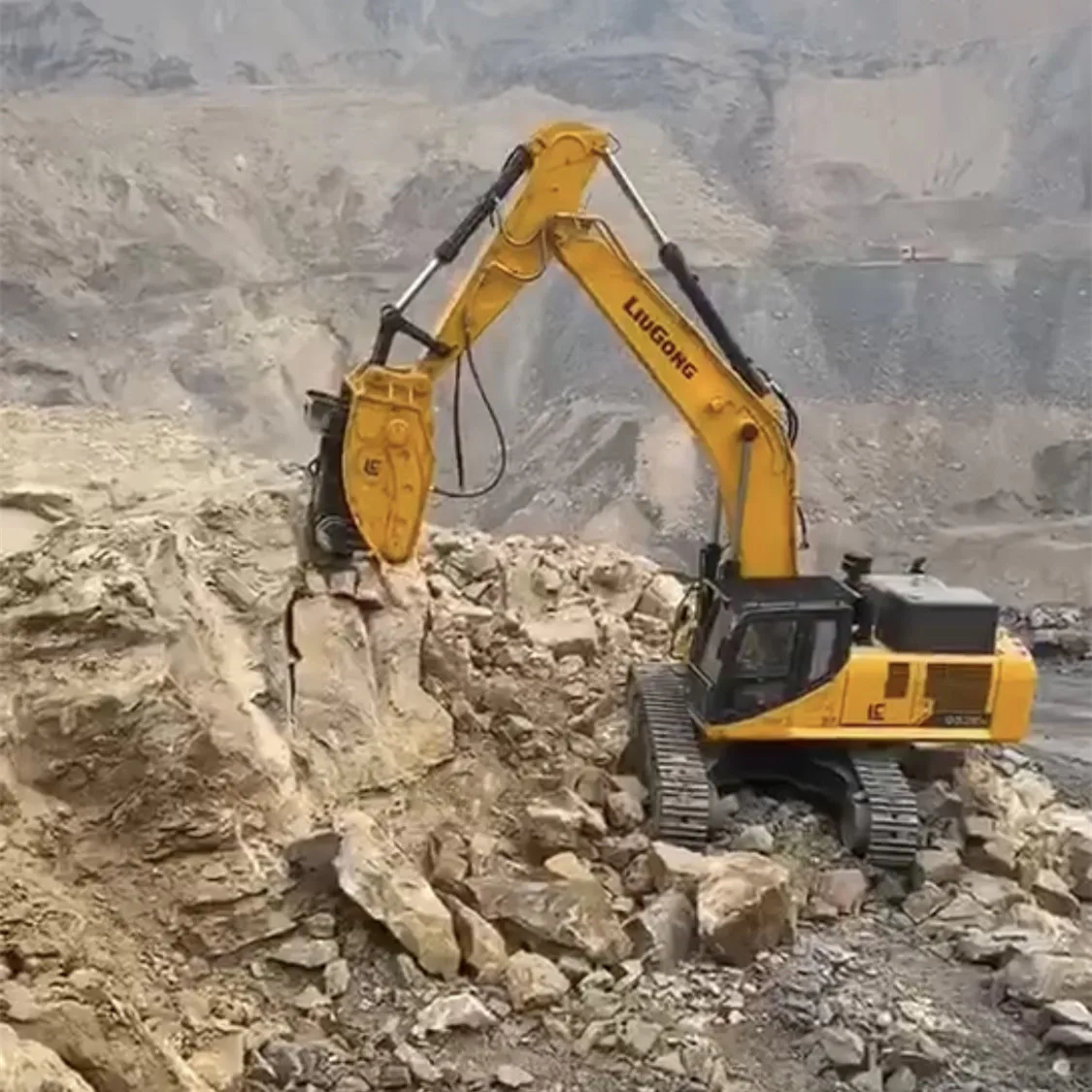

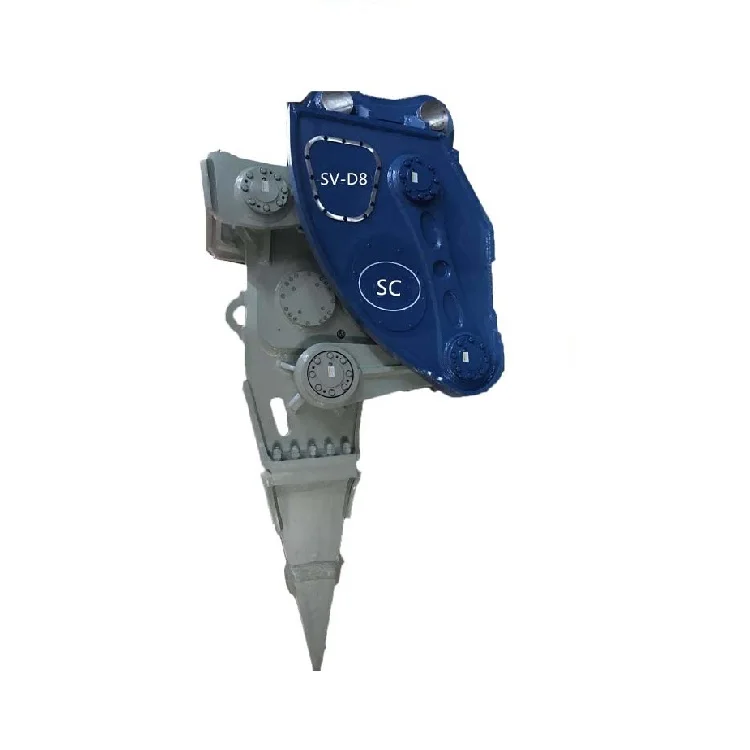

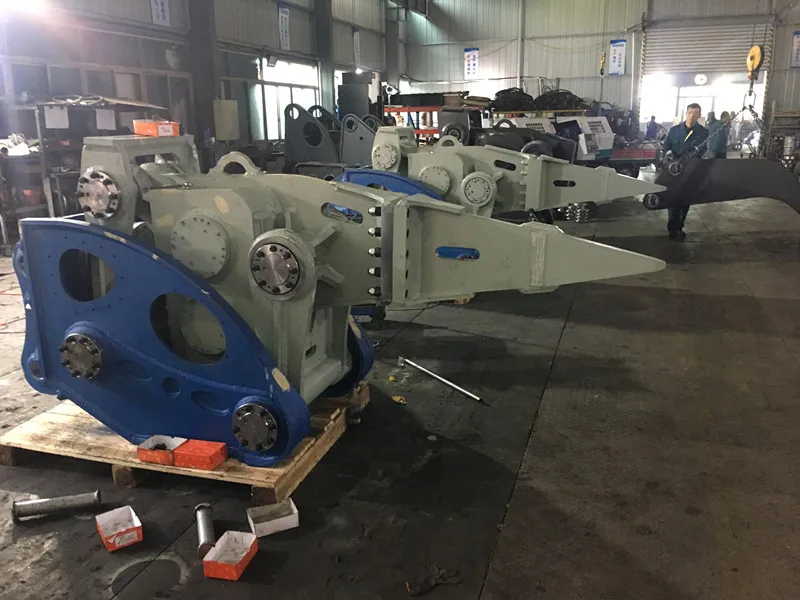

XCENTRIC RIPPER impact ripper for excavators
- Category: >>>
- Supplier: Yantai SC Equipment Co. Ltd.
Share on (1601252153154):
Product Overview
Description
PRODUCT SPECIFICATIONS
SC Vibro Ripper / Rock Breaker advantage
Application area : tunnels, foundations, wet places, road construction, noise restriction area, downtown construction site, under the water places.
1 | Developed by patent high frequency vibration technology , which makes 80% better |
2 | Productivity than other hydraulic rock breakers |
3 | Innovative design with tooth & pin improved durability |
4 | Easy installation with hydraulic breaker lines of excavator |
5 | Noiseless and eco friendly equipment (approx. 52~70dB) |
6 | Increased lifetime of parts by applying the oil rotation power system |
7 | Protecting the excavators from vibration shock by our patent elastomer cushions |
8 | Superior operational efficiency with the adoption of the powerful vibration motor |
Type | SV-20 | SV-30 | SV-40 | SV-50 | SV-60 | SV-E5 | SV-E6 | SV-E7 | ||
Excavator(T) | 15~20 | 22~26 | 28~30 | 30~33 | 36~45 | 36~45 | 50~55 | 70~100 | ||
Working flow(L/min) | 150~180 | 150~200 | 160~220 | 180~250 | 260~295 | 260~295 | 300~350 | 360~450 | ||
Working pressure(Mpa) | 20~24 | 23~24 | 23~25 | 23~25 | 24~26 | 24~26 | 24~26 | 25~28 | ||
Size | Length | 2300mm | 2700mm | 2700mm | 2800mm | 3100mm | 3400mm | 3685mm | 3500mm | |
Width | 950mm | 1200mm | 1200mm | 1250mm | 1250mm | 1207mm | 1246mm | 1355mm | ||
Height | 1350mm | 1500mm | 1500mm | 1550mm | 1650mm | 1780mm | 1815mm | 1855mm | ||
Weight(Kg) | 3000 | 3600 | 3800 | 4300 | 5000 | 5500 | 6200 | 6600 | ||
Hose size(G) | 3/4“ | 1” | 1“ | 1” | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | ||
Impact power(KN) | 251 | 278 | 300 | 500 | 580 | 680 | 923 | 1040 | ||
Impact frequency(Hz) | 25~30 | 25~30 | 25~30 | 25~30 | 25~29 | 25~29 | 25~29 | 25~29 | ||
Famous brand of parts
French HYDRO LEDUC motor
Germany Continental air spring
Wear-resistent bottom rubber
Original ESCO teeth
Hardox wear-resistent tip
Whole set tool kits
Rocks can be break
Mohs' hardness reference table | ||||||
SV15 | SV20 | 1-3 hardness level standard mineral: Talc, Gypsum | ||||
SV30 | SV40 | 3-4 hardness level standard mineral: Red sand rock ,Fluorite | ||||
SV50 | SV60 | SV-E5 | 5-6 hardness level standard mineral: Apatite,Syenite | |||
SV-E6 | SV-E7 | 7-8 hardness level standard mineral: Quartz,Topaz | ||||
Not recommended level | 9-10 hardness level standard mineral: Marbel, Adamas | |||||
Model | Suitable working enviroment: | ||||
SV15 | Can working under noise requires for gaining and advanced cut meander, and also for excavate hard ground, frozen earth and ice breaking. | ||||
SV20 | Use for some excavate and dismantle works, also can work for arenaceous clay and ice breaking. | ||||
SV30 | Wider working areas, can work for loose rock, some stand stone, city roadbed, and thicker frozen earth. | ||||
SV40 | Improved type for SV30, expanded working scopes and productivity improvement. | ||||
SV50 | Design for some big earthwork and some stone mine, It has special effects on shale,fault fracture zone and some decomposed rock. | ||||
SV-E5 SV-60 | At some big earthwork areas, we used to have got a score at 150 cubes per hour(sand rock), wide working scopes, and could take some plae of blast work. | ||||
SV-E6 | Biggish type of viber, design for mining, used to have 3800 cubes(22hours) per day output to replace blast work. | ||||
SV-E7 | Biggish type of viber in the word at the moment, Almost can break the rocks over 8 levels.Employ the most advanced vibration technology, can matched on 80-100tons class excavators. | ||||
SV-DX | This type of viber is using superposition vibration cases, can matched with bigger excavators(70-210tongs), and easier to excavation. | ||||

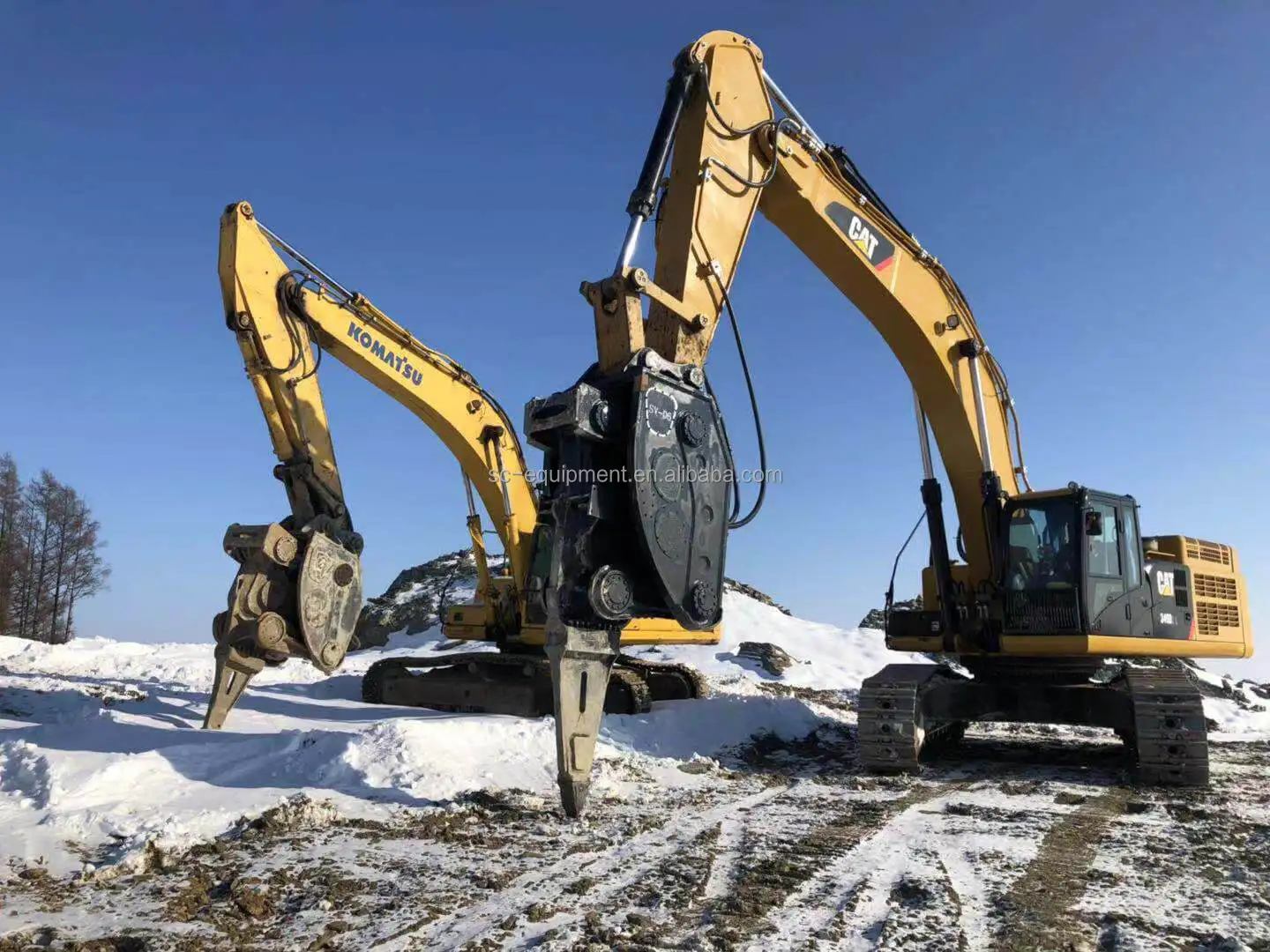

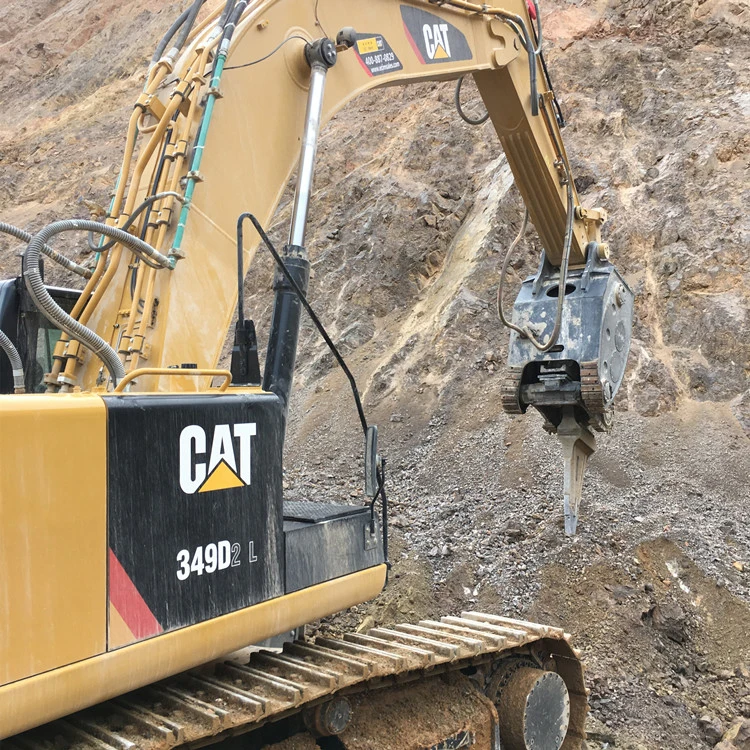

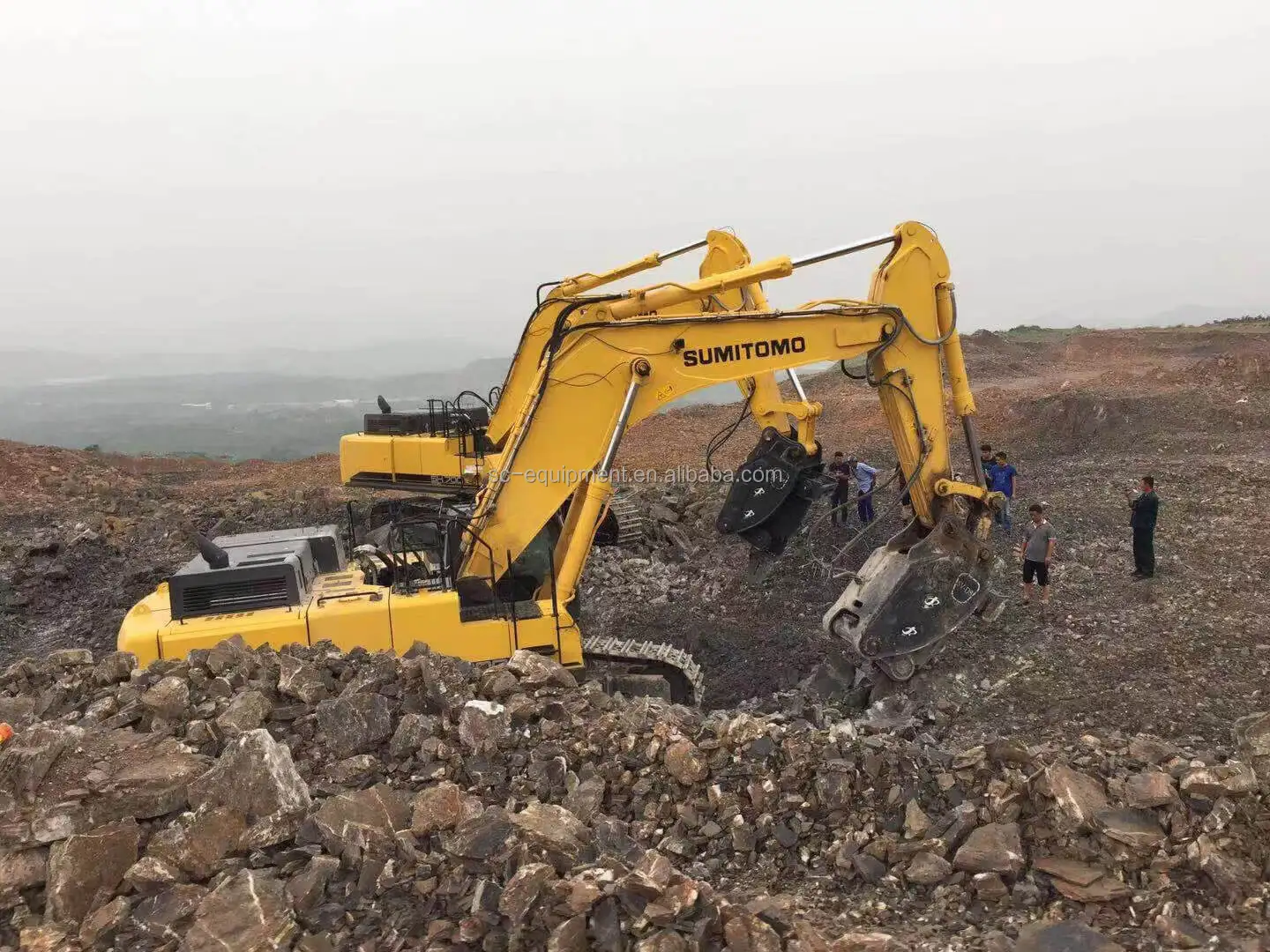

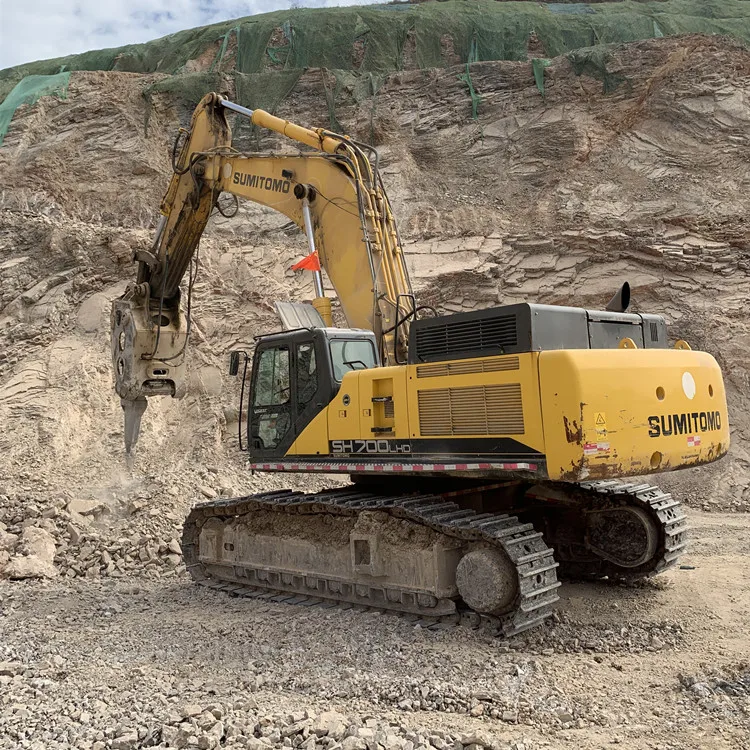

Successful Project

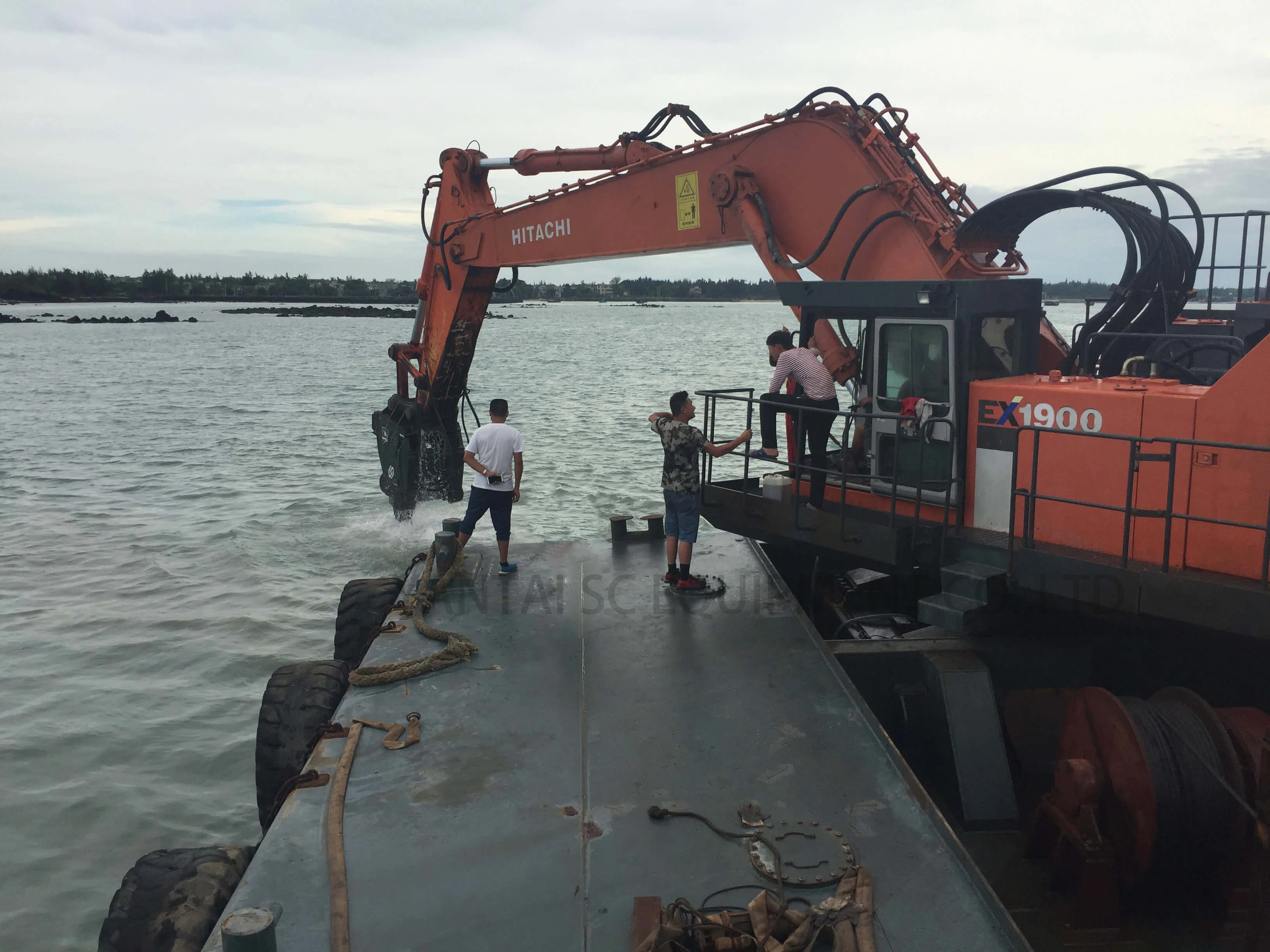

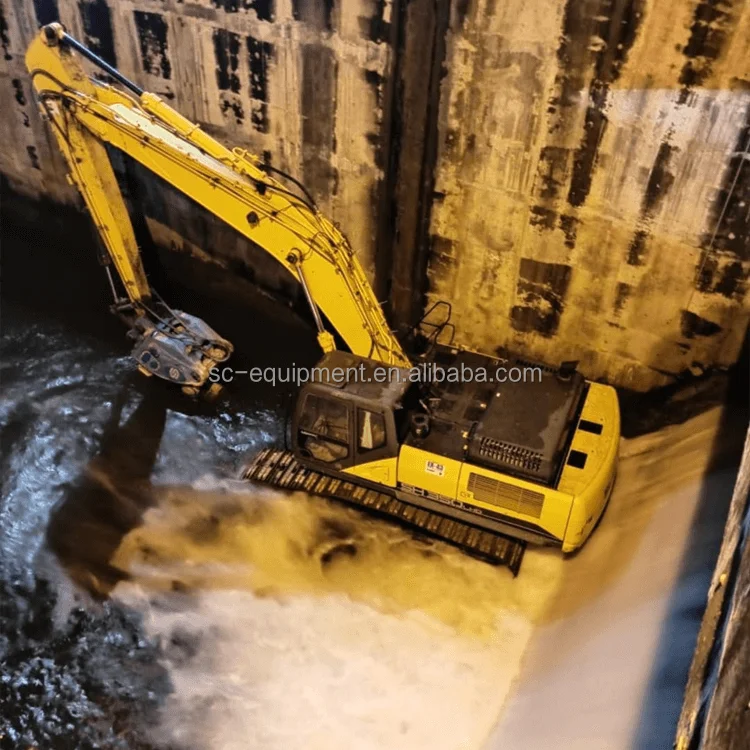

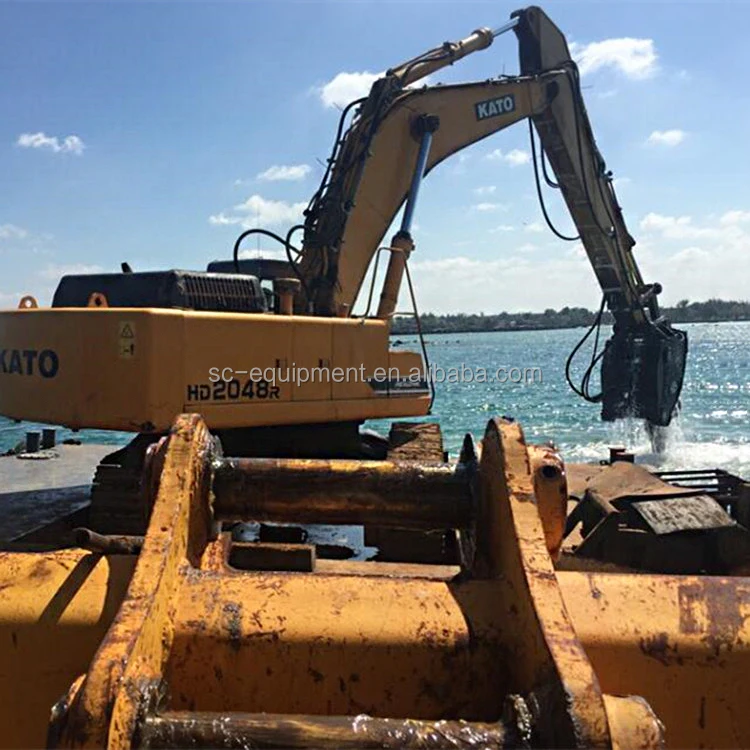

Work under water.
* All works under water can be done without complicated preparations.* No need renting or purchasing extra special devices such as air compressor which save a lot for you.
* No need spending cost of air compressor about 50 L diesel/hour x 8 hours
* No need spending cost of air compressor about 50 L diesel/hour x 8 hours

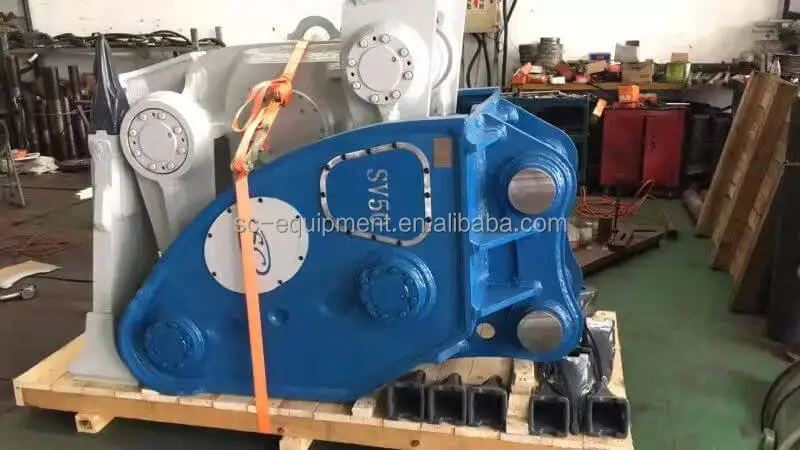

Packing
Recommend Products

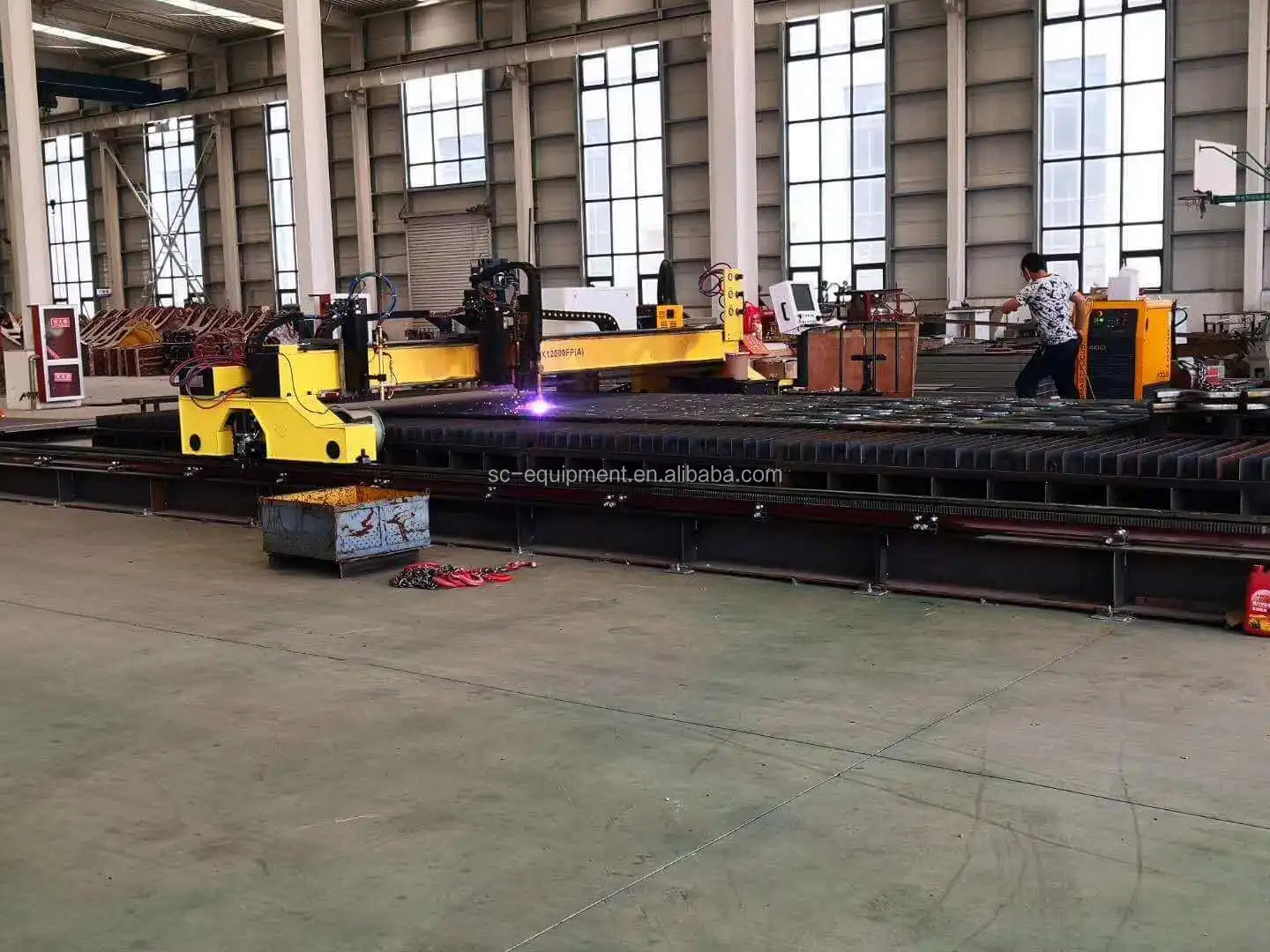

Company Profile
