10 20m Telescopic Articulated Cherry Picker Spider Lift Boom Lift

Share on (1601252204581):


Price:$11,500.00-12,500.00

Quantity:


Product Overview

Description



Product Description

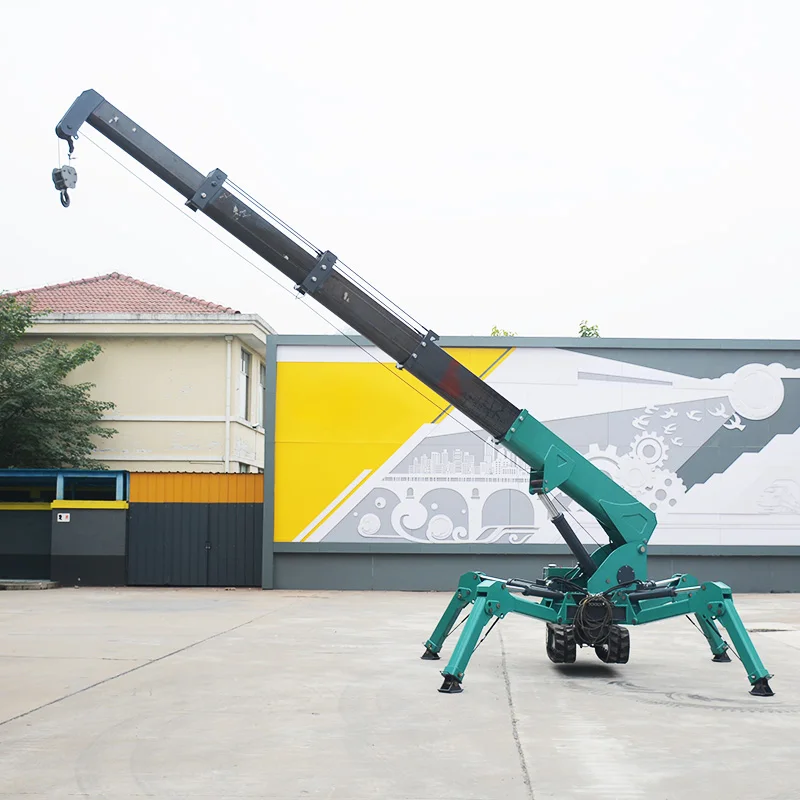

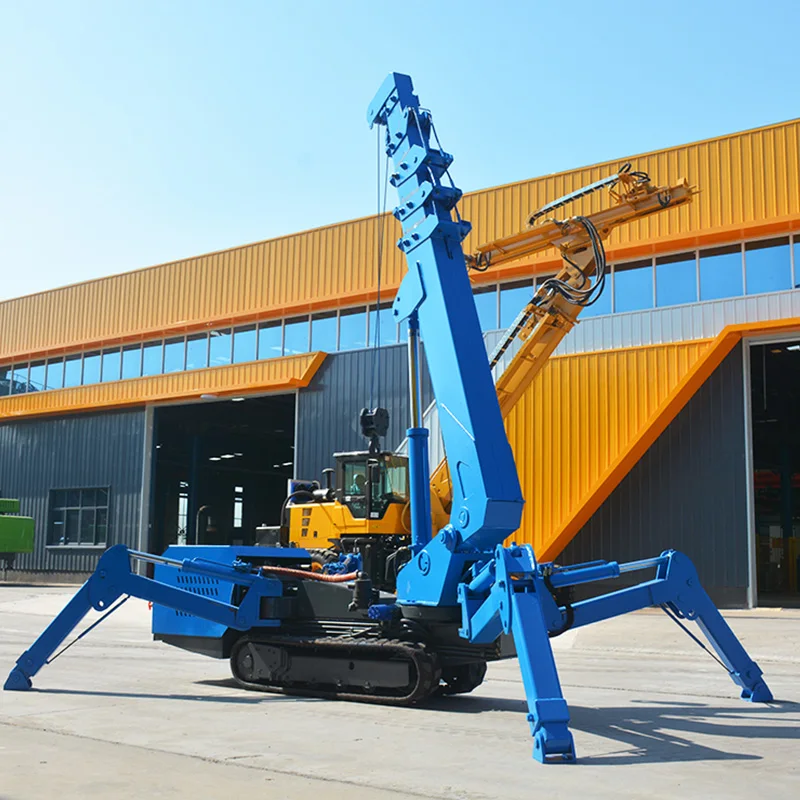

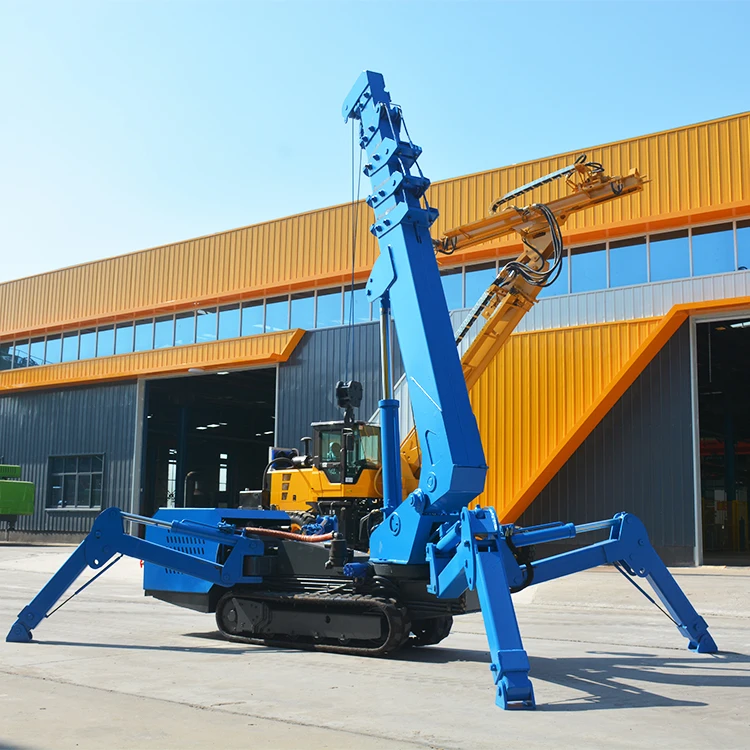

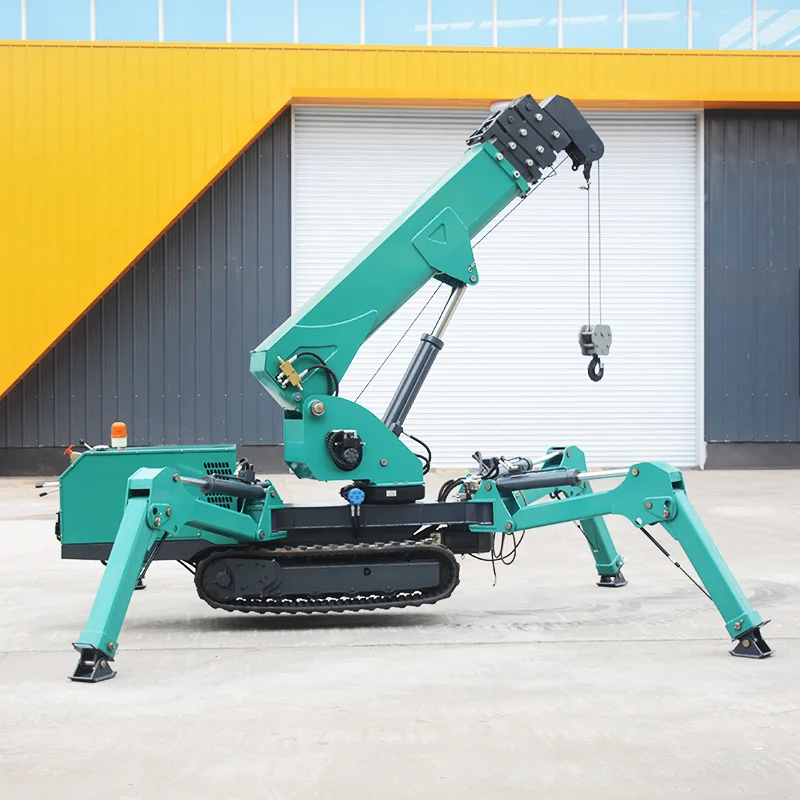

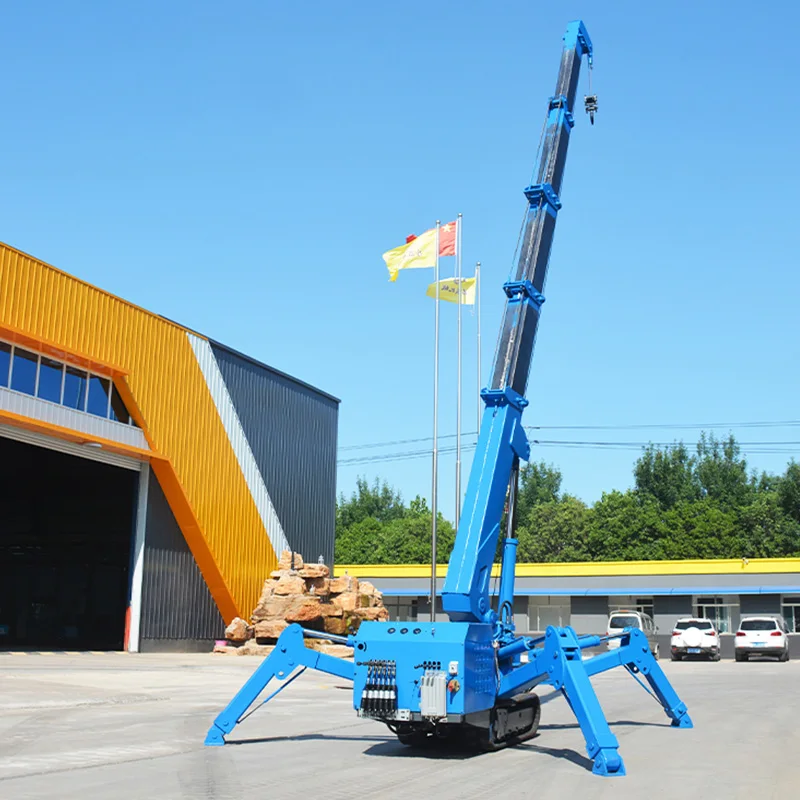

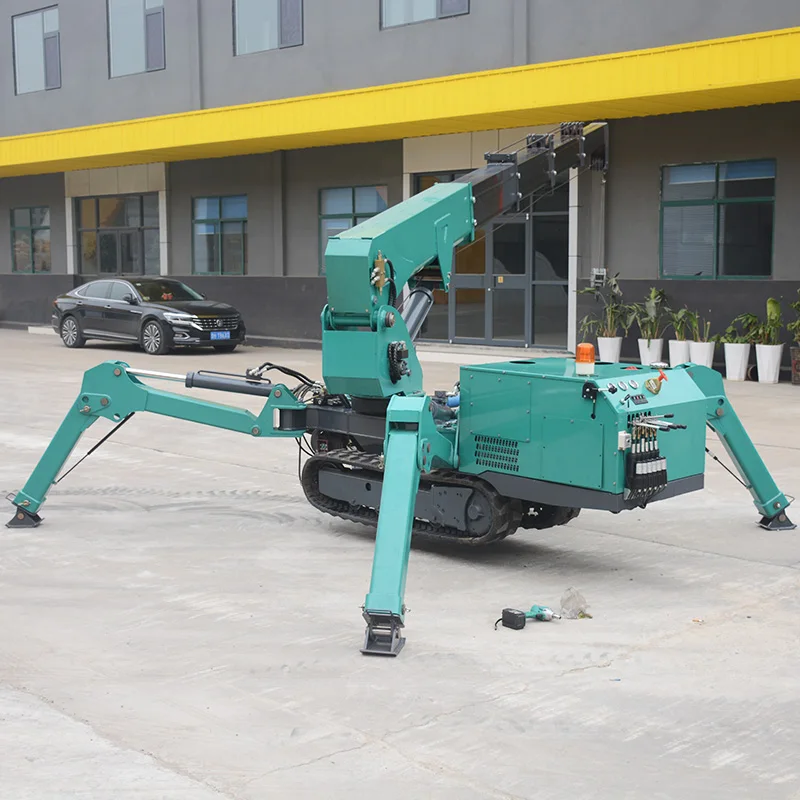

Mini Spider Mini Crane

Spider crane miniature design, small size, strong lifting capacity.Production range: 1.5 tons - more than 10 tons,The most commonly used models: 3 tons -5 tons -8 tons. The model and configuration can be customized, the design is reasonable, the operation is simple, easy to learn and understand, and the work is stress-free.Use the wireless remote control or body switch to operate, and the operation is fast. Say goodbye to the era when you can only rely on human work in narrow spaces, which not only improves work efficiency but also ensures work safety.




Specification


Model
YG-30
YG-50
YG-80
Specification
3t
5t
8t
Maximum working radius
8.83mx0.15t
14mx0.5t
16.5m
Maximum above-ground head
9.9mx0.7t
16.8m
18m
Wire Rope Specifications
0-8m/min (4 ropes)
12m/min (4 ropes)
12m/min (4 ropes)
Boom form
Φ8mm×45m
Φ11mm×80m
Φ11mm×80m
Boom length/time
3.1m-9.2m/20sec
12.3m/54sec
12.3m/54sec
Boom Angle/TimeRotation angle/speed
0-78°/13sec
0-78°/13sec
0-78°/13sec
Slew Angle/Speed
0-360°continuous/60sec
0-360°continuous/38sec
0-360°continuous/38sec
Way of walking
Hydraulic motor drives
Hydraulic motor drives
Hydraulic motor drives
Walking Speed
0-2.5km/h
0-2.5km/h
0-2.5km/h
Gradeability
25°(36%)
25°(36%)
25°(36%)
L*W*H(mm)
2950*980*1560
5000*1500*1900
5000*1600*2180
Total weight(kg)
2700
6200
7200
