LH Type Electric Hoist Double Girder Bridge Overhead Cranes
$1,800.00-2,000.00
New Design QC Type Magnet Double Girder Overhead Crane 1 ton 3 ton 5 ton 10 ton 20 ton 50 ton For Sale Price
- Category: >>>
- Supplier: Henan Weihua Heavy Machinery Co. Ltd.Henan Ltd.
Share on (1601252249472):
Product Overview
Description
Products Description

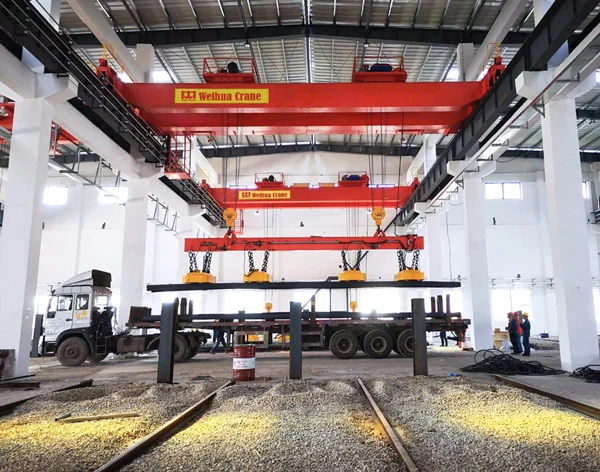

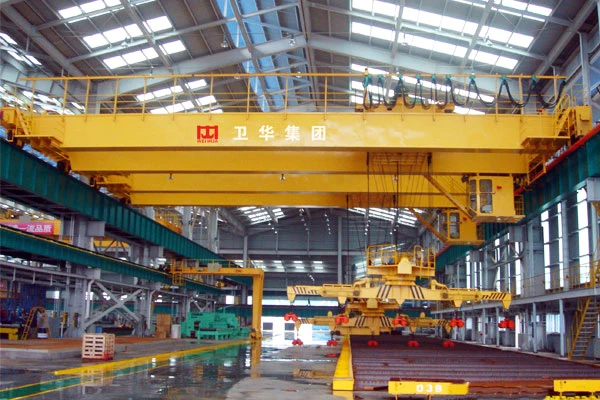

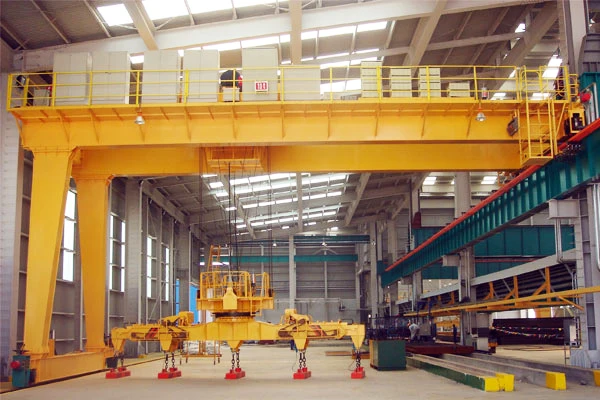

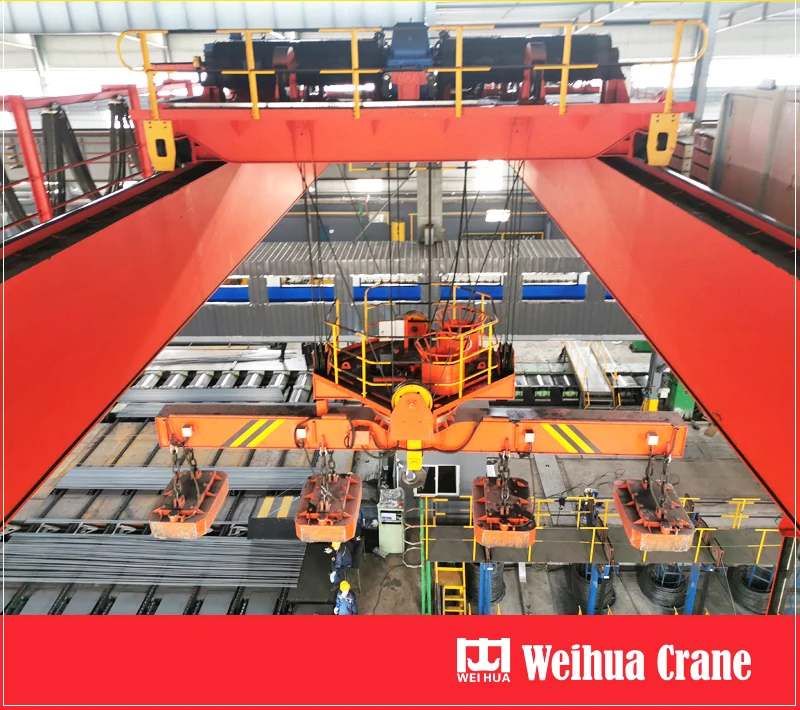

Double beams electric overhead bridge traveling magnetic crane
Double beams magnetic crane with removeable electric disk is especially suitable for heavy loading and unloading and handing of magnetic ferrors in fixed spans indoors or in the open air in metallurgical plants.
Double girders magnet crane also commonly used in factories and warehouse to transport materials such as steel, iron blocks, scrap iron, scrap steel and iron filing. It should be with rain-proof equipment when used in the open air.

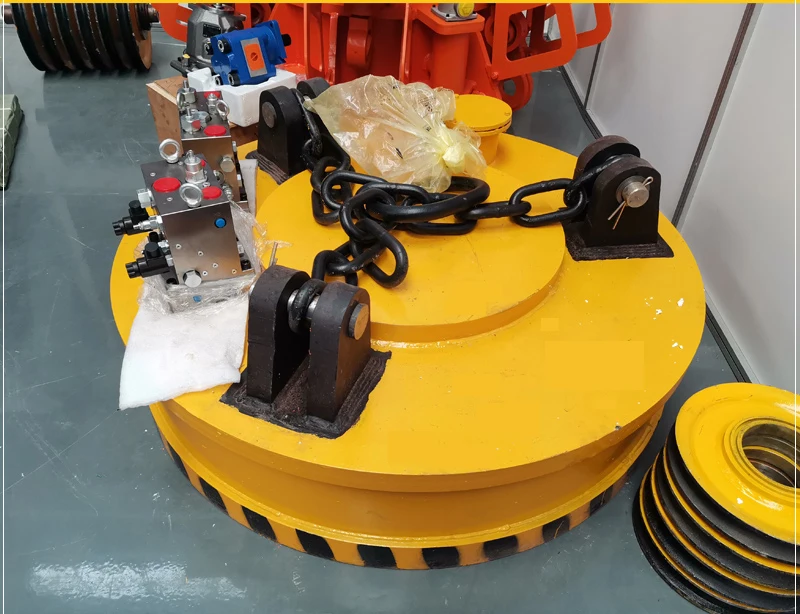

The basic structure of an electromagnetic crane for lifting equipment is the same as that of a hook overhead crane. The different is that a DC lifting electromagnetic is hung on that hook to lift ferrous metals with magnetic conductivity. And its products. Usually, the AC power is converted into DC power through the metor generator set on the bridge platform or the thyristor DC box installed in the driver's cabin, and then the DC power is used by the special cable reel set on the trolley frame. The flexible cable is sent to the lifting electromagnet.

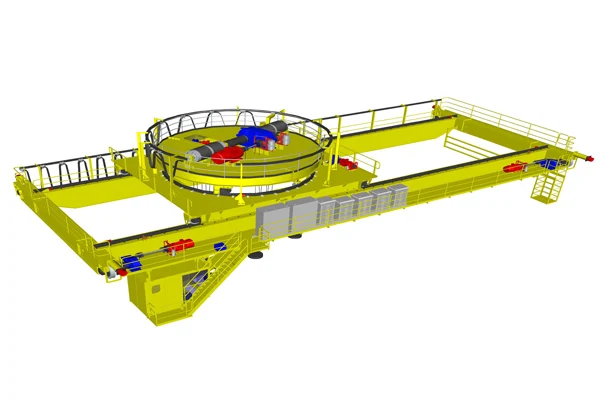

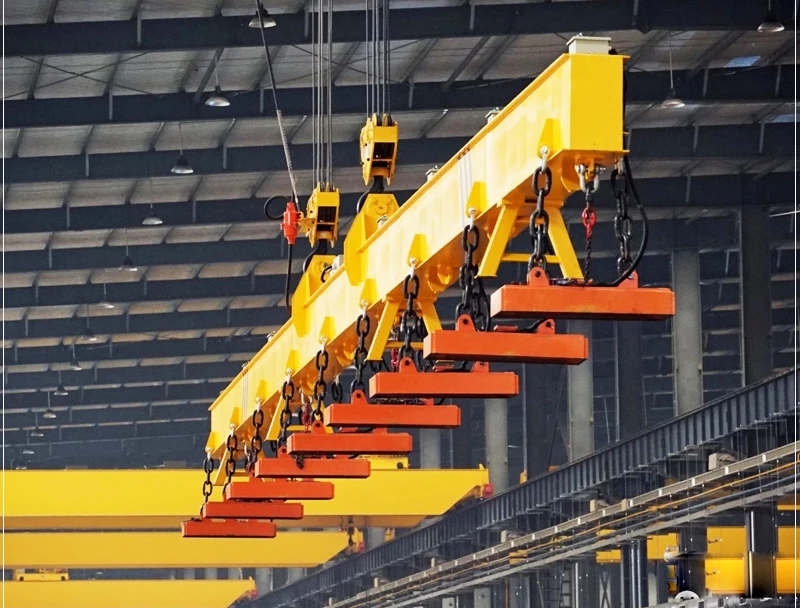

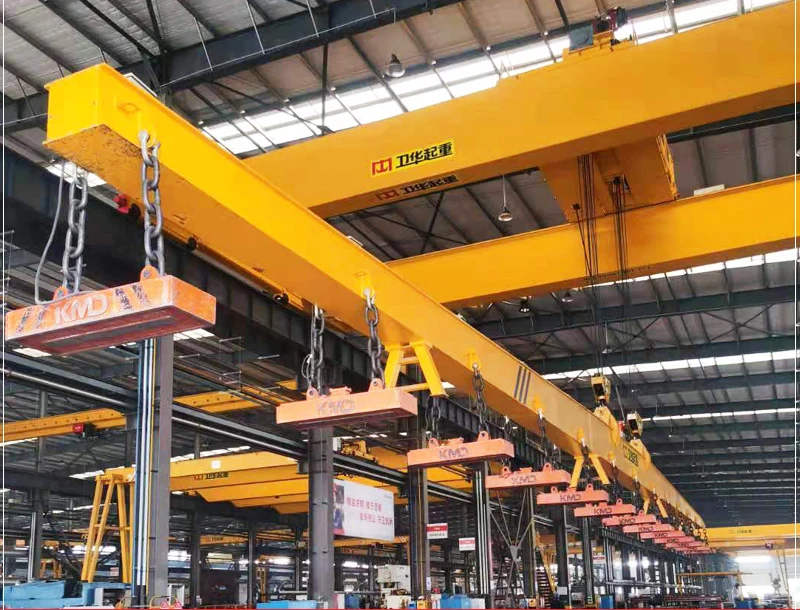

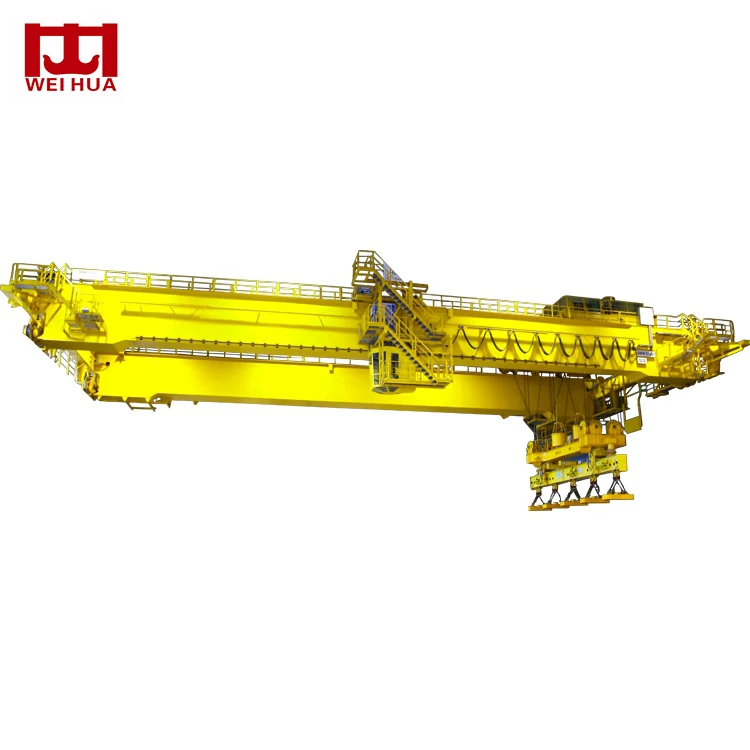

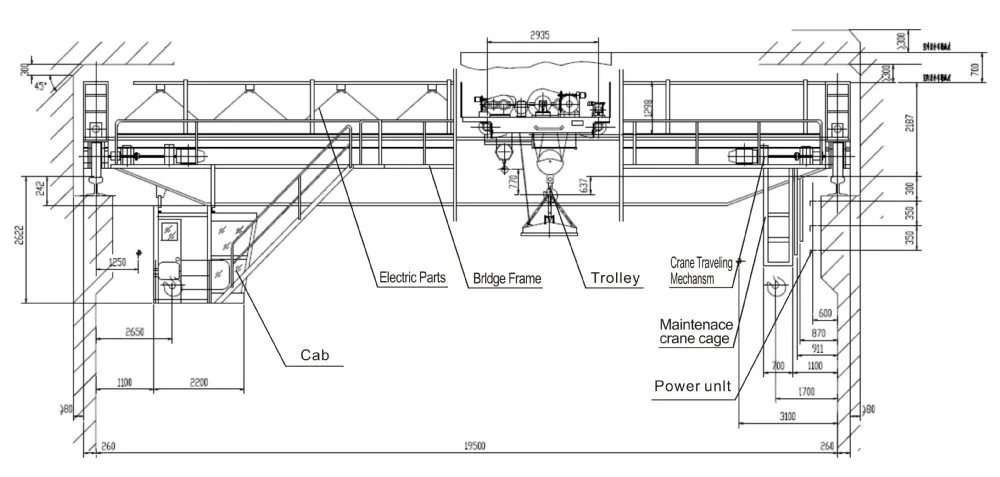

Provide 3D Drawings: Electromagnetic beam Crane & Non-rotating Beam Model
Features of Double beams overhead bridge traveling magnetic crane:
1. Overhead traveling on the steel structure, normally in workshop, heavy working duty from A5-A8.

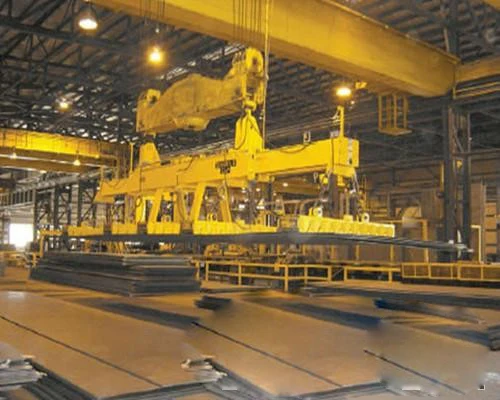

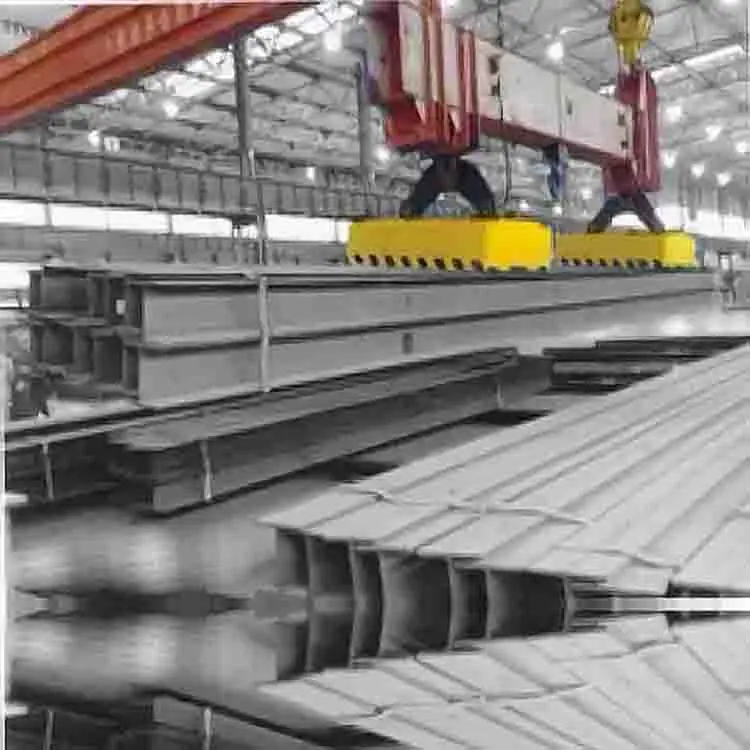

2. With magnetic/magnet plate under the crane as the lifting tool, to lift steel scrap, steel material etc.
3. Soft start, 3-5 speeds to operate, very stable to lift and running.
4. Six direction action, to make sure the enough wide working ared.
5.Full safety system as follows:
* Weight overload protection
* Emergency stop system
* Over current protection, short-circuit protection
* Phase sequence proetction
* Zero position proetection
* Voltage loss protection
* Limit switch and stopper for crane long traveling and cross traveling
* Lifting overhigh and overlow limit switch
Capacity | m | 7.5+7.5 | 10+10 | 16+16 | 17.5+17.5 | |||
Span | m | 28 | ||||||
Work duty | A7 | |||||||
Max. lift height | m/min | 16 | ||||||
Lift speed | m/min | 12.9 | 11.9 | 12 | 12 | |||
Trolley speed | m/min | 42.7 | 38 | 37.9 | 39.8 | |||
Crane speed | m/min | 100 | 91.3 | 114 | 114 | |||
Hoisting motor power | KW | YZR280M-10/55 | YZR315M-10/63 | YZR355M-10/90 | ||||
Trolley traveling power | KW | YZR200L-8/2×15 | YZR160M2 | YZR160L-6/11 | ||||
Crane traveling power | KW | YZR200L-8/2×15 | YZR180L-82×15 | YZR225M-8/22×2 | ||||
Trolley weight | kg | 14280 | 14980 | 16.23 | 16.50 | |||
Crane weight | kg | 54280 | 62865 | 89.5 | 100.6 | |||
Max. wheel load | KN | 240 | 280 | 39.0 | 40.6 | |||
Rail recommended | kg/m | 38.43 | 38.43 | QU70 | QU100 | |||
Power supply | AC 3P | 380 50Hz | ||||||
CLIENTS PROJECT
Related Products
Main Products
The products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane,grab bucket crane, jib crane,marine decke crane,electric hoist, electric winch, mobile platforms and other types of hydraulic crane technical requirements.
\\uD83D\\uDC47\\uD83D\\uDC47\\uD83D\\uDC47Explore more if you are interested\\uD83D\\uDC47\\uD83D\\uDC47\\uD83D\\uDC47
Company Profile
Weihua Group was founded in 1988. After 33 years of development, it has developed products such as lifting machinery, port machinery, mining machinery,electric hoists, electric winch, parking equipment, special robots and other products.The total assets are 7.076 billion yuan, the brand value is 7.19 billion yuan, there are more than 6,800 employees, and it covers an area of 3.65 million square meters.
WEIHUA founded China’s first crane design R & D team and there are 500 personnel now, developed the anti-swing technology independently and has obtained more than 100 patents. WEIHUA has been the post-doctoral scientific research workstation of Henan Province for four consecutive 4 years. WEIHUA has its own independent laboratory and has passed the CNAS certification, it is the only one industrial crane production and testing base appointed by government.
WEIHUA founded China’s first crane design R & D team and there are 500 personnel now, developed the anti-swing technology independently and has obtained more than 100 patents. WEIHUA has been the post-doctoral scientific research workstation of Henan Province for four consecutive 4 years. WEIHUA has its own independent laboratory and has passed the CNAS certification, it is the only one industrial crane production and testing base appointed by government.
Further more, as the designated supplier of Jiuquan Satellite Launch Base, Weihua accelerated the launch of Chang'e successfully.
Packing and shipping
FAQ
Q. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source or other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Independent control system:
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source or other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Independent control system:

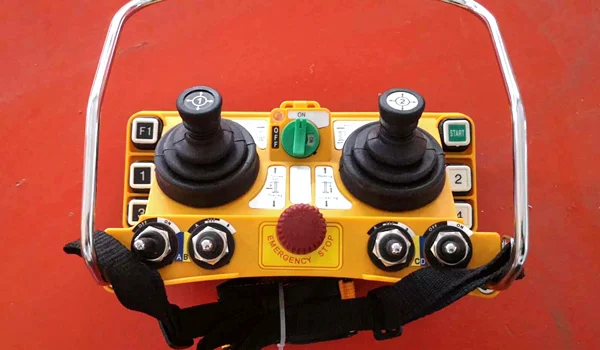

A. wireless control B. cab control
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q. Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device, Polyurethane buffer, Emergency shutdown device, Current overload protector.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q. Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device, Polyurethane buffer, Emergency shutdown device, Current overload protector.
