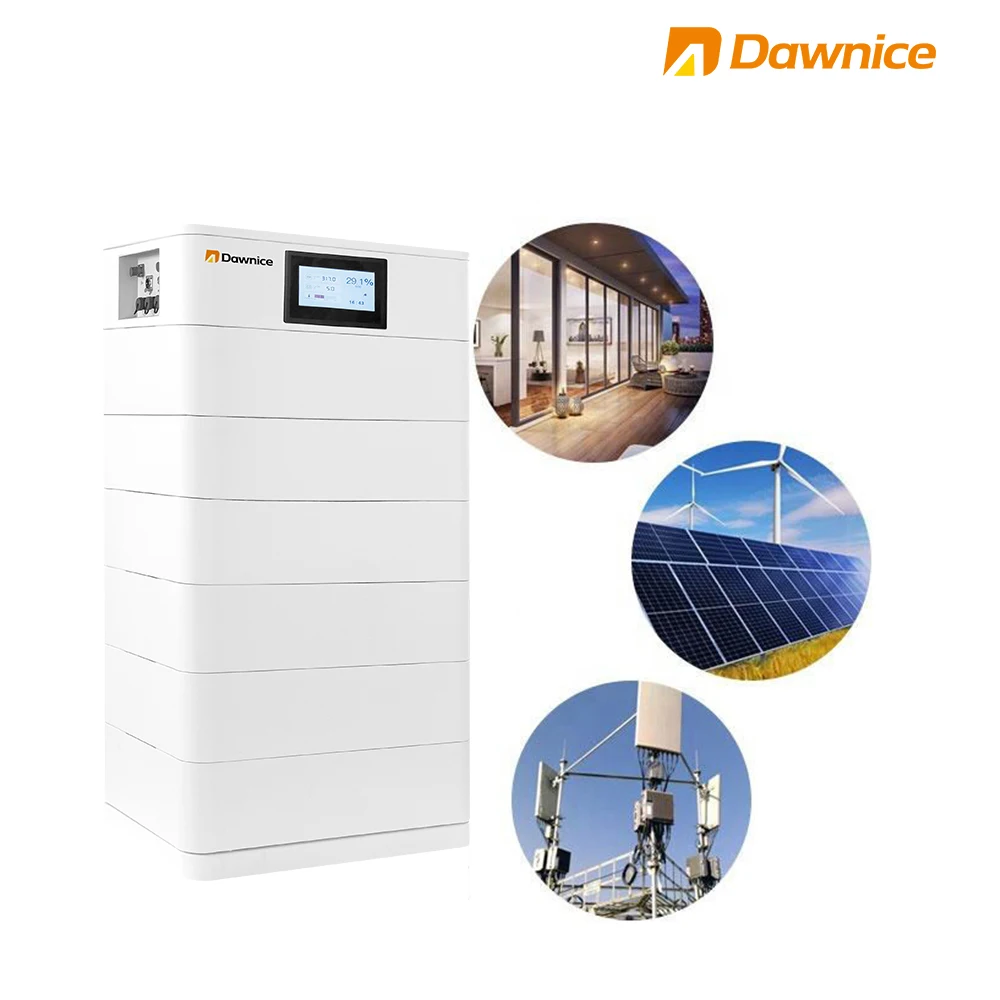

High Voltage Lithium Solar Battery Rack Lifepo4 Batt 153.6V 204.8V 256V 307.2V 358.4V 409.6V 200ah Capacity Hybrid Grid CAN
High Voltage Lithium Solar Battery Rack Lifepo4 Batt 153.6V 204.8V 256V 307.2V 358.4V 409.6V 200ah Capacity Hybrid Grid CAN
High Voltage Lithium Solar Battery Rack Lifepo4 Batt 153.6V 204.8V 256V 307.2V 358.4V 409.6V 200ah Capacity Hybrid Grid CAN
High Voltage Lithium Solar Battery Rack Lifepo4 Batt 153.6V 204.8V 256V 307.2V 358.4V 409.6V 200ah Capacity Hybrid Grid CAN
High Voltage Lithium Solar Battery Rack Lifepo4 Batt 153.6V 204.8V 256V 307.2V 358.4V 409.6V 200ah Capacity Hybrid Grid CAN
High Voltage Lithium Solar Battery Rack Lifepo4 Batt 153.6V 204.8V 256V 307.2V 358.4V 409.6V 200ah Capacity Hybrid Grid CAN
High Voltage Lithium Solar Battery Rack Lifepo4 Batt 153.6V 204.8V 256V 307.2V 358.4V 409.6V 200ah Capacity Hybrid Grid CAN

High Voltage Lithium Solar Battery Rack Lifepo4 Batt 153.6V 204.8V 256V 307.2V 358.4V 409.6V 200ah Capacity Hybrid Grid CAN

Share on (1601252335409):


Price:$320.00 - $599.00

Quantity:


Product Overview

Description







Product Details


1.Based on the original cabinet-type solar energy storage battery, ESS adopts the latest ESS battery system. According to market demand, this type of energy storage battery with high energy density, space saving and powerful power was developed.
2. energy storage bricks are stacked in parallel with 2units or 6UNITS batteries. In the process of power transmission, power consumption is reduced.
3.Fully retain the use of load power.
4.The battery cell uses the best safety
5.LiFePO4 battery to save costs.
This energy storage system (ESS) provides high-efficiency power regulation capabilities, and its applications include power demand management, power dispatch, and renewable energy. Residential, school, commercial and public utility applications.


MODEL
DW-5.0LV
DW-10.0LV
DW-15.0LV
DW-20.0LV
DW-25.0LV
DW-30.0LV
Battery Type
LiFeP04(LFP)
Nominal Voltage(V)
51.2V
Nominal Capacity(KWH)
5.42KWH
10.85KWH
16.28KWH
21.7KWH
27.13KWH
32.56KWH
Usable Capacity(KWH)
4.87KWH
9.76KWH
14.65KWH
19.53KWH
24.41 KWH
29.30KWH
Design Life
10+Years （25 ℃/77F)
Dimension(mm)
600*400*385
600*400*534
600*400*683
600*400*832
600*400*981
600*400*1130
Weight (kg)
80
125
170
215
260
305
Cycle Life
>6000. 25°C
Discharge Voltage(V)
40-48
Charge Voltage(V)
56 -58.4
Charge/Discharge Current(A)
83 (Recommended) 100A(Max)
Internal Resistance
≤30mΩ
Power Consumption
<2W (Work) < 100mW(Sleep)
Monitoring Parameters
System voltage, current, cell voltage,cell temperature, module temperature
SOC
Intelligent algorithm
Communication
CAN/RS-485/RS-232
Operating Temperature Range
-10℃-50℃
Transport or Storage Temperate Range
-20℃-45℃
Humidity
15% - 85% (No Condensing)
Product Warranty
5 Years
Performance Warranty
10 Years
