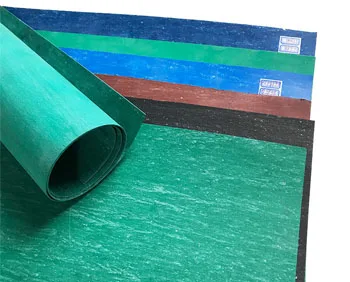

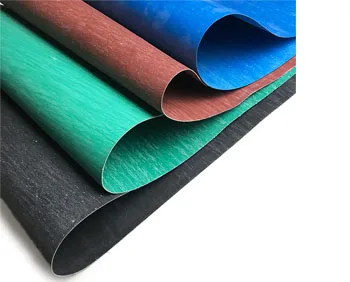

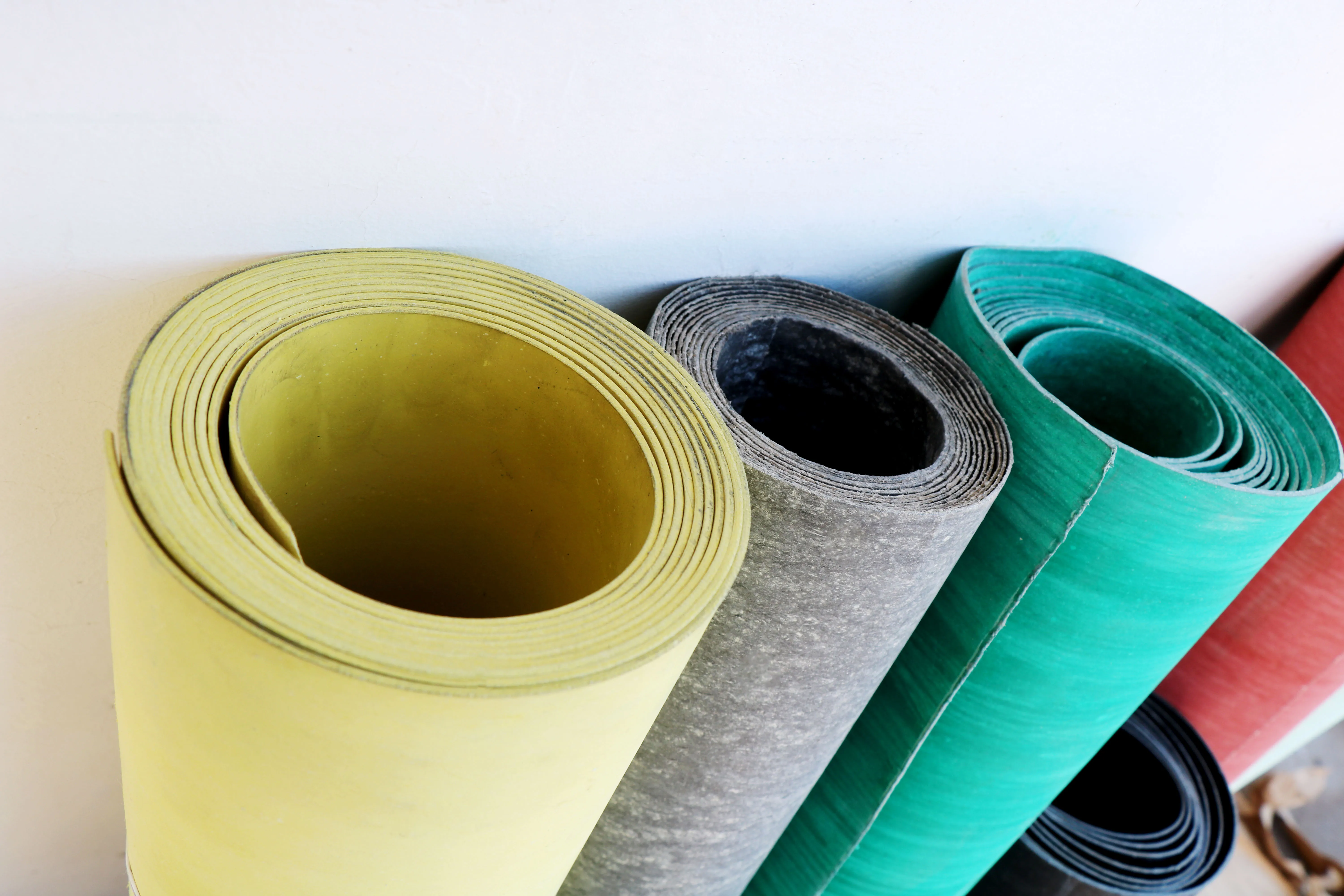

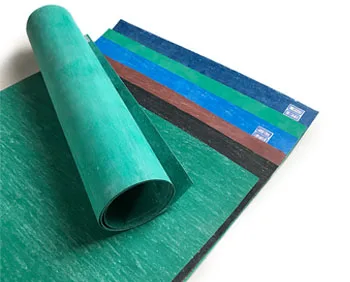

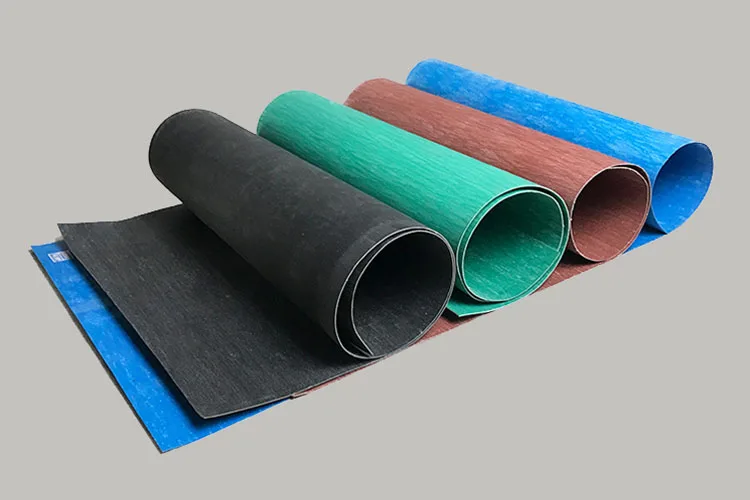

high temperature resistant non asbestos compressed fiber paper gasket non asbestos rubber sheet
- Category: >>>
- Supplier: Hengshui Aohong Technology Co. Ltd.
Share on (1601252371159):
Product Overview
Description
Wholesale high pressure and durable sealing non asbestos rubber sheet
Product properties
Item | NXB200 | NXB300 | NXB350 | NNY150 | NNY250 | NNY300 | NNY350 | ||||||||
Tensile strength MPa≥ | 6.0 | 8.0 | 11.0 | 8.0 | 10.0 | 12.0 | 15.0 | ||||||||
Aging Coefficient ≥ | 0.9 | ||||||||||||||
Densityg/cm³ | 1.8~1.9 | ||||||||||||||
Compressibility % | 12 ± 7 | ||||||||||||||
Normal temperature Pliability | Bend 180 degree on the round column (the column diameter is 12 multiple sample thickness), No crack | ||||||||||||||
Rebound degree | 35 | 40 | 45 | 40 | 45 | 50 | 50 | ||||||||
Worm change Relaxation rate % ≤ | 45 | 45 | 45 | 40 | 40 | 30 | 30 | ||||||||
Dipped in IRM903 oil with 149℃ for 5 hours | Horizontal Strain MPa≥ | ----------------- | 4.0 | 6.0 | 8.0 | 9.0 | |||||||||
Weight increasing % ≤ | ----------------- | 30 | |||||||||||||
Appearance change | ---------------- | No air bubble | |||||||||||||
Dipped in ASTM fuel oil B with 21℃-30℃ for 5 hours | Thickness increasing% | ---------------- | 0~20 | 5~25 | 5~20 | 5~20 | |||||||||
Pliability | Bend 180 degree on the round column (the column diameter is 12 multiple sample thickness),No crack | ||||||||||||||
Cauterization to the metal material | ---------------- | No Cauterization | |||||||||||||
Normal temperature oil Airtightness | Medium pressure MPa | ---------------- | 7.0 | 9.0 | 11 | 12 | |||||||||
Airtightness request | Keep for 30min, no leak | ||||||||||||||
Nitrogen leakage rate [(ml/h.mm)] ≤ | 300 | ||||||||||||||
Thickness
4600x1500mm, 4100x1500mm,

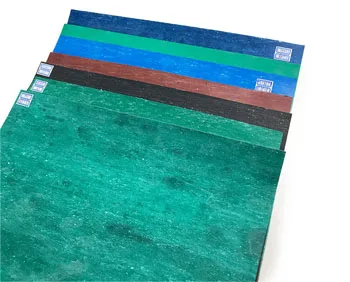

3810x1270mm, 3800x2710mm, 2000x1500mm, 1500x1360mm, 1270x1270mm, 1500x1500mm.Color: Grey, Black, White, graphite,Green,Red.
The other sizes are optional or customize according to the requirements of customers.
The other sizes are optional or customize according to the requirements of customers.
Product introduction
Non-Asbestos Joint Sheet are made of the frame materials including
aramid fiber and synthetic mineral fiber after special proportioning
with oil-resistant rubber binders and adding other functional additives
and compression molding it.
Uses: Substitution of corresponding models of asbestos rubber sheet ,Used for the equipment in water,steam,etc.and used as sealing material in the joints of pipeline
aramid fiber and synthetic mineral fiber after special proportioning
with oil-resistant rubber binders and adding other functional additives
and compression molding it.
Uses: Substitution of corresponding models of asbestos rubber sheet ,Used for the equipment in water,steam,etc.and used as sealing material in the joints of pipeline
Compared with the other kinds of gaskets, this one is soft and flexible with advantages of better joint to flange and no corrosion.
Mainly used as high-temperature pressure gasket for gasoline, mineral oil, fuel, hot chemical solvent oil and alkali medium.
Adapt to many sealing requirements makes this jointing the most economical sheet packing choice in the wide range of industrial fields.
Compressed Non-asbesto sheet is made from synthetic fiber, natural rubber, filling material and dye, compressed and calendered under high temperature and pressure into a sheet form.
Related Products
Why Choose Us

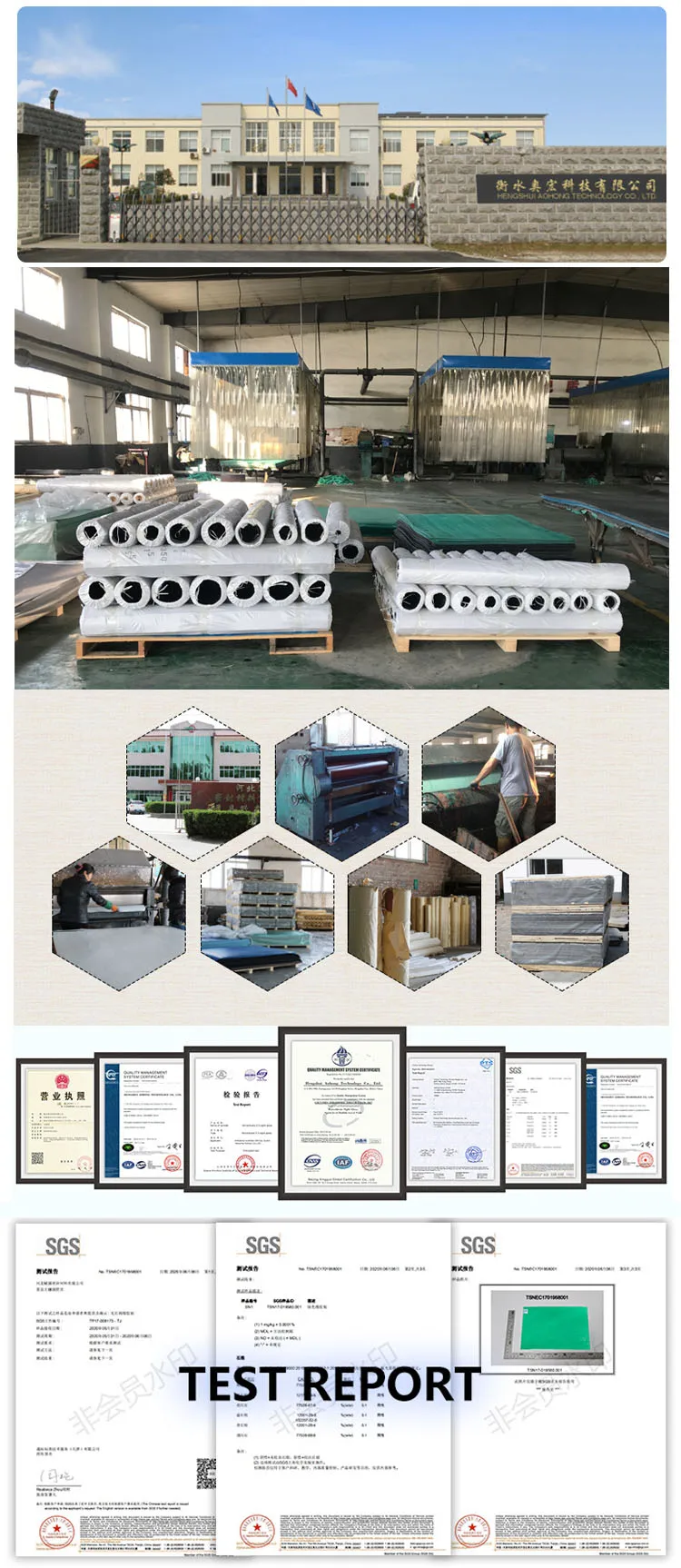

Process flow & Quality inspection
After production, we will conduct various tests on the products to ensure that you can receive qualified products.
Company Profile
Hengshui Aohong Technology Co., Ltd is a modern high-technology enterprise specialized in production and sales of sealing and heat insulation material with an experience of more than twenty years. We are equipped with the most advanced and complete machines and test facilities to produce high quality various kinds sealing material.
Our products are sealing material series products, mainly sealing gasket sheet, sealing braided packing, Heat Insulation cloth,tape, rope, etc. As sealing material, they're widely used in water,steam, the joints of pipeline, automobile and motorcycle; and in rotary pumps,valves, piston pumps, food, chemical and petrochemical, power station, steel mills and other areas.
Our products are sealing material series products, mainly sealing gasket sheet, sealing braided packing, Heat Insulation cloth,tape, rope, etc. As sealing material, they're widely used in water,steam, the joints of pipeline, automobile and motorcycle; and in rotary pumps,valves, piston pumps, food, chemical and petrochemical, power station, steel mills and other areas.
Our Client
Packing and Delivery
FAQ
1.Can we get your free samples?
Sure, free sample can be provided for testing quality. Please contact us for samples.
2.Can we do printing or label printing on the gasket?
Yes, we provide OEM service, please inform us in advance if you need to print brand.
3.What is the normal delivery time ?
Around 15-20 days according to the quantity.
4.What is your shipping terms?
3.What is the normal delivery time ?
Around 15-20 days according to the quantity.
4.What is your shipping terms?
By courier or by sea, by air.
5.How does your factory do regarding quality control?
5.How does your factory do regarding quality control?
We do leak test for 3 times before packing.
