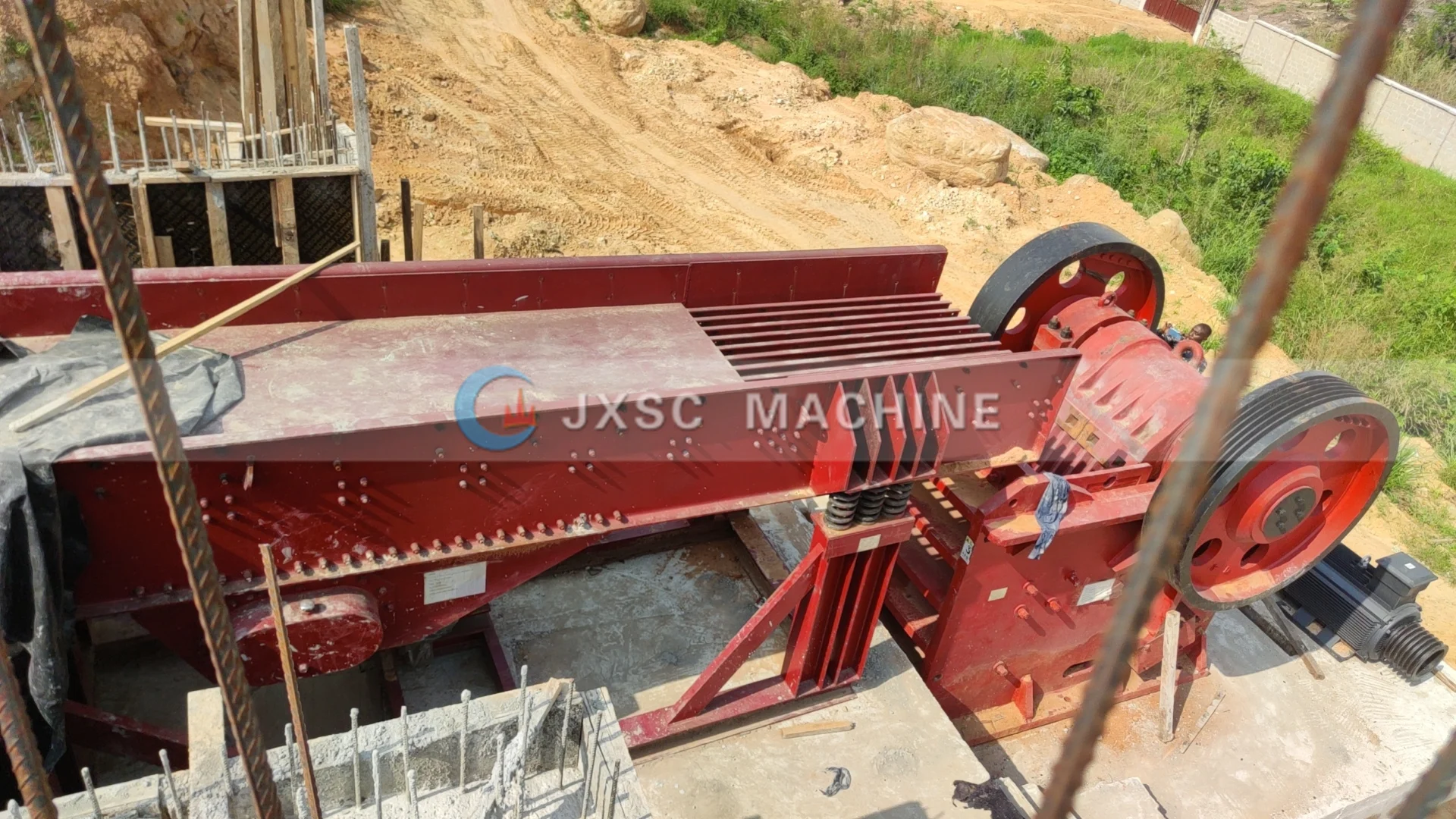

Nigeria Warehouse Stock Stone Crushing Screening Stone Crusher Plant Machinery 50T/H Sand Stone Crusher Plant
- Category: >>>
- Supplier: Jiangxi Province County Mining Machinery Factory
Share on (1601252527291):
Product Overview
Description
Products Description
The Stone Crushing Plant mainly consists of Vibrating Feeder, Jaw Crusher, Cone Crusher or Impact Crusher, Vibrating Screen, Belt Conveyor and Control System, etc. It is completely capable to crush and screen limestone, marble, granite, basalt, river gravel and other hard stone materials, and produce sand & gravels with various granularities for construction and building industry.
We can offer free flow chart design with most economical and best crushing and screening plants according to customer's requirement of capacity,output size,apllication and preference.We are able to design and manufacture complete crusher plants with capacity from 30tph to 500tph, and to provide optimum and most economical solutions according to customers' requirements on stone specifications, output, application, etc.
We can offer free flow chart design with most economical and best crushing and screening plants according to customer's requirement of capacity,output size,apllication and preference.We are able to design and manufacture complete crusher plants with capacity from 30tph to 500tph, and to provide optimum and most economical solutions according to customers' requirements on stone specifications, output, application, etc.
Advantages
1. Powerful feed grate function to minimize operating costs
2. Large-volume silo, full energy saving for Nissan
3. The mobile dedicated jaw breaker with advanced high-performance technology and cost-saving
4. Convenient installation of on-board hydraulic lubrication station
5. Convenient installation of vehicle belt conveyor
6. Dust-proof, dust-reducing seal, convenient maintenance of belt conveyor
7. Configure high-strength wear-resistant steel 8. New equipment, new technology, new patents, new concept platform advantages

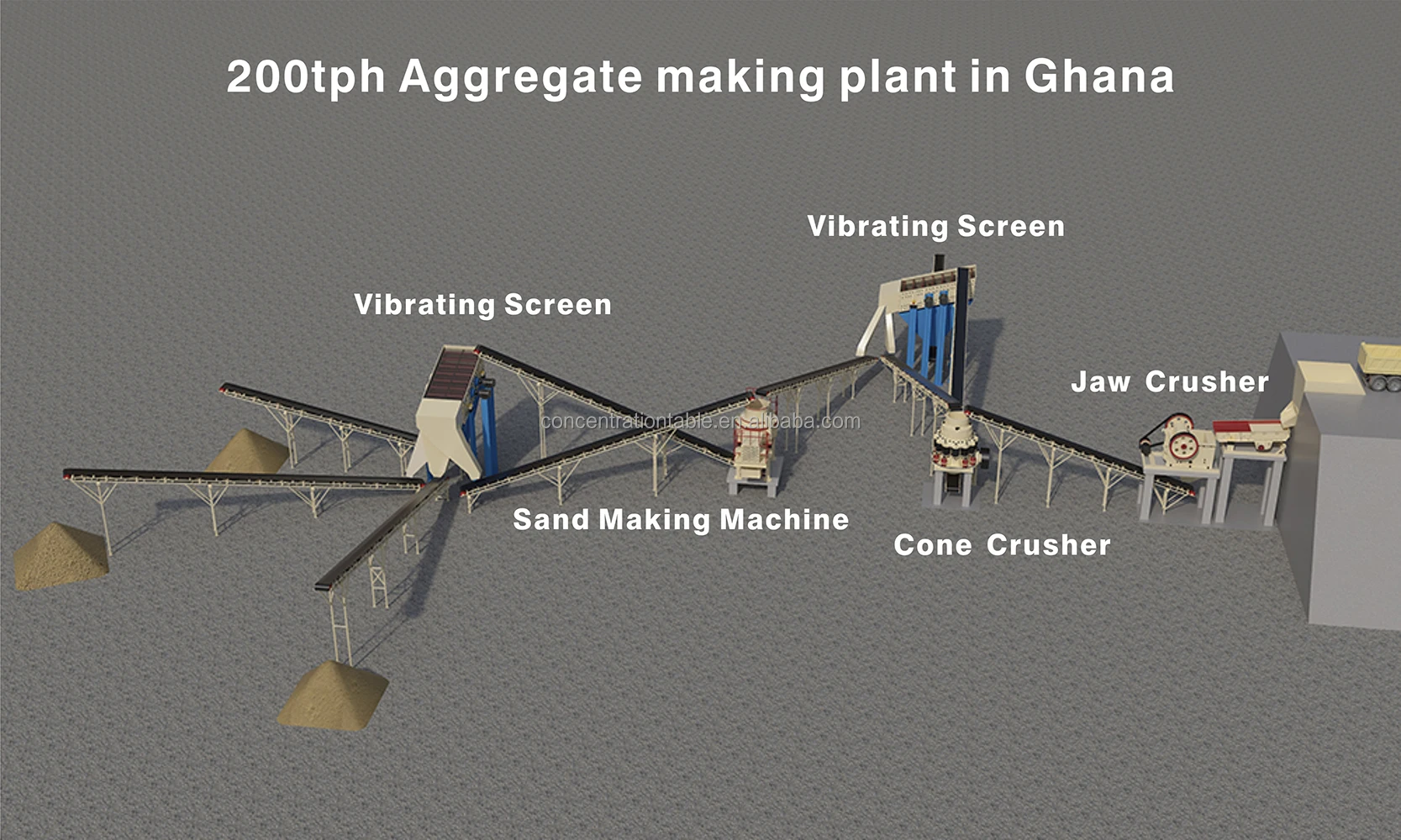

200tph Aggregate making plant in Ghana
Material: granite
Input Size: 0-630mm
Output Sizes: 0-5mm, 5-15mm, 15-31.5mm
It is configured with hopper, vibrating feeder DN4911, primary jaw crusher PE-750*1060, cone crusher DN1400, vibrating screen 2YD2160, VSI DN9000, 3-layer vibrating screen 3YD2160, and belt conveyors.
Processing:
1. The truck unloads the stones into the hopper, the stone enters the vibrating feeder from the lower part of the
hopper;
hopper;
2. The vibrating feeder feeds the stones evenly to the primary jaw crusher;
3. The crushed output materials from the primary jaw crusher will be transported to the secondary cone crusher by a belt conveyor;
4. The crushed output materials from the secondary cone crusher will be transported to the two-layer vibrating screen;
5. After screening by the two-layer vibrating screen, will get 0-5mm, 5-35mm, +35mm materials, 0-5mm materials will be transported out by a belt conveyor to stockpile, 5-35mm materials will be transported to VSI Crusher, +35 materials will be transported back to cone crusher for re-crushing.
6. 5-35mm materials will be crushed and shaped by VSI crusher, the output materials will be transported to the second vibrating screen;
7. After the screening, will get 0-5mm, 5-15mm, 15-31.5mm materials, the +31.5mm materials will be transported back to VSI crusher.
The role of VSI crusher in this setup for producing high standard output materials for mixing stations, asphalt stations, etc.
This crushing plant is suitable for processing many kinds of hard stones, like basalt, pebbles, granite, diabase, etc. The
capacity for this crushing plant can be customized as per request such as 50tph, 100tph, 200tph, etc
capacity for this crushing plant can be customized as per request such as 50tph, 100tph, 200tph, etc

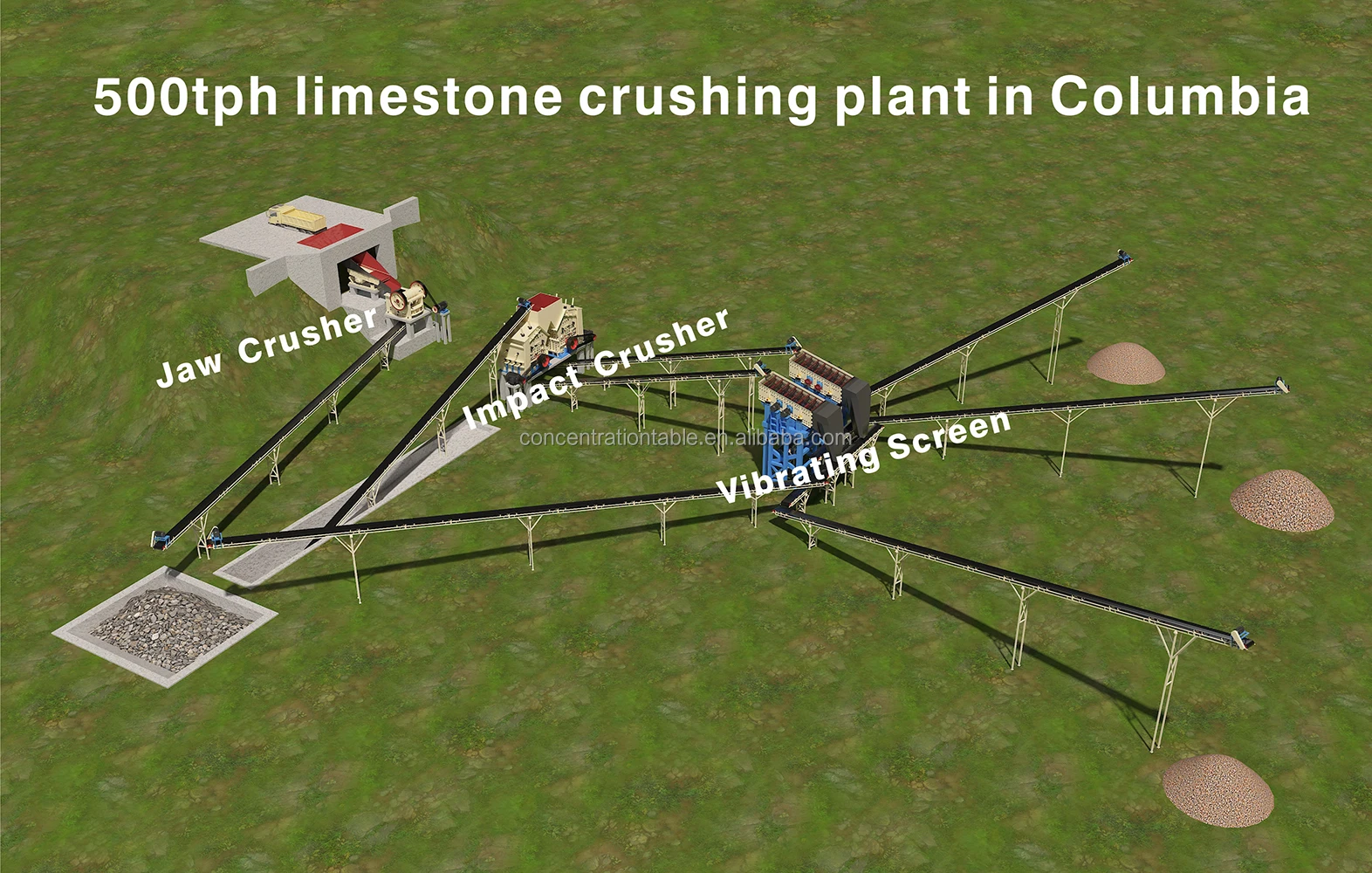

500tph limestone crushing plant in Columbia
Material: limestone
Input Size: 0-850mm
Output Sizes: 0-5mm, 5-15mm, 15-30mm
It is configured with a hopper, 2 sets of vibrating feeder DN6013, primary jaw crusher PE-1000*1200, 2 sets of impact crusher PF1320, 2 sets vibrating screen 3YD2160, and belt conveyors.
Processing:
1. The truck unloads the stones into the hopper, the stone enters the vibrating feeder from the lower part of the
hopper;
hopper;
2. The vibrating feeder feeds the stones evenly to the primary jaw crusher;
3. The crushed output materials 0-280mm from the primary jaw crusher will be transported to Transfer silo with a vibrating feeder DN6013 under it.
4. The crushed output materials 0-280mm in the transfer silo will be transported to the two sets of impact crusher PF1320 5. The crushed output size 0-30mm from the impact crusher PF1320 will be sent to the vibrating screen 3YD2160. 6. After screening by the three-layer vibrating screen, will get 0-5mm, 5-15mm, 15-30mm, and +35mm materials. The 0-5mm, 5-15mm, 15-30mm final products will be transported out by belt conveyors to stockpiles, +35 materials will be transported to the transfer silo for re-crushing.
This crushing plant is suitable for processing many kinds of soft stones, like limestone, plaster, etc. The capacity for this
crushing plant can be customized as per request such as 200tph, 500tph,1000tph, etc
crushing plant can be customized as per request such as 200tph, 500tph,1000tph, etc

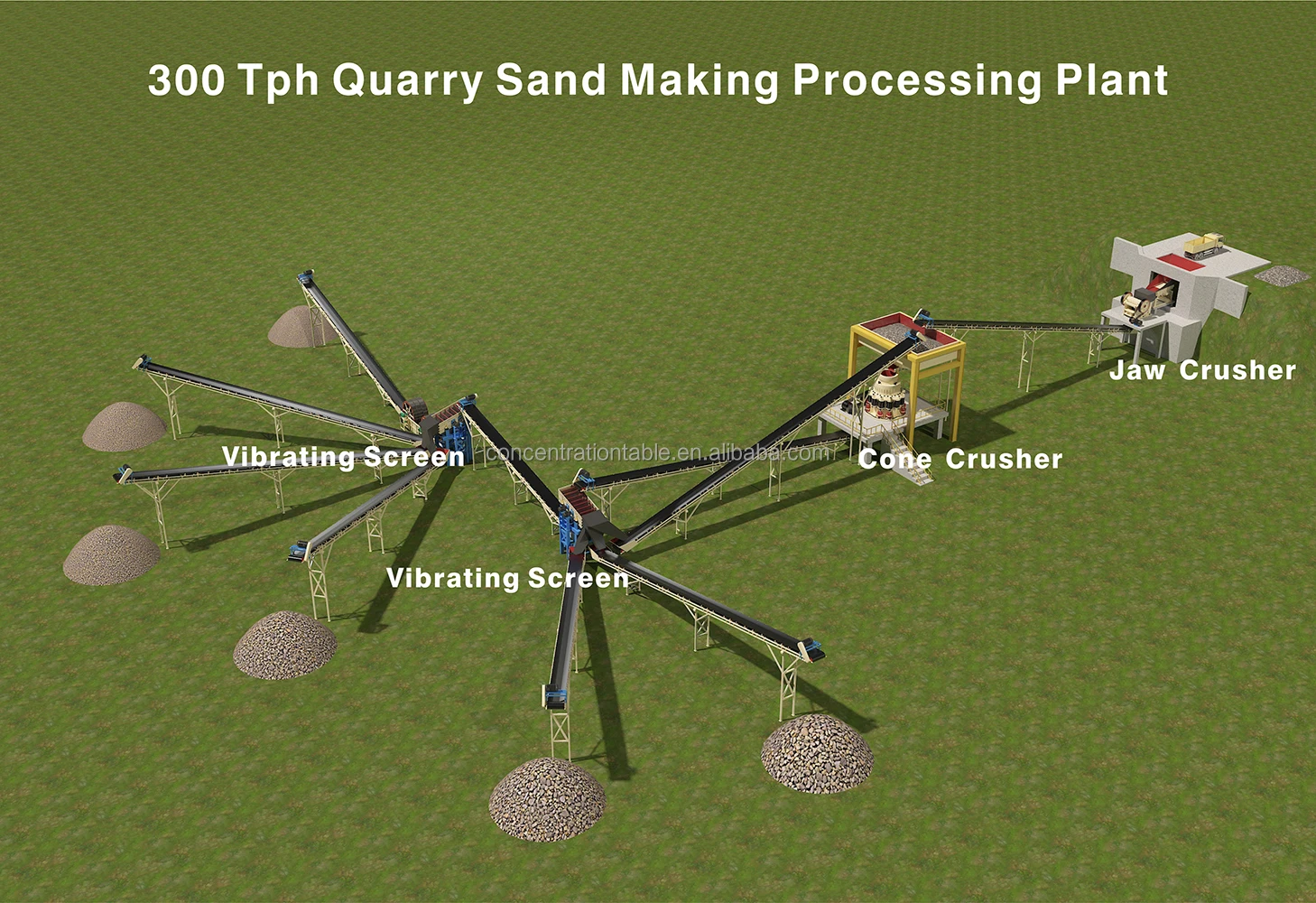

300 Tph Quarry Sand Making Processing Plant
Material: cobblestone, granite, basalt, hard rock quarry sand
This flow chart is suitable for processing cobblestone, granite, basalt, hard rock quarry sand making line .
This flow chart is suitable for processing cobblestone, granite, basalt, hard rock quarry sand making line .
For the 300tph sand making line, the truck transfer the original stone with input size under 700mm into vibrating feeder DN6013, and it transfer the stones to jaw crusher PE-9000*1200,after first crushing the material get 100mm size,and then it goes to a hopper to synchronize jaw crusher and cone crusher working at the same time,and second crushing cone crusher,the output (0-50mm) of cone crusher transfer to the first vibrating screen by belt conveyor.
The first vibrating screen is with 4 layers,mesh size 50mm,40mm.32mm.25mm, (capacity around 350tph),then get output 0-25mm, 25-32mm,32-40mm,40-50mm, the size over 50mm go back to cone crusher, and the size under 25mm go to another vibrating screen to get size 0-6mm,6-12mm,12-19mm,19-25mm, 0-6mm size material with
2 wheel sand washer.
2 wheel sand washer.
We have professional engineers team to draw flowchart based on customer's stone site details.
We supplied full set stone crusehr plant: vibrating feeder, jaw crusehr, hammer crusehr, cone crusehr,sand making machien, vibrating screen, belt conveyor.
We supplied full set stone crusehr plant: vibrating feeder, jaw crusehr, hammer crusehr, cone crusehr,sand making machien, vibrating screen, belt conveyor.

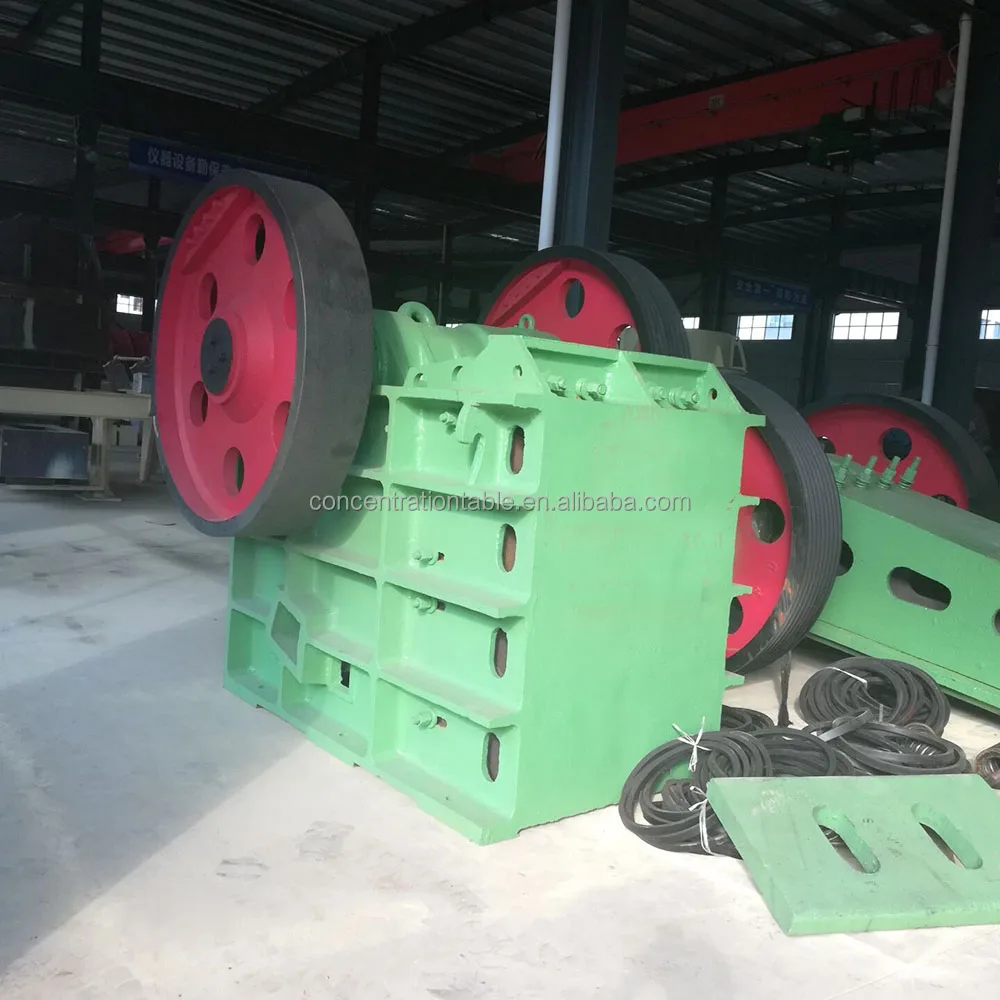

Jaw Crusher | Max.Feeding Size | 100-1000mm |
Output Size | 65-160mm | |
Capacity | 50-180t/h | |
Motor Power | 0-75kw | |

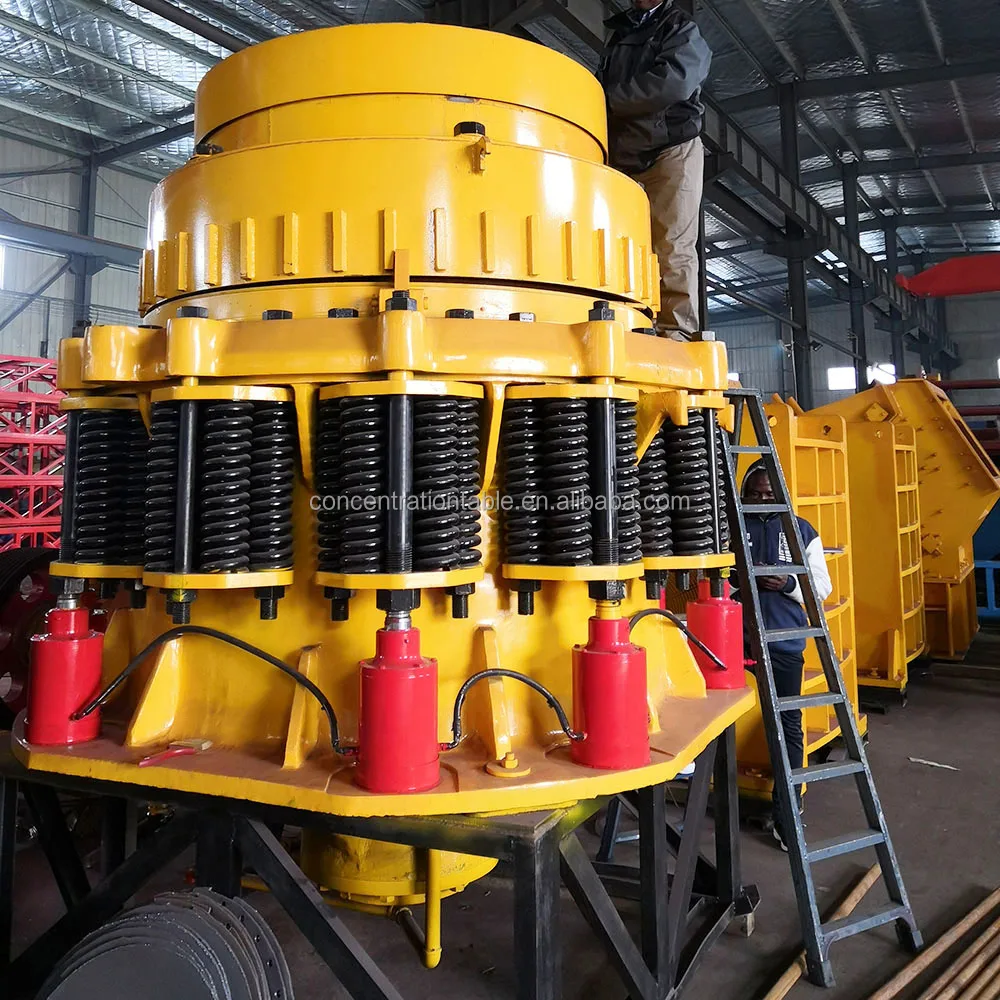

Cone Crusher | Max.Feeding Size | under 150mm |
Output Size | 13-38mm | |
Capacity | 59-163t/h | |
Motor Power | 0-75kw | |
Vibrating Feeder | Tough Size | 960*3800mm |
Capacity | 90-200t/h | |
Motor Power | 6-20kw | |
Vibrating Screen | Screen Size | 600*1800mm |
Number of Layer | 1,2,3,4 | |
Screen Mesh Size | 6,15,25,45,ect. | |
Capacity | 60-500t/h | |
Motor Power | 0-22kw | |
Belt Conveyor | Belt Width | 500,650.800mm |

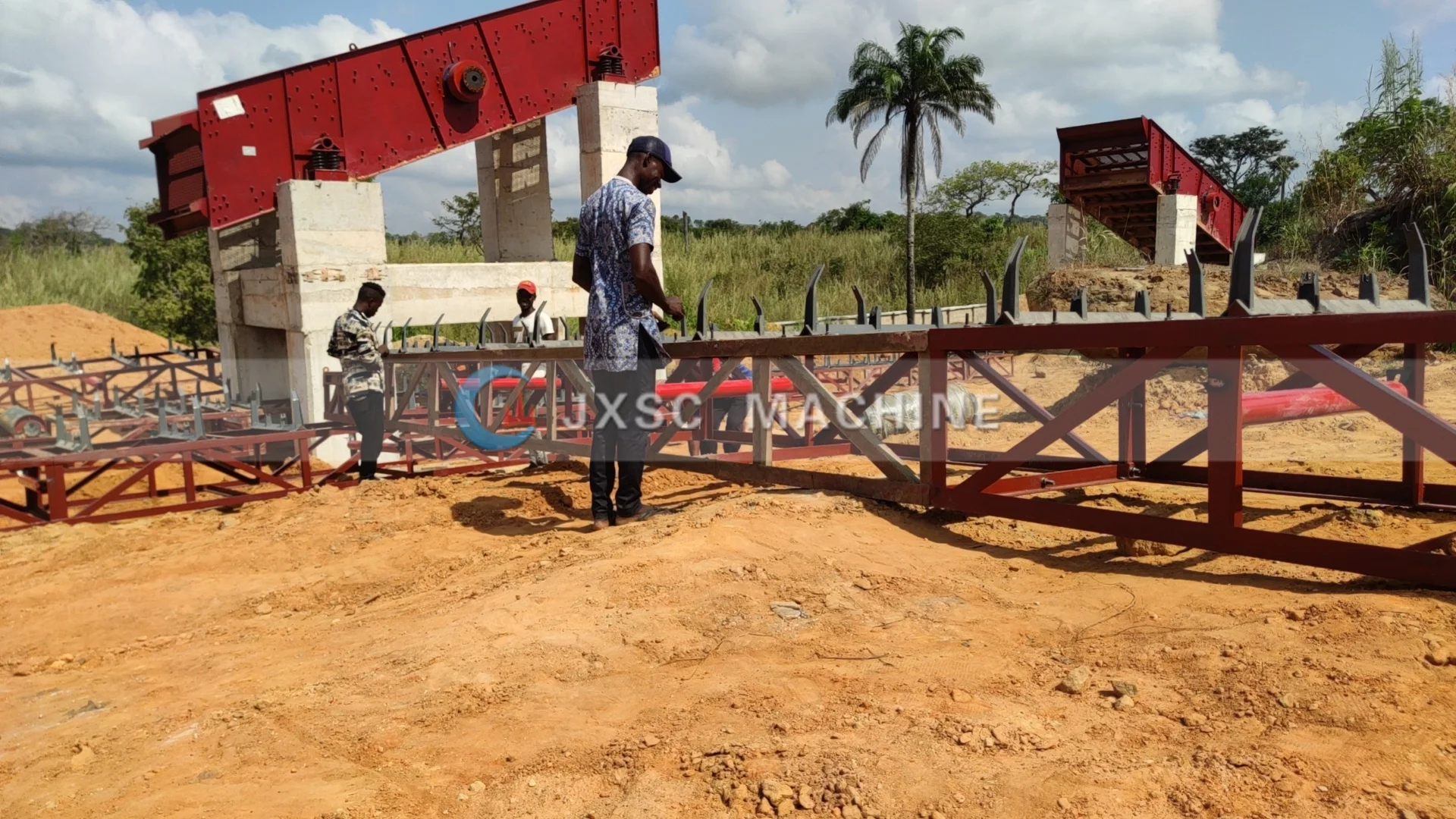

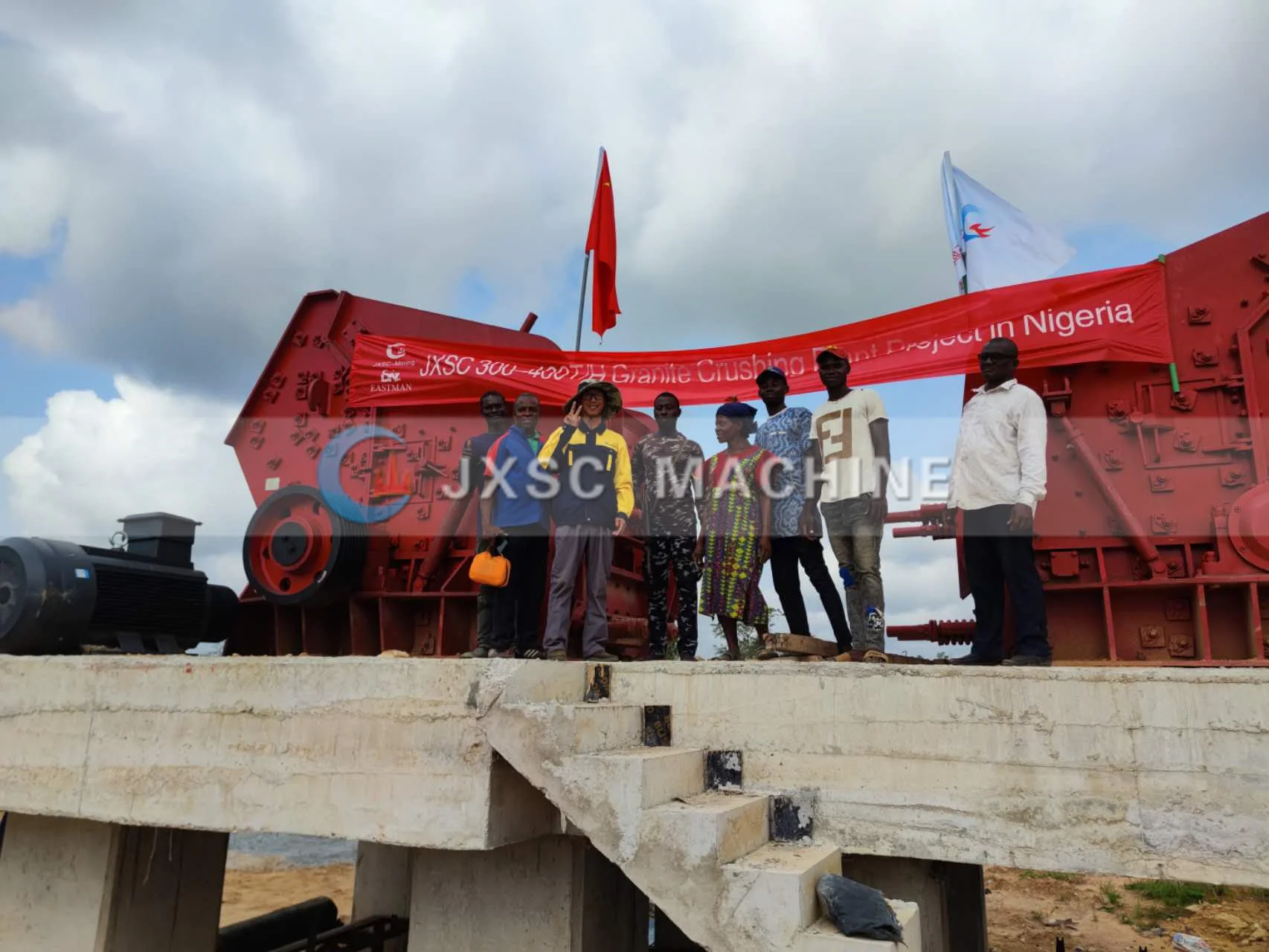

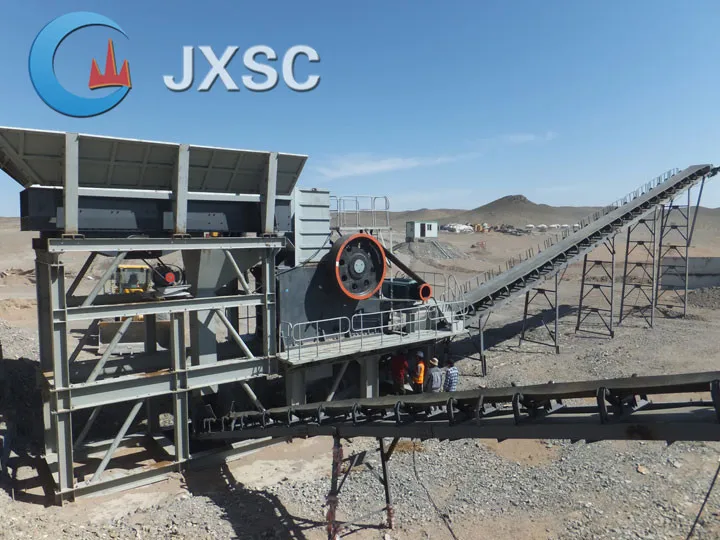

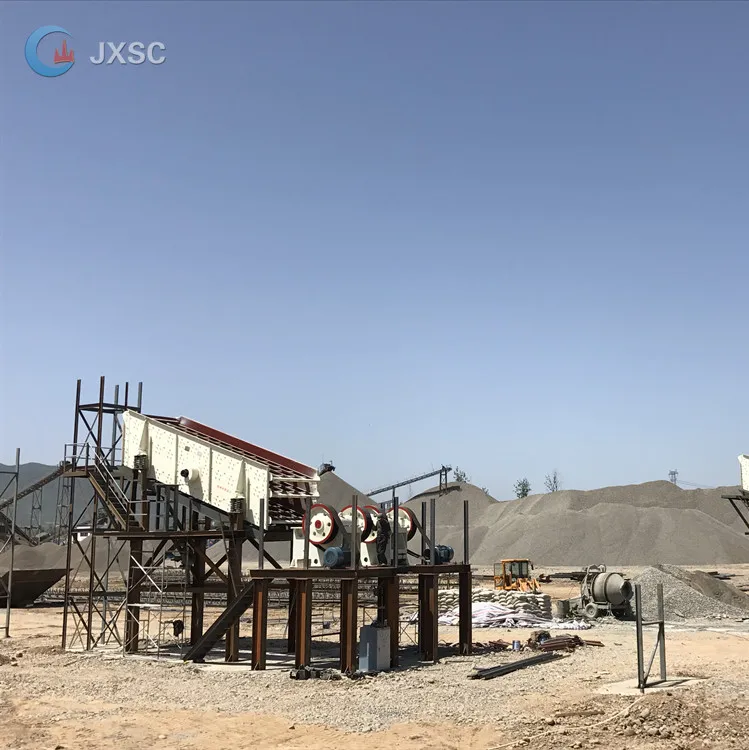

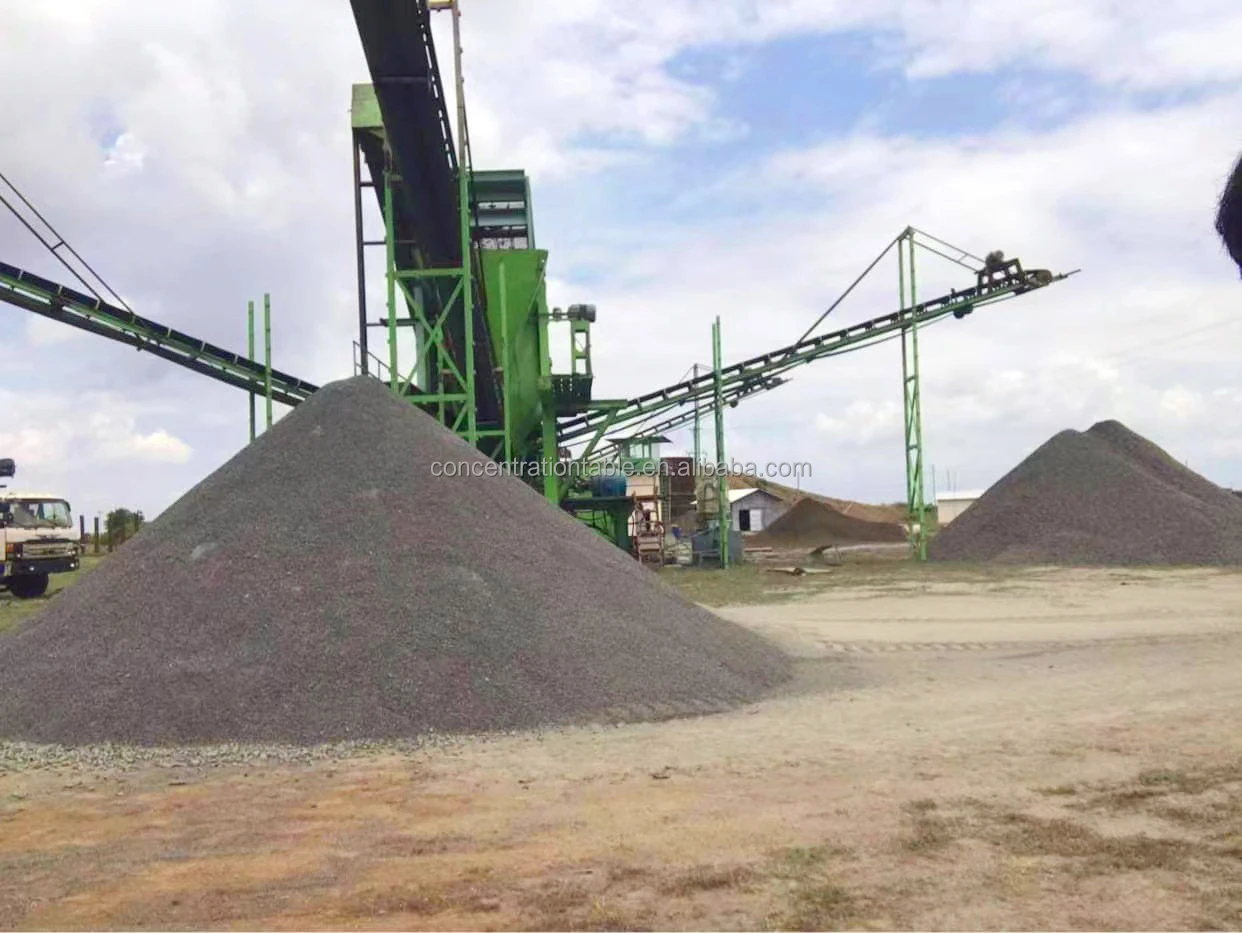

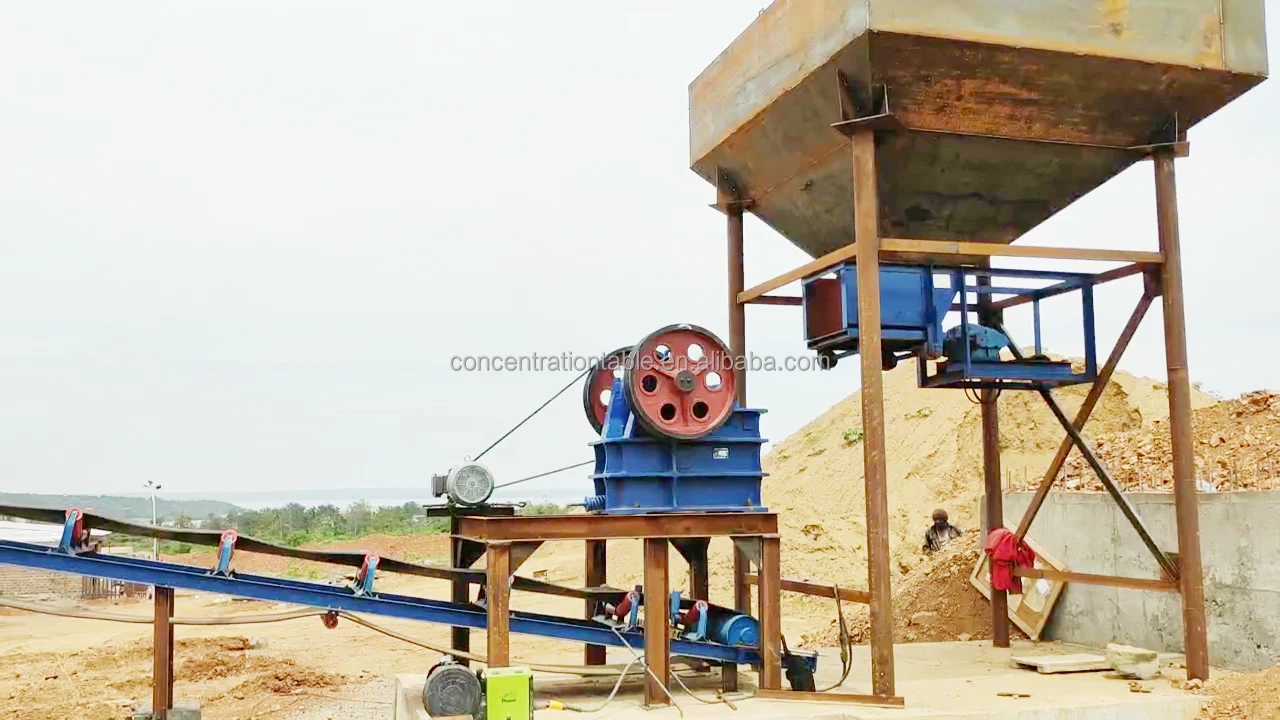

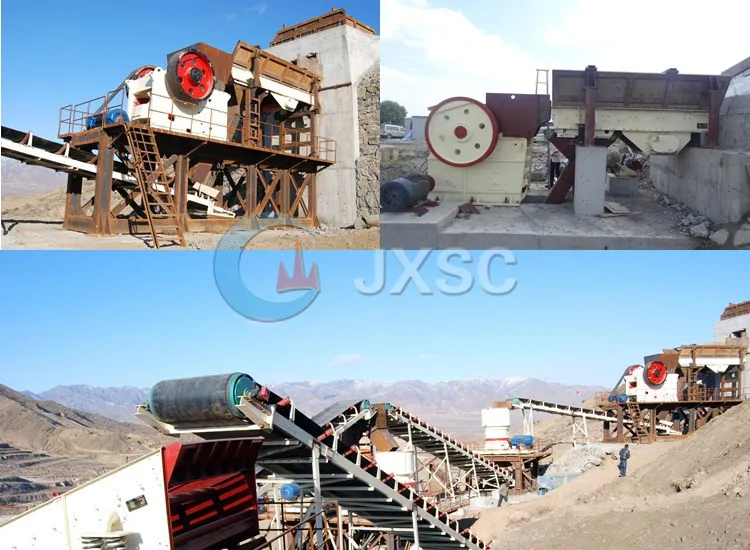

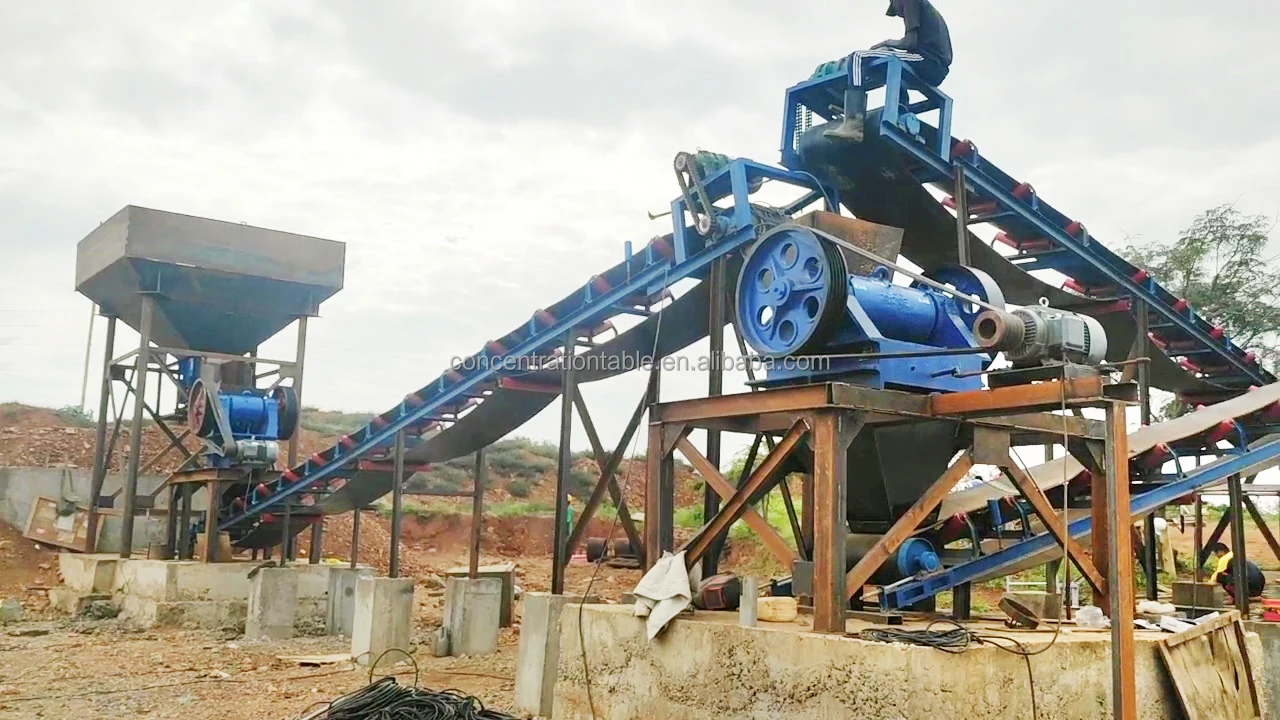

Customer Mine Site

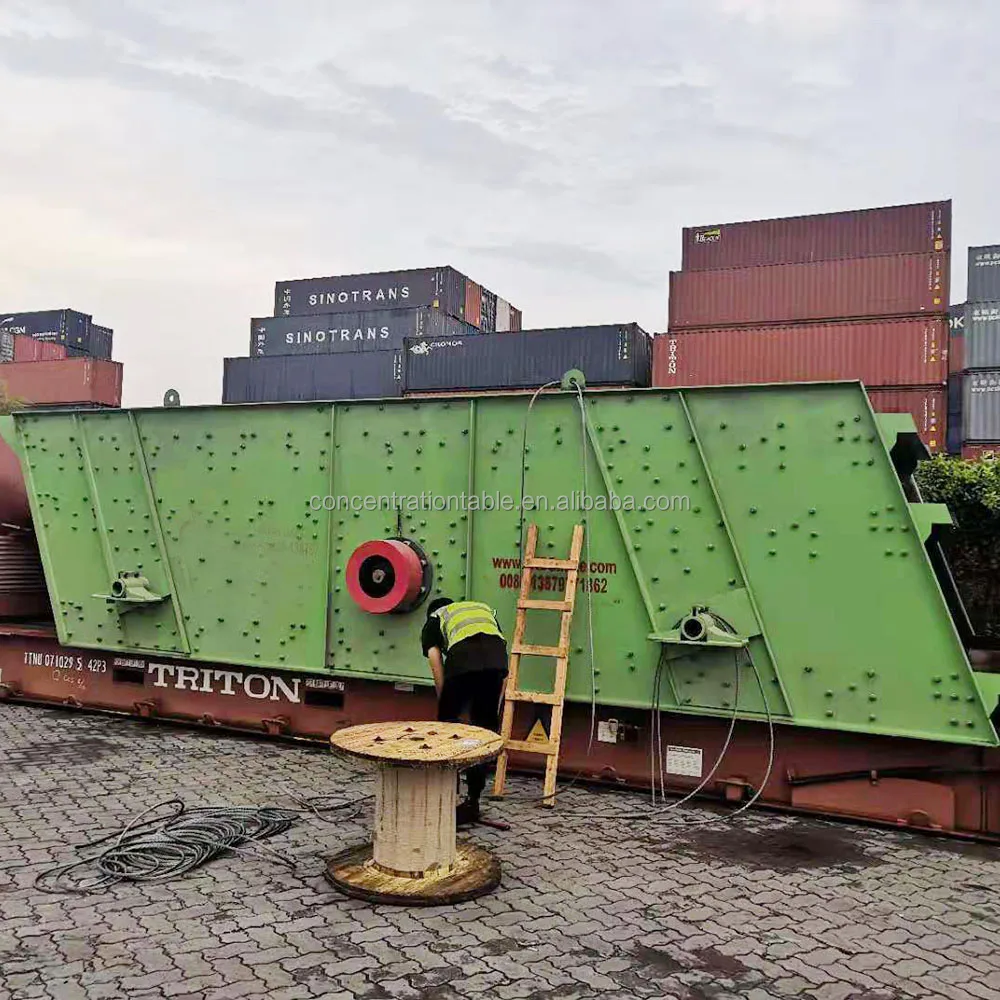

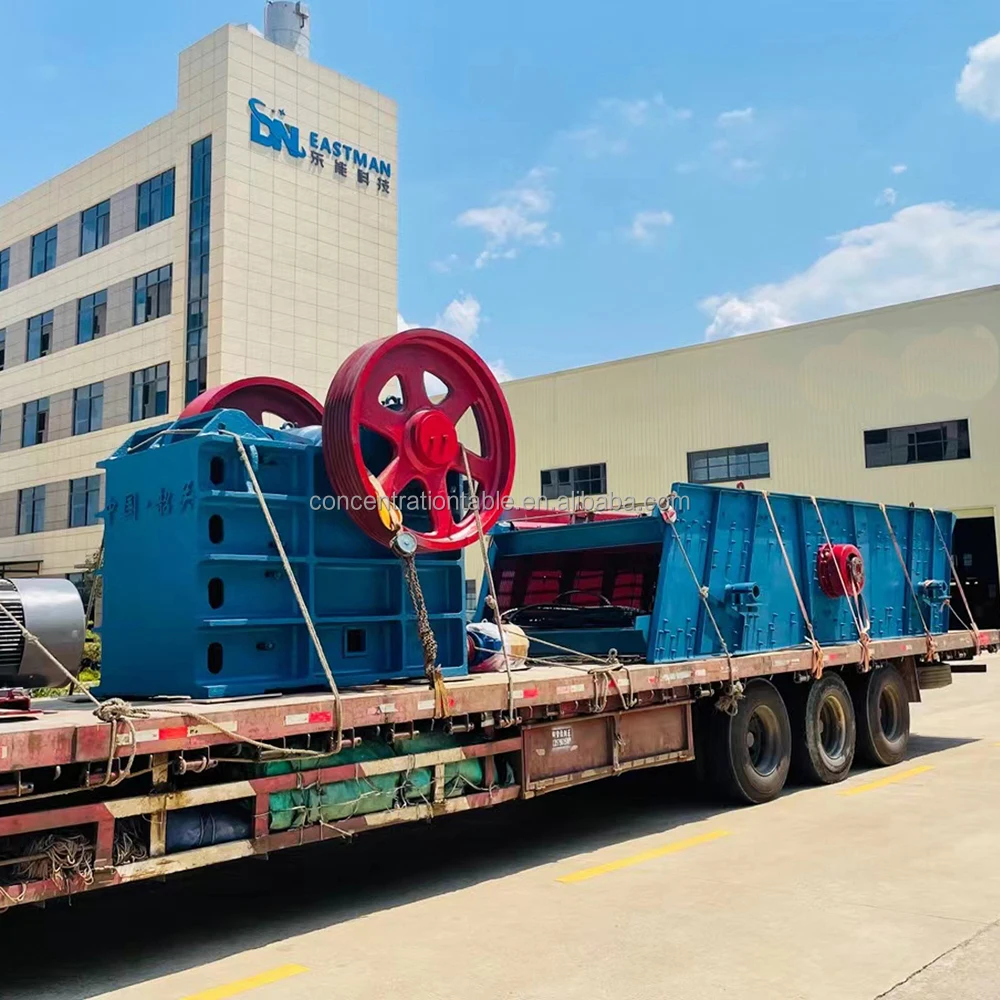

Packing and Delivery
●Ways Of Packing
1.Small parts packed in the wooden cases.
2.Big parts packed by plastic membrane.
3.The whole big machine is loaded in the container.
● Shiping by sea/air freight
or any way the customer requires.
Company Profile
Jiangxi Province County Mining Machinery Factory
Jiangxi Province County Mining Machinery Factory is a leading mining machinery manufacturer with over 30 years experiences,providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore /Diamond/ Coltan ore / Silica sand /Zircon sand/ Black sand/Chrome ore/Cobalt ore/Antimony ore, ect. As well as complete set small laboratory mining machines.
*Inquiry and consulting support
*Ore sample testing support
*View our Factory
*Design Flowchart
*Ore sample testing support
*View our Factory
*Design Flowchart
* Training how to instal the machine, training how to use the machine.
* 1 year warranty
* Engineers available to service machinery overseas.
* 1 year warranty
* Engineers available to service machinery overseas.
FAQ
1.How is the quality of your products?(mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description or promise we
made before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our
price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice;Finished product pictures will be provided to customers before delivery.
If you are interested in our products, please don't hesitate to contact us. Could you tell me the following questions, so that I can give you a complete solution, including best Exw-works Price Quotation!
2. What is your raw ore that you plan to process? like gold ore, diamond ore, tantalite or silica sand, etc.
3. What is the capacity you need? Like 100kg per hour.
4. What is the feeding size to the machine? and what is the discharging-material size that you require?
Sincerely welcome to send your inquiry,you can get best quotation and professional service.
