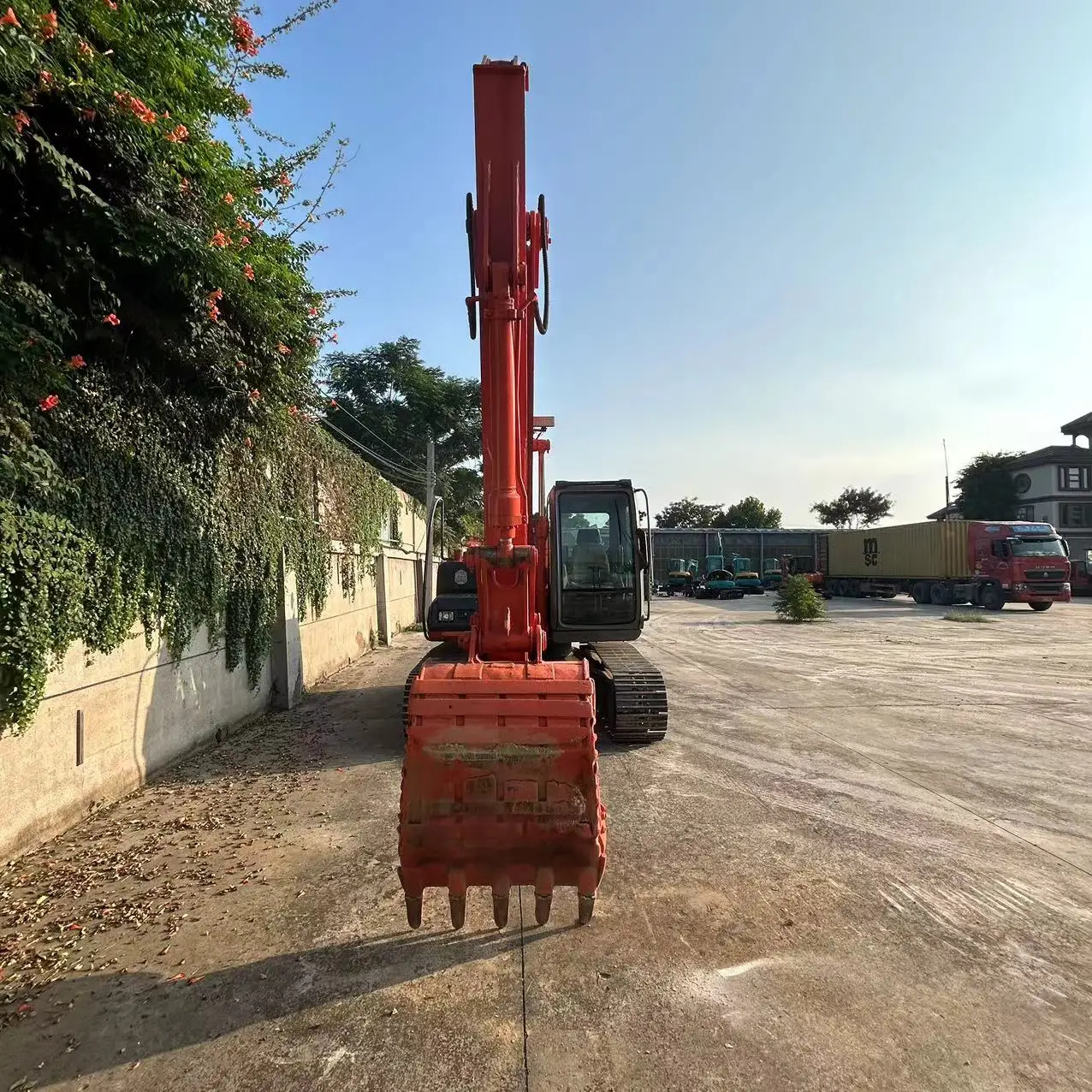

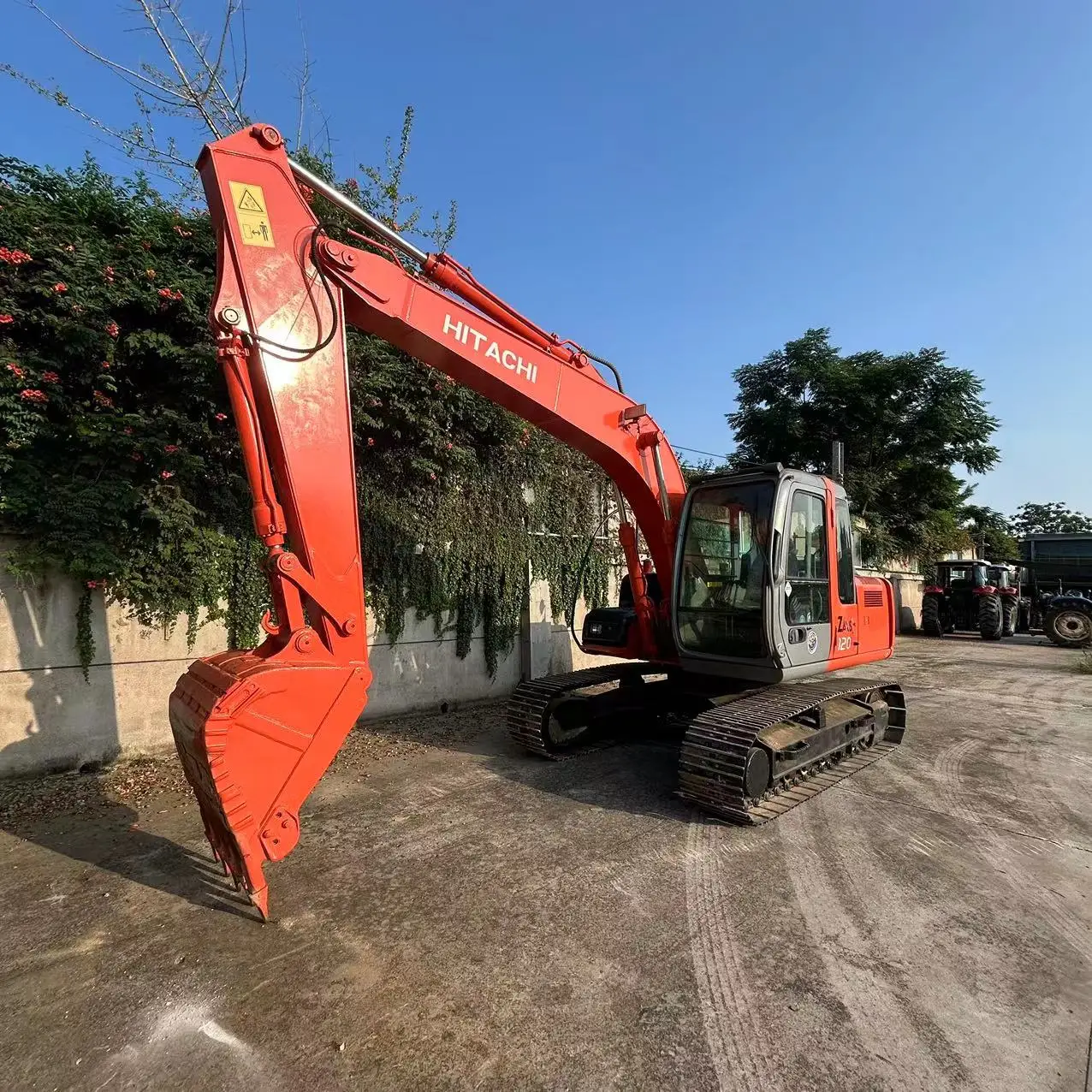

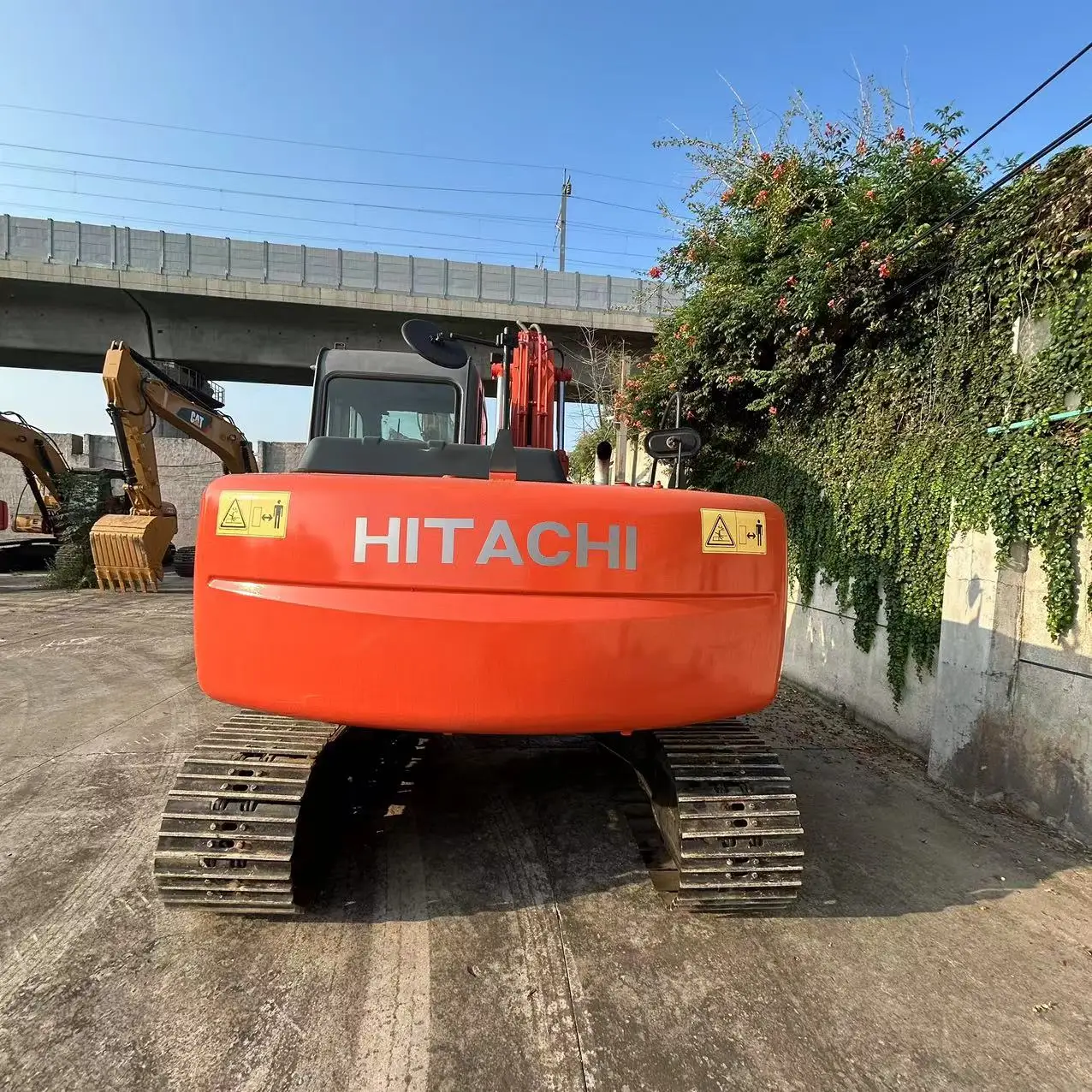

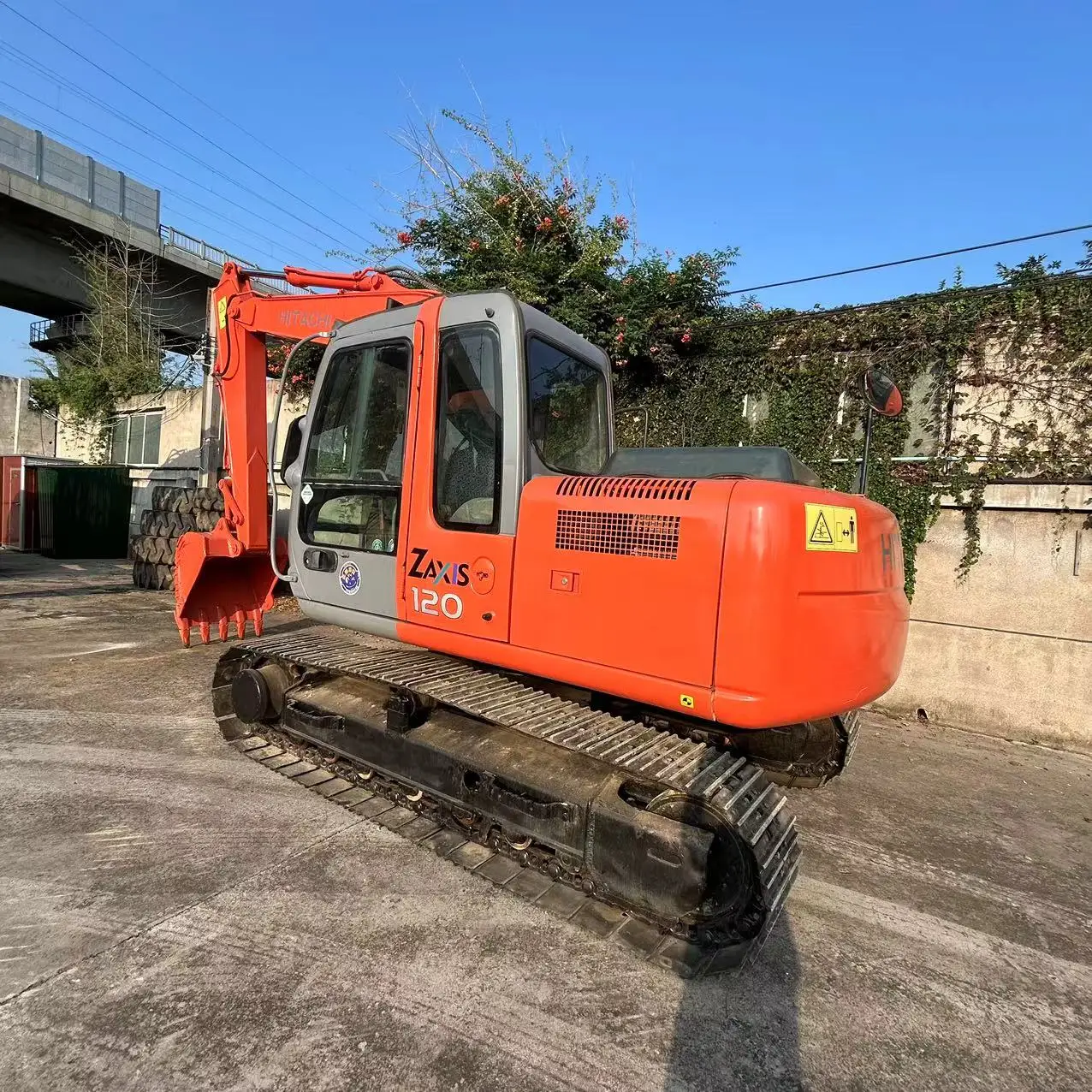

Used 12ton ZX120 Japan brand excavator HITACH I 12 ton used excavadora for sale
- Category: >>>
- Supplier: Linyi Shunkai International Trade Co. Ltd.
Share on (1601252544044):
Product Overview
Description
Product show
Specification
General parameters | ||||||
model | ZAXIS120 | travel | crawler | |||
tonnage | 12ton | usage | universal | |||
Engine（fuel） | ||||||
brand | ISUZU | model | ISUZU CC-4BG1TC | |||
rated power (kW) | 66 | rated speed(r/min) | 2150 | |||
displacement(L) | 4.329 | Inside Diameter*Stroke(mm) | 105*125 | |||
Performance parameters | ||||||
operating weight (kg) | 12000 | bucket capacity(m³) | 0.5 | |||
travel speed (H/L)(km/h) | 0-5.5 | swing speed(rpm) | 11 | |||
gradeability(%) | 70 | bucket breakout force(kN) | 65 | |||
Overall size | ||||||
L×W×D(mm) | 7610×500×2680 | track ground length(mm) | 2290 | |||
the total length of the track(mm) | 3580 | total track shoe width(mm) | 3580 | |||
track gauge(mm) | 2880 | minimum ground clearance(mm) | 440 | |||
Back turning radius(mm) | 1210 | |||||
Work range | ||||||
max. digging radius(mm) | 6430 | dozer blade lift or push depth(mm) | / | |||
max. digging depth(mm) | 4110 | max. digging height (mm) | 7210 | |||
bucket dumping height(mm) | 5120 | maximum vertical digging depth (mm) | 3670 | |||
Fuel tank capacity | ||||||
fuel tank capacity(L) | 250 | hydraulic tank(L) | 69 | |||
engine oil change amount(L) | 15.8 | coolant (L) | 19 | |||

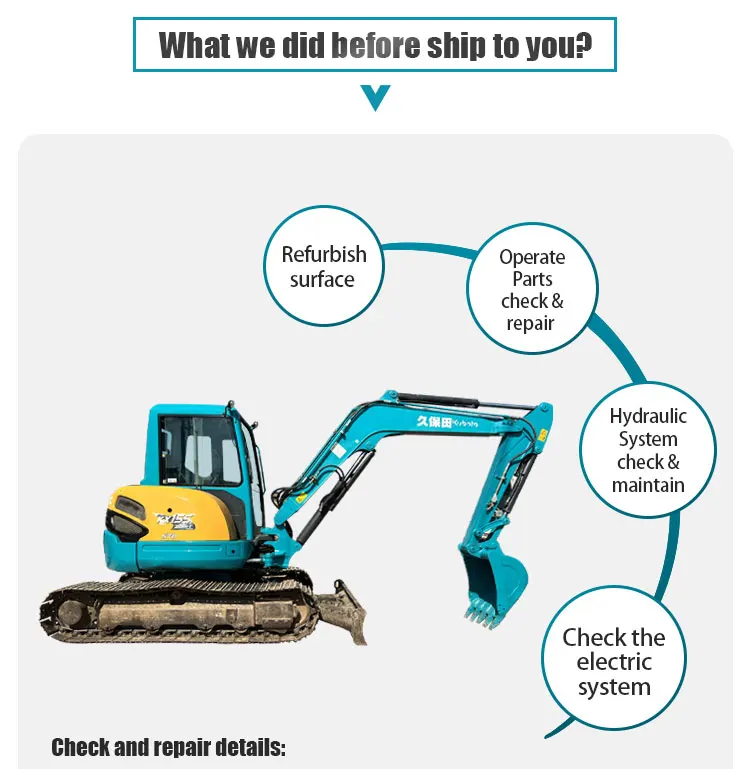

★Check the appearance: ensure that the appearance is smooth and free of damage, and the paint surface is clean to prevent accidental vehicles from happening. |
★Real manufacture date: Judging the real date of the excavator by checking the production date of the main components such as glass, engine nameplate, hydraulic pump nameplate, etc. |
★Working device: check the wear of the bucket and pin shaft of the whole excavator, check and repair the main components such as the chain plate, chain rail, oil cylinder, oil pipe, etc. |

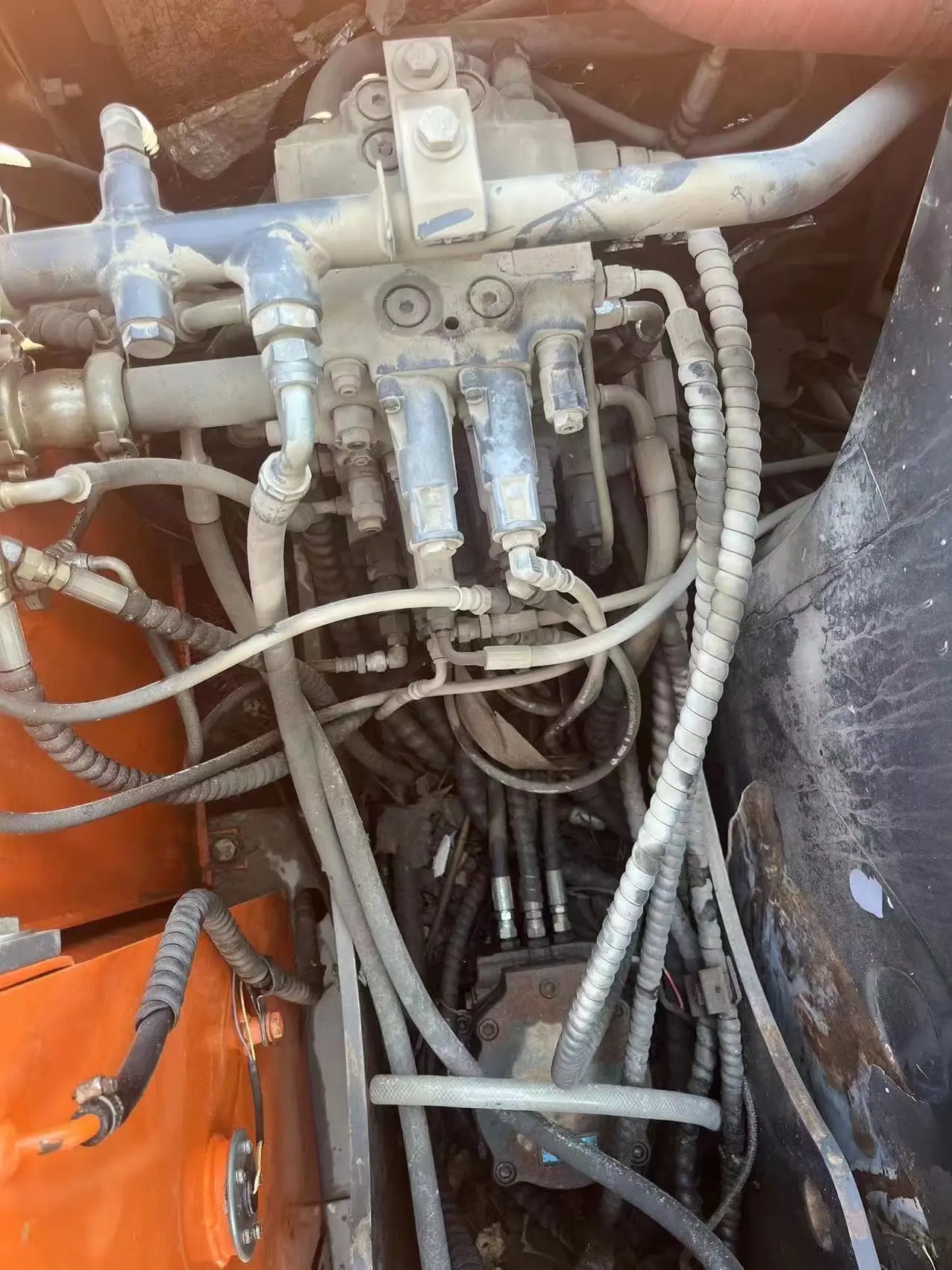

★Hydraulic system: Check the main hydraulic components such as hydraulic main pump, throttle valve, motor, rotary reducer, etc. to ensure that there is no leakage and work normally. |
★Engine: Observe the exhaust gas and water temperature of the engine through idle speed, medium throttle and deep throttle, check the radiator to ensure that the cooling function, the power output is stable, the radiator no water leakage. |

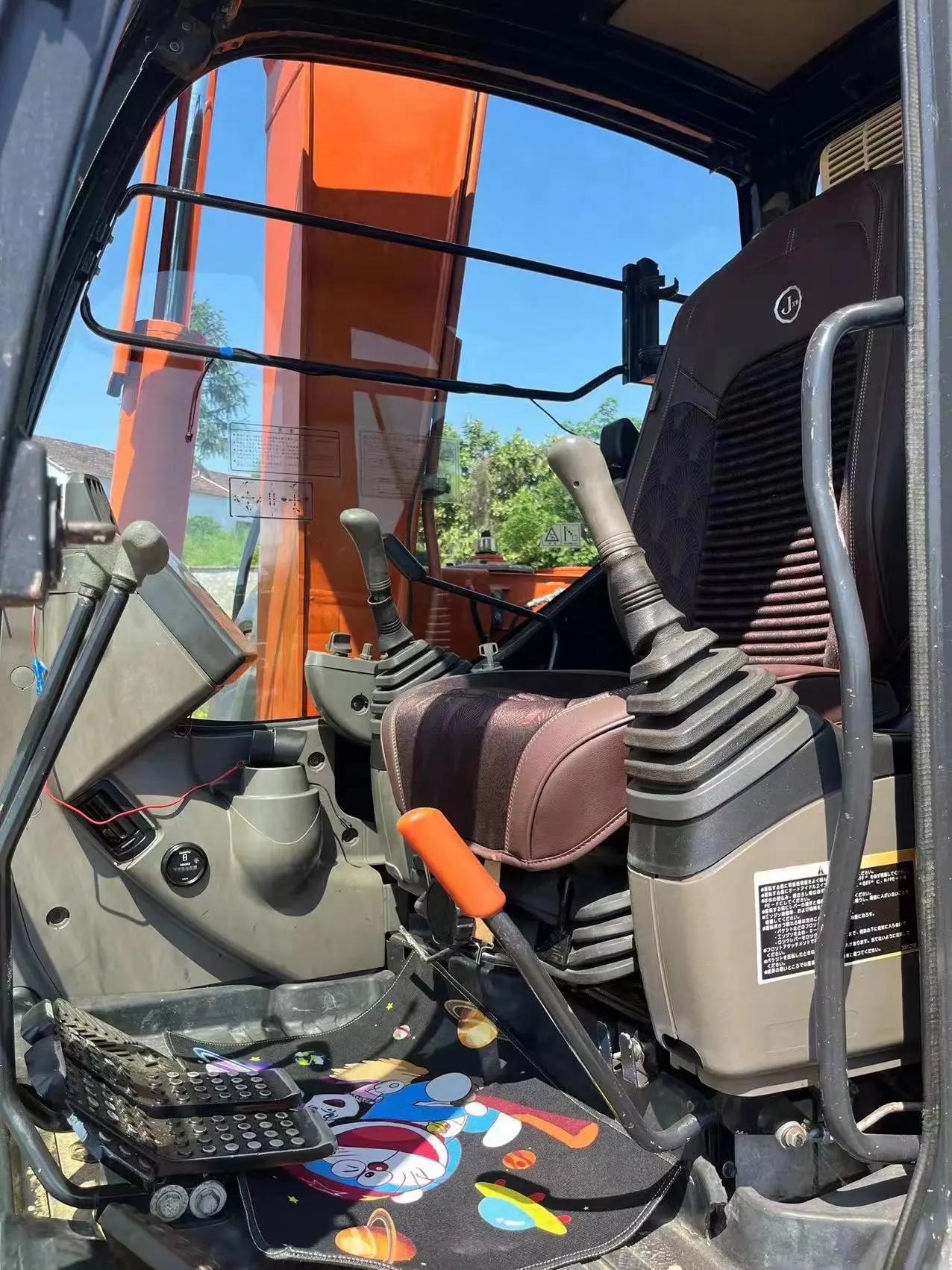

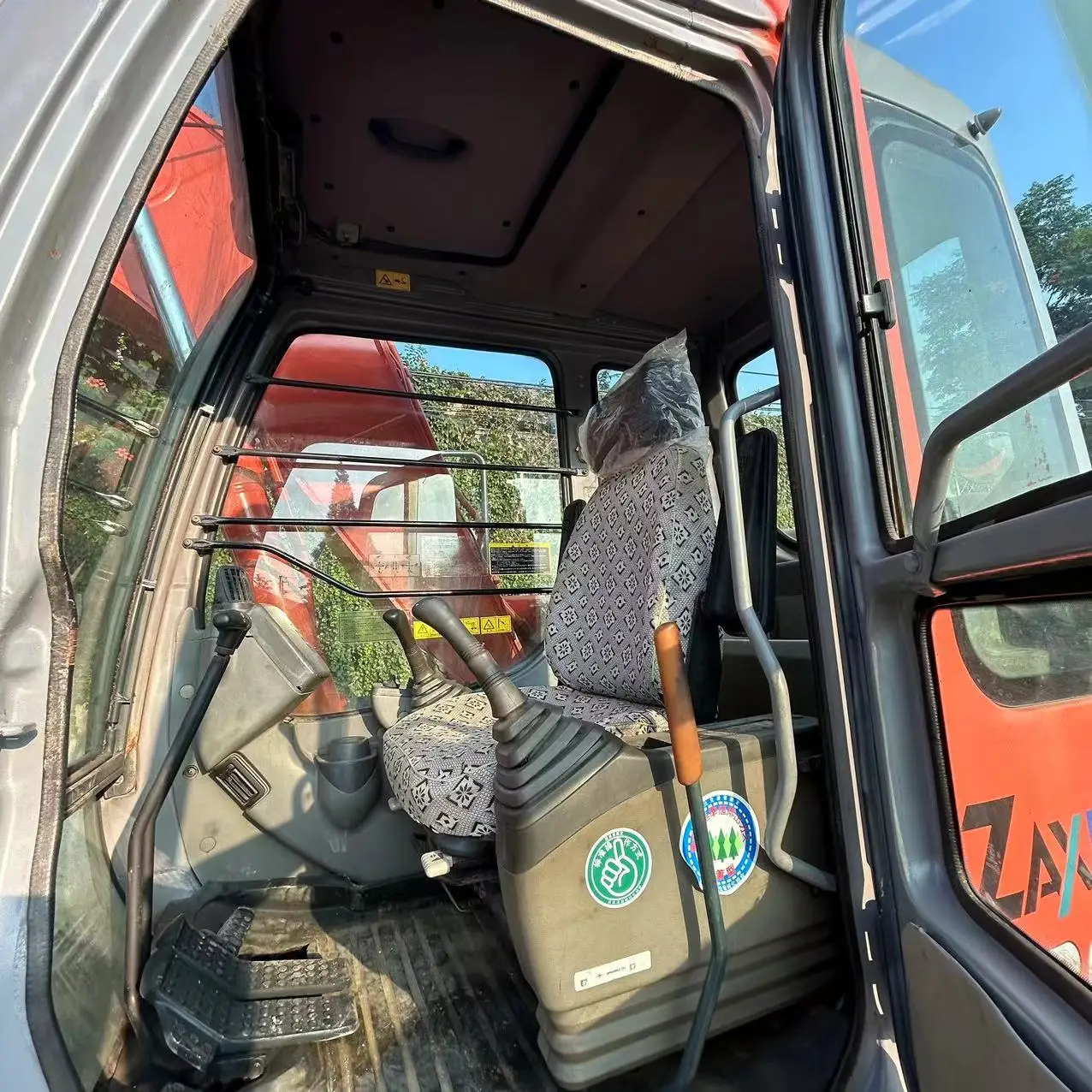

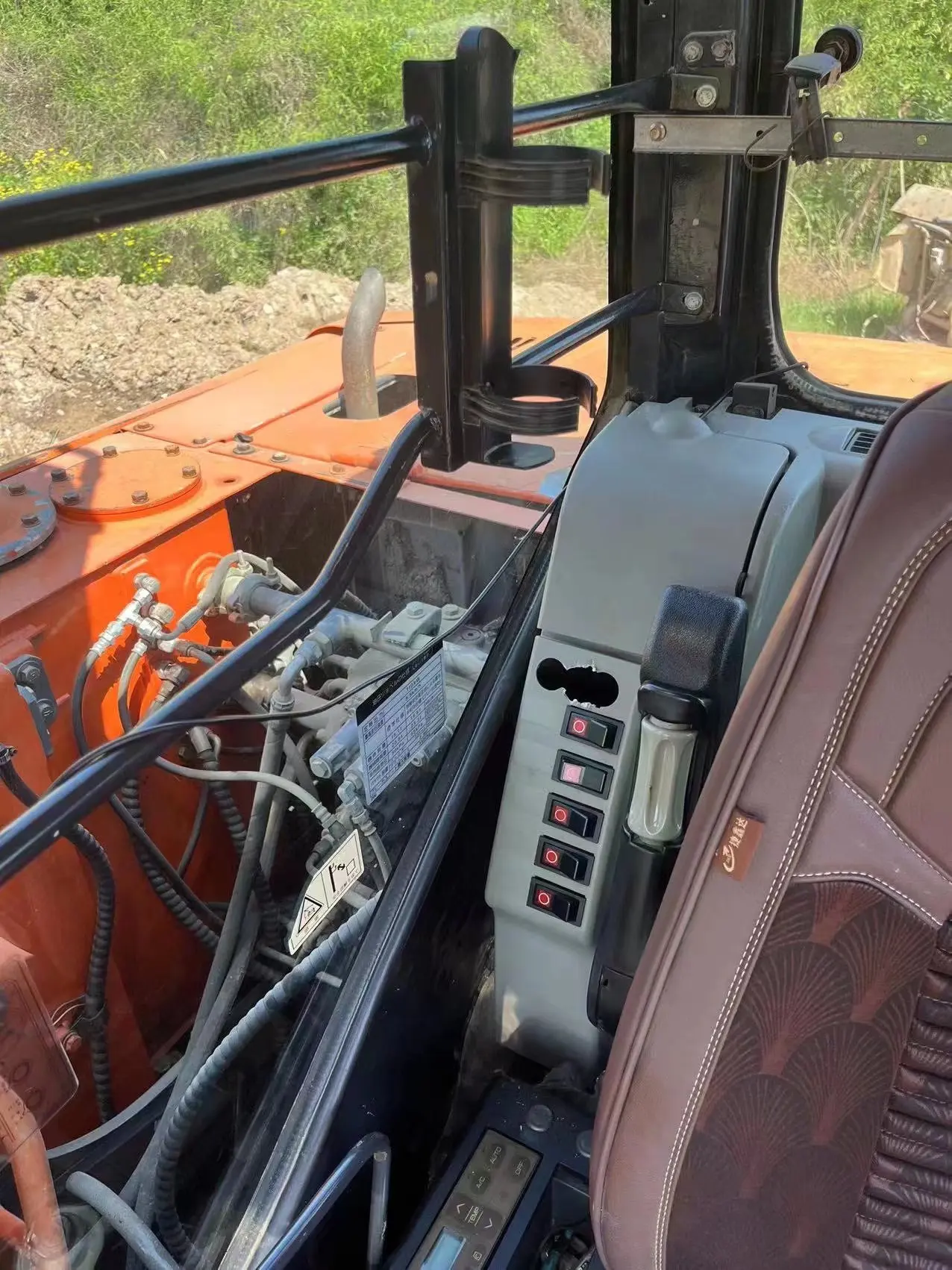

★Vehicle circuit: Check the vehicle lights, instrument panel, and electrical components in the cab to ensure normal operation and no fault codes. |
