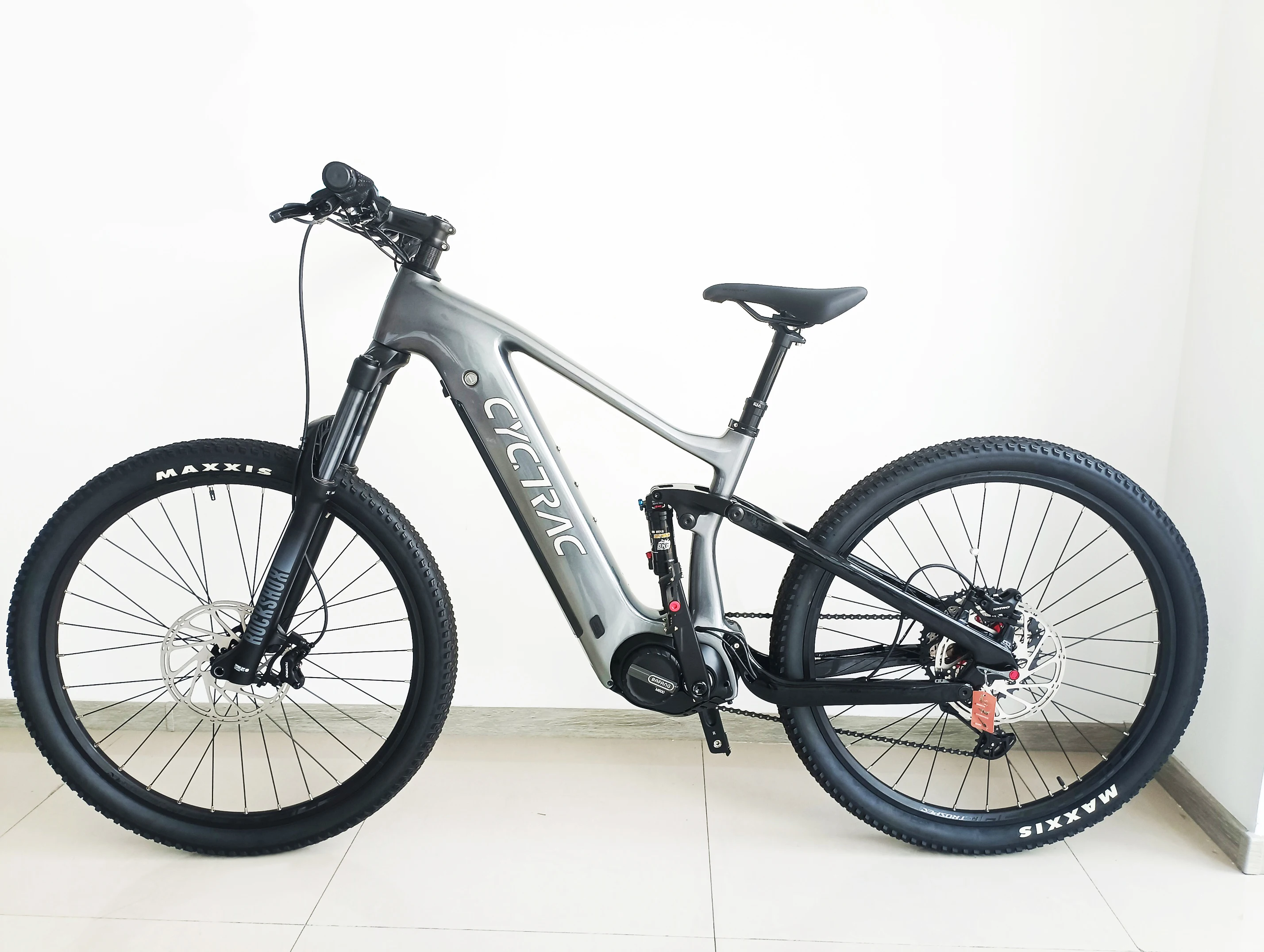

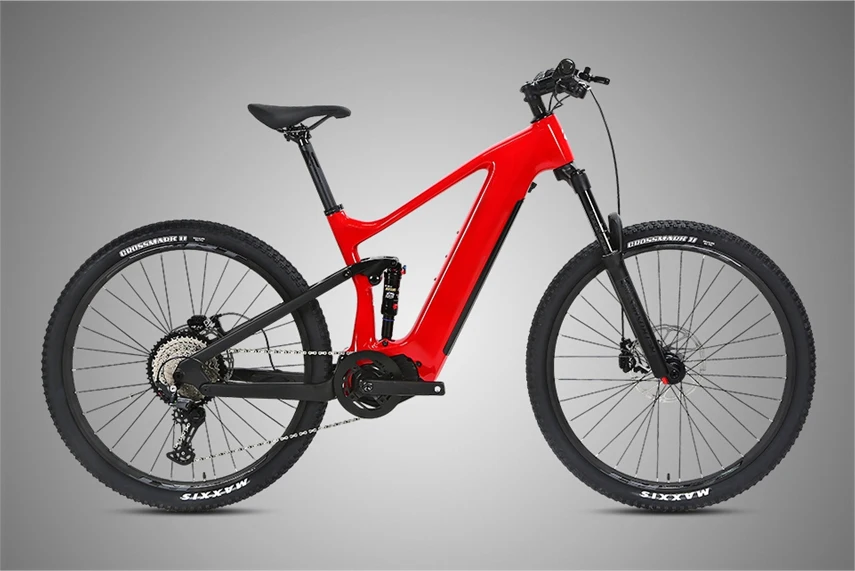

carbon fiber emtb full suspension electric mountain bike e bike e mtb emtb Bafang M560 500W mid drive full suspension 29 inch
- Category: >>>
- Supplier: Shandong Galaxy Power Technology Co. Ltd.Shandong Ltd.
Share on (1601252559210):
Product Overview
Description
Product Description
Main Components | ||
Model | EB-03 | |

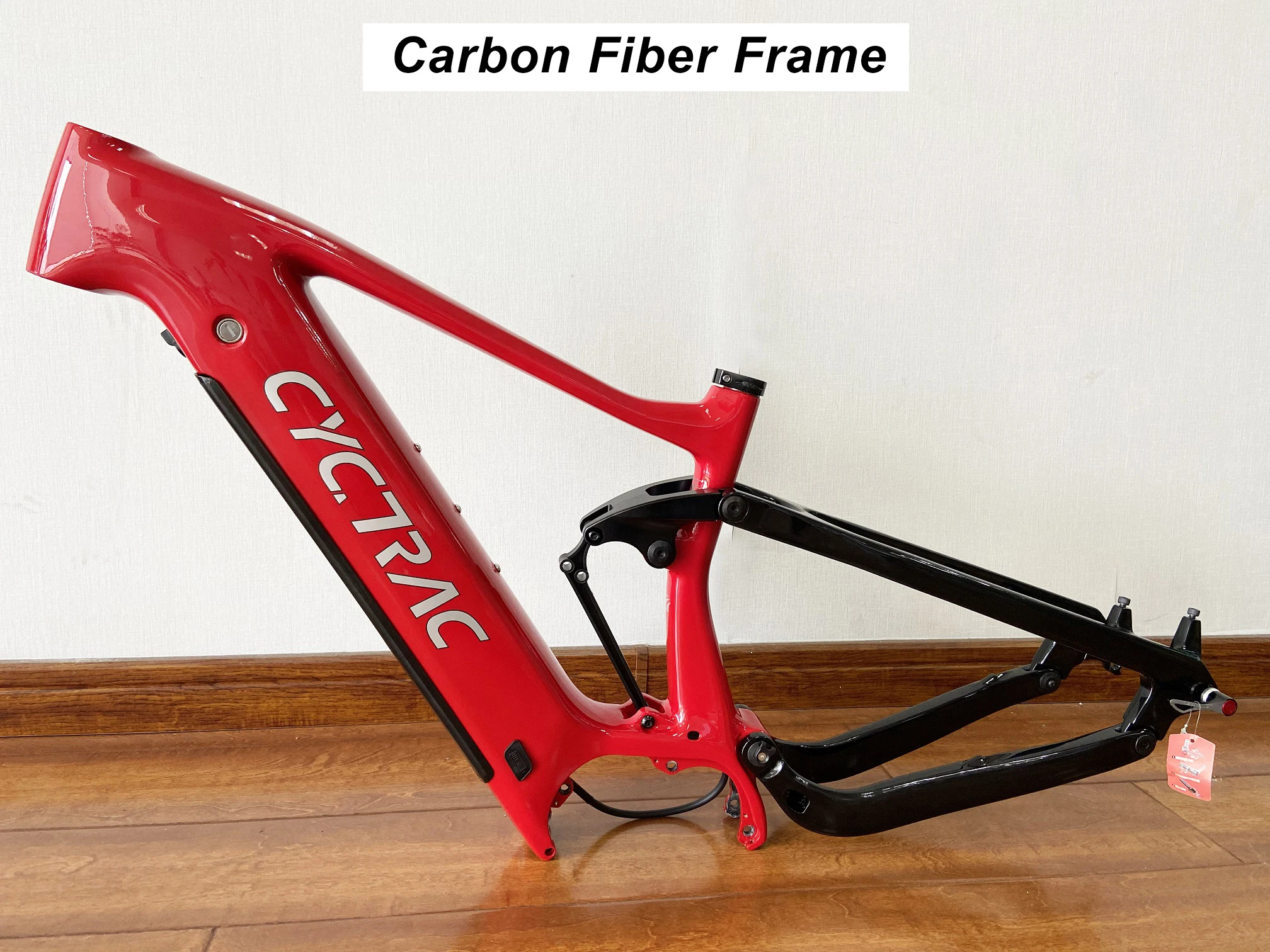

Frame | High modulus Carbon fiber | |
Weight | 24 kg | |
Frame Size | 29(27.5)×16(18)" | |
Front Fork | ROCKSHOX-RECON, Air suspension,150mm,Manual,Thru-axle 15*110 Boost | |
Head Set | Alu alloy CNC with sealed Bearings 52*52mm | |
Handelbar Sets | RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 80, Clamps 34.9mm | |

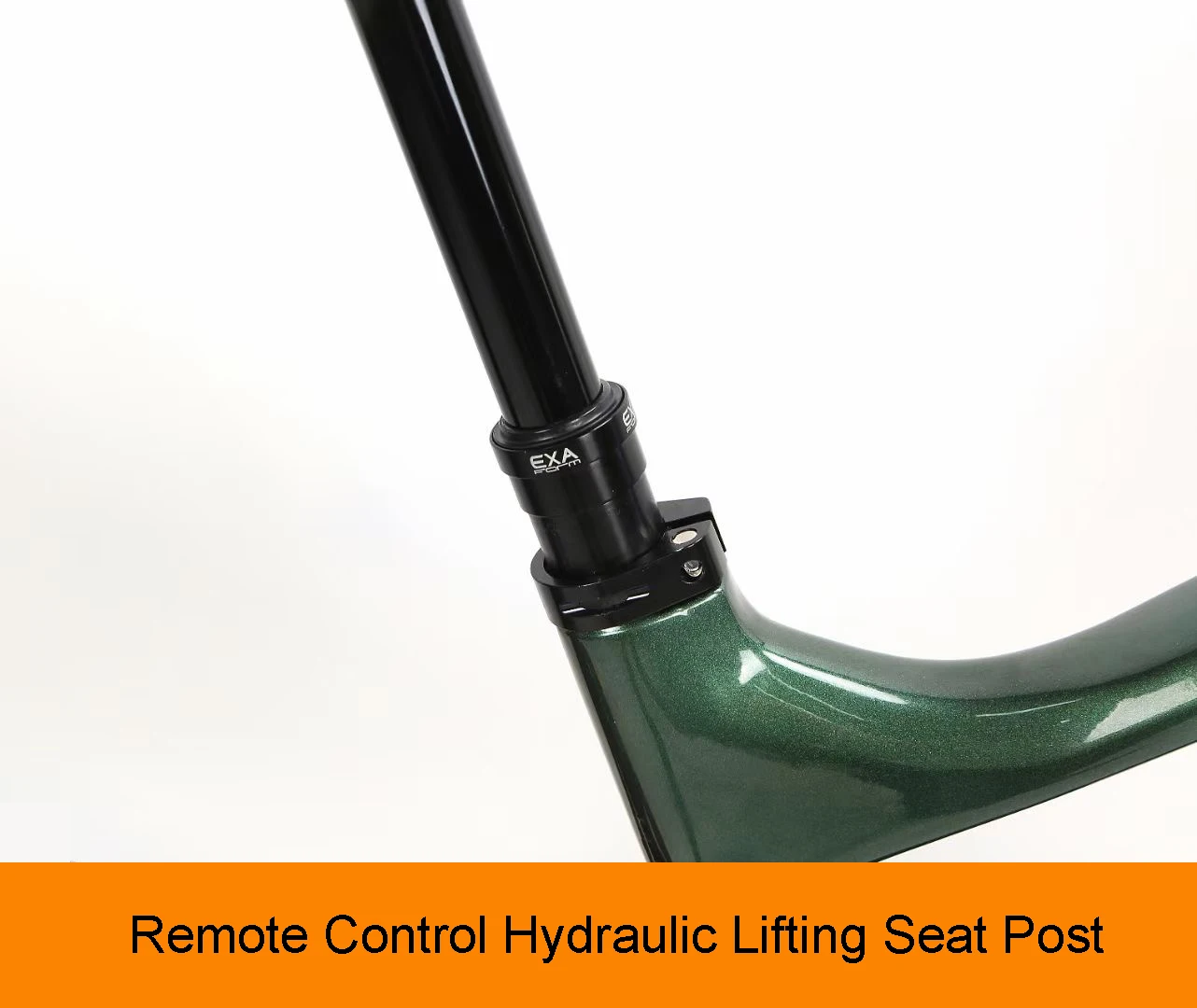

Seat Post | Remote adjustable hydraulic lifting, 31.6**395*125mm | |
Derailleur Lever | SHIMANO DEORE/M6100-12S | |
Rear Derailleur | SHIMANO DEORE/M6100-12S | |
Brake | RS-LD400 4-piston hydraulic disc, with Ceramic heat sink, 203/203mm | |

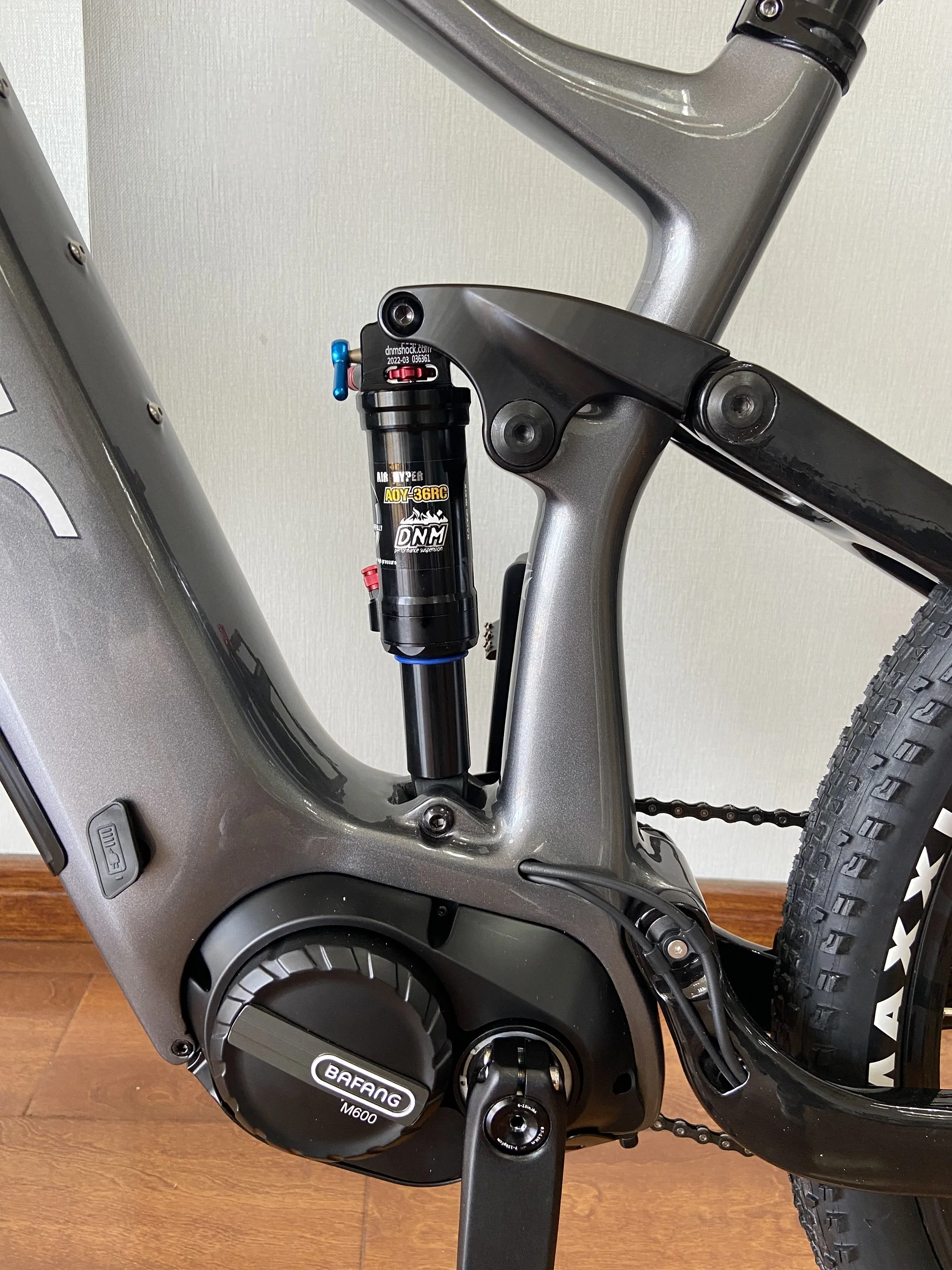

Rear Damper | DNM rear shox200*55 | |
Cranksets | Matching with Mid Motor, 38T | |
Cassettes | SUNSHINE-12S,11-50T | |
Chain | SUMC-12S | |
Hub | RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost | |
Tire | MAXXIS, CROSSMARK, 29/27.5×2.25" | |
Electric Parts | ||
Power Supply | Lithium Battery | |

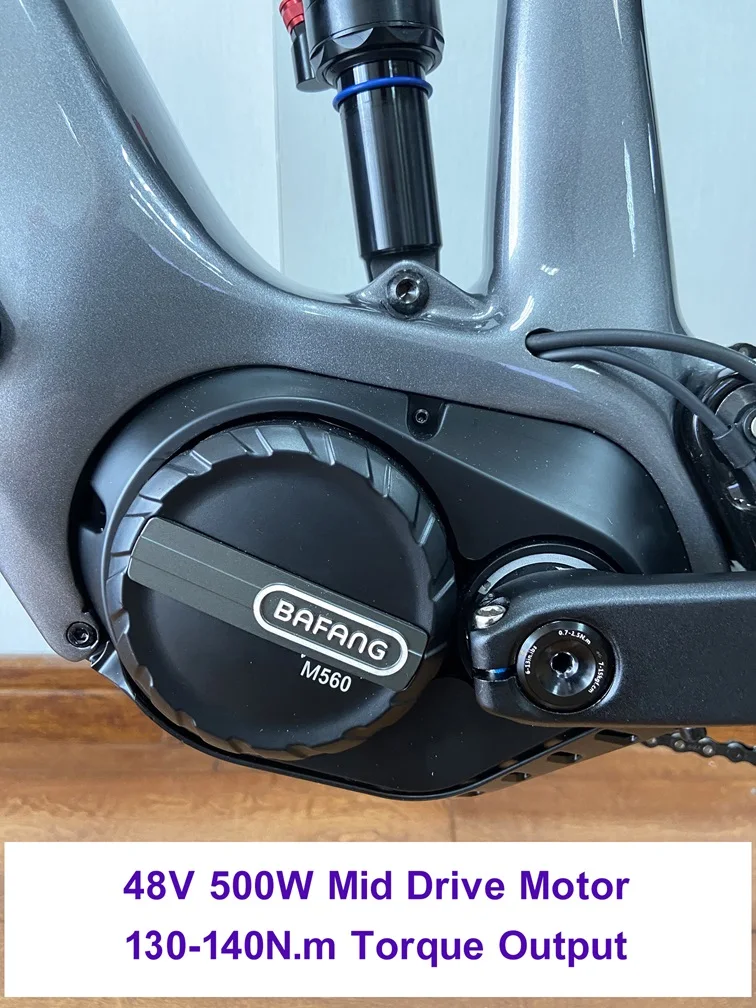

Motor | Bafang Mid, M600, 48V500W | |
Battery | Samsung 21700 Li-ion 720Wh, 48V15A | |
Torque | 120-140 Nm | |
Max Speed | 45Km/h | |
Charging Voltage | AC 100-240V | |
Sensor | Torque+Cadence | |
Charging hours | 8-9hours | |
Riding mode | PAS、Manpower | |
Range Per Power | 140-160 Km ( PAS ) | |
HMI | Bafang, LCD digital, 0-5 Modes | |
Max Load | 150 kg | |

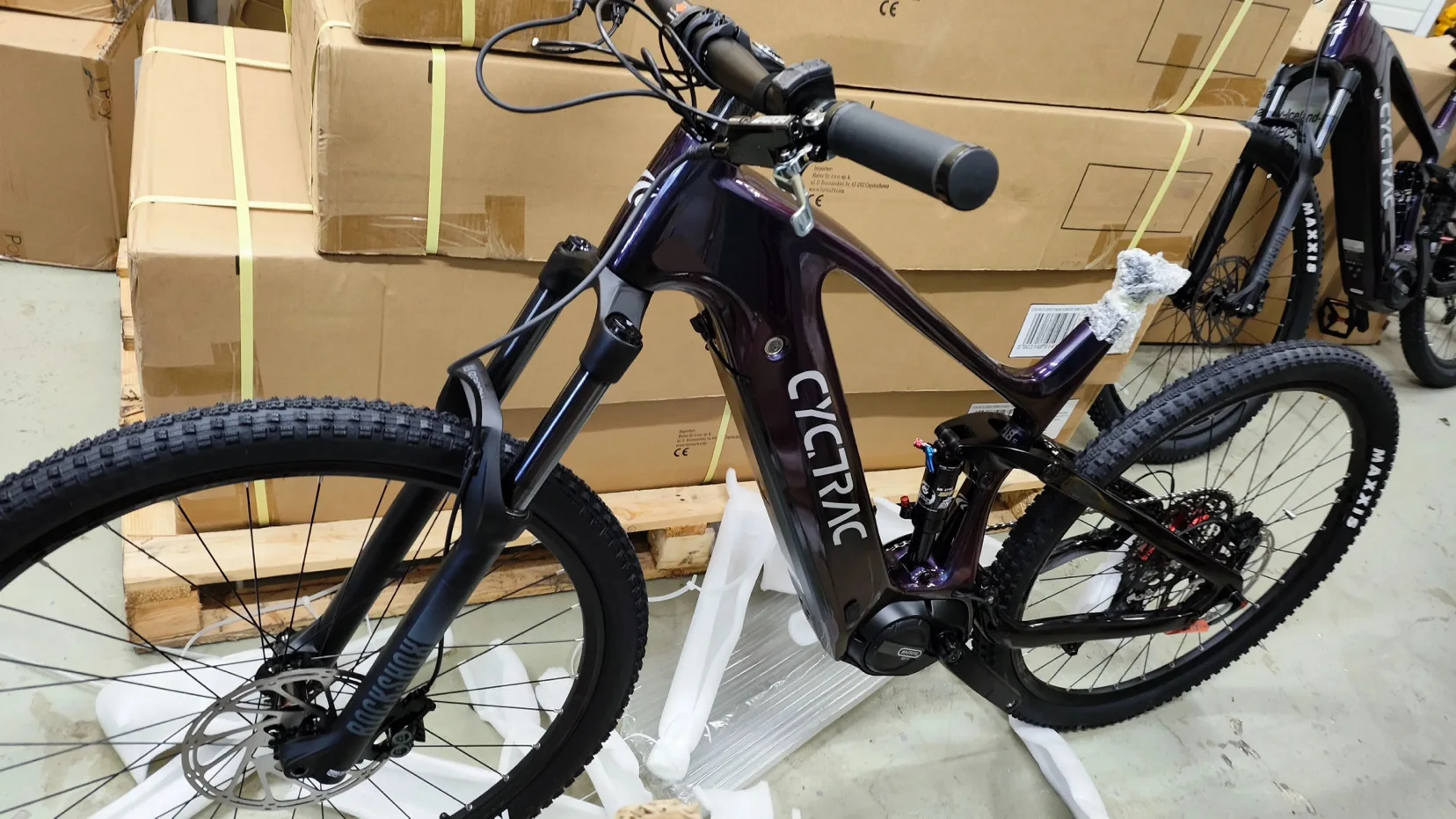

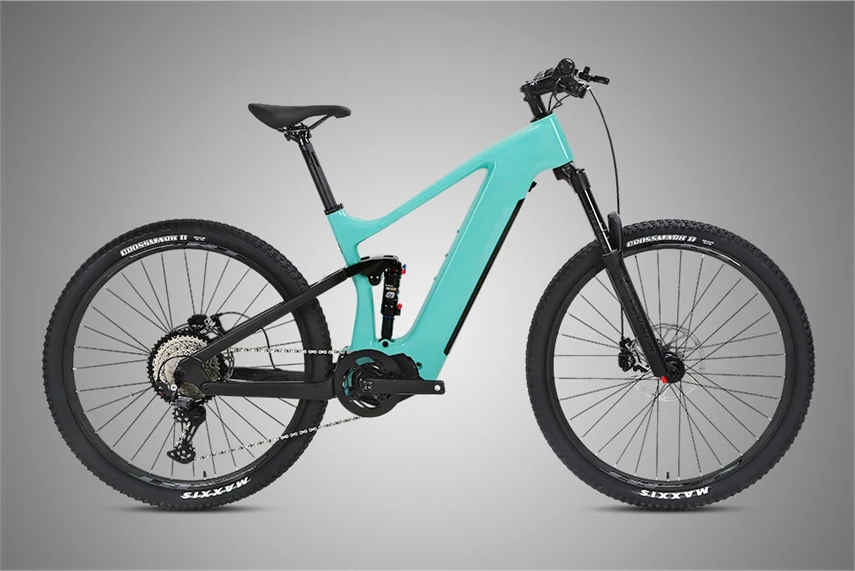

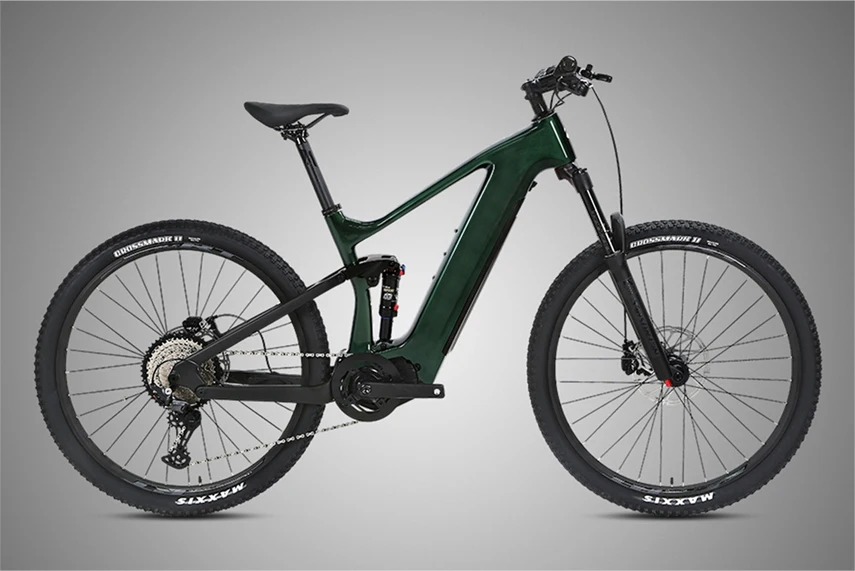

Detailed Images

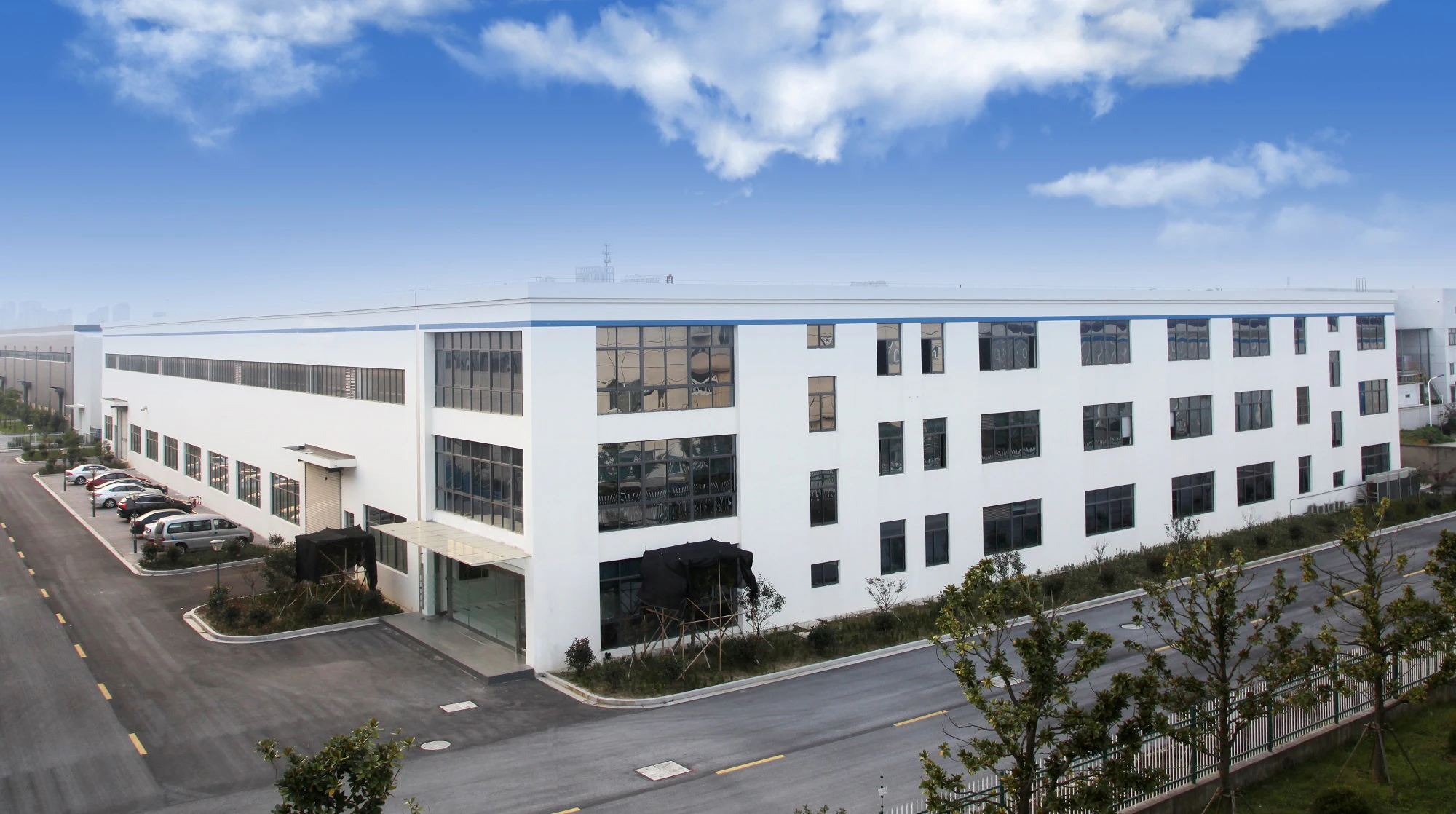

Company Introduction
Shandong Galaxy Power Technology Co.,Ltd .We are a leading professional electric bicycles manufacturer in China, especially over high-end carbon fiber electric mountain bikes.

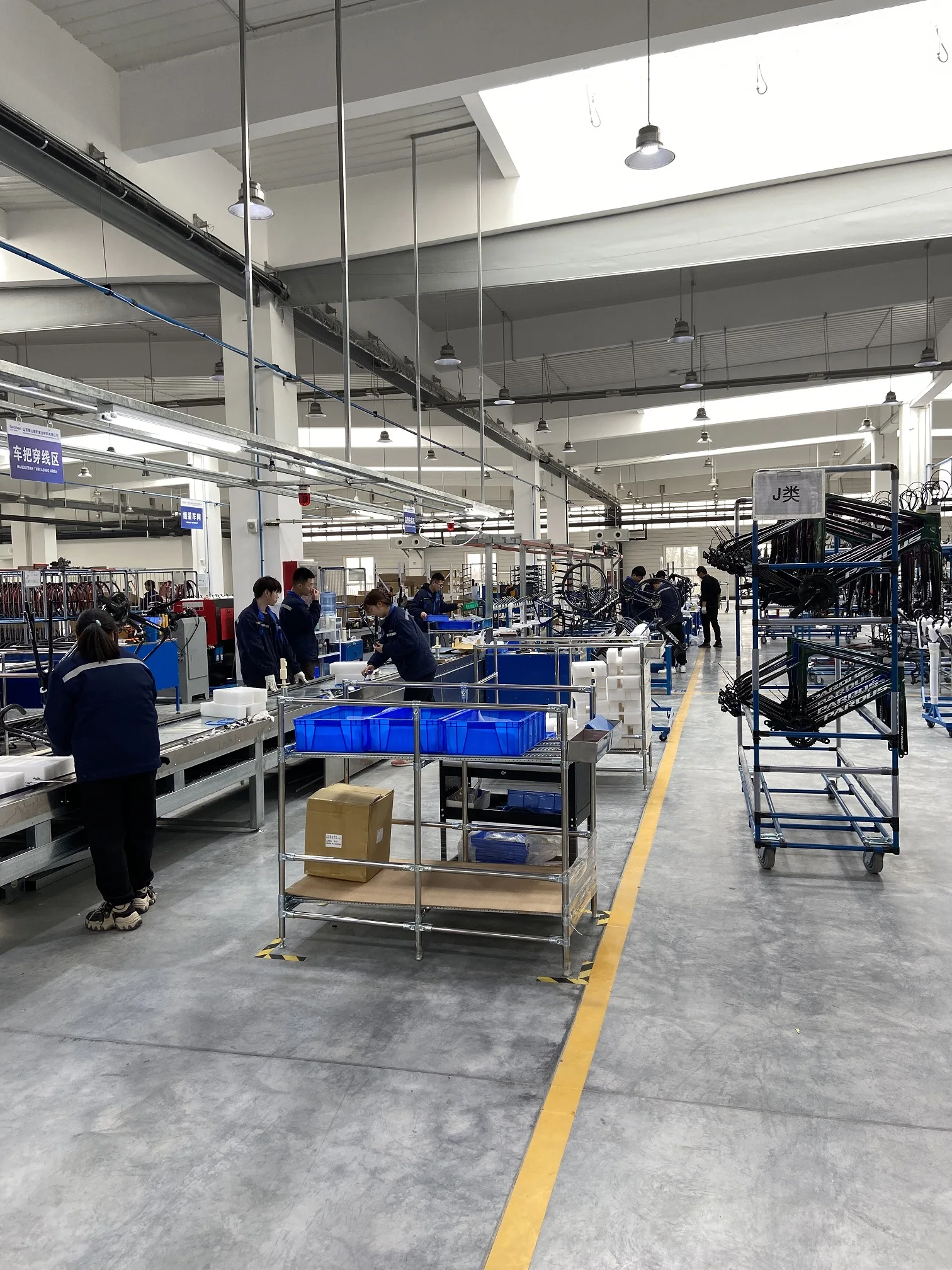

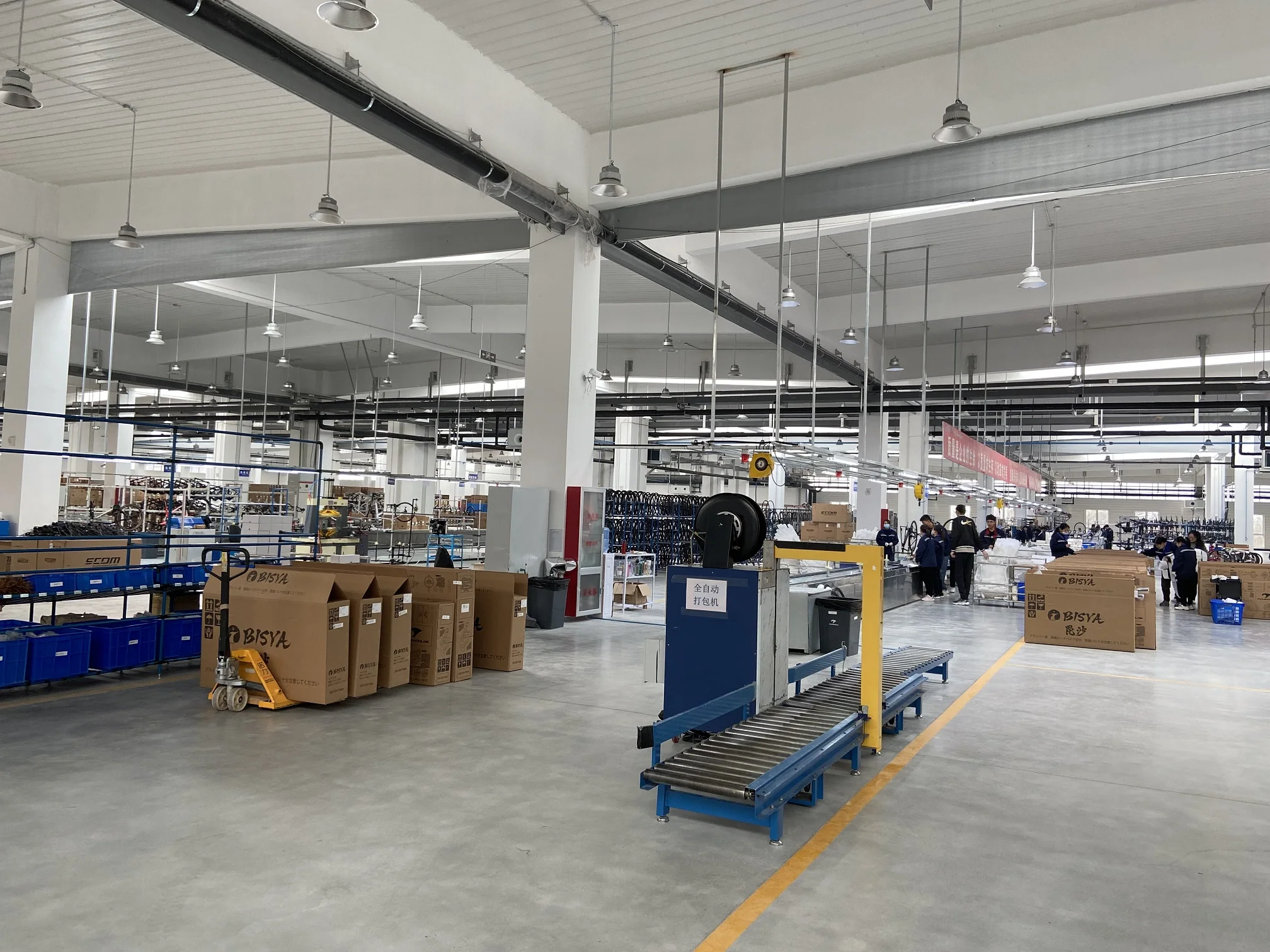

Our R&D team is made up of engineers specialized in the industry for over 10 years, and have established a great system from R&D, producing management, quality inspection, to customer services, which give us a strong technical capability to ensure the high quality of our product and meet variable demands from different customers, and support OEM, ODM services. And Our plants are delivering over 150,000 units of bikes every year to customers from all over the world .
Our biggest advantage is the whole lifecycle services to our customers which will address your after-sale concerns.
Be our business partner, and you’ll have our full support and cooperation.
Our R&D team is made up of engineers specialized in the industry for over 10 years, and have established a great system from R&D, producing management, quality inspection, to customer services, which give us a strong technical capability to ensure the high quality of our product and meet variable demands from different customers, and support OEM, ODM services. And Our plants are delivering over 150,000 units of bikes every year to customers from all over the world .
Our biggest advantage is the whole lifecycle services to our customers which will address your after-sale concerns.
Be our business partner, and you’ll have our full support and cooperation.

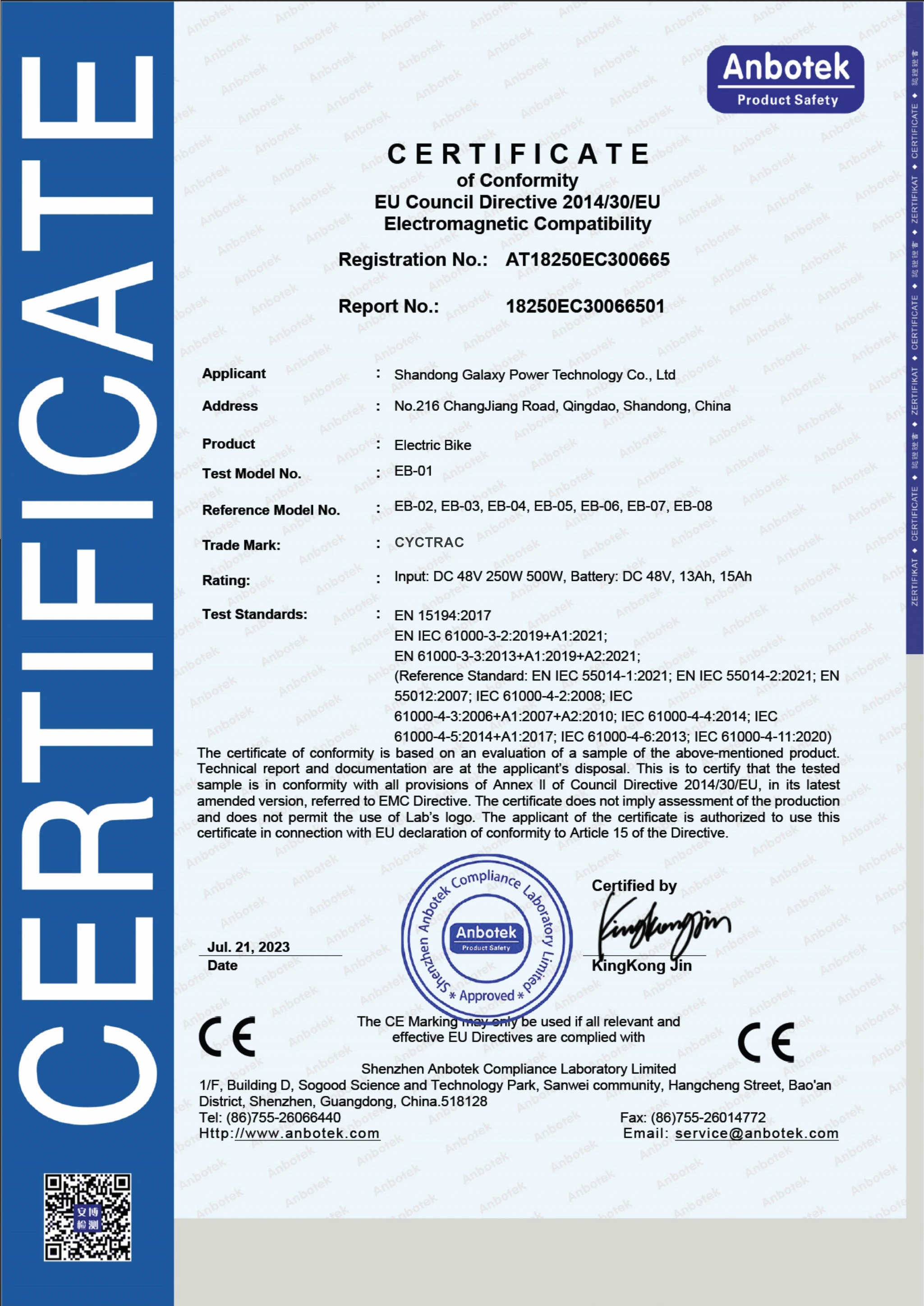

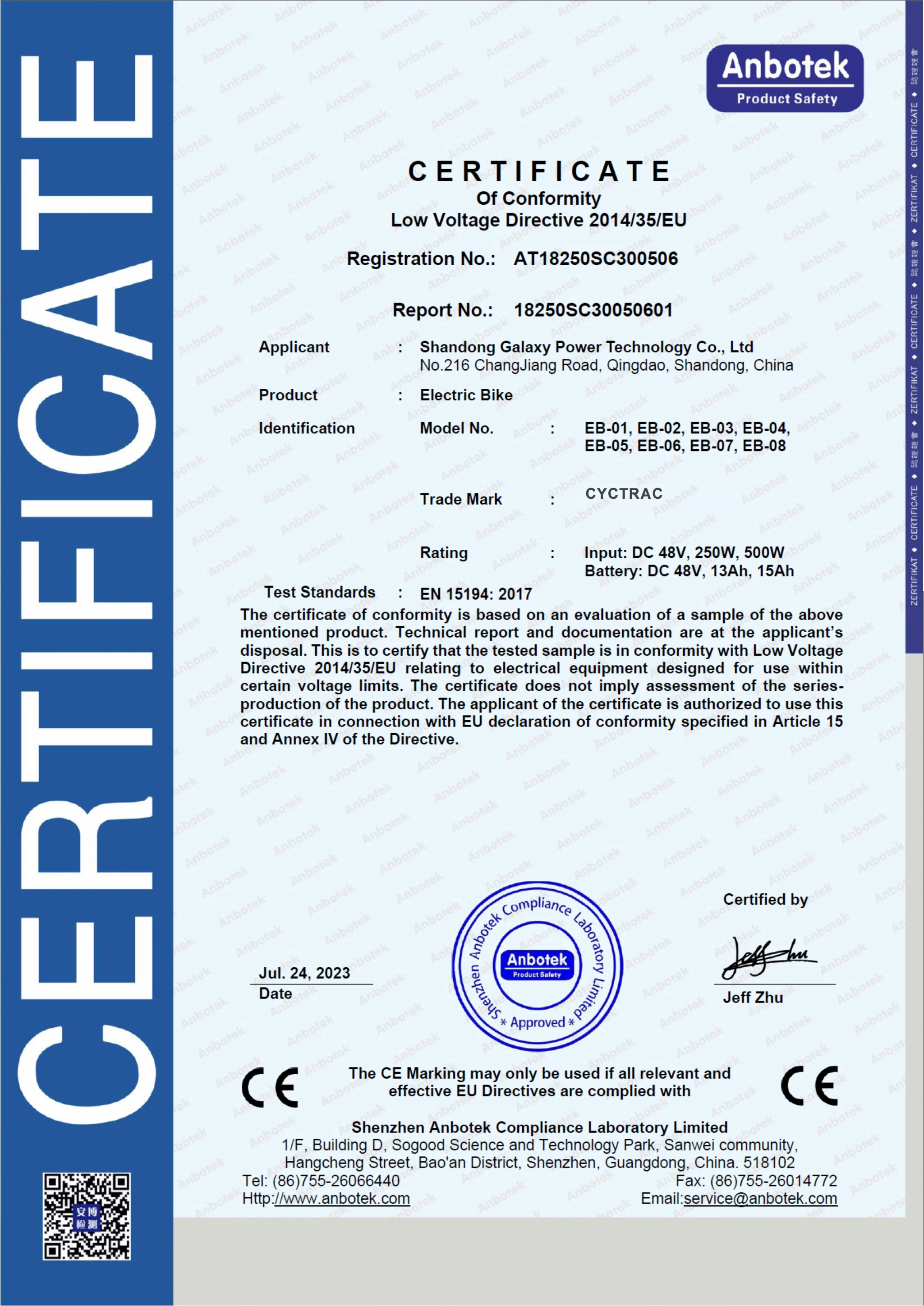

Certifications
FAQ
1. Q: Can I get sample and how long will it take?
A: Yes, we could supply sample. Normally it will take 7 days.
2. Q: Do you support OEM?
Yes. We support OEW with your own brand and normally it has a MOQ requiremrnt of 100 pcs.
3.Q: Can I mix different models in one container?
A: Yes, different models can be mixed in one container.
4. Q: What is the payment terms?
A: We accept 30% payment by T/T in advance and 70% balance payment by T/T before shipping
5. Q: How does your factory carry out quality control?
A: We attach great importance to quality control.Every part of our products has its own QC.
A: Yes, we could supply sample. Normally it will take 7 days.
2. Q: Do you support OEM?
Yes. We support OEW with your own brand and normally it has a MOQ requiremrnt of 100 pcs.
3.Q: Can I mix different models in one container?
A: Yes, different models can be mixed in one container.
4. Q: What is the payment terms?
A: We accept 30% payment by T/T in advance and 70% balance payment by T/T before shipping
5. Q: How does your factory carry out quality control?
A: We attach great importance to quality control.Every part of our products has its own QC.
