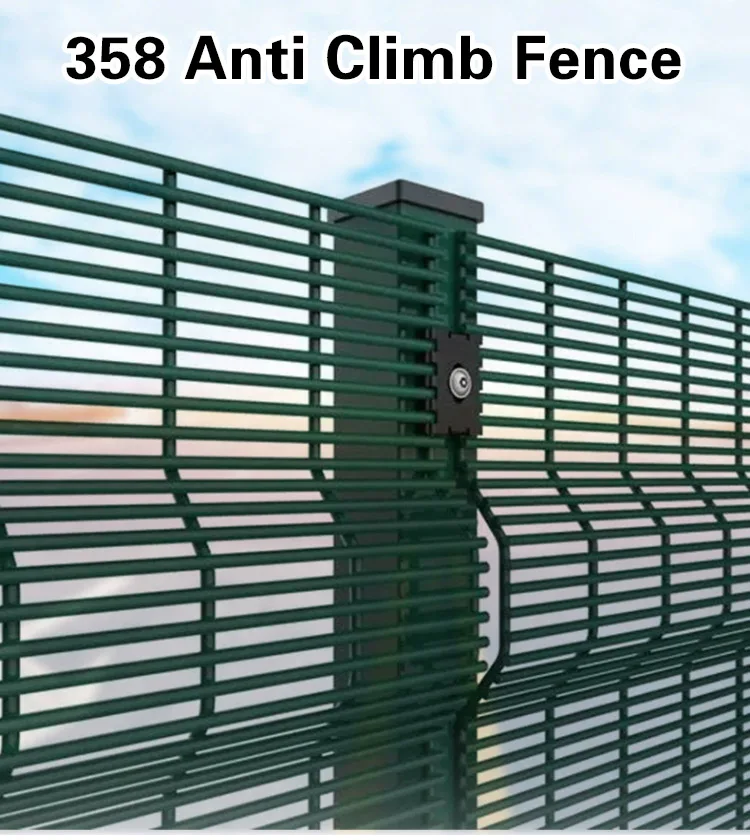

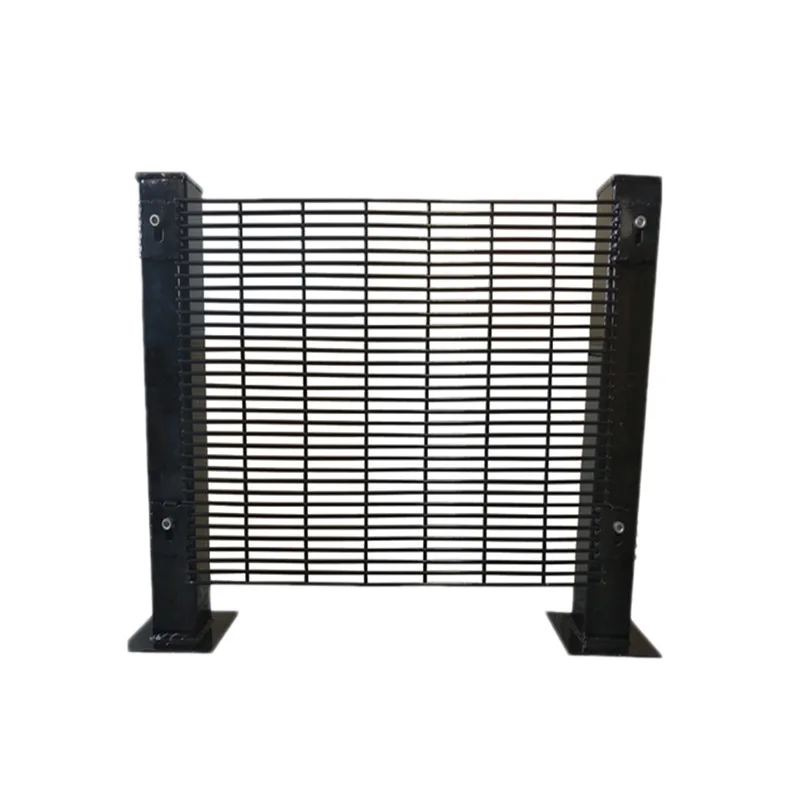

Direct Factory Manufacturer Sale 2m Galvanized 358 Security Powder Coated Metal Steel Garden Fence for Sport Use
- Category: >>>
- Supplier: Hebei Guoben Metal Products Co. Ltd.
Share on (1601252836358):
Product Overview
Description
Product Description

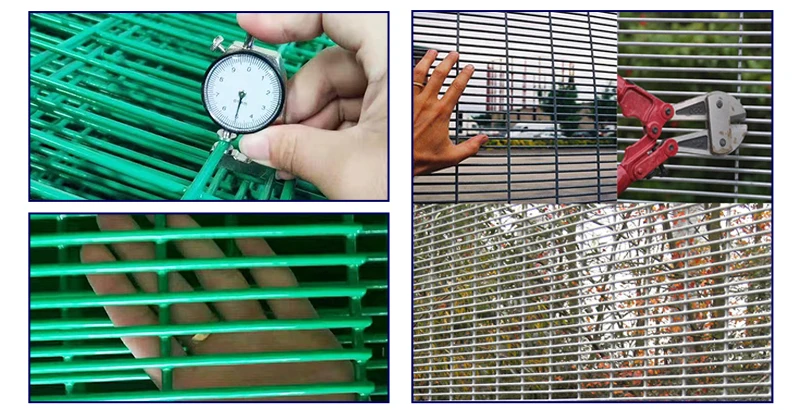

• 358 tight mesh configuration provides no climbing aid
Panel wires are welded at each intersection
Mitigate the attack of hand and power tools with a tight grid design
The high visibility makes the 358 welded mesh ideal for use with CCTV cameras
Difficult to cut with bolts
Extremely strong and robust
Can be stepped mounted on uneven ground

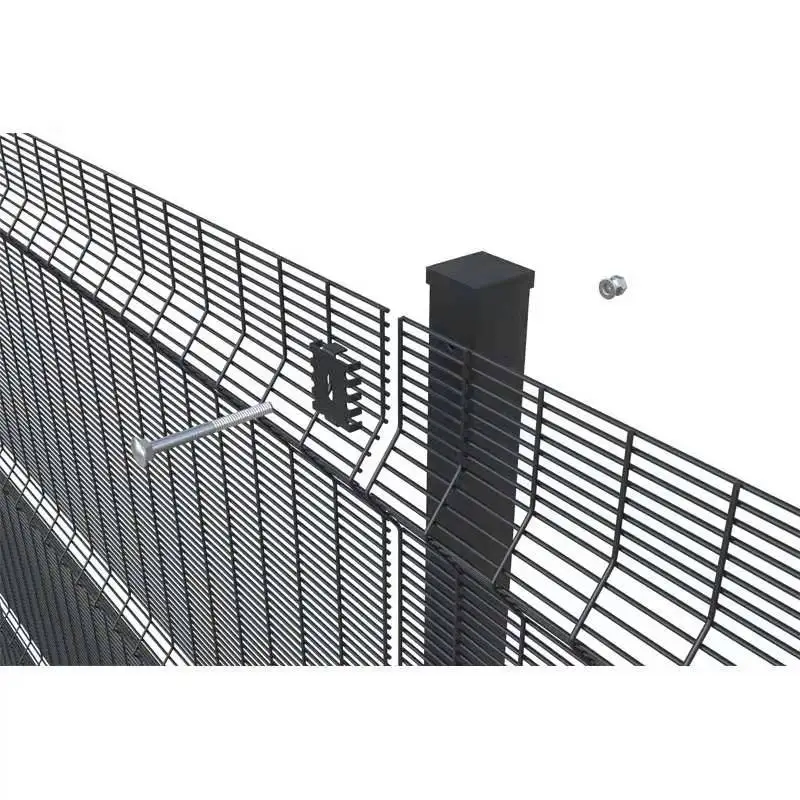

Tamper-evident fasteners
Panel wires are welded at each intersection
Mitigate the attack of hand and power tools with a tight grid design
The high visibility makes the 358 welded mesh ideal for use with CCTV cameras
Difficult to cut with bolts
Extremely strong and robust
Can be stepped mounted on uneven ground
Tamper-evident fasteners
panel
* Panels are 2515 mm wide and vary in height from 1200 mm to 3000 mm * Grid size is 76.2 x 12.7 mm and is made of 4 mm wire * Welding strength 75% of the minimum tensile strength of the wire * Toe and anti-finger mesh * Anti-limb and anti-fence with excellent visibility and vandal resistance
coating
*The panels are made of pre-galvanized wires
* An adhesive coating is applied to make it perfectly bonded
to the polyester * Coated posts are coated with a polyester coating on a galvanized substrate
color
Green RAL6005 and black RAL9005 are available as standard, but other colors are available upon request
Mesh dimensions and tolerances
*Horizontal line (cross line) distance between centers: 12.7 ± 1 mm *Grid size variation should be a maximum of ± 1.5 mm per 1 meter length. *Distance between centers of crossed wires over 5.8 m length (Maximum cumulative tolerance: ± 6 mm) *Distance between centers of vertical wires (wires): 76.2 ± 2 mm *Grid size must not vary more than ± 3 mm of the total width of the panel
* Panels are 2515 mm wide and vary in height from 1200 mm to 3000 mm * Grid size is 76.2 x 12.7 mm and is made of 4 mm wire * Welding strength 75% of the minimum tensile strength of the wire * Toe and anti-finger mesh * Anti-limb and anti-fence with excellent visibility and vandal resistance
coating
*The panels are made of pre-galvanized wires
* An adhesive coating is applied to make it perfectly bonded
to the polyester * Coated posts are coated with a polyester coating on a galvanized substrate
color
Green RAL6005 and black RAL9005 are available as standard, but other colors are available upon request
Mesh dimensions and tolerances
*Horizontal line (cross line) distance between centers: 12.7 ± 1 mm *Grid size variation should be a maximum of ± 1.5 mm per 1 meter length. *Distance between centers of crossed wires over 5.8 m length (Maximum cumulative tolerance: ± 6 mm) *Distance between centers of vertical wires (wires): 76.2 ± 2 mm *Grid size must not vary more than ± 3 mm of the total width of the panel
Specification
Wire thickness | Mesh size | Panel height | Panel width | Post type | ||||||
4mm(8ga) | 12.7*76.2mm (1/2" × 3") | 2-6m | 2-3m | Square post (SHS) 60×60×2.0/2.5/3.0mm 80×80×2.0/2.5/3.0mm | Rectangular post (RHS) 40×60×2.0/2.5/3.0mm 40×80×2.0/2.5/3.0mm 60×80×2.0/2.5/3.0mm 80×100×2.0/2.5/3.0mm | |||||
Surface treatment: Hot dipped galvanized, galvanized + powder/PVC coated. | ||||||||||
Color: Ral 6005 green, Ral 7016 gray, Ral 9005 black. All color can be customized. | ||||||||||
Note: Any other size can be customized according to your requirement. | ||||||||||
Company Profile

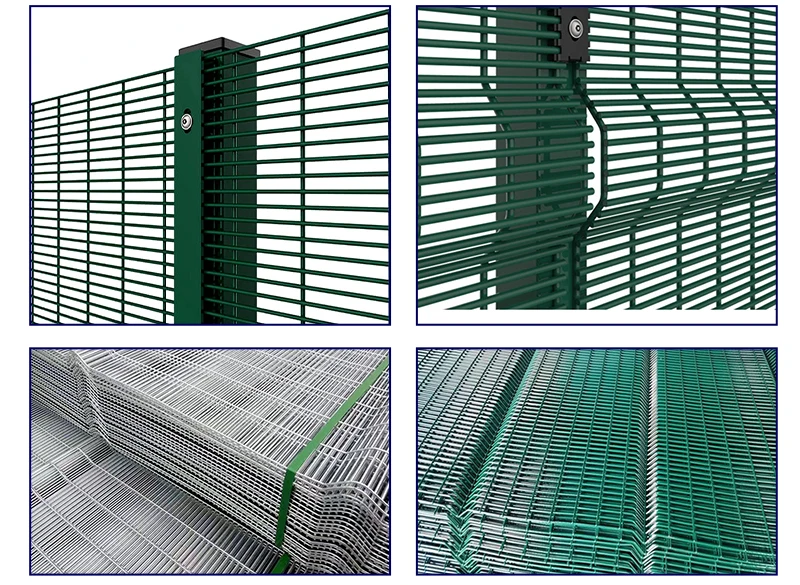

Packing & Delivery
FAQ
Q1. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q2. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q2. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
