Robot Smart Camera Embedded System Development Boards RK3588 Octa Core 6.0Tops Industrial PCBA for AI Box
- Category: >>>
- Supplier: Shenzhen Sunchip Technology Co. Ltd.
Share on (1601253172993):
Product Overview
Description
Related Products
Products Description
Overview(AD-C58)：

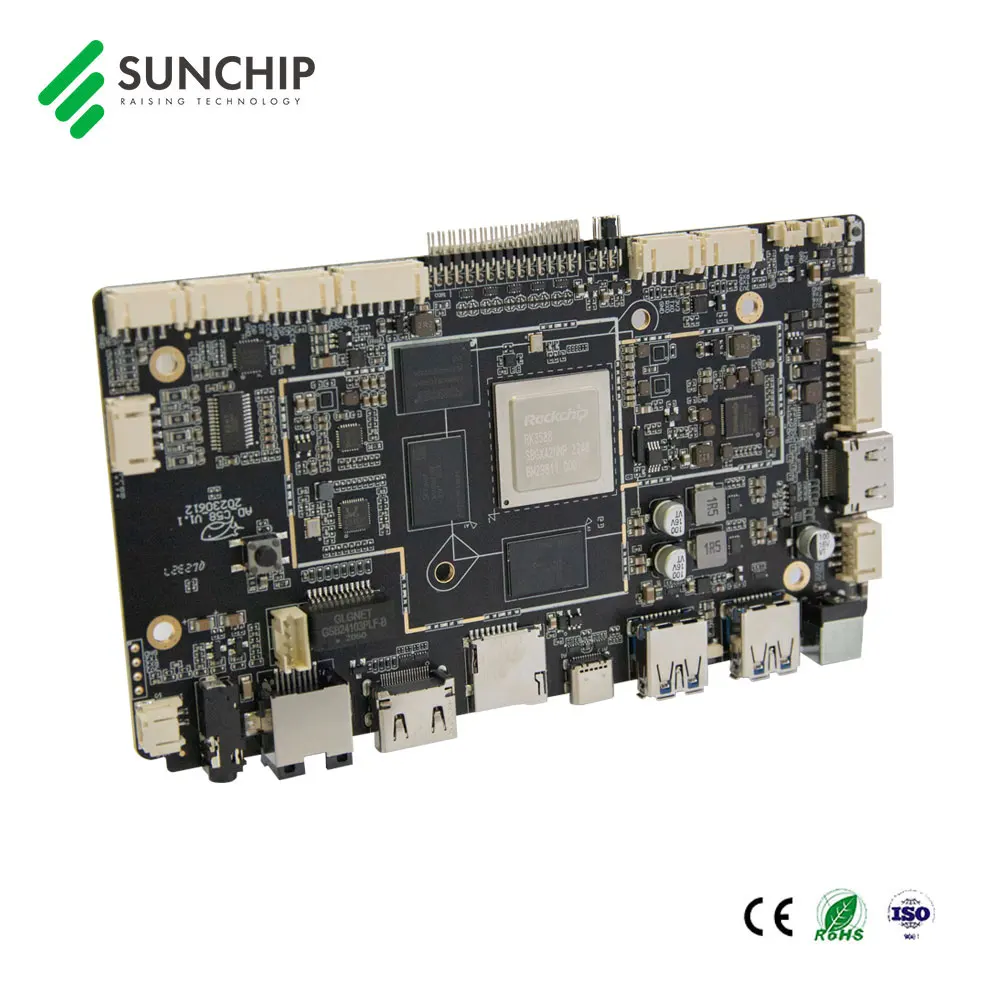

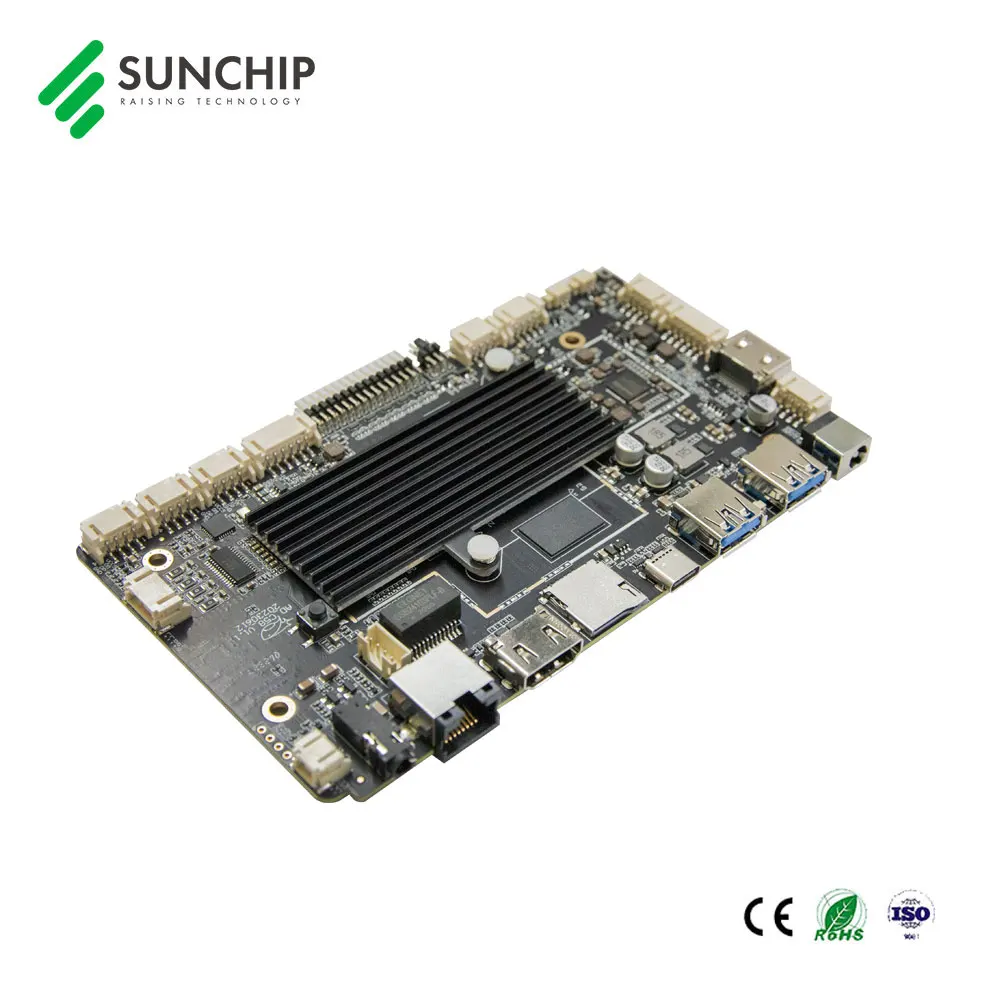

The large board of the intelligent industrial all-in-one machine adopts Rockchip RK3588 eight-core chip solution. Support Android 12 system. Enhanced power management circuitry. Support common external devices. Rich interfaces and stable performance. Suitable for intelligent remote network control: industrial, medical, large advertising machines, educational video terminals and other equipment.
Features：
Support LVDS, MIPI, EDP interface display three-screen simultaneous/different display + HD OUT (up to 8K@60FPS), HD IN (up to 8K@60FPS).
Various interactive mode interfaces: capacitive touch, infrared touch, USB keyboard and mouse, multi-point optical touch.
Multiple network interfaces: Ethernet (Gigabit), Wireless Wifi (Wifi6), BT .
Multi-channel USB interface, serial port.
Strong anti-electromagnetic interference and electromagnetic compatibility.
The large board of the intelligent industrial all-in-one machine adopts Rockchip RK3588 eight-core chip solution. Support Android 12 system. Enhanced power management circuitry. Support common external devices. Rich interfaces and stable performance. Suitable for intelligent remote network control: industrial, medical, large advertising machines, educational video terminals and other equipment.
Features：
Support LVDS, MIPI, EDP interface display three-screen simultaneous/different display + HD OUT (up to 8K@60FPS), HD IN (up to 8K@60FPS).
Various interactive mode interfaces: capacitive touch, infrared touch, USB keyboard and mouse, multi-point optical touch.
Multiple network interfaces: Ethernet (Gigabit), Wireless Wifi (Wifi6), BT .
Multi-channel USB interface, serial port.
Strong anti-electromagnetic interference and electromagnetic compatibility.

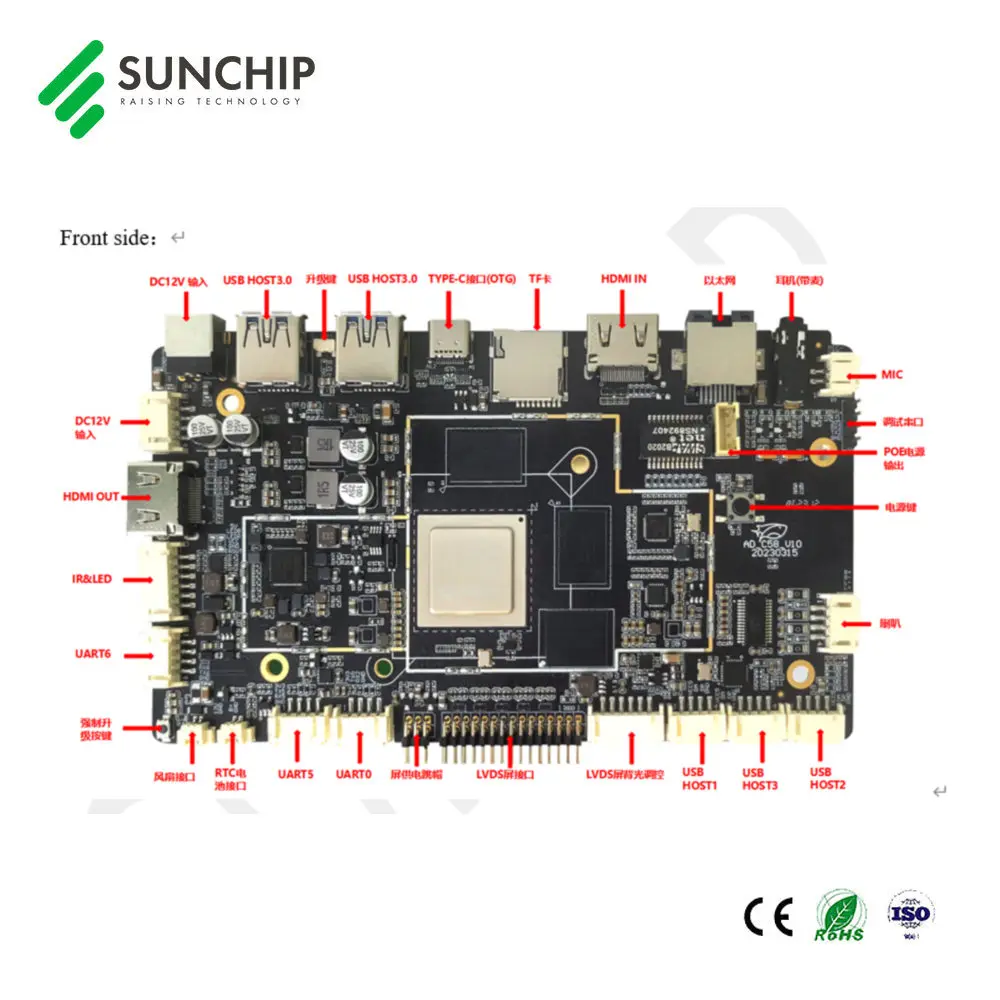

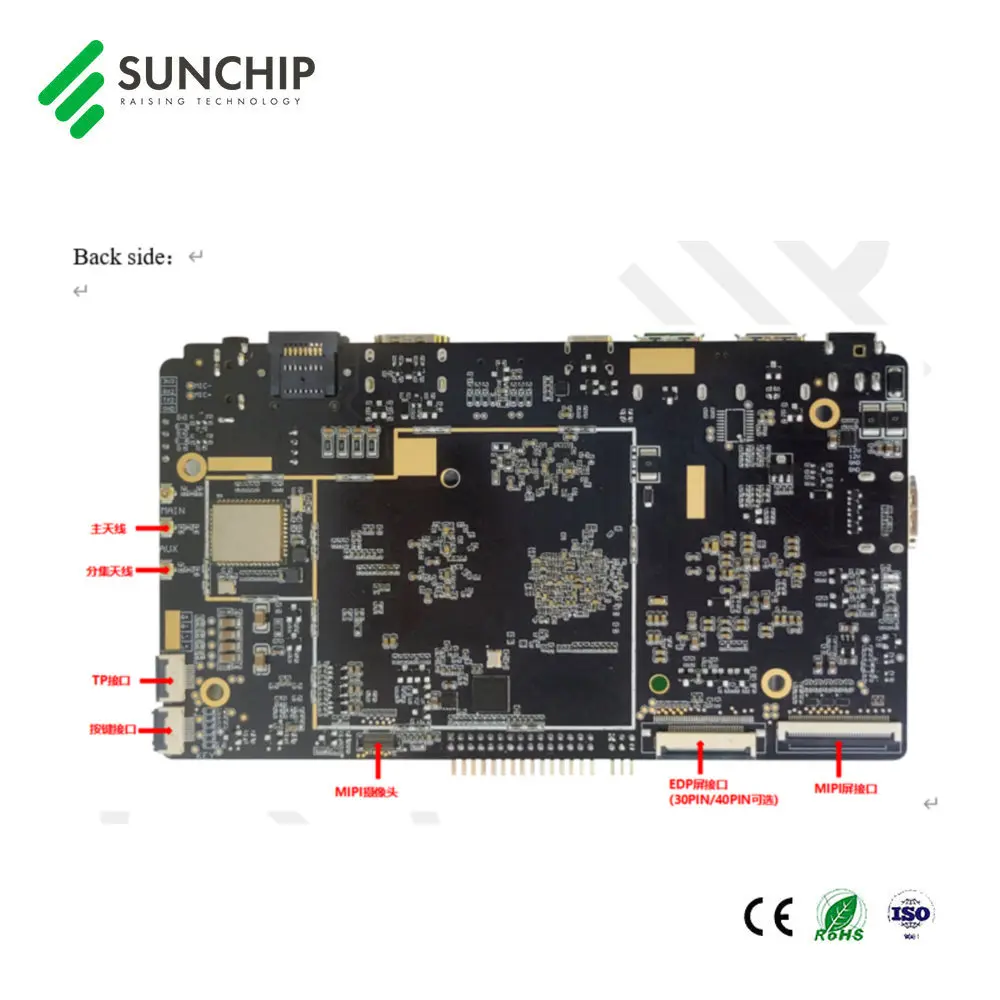

Product Parameters
CPU | Rockchip RK3588 octa-core 64-bit size core architecture，4*Cortex-A76 + 4*Cortex-A55 | ||
Main frequency | The main frequency of the large core is 2.1GHz, and the main frequency of the small core is 1.7GHz | ||
GPU | ARM Mali-G610 MC4 | ||
OpenGL ES 1.1/2.0/3.1/3.2 | |||
Vulkan 1.1，1.2 | |||
OpenCL 1.1,1.2,2.0 | |||
Embedded high-performance 2D image acceleration module | |||
NPU | 6TOPS AI computing power, triple-core architecture, support int4/int8/int16/FP16/BF16/TF32, enabling various AI scenarios | ||
Memory | 4GB/8GB/16GB（Up to 32GB）64bit LPDDR4/LPDDR4x | ||
Built-in storage capacity | EMMC 32G/64G/128G/256G（optional） | ||
Display interface | HDMI OUT（Up to 8K@60FPS） | ||
HDMI IN（Up to 8K@60FPS） | |||
LVDS display interface | |||
EDP display interface | |||
MIPI display interface | |||
Screen voltage | Support 3.3V/5V/12V optional | ||
Touch screen | Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. | ||
Network | With RJ45 interface, support 10/100/1000M Ethernet. | ||
Equipped with AP6275S industrial WiFi-6 module SIDO/PCIE dual-channel Bluetooth WiFi module 2T2R 802.11 ax/ac/a/b/g/n Wi-Fi + BT 5.0 Module | |||
Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/automatic rotation, support gravity sensing function | ||
Real Time Clock | Built-in real-time clock powered by battery | ||
Interface device | Support MIPI interface camera, support 500W pixels | ||
3 USB HOST 2.0 (4PIN2.0 spacing connectors) | All support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals | ||
2 USB HOST3.0 (standard interface) | |||
1 full-featured Type-C interface (OTG) | |||
3 sets of serial ports, support external serial device modules (NFC module, printer, card reader, etc.) | |||
TF card, maximum support 128GB | |||
Class D power amplifier: default 3W*2 8 ohms, support microphone | |||
Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP Format | ||
Video | Support H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS Support H.264/H.265 video encoding, up to 8K30FPS | ||
Picture | Support JPG, BMP, PNG and other image formats to browse and support rotation/slide show/image enlargement functions | ||
Power Adapter | Input: AC100-240V.50-60HZ, Output: DC12V 3A (positive inside and negative outside) | ||

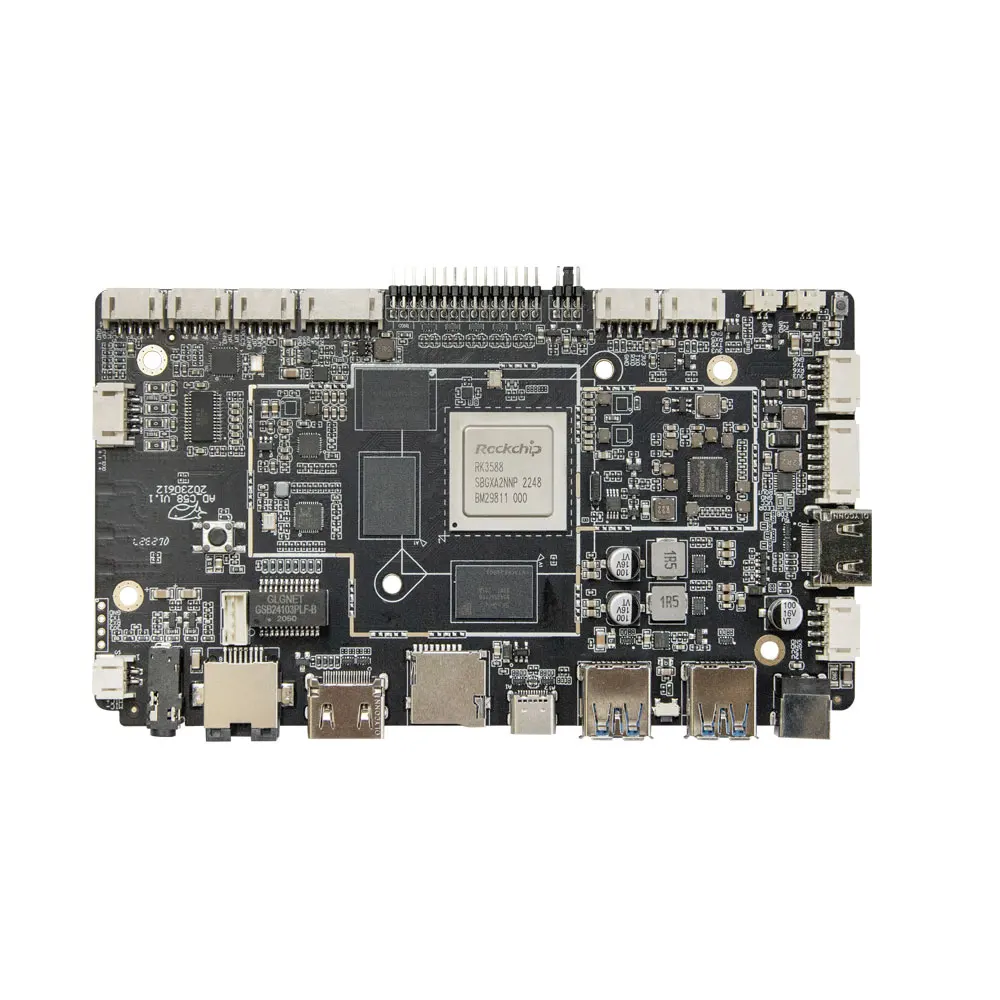

CPU | Rockchip RK3566 Quad-core A55 architecture |
Main frequency | 1.8GHz |
GPU | ARM Mali-G52 2EE |
OpenGL ES 1.1/2.0/3.2 | |
Vulkan 1.1 | |
OpenCL 2.0 | |
Embedded with high performance 2D acceleration hardware | |
NPU | 1TOPS computing power, support int8/int16 |
RAM | 2G DDR4 |
Built-in storage capacity | EMMC 16G/32G/64G optional |
Display Interface | HDMI2.0（maximum support 4K@60FPS） |
MIPI display interface (MIPI and LVDS can only be selected as one) | |
LVDS display interface (MIPI and LVDS can only be selected as one) | |
EDPdisplay interface | |
Screen voltage | 3.3V/5V/12V optional |
Touch screen | Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch) Support USB multi-point infrared touch, multi-point acoustic touch, multi-point optical touch. |
Network | With RJ45 interface, support 10/100M Ethernet. |
With Wifi & BT module, support Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
Image rotation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
Real-time clock | Built-in real-time clock powered battery |
Interface device | Support MIPI interface camera, support up to 500W pixels |
4 USB HOST 2.0, 1 USB HOST3.0, 1 USB OTG (support usb camera @ 500W usb printer , USB stick , mouse , keyboard standard usb peripherals) | |
2 groups of serial ports, support external serial device modules (NFC modules, printers, card swipes, etc.) | |
TF card, supports up to 32GB | |
Class D amplifier: 3W*2 8 ohms, microphone support | |
Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP |
Video | Support H.265/H.26/VP9 video decoding, up to 4K60FPS Support H.264/H.265 video encoding, up to 4K30FPS |
Picture | Support JPG, BMP, PNG and other image formats to browse and support rotation / slideshow / image zoom function |
Power adapter | Input：AC100-240V.50-60HZ， output： DC12V 3A（Internal positive and external negative） |
Customization highlights
1. Android version options, up to android 12;
2. upgrade to 4K resolution, same cost;
3. Software customization, free service;
4. 4G LTE optional for different countries or areas;
5. Lable customization supporting;
6. More interfaces options, same cost;
7. RAM/ROM options available;
2. upgrade to 4K resolution, same cost;
3. Software customization, free service;
4. 4G LTE optional for different countries or areas;
5. Lable customization supporting;
6. More interfaces options, same cost;
7. RAM/ROM options available;
Packing & Delivery
1.Packing: carton box or wood case
2.Payment methods: accept T/T,Western Union,Paypal and Cash.
3.RMA Policy: customer bear all the freight and duty charge to factory,and the factory afford return freight charge.
4.Warranty: 12 months warranty. Paid maintenance over 12 months.
5.Remark: ROHS, CE & FCC certificates in e-file format are available.
6.MOQ: 1pc, sample order are welcome for your evaluation.
2.Payment methods: accept T/T,Western Union,Paypal and Cash.
3.RMA Policy: customer bear all the freight and duty charge to factory,and the factory afford return freight charge.
4.Warranty: 12 months warranty. Paid maintenance over 12 months.
5.Remark: ROHS, CE & FCC certificates in e-file format are available.
6.MOQ: 1pc, sample order are welcome for your evaluation.
Why Choose Us
1.We are a professional indoor & outdoor digital signage complete solution & mass production technoloy provider.
2.We have integrate more than 100 mature supply chain to provide ONE-STOP service for hardware & software development.
3.We having our own ERP system to control our factory’s procedures help us make sure of our delivery times and product quality. Over 15 years of experience gives us the edge!
4. We currently provide OEM/ODM services for many customers worldwide. R & D design and a large number of orders are our advantages.
5. We understand that our new partners need to order samples, in fact we encourage them to do so. Once you see the quality of our products, you will understand our professional strength.
6.Our years experiences made us faster and better, our teams are truly specialized, from our R & D department to our factory workers, everyone is key to our success.
2.We have integrate more than 100 mature supply chain to provide ONE-STOP service for hardware & software development.
3.We having our own ERP system to control our factory’s procedures help us make sure of our delivery times and product quality. Over 15 years of experience gives us the edge!
4. We currently provide OEM/ODM services for many customers worldwide. R & D design and a large number of orders are our advantages.
5. We understand that our new partners need to order samples, in fact we encourage them to do so. Once you see the quality of our products, you will understand our professional strength.
6.Our years experiences made us faster and better, our teams are truly specialized, from our R & D department to our factory workers, everyone is key to our success.
Company Profie
SHENZHEN SUNCHIP TECHNOLOGY CO.,LTD
Established in 2011, SUNCHIP is a high-tech engineering company specialized in designing and manufacturing Digital signage, Embedded digital signage, ARM board and Andriod-based customized products, which are compliant with CE, FCC and RoHS standards.
SUNCHIP has a long histroy of OEM and ODM service to many branded customers. With the strong R&D team, intelligent robot production line and strict QC and QA members, SUNCHIP is a technology-leading ODM factory.With more than 100 experienced R&D engineers' hard working, SUNCHIP have mastered a whole set solution of high-definition video encoding&decoding developing and mass production technology.
SUNCHIP is the strategic partner of Rochchip, Intel, Amlogic, Samsung and Allwinner, so we always have a steady supply of reliable chipsets and unlimited technical support from the partners.
Certifications
Our certified products also show how we are serious about our exports, for example, CE,UL,RoHS,FCC, ISO9001.We have invested quite a lot of money in this aspect, which is enough to show our control and confidence in quality.
FAQ
1) Q: Is SUNCHIP a factory or simply a trading company?
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.
2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.
3) Q: How long is the warranty time?
A: 1 Year.
4) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.
5) Q: Do you give any discounts ?
A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.
6) Q: I would like to add my company logo on your products, is this possible?
A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.
2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.
3) Q: How long is the warranty time?
A: 1 Year.
4) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.
5) Q: Do you give any discounts ?
A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.
6) Q: I would like to add my company logo on your products, is this possible?
A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.
Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!
