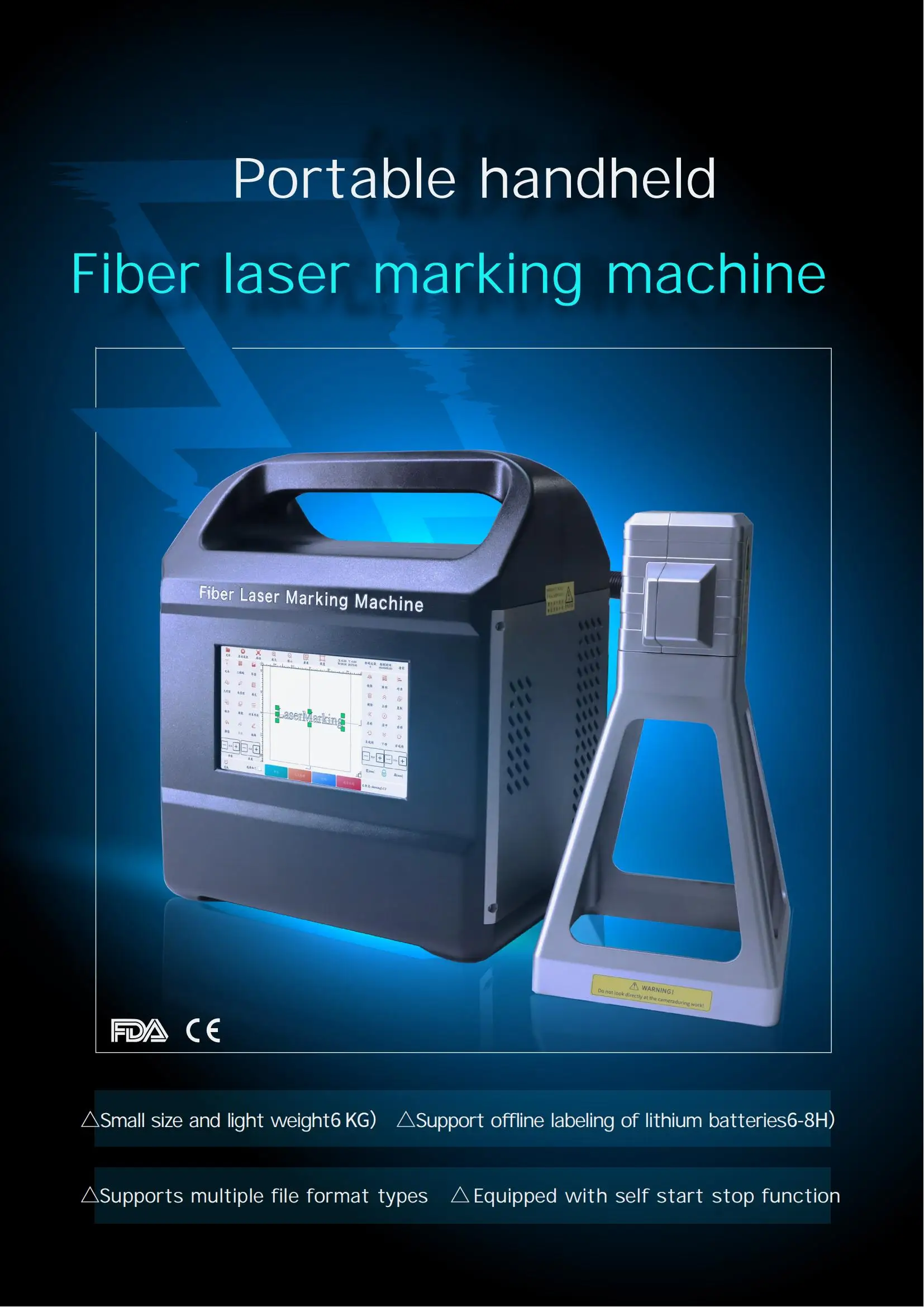

Factory price 20w 30w 50w handheld fiber laser marking machine laser marking machines for metal sliver Jewelry
- Category: >>>
- Supplier: Shandong Youshun Cnc Technology Co. Ltd.
Share on (1601253242829):
Product Overview
Description
Products Description
Supports multiple marking contents
Date
Serial number
QR code
Bar code
Word
Suitable for various materials
Aluminium
Steel
Melamine board
Hard plastic
Zinc
Copper
Product Paramenters
Model | YS-PM20W/YS-PM30W/YS-PM50W |
Machine Material | Engineering plastics |
Laser Type | Fiber Laser Source |
Laser Power | 20W/30W/50W |
Laser Wavelength | 1064nm |
Max Pulse Energy | 0.7mJ/1.0mJ/1.1mJ |
Adjustable Frequency Range | 27-170 kHz |
Printing Mode | High precision dual dimensional scanning mode |
Marking Speed | ≤7000mm/s |

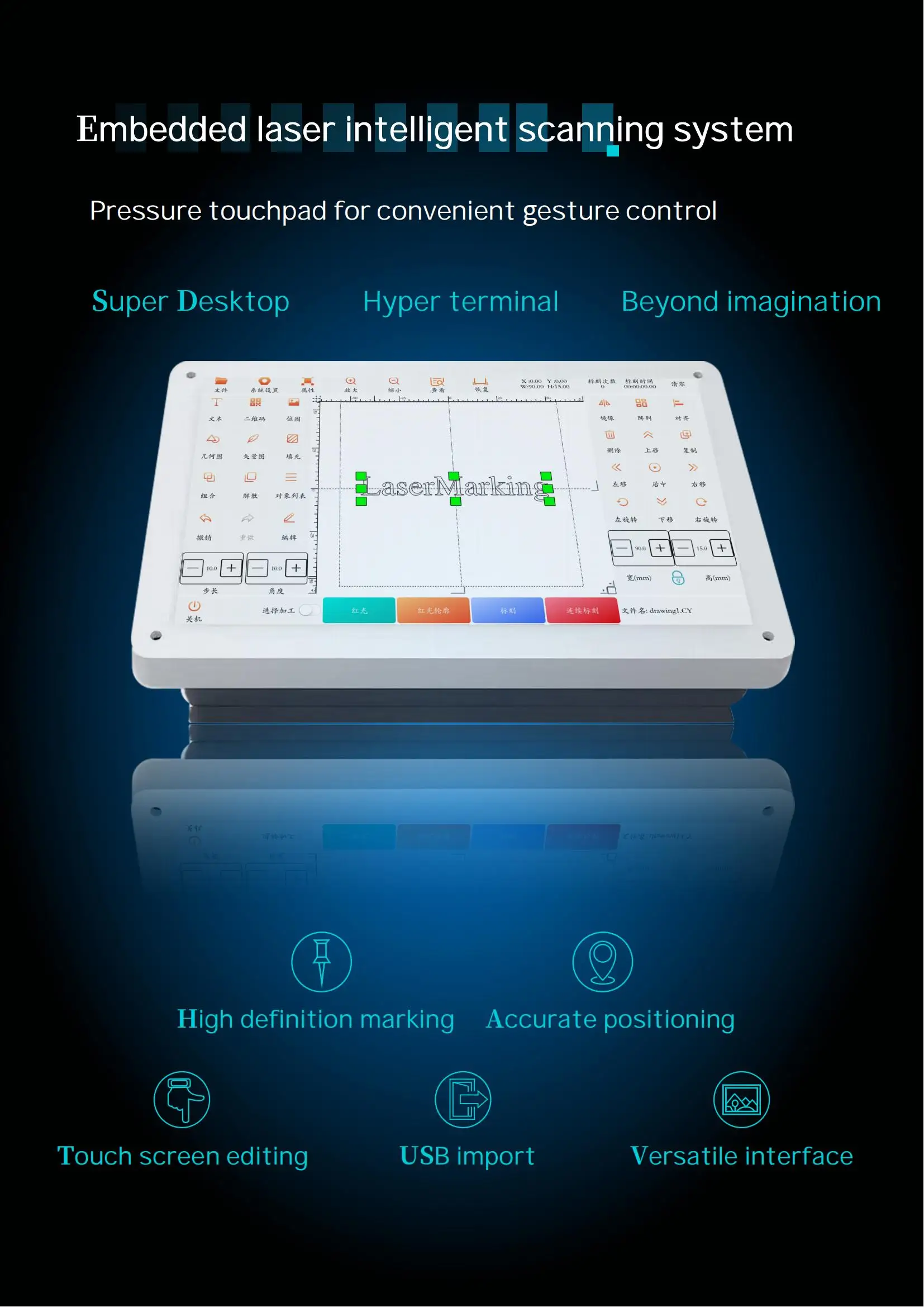

Operation Snterface | 7-inch touch screen, Linux operating system |
Cooling System | Air Cooling |
Marking Line Type | Both dot matrix and vector can be used |
Marking Range | 100mmx100mm(standard) |
Positioning Method | Red Light Positioning |
Printing speed | 600characters/second (specific speed is related to product material and print content) |
Language | Simplified Chinese, Traditional Chinese, English, Korean, Russian, Japanese, Arabic numerals, etc. Special requirements can be added |
File Format | JPG/PNG/BMP/DXF/SVG/PLT |
Input Voltage | 220V/110V |
Maximum Power Consumption | 20W:120W/30W:150W/50W:200W |
Machine Net Weight | 6kg/8.4kg(Weight with lithium battery) |
Battery Continuous Working | 6-8 hours (lithium battery) |
Charge Time | 1 hour 30 minutes (lithium battery) |
Adapt To The Temperature | 0-40℃ |
Ambient Relative Humidity | 30 -85 RH (no condensation) |

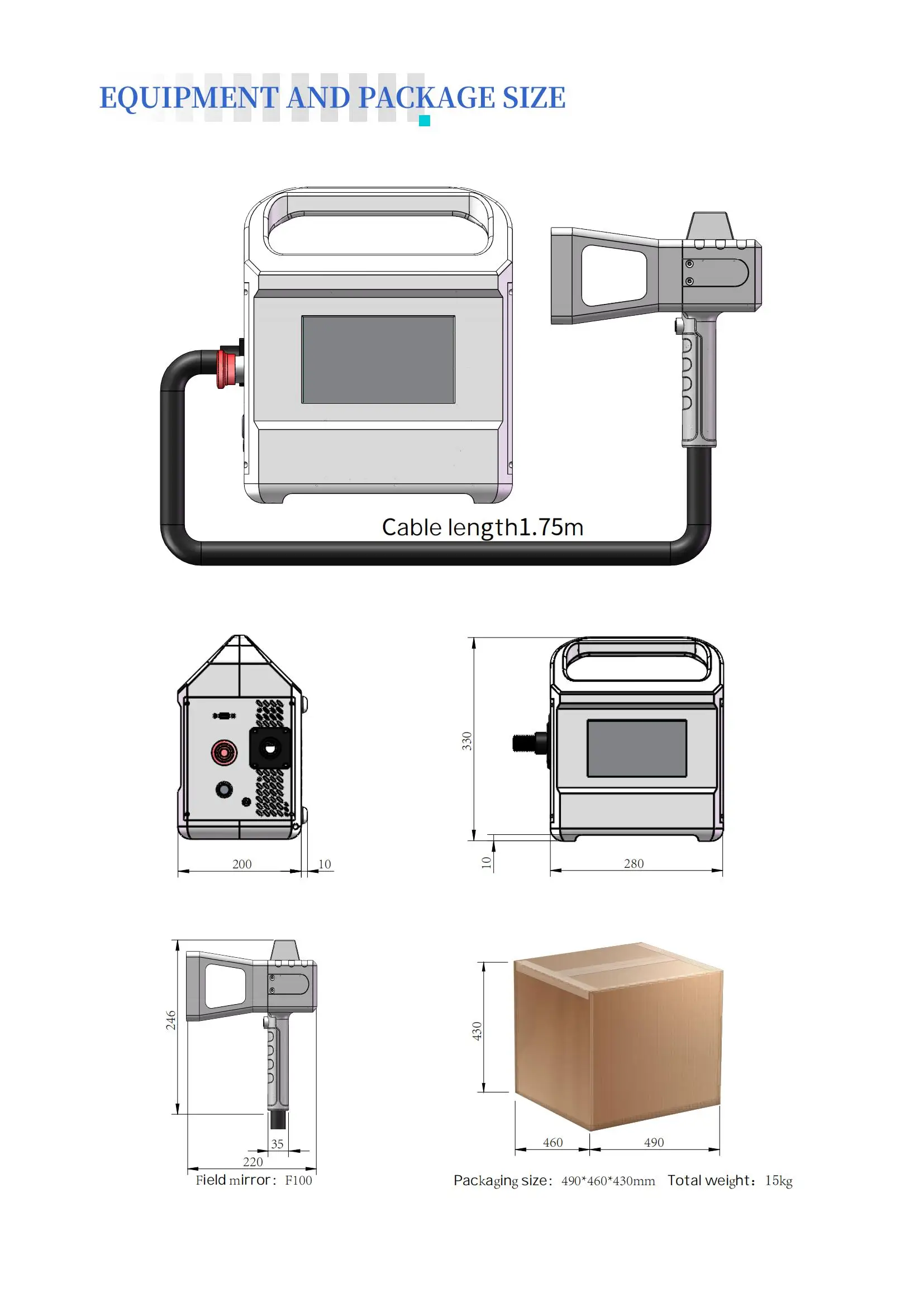

Appearance Size | 330mm*280mm*200mm |
Marking Type | QRcode,barcode,Chinese, English, date, logo, pattern, etc. |
Application scope
Aerospace
Automobile manufacturing
Metal processing
Construction machinery
Energy industry
Household Electric Appliances
Company Profile
Customer Photos
Certifications
Product packaging
FAQ
1.What's Delivery Time?
The exact delivery time as per your Order Quantity. Normal delivery date is 7-10 days after confirm your order and payment.
2.What payment terms can you accept?
We accept T/T , you can pay 30% in advance, 70% before delivery. The machine will be produced after received your deposit. After the machine is ready, we will show you the machine photos and the testing video. After you agree, please finish the balance.Finally, we arrange the delivery.
3.How is the shipping method?
As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your warehouse as per your requirement.
4.How about quality and reliability?
Strong quality control system, each machine is subjected to rigorous machine operation testing before shipping.
5.When I got this machine, but I don't know how to use it. What should I do?
Operation video and manual will be sent together with machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
6.If some problems happen to this machine, what should I do?
We provide two years machine warranty. During the two- year warranty, in case any problem for the machine,we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts,just let us know, we will give you solutions.
The exact delivery time as per your Order Quantity. Normal delivery date is 7-10 days after confirm your order and payment.
2.What payment terms can you accept?
We accept T/T , you can pay 30% in advance, 70% before delivery. The machine will be produced after received your deposit. After the machine is ready, we will show you the machine photos and the testing video. After you agree, please finish the balance.Finally, we arrange the delivery.
3.How is the shipping method?
As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your warehouse as per your requirement.
4.How about quality and reliability?
Strong quality control system, each machine is subjected to rigorous machine operation testing before shipping.
5.When I got this machine, but I don't know how to use it. What should I do?
Operation video and manual will be sent together with machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
6.If some problems happen to this machine, what should I do?
We provide two years machine warranty. During the two- year warranty, in case any problem for the machine,we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts,just let us know, we will give you solutions.
