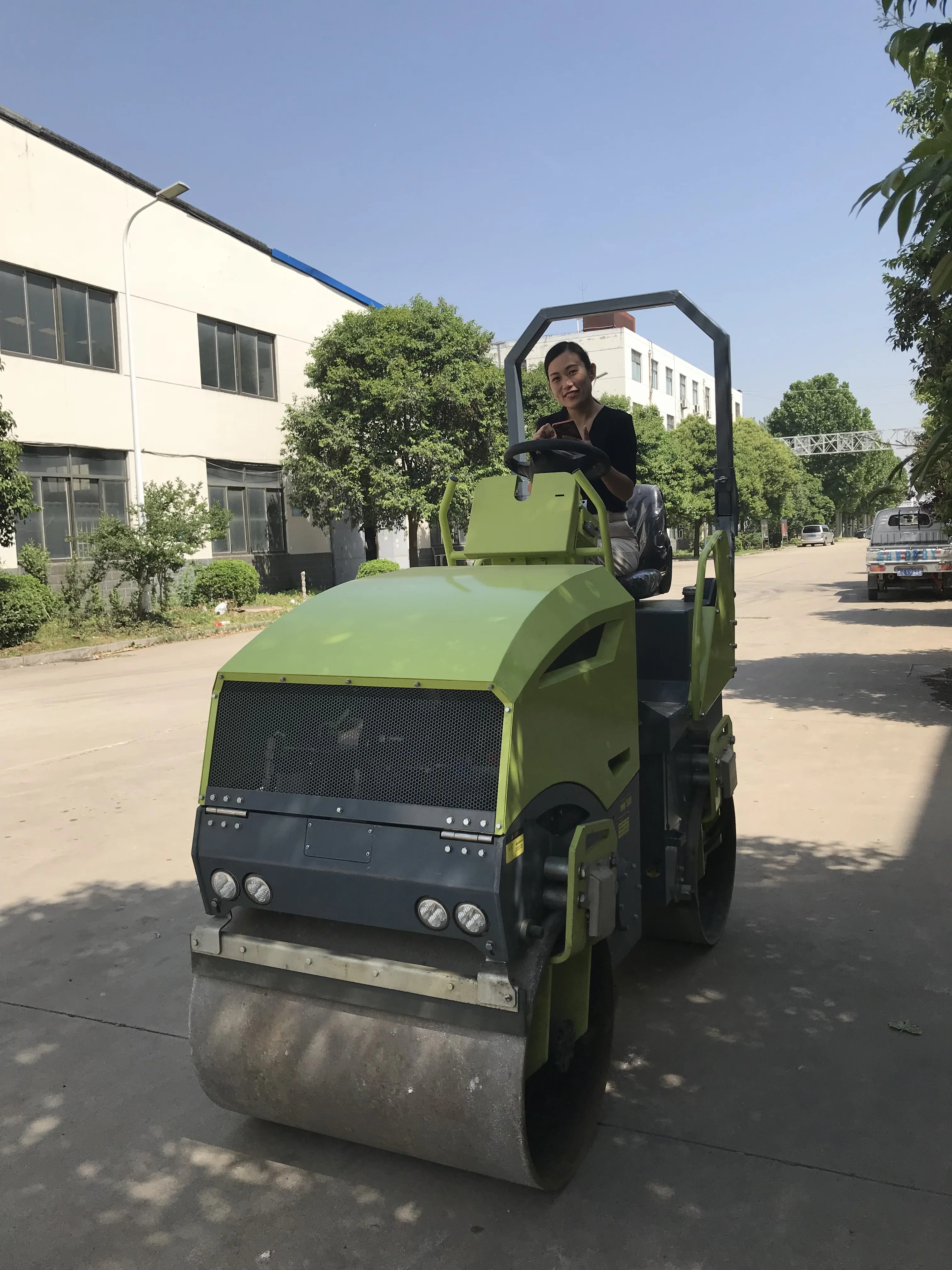

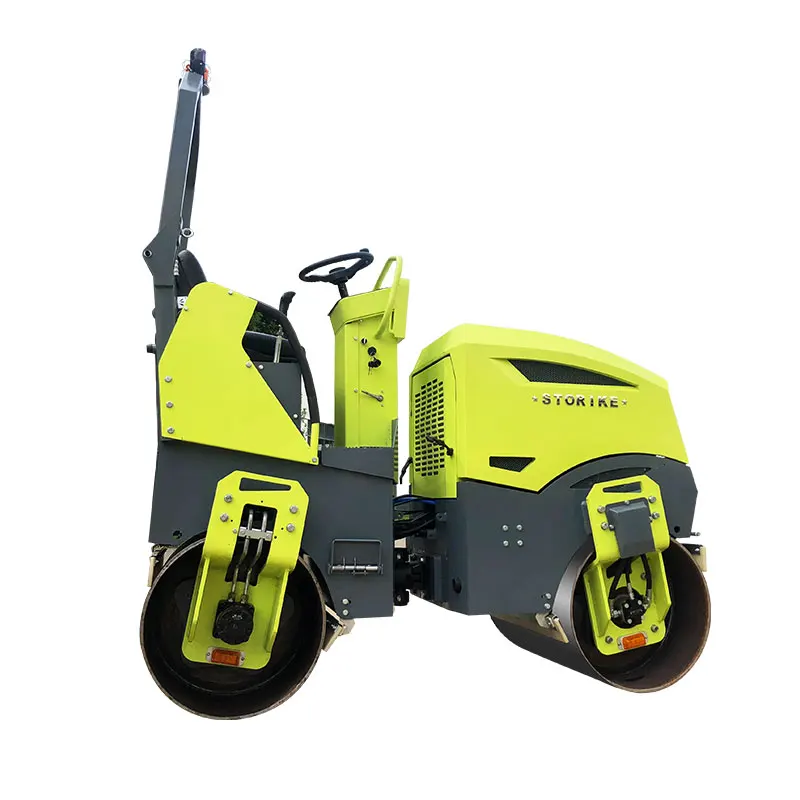

2ton road roller compactor storike road roller single drum road roller excellent
- Category: >>>
- Supplier: Shandong Storike Engineering Machinery Co. Ltd.
Share on (1601253340904):
Product Overview
Description

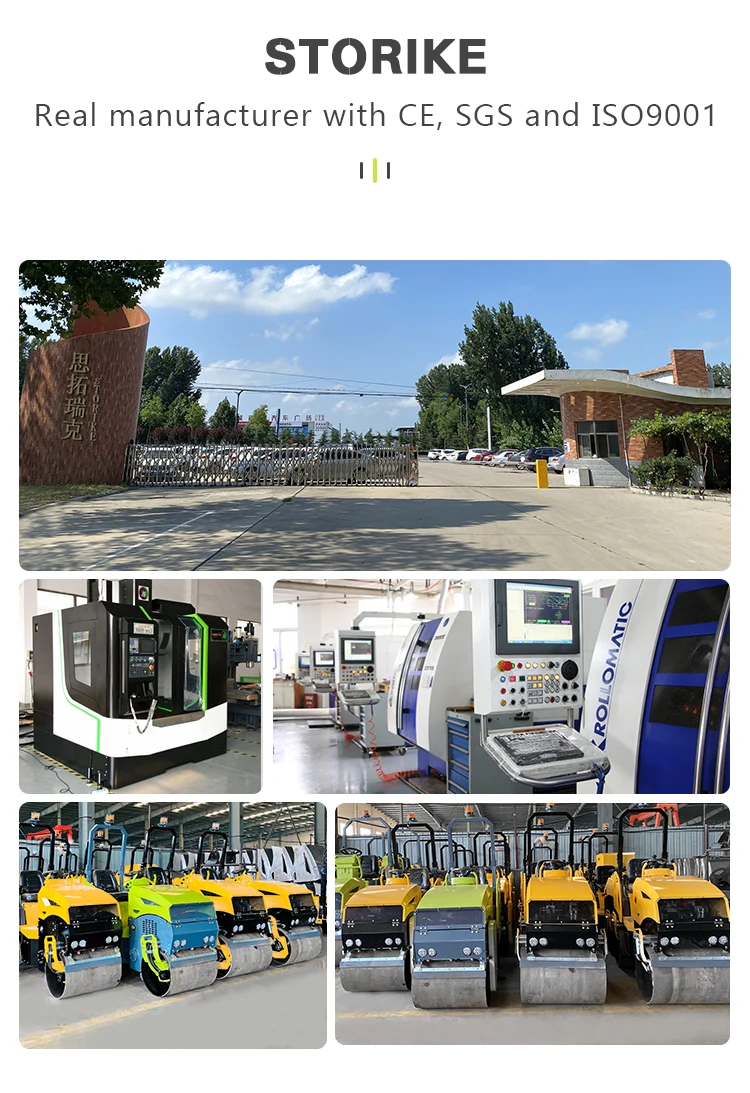

Shandong Storike Engineering & Mechanism Co., Ltd is specialized in the sales and production of small road roller, compact ram, mobile lighting car, hydraulic power station, troweling machine and other construction machine. Our products are widely used in municipal and highway pavement road roller maintenance, small area compacting and depressed trough compacting building and construction materials such as all kinds of non-cohesive materials, sandy soil, gravels, sand-macadam mixtures, stabilized soil, bituminous concrete, etc. Especially it is most economical for foundation treatment of country road, large community road, water conservancy construction and real estate development and backfill compaction of other mini-type projects.

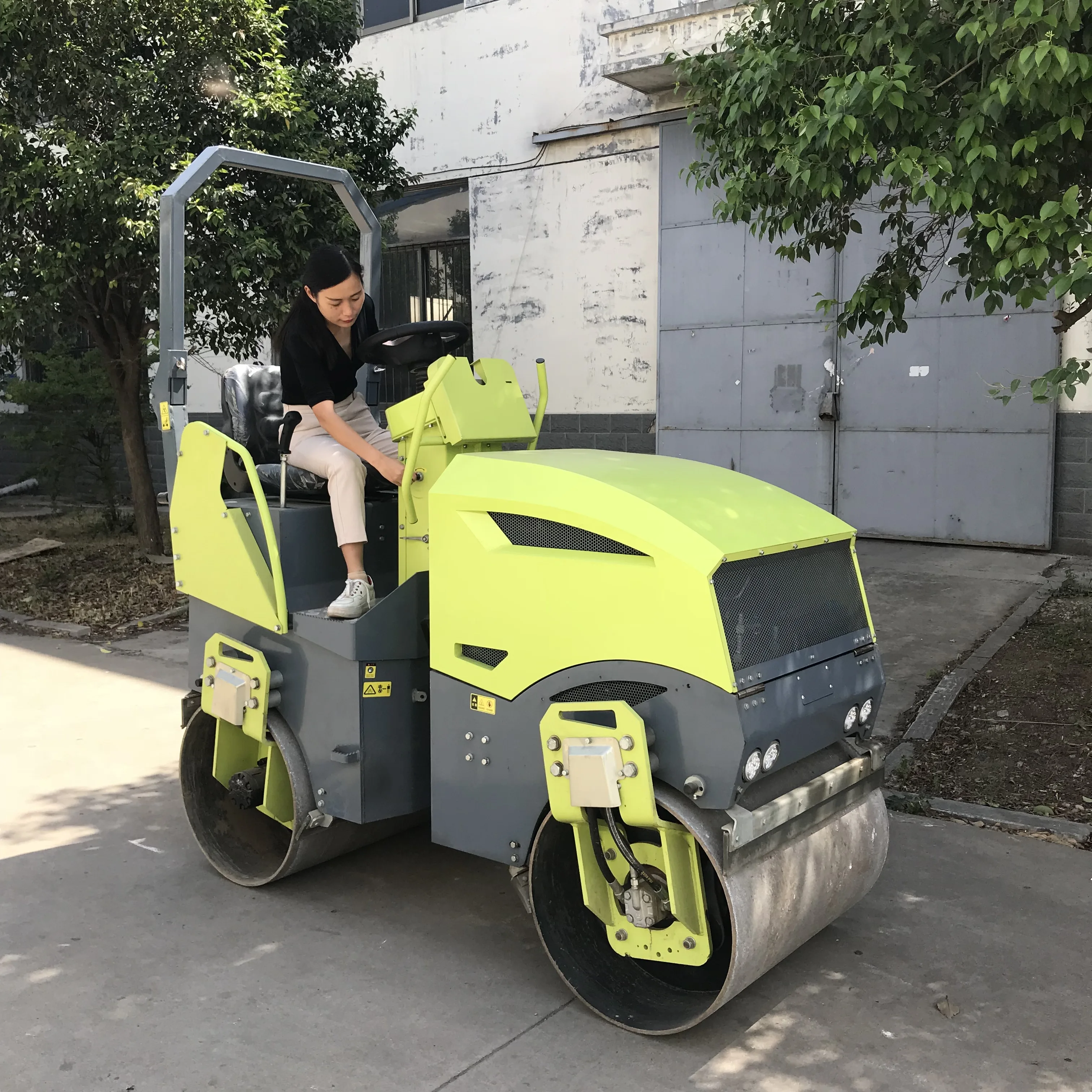

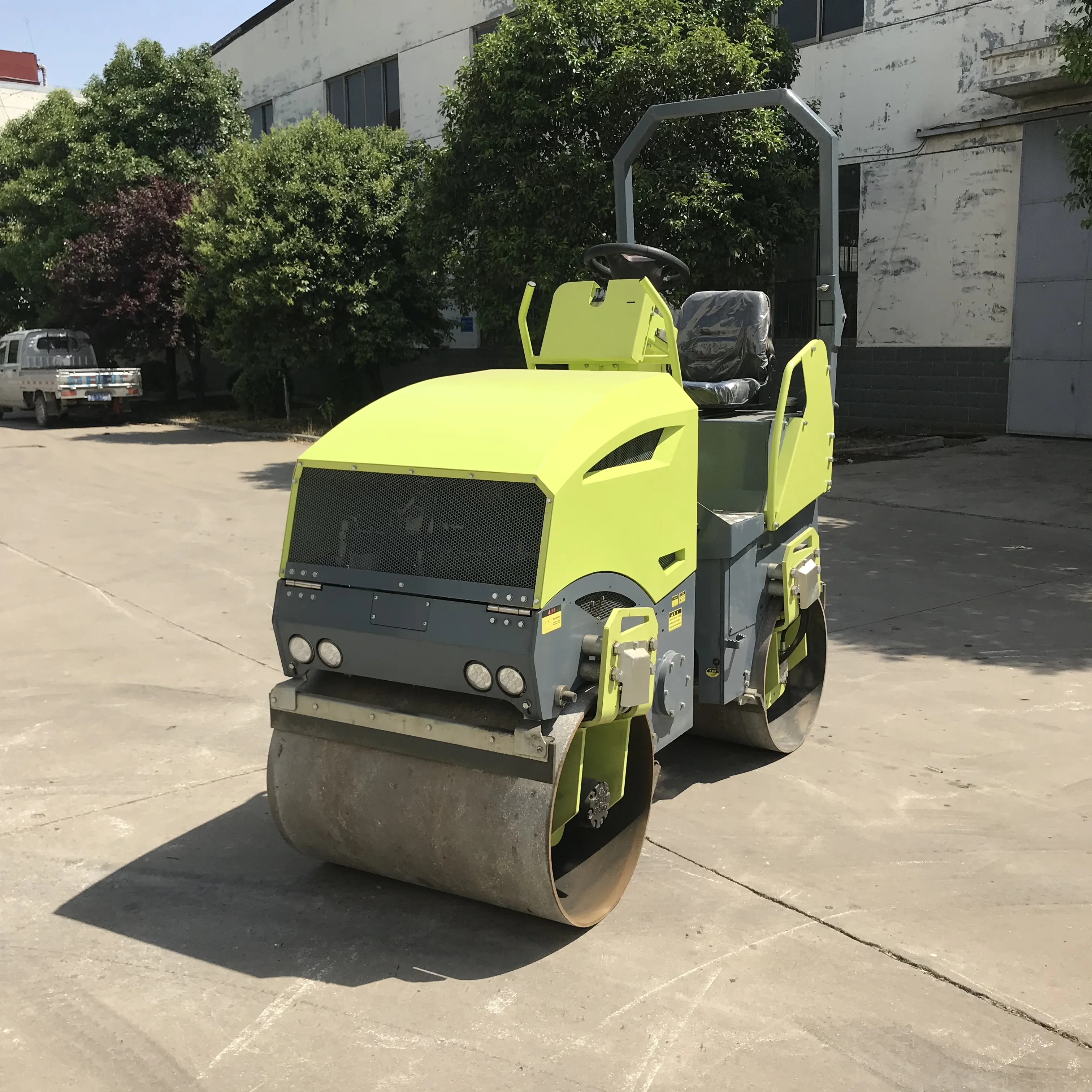

Ride-on vibratory roller are road construction equipment, suitable for compaction of asphalt pavements, sidewalks, bridges, parking lots, stadiums and other narrow compaction operations, especially for the maintenance of municipal departments, ditches, streets, square narrow belts. It can also be used for personal use or small area projects and ground compaction.

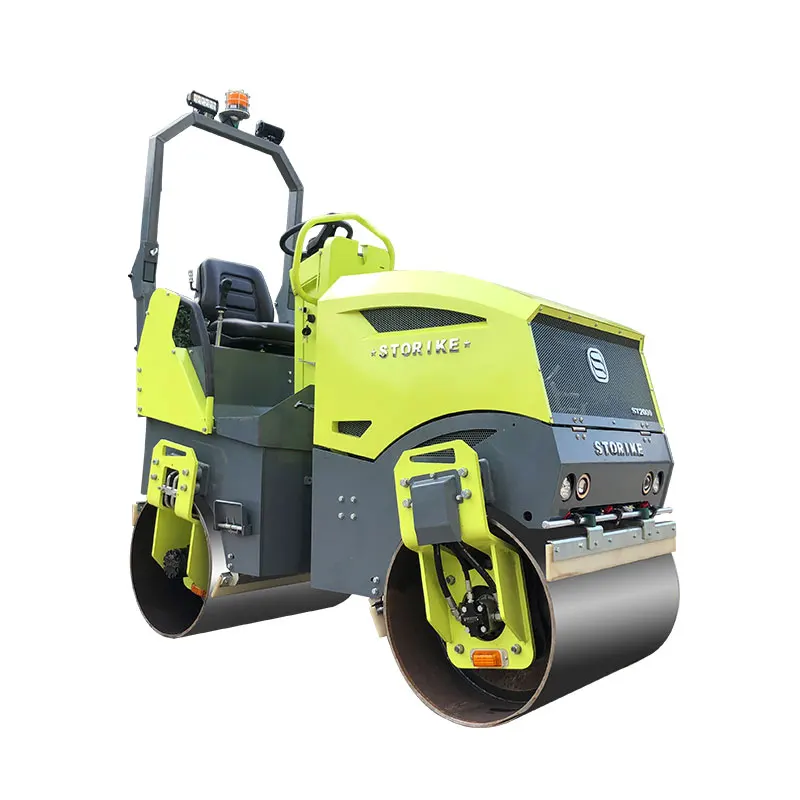

2 ton road roller:
| ITEM NO/DETAILS | ST2000 | |||
| ENGINE | ||||

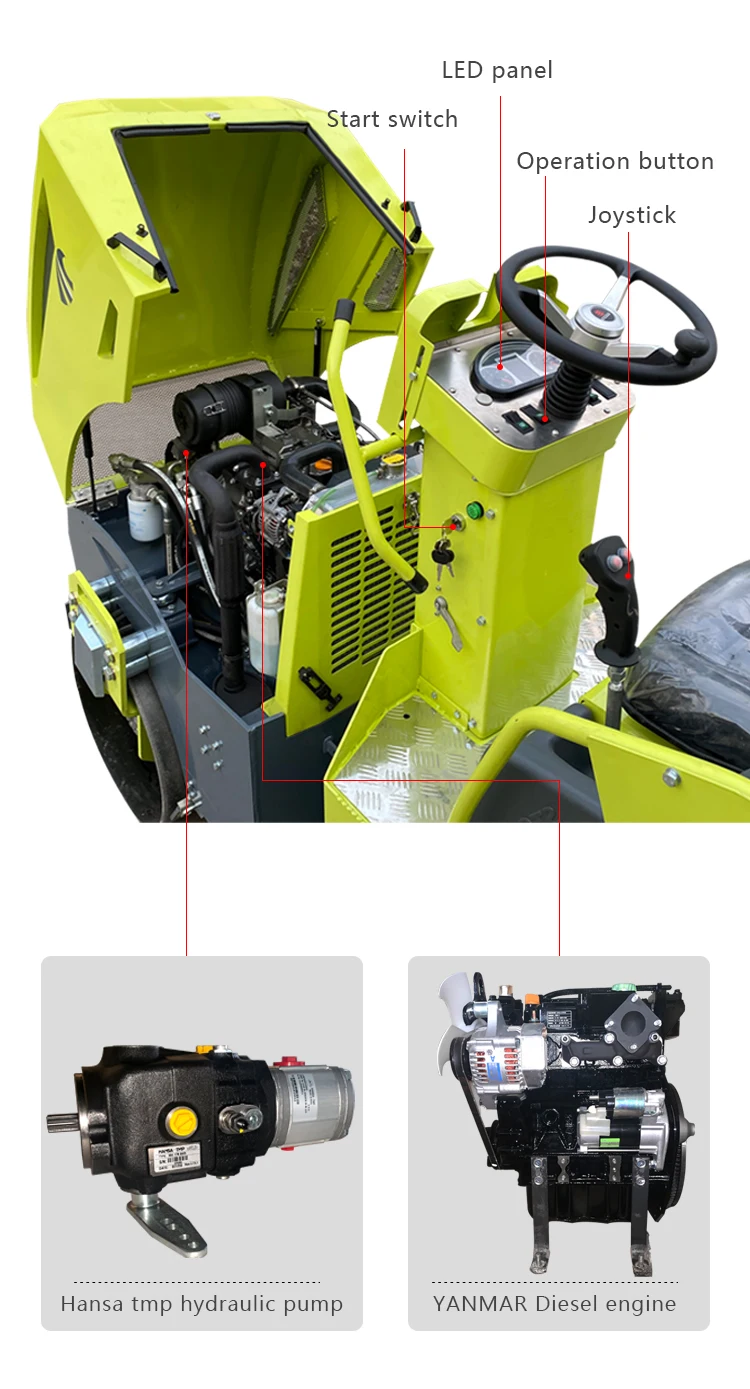

| Engine | YANMAR 3TNV76-CSA/KUBOTA D1105/CHANGCHAI 3M78 | |||
| Engine type | Three cylinde, water-cooled, four-stroke, diesel | |||
| Number of cylinders | 3 | |||
| Output power (KW) | 18.6 | |||
| Rating speed(RPM) | 3200 | |||
| Fuel consupmtion(G/KWH) | 286 | |||
| Lubricating oil volume(L) | 3.4 | |||
| DRIVING | ||||
| Electrical equipment(V) | 12 | |||

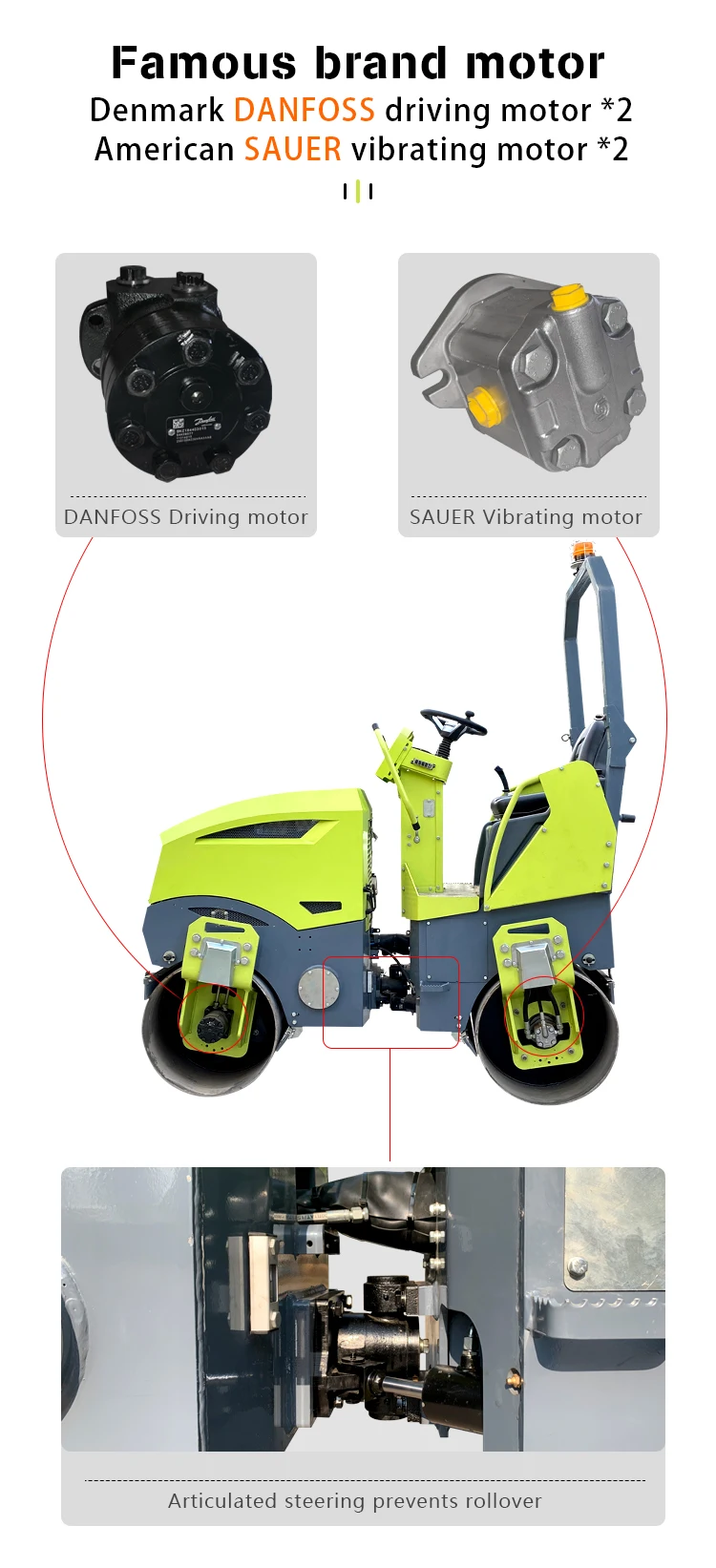

| Drive mode | Variable plunge pump, stepless speed change, double-wheel series, motor parallel/series | |||
| Walking speed (KM/H) | 0--8 | |||
| Theoretical climbing ability(%) | 30/35(vibration on/off) | |||
| STEERING | ||||
| Swing angle(°) | 25.5 | |||
| Steering mode | Hydraulic cylinder, articulated steering | |||
| Steering system | Swing articulated | |||
| EXCITING SYSTEM | ||||
| Vibration wheel | Front+Rear | |||
| Drive form | Hydraulic Motors | |||
| Vibration frequency (HZ) | 65 | |||
| Vibration amplitude (MM) | 0.5 | |||
| Exciting force(KN) | 27 | |||
| SPRINKLING SYSTEM | ||||
| Water spray form | Intermittent pressure water spray | |||
| CAPACITY | ||||
| Hydraulic oil capacity(L) | 45 | |||
| Fuel capacity(L) | 36 | |||
| Water tank capacity (L) | 110 | |||
| SIZE | ||||
| Working width(MM) | 1050 | |||
| Overall length(MM) | 2315 | |||
| Machine height(MM) | 1770 | |||
| Turning radius(outer)(MM) | 2955 | |||
| Ground clearance(MM) | 325 | |||
| Wheel track(MM) | 1565 | |||
| Drum size | 630*900mm*2 | |||
| Drum thickness(MM) | 12 | |||
| Wheel offset(MM) | 50 | |||
| WEIGHT | ||||
| Weight(KG) | 2000 | |||
| Static load(N/CM) | 110/105 | |||
