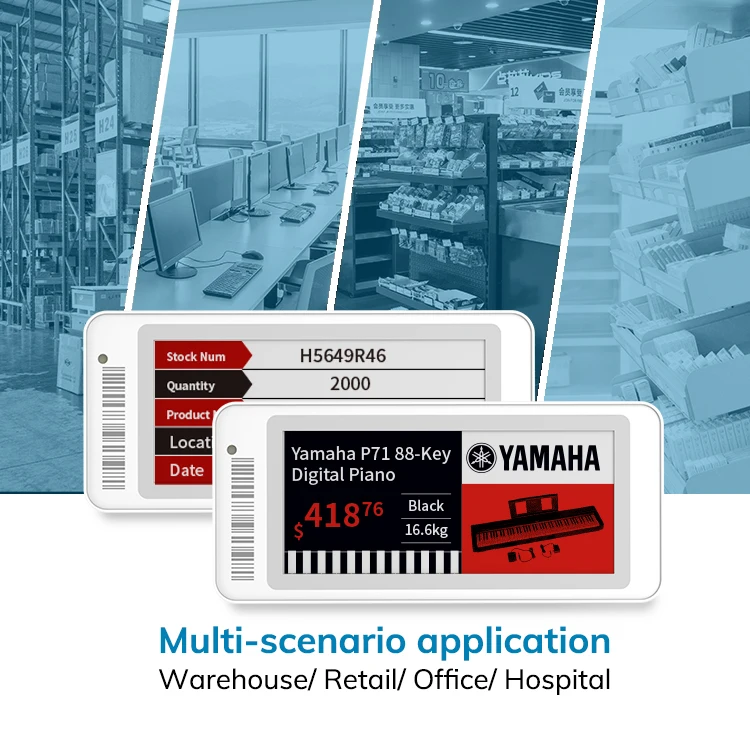

MinewTag 2.9inch 3 color Electronic Shelf Label Fast Operating By Gateway E ink Display Supermarket Price Tag for Store
- Category: >>>
- Supplier: Shenzhen Minew Technologies Co. Ltd.
Share on (1601253372875):
Product Overview
Description
Product Description
MINEW 2.9 inch E-ink Epaper ESL Electronic Shelf Label
Key Features
* Bluetooth® 5.0 technology
* Bi-directional wireless communication
* High-quality dot matrix E-ink display
* Individually designed templates
* Multi-Language support
* QR code, Barcode, NFC for online and offline interactions
* Instant LED flashlight
* Working environment: 0 - 50℃
* Ultra-low power consumption, battery life up to 5 years
* IP 65 standards
* Faster refresh rate, only 10minutes refresh up to 50,000 pieces
* Bluetooth® 5.0 technology
* Bi-directional wireless communication
* High-quality dot matrix E-ink display
* Individually designed templates
* Multi-Language support
* QR code, Barcode, NFC for online and offline interactions
* Instant LED flashlight
* Working environment: 0 - 50℃
* Ultra-low power consumption, battery life up to 5 years
* IP 65 standards
* Faster refresh rate, only 10minutes refresh up to 50,000 pieces
Model Number | MTag29 |
Size | 2.90 inch |
Dimensions (mm) | 91 x 41 x 14.2 |
Weight (g) | 45 |
Active display area (mm) | 66.90 x 29.06 |
Resolution (pixels) | 296 x 128 |
Pixel density | 112 DPI |
Pixel colors | Black/White/Red |
Viewing angle | 180° |
Communication method | Bluetooth® 5.0 |
Battery | CR2450 x 2 |
Battery lifetime | 5 years |
Operating temperature | 0 °C to 50 °C |
Storing temperature | - 20 °C to 70 °C |
Compliance | BQB,CE, FCC, ROHS |
Company Profile
Shenzhen Minew Technologies co., Ltd is a professional turnkey supplier which provide complete customized IoT solutions from concepts and ideas to the physical products. The company founded in 2007 has focused on R&D and innovations in IoT fields for more than 10 years, and always dedicated to providing customers with high standard IoT solutions, products, and services.
Minew has a quick-response manufacturing factory system to support all demands which has been certified by ISO 9001, ISO 14001,and OHSAS 18001, with daily output of 20,000 volume in producing smart products.
Minew has a quick-response manufacturing factory system to support all demands which has been certified by ISO 9001, ISO 14001,and OHSAS 18001, with daily output of 20,000 volume in producing smart products.
FAQ
1. What composed in the whole esl system?
It composed by ESL tags+Gateway(base stations)+Cloud Platform+Mounting kits.
ESL tags: 1.54''*3, 2.13''*3, 2.9''*2, 4.2''*1,white-black-red color, battery lifetime is 5 years, replaceable.
Gateway(Base station): connect the ESL tags to the whole system
Cloud Platform: managing ESL system and edit template
Mounting kits: help ESL tags installed in different places
2. What size ESL do you have?
1.54'', 2.13'', 2.66'', 2.7'', 2.9'', 4.2'', 5.8'', 7.5'', 11.6'', other size accept custom.
3. What is display template?
Template defines what information will be displayed on the ESL screen and how.
Usually the information display is commodity name, price, origin, bar code, etc.
4. Template can be customized?
No need to customize. It is visual to edit the template, just similar to drawing and writing on blank paper. With our
software,everyone is the designer.
5. If I buy samples for test, what should I pay attention to?
There are two options for your reference.
a. Basic type: 1*Gateway(base stations) +several ESL tags+Cloud Platform
b. Standard one: 1 demo kit box ( ESL tags+Gateway(base stations)+Cloud Platform+Mounting kits.)
*Please note that Our ESL tags can only work with our Gateway(base stations) and Cloud Platform.
6. How to purchase?
Firstly tell us about your requirements or application
Secondly we will quote you according to your information
Thirdly please make the deposit according the quotation and send us the bank bill
Fourthly the production and packing will be arranged
Lastly ship the goods to you
7. And lead time?
Sample order is usually 3-10 days
Formal order is 1-3 weeks
8. How about warranty?
1 year for ESL tags and Gateway.
9. For other questions such as API SDK or your own software please write to me.
It composed by ESL tags+Gateway(base stations)+Cloud Platform+Mounting kits.
ESL tags: 1.54''*3, 2.13''*3, 2.9''*2, 4.2''*1,white-black-red color, battery lifetime is 5 years, replaceable.
Gateway(Base station): connect the ESL tags to the whole system
Cloud Platform: managing ESL system and edit template
Mounting kits: help ESL tags installed in different places
2. What size ESL do you have?
1.54'', 2.13'', 2.66'', 2.7'', 2.9'', 4.2'', 5.8'', 7.5'', 11.6'', other size accept custom.
3. What is display template?
Template defines what information will be displayed on the ESL screen and how.
Usually the information display is commodity name, price, origin, bar code, etc.
4. Template can be customized?
No need to customize. It is visual to edit the template, just similar to drawing and writing on blank paper. With our
software,everyone is the designer.
5. If I buy samples for test, what should I pay attention to?
There are two options for your reference.
a. Basic type: 1*Gateway(base stations) +several ESL tags+Cloud Platform
b. Standard one: 1 demo kit box ( ESL tags+Gateway(base stations)+Cloud Platform+Mounting kits.)
*Please note that Our ESL tags can only work with our Gateway(base stations) and Cloud Platform.
6. How to purchase?
Firstly tell us about your requirements or application
Secondly we will quote you according to your information
Thirdly please make the deposit according the quotation and send us the bank bill
Fourthly the production and packing will be arranged
Lastly ship the goods to you
7. And lead time?
Sample order is usually 3-10 days
Formal order is 1-3 weeks
8. How about warranty?
1 year for ESL tags and Gateway.
9. For other questions such as API SDK or your own software please write to me.
