24V heat pump programmable wifi room thermostat

Share on (1601253380609):


Price:$45.00 - $60.00

Quantity:


Product Overview

Description


24V heat pump programmable wifi room thermostat





F500 thermostat is used to control up to 2 stages heating and 2 stages cooling system with 12 types control system, EM heat activation, adjustable compressor delay time and O/B changeover. It is with tempered touch sensitive screen, quick connecting terminals to save installer’s time. 7days programmable and four modes everyday make users’ life convenient and comfortable.




 F500-1F500 Displayf500-4






  •  · 12 types control system

  • · Time synchronization once connected to WIFI

  • · Connect wires in a simpler way without screw driver

  • · EM heat activation to protect compressor

  • · Adjustable compressor delay time

  • · APPs for iOS and Android Devices

  • · Work with Amazon Echo and Google Assistant





Memory function, data storage when power failure


-------------------------------------------------------------------------------------------------------------------







Schedule programmable functions available for 7days 4 time periods each day can meet the needs of different groups, the users can adjust the setting temperature of different periods according to their own needs, to attain the most energy saving and comfortable status.

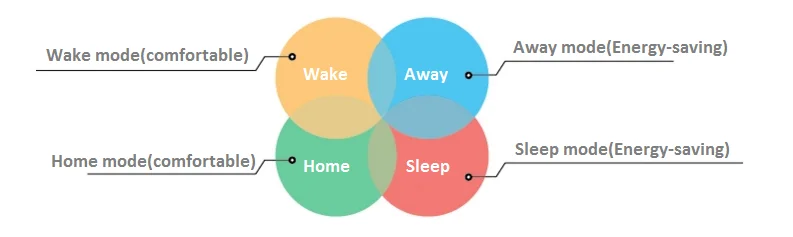

Four Modes Available







The convenient one key vacation mode, only needs one touch before leaving, then the thermostat will turn to the lowest temperature setting status.


































Power Supply:AC24V 50HZ



Anti-freeze protection:5 (Adjustable)



Self Consumption:<1W



Dimensions:100.5*100.5*21mm



Display Precision:±0.5℃



Resistive load current: <1A



Temperature Range:10-35(Adjustable)



Installation :Surface mounting



Hole Pitch:60-65mm or 82mm



Temperature Range:0-50℃ 0-90%RH












f500-5








7 installation Details.jpg


The convenient surface mounting installation with fast connection terminals -- after finish wiring, only a soft push of the power shell, then the whole thermostat will be installed.





Step 1:Separate the device into two parts: the display panel and the bottom.


Step 2:Insert all wires into the right terminals and tighten screws.


Step 3:Push the bottom into the junction box and secure it with two screws, and               then mount the touch panel back.


Step 4:Confirm the device is well mounted,power on and it is ready to operate.







9 package.jpg






Certifications







Packaging & Shipping


RD team.jpg

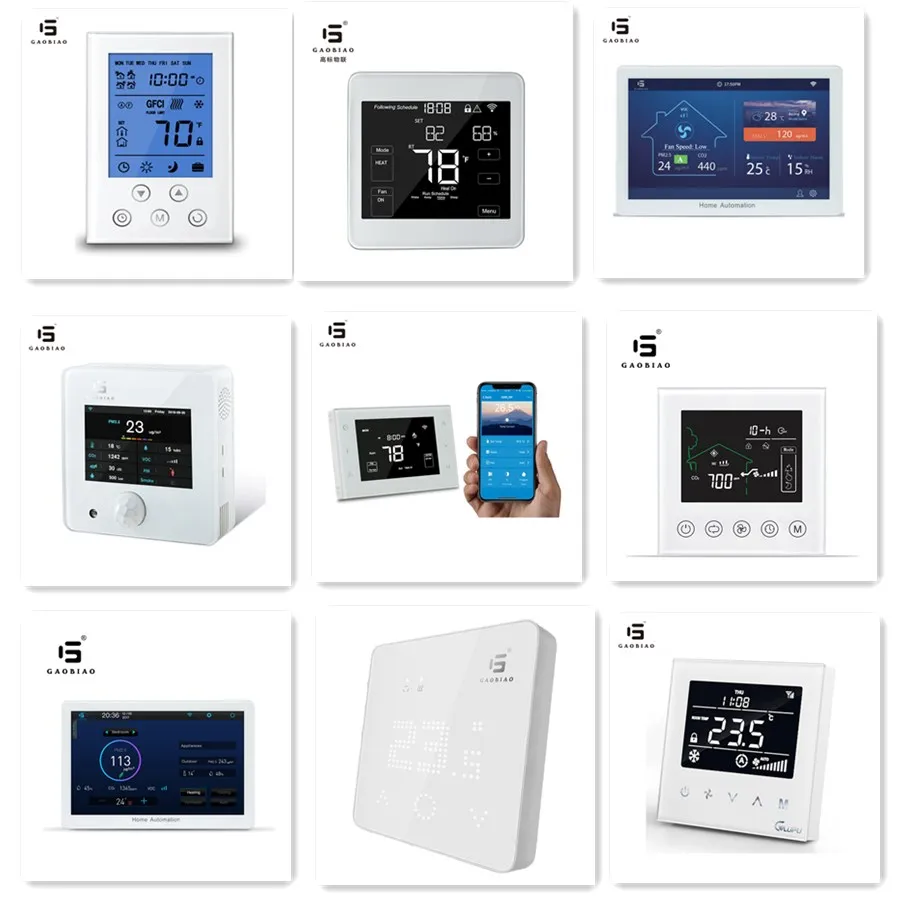

More products


More products.jpg





Exhibition


.jpg































1.Why choose Gaobiao?





  • 17 years’ accumulation

  • Very competitive prices

  • Superior after-sales services

  • The main R&D and produce base for automation control field at home

  • The main international ODM/OEM partners

  • Exported to Europe,Southeast Asia,Middle East,North America,South America and other countries and regions


 2.F&Q




       Q: Can I place sample order first?
       A: Yes, we will quote you different prices for small, medium and large qty.
           You can order with different price for different qty.



       Q: How to pay for the order?
       A: PayPal and T/T are preferred, so just tell us which is convenient for you.
           Then we will send you our bank information.



       Q: How long can I get my order?
       A: For standard product, we will finish production and ship within 3-5 working days.


           For bulk OEM orders, usually15~20 working days and it depends on your design.



       Q: Can you customize according to our designs and put our logo on the products?
       A: Yes, we support both standard and customized products and can put your logo on the


            products.We can do the ODM/OEM as your requirements


3.Contact information




       Beijing Gaobiao IoT Technology Co., Ltd.
       Add: 4th Floor, Door B, Bldg 1, XinYuan Science and Technology Park, No.97
              Changping Road, Changping District, 102206, Beijing.
       Tel: +86-10-80701002/80701003
       Fax: +86-10-80701044














Certification
12 certification.jpg
