factory supply para aramid prepreg cloth for helmet fabric material in roll
- Category: >>>
- Supplier: Zhangjiagang City Yudun Special Fiber Co. Ltd.
Share on (1601253419468):
Product Overview
Description

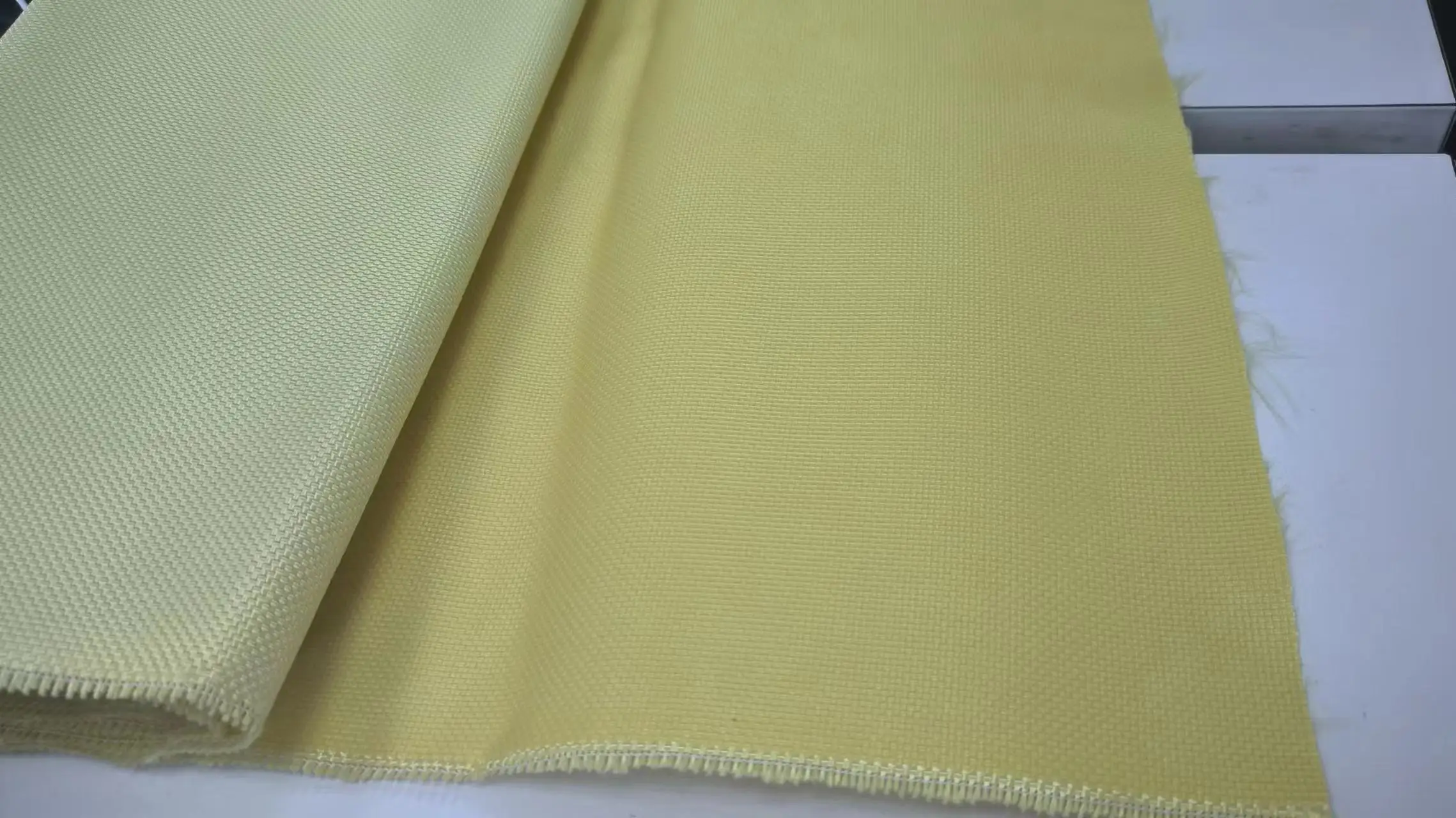

factory supply yellow MICH 2000 helmets para aramid prepreg material in roll fabric
Brief introduction:
Purpose: layered with polyurethane paint for exceptional protection for head and fragment.
material: aramid fabric with resin reinforcement
Overall dimensions and surface weight of prepreg as below:
Width of the fabric: 100-165cm can be customized.
Length: 100m/roll
Gram square meter: 460g with single sided prepreg in roll for hard protection. and 500gsm with double-sided impregnated fabric in roll
MAIN APPLICATIONS:
It is the primary materials for pressing helmets and plates, Etc.

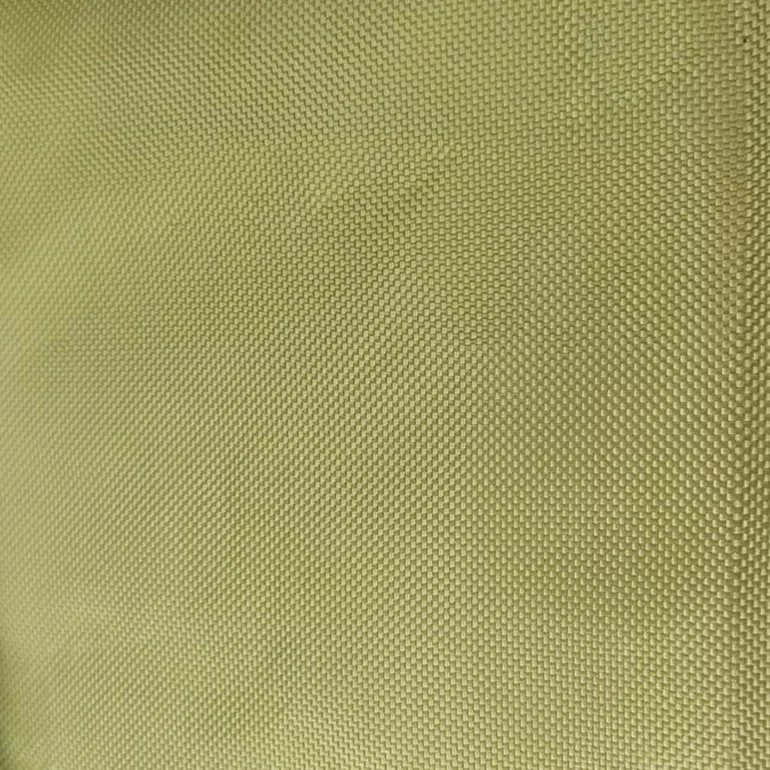

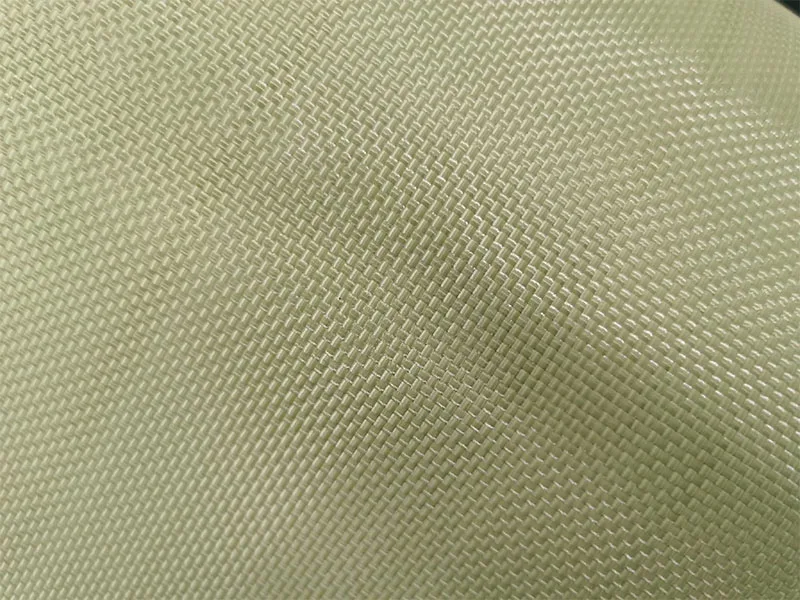

MAIN MATERIAL -woven fabric with square meter weight: 410gsm before coating resin
Performance and characteristics of the woven fabric
High strength: 23-26D/G, the strength is 6 times that of ordinary fibers,
High temperature resistance: The long-term use temperature is 220 degrees, and it will not burn in case of fire. The maximum temperature resistance is 550 degrees, and it will not decompose or melt.
High wear resistance: excellent wear resistance, aging resistance. longer life
Acid and alkali resistance: acid and alkali resistance, not easy to corrode.
Technical Specification :
Commodity | Aramid fabric | |
Inspected item | Standard requirement | |
structure | Plain /twill | |
width | 1-1.6m can be customized | |
Denier(D) | Warp 1500 | |
Weft 1500 | ||
Yarn type | Warp TF100 | |
Weft TF100 | ||
Yarn count (per10cm) | Warp(S) 124 | |
Weft(S) 124 | ||
Breaking strength (N/5cm) | Warp ≥13500 | |
| Weft ≥13500 | |
Gram weight(gsm) | 410gsm before coating | |
Gram weight(gsm) with glue on one side | 460gsm after coating | |
Thickness (mm) | 0.6 | |

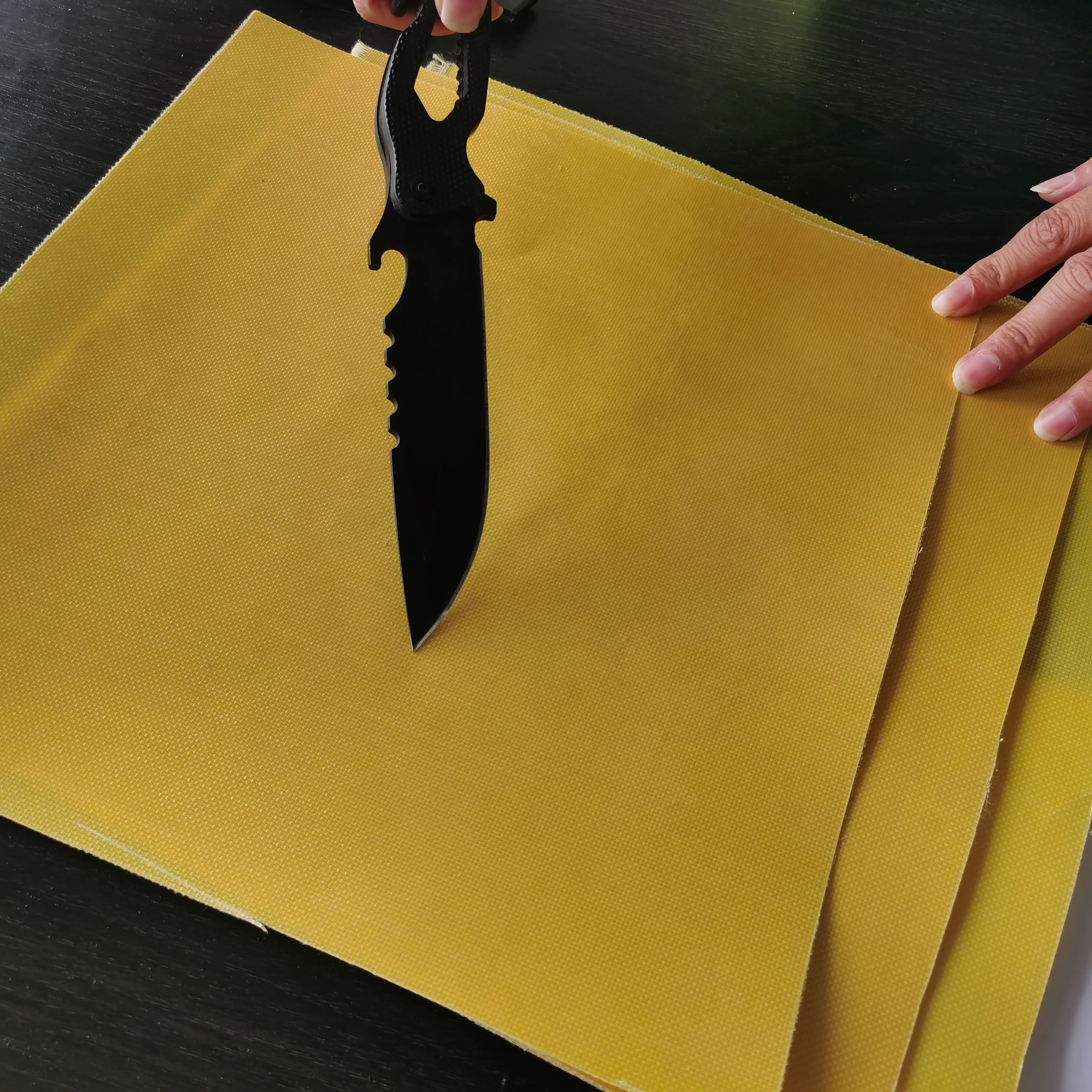

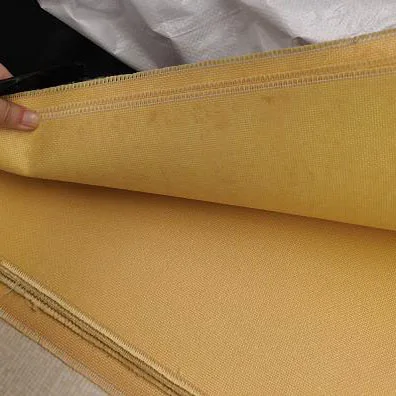

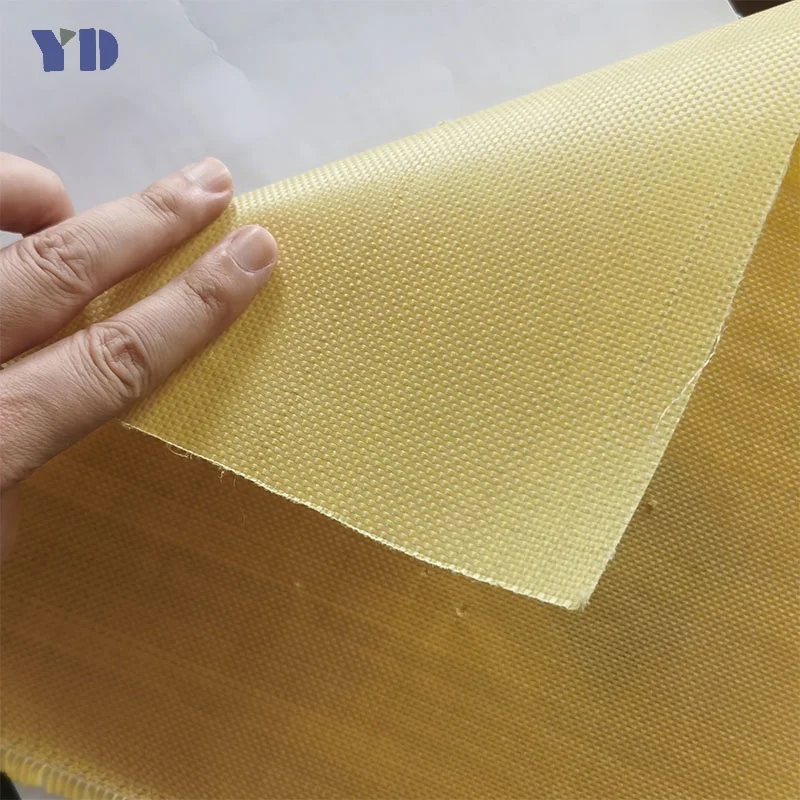

after pregnated with glue on one side:

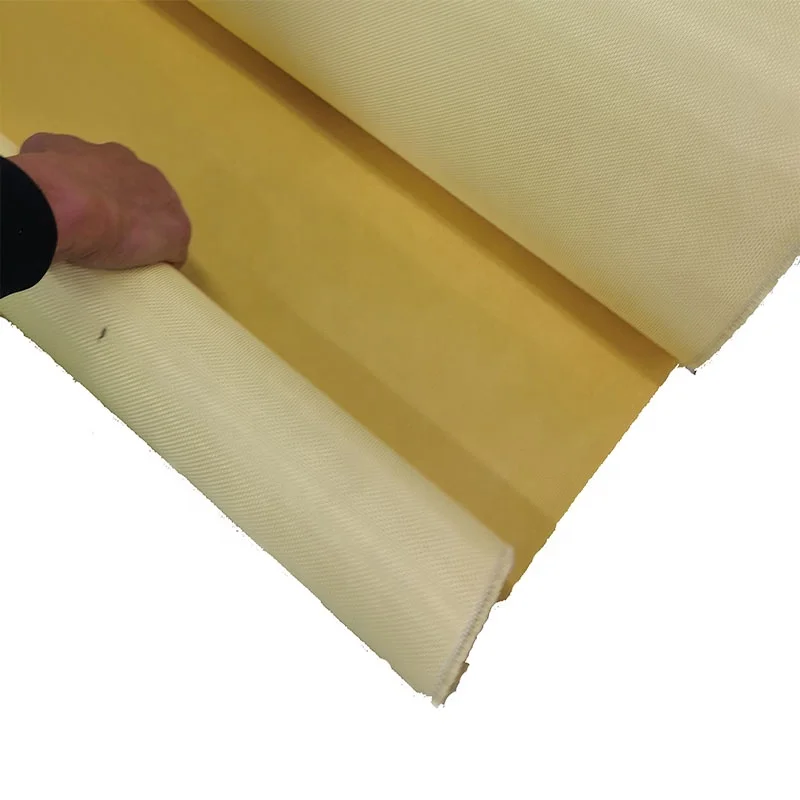

520gsm with glue on double side:
finished products :

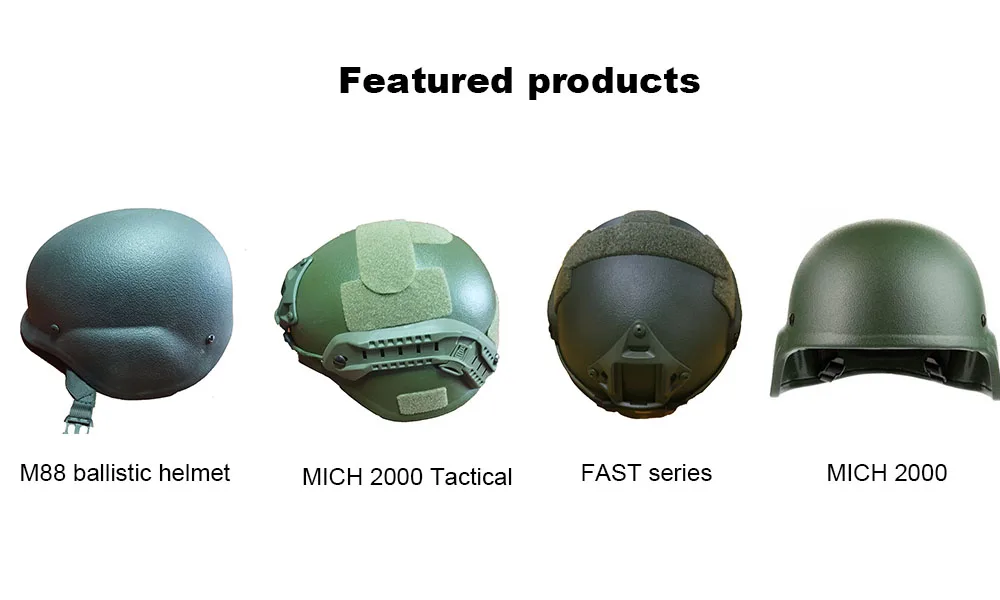

main application:
FAQ
Q: Are you trading company or manufacturer factory?
A:we are factory.
Q: Do you provide sample? How long it takes?
A: Sample can be provided.
Delivery time: regular item in stock can be delivered in 3 days.Customize samples takes about 10-20days based on different quantity and requires .
Q:What’s your terms of payment?
A: EXW, FOB, CIF payment terms etc.We usually accept 30% prepayment and the balance before shipment
