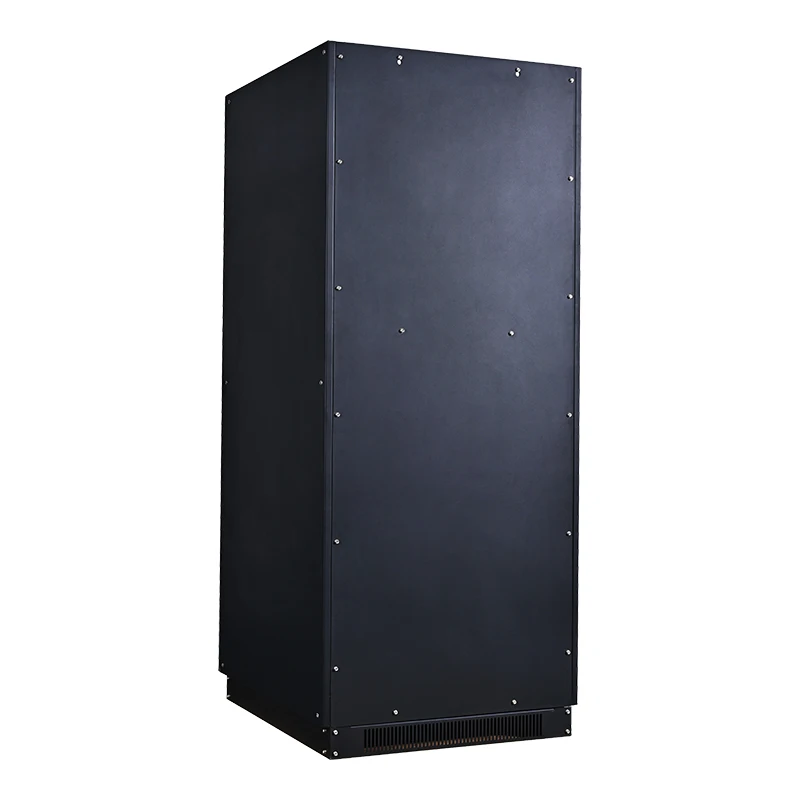

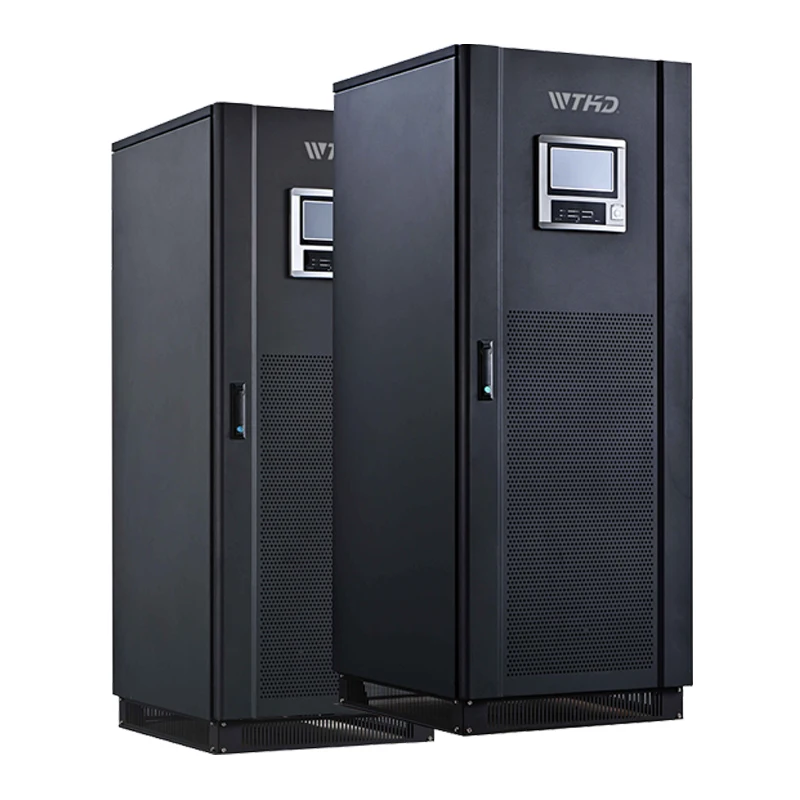

Industrial 80kva Online UPS Pf:0.8 Double Conversion 80KW Uninterruptible Power Supplies UPS Supply
- Category: >>>
- Supplier: Shenzhen Weitu Hongda Industrial Co. Ltd.
Share on (1601253485591):
Product Overview
Description

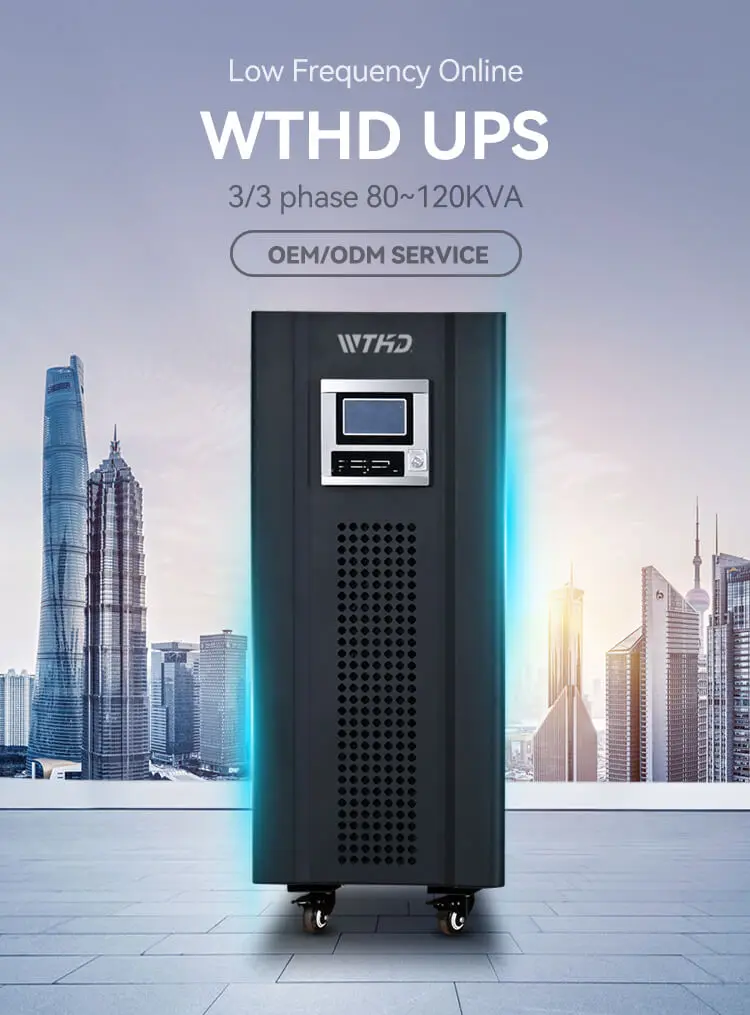

Low Frequency Online UPS | WTHD-U- 3380 | WTHD-U- 33100 | WTHD-U- 33120 | |||
Rated capacity ( KVA/KW ) | 80/64 | 100/80 | 120/96 | |||
Phase | Three-phase five-wire (3L+N+PE) | |||||
Main Input | Input Voltage (Vac) | 380/400/415 | ||||
Voltage Range (Vac) | ±25% | |||||
Frequency range (Hz) | 45~65 | |||||
Power factor | >0.95 (with filter) | |||||
Bypass Input | Phase | Three-phase five-wire (3L+N+PE) | ||||
Input Voltage (Vac ) | 380/400/415 | |||||
Voltage range (Vac) | +10%, +15%, +20% (can be set); -10%, -20%, -30% (can be set) | |||||
Input Frequency (Hz) | 50 (60) +10% | |||||
Output | Voltage (Vac) | 380/400/415 ±1% | ||||
Power factor | 0.8 | |||||
Frequency (Hz) | Automatically track bypass frequency | |||||
Waveform | Sine wave THDV less than 2% (pure linear load) | |||||
Switching time (ms) | 0ms | |||||
Overall efficiency | ≥93% | |||||
Overload capacity | 105%~110%: 60min to bypass; 110%~125%: 10 min to bypass; 125%"150%: 1 min to bypass; >150%: 10s to bypass | |||||
Battery | Battery voltage (Vac) | 384 (348/360 optional ) | ||||
Environment | Operating temperature (°C) | -10~40 | ||||
Storage temperature (°C) | -25^55(without battery) | |||||
Relative humidity | 0~95% (no frosting) | |||||
Working altitude | < 1500m, use derating according to GB/T3859.2 | |||||
Noise (dB) | <55(1 meter from the device) | <60(1 meter from the device) | ||||
Other features | Alarm function | Output overload, mains abnormality, UPS failure, battery undervoltage, etc. | ||||

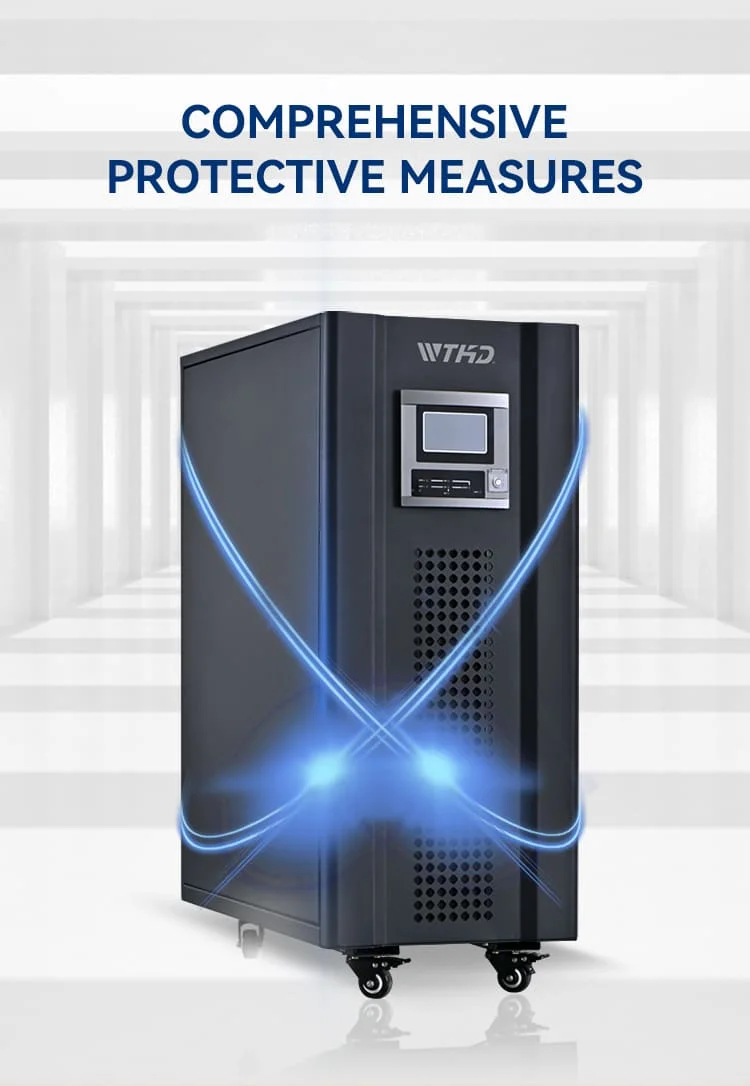

Protective function | Output short circuit, overload, over temperature, battery under voltage, output over and under voltage, fan failure alarm | |||||

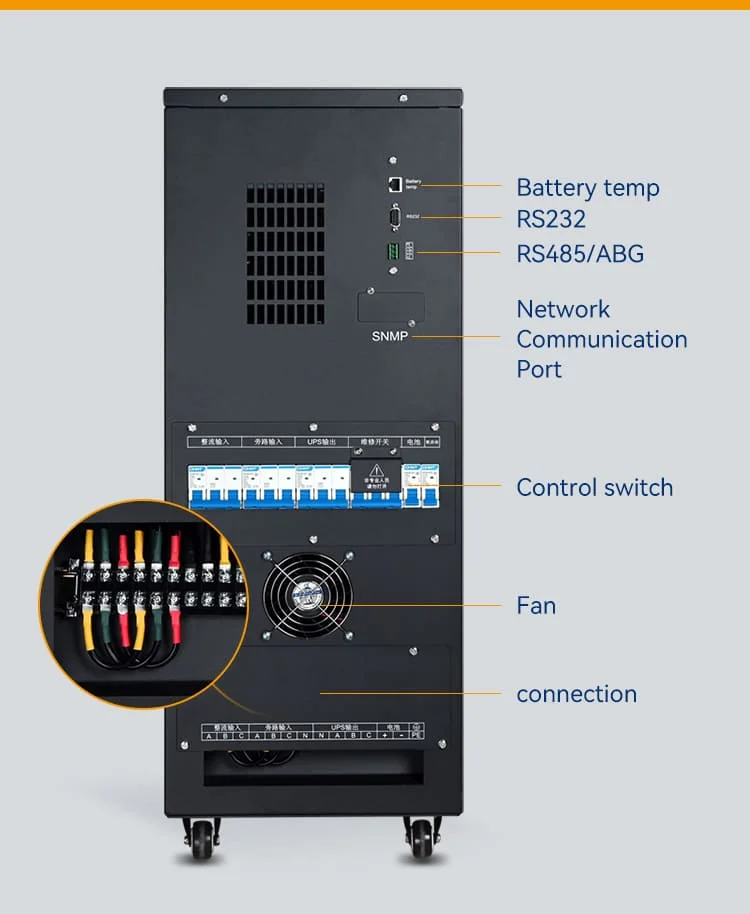

Communication function | Standard: RS232/RS485 Optional: SNMP/JBUS/MODBUS/Dry Contact | |||||
Mechanical features | Dimensions (W*D*H mm) | 450*810*1160 | 700*800*1500 | |||
Net weight (kg) | 344 | 520 | 605 | |||
Executive standard | YD/T1095-2017 | |||||
Shenzhen Weitu Hongda Industrial Co., Ltd. was established in 2015 with a registered capital of Capital 51 million. It is a national key high-tech enterprise and a specialized, Special new enterprise. We focus on new energy customization. Our products
cover high-frequency UPS, industrial UPS, module UPS, EPS power supply, voltage regulator, solar inverter, etc. Outdoor energy storage, etc. Our products are widely used in data centers, medical Nursing, transportation and railways, the petrochemical industry, and other fields.
We can provide OEM and ODM customization services according to customers' requirements.
We look forward to your cooperation. Thank you!
cover high-frequency UPS, industrial UPS, module UPS, EPS power supply, voltage regulator, solar inverter, etc. Outdoor energy storage, etc. Our products are widely used in data centers, medical Nursing, transportation and railways, the petrochemical industry, and other fields.
We can provide OEM and ODM customization services according to customers' requirements.
We look forward to your cooperation. Thank you!
Q1: Are you a factory or a trading company?

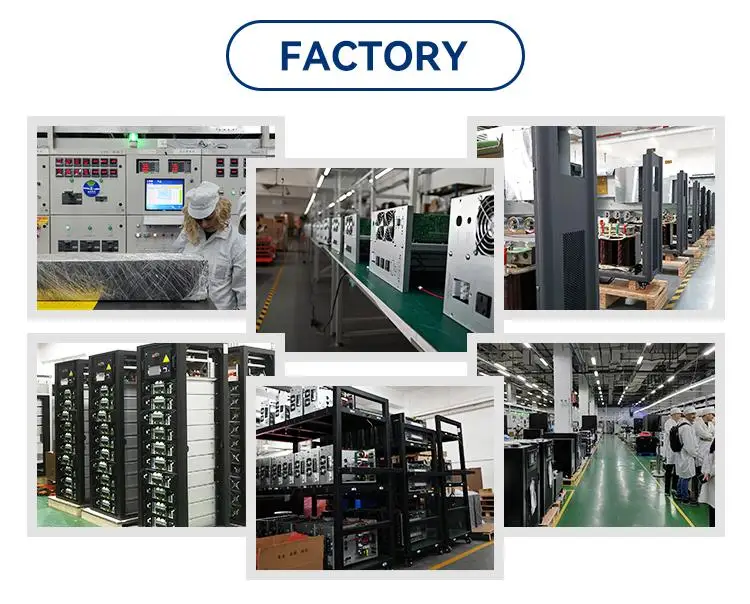

A: We are a manufacturing factory, we focus on OEM and ODM
Q2: What kind of certification do you have?
---ISO9000, ISO14001, CE, ROHS, Thiel, etc.
Q3: Product coverage and industries:
---Industrial online UPS, high frequency online UPS,
Modular UPS 1kVA ~800kVA UPS for any industrial and application;
Q4: About the battery
Provide one-stop battery solutions; lead-acid and lithium batteries are available
Q5: Do you accept OEM/ODM?
Yes, the entire series supports ODM/OEM, and the minimum order quantity is flexible;
Q6: About warranty
---The warranty period is 1 to 3 years, and the battery warranty is 1 to 3 years; differentiate between different products and models;
Q7: Can I participate in bidding projects?
We support large-scale project bidding, authorized manufacturing, project design and more
Q8: Are there overseas branches?
Currently, the Southeast Asia Division, the Eastern Europe Serbia Division, and the Middle East Division are set up.
