High Quality Stone Crusher Plant Prices Lime Stone Crushing Machine
- Category: >>>
- Supplier: Shanghai Zenith Mineral Co. Ltd.
Share on (1601253496258):
Product Overview
Description
Product Description
stone crusher plant prices can be used for secondary and fine crushing of ores and rocks with hard and medium hardness. ZENITH stone crusher plant prices adopts advanced international technologies, coming with the features of reliable structure, high performance, high production efficiency and environmental-protection, etc. Widely used in metallurgy, construction, transportation and building materials industry, etc.
High Quality Stone Crusher Plant Prices Lime Stone Crushing Machine intoduction:
Product Features: Inheritance of classic designs and innovation of technological researches release excellent performances like stability and high efficiency.
Input Size: 0-178mm
Capacity: 45-1400TPH
Material: Granite, diabase, basalt, pebble, limestone, dolomite, metallic ores and non-metallic ores, etc.
High Quality Stone Crusher Plant Prices Lime Stone Crushing Machine working principle:

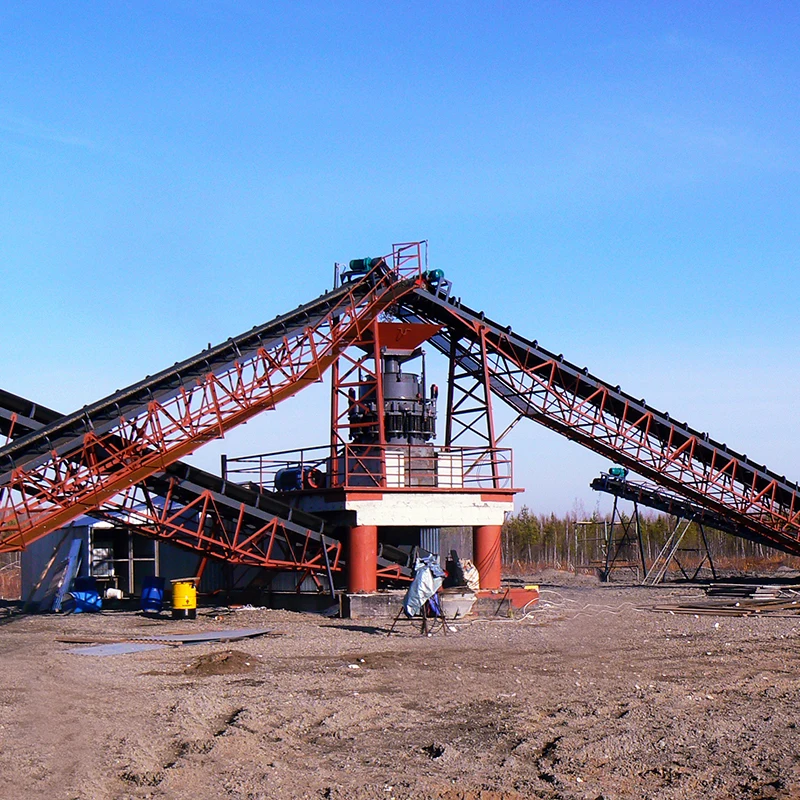

When the S Spring stone crusher plant prices works, driven by the motor, the eccentric sleeve rotates under the combined action of the triangular belt, big belt pulley, transmission shaft, bevel pinion and bevel gear wheel. Then, under the action of the eccentric sleeve, axis starts to rotate, too. During which, the crushing wall would be sometimes close to or sometimes away from the rolling wall. This motion forces materials to be shocked, squeezed and broken continuously in the crushing cavity between the crushing wall and the rolling wall. Finally, materials are discharged out of the machine when their fineness reaches the discharging standard.
High Quality Stone Crusher Plant Prices Lime Stone Crushing Machine parameters:
| Model | Movable Cone Diametermm (inch) | Chamber Style | Opening Side | Closed Side | Discharging Opening (mm) | REV (r/min) | Power (kw) | Motor Model | Capacity (t/h) | Machine Size (mm) |
| Max.Feeding (mm) | ||||||||||
| 36(3′) | 900 (3′) | medium | 83 | 102 | 9-22 | 580 | 6-75 | Y315S-6/75 | 45-91 | 2821×1880 ×2164 |
| coarse | 159 | 175 | 13-38 | 59-163 | ||||||
| 36(3′) | 914 (3′) | fine | 13 | 41 | 3-13 | 580 | 6-75 | Y315S-6/75 | 27-90 | 2821×1880 ×2410 |
| medium | 33 | 60 | 3-16 | 27-100 | ||||||
| coarse | 51 | 76 | 6-19 | 65-140 | ||||||
| 51(4.25′) | 1295 (4 1/4′) | fine | 109 | 137 | 13-31 | 485 | 6-185 | Y355M2-6/185 | 109-181 | 2800×2342 ×2668 |
| medium | 188 | 210 | 16-31 | 132-253 | ||||||
| coarse | 216 | 241 | 19-51 | 172-349 | ||||||
| 51(4.25′) | 1295 (4 1/4′) | fine | 29 | 64 | 3-16 | 485 | 6-160 | Y355M1-6/160 | 36-163 | 2800×2342 ×2668 |
| medium | 54 | 89 | 6-16 | 82-163 | ||||||
| coarse | 70 | 105 | 10-25 | 109-227 | ||||||
| 66(5.5′) | 1650 (5 1/2′) | fine | 188 | 209 | 16-38 | 485 | 6-240 | 181-327 | 3911×2870 ×3771 | |
| medium | 213 | 241 | 22-51 | 258-417 | ||||||
| coarse | 241 | 268 | 25-64 | 299-635 | ||||||
| 66(5.5′) | 1650 (5 1/2′) | fine | 35 | 70 | 5-13 | 485 | 6-240 | 90-209 | 3917×2870 ×3771 | |
| medium | 54 | 89 | 6-19 | 136-281 | ||||||
| coarse | 98 | 133 | 10-25 | 190-336 | ||||||
| 84(7′) | 2134 (7′) | fine | 253 | 278 | 19-38 | 435 | 6-400 | 381-726 | 5200×4300 ×4700 | |
| medium | 303 | 334 | 25-51 | 608-998 | ||||||
| coarse | 334 | 369 | 31-64 | 870-1400 | ||||||
| 84(7′) | 2134 (7′) | fine | 51 | 105 | 5-16 | 435 | 6-400 | 190-408 | 5200×4300 ×4700 | |
| medium | 95 | 133 | 10-19 | 354-508 | ||||||
| coarse | 127 | 178 | 13-25 | 454-599 | ||||||
Company Information

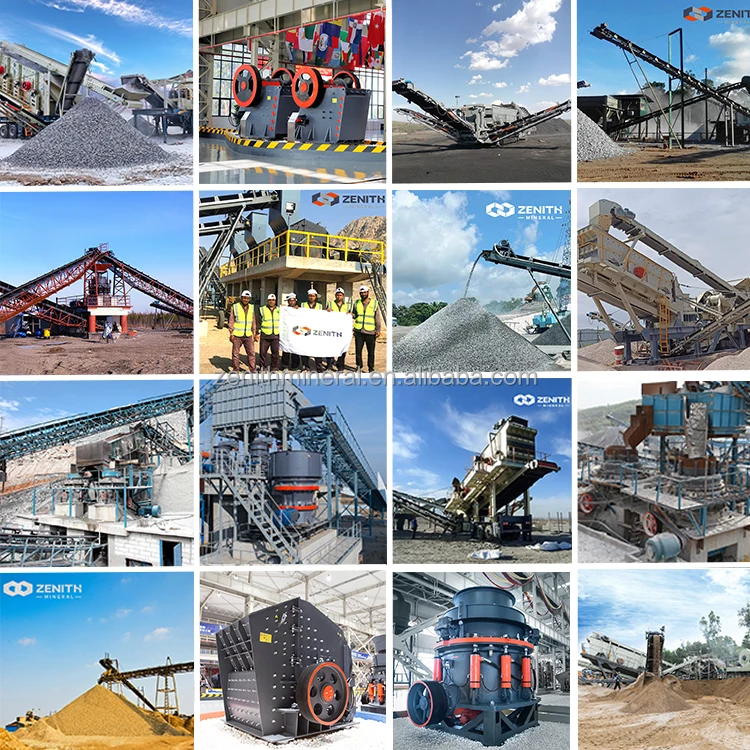

A VARIETY OF TRUSTED EXPERIENCE ZENITH has a variety of professional, reliable and efficient crushing lines all around the world. So customers have great confidence in us. |
INFINITE BRAND VALUE What ZENITH is doing is customizing economical and suitable production lines for customers and building brand value. |
1200,000 SQUARE METERS OF PRODUCITION AREA 6 large-scale manufacturing bases occupy 1200,000 square meters in total. So quick delivery is a matter of course. |
Zenith Factory
Headquarter of Zenith is located in Shanghai, China and now we have two manufacturing bases as our strong support. One is located in Shanghai about 450,000 square meters, and the other is in Qidong city, about 600,000 square meters. It takes about one-hour driving from Shanghai to Qidong city.
Exhibition
Zenith participate in various exhibitions frequently,such as Bauma China,China Import and Export Fair , Asia-pacific's International Mining Exhibition, Bauma Africa, CONEXPO Latin America , etc.
Packaging & Shipping
Ways of Packing:
1.Sand blasting, coat with high quality paint;
2.Product wrap by PP-Bubble
3.Load container, Spear Parts in wooden case.
Transportation:
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before boat arrival
Get Price
If you are interested with our products, please don't hesitate to contact us now!
You can tell me the following questions, Then I can send you accurate quotation, including additional discount!
1. Which machine do you need? like stone crusher, grinding mill or beneficiation machine, etc.
2. what is your raw material plan to process? like limestone, granite or iron ore, etc.
3. The capacity you need. Like 100 tones per hour or 2000 tones per day.
4. Your contact information. Both Email and phone number are essential, we can contact you easier.
Now,please click the following contact to send us email or chat online!
