CIP B20 4kw 5.5HP Food Grade SS316L Industrial Transport Acids Self Priming Pump with Siemens Motor on and off Control Box
- Category: >>>
- Supplier: Wenzhou Compass Machinery Co. Ltd.Wenzhou Ltd.
Share on (1601253657107):
Product Overview
Description

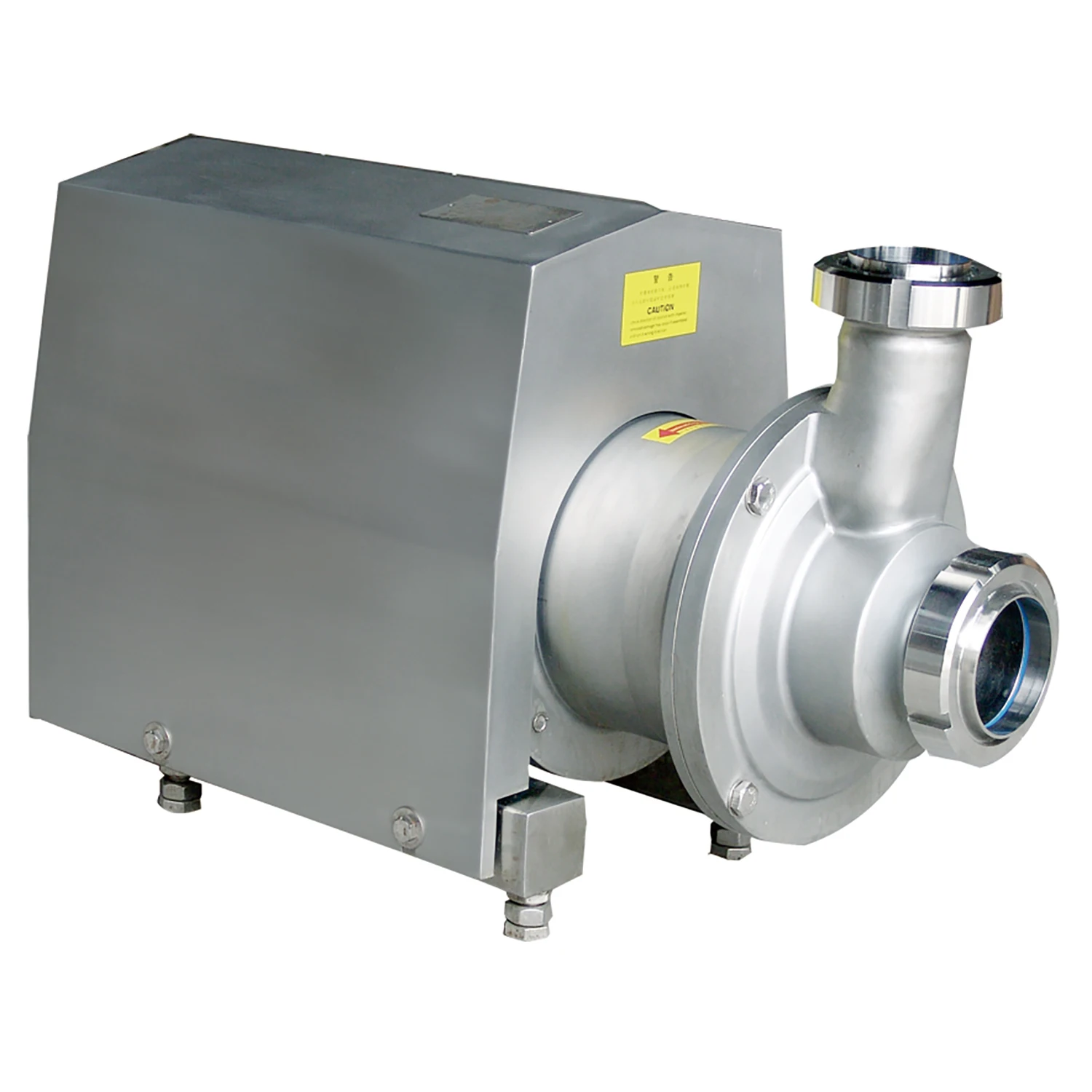

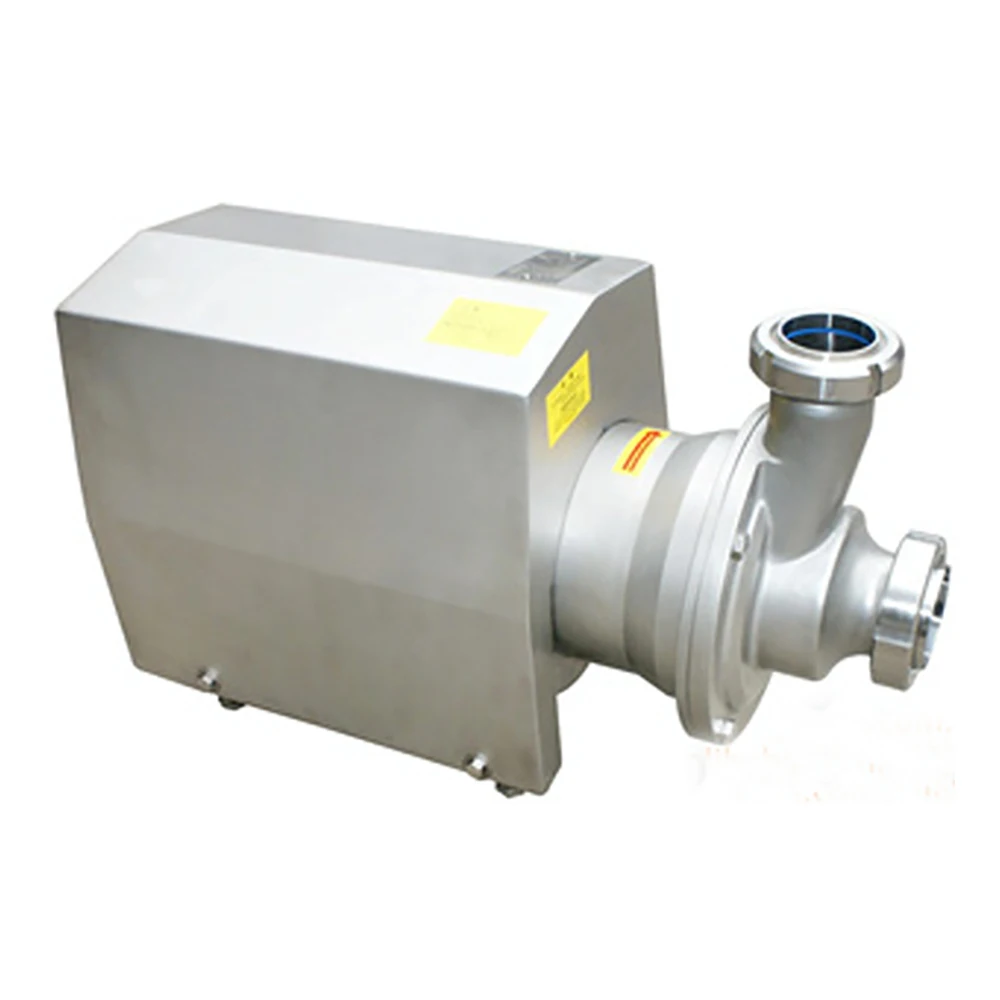

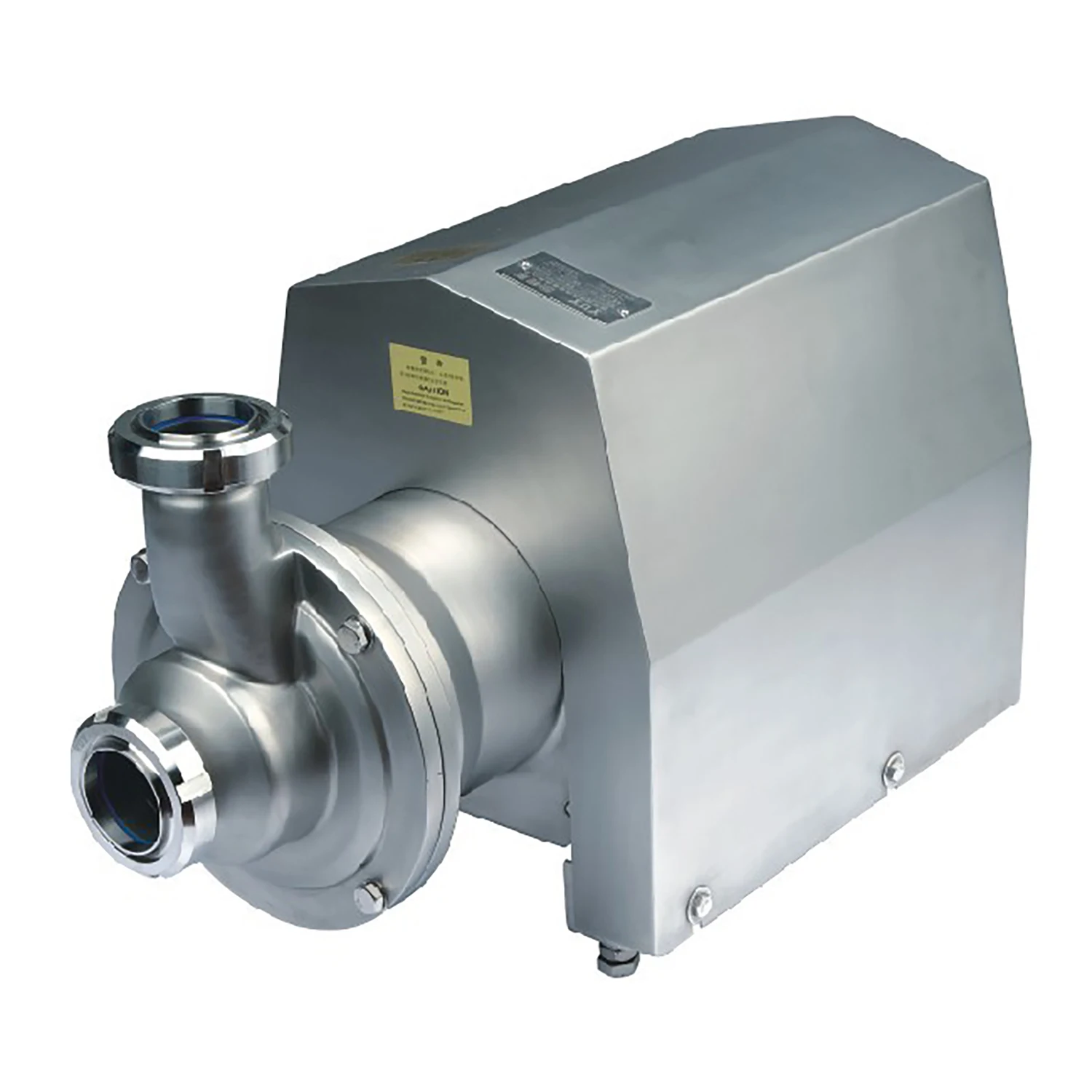

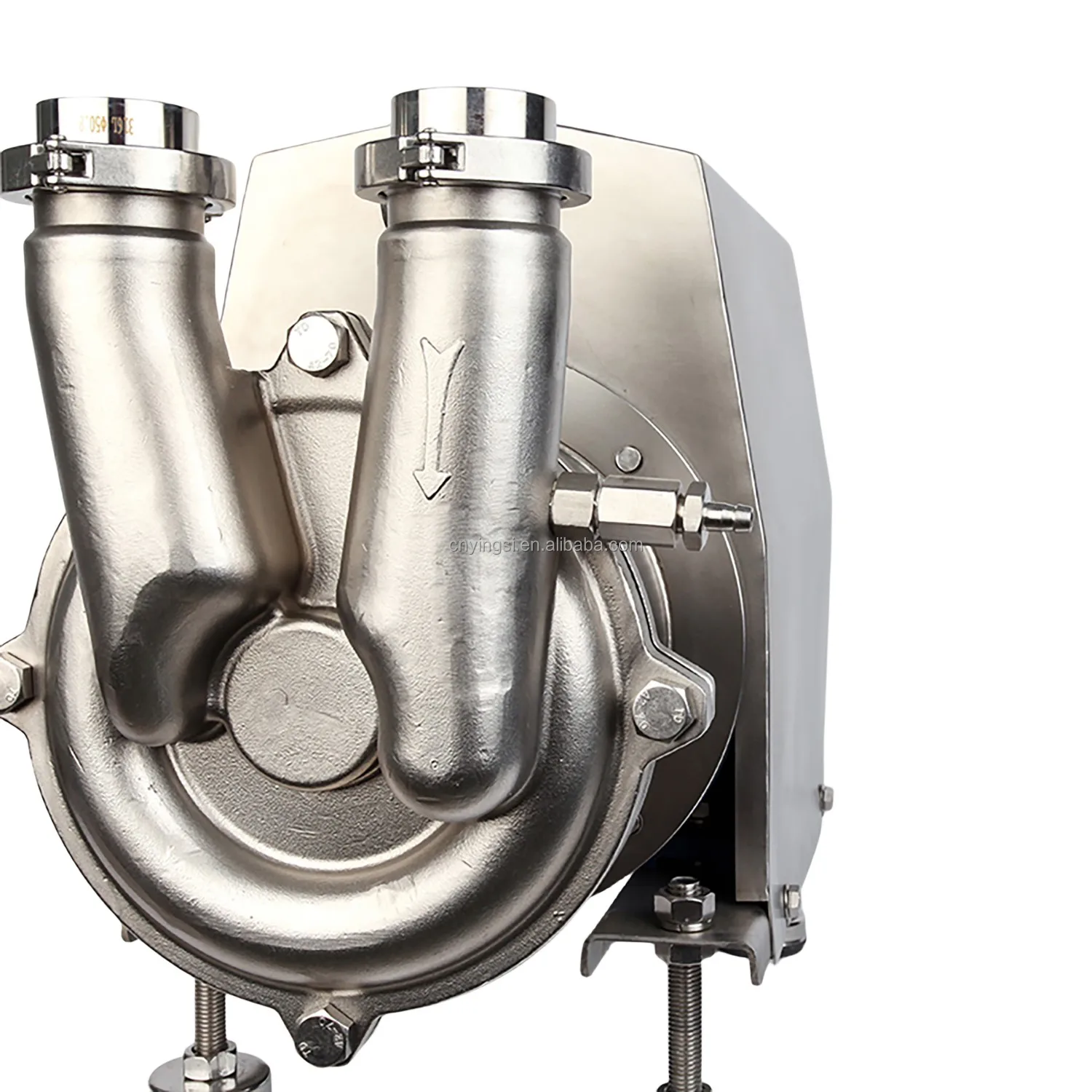

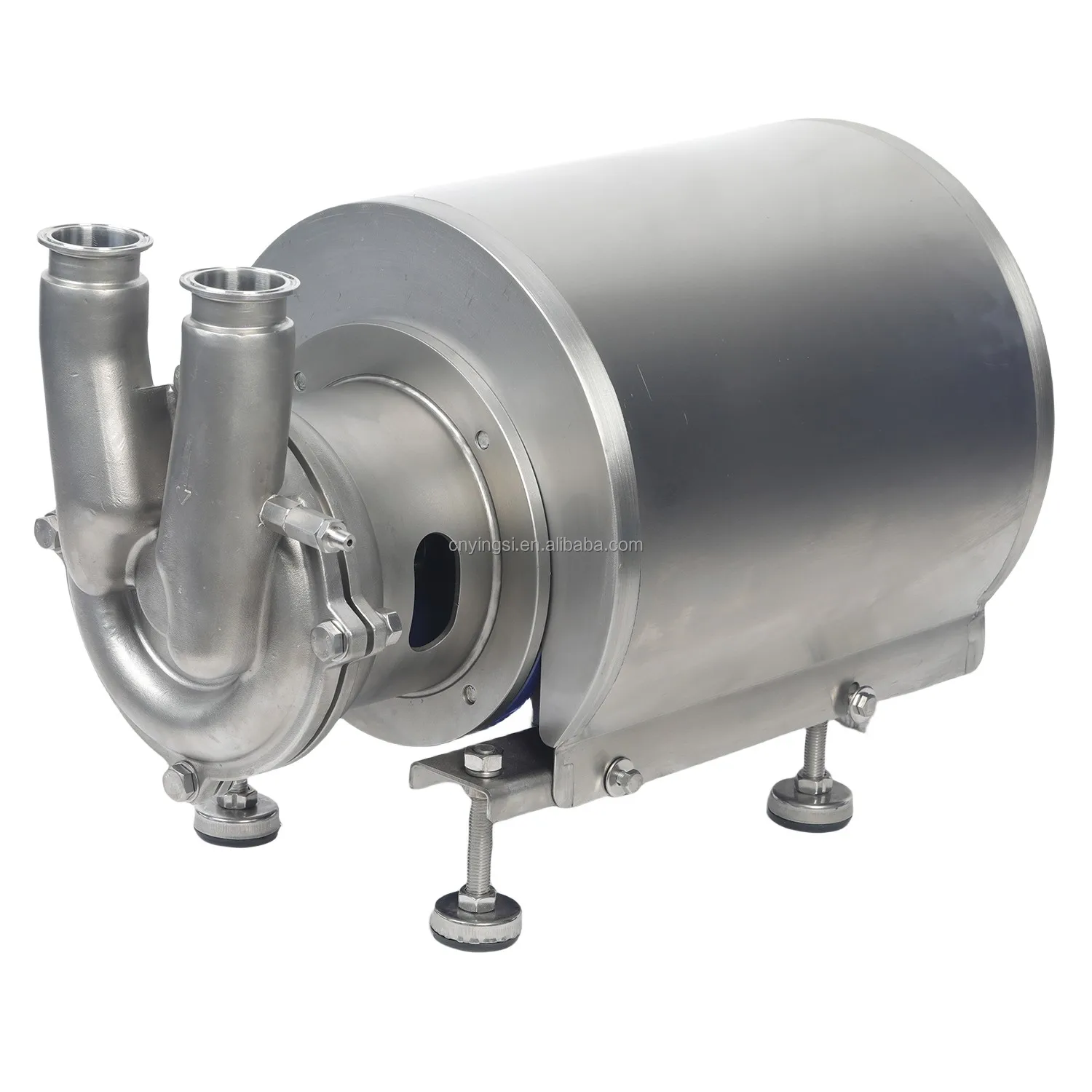

Stainless Steel Food Grade SS316L 2.2KW 3HP CIP Self Priming Suction Pump for Beverages
The pump is a sanitary side channel self priming pump, it's suitable for food processing, pharmacy and chemical industry.It is specially designed for pumping materials containing air or gas, and it can also be used for negative suction with prior priming as well as with filtration equipment.
It can be used with wine, oil, syrups, volatile products such as alcohol, acetone and other solvents,or with products at temperatures close to boiling point, However, the main use of this pump is for CIP return.
Material Contact Parts | SS304, SS316L (1.4301,1.4404) | Provided with material inspection report | |||||
Material Non-contact Parts | SS304 (1.4301) | ||||||
Seal Gasket | SILICONE, EPDM, NBR, FPM(Viton) and PTFE | ||||||
Max Flow | 30m³/h | ||||||
Max Head | 40M (4bar) | ||||||
Motor Power | 2.2kw~7.5kw | ||||||
Type of Suction | Single Suction and Double Suction | ||||||
Max. Speed | 3600RPM, 2900RPM, 1400RPM | ||||||
Voltage | 110V, 220V, 380V, 440V | ||||||
Motor Frequency | 50HZ, 60HZ | ||||||
Type of Motor | Explosion-proof or without Explosion-proof | ||||||
Type of Hertz | Single Phase, Three Phase | ||||||
Available Connection | Clamp, Union, Flange, Threaded Fittings | ||||||
Mechanical Seal | SIC/C/EPDM (Standard), Alloy Material | ||||||
Type of Mechanical Seal | Single Mechanical Seal, Double Mechanical Seal | ||||||
Type of Impeller | Open Impeller, Close Impeller, Semi-open Impeller | ||||||
Type of Control Box | On and off Control Box and VFD Frequency Converter Control Box | ||||||
Temperature | -20°C ~140 °C | ||||||

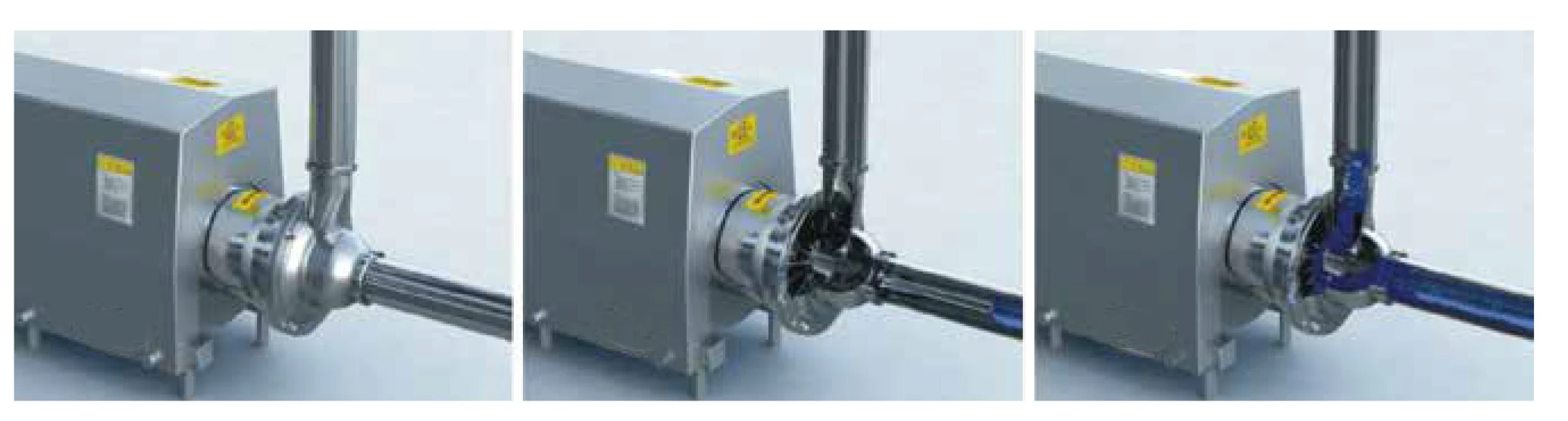

Operating Principles
The impeller is housed between the inlet body and the venturi casing and it rotates in conjunction with the pump shaft. The rotation of the impeller and arrangement of the side channel, creates a negative pressure nside the inlet body. which generates the suction force of the pump.At the same time, the fluid receives energy in the form of kinetic energy and pressure energy, and this impels it through the impeller casing.
Options
Mechanical Seal in Single Mechanical Seal, Double Mechanical Seal
Gaskets in Silicone, EPDM, NBR, FPM(Viton) and PTFE
Connection: Clamp, Union, Flange, Threaded Fitting
Gaskets in Silicone, EPDM, NBR, FPM(Viton) and PTFE
Connection: Clamp, Union, Flange, Threaded Fitting
Type of Suction: Single Suction, Double Suction
Type of Impeller: Open Impeller, Close Impeller, Semi-Close

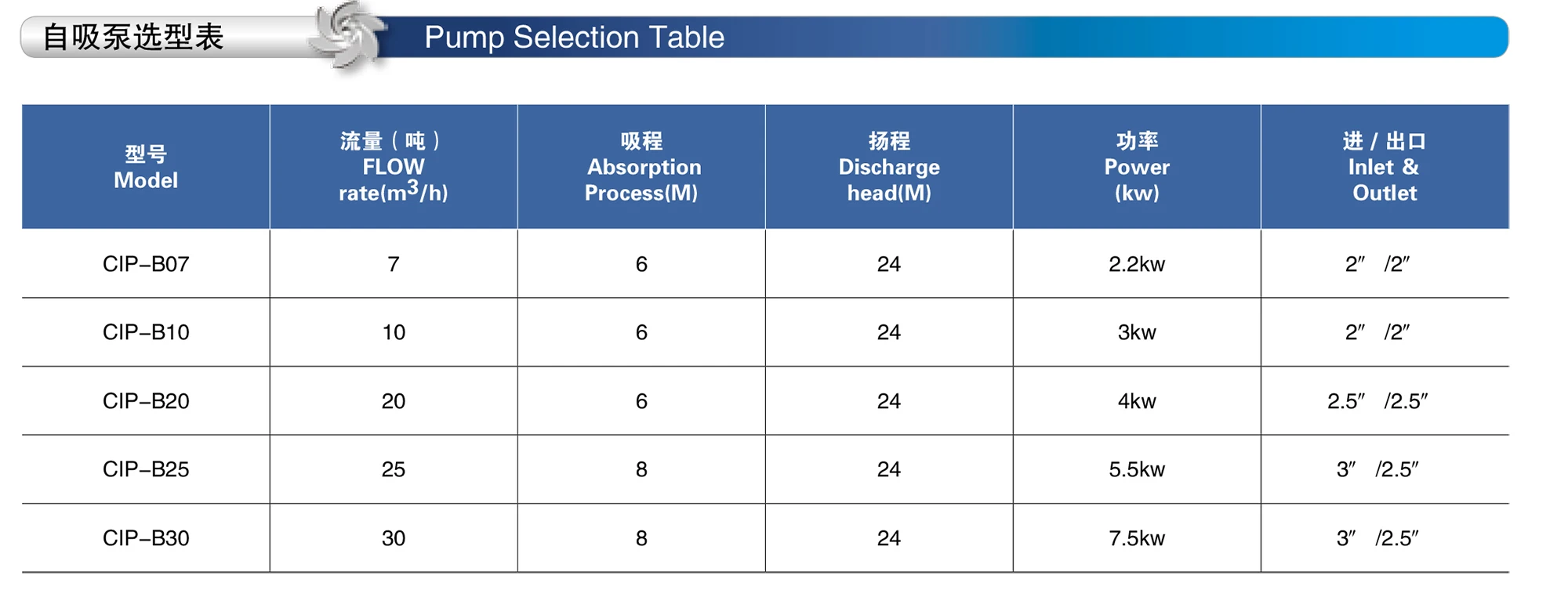

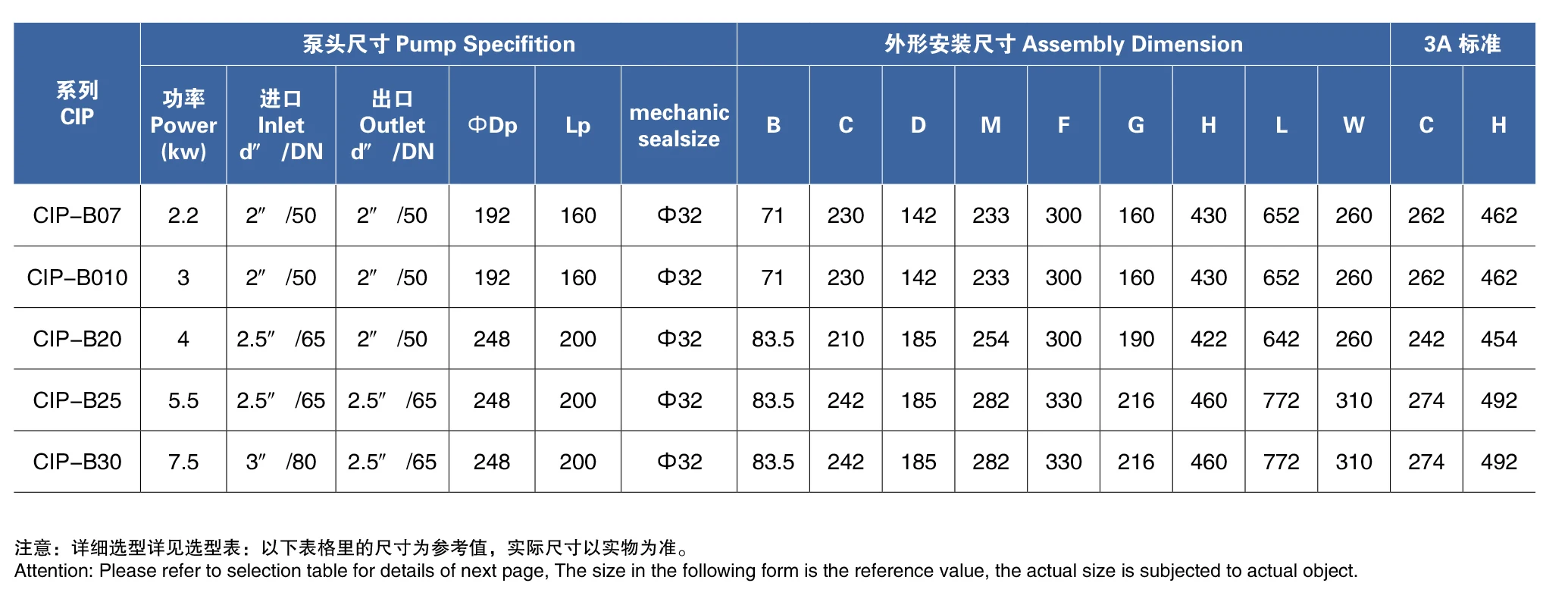

Technical specifications
Max flow: 30m3/h /132 GPMM
Max head: 40 H(M)
Max pressure: 4Bar/ 58 PSI
Max operating temp: 120°C/ 248°F
Max rev: 1750 min
Max suction height: 8m/ 22 ft
Max head: 40 H(M)
Max pressure: 4Bar/ 58 PSI
Max operating temp: 120°C/ 248°F
Max rev: 1750 min
Max suction height: 8m/ 22 ft
Materials
Parts in contact with pumped medla: SS304, SS316L (1.4301,1.4404)
Gaskets (standard): EPDM, NBR, FPM(Viton) and PTFE
Mechanical seal (standard) C/SiC/EPDM, Alloy Material
Gaskets (standard): EPDM, NBR, FPM(Viton) and PTFE
Mechanical seal (standard) C/SiC/EPDM, Alloy Material

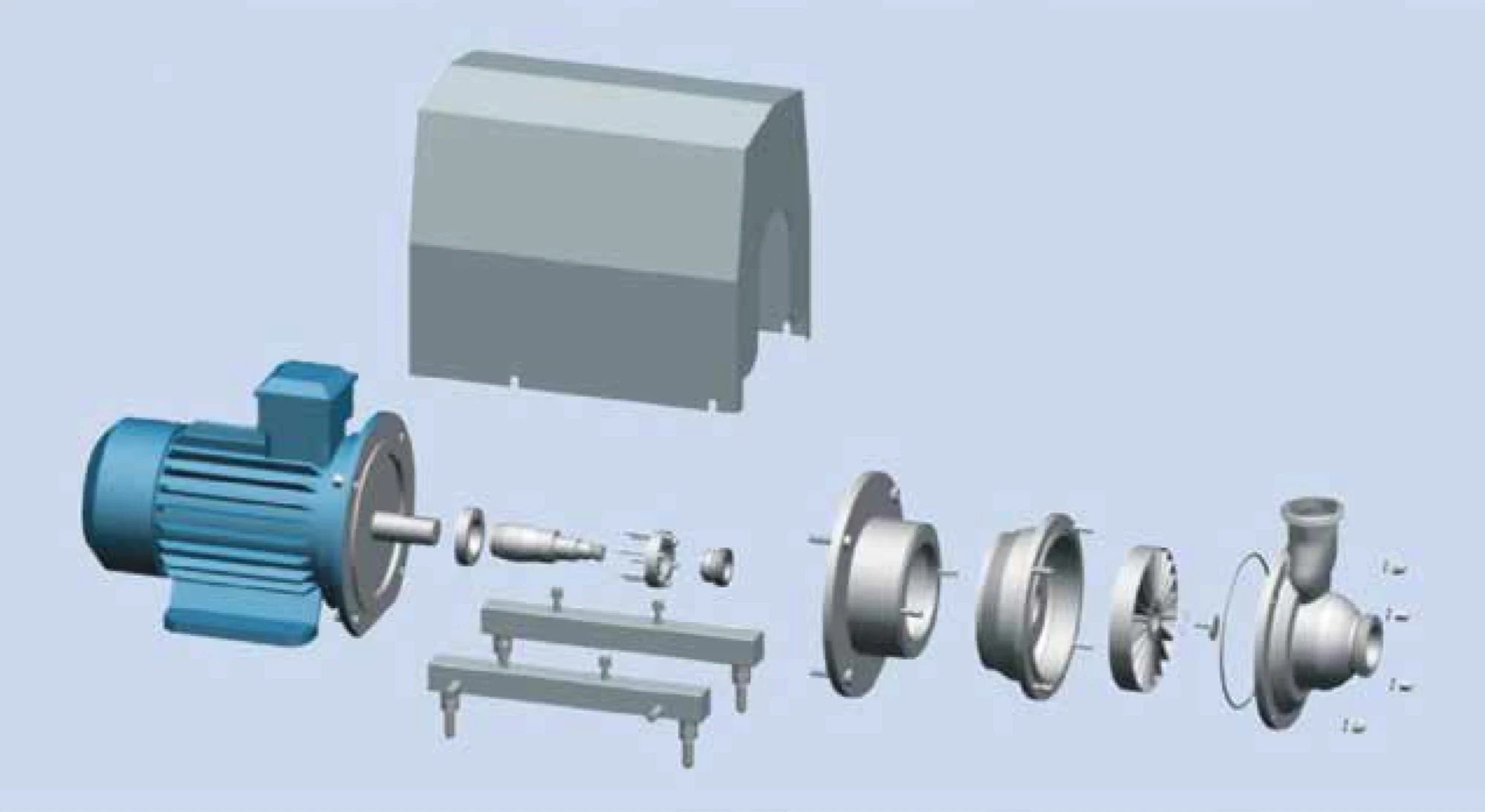

Design and features
Casing manufactured with cold-formed plate.
Stainless steel irvestment casting inlet body and impeller.
Mechanical seal prevents oontacting between the springs and the pumped fluid
Stainless steel support
Stainless steel irvestment casting inlet body and impeller.
Mechanical seal prevents oontacting between the springs and the pumped fluid
Stainless steel support
It is applied in industry and sanitary system. Good sealing,no leak,in the oil, chemical industry, water conservancy,electric power, boiler, machinery, metallurgy, sanitary, construction etc
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
If small order and choose by express , the items are packed by shrink wrap and secondly carton cases.
If heavy weight of cargos,which be packed by strongly seaworthy plywooden cases .
In order to protective items , which will be packed by safety and resistance to shock in plywooden cases ..
COMPASS are manufacturer and supplied with sanitary valves, pumps, pipe fittings, tanks, tube. They are widely used for food,beer,beverage, chemical,biological, pharmacy and so on. Totally 112nos of workers and the factory Covers 4035m2,our warehouse covers1000m2. We have 29 sets of LG Mazak machines and other CNC machine from Japan ; Meanwhile,we have 2 sets of automatic machiningunit. Here is our range of products as below.
A. Sanitary valve includes of butterfly valve, mix-proof valve, division valve,diaphragm valve, ball valve, check valve, safety valve, air relief valve, angle seat valve, constant pressure valve, bottom tank valve, racking arms valve, float valve, breather valve, and so on.
B. Sanitary pumps includes of centrifugal pump, rotary lobe pump, CIP self priming pump, mixing pump, vacuum pump, Emulsion Pump,screw pump, and so on.
C. Sanitary tank component includes of manhole cover, cleaning ball, filter,sight glass.
D. Sanitary pipe fitting has union, ferrule, clamp, solid end cap, pipe holder, nipple, coupling, adapter,elbow, tee, reducer.
E. Sanitary tanks includes of storage tank, mixing tank, fermentation beer tank, and so on.
F. Sanitary tube has seamless and weld type
14 years experiences in design and good solution in food grade production line.
A. Sanitary valve includes of butterfly valve, mix-proof valve, division valve,diaphragm valve, ball valve, check valve, safety valve, air relief valve, angle seat valve, constant pressure valve, bottom tank valve, racking arms valve, float valve, breather valve, and so on.
B. Sanitary pumps includes of centrifugal pump, rotary lobe pump, CIP self priming pump, mixing pump, vacuum pump, Emulsion Pump,screw pump, and so on.
C. Sanitary tank component includes of manhole cover, cleaning ball, filter,sight glass.
D. Sanitary pipe fitting has union, ferrule, clamp, solid end cap, pipe holder, nipple, coupling, adapter,elbow, tee, reducer.
E. Sanitary tanks includes of storage tank, mixing tank, fermentation beer tank, and so on.
F. Sanitary tube has seamless and weld type
14 years experiences in design and good solution in food grade production line.
Competitive prices & High quality products to achieve win-win mutual benefits.
Professional & Communicate easily.
Huge warehouse & Delivering shortly.
Huge warehouse & Delivering shortly.
Strong team & Better after-sale.
COMPASS Manufacturing.
Valve Workshop Section 1
Valve Workshop Section 2
Pipe Fitting Workshop
CNC Mahchine Working
Processing Center
Warehouse Section
Raw Material Section 1
Raw Material Section 1
Compass Exhibition for Pump and Valve
Compass Exhibition for Pump and Valve
Compass Exhibition for Pump and Valve
Compass Team Meeting
Conversation
Conversation
Engineer Meeting Conversation
Engineer Design Valves
Q1. Who are we?
We are based in ZHEJIANG, China, Founded in 2011,sell to Southeast Asia(30.00%),North America(10.00%),Domestic Market(10.00%),South Asia(5.00%),South America(5.00%),Western Europe(5.00%),Southern Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Africa(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Eastern Asia(3.00%),Oceania(2.00%).
Q2. Are you a trading company or factory?
We are a manufacturing factory.
Q3. Why should you buy from us not from other suppliers?
We are 14 years professional valves & fittings manufacturer.
Warranty:Any question or problem will be respond within 24 hours.
Quality control:All the products are calibrated with real working condition, and tested before shipping as qualified product.
Q4. May I have free sample before ordering?
Yes, our company is very pleased to send you free sample for quality test as long as
freight cost being paid by buyers themselves.
Q5. What's the payment terms?
For small testing orders, we accept Paypal, Western Union, T / T and credit Card.
For mass orders, we accept T/T and L/C.
Q6. How do you control the quality?
Quality control is very important to avoid material mixing and poor quality,We control the
quality from begining to the end. We only have 304 and 316L two different material.100%
inspection on raw material.During production, different materials in different place. After
materials are finished, we choose 10% for inspection.If there is 0.1% problem in 10%,
then no excuse to go ahead for inspecting 100% of the materials.
Q7. If there is any quality problem, how do you solve it?
We are proud that we never let one customer leave us. We are not 100% perfect,there is
some quality problem.We try our best to provide the correct materials in the begining, so
we need less time for quality problem.If there is an quality problem,we take the
responsibility, customer will leave us.If we always take our responsibility, we keep our
customers with us.
Q8. How long is your delivery time?
For normal production in 7-10 days.For bullk order in 15-25 days.
Q9. Warranty
One year warranty for all of our stainless steel products.Gaskets are not included due to
the different application for customers.
Q10. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery.
Accepted Payment Currency:USD,EUR,CNY.
Accepted Payment Type: T/T,L/C,D/P D/A,Credit.
Q11. More questions are appreciated.
We are based in ZHEJIANG, China, Founded in 2011,sell to Southeast Asia(30.00%),North America(10.00%),Domestic Market(10.00%),South Asia(5.00%),South America(5.00%),Western Europe(5.00%),Southern Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Africa(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Eastern Asia(3.00%),Oceania(2.00%).
Q2. Are you a trading company or factory?
We are a manufacturing factory.
Q3. Why should you buy from us not from other suppliers?
We are 14 years professional valves & fittings manufacturer.
Warranty:Any question or problem will be respond within 24 hours.
Quality control:All the products are calibrated with real working condition, and tested before shipping as qualified product.
Q4. May I have free sample before ordering?
Yes, our company is very pleased to send you free sample for quality test as long as
freight cost being paid by buyers themselves.
Q5. What's the payment terms?
For small testing orders, we accept Paypal, Western Union, T / T and credit Card.
For mass orders, we accept T/T and L/C.
Q6. How do you control the quality?
Quality control is very important to avoid material mixing and poor quality,We control the
quality from begining to the end. We only have 304 and 316L two different material.100%
inspection on raw material.During production, different materials in different place. After
materials are finished, we choose 10% for inspection.If there is 0.1% problem in 10%,
then no excuse to go ahead for inspecting 100% of the materials.
Q7. If there is any quality problem, how do you solve it?
We are proud that we never let one customer leave us. We are not 100% perfect,there is
some quality problem.We try our best to provide the correct materials in the begining, so
we need less time for quality problem.If there is an quality problem,we take the
responsibility, customer will leave us.If we always take our responsibility, we keep our
customers with us.
Q8. How long is your delivery time?
For normal production in 7-10 days.For bullk order in 15-25 days.
Q9. Warranty
One year warranty for all of our stainless steel products.Gaskets are not included due to
the different application for customers.
Q10. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery.
Accepted Payment Currency:USD,EUR,CNY.
Accepted Payment Type: T/T,L/C,D/P D/A,Credit.
Q11. More questions are appreciated.
1.What’s material quality? Such as SS304 and SS316L for optional
2.What’s flow rate for CIP self priming pump, such as 10000 liters per hour ?
3. What's head, such as 24meters ?
4. What's motor power, such as 3kw ?
5. What's voltage and hertz, such as 380v, 50hz, three-phase?
6. What's motor brand, such as ABB motor ?
5. What's voltage and hertz, such as 380v, 50hz, three-phase?
6. What's motor brand, such as ABB motor ?
7.What’s connection end? Such as butt-weld, tri-clamp, male threaded, female threaded, union, ect.
8.What's design temperature and working temperature for pump ?
9. Do you need single suction or double suction?
10. Type of impeller, such as open impeller, close impeller, semi-open impeller ?
8.What's design temperature and working temperature for pump ?
9. Do you need single suction or double suction?
10. Type of impeller, such as open impeller, close impeller, semi-open impeller ?
