EPS51 800 95L 36W 55w 95w high output uvc lamp Electronic Ballast with countdown timer
EPS51-800-95L 36W 55w 95w high output uvc lamp Electronic Ballast with countdown timer
EPS51-800-95L 36W 55w 95w high output uvc lamp Electronic Ballast with countdown timer
EPS51-800-95L 36W 55w 95w high output uvc lamp Electronic Ballast with countdown timer
EPS51-800-95L 36W 55w 95w high output uvc lamp Electronic Ballast with countdown timer
EPS51-800-95L 36W 55w 95w high output uvc lamp Electronic Ballast with countdown timer
EPS51-800-95L 36W 55w 95w high output uvc lamp Electronic Ballast with countdown timer

EPS51 800 95L 36W 55w 95w high output uvc lamp Electronic Ballast with countdown timer

Share on (1601253797485):


Price:$39.99 - $60.19

Quantity:


Product Overview

Description

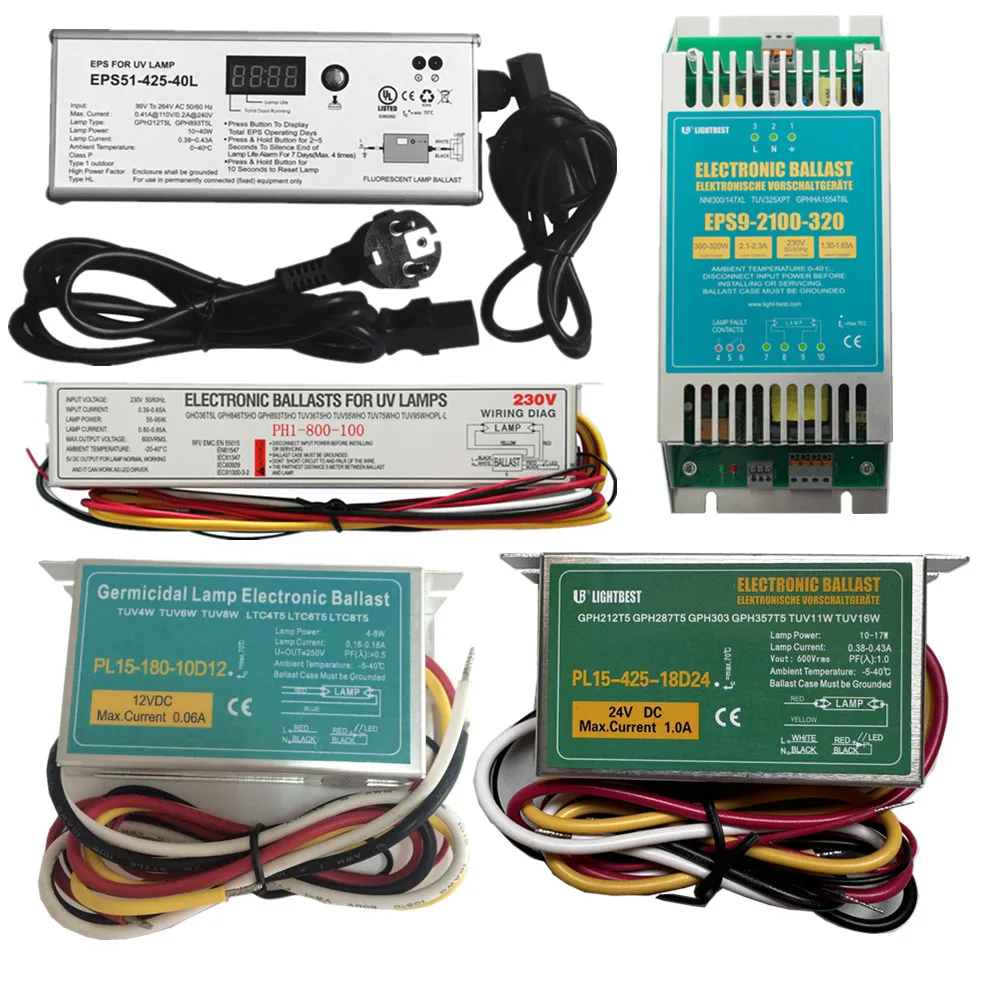

Product Description

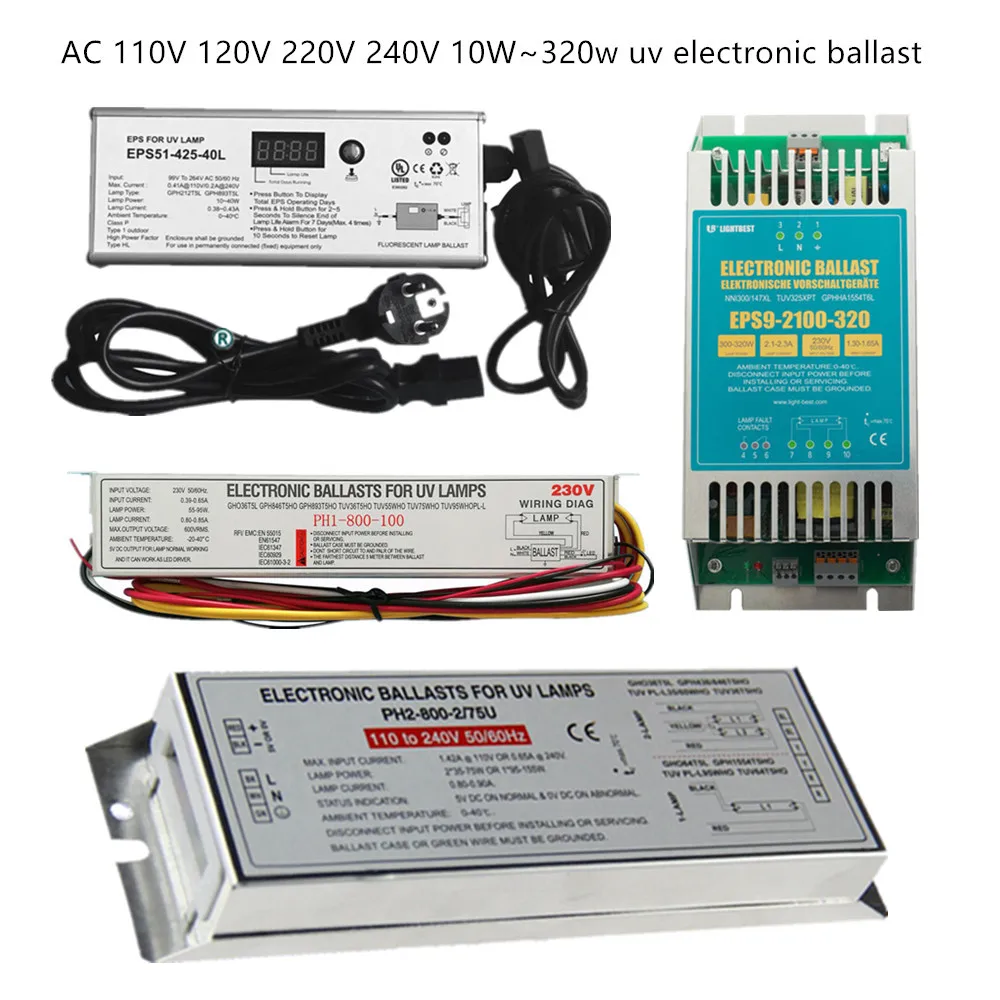

110V-240V AC UVC lamp electronic ballast
Integrated UVC lamp electronic ballast
12V-24V DC UVC lamp electronic ballast


The compatibility between UV germicidal lamps and ballasts is very important, but which is often ignored unfortunately during practical application.
There are magnetic ballasts and electronic ballasts in the market, but the latter is more environmental than the former, saving energy.
Lightbest can provide multiform electronic ballasts and inverters compatible with lamps.




Installation case:
1.If the power of the ballast is less than the power of the lamp tube, the lamp emits less light, or even does not light up.
2.If the ballast power is greater than the lamp power, the lamp life will be reduced; the greater the power gap, the more life will be reduced.
3.In addition, the voltage of the ballast must match the power supply voltage.




Detailed Images

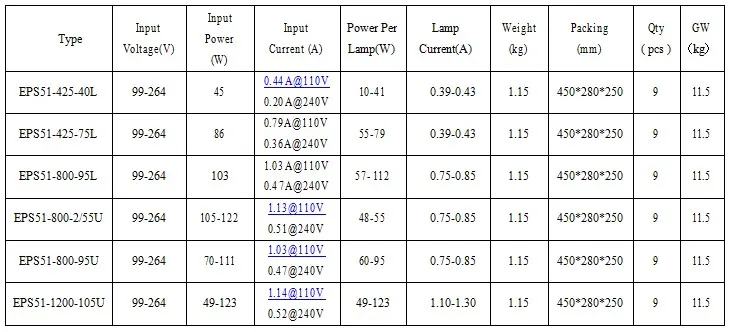

Product Paramenters




EPS51-425-40L

Lamp Types: GPH212T5 GPH287T5 GPH303T5 GPH357T5 GPH436T5 GPH793T5 GHO843T5 TUV11W TUV16W TUV36T5 TUVPL-L36W

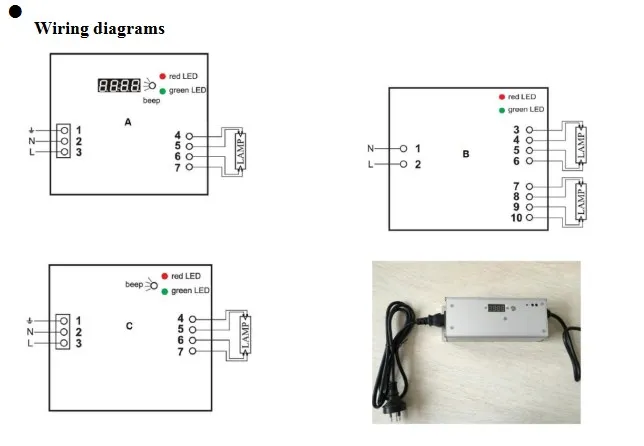

Wiring diagrams：A
EPS51-425-75L

Lamp Types：GPH1148T5 GPH1154T5 GPH1630T5 TUV64T5

Wiring diagrams：A

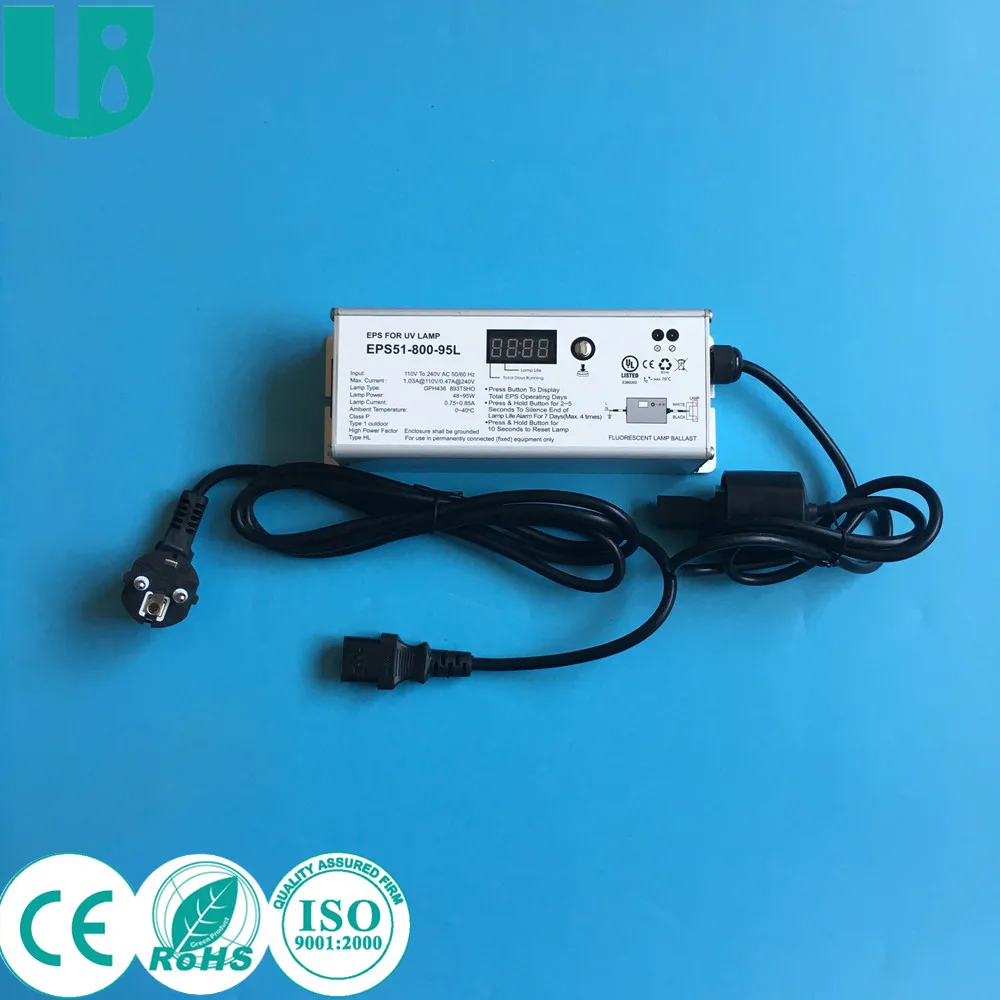

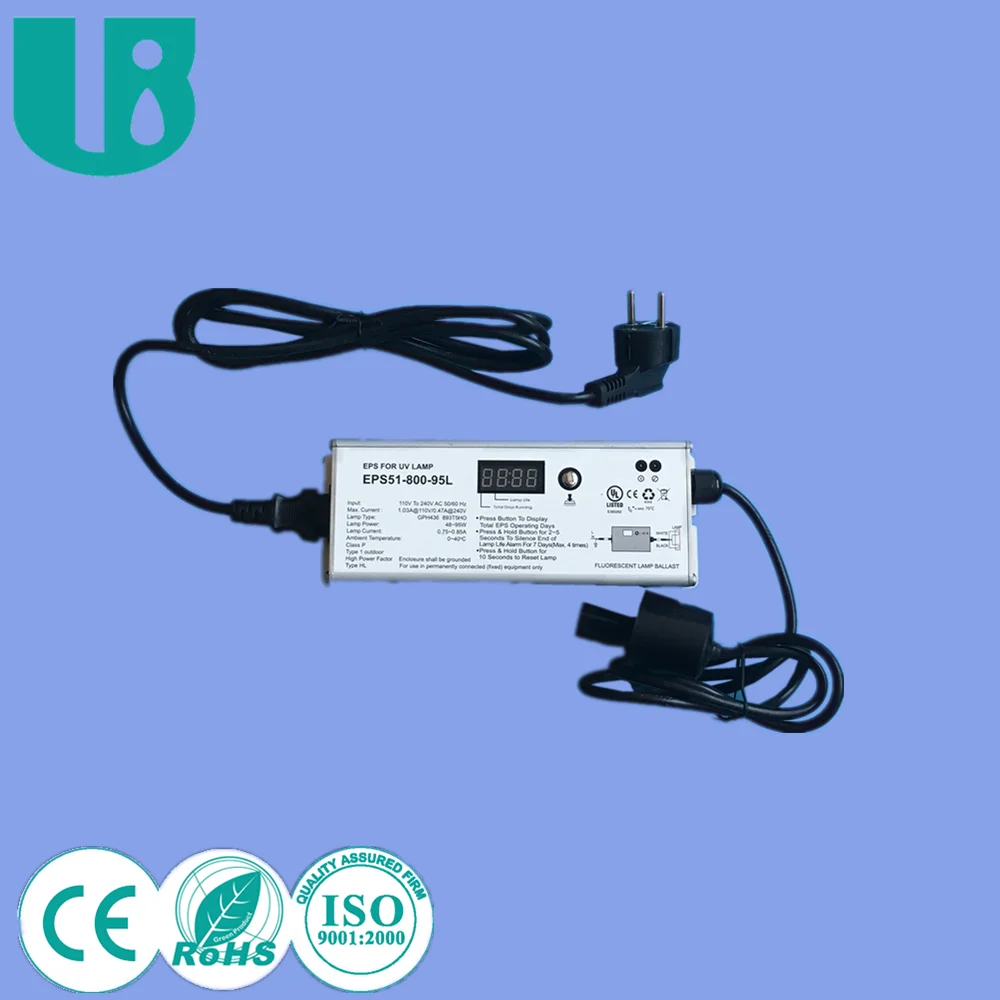

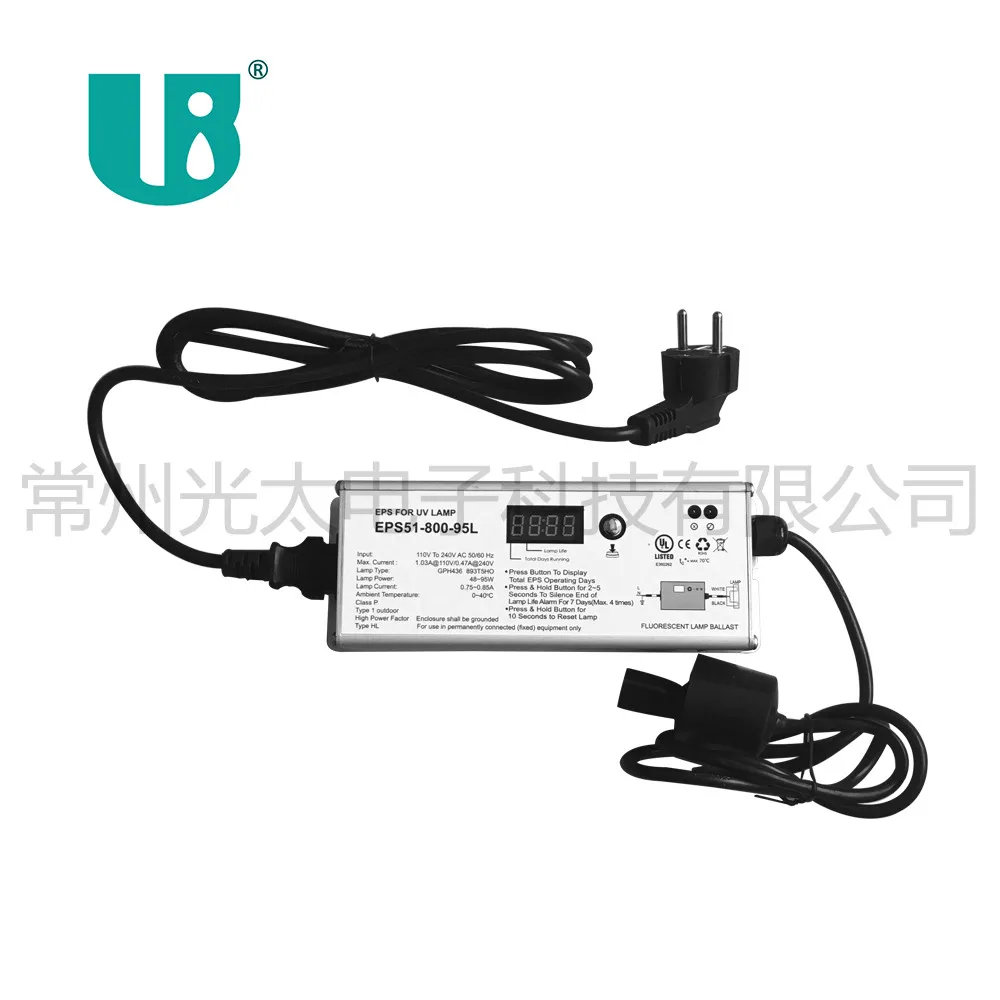

EPS51-800-95L

Lamp Types: :GPH846T5HO GPH893T5HO GHO36T5L TUV36T5HO TUV55WHO TUV75WHO TUVPL-L60WHO TUVPL-L95WHO

Wiring diagrams：A
EPS51-800-2/55U

2*Lamp Types: TUV55WHO\tGPH436T5HO

Wiring diagrams：B

 EPS51-800-95U

Lamp Types ： GPH846T5HO GPH893T5HO GHO36T5L TUV36T5HO TUV75WHO TUVPL-L60WHO TUVPL-L95WHO TUV55WHO TUVPL-L35WHO GPH357T5HO GPH436T5HO

GPH530T5HO

Wiring diagrams：C

 EPS51-1200-105U

Lamp Types: GPHA357T5 GPHA843T5

Wiring diagrams：C

Technical specifications

Mains Voltage：110-240VAC±10%

Power Factor: >0.98

Efficiency: >90%

Operating Frequency: 40-60KHz

Starting：Preheat

Dimensions:203*74*53mm
 Lamp status indication via LED indication
Green LED：Lamp on

Red LED：Lamp fault
 Installation requirement

Wire Gauge：0.5-1.0mm2

Max.cable length between ballasts and lamp：5m
Mounting restrictions

Disconnect Input Power Before Installing or Servicing.

Don’t short any two wires of the four outputs.
Applications

All areas of applications include UV lamps: =>Domestic drinking water

=>Industrial water treatment




Certificate


Our factory has established a strict product quality control system and has gained the SGS and ISO9001-2015 certificate and introduced 5S quality management system from Japan. Our products have successfully passed CE, UKCA, RoHS and FCC certifictions and UL test report etc.. Our products are best-sellers in domestic and international markets, and exported to many countries, such as United States, Canada, Germany, France, UK, Spain, Sweden, Switzerland, Norway, Austria, Italy, Holland, Finland, Romania, Russia, Australia, Dubai, Indonesia, Thailand, Vietnam, Malaysia, Singapore, Japan, South Korea, Brazil, Chile and so on.






Related Products




Company Introduction


Lightbest focus on the manufacturing, R&D and sales of uvc germicidal lamp and related products. Lightbest products are widely used in water purification treatment, UV photolysis, waste gas treatment, sewage treatment, disinfection equipment, smart health appliances etc. and supply customers with one-stop service and solution. We specialize in UV germicidal lamps, UV water sterilizers, electronic ballasts, quartz glass tube, submersible uv lamps and lamp socket etc. and adhere on the principle to fight, uphold, share and win-win together. We have been a stable supplier of high-quality products, perfect service, professional operation and competitive price both in China and the globe.

Our company is committed to the breakthrough and innovation of technology, constantly consummates manufacturing technique, executes in strict rotation of production process control and finished product control system to meet specific needs of all of our customers. We will prompt management level, enhance production efficiency and provide more perfect products and more professional service. We will try our best to offer you more perfect application experiences and go together to make contribution to improve our living environment.




Packing&Shipping


Packaging Details: Standard export packing:Plywood carton, 100 pieces in a carton
Delivery Detail: 7 to 20 days




FAQ


Lightbest provided: OEM service
Buyer Logo /Label
Custom Design Service
Guarantee:
A: Manufacture is to ISO9001:2000 standard.
B: Product is guaranteed for 12 months after lamp purchase.
C: According to the International Standard:
AQL tolerance is within 2% of the total quantity per order.
D: If AQL tolerance exceeds 2%, Lightbest will refund the buyer at 1:1 rate; OR an amount equal to the UQL value will be deducted
from the next order.
E: 2% of products are added by Lightbest (at no extra charge) to the ordered quantity for back-up purposes.




Q: What's your advantage compared with other suppliers?
A: Our uv lamps are made with high-quality quartz, the same supplier for Philips and Lightsources.
There are CE ,UL and Rohs certificates and competitive prices.

Q: What's my consideration when I choose one model of uv lamps?
A: -The water treatment volume and speed;
and lamp watts and length.

Q: Can I be a distributor of Lightbest?
A: Of course you can.

Q: What are the benefits of being a Lightbest distributor?
A: - Special discount.
- Marketing protection.
- Priority of launching new design.
- Point to point technical supports and after sales services.

Q: How can I become a distributor of Lightbest?
A: Contact us immediately for further details by sending us an inquiry.
