Low Consumption Refractory Concrete Pan Mixer 350l Pan Mixer Steel Thickness 6mm
- Category: >>>
- Supplier: Zhengzhou Xinyu Machinery Manufacturing Co. Ltd.Zhengzhou Ltd.
Share on (1601253840521):
Product Overview
Description
Product Overview

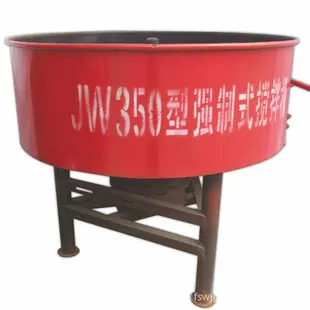

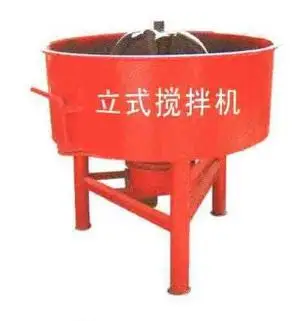

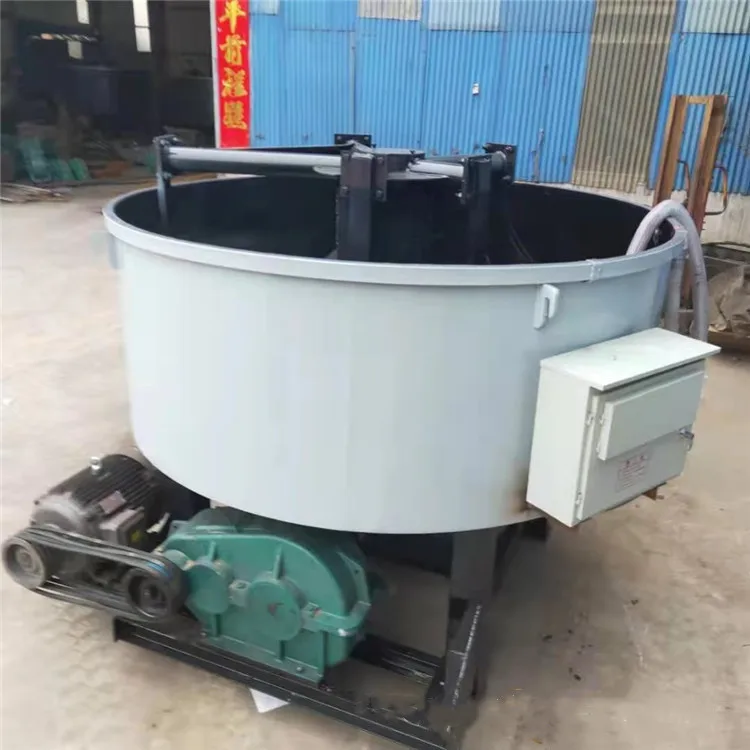

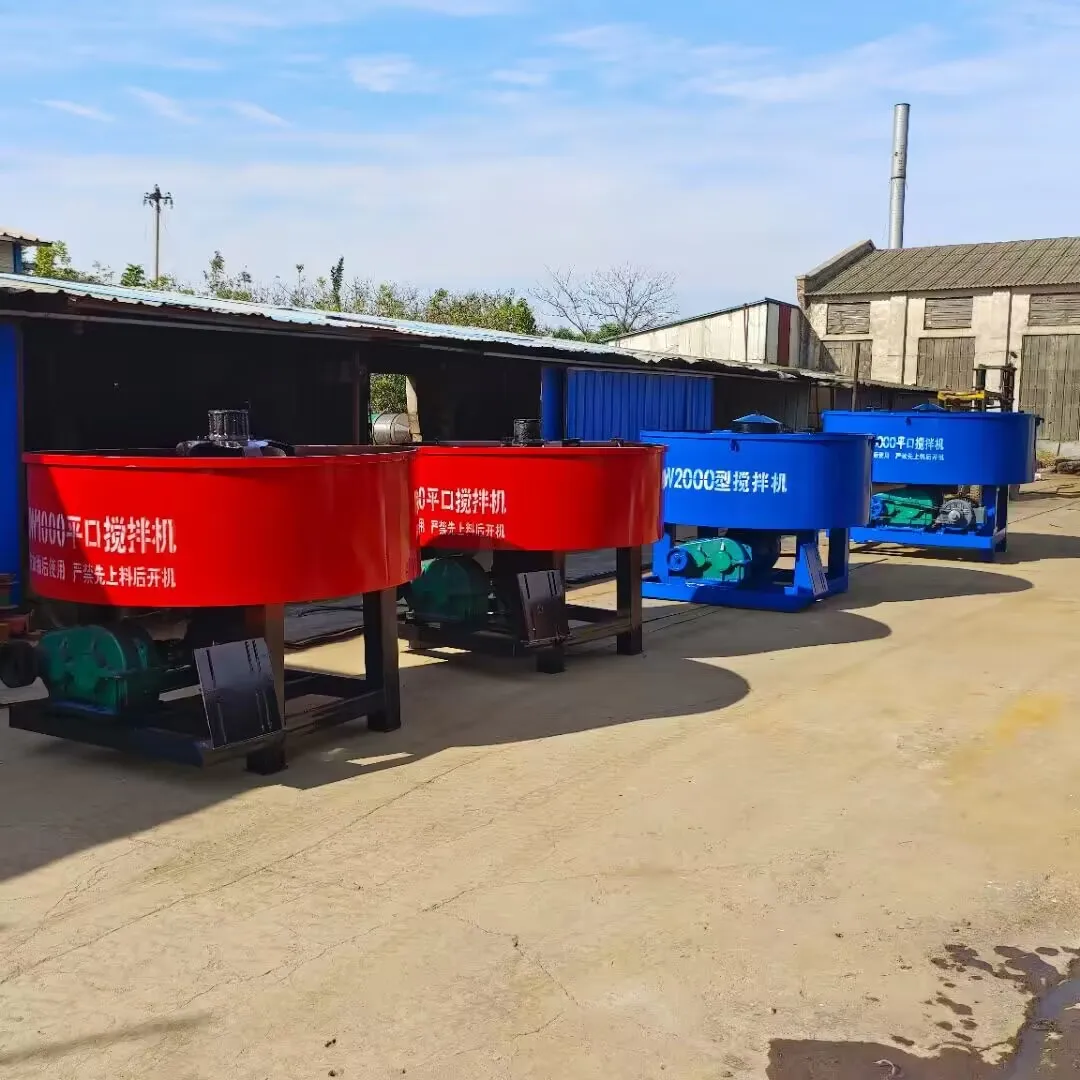

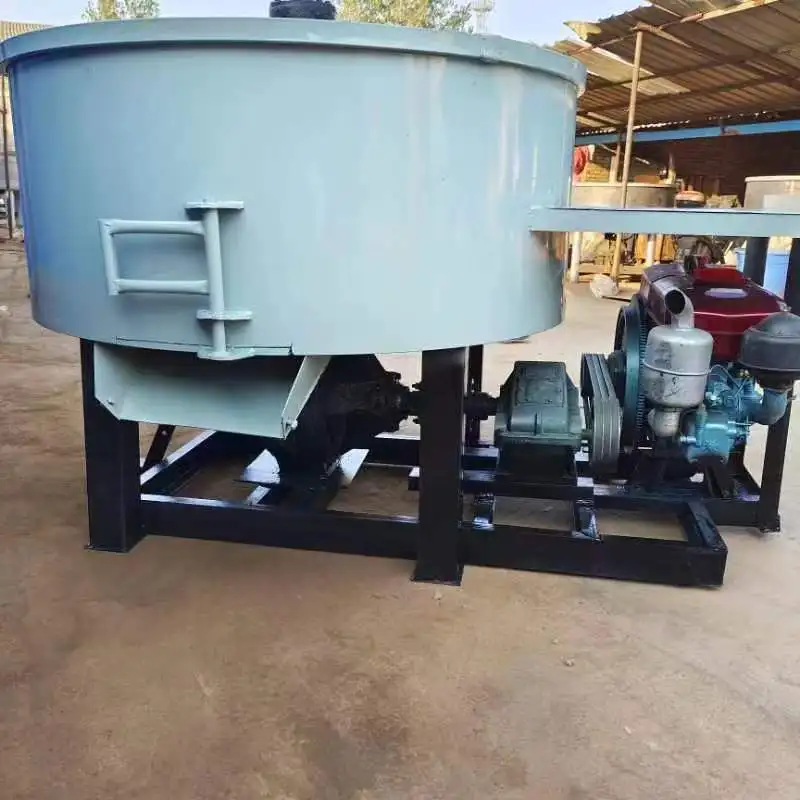

Concrete Pan Mixer
JW concrete pan mixer is a kind of automatic loading and compulsory mixer machine with vertical shaft. Materials are squeezed, turned, and discharged by vertical shaft with blades fixed in the mixing tank. The series of mixer can mix a variety of mixing proportion of concrete, mortar, is suitable for all kinds of medium and small construction projects, and is the ideal mixing equipment of the concrete.
FEATURES AT A GLANCE
Pan mixer blade Motor Rear axle reducer Parallel reducer

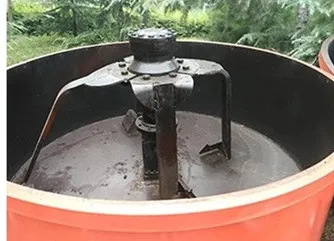

1.The Pan mixer blade: Different mixing direction mixing arm, mixing quality, high efficiency.The Pan mixer blade is an essential component of a concrete pan mixer, designed to efficiently mix and blend concrete, mortar, and other materials. It consists of a set of sturdy, high-quality blades that are mounted on a central shaft and rotate to thoroughly mix the ingredients.
2.Motor: Good performance, electric start function and powerful power.The motor of Pan concrete mixer is a powerful, electrically-powered device that drives the rotation of the Pan mixer blade. Itis responsible for providing the necessary torque and speed to ensure the proper mixing and blending of the materials inside the machine.

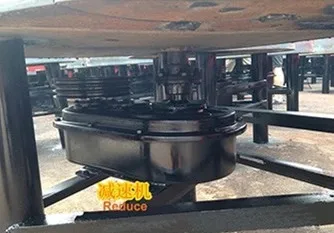

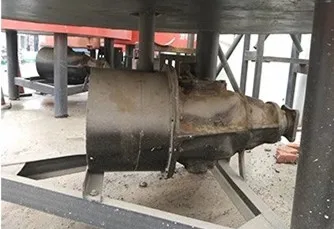

3.Rear axle reducer:The rear axle reducer is a mechanical component that is connected to the motor and the Pan mixer blade. It is responsible for reducing the speed of the motor's rotation and transmitting the power to the mixing blades, resulting in efficient and controlled mixing of the materials.
4.Parallel reducer:The parallel reducer is another important component of the pan concrete mixer, which works in tandem with the rear axle reducer to further reduce the speed and increase the torque of the motor's rotation. This helps to achieve the ideal mixing performance and consistency in the final mix of the concrete or other materials.
PRODUCT SPECIFICATIONS
Model | JW250 | JW350 | JW500 | JW750 | JW1000 | ||||
Volume(L) | 250 | 350 | 500 | 750 | 1000 | ||||
Productvity(m³/h） | 6-8 | 9-12 | 15-18 | 18-20 | 30-35 | ||||
Rotary speed(r/min) | 19 | 21 | 40 | 40 | 45 | ||||
Motor Power(kw) | 5.5 | 5.5 | 7.5 | 11 | 15 | ||||
Pump Power(kw) | 0.55 | 0.55 | 0.75 | 11 | 15 | ||||
Dimension(mm) (diameter*height) | Φ1100×1100 | Φ1200×1400 | Φ1300×1400 | Φ1500×1400 | 1600*2000 | ||||
Weight(kg) | 250 | 450 | 1100 | 1500 | 2100 | ||||
Maximum Aggregate Diameter(mm) | 60 | ||||||||
Application

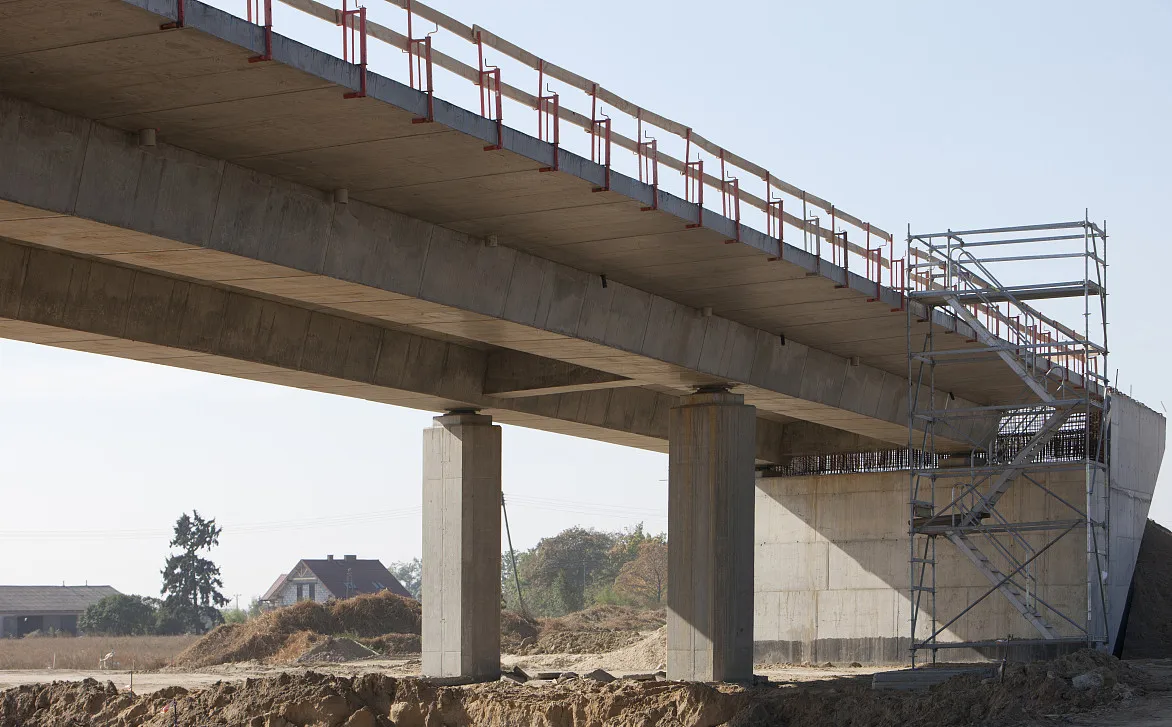

The pan concrete mixer is a versatile piece of equipment that can be used in various construction projects, including building construction, tunnel construction, road paving, and bridge construction. Its ability to mix large volumes of concrete efficiently and effectively makes it an ideal choice for these types of projects.
The pan concrete mixer can be easily transported to different job sites and is capable of producing high-quality concrete mixes, making it a valuable asset for construction professionals in a wide range of applications. Its versatility and reliability make it a popular choice for construction projects in various industries.

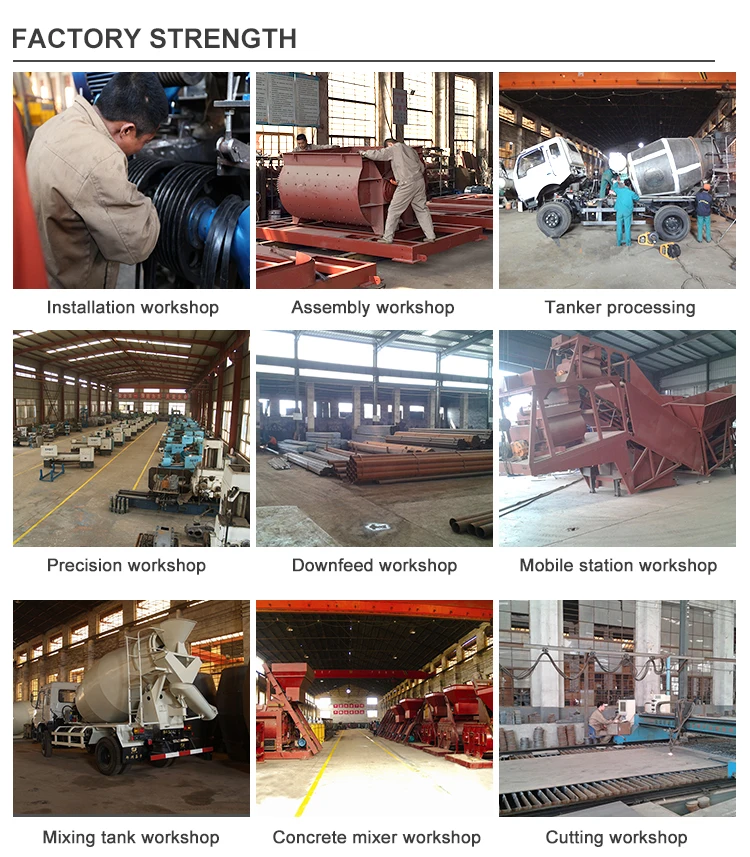

Company Profile
As a professional exporter,our target is to serve worldwide clients with high-quality products,great reliability,devoted responsibility,professional services and honorable credibility to meet customers' requirements in all aspects. Offer skillful after-sale-service specialists are available for all customers at 7/24 hours every week.
FAQ
Q1: How is the quality of your products?
A: our machines are manufactured strictly according to national and intemational standards, and we take a test oneach equipment before delivery You can also use Trade Assurance by Alibaba for product quality protection and on-time shipment protection and payment protection.
A: our machines are manufactured strictly according to national and intemational standards, and we take a test oneach equipment before delivery You can also use Trade Assurance by Alibaba for product quality protection and on-time shipment protection and payment protection.
Q2: How about the price?
A: We are manufacturer, not trading company, we can give you a lower price than those trade companies. We quote as low as possible for any customer, and discount can be given according to quantity.
A: We are manufacturer, not trading company, we can give you a lower price than those trade companies. We quote as low as possible for any customer, and discount can be given according to quantity.
Q3: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after- sale service team to promptly and thoroughly solve your problems . It usually takes 1- 3 days for training，10-15 days for installation,1-2days for
commission,1-2days for pre-operation.
A: Yes. The warranty period of our machines is one year, and we have a professional after- sale service team to promptly and thoroughly solve your problems . It usually takes 1- 3 days for training，10-15 days for installation,1-2days for
commission,1-2days for pre-operation.
Q4:Are you trading company or manufacturer?
A: We are factory. We can design and manufacturer products with our patent.
Q5: What is your payment method?
A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery. We also support L /C, Western Union.
A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery. We also support L /C, Western Union.
