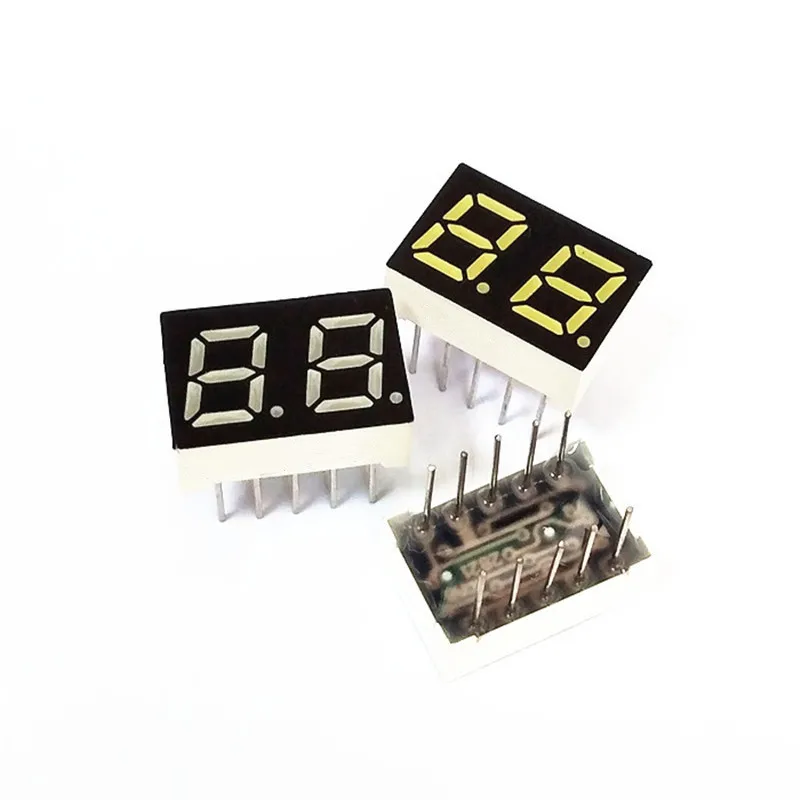

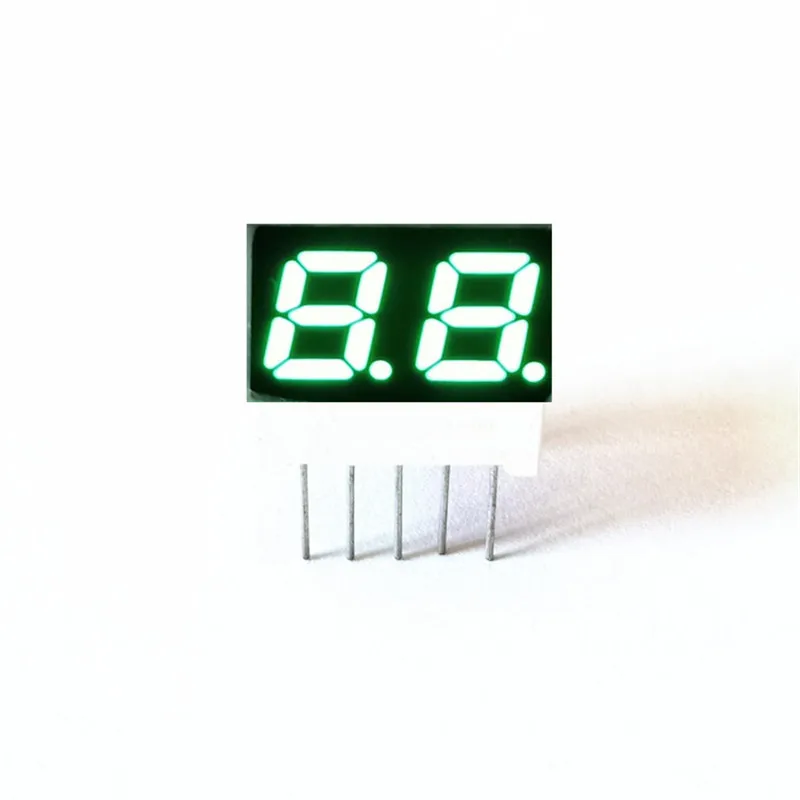

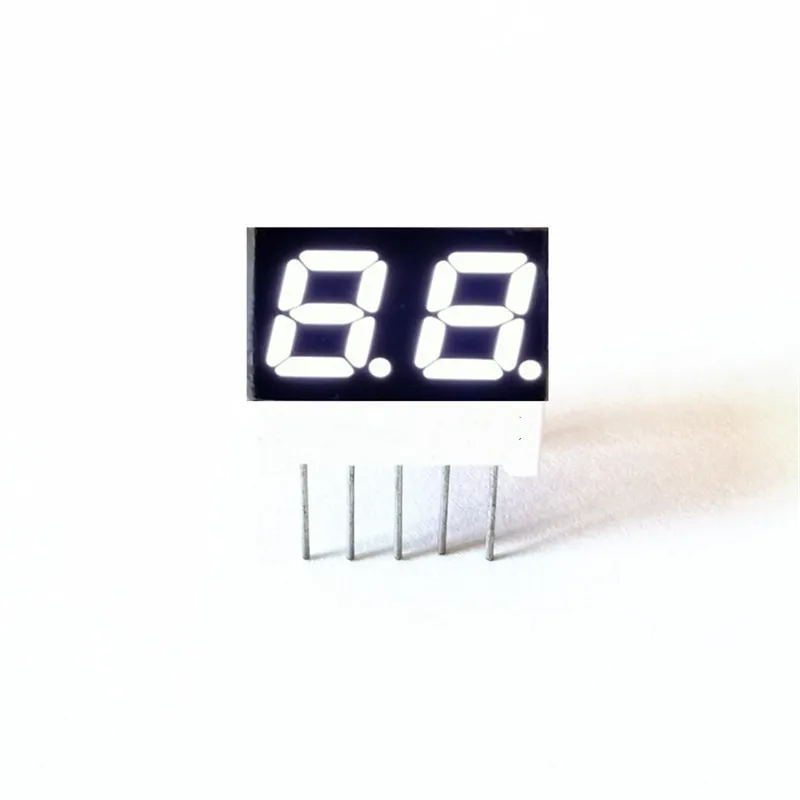

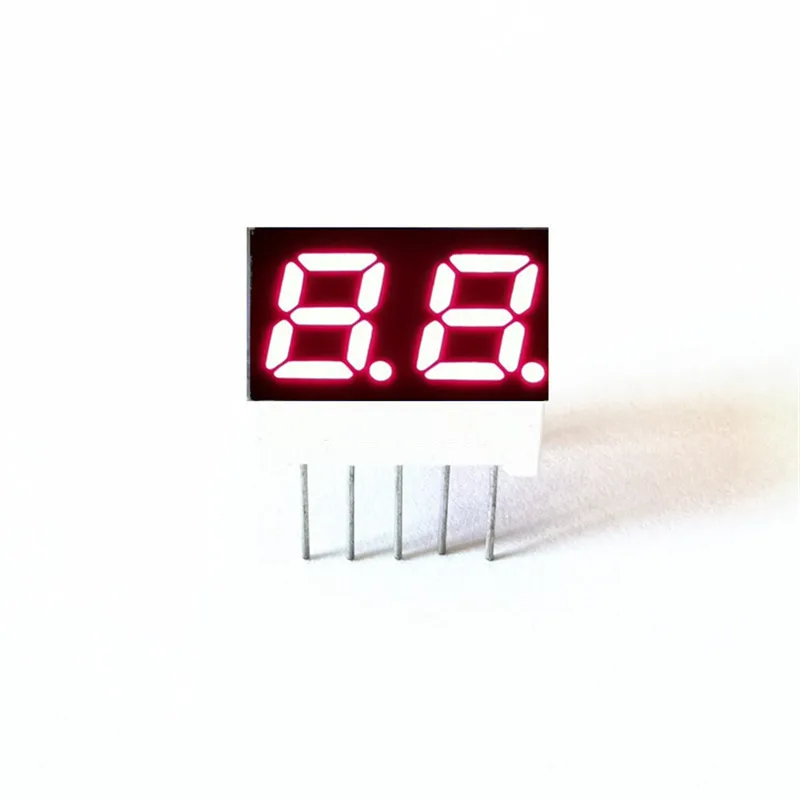

Jstronic mini 0.28 inch 2 digit 7 segment Led Display red blue white Seven Segment LED Panel
- Category: >>>
- Supplier: Ningbo Junsheng Electronics Co. Ltd.
Share on (1601253990690):
Product Overview
Description
Product Description
Jstronic Four digits 7 segment 0.28 inch 4 digit seven segment Led Display
Note: If this PCB layout don't meet your requirements, please contact me for other choices.
Specification
*Ultra segment intensity
*Wide viewing angle
*Range of colors
*Gray or black face White segment
*RoHS compliant
*7 segment display 0.28 inch
0.28 inch 2 digits 7 segment led display
Electro/Optical Characteristics If=20mA Ta=25 C
*Wide viewing angle
*Range of colors
*Gray or black face White segment
*RoHS compliant
*7 segment display 0.28 inch
0.28 inch 2 digits 7 segment led display
Electro/Optical Characteristics If=20mA Ta=25 C
Part Number | EMITTED COLOR | Peak Wavelength (mn) | Vf(V) | Iv(mcd) | ||||||
Common Cathode | Common Anode | Type | Max | Min | Typ | |||||
JSD-2825AUR | JSD-2825BUR | AlGaInP/GaAs Super red | 630 | 2.0 | 2.5 | 50 | 100 | |||
JSD-2825AUE | JSD-2825BUE | AlGaInP/GaAs Ultra red | 625 | 2.0 | 2.5 | 230 | 380 | |||
JSD-2825AUA | JSD-2825BUA | AlGaInP/GaAs Ultra Amber | 605 | 2.0 | 2.5 | 200 | 300 | |||
JSD-2825AUY | JSD-2825BUY | AlGaInP/GaAs Ultra Yellow | 590 | 2.0 | 2.5 | 200 | 300 | |||
JSD-2825AUG | JSD-2825BUG | AlGaInP/GaAs Yellow Green | 574 | 2.0 | 2.5 | 50 | 75 | |||
JSD-2825APG | JSD-2825BPG | InGaN/Sic Pure Green | 525 | 3.2 | 3.8 | 750 | 1000 | |||
JSD-2825AUB | JSD-2825BUB | InGaN/Sic Ultra Blue | 470 | 3.2 | 3.8 | 200 | 250 | |||
JSD-2825AUW | JSD-2825BUW | InGaN/Sic Ultra White | 3.2 | 3.8 | 300 | 500 | ||||
Related Product
Packing & Delivery
Payment
T/T (Bank Transfer) , Western Union,Paypal ,etc
Delivery Way & How to Check
We support famous Express company(DHL,UPS,TNT,Fedex,Post etc..)
Tracking number will be sent to you when we have sent out goods,you can theck your parcel online by yourself.
T/T (Bank Transfer) , Western Union,Paypal ,etc
Delivery Way & How to Check
We support famous Express company(DHL,UPS,TNT,Fedex,Post etc..)
Tracking number will be sent to you when we have sent out goods,you can theck your parcel online by yourself.
Company Profile
Our main is to help customer reach their goals.We are making great efforts to achieve their win-win situation and sincerely,welcome you to join us.

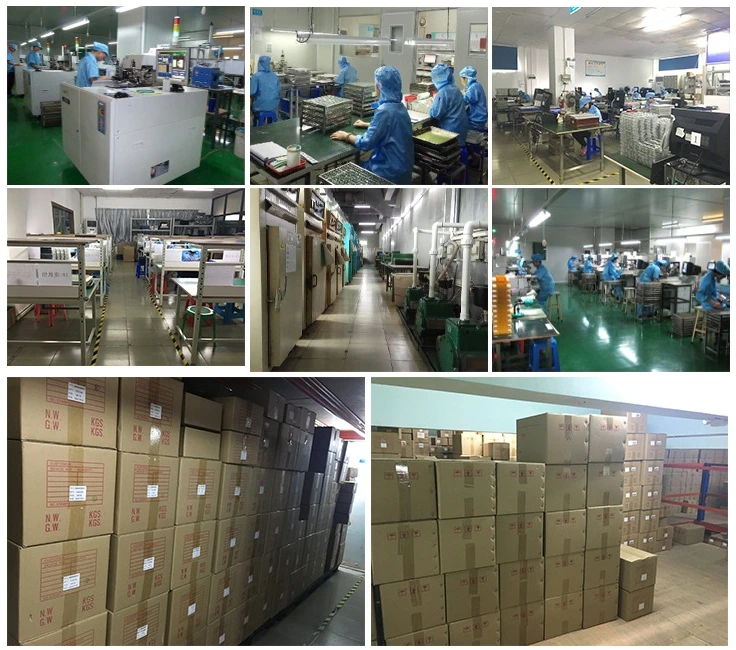

Welcome to visit our factory.
