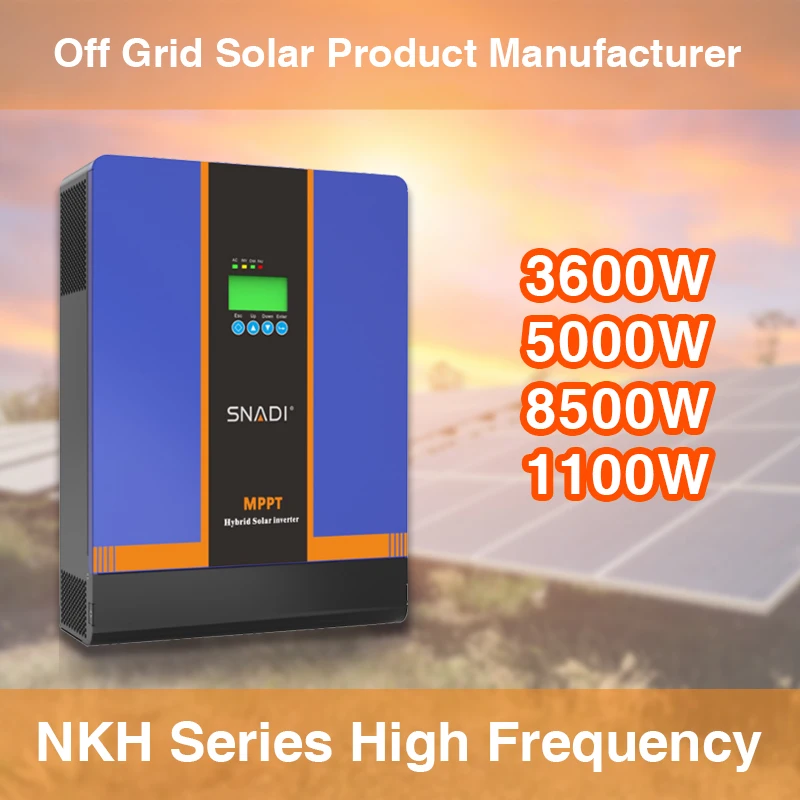

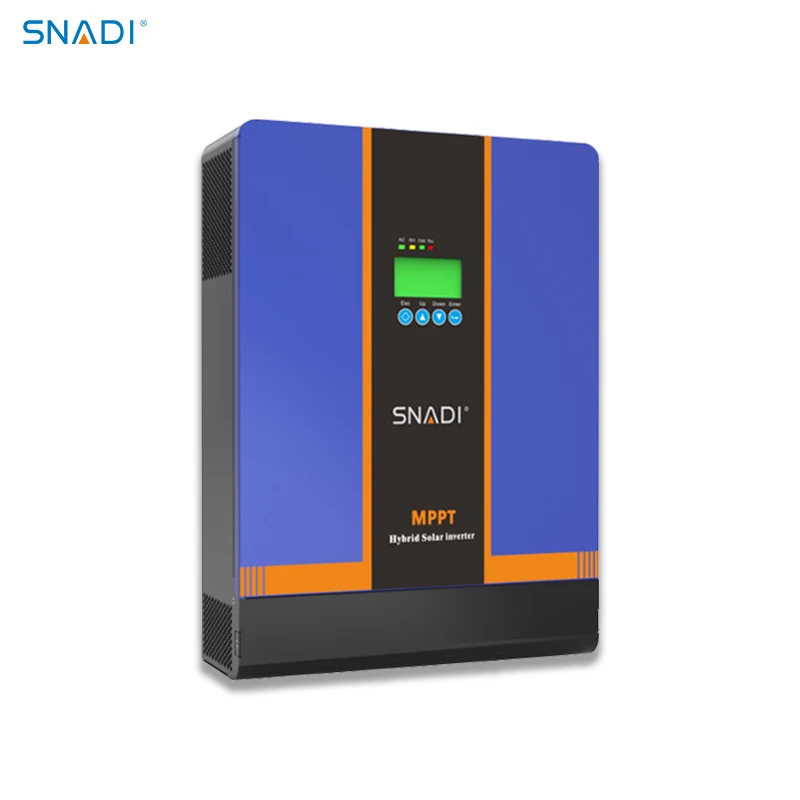

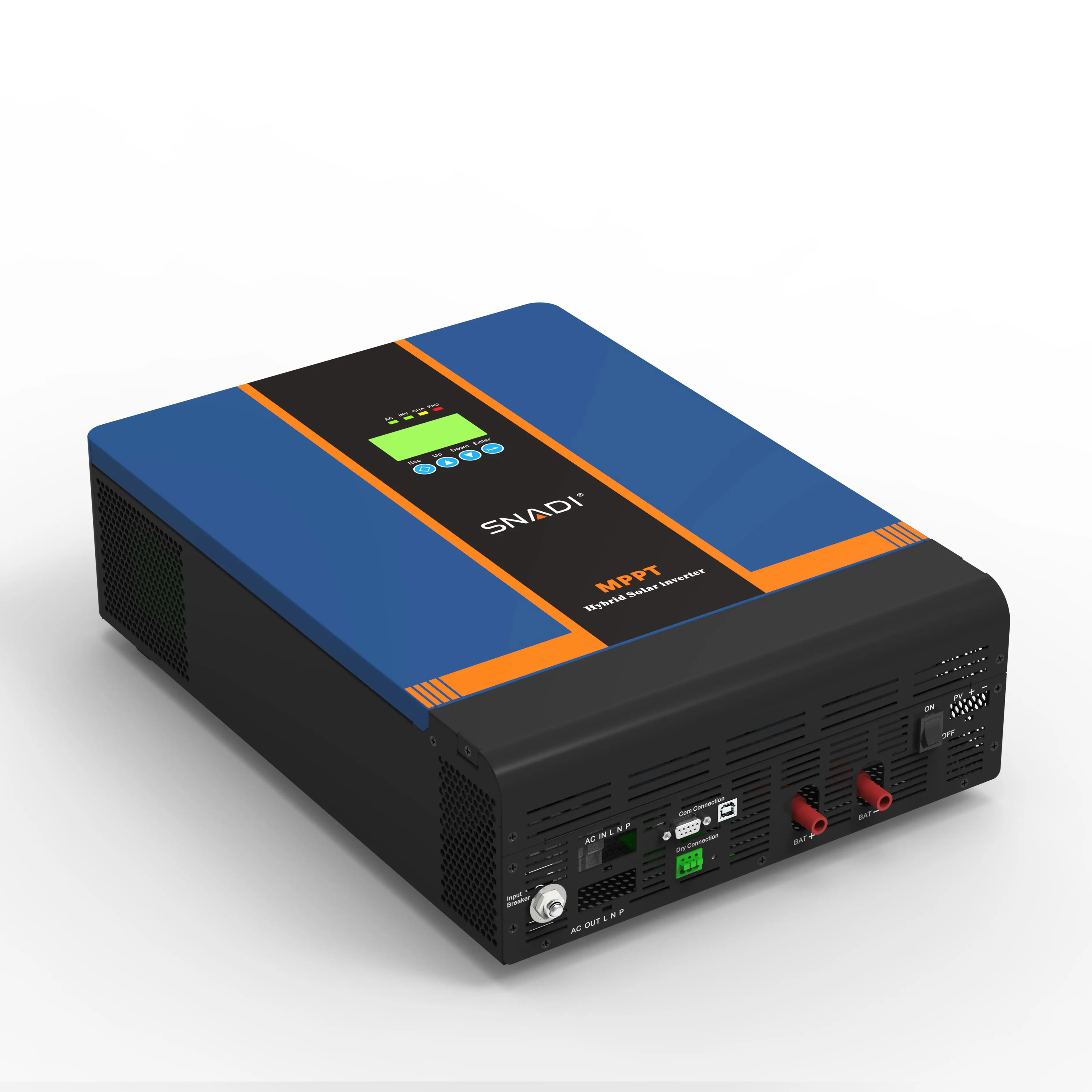

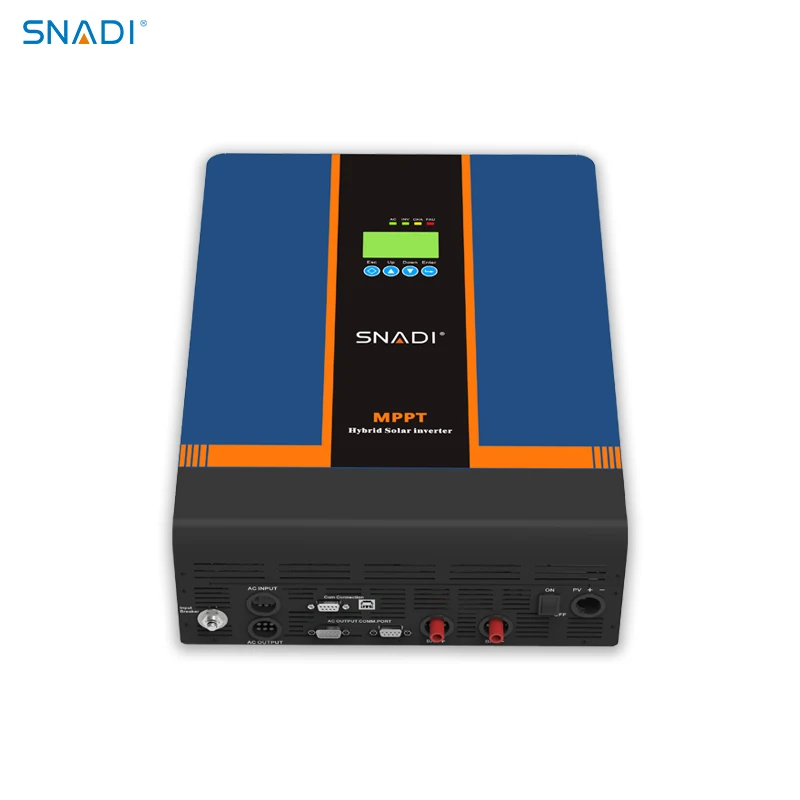

5000w mppt split phase inverter 120v 240v hybrid solar inverter
- Category: >>>
- Supplier: Foshan Snat Energy Electric Technology Co. Ltd.
Share on (1601254018337):
Product Overview
Description
Black Oxide Heat Sink
Used thickened aluminum heat sink improve radiation rate cooling surface is stable and not easy to oxidize, black coating does not interfere with electrical conductivity. This results in better cooling and a longer lifespan for the 40kW inverter grid off. The black finish can improve the overall appearance of the inverter and make it blend more seamlessly with other components.
Powerful Cooling System
A powerful cooling system enhances the safety, durability. It helps maintain optimal operating temperatures, ensuring the grid off pv inverter runs efficiently and effectively. This cooling system prevents overheating, which can lead to equipment damage and failure. Additionally, a well-cooled inverter can handle higher loads without risking performance degradation.
Anti-dust Protection
Reasonable cabinet design with dust-proof net to reduce dust, prevent accidental touch and improve safety performance. Anti-dust features enhance the reliability of the pure sine wave inverter, minimizing downtime and maintenance needs. This protection maintains efficiency by keeping internal components clean and functioning optimally, ensuring stable power conversion.
Model：NKH- | 3.5KVA | 5.5KVA | ||
Rated Power | 3KW | 5KW | ||
AC Input | ||||
Voltage | 208VAC/220VAC/230VAC/240VAC | |||
Selectable Voltage Range | 170-280VAC(For personal computers) | |||
90-280VAC(For home appliances) | ||||
Frequency Range | 50Hz/60Hz（Auto sensing） | |||
AC Output | ||||
AC Voltage Regulation | 230VAC±5% | |||
Surge Power | 6000W | 10000W | ||
Efficiency(peak)PV to INV | 97% | |||
Efficiency(peak)Battery to INV | 93% | |||
Transfer Time | 10 ms(For personal computers)；20 ms((For home appliances) | |||
Battery & AC Charger | ||||
Battery Voltage | 24VAC | 48VAC | ||
Floating Charge Voltage | 27VAC | 54VAC | ||
Overcharge Protection | 32VAC | 64VAC | ||
Maximum AC Charge Current | 60/80A | |||
Solar Charger | ||||
Maximum PV Array Power | 1500W | 5500W | ||
MPPT Range @ Operating Volatge | 90-430VAC | |||
Maximum PV Array Open Circuit Voltage | 450VAC | |||
Maximum Charging Current | 80A | |||
Maximum Efficiency | 98% | |||
Physical | ||||
Dimension,D*W*H(mm) | 439*320*128 | |||
Net Weight(kgs) | 8 | 9.2 | ||
Communication Interface | USB/RS232/GPRS/WIFI | |||
Operating Environment | ||||
Mumidity | 5% to 95% Relative Humidity(Non-condensing) | |||
Operating Temperature | 0℃-55℃ | |||
Storage Temperature | -15℃-60℃ | |||

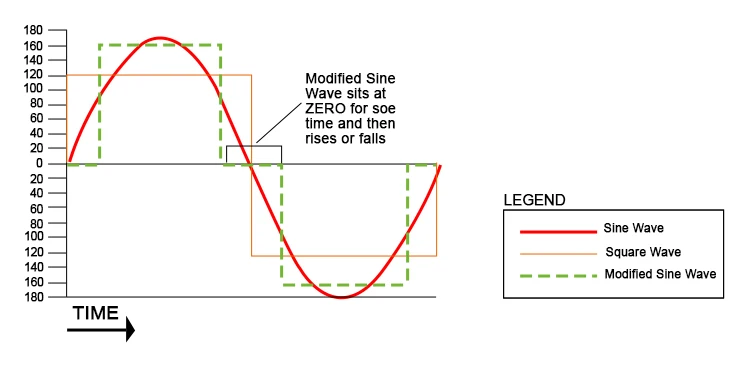

· Pure sine wave output
The electrical waveform output of PH1800 is pure sine wave, which has the same quality as practical power supply or household power supply. This waveform is suitable for most electrical equipment, appliances and tools. This pure sine wave unit provides more functions than an improved sine wave inverter because it has a cleaner form of power. Pure sine wave can also reduce the noise generated when applying electrical appliances to a limited extent.
FAQ
Q1 MOQ
A MOQ form our conpany is required 1 unit.
Q2 Are you manufacturer or trading company?
A We are professional manufacturer since 2004.
Q3 I need this product and wanna a system for family/industrial/commerical using,can you help me?
A Yes,we have professional technology team average 10 years experience,they can design solar power system in accordance with customers' special requirements.
Q4 How long is your delivery time?
A Within 15 days.
Q5 How about your after sales service?
A Our quality warranty for 1-2 years,any parts will be shipped for free during warranty period.
