Factory Direct Sale 30 Micron Fuel Dispenser Oil Filter R18189 30 Spin on Filter with Adaptor
- Category: >>>
- Supplier: Zhengzhou Dinly Filter Co. Ltd.
Share on (1601254130914):
Product Overview
Description
Products Description
R18189-30 Fuel Dispenser Filter with Adaptor
Features:
1.The Model R18189-30 Cross References with the Cim-Tek 70016(400-30) and PertoClear 40530P-AD.
2.R18189-30 is particulate removing spin-on filters designed to remove particulate from neat gasoline, Ethanol blended gasolines, diesels, BiodieselULSD (Ultra Low Sulfur Diesel), kerosene and fuel oils.
3.R18189-30 is pariculate removing filters. These filters are designed for particulate removal only and will not react to water infuels or phase separation in ethanol blended gasoline to slow flow.
4.Compatible with gasoline, diesel,ethanol and methanol blends up to 10%,and ULSD(ultra-low sulfur diesel).
5.Designed for gasoline or diesel service station pumps,commercial fueling dispensers.
6.When contaminates such as dirt, rust, and microbial growth (non-liquid contamination) pass through the filter, the media captures the particulate.
2.R18189-30 is particulate removing spin-on filters designed to remove particulate from neat gasoline, Ethanol blended gasolines, diesels, BiodieselULSD (Ultra Low Sulfur Diesel), kerosene and fuel oils.
3.R18189-30 is pariculate removing filters. These filters are designed for particulate removal only and will not react to water infuels or phase separation in ethanol blended gasoline to slow flow.
4.Compatible with gasoline, diesel,ethanol and methanol blends up to 10%,and ULSD(ultra-low sulfur diesel).
5.Designed for gasoline or diesel service station pumps,commercial fueling dispensers.
6.When contaminates such as dirt, rust, and microbial growth (non-liquid contamination) pass through the filter, the media captures the particulate.

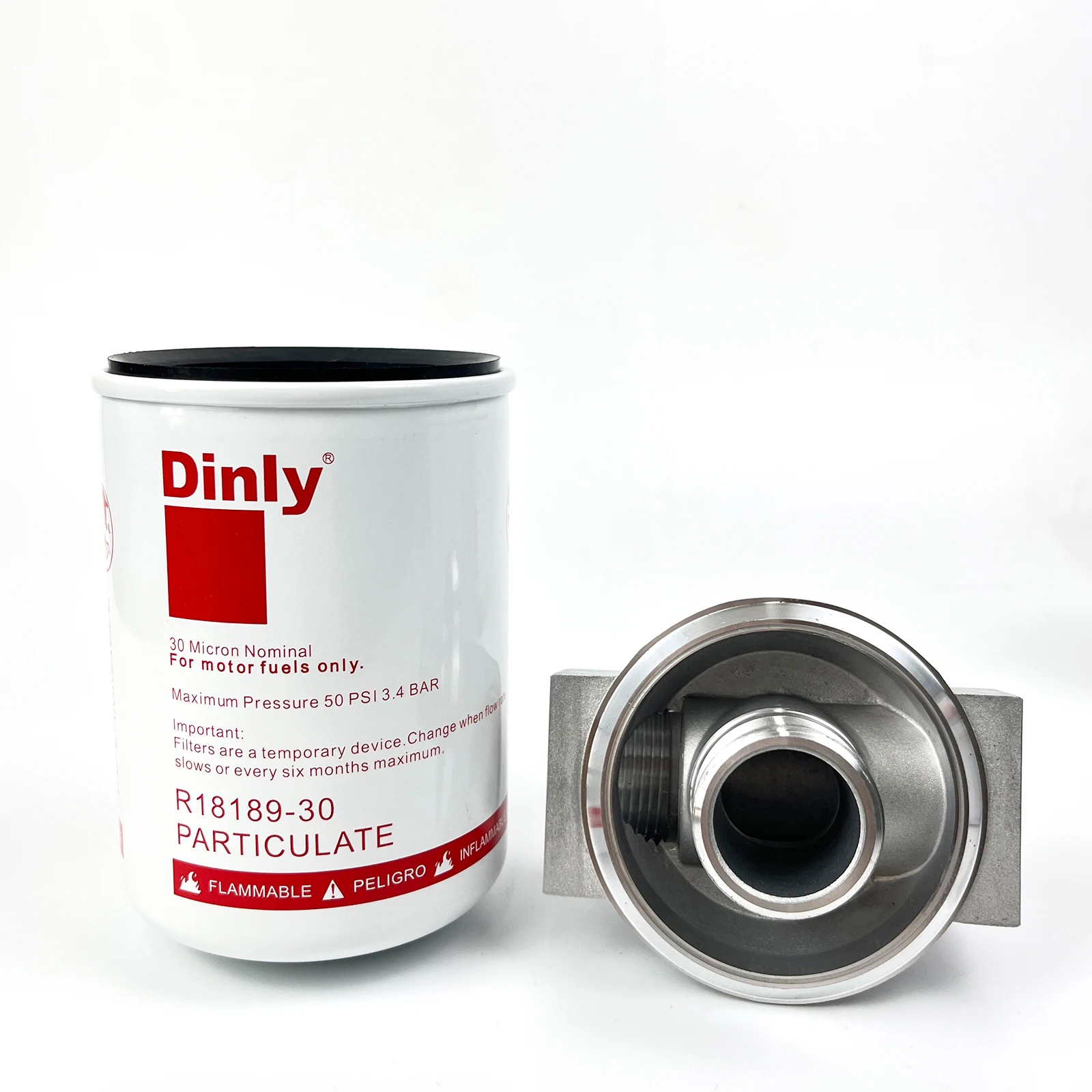

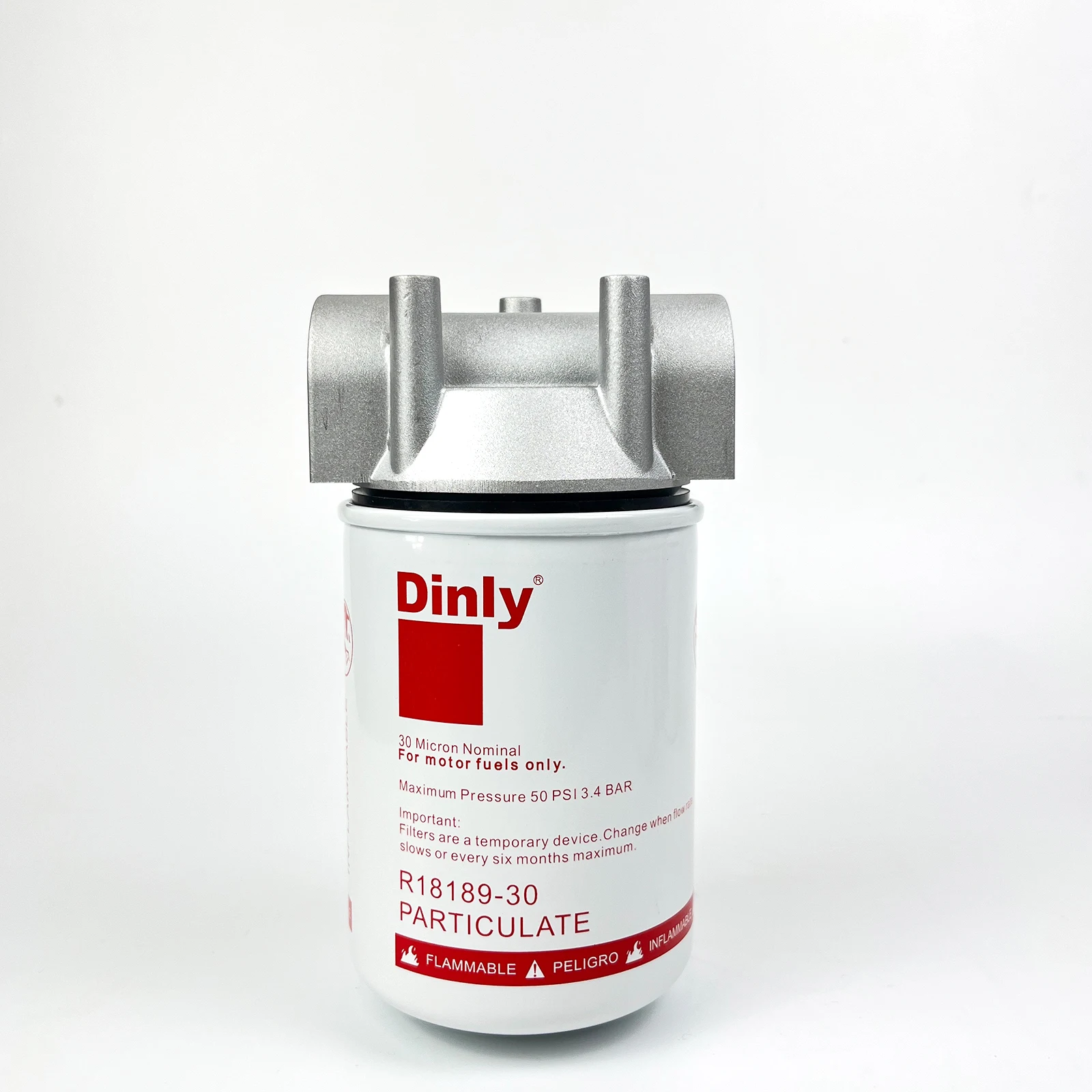

Details Images

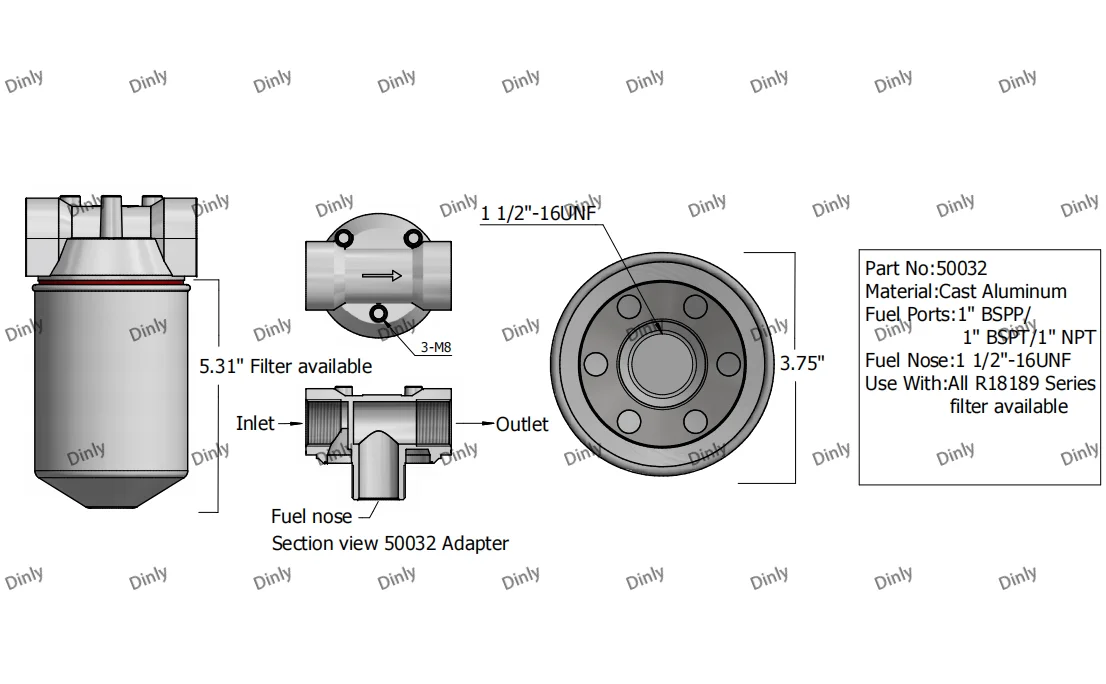

Thread Size: 1 1/2"-16UNF
The model R18189-30 utilizes a standard 1 1/2"-16 UNF mounting thread ref. (1" flow) required for most spin-on filter adapters used in Gilbarco, Wayne, Bennet, Tokheim and other major manufacturers’ dispensers,as well as with adapters used in the aftermarket.
Product Paramenters
Fuel Type | Straight Gasoline, Ethanol Blends up to 10%,Diesel/ULSD |
Function | Remove Particulate |
Thread Size | 1 1/2"-16UNF |
Fuel Ports | 1"BSPP / 1"BSPT / 1"NPT |
Material | Cast Material |
Max Flow | 25GPM,94.6LPM |
Max Working Pressure | 50PSI,3.4BAR |
Max Differential Pressure | 25PSID,1.7BAR |
The color tells you what the filter does
Red: Remove particulate
The color tells you what the filter does
Blue: Remove particulate & detect water
The color tells you what the filter does
Green: Remove particulate & detect water or phase separation

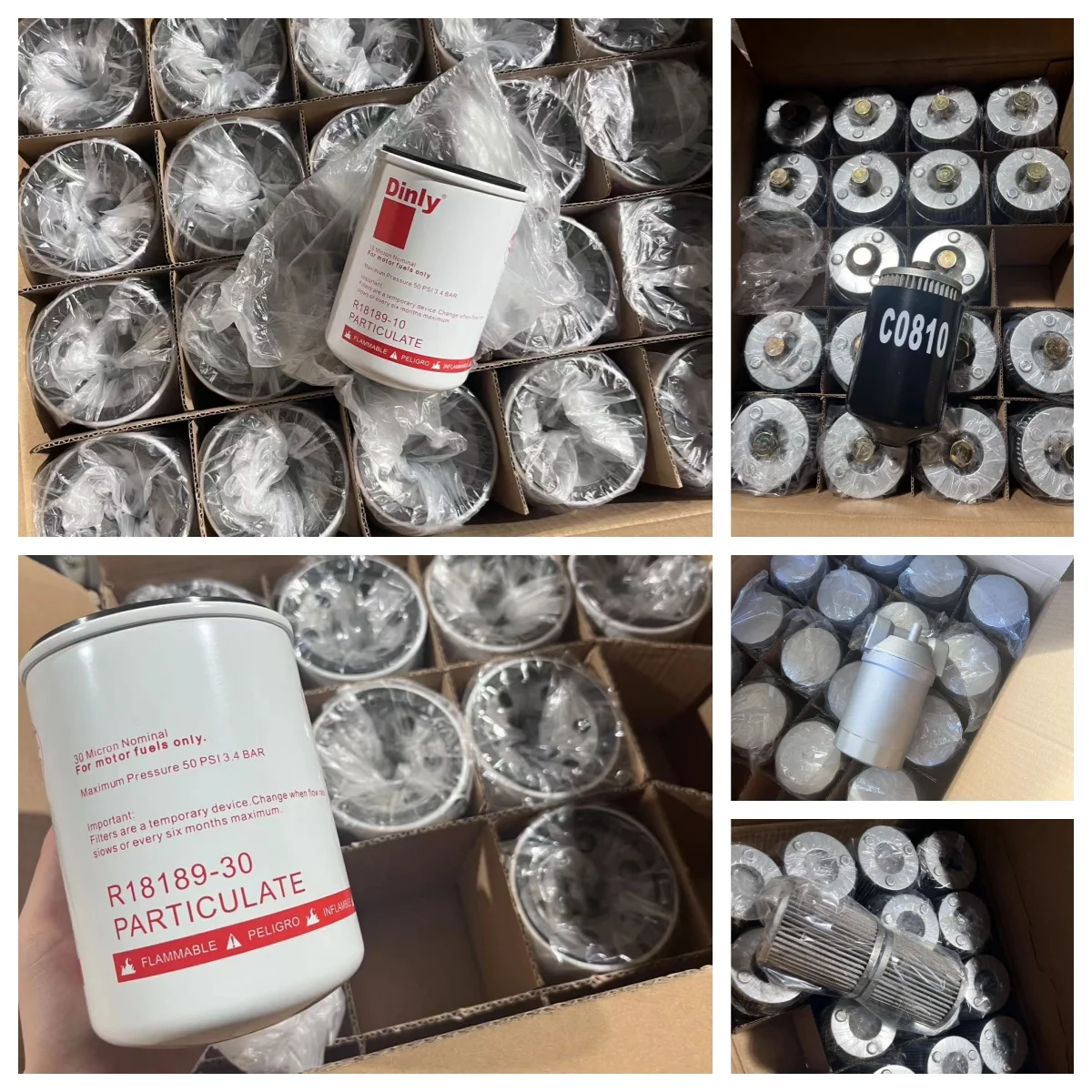

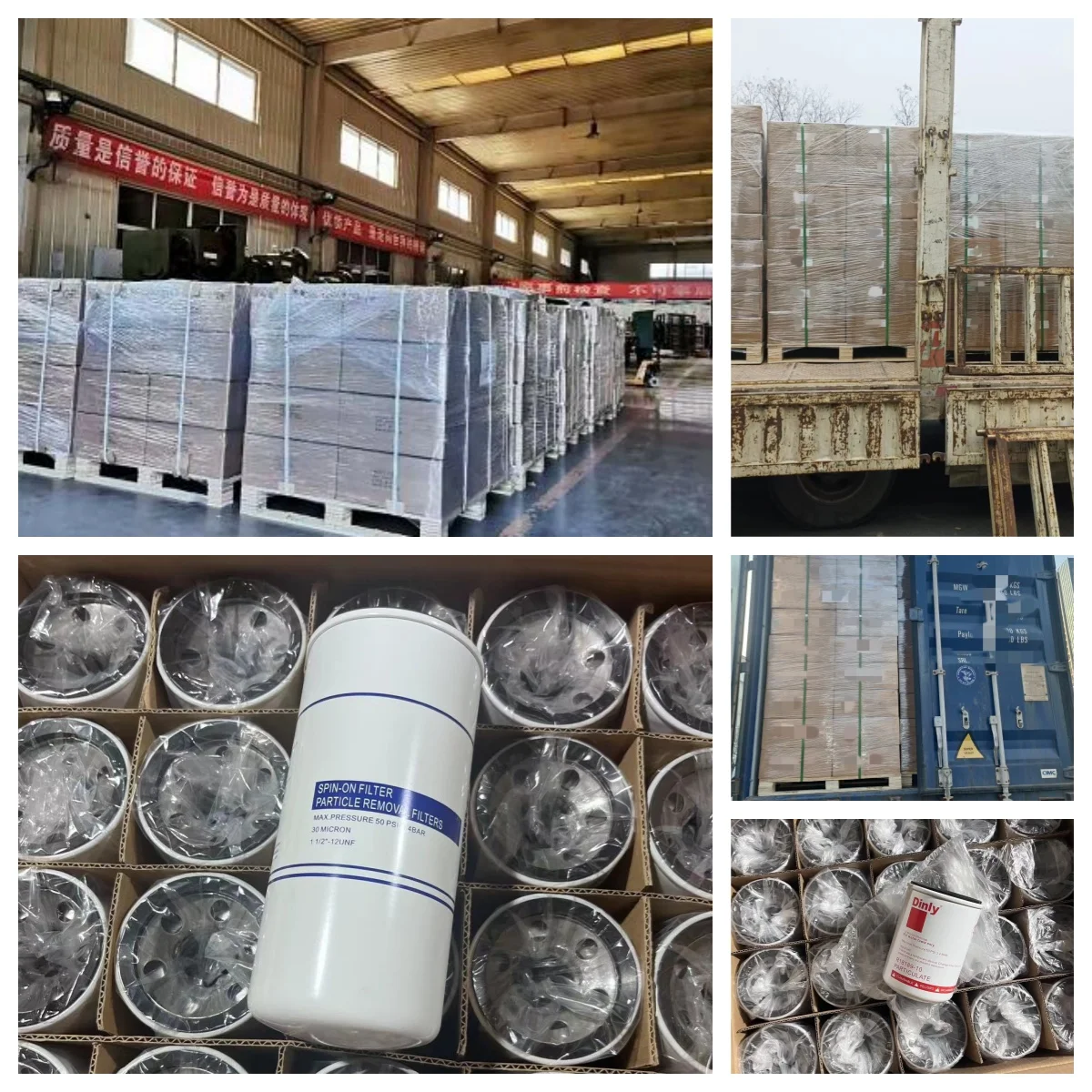

Product packaging

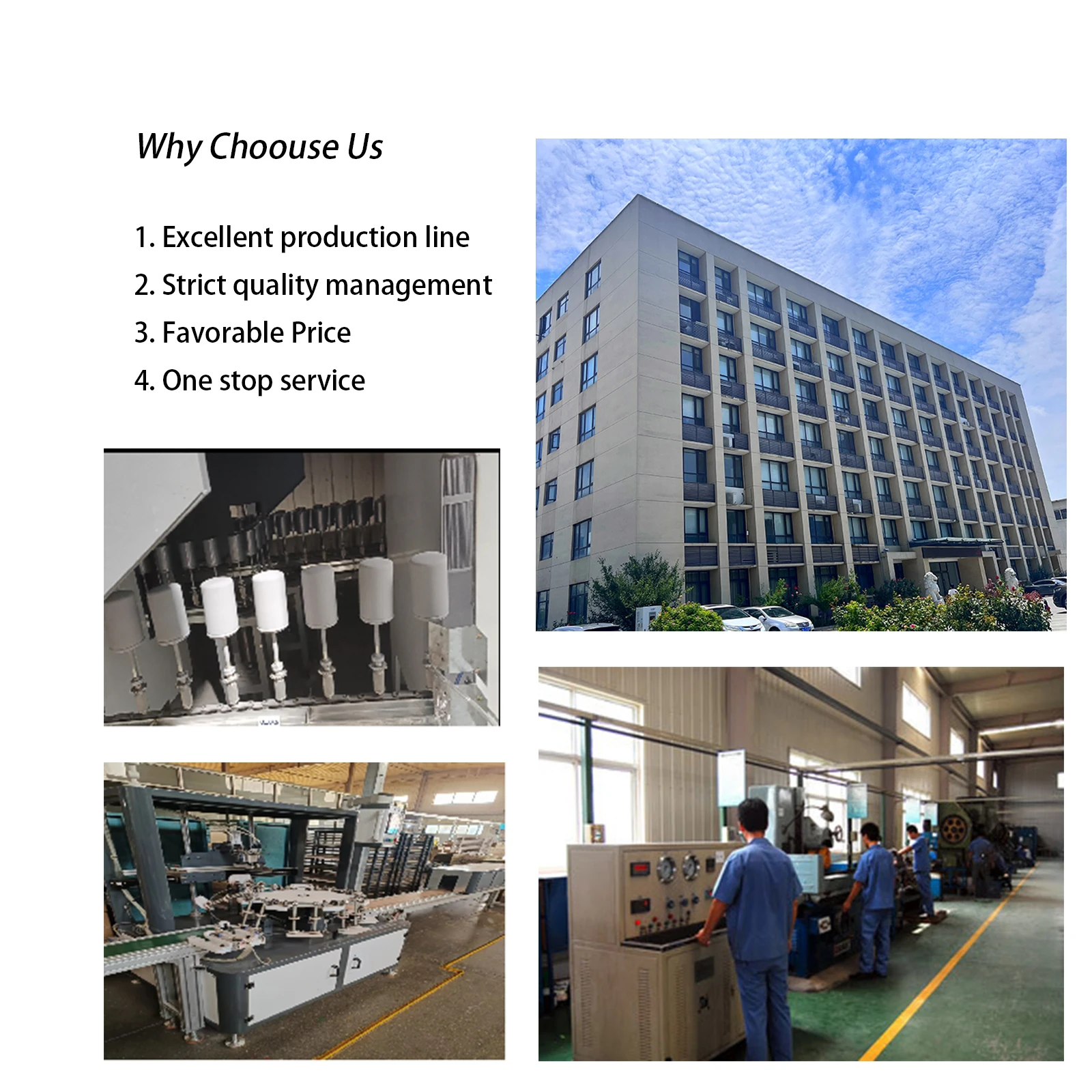

Company Profile
Zhengzhou Dinly Filter co., Ltd
Established in 2004, Zhengzhou Dinly filter Co., Ltd (Dinly) is a national high-tech enterprise that located in Zhengzhou High-tech Development zone, whichis a factory focus on the research and development, manufacturing and sales of fuel dispenser filters.
With the benefit of complete technical system and ability of continuous innovation, Dinly owes more than 30 patents and other independent intellectual property rights.Dinly has a complete enterprise standard system, the manufacturing system is operated in strict accordance with lS09001 quality management standard,lS014001 environmental management standard,IS045001 Safety management standard.Dinly has advanced automatic production equipment with an annual capacity of more than 800,000 flters, and provided customers with fast delivery and thoughtful after-sales service.
At present, Dinly's business has covered over 50 foreign countries and regions, which has a long-term partnership with China Sinopec, CNPC and other well-known fuel dispenser manufacturers.Dinly is one of the earliest conglomerates in the feld of fuel dispenser filters which has a management and technical team with more than 20 years of senior experience, could provided customers with reasonable fuel filtration solutions.
Certifications
FAQ
Q1 : Why choose us?
A1 : We focus on the design, research and development, production, and sales of oil filtration in the fuel
dispenser industry.
Q2 : Are you factory or trader?
A2 : We are a factory, Since 2004 year.
Q3 : Where is your Location ?
dispenser industry.
Q2 : Are you factory or trader?
A2 : We are a factory, Since 2004 year.
Q3 : Where is your Location ?
A3 : We are located at No. 9 Changchun Road, Zhengzhou High-tech Industrial Development Zone.welcome
to visit.
Q4 : What is the service time?
A4 : Available 7days,24hours for you.
Q5 : Could you offer door to door service?
A5 : Yes. We have many shipping options to choose.
Q6 : When it will be produced after ordering?
A6 : Arrange production immediately after paymen.
to visit.
Q4 : What is the service time?
A4 : Available 7days,24hours for you.
Q5 : Could you offer door to door service?
A5 : Yes. We have many shipping options to choose.
Q6 : When it will be produced after ordering?
A6 : Arrange production immediately after paymen.
