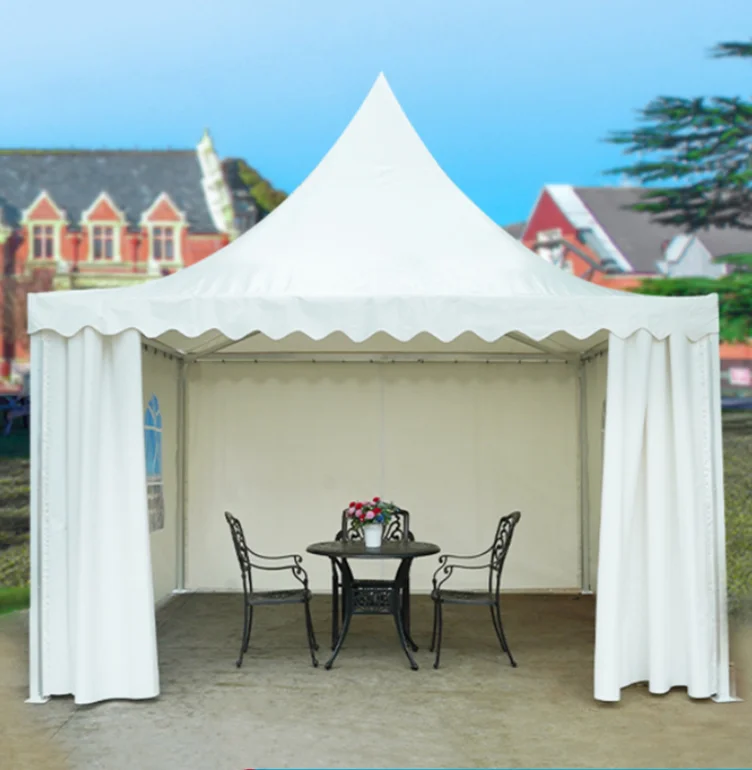

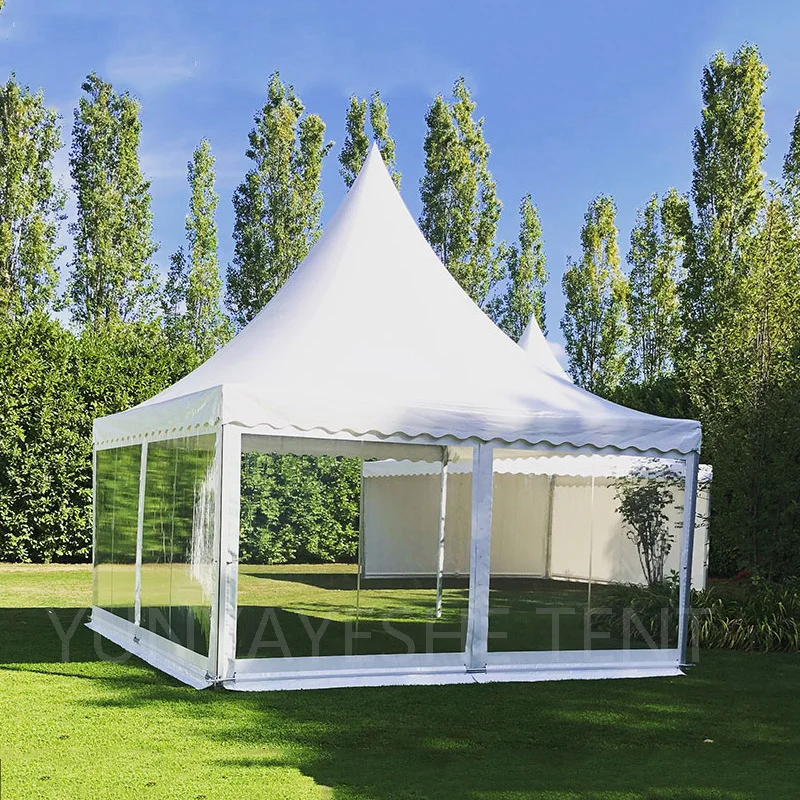

Luxury marquee party 3X3 4X4 5X5 Outdoor Wedding party tent aluminium frame pagoda white pvc stretch Gazebo maquee event tent
Luxury marquee party 3X3 4X4 5X5 Outdoor Wedding party tent aluminium frame pagoda white pvc stretch Gazebo maquee event tent
Luxury marquee party 3X3 4X4 5X5 Outdoor Wedding party tent aluminium frame pagoda white pvc stretch Gazebo maquee event tent
Luxury marquee party 3X3 4X4 5X5 Outdoor Wedding party tent aluminium frame pagoda white pvc stretch Gazebo maquee event tent
Luxury marquee party 3X3 4X4 5X5 Outdoor Wedding party tent aluminium frame pagoda white pvc stretch Gazebo maquee event tent
Luxury marquee party 3X3 4X4 5X5 Outdoor Wedding party tent aluminium frame pagoda white pvc stretch Gazebo maquee event tent
Luxury marquee party 3X3 4X4 5X5 Outdoor Wedding party tent aluminium frame pagoda white pvc stretch Gazebo maquee event tent

Luxury marquee party 3X3 4X4 5X5 Outdoor Wedding party tent aluminium frame pagoda white pvc stretch Gazebo maquee event tent

Share on (1601254174358):


Price:

Quantity:


Product Overview

Description





 Specification





3x3m 5x5m10x10m canopy tent gazebo tent for event trade show outdoor pagoda tent Luxury marquee party 3X3 4X4 5X5 Outdoor Wedding party tent aluminium frame pagoda white pvc stretch Gazebo maquee event tent

The advantage pagoda tent: 1. Elegant high peak roof line 2. Easy to assemble and dismantle 3.No machinery required 4. Patented roof cover fixing solution of aluminum tube 5. The new roof cover fixing reduces the assembly time and physical effort Single unit but can be combined by a rain gutter to make a larger space and a special structure style So the pagoda tent become more and more popular, It is used in many outdoor activities .















































Frame


Hard pressed extruded Aluminum alloy T6061/T6







Cover



Material: PVC Double-side coated polyester fabric


Roof cover : 850g/sqm block out white PVC fabric


Sidewall : 650g/sqm translucent White PVC walls/Glass Wall/ABS Wall


Features :100%waterproof ,UV resistance,fire retardant (DIN4102,B1M2)


Windows


Clear PVC windows(optional)


Color


white ,transparent or any color you like


Accessory


PVC Door or Glass Door,decoration lining,Insulation,Ventilation window,etc


Installation


Easy to be assembled and dismantled, movable. No pole inside, tent space can be 100% utilized.


Wind load


100km/h


Snow load


75KG/SQM

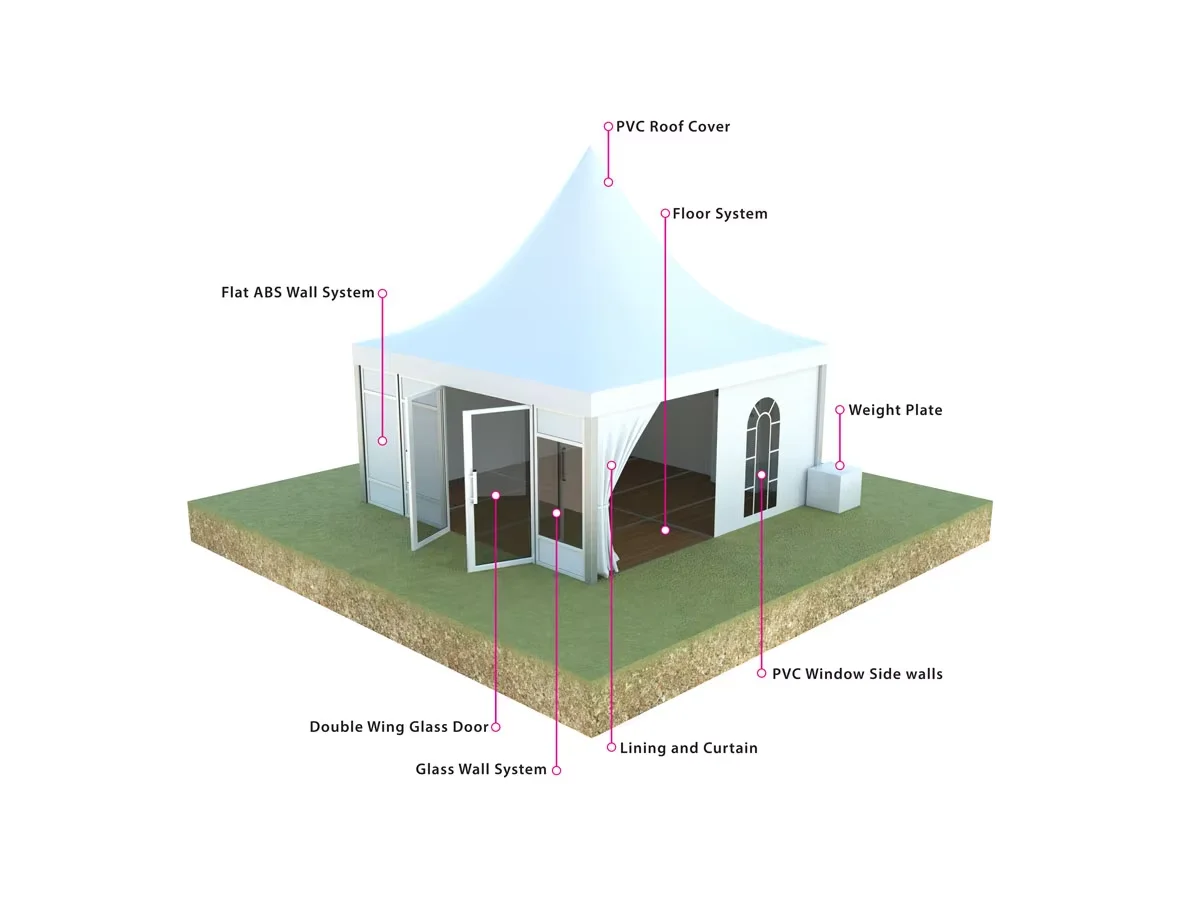

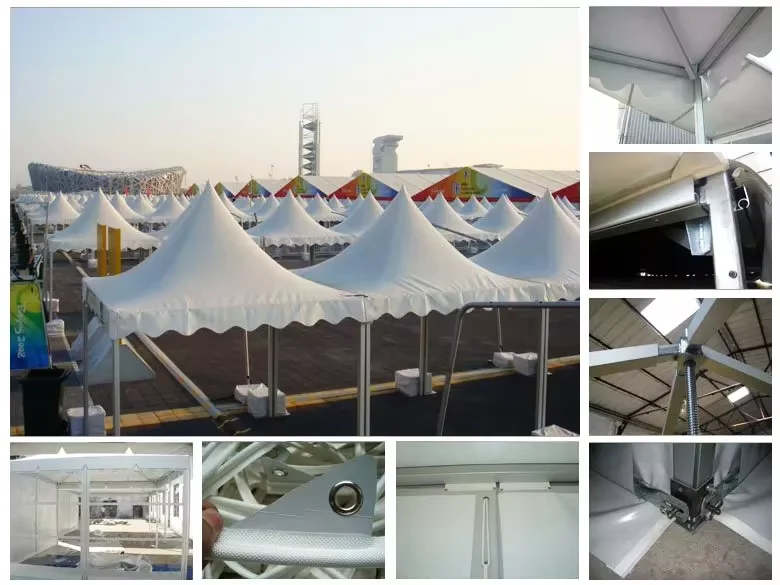

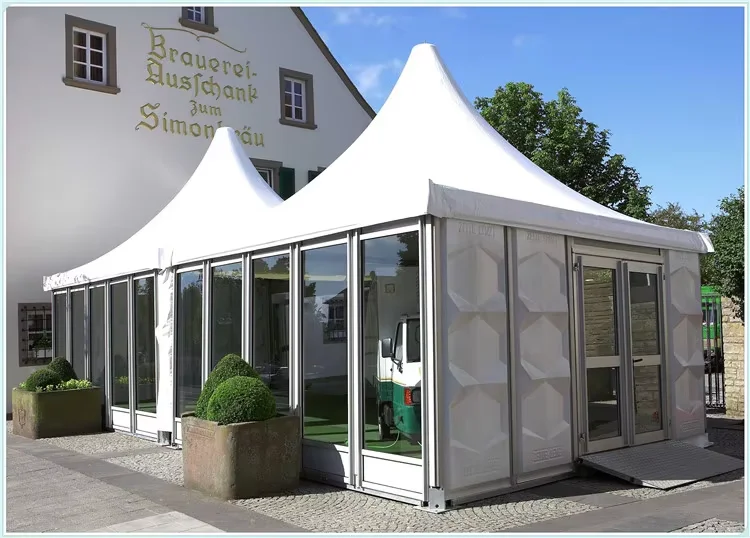

pagoda gazebo tent (1).pngpagoda gazebo tent (2).pngpagoda gazebo tent (3).png

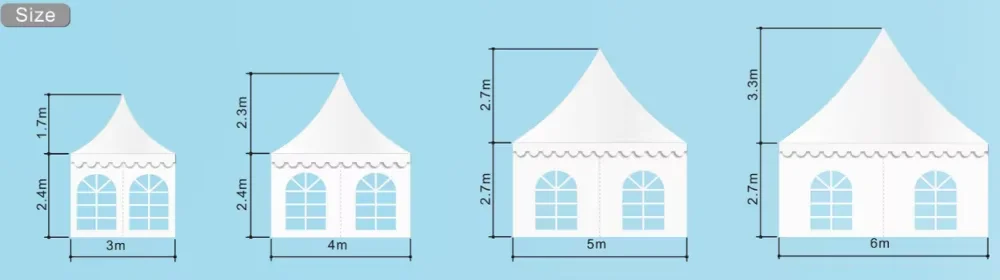

SIZE OPTIONS

The standard Pagoda Tent series are available in 3x3m, 4x4m, 5x5m and 6x6m. with a side height of 2.5m. This type of Pagoda Tent adopts a 3 channel 65x65x2.5mm aluminum alloy main profile. The standard 8x8m and 10x10m Pagoda with a 2.6 side height adopts a 4 channel 122x68x3mm aluminum alloy main profile. Wind load capability is 80km/h (0.3kn/m2). Pagoda Tents can be used as a single unit or combined to enlarge space and become a special structure style with a rain gutter.

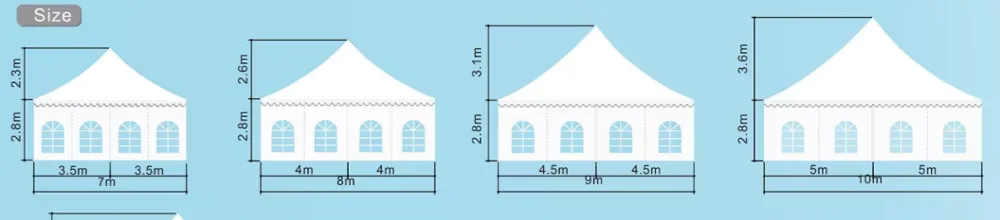

Size Chart for Reference




Span Width




Side Height/m




Top Height/m




Frame Size/mm




3m*3m




2.5m




4.30m




63*63*2




4m*4m




2.5m




4.90m




63*63*2




5m*5m




2.5m




5.56m




65*65*2.5




6m*6m




2.5m




5.95m




65*65*2.5




7m*7m




2.5m




5.86m




48*84*3




8m*8m




2.5m




6.10m




122*68*3




10m*10




2.5m




6.36m




122*68*3




etc. ...

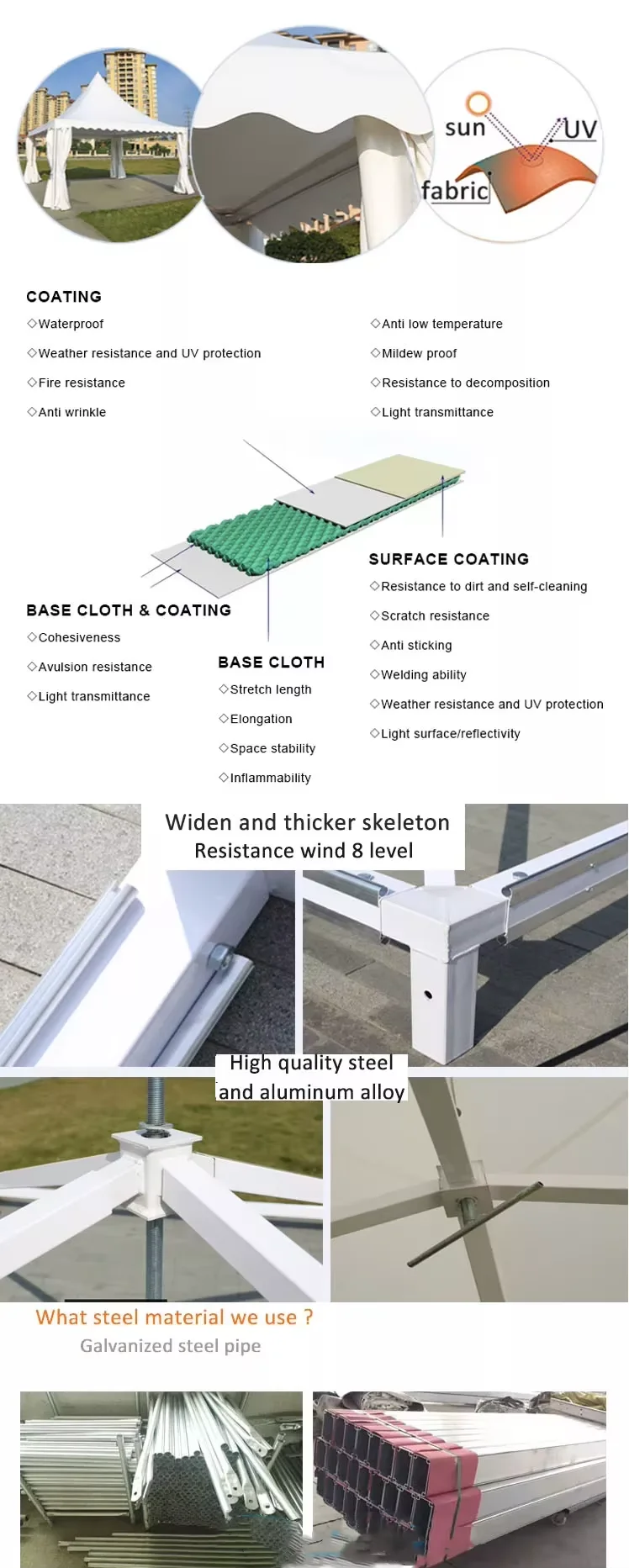

pagoda gazebo tent (4).pngpagoda gazebo tent (5).pngpagoda gazebo tent (6).png

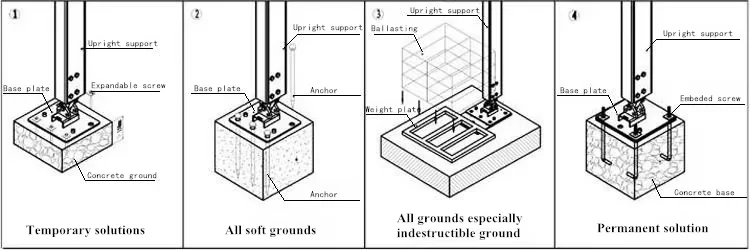

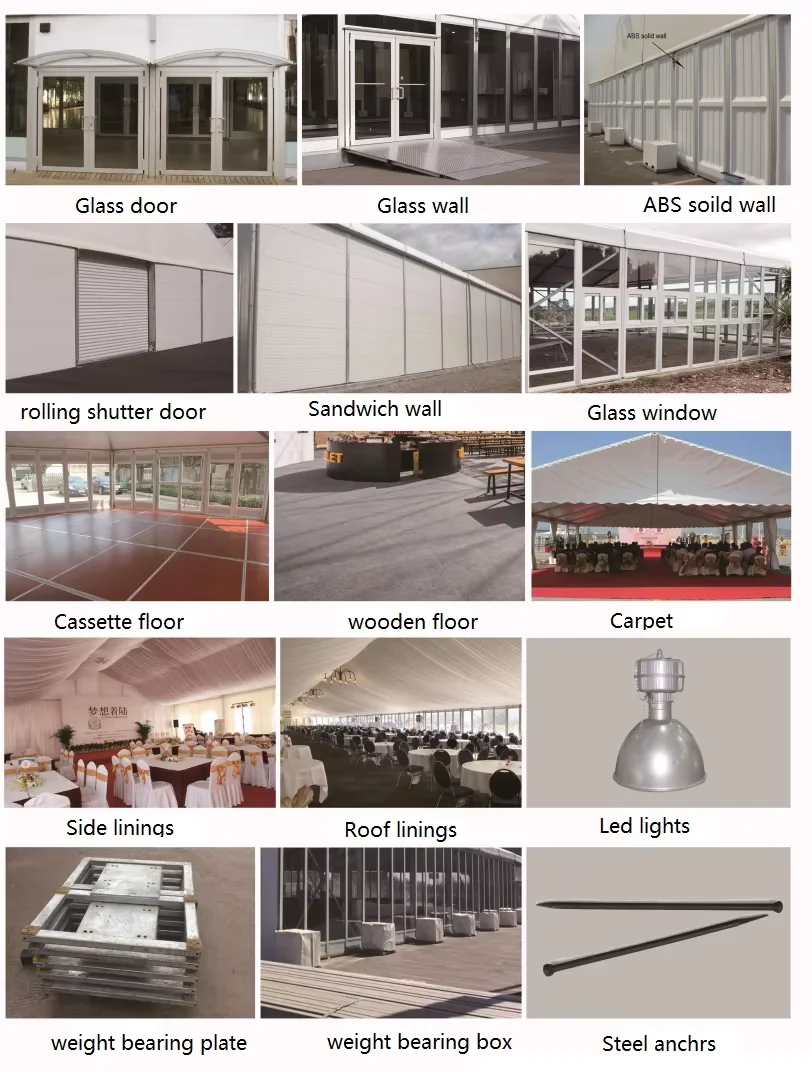

Accessories optional

Accessories optional






The tent can be customized with different accessories and the sizes. Here is some for reference, if you are interested in more details, you can send us inquiry for more details, we can do the exact price for you.






pagoda gazebo tent (7).pngpagoda gazebo tent (8).png

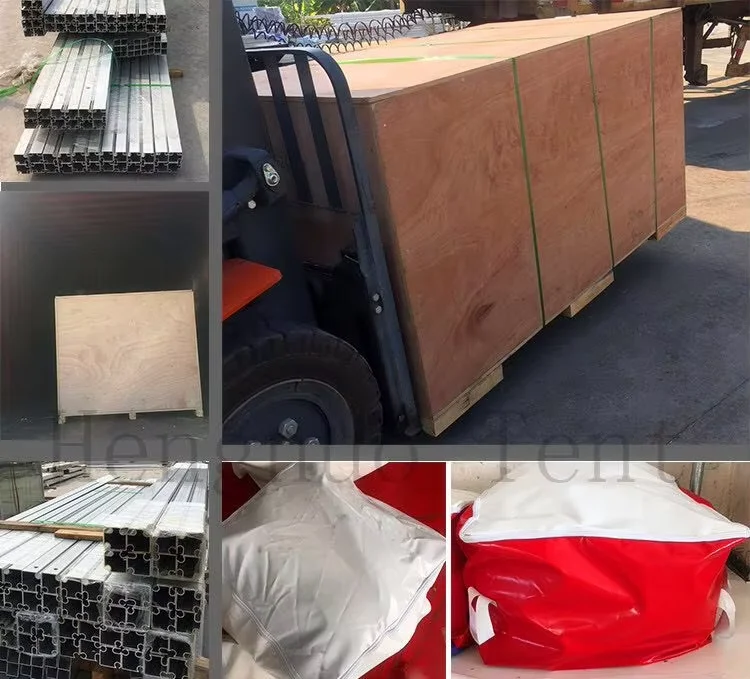

Packaging & Shipping


 pagoda gazebo tent (9).png

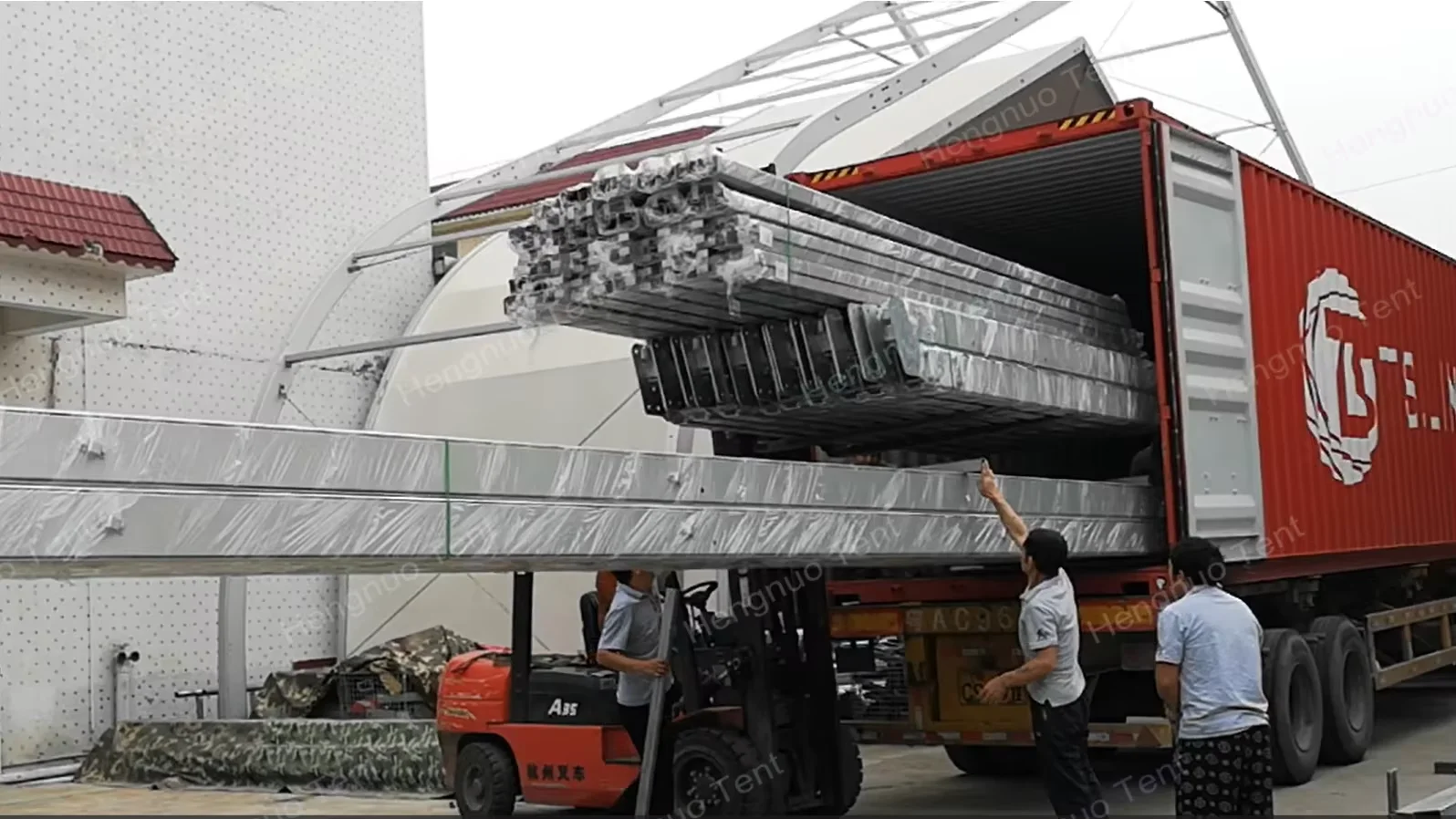

gazebo tent.png








Company Information


Yestone Co., Ltd. is an outdoor products supplier with 15 years of experience in OEM and ODM customization of outdoor tents, portable gas stoves, sleeping bags, etc.


Our customers include: REI, North Face, Columbia, Wal Mart, GoLite and other international well-known brands. We are very happy to win the trust of these clients.


Our greatest competitiveness lies in a small minimum order quantity and flexible customization services.


We will continue to be willing to realize your wishes and help you become better during our cooperation.company.png
