Tobee Effluent Handling
$12,600

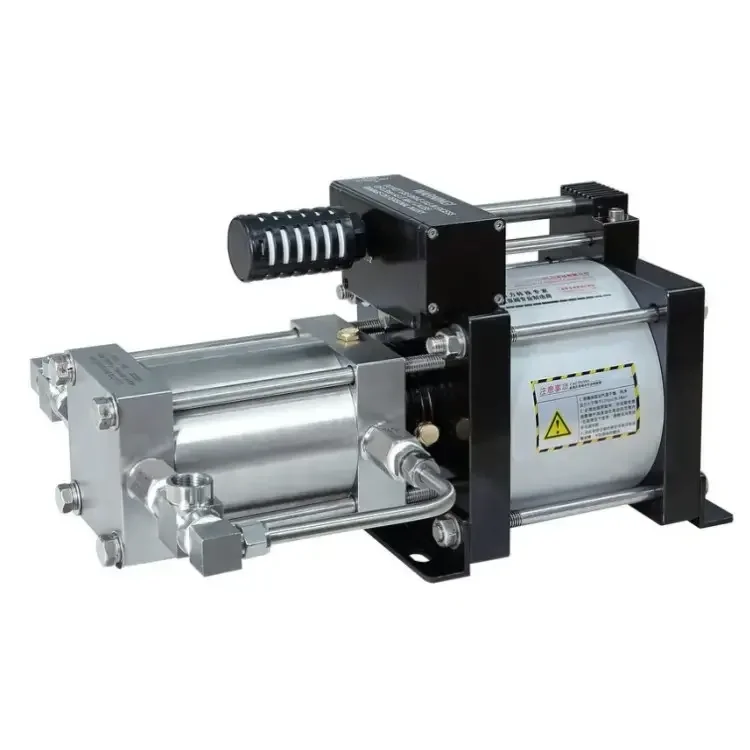

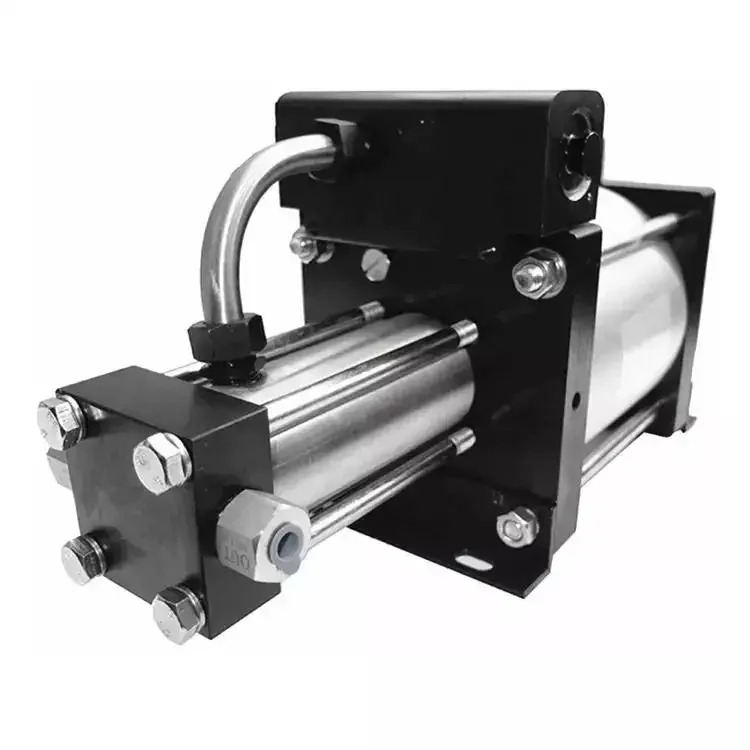

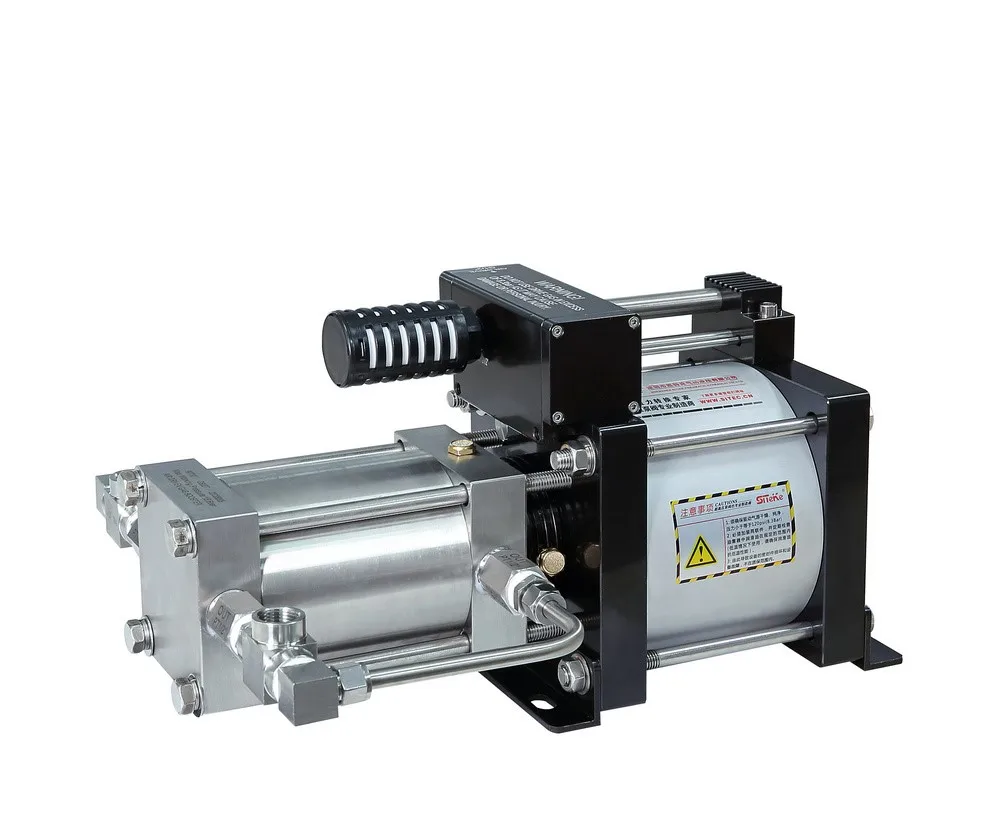

Model WYGB75 High Pressure Mini Pneumatic CO2 Booster Pump
- Category: >>>
- Supplier: Chongqing Weiyun Technology Development Co. Ltd.
Share on (1601254188355):
Product Overview
Description
Product Description
WYGB series gas booster pump is a single-acting single-acting gas booster pump with compressed air.
It has the advantages of high safety, high output pressure, no energy consumption for maintaining pressure, and some products are equipped with a gas rapid cooling device.
Features
1.Gas drive ensures that the medium does not generate heat, sparks and flames during the transmission process, and it is safe to pressurize;
2.Driving gas does not need lubrication and is completely isolated from the pressurized medium to ensure that the medium is clean;
3.Output pressure can reach up to 830bar;
4.Suitable for oxygen, nitrogen, methane, carbon dioxide and other media;
5.Product is reliable, easy to maintain, sturdy, sealed, and has a long service life, which can be started and stopped continuously;
Main features
1.WYGB series is based on static pressure, when the driving air pressure is 7bar, the air consumption is 1.0m3/min;
2.Driving pressure is 1bar-8.3bar (14.5-120.35psi), and the GB series is a single driving piston (Φ160mm);
3.Temperature of the medium is not higher than 115°C (240°F), and the extremely low temperature should be specified when ordering;
4.High pressure end materials can be customized 17-4PH,15-5PH, 440C, hastelloy,nickel-based alloy, and other materials to meet the requirements of special media;
5.Standard product of WYGB series is nitrogen pressurization, the order code is such as: WYGB40 (series code + pressurization ratio);
Description of special products
About medium: WYGB series can be applied to a variety of media, order code such as: WYGB30-O2 (series code + boost ratio + boost medium)
About the interface: If you need special media interface, please specify when ordering.
Application scenarios
1.WYGB series gas booster pump is suitable for occasions with high gas source, high output pressure and small flow requirements.
2.Air tightness test of various pressure components;
3.Nitrogen filling of high pressure accumulators;
4.Filling of diving breathing oxygen cylinders;
5.Filling of fire breathing air cylinders;
6.Calibration of high pressure safety valve;
7.Filling the reaction medium into the reaction device;
8.Recycling and reuse of special gases.
It has the advantages of high safety, high output pressure, no energy consumption for maintaining pressure, and some products are equipped with a gas rapid cooling device.
Features
1.Gas drive ensures that the medium does not generate heat, sparks and flames during the transmission process, and it is safe to pressurize;
2.Driving gas does not need lubrication and is completely isolated from the pressurized medium to ensure that the medium is clean;
3.Output pressure can reach up to 830bar;
4.Suitable for oxygen, nitrogen, methane, carbon dioxide and other media;
5.Product is reliable, easy to maintain, sturdy, sealed, and has a long service life, which can be started and stopped continuously;
Main features
1.WYGB series is based on static pressure, when the driving air pressure is 7bar, the air consumption is 1.0m3/min;
2.Driving pressure is 1bar-8.3bar (14.5-120.35psi), and the GB series is a single driving piston (Φ160mm);
3.Temperature of the medium is not higher than 115°C (240°F), and the extremely low temperature should be specified when ordering;
4.High pressure end materials can be customized 17-4PH,15-5PH, 440C, hastelloy,nickel-based alloy, and other materials to meet the requirements of special media;
5.Standard product of WYGB series is nitrogen pressurization, the order code is such as: WYGB40 (series code + pressurization ratio);
Description of special products
About medium: WYGB series can be applied to a variety of media, order code such as: WYGB30-O2 (series code + boost ratio + boost medium)
About the interface: If you need special media interface, please specify when ordering.
Application scenarios
1.WYGB series gas booster pump is suitable for occasions with high gas source, high output pressure and small flow requirements.
2.Air tightness test of various pressure components;
3.Nitrogen filling of high pressure accumulators;
4.Filling of diving breathing oxygen cylinders;
5.Filling of fire breathing air cylinders;
6.Calibration of high pressure safety valve;
7.Filling the reaction medium into the reaction device;
8.Recycling and reuse of special gases.
Company Profile
Packing & Delivery
By Sea: Cheapest but longest option 18~30 days by sea delivery for mass shipment
By Air: More expensive than sea delivery, But cheaper than express 5~7 days by air to airport
By Express: Door to door service,the fastest and most expensive one, 3~5 day for DHL /Fedex /UPS/TNT express
By Air: More expensive than sea delivery, But cheaper than express 5~7 days by air to airport
By Express: Door to door service,the fastest and most expensive one, 3~5 day for DHL /Fedex /UPS/TNT express
FAQ
How do I select a correct model?
1.Free to inform us that your inlet gas pressure range
1.Free to inform us that your inlet gas pressure range
2.Kindly advise your needed output pressure for connecting machine
3.Should be kindly informed the gas flow at the rated pressure for calculating the suitable pressure ratio base on customer's requirement
4.Feel kindly advise us the avaible air driven pressure
4.Feel kindly advise us the avaible air driven pressure
5.Then we can suggest a suitable model base on above technical data
What is the warranty for product?
1.We have 1 Year Warranty for product and can send some easy wear out repairing parts for fixing the pump such as important seal kits
What is the warranty for product?
1.We have 1 Year Warranty for product and can send some easy wear out repairing parts for fixing the pump such as important seal kits
2.Customer should cover the to-and fro shipping cost for repairing if goods is out of warranty peroid
