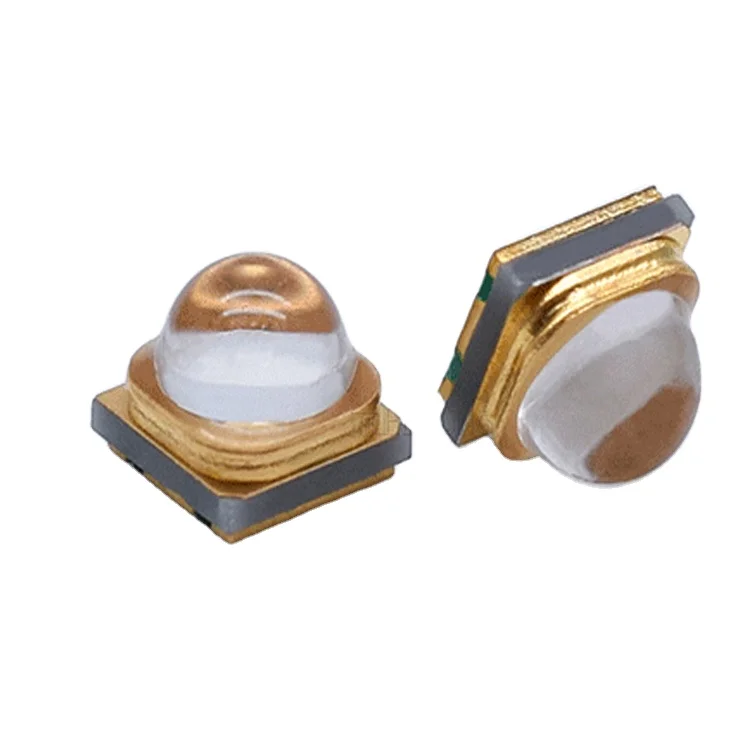

Hight quality 3535 30 degree 12mw 1w 3w 250nm 254nm 255nm 260nm 265nm 270nm 275nm diode smd packages uvc led for disinfecting
- Category: >>>
- Supplier: Shenzhen Yingfeng Opto-Electronic Co. Ltd.
Share on (1601254658362):
Product Overview
Description
Product model | Voltag (V) | Peak Wavelength (nm) | Optical Power (mW) | RdiantIntensity uw/cm²(1cm) | Current (mA) | Spectrum Half width (nm) | Angle |
| HYE35P20F250AG-P1 | 5.0-6.5 | 250-260 | 25-30 | 2700 | 150 | 11 | 120 |
| HYE35P30F250AG-P1 | 5.0-6.5 | 250-260 | 50-60 | 5500 | 350 | 11 | 120 |
| HYE35P40F250AG-P1 | 5.0-6.5 | 250-260 | 70-90 | 7500 | 500 | 11 | 120 |
| HYE35P48F250AG-P1 | 5.0-6.5 | 250-260 | 120-140 | 12600 | 700 | 11 | 120 |
| HYE35P20F260AG-P1 | 5.0-6.5 | 260-270 | 30-35 | 3200 | 150 | 11 | 120 |
| HYE35P30F260AG-P1 | 5.0-6.5 | 260-270 | 50-60 | 5500 | 350 | 11 | 120 |
| HYE35P40F260AG-P1 | 5.0-6.5 | 260-270 | 70-90 | 7600 | 500 | 11 | 120 |
| HYE35P20F270AG-P1 | 5.0-6.5 | 270-280 | 30-35 | 2700 | 150 | 11 | 120 |
| HYE35P30F270AG-P1 | 5.0-6.5 | 270-280 | 50-60 | 5500 | 350 | 11 | 120 |
| HYE35P40F270AG-P1 | 5.0-6.5 | 270-280 | 70-90 | 7200 | 500 | 11 | 120 |
| HYF38P20F250AG-X1 | 5.0-6.5 | 250-260 | 25-30 | 9200 | 150 | 11 | 60 |
| HYF38P30F250AG-X1 | 5.0-6.5 | 250-260 | 50-60 | 26000 | 350 | 11 | 60 |
| HYF38P40F250AG-X1 | 5.0-6.5 | 250-260 | 70-90 | 31000 | 500 | 11 | 60 |
| HYF38P48F250AG-X1 | 5.0-6.5 | 250-260 | 120-140 | 52000 | 700 | 11 | 60 |
| HYF38P20F260AG-X1 | 5.0-6.5 | 260-270 | 30-35 | 10300 | 150 | 11 | 60 |
| HYF38P30F260AG-X1 | 5.0-6.5 | 260-270 | 50-60 | 28000 | 350 | 11 | 60 |
| HYF38P40F260AG-X1 | 5.0-6.5 | 260-270 | 70-90 | 30000 | 500 | 11 | 60 |
| HYF38P20F270AG-X1 | 5.0-6.5 | 270-280 | 30-50 | 7100 | 150 | 11 | 60 |
| HYF38P30F270AG-X1 | 5.0-6.5 | 270-280 | 50-60 | 26700 | 350 | 11 | 60 |
| HYF38P40F270AG-X1 | 5.0-6.5 | 270-280 | 70-90 | 24000 | 500 | 11 | 60 |
| HYF38P20F250AG-S1 | 5.0-6.5 | 250-260 | 25-30 | 10500 | 150 | 11 | 30 |
| HYF38P30F250AG-S1 | 5.0-6.5 | 250-260 | 50-60 | 35000 | 350 | 11 | 30 |
| HYF38P40F250AG-S1 | 5.0-6.5 | 250-260 | 70-90 | 36122 | 500 | 11 | 30 |
| HYF38P48F250AG-S1 | 5.0-6.5 | 250-260 | 120-140 | 60000 | 700 | 11 | 30 |
| HYF38P20F260AG-S1 | 5.0-6.5 | 260-270 | 30-35 | 11000 | 150 | 11 | 30 |
| HYF38P30F260AG-S1 | 5.0-6.5 | 260-270 | 50-60 | 35000 | 350 | 11 | 30 |
| HYF38P40F260AG-S1 | 5.0-6.5 | 260-270 | 70-90 | 36000 | 500 | 11 | 30 |
| HYF38P20F270AG-S1 | 5.0-6.5 | 270-280 | 30-35 | 8500 | 150 | 11 | 30 |
| HYF38P30F270AG-S1 | 5.0-6.5 | 270-280 | 50-60 | 35400 | 350 | 11 | 30 |
| HYF38P40F270AG-S1 | 5.0-6.5 | 270-280 | 70-90 | 37000 | 500 | 11 | 30 |
Warmth Hint: The company is willing to personalize your customized products.
How to calculate the total light intensity
UV dose refers to the amount of ultraviolet light of a specific wavelength required to reach a certain rate of bacterial inactivation:
Total Lightin Intensity(J/m2) = irradiation time (s) X UVC intensity (W/m2)
The greater the irradiation dose, the higher the disinfection efficiency.
The higher the UVC light power, the shorter the time required to kill bacteria and viruses, and vice versa, the lower the light power,The longer it takes to sterilize.
The higher the UVC light power, the shorter the time required to kill bacteria and viruses, and vice versa, the lower the light power,The longer it takes to sterilize.
