Yugong Intelligent Dredging 300kg Electric Clearing Silt Dredging Sedimentation Tank Robot
Yugong Intelligent Dredging 300kg Electric Clearing Silt Dredging Sedimentation Tank Robot
Yugong Intelligent Dredging 300kg Electric Clearing Silt Dredging Sedimentation Tank Robot
Yugong Intelligent Dredging 300kg Electric Clearing Silt Dredging Sedimentation Tank Robot
Yugong Intelligent Dredging 300kg Electric Clearing Silt Dredging Sedimentation Tank Robot
Yugong Intelligent Dredging 300kg Electric Clearing Silt Dredging Sedimentation Tank Robot
Yugong Intelligent Dredging 300kg Electric Clearing Silt Dredging Sedimentation Tank Robot

Yugong Intelligent Dredging 300kg Electric Clearing Silt Dredging Sedimentation Tank Robot

Share on (1601254752982):


Price:$6,100.00-9,300.00

Quantity:


Product Overview

Description

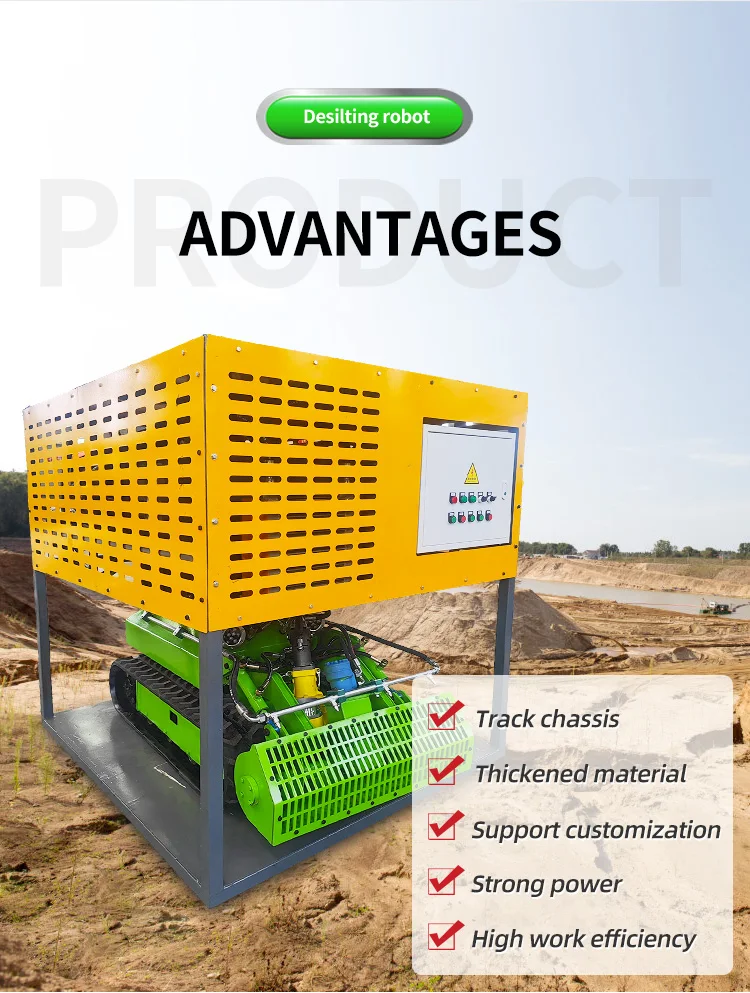

Advantages


1. High degree of automation and intelligence, unmanned remote control, diverse operation methods, high efficiency and good
results. 2. No need to stop work, production, or operation, ensuring maximum protection for production, life, and operation.
3.Realize unmanned entry in hazardous environments to avoid personal safety. 4. The equipment can be reused, greatly reducing costs.
5. No dust and pollutants are scattered, ecological and environmental protection. 6. Remote control, line control, monitoring
control. Avoid hazards to personal safety caused by toxic and harmful gases or media. 7. Waterproof design. Safety optimization of
power, control, and operational components.

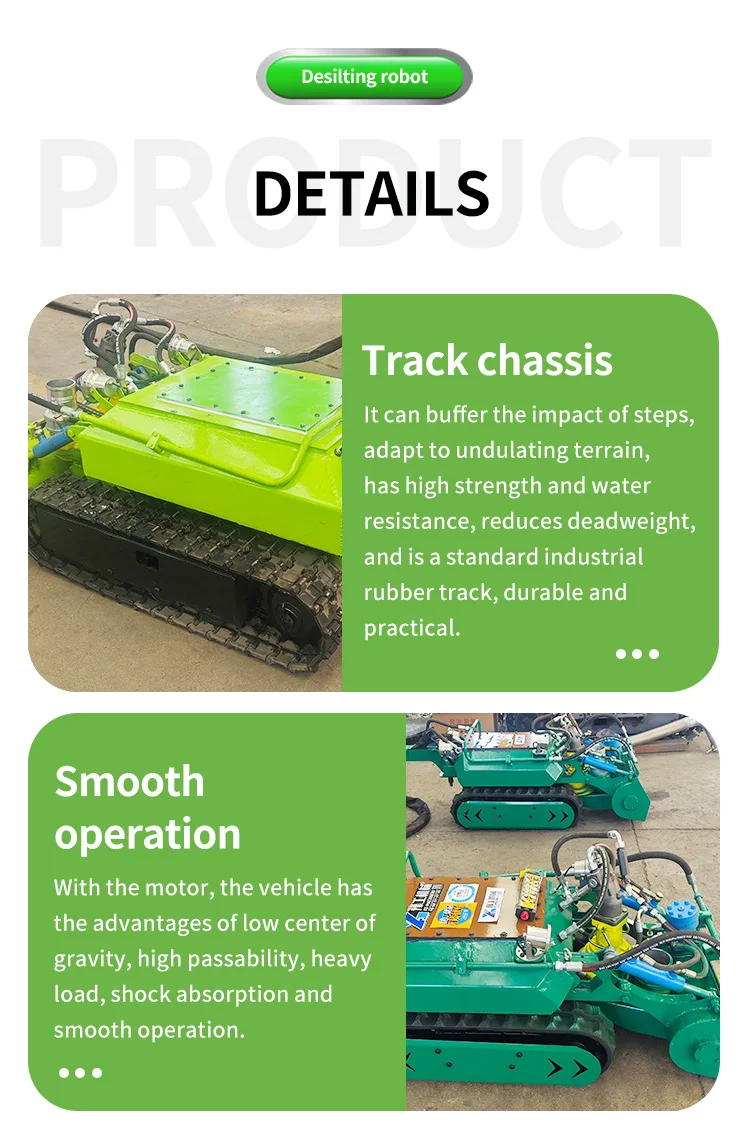

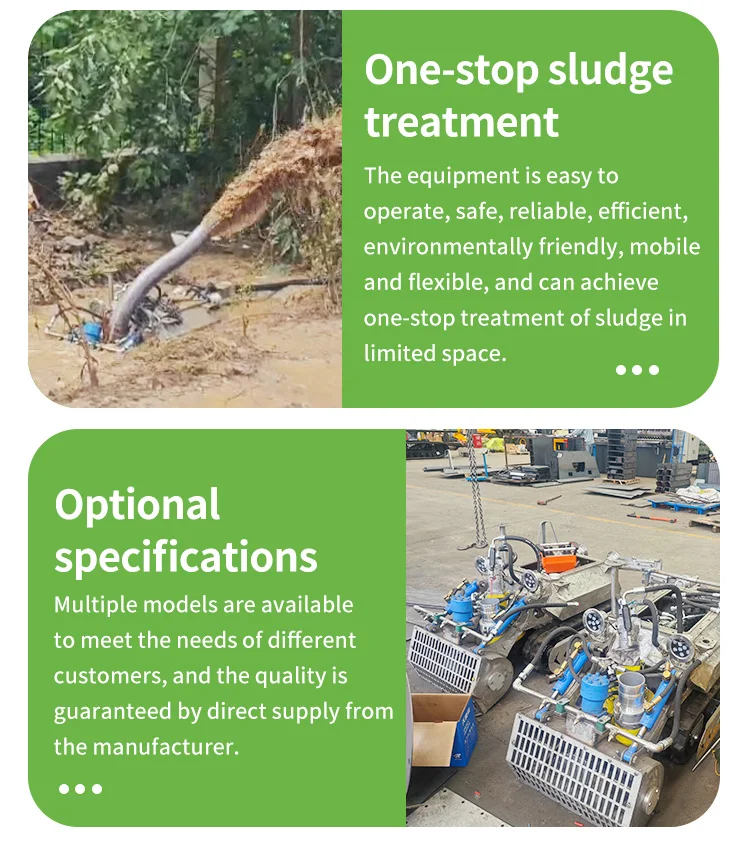

Products Details






Technical Parameters


Simple dredging robot
Item
YG-500
YG-600


Robot body
Robot size: 1250mm×500mm×450mm
Robot size: 1350mm×600mm×600mm
Drainage width: 500mm
Drainage width: 600mm
Travel speed: 3-9M/min
Travel speed: 3-17M/min


3.5 inch underwater special slurry pump
Used for underwater pumping of sludge
Pumpable particle diameter: 20mm (can be changed according to customer needs)
Pumpable particle diameter: 40mm (can be changed according to customer needs)
Lift: 15 meters (horizontal conveying distance 100-150 meters)
Lift: 30 meters (horizontal conveying distance 100-150 meters)
Special hydraulic power source for water
Hydraulic system (placed in the main control cabinet)
Robot main control compartment (control box)
Used to control all actions of the robot, including the start and stop of the robot, and the lighting system
Underwater lighting system
2 LED lights
Underwater camera system
Equipped with 1 underwater camera
Cable winding system
Electric drive (or manual), speed 0-10r/min
Underwater dedicated pipeline
50 fans
Main console
Robot ground main control system, used to control the work of underwater robots
Work efficiency
100 cubic meters per hour
150 cubic meters per hour

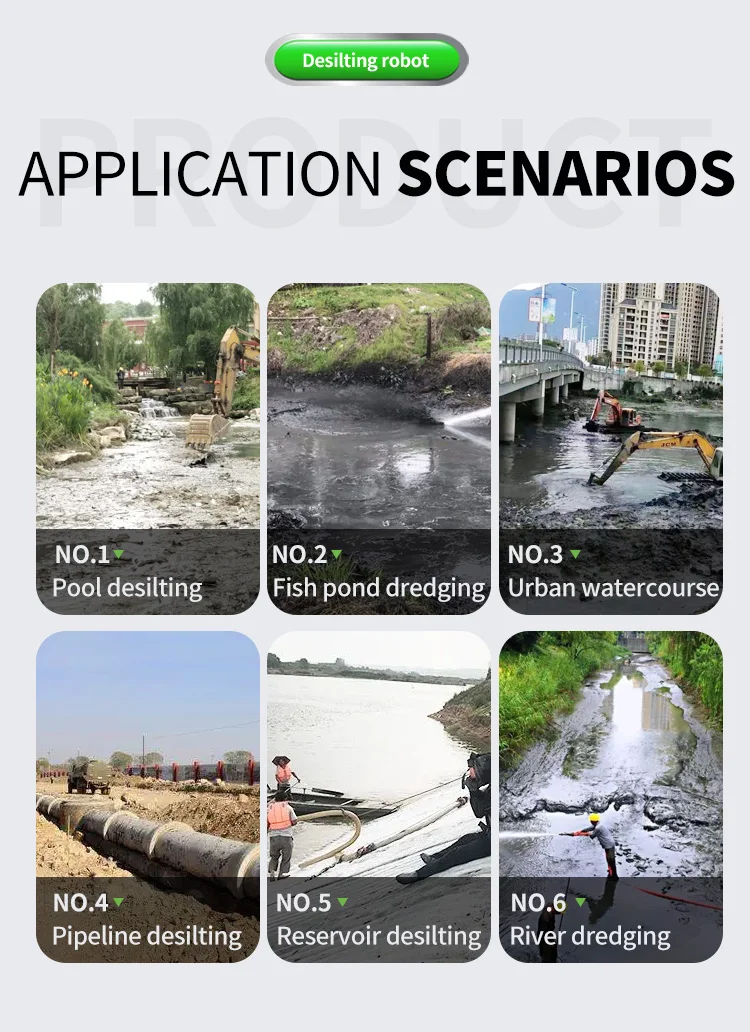

Suitable for pipes with a diameter greater than 0.5/0.6 meters, silt removal in rivers, and large-area rivers need to be
customized according to actual conditions

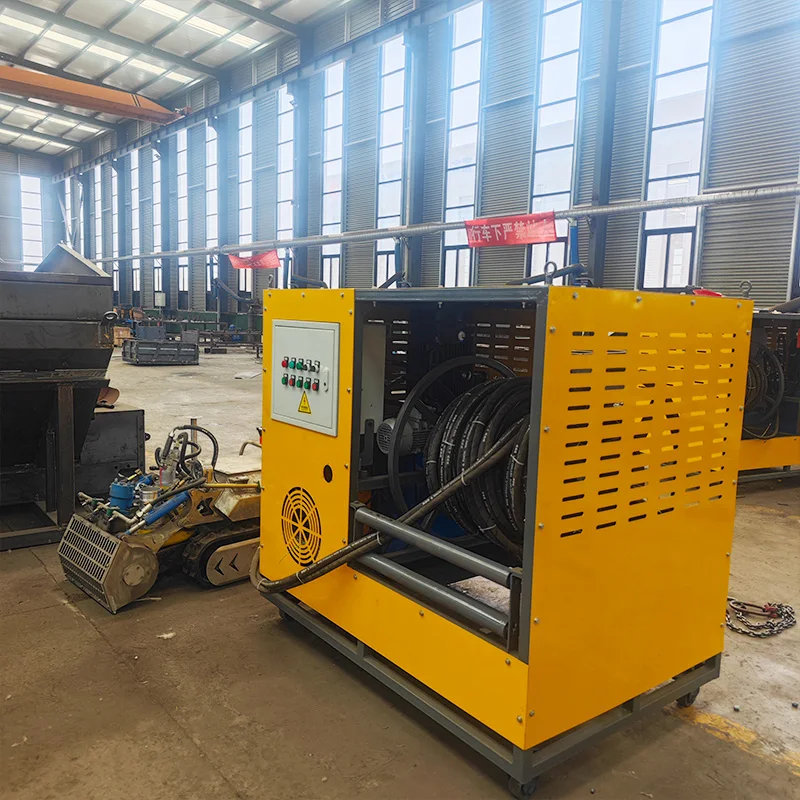

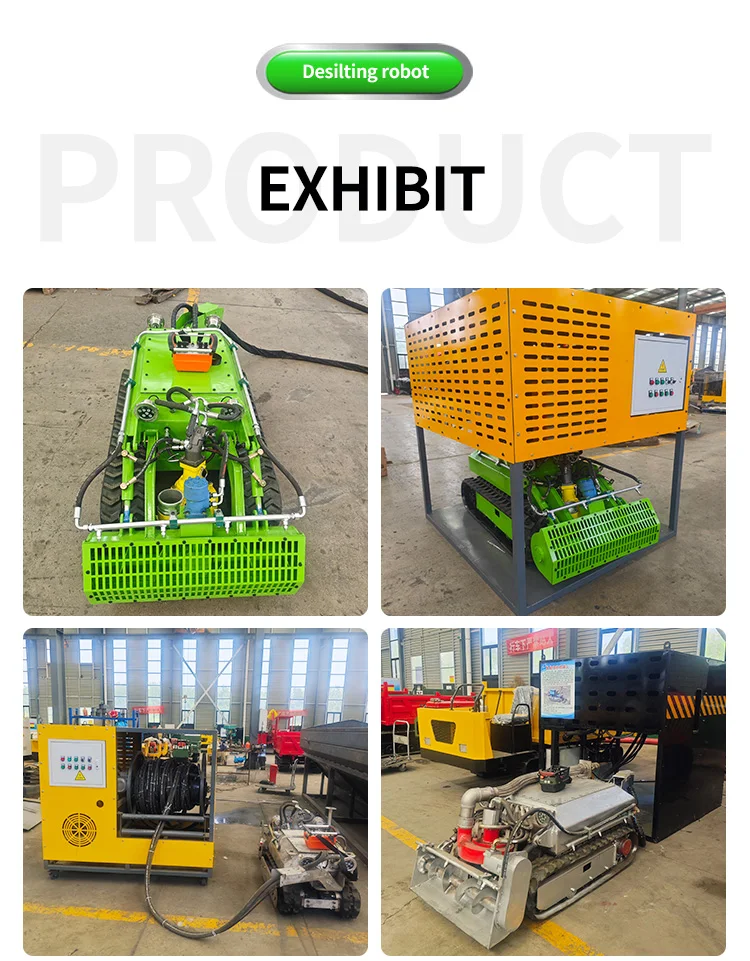

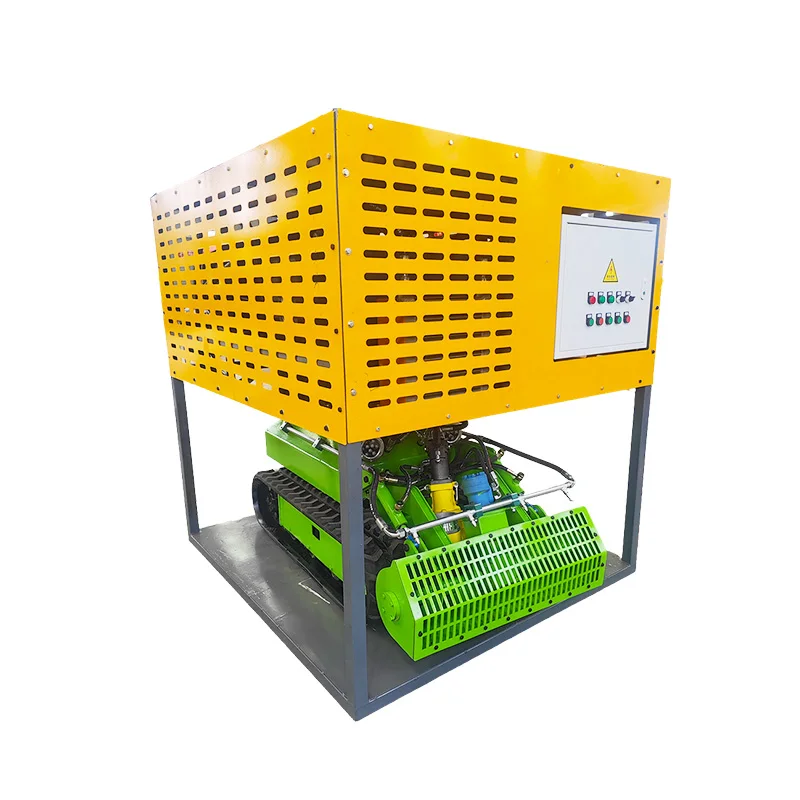

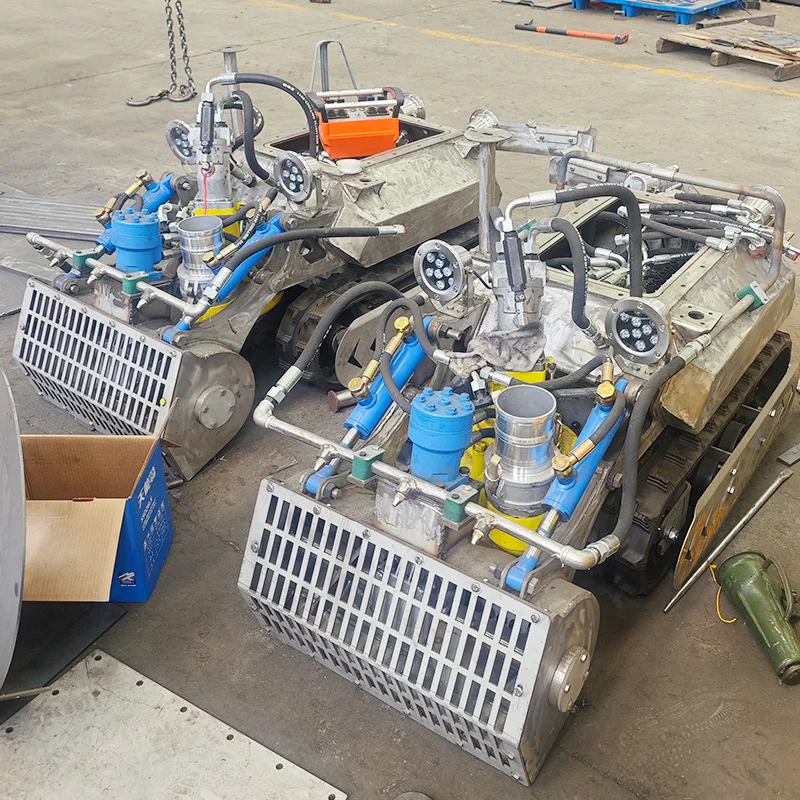

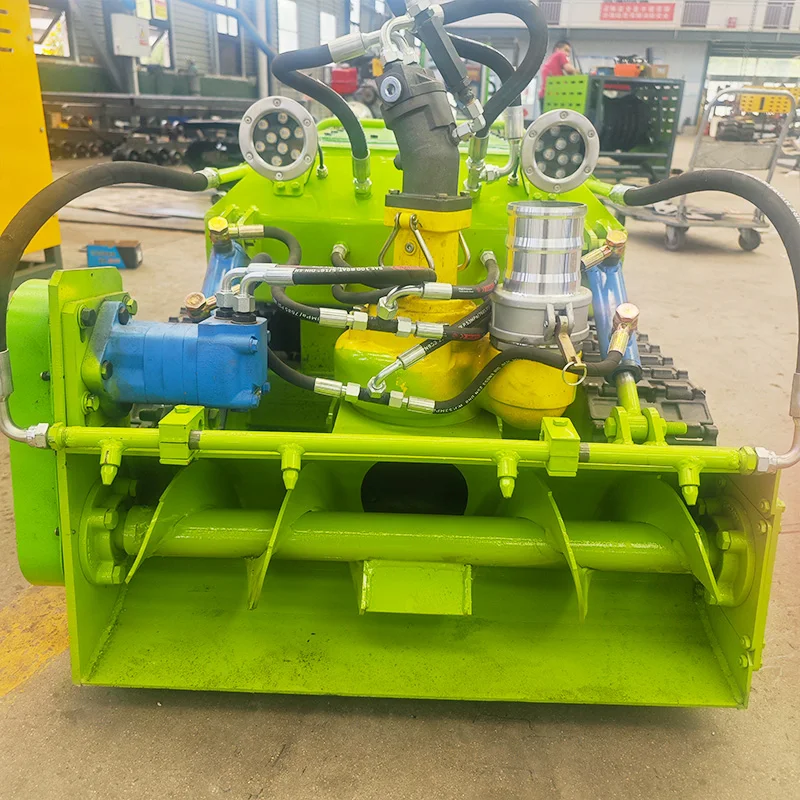

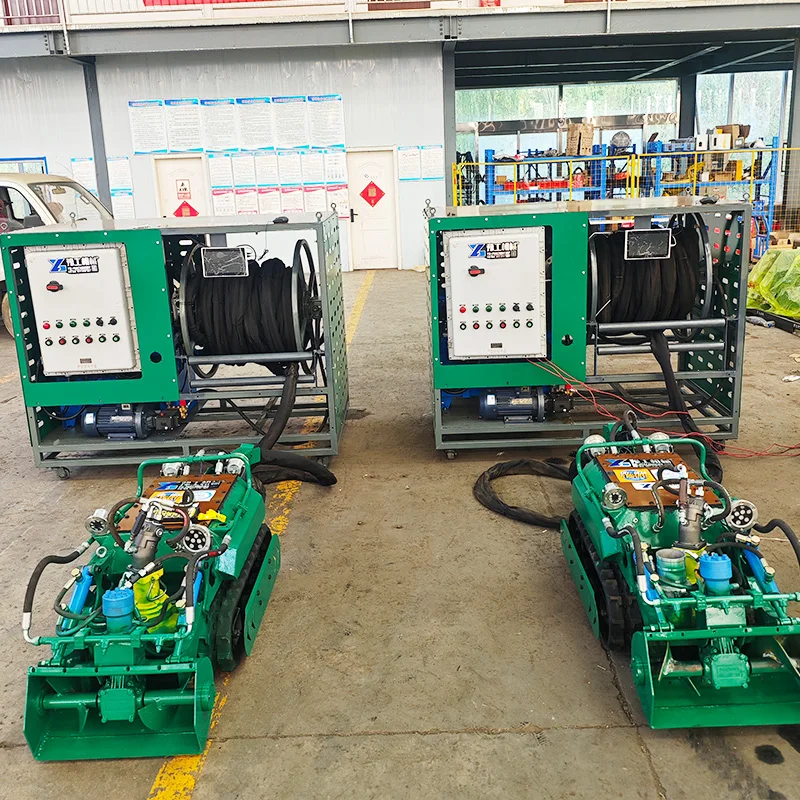

Product Dispaly




Our Company






Packing & Shipping
