Product Overview

Description



Produce Description

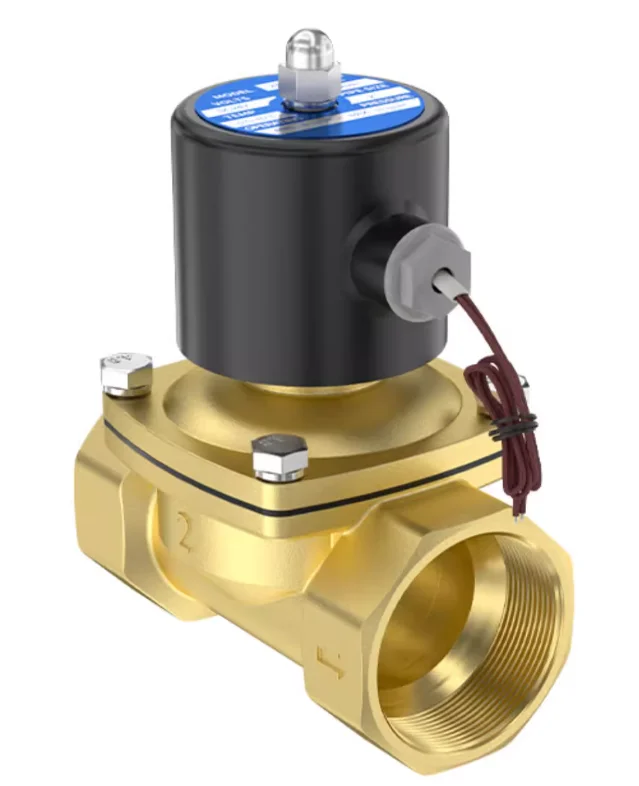

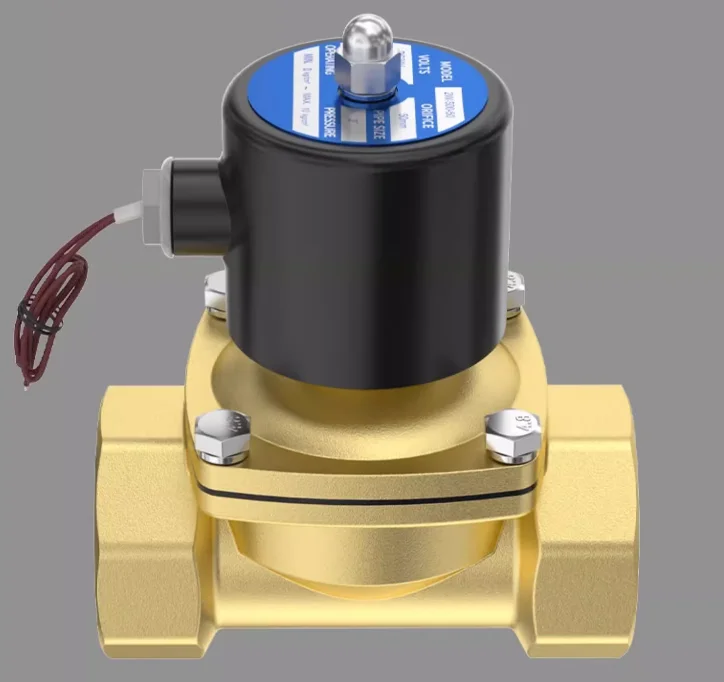

Direct-acting solenoid valves
in the water treatment system, solenoid valves are used to control the direction and flow of the water flow, to ensure that the water quality of the treatment effect.

Solenoid valve as an important control element, in industry, agriculture, medical care, environmental protection and other fields have a wide range of applications. Its high efficiency, reliability and precise control performance, for modern production and life provides strong support!


Applications

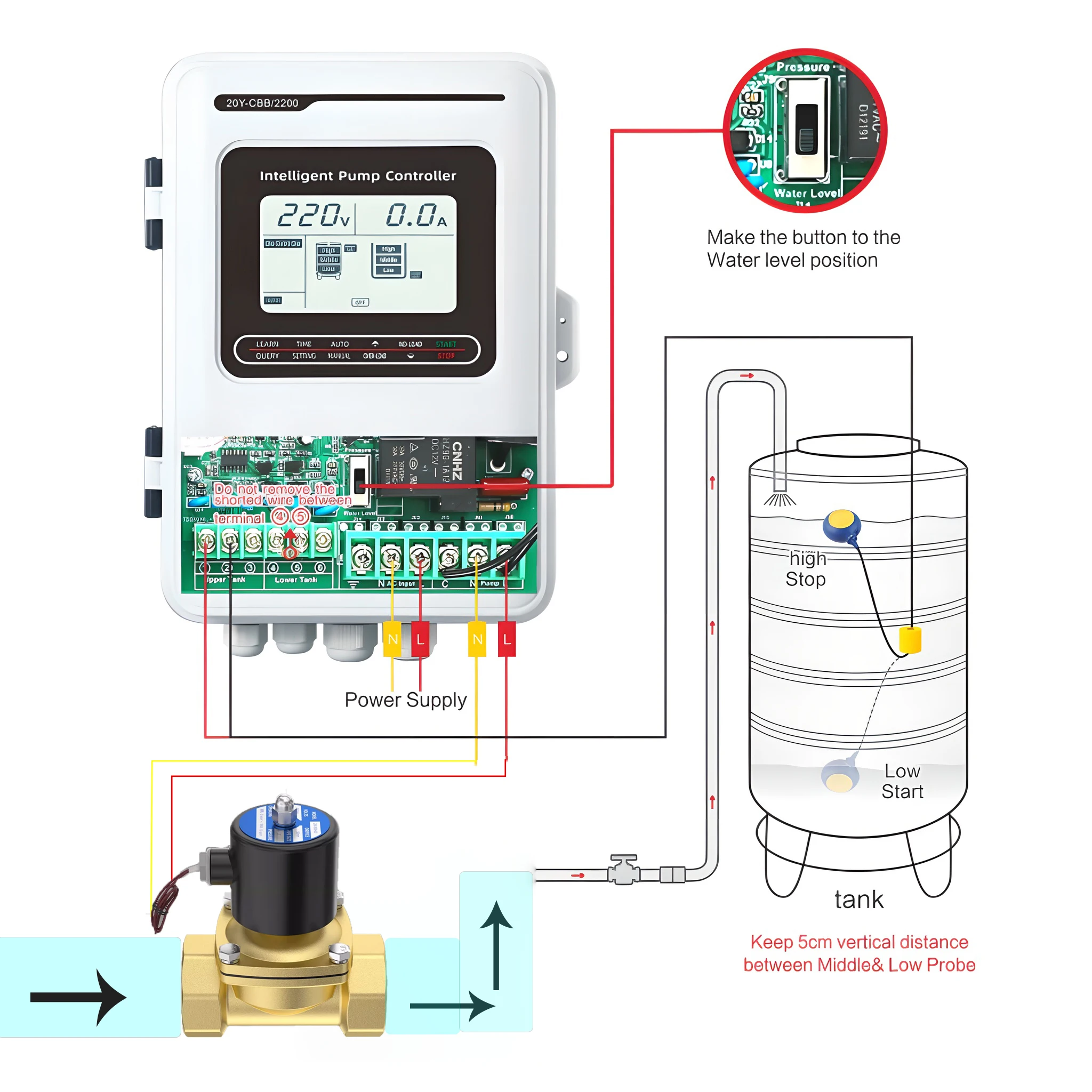

The combination of solenoid valve and intelligent pump controller can realise intelligent irrigation in agriculture, intelligent supply of tap water and intelligent management of industrial water. Through the level sensor or time control solenoid valve, it brings higher precision, automation, safety and energy saving to various water supply and fluid delivery systems, which is the ideal solution for modern intelligent fluid control.

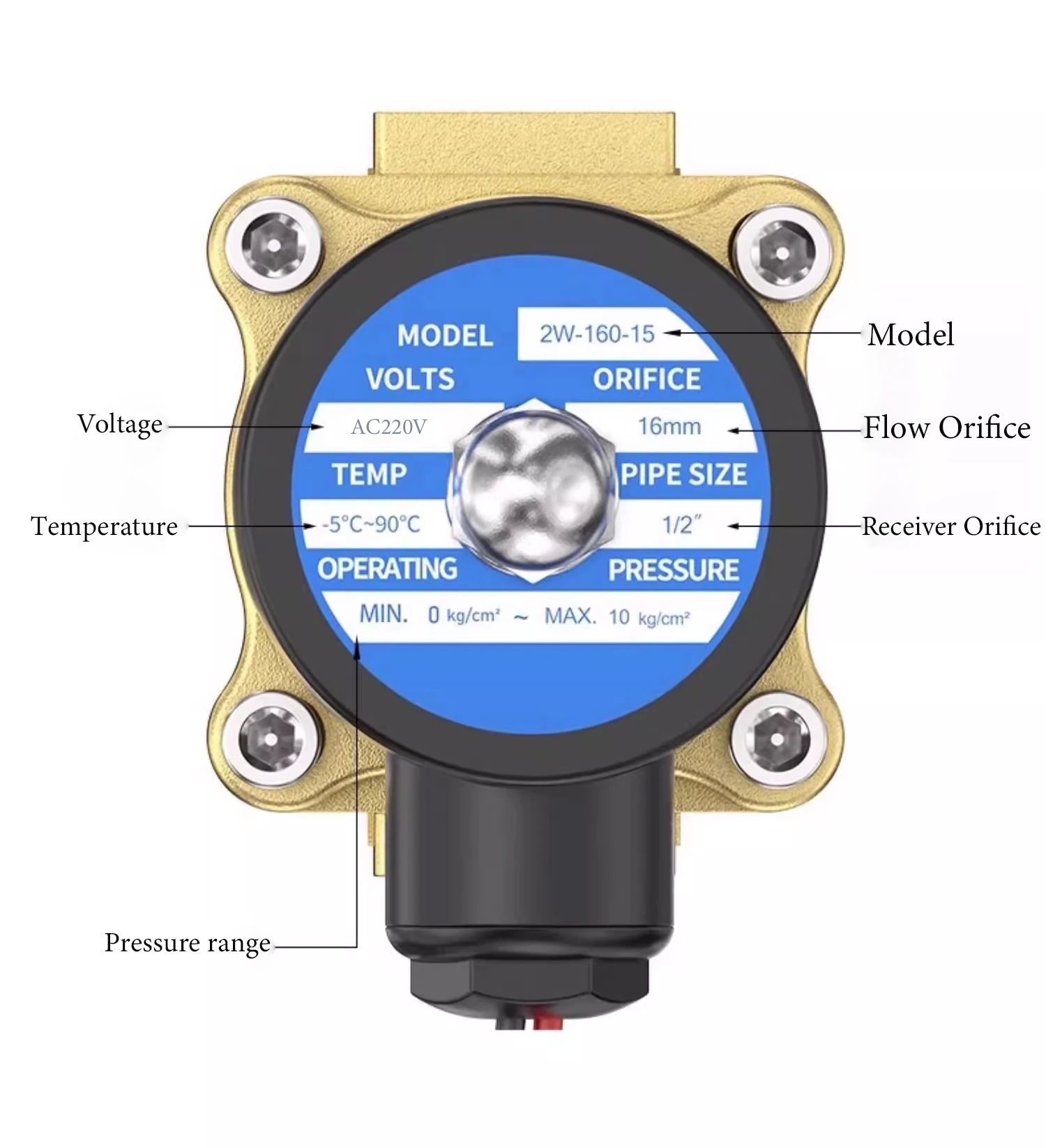

Details Images

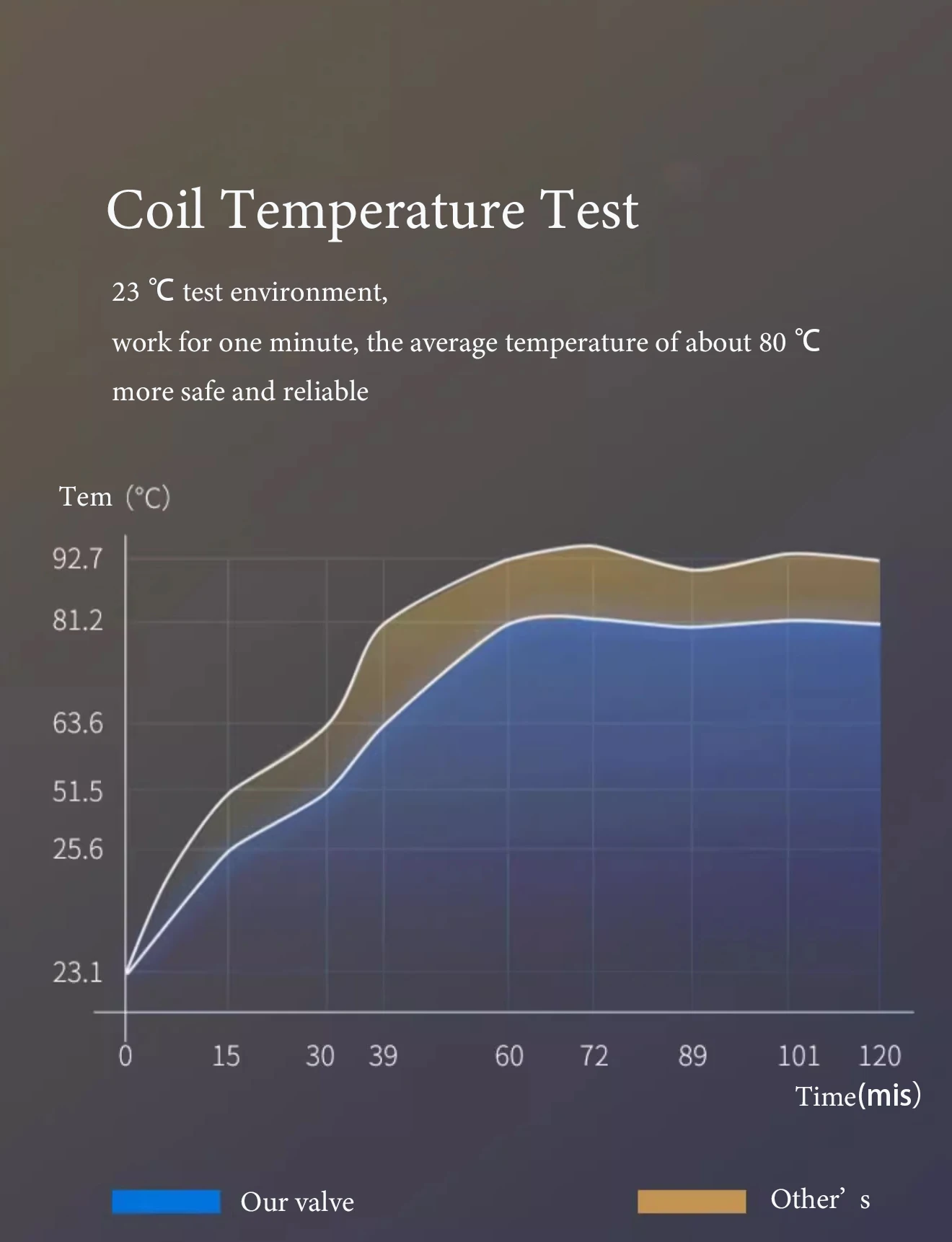

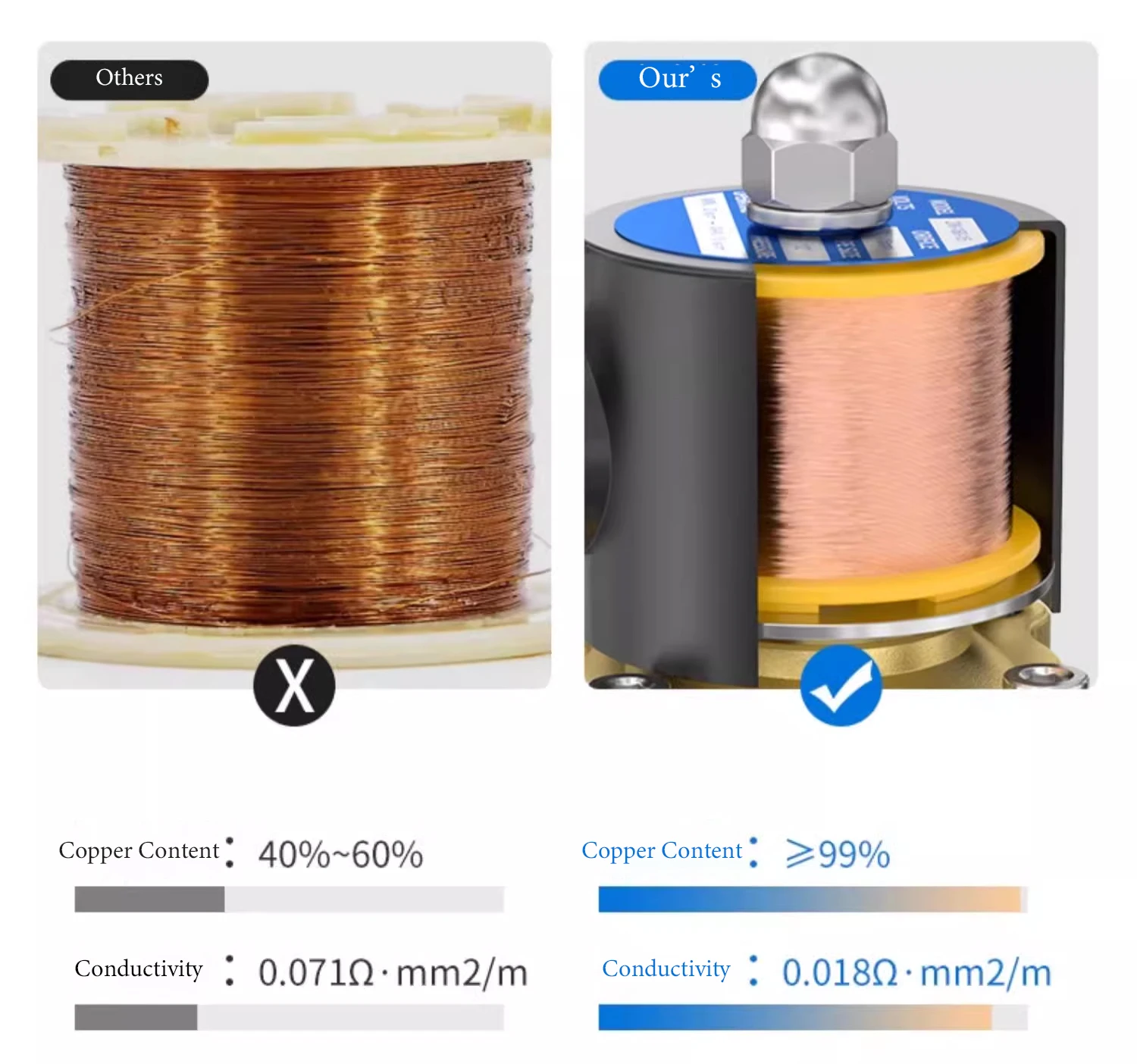

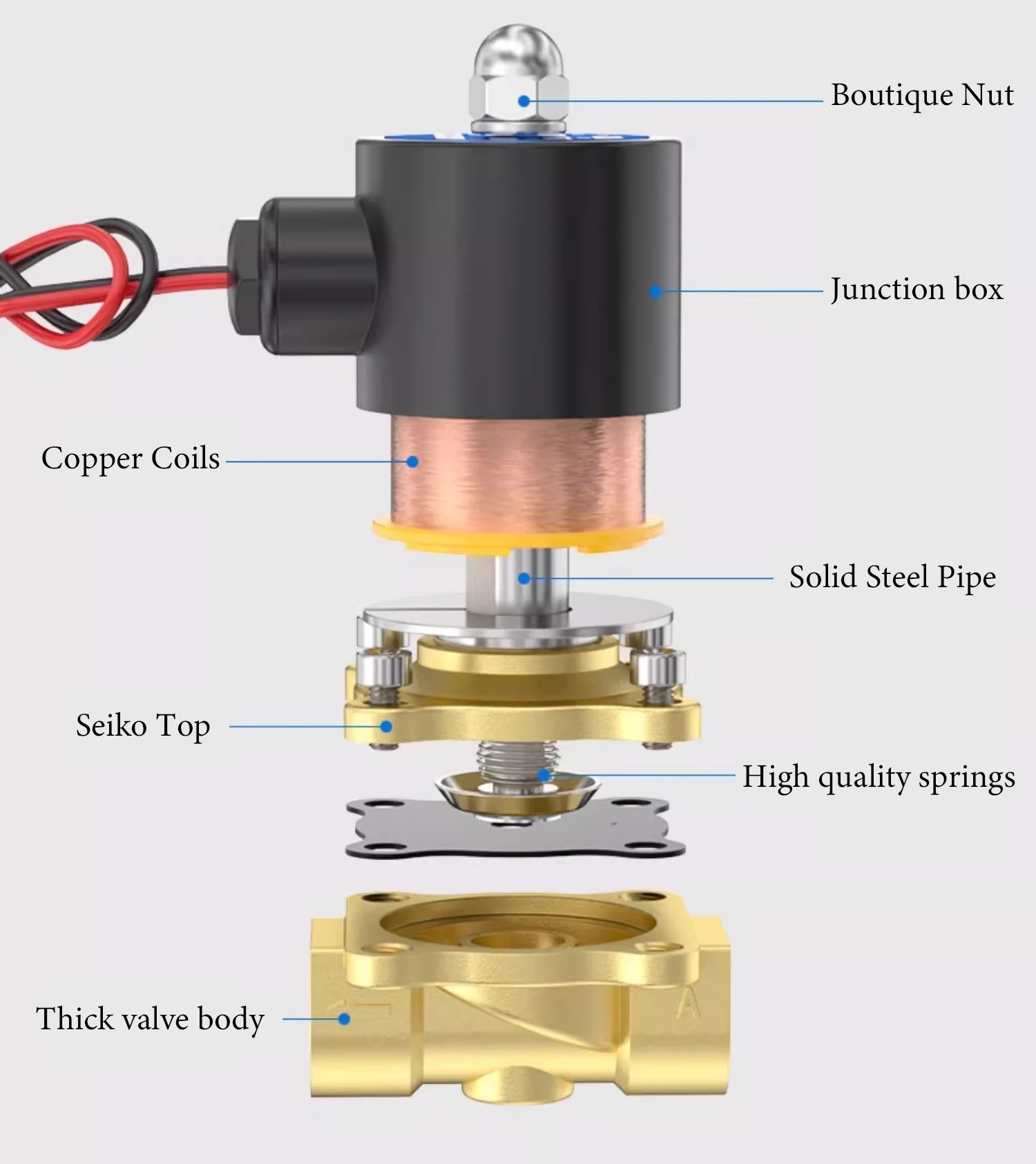

Our solenoid water valves use purple copper coils to enhance the copper content by about 40% compared to conventional brass, which is not easy to burn the core for continuous operation.

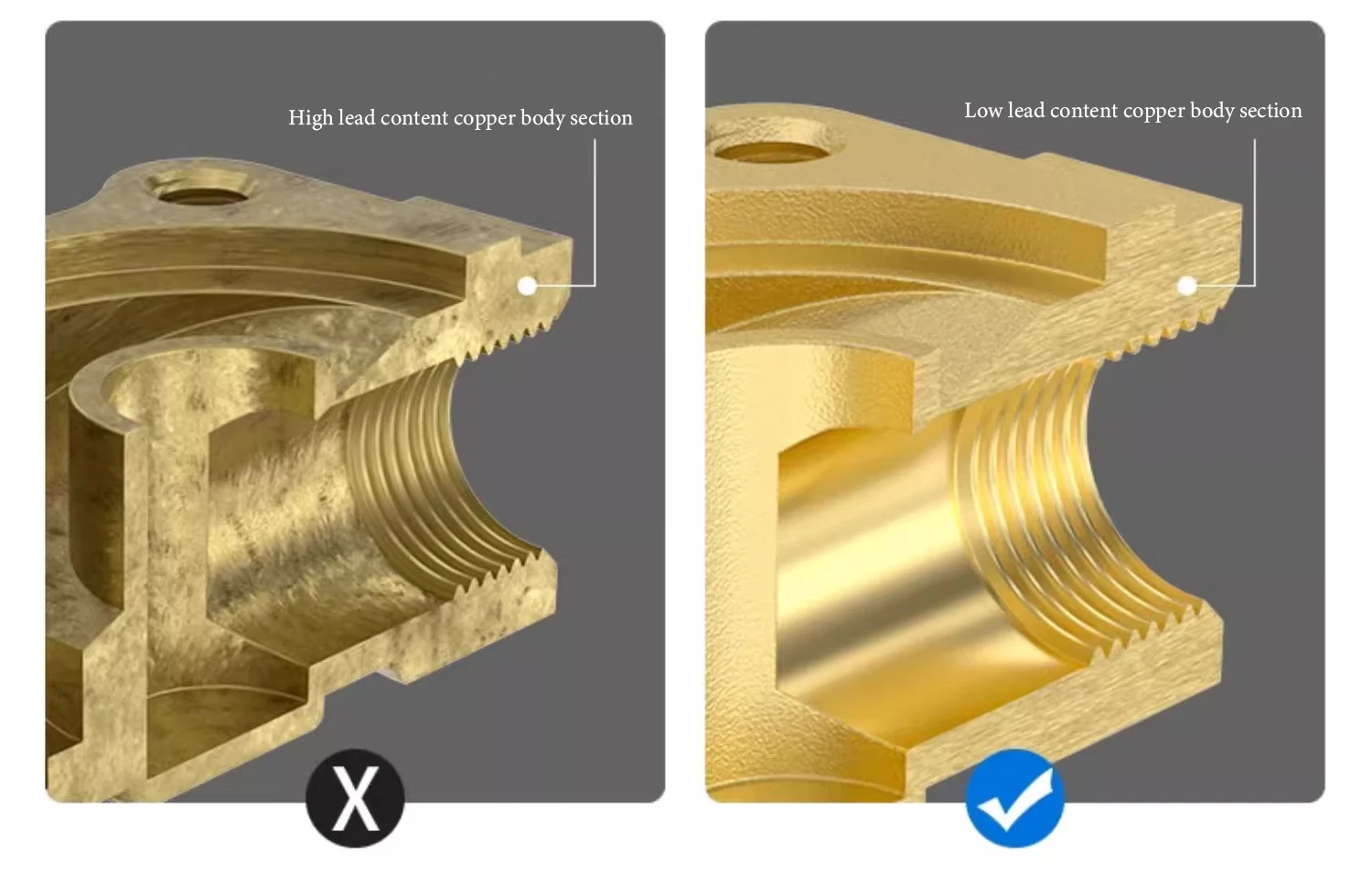

          High lead content is harmful                                              Low lead content is more safe
Low lead copper pipes, not easy to rust, will not contaminate the water, safer, longer life

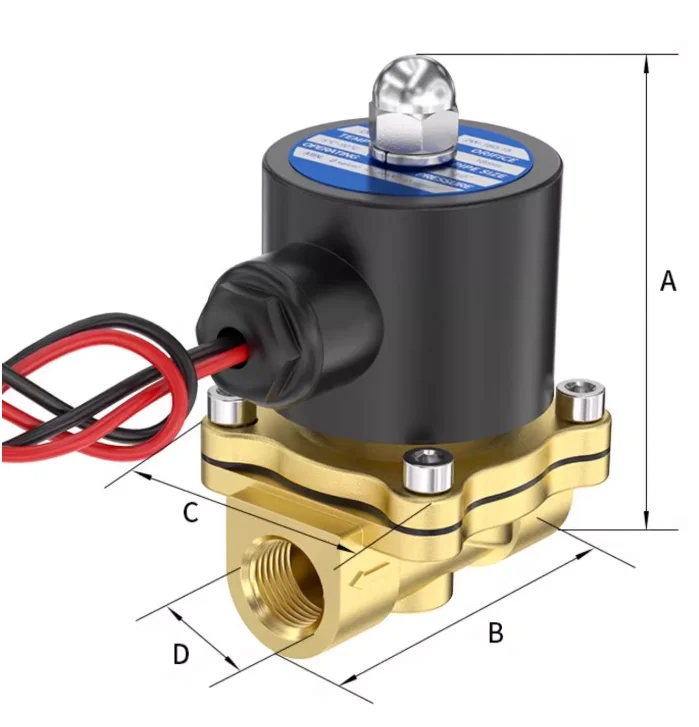

Specifications




Model
A
B
C
D(inner diameter)
8KG Air Flow
2W025-08
71
39
17
11.5mm=G1/4''
2000L/min
2W040-10
82
52
22
15.5mm=G3/8''
4000L/min
2W160-15
97
63
56
20mm=G1/2''
8000L/min
2W200-20
103
67
56
25mm=G3/4''
15000L/min
2W250-25
109
84
68
32mm=G1''
20000L/min
2W320-32
130
98
72
40mm=G1-1/4''
23000L/min
2W350-35
155
113
87
47mm=G1-1/2''
23000L/min
2W400-40
160
107.5
87
47mm=G1-1/2''
30000L/min
2W500-50
175
133
93
58mm=G2''
40000L/min

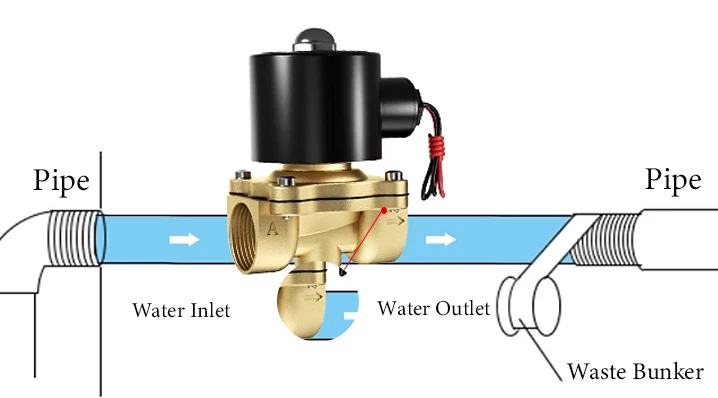

Installation Instructions



Solenoid Valve Installation Instructions
