ORIEMAC High Efficiency Shantui Dozer Bulldozer Prices New DH17C DH17F DH17L Crawler Bulldozer
ORIEMAC High Efficiency Shantui Dozer Bulldozer Prices New DH17C DH17F DH17L Crawler Bulldozer
ORIEMAC High Efficiency Shantui Dozer Bulldozer Prices New DH17C DH17F DH17L Crawler Bulldozer
ORIEMAC High Efficiency Shantui Dozer Bulldozer Prices New DH17C DH17F DH17L Crawler Bulldozer
ORIEMAC High Efficiency Shantui Dozer Bulldozer Prices New DH17C DH17F DH17L Crawler Bulldozer
ORIEMAC High Efficiency Shantui Dozer Bulldozer Prices New DH17C DH17F DH17L Crawler Bulldozer
ORIEMAC High Efficiency Shantui Dozer Bulldozer Prices New DH17C DH17F DH17L Crawler Bulldozer

ORIEMAC High Efficiency Shantui Dozer Bulldozer Prices New DH17C DH17F DH17L Crawler Bulldozer

Share on (1601254962107):


Price:$41,500.00-44,500.00

Quantity:


Product Overview

Description





Please Contact


ABOVE is our full line machinery and truck catalog, welcome to inquiry.
If you need any information, welcome to contact me.

Phyllis
Senior Sales Manager

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
Whatsapp/WeChat/Mobile: +86-15737137170
Email:phyllis@oriemac.com
Add: 21F Gubei International Fortune Center,
No.1438 Hongqiao Road, 201103 Shanghai, China

Please leave a message at the bottom of the details page.


PRODUCT SPECIFICATIONS


Engine
Model & type
VP10G190E354(CHINA II) ViD1 0G190E214(CHINA I)
Gross pover
140/1 88/1900 KW /HP/rpm
Net pover
127/170/1900 KW /HP/rpm
Piston displacement
9.726 L
Number of cylinders
6 -126 X 130 mm (bore X strolæe)
Maximum torque
900 N·m@1400-1 600 rpm
Walking
hydraulic
system
Type
Electronic control
Traveling pump ( )
2
Traveling motor ( )
2
Traveling system pressure
42 Mpa
Travel speed
Forward
0-10km/h
Reverse
0-10km/h
Undercarriage
system
Carrier rollers
2 each side
Track rollers
7 each side
Width of track shoes
510/610 mm
Pitch
203 mm
Hydraulic
System
Type
2 way bhydraulic pilot control +1 way electric bhydraulic hybrid control
Maximum pressure
21 MPa
Working pump
1
Main valve (Hydrocontrol)
1
Blade
Blade type
Straight tilt b lade/ Semi-U Blade
Dozing capacity
4.5/4.7 m3
Blade width
33 88/3400 mm
Blade height
1149/1200 mm
Maximum drop below ground
520 mm
Maximum lfting height
1010 mm
Riipper
(Optional)
Ripper type
Three shank ripper
Maximum dgging depth
475 mm
Maximum lift above ground
570 mm
Maximum tilt
460 mm


FEATURES AT A GLANCE


Excellent quality & competitive price wheel loader DH17C
Products Description:

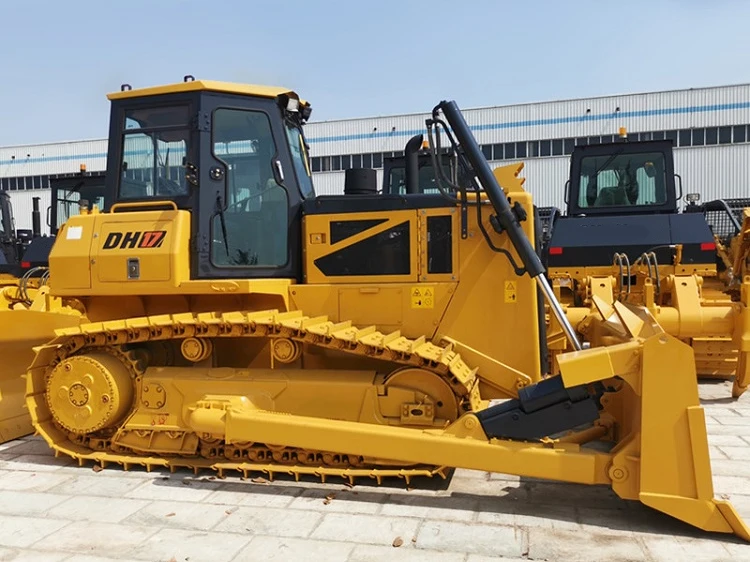

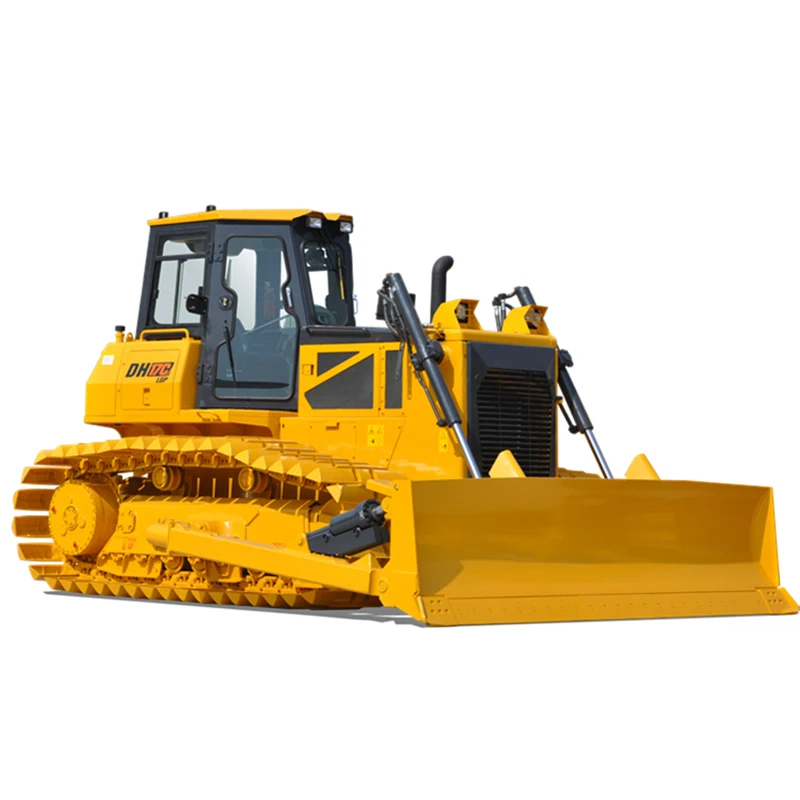

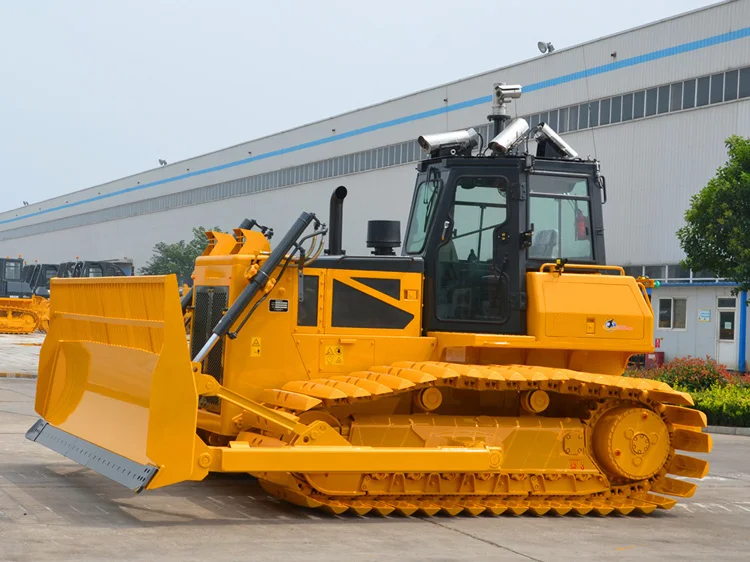

*The brand-new full-hydraulic DH17 bulldozers adopt the dual-circuit electric-control static-pressure drive system that could intelligently match the change of load, and could perform the loaded and pivot steering, featuring the high working efficiency and the low fuel efficiency. The working equipment is controlled through the hydraulic pilot, easy and sensitive.

*The damping and sealed cab has large room, featuring safety and comfort. The modular structures enjoy the low ratio of failure and easy maintenance.

*DH17 bulldozers are mainly applicable for backfilling of the earthwork and for transporting of other bulk material in terms of roads, railways, water conservancy, soil development and factories. This machine has excellent performance due to the small slewing radius. The DH17, DH17L, DH17F and DH17R are of hydraulic – driving 170hp bulldozers, where the DH17 is standard bulldozers.
