4G Dash Cam 1080P Full HD Wifi Camera Front And Rear Event Data Recorder Car Black Box Dual Camera Dash Cam ADAS For Cars Trucks
- Category: >>>
- Supplier: Huizhou Great-Will Industrial Co. Ltd.
Share on (1601255041410):
Product Overview
Description
Products Description
GD06--4G Intelligent Driving Recorder Dashcam
1.Solution for All Taxi/Van/Truck/Bus/Mining Vehicle/Ambulance/Watering Car/
Fire Engine/Fuel Tank Car/Truck Mixer etc.
It uses the communication protocol JT808 and JT1078 for the fleet management on the tracking platform.
Fire Engine/Fuel Tank Car/Truck Mixer etc.
2.GD06 is 2 CH 4G dash camera and it supports GPS tracking, GPS position, WIFI hotspot, DSM, 4G
network connection and equipped with SOS panic button.
network connection and equipped with SOS panic button.
It uses the communication protocol JT808 and JT1078 for the fleet management on the tracking platform.
GD06 Specification | ||

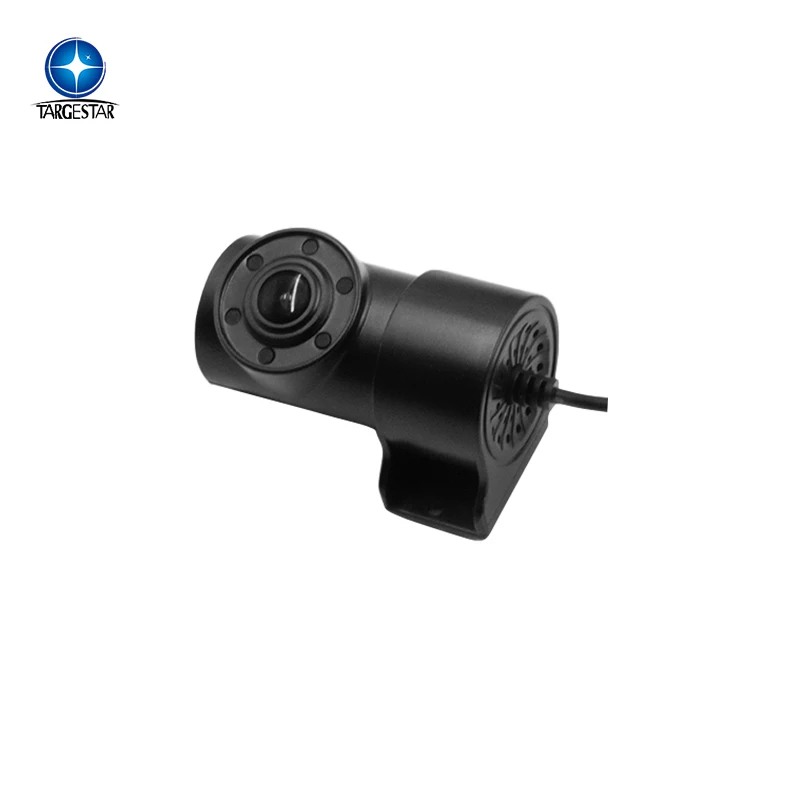

Accessories | The host comes with a front camera, and an external infrared in car camera, antenna, and SOS button are connected | |
SD Card | 16G/32G/64G/128G/256G/512G | |
Frequency Band | Europe/Middle East/Africa/Southeast Asia: FDD: B1/B3/B5/B7/B8/B20/B28 TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 Latin America/Australia/New Zealand/Taiwan: B1, B2, B3, B4, B5, B7, B8, B28@FDD LTE, B40@TDD ,B1/B2/B5/ B8@WCDMA ，B2,B3,B5, B8@GSM North America: B2, B4,B5,B12,B13,B14,B66, B71@FDD LTE | |
*Real-time location, videoing & monitoring *Support max 512G TF card for recording *Support G-Sensor *Remote two way talking *Support IR night vision *Support GPS track history playback *Support DMS function *Support ADAS function *Support SOS function *Support parking monitoring *Support emergency photos upload to platform *Support driver face identification | ||
Application Scenario
Company Information
Great-will Targestar：
Our factory has advanced production equipment (GPS Tracker&MDVR&Dash Cam) and production lines, which can achieve efficient production and product manufac-turing.
The company has good marketing capabilities and is able to develop ef-fective marketing strategies and push products to the market.
Having good customer service capabilities, able to respond to customer needs in a timelymanner and provide satisfactory after-sales service！！！
The company has good marketing capabilities and is able to develop ef-fective marketing strategies and push products to the market.
Having good customer service capabilities, able to respond to customer needs in a timelymanner and provide satisfactory after-sales service！！！
GPS Tracker Platform APP
Certifications
Exhibition
FAQ
1.How to record an emergency video?
● Emergency video recording is enabled by default. If the dash cam detects any collisions, it will automatically record an emergency video.
● Also the recording process cannot be interrupted. Once the emergency recording is completed, the dash cam will automatically switch back to normal video recording mode.
2.Why the dash cam stops recording?
If the dash cam automatically stops recording, please use the following to solve the problem,
● Restoring dashcam to factory settings
● Formatting the internal memory card
● Updating firmware
● Detecting abnormality in the internal memory card (e.g., non-dash cam-related files). In this case, please format the internal memory card.
After exiting these operations, the dash cam will automatically resume recording.
3.No driving route data displays on the app/platform
● The positioning system on the dashcam is not functioning and cannot obtain positioning information.
Solution: Check the dashcam's GPS light. If it is not lit, move the dash cam to an open space and wait for approximately 3 minutes before trying again.
● The car did not move, hence no driving record data was generated.
Solution: Ensure that the dashcam is correctly installed in the car and operating normally. Drive the car a certain distance to generate driving record data.
● The phone has no network connection. The phone requires a network connection to load the map when viewing driving records.
Solution: Disconnect the phone from the dashcam's Wi-Fi hotspot and connect it to a network (WLAN or mobile data network).
4.Why does ADAS calibration fail?
● The dashcam’s camera is not positioned correctly, too far from the center front, i.e. too close to the left and right sides or the upper and lower sides.
● The nighttime light is too dim, making it difficult to identify the lane line accurately.
● The lane line appears blurred, making it impossible to identify.
● Emergency video recording is enabled by default. If the dash cam detects any collisions, it will automatically record an emergency video.
● Also the recording process cannot be interrupted. Once the emergency recording is completed, the dash cam will automatically switch back to normal video recording mode.
2.Why the dash cam stops recording?
If the dash cam automatically stops recording, please use the following to solve the problem,
● Restoring dashcam to factory settings
● Formatting the internal memory card
● Updating firmware
● Detecting abnormality in the internal memory card (e.g., non-dash cam-related files). In this case, please format the internal memory card.
After exiting these operations, the dash cam will automatically resume recording.
3.No driving route data displays on the app/platform
● The positioning system on the dashcam is not functioning and cannot obtain positioning information.
Solution: Check the dashcam's GPS light. If it is not lit, move the dash cam to an open space and wait for approximately 3 minutes before trying again.
● The car did not move, hence no driving record data was generated.
Solution: Ensure that the dashcam is correctly installed in the car and operating normally. Drive the car a certain distance to generate driving record data.
● The phone has no network connection. The phone requires a network connection to load the map when viewing driving records.
Solution: Disconnect the phone from the dashcam's Wi-Fi hotspot and connect it to a network (WLAN or mobile data network).
4.Why does ADAS calibration fail?
● The dashcam’s camera is not positioned correctly, too far from the center front, i.e. too close to the left and right sides or the upper and lower sides.
● The nighttime light is too dim, making it difficult to identify the lane line accurately.
● The lane line appears blurred, making it impossible to identify.
