WELON Color Series Mark Sensors WS C2W/WS C2 H/WS C2G

Product Overview

Description

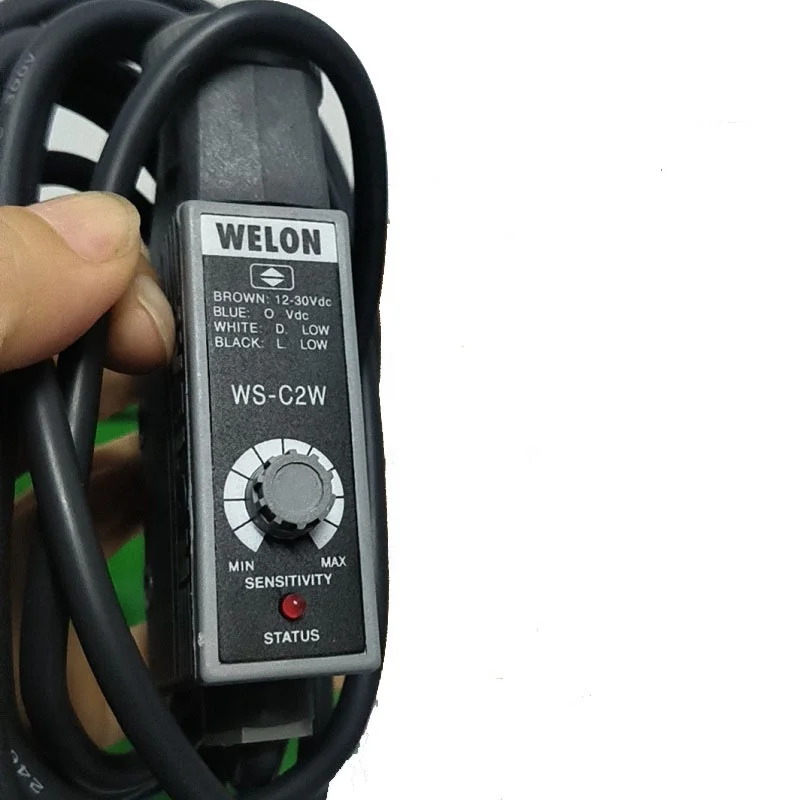

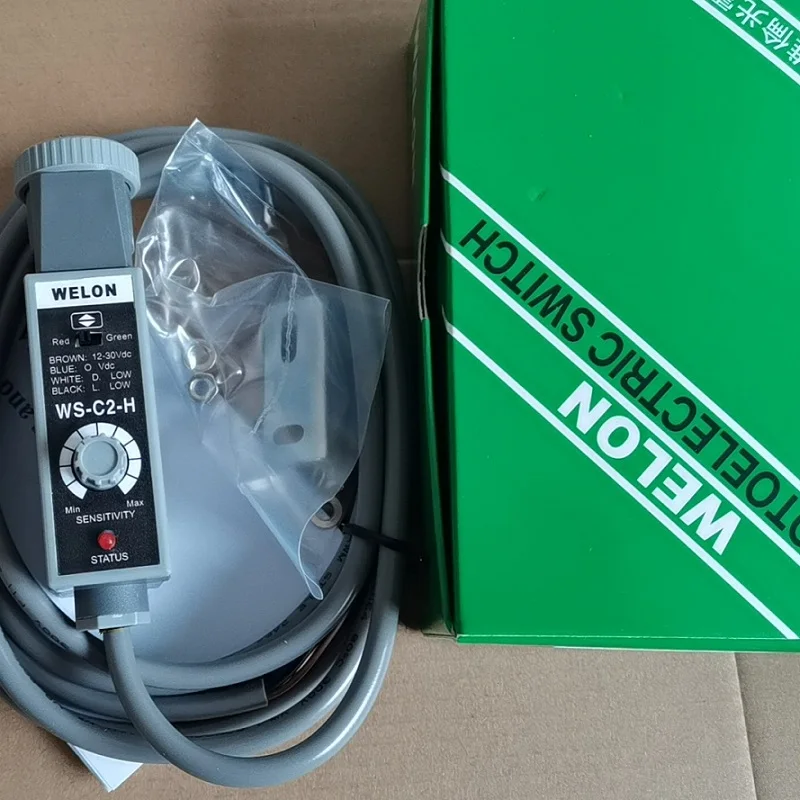

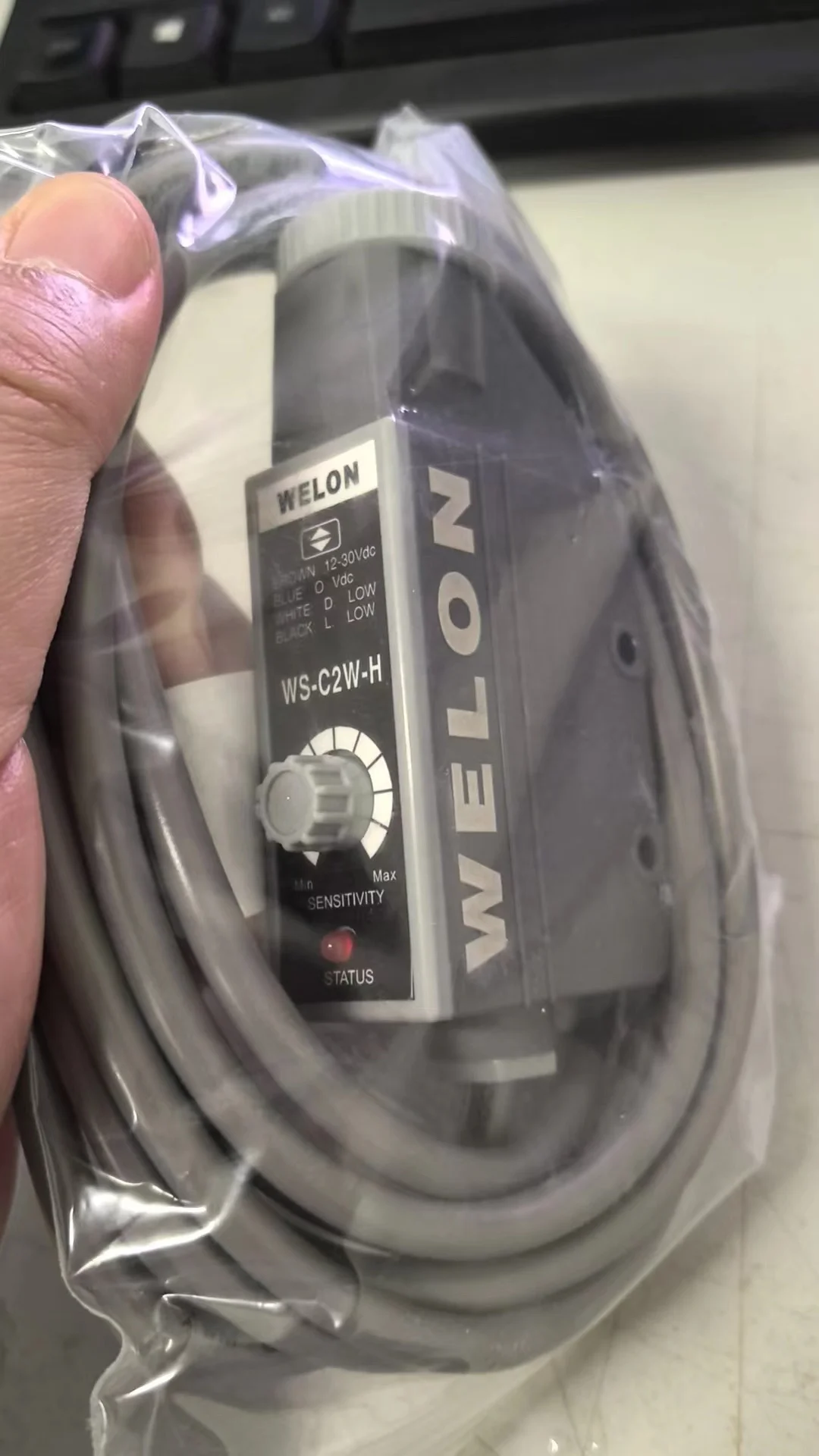

WELON Color Series Mark Sensors WS-C2W/WS-C2-H/WS-C2G





Main Technical Parameters

Checking mode	Co-axial
Checking distance	10mm +/- 2mm
Voltage supply	DC10-30V +/- 10%  Wave <10%
Work currency	Under 45mA
Light source spectrum	Red, green, blue, white,optional
Light spot	Φ0.5~Φ1.5
Checking angle	Vertical with surface, with 15°tolerance
Response time	0.1~1ms
Output mode	Operate with light or without light
Output indication	Red LED
Output voltage	VH  VC-1.5V  VL  1.2V
Currency load	200mA(max)
Circuit protection device	Vc polar protection  short-circuit protection
Sensitivity	Single loop adjustable
Anti-background light	Sunlight < 10000 Lx   incandescent light<3000Lx
Protection level	Ip67
Environment protection temperature	Work at -15℃~65℃  storage -25℃~80℃
Shell material	Metal
Connection wire	Φ5.4 PVC 4-core  cable L=2m
Weight	About 500g



Precautions:

1.Be sure to check whether the power energization before DC12-24V10% with a maximum of not more than 40V, they may damage the photoelectric switch.

2.To ensure greater stability testing to ensure that do two things: First, the rated detection distance offsets compliance, as the subject distance is 122mm, and when installed it is necessary that the subject distance is 12mm, so that the switch can upper and lower anti-vibration 4mm stable region, whereas when the object distance is 10mm, the upper and lower vibration-proof region is greatly reduced. ; Second strictly adjust the sensitivity of the procedure. And each for packaging material should not be readjusted.

3.Should be installed to prevent the direct glare into optical lenses or appropriate shielding measures.

4.The working environment temperature, humidity, vibration, shock, and other corrosive gases, are likely to affect the photoelectric switch, please note that try to eliminate these effects.

5.Usually to protect the optical lens cleaning, to avoid the lens is mounted upright facing upward, in order to reduce dust.
