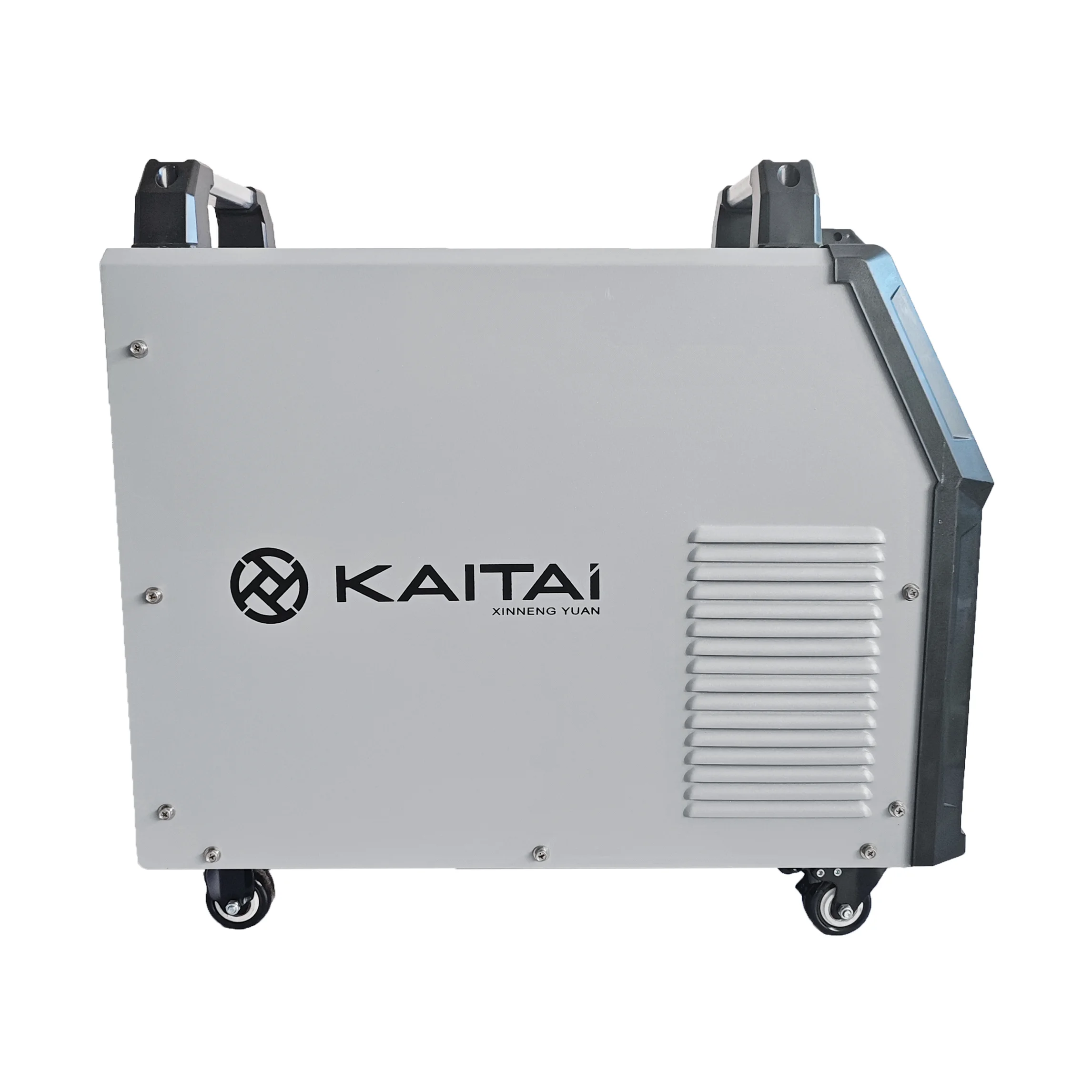

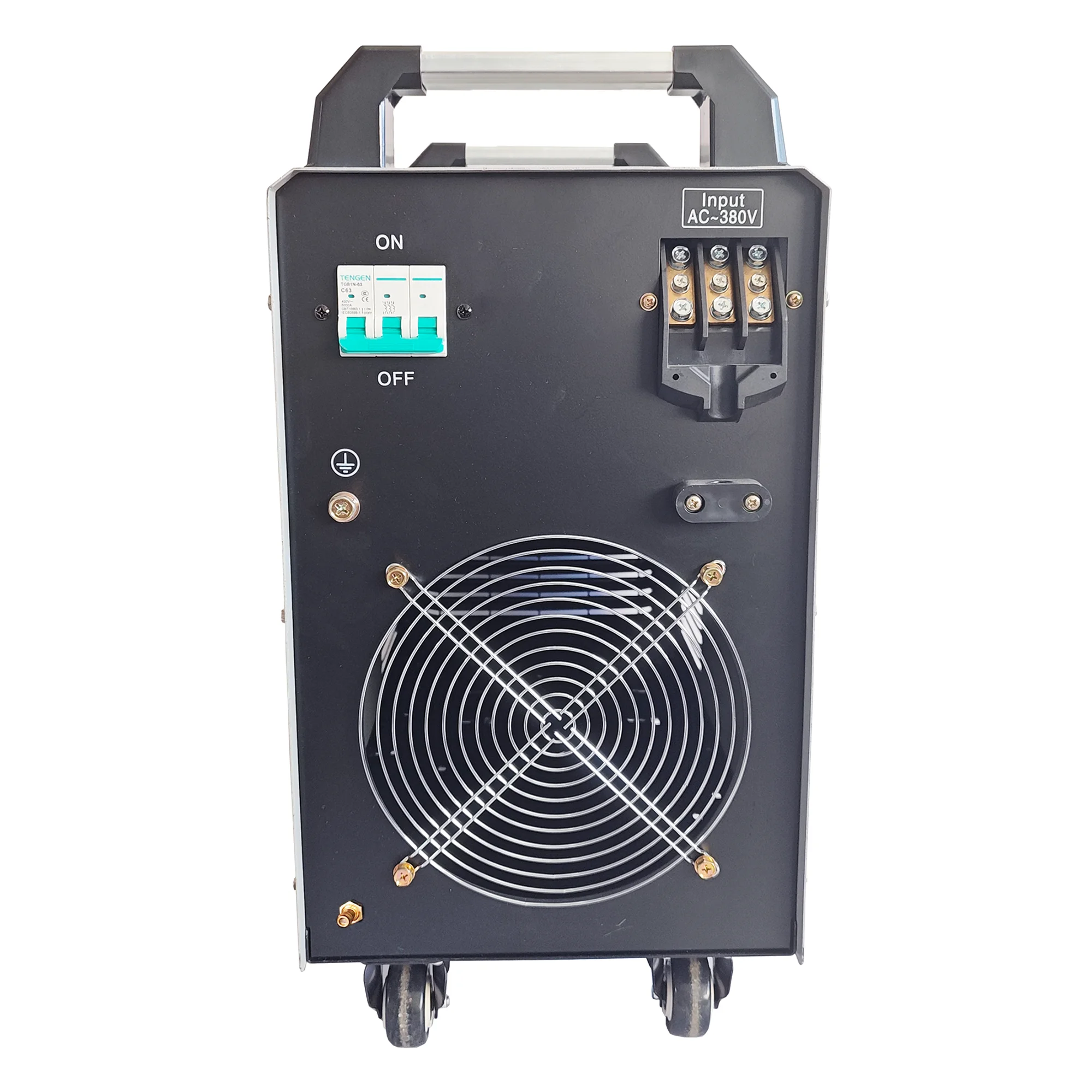

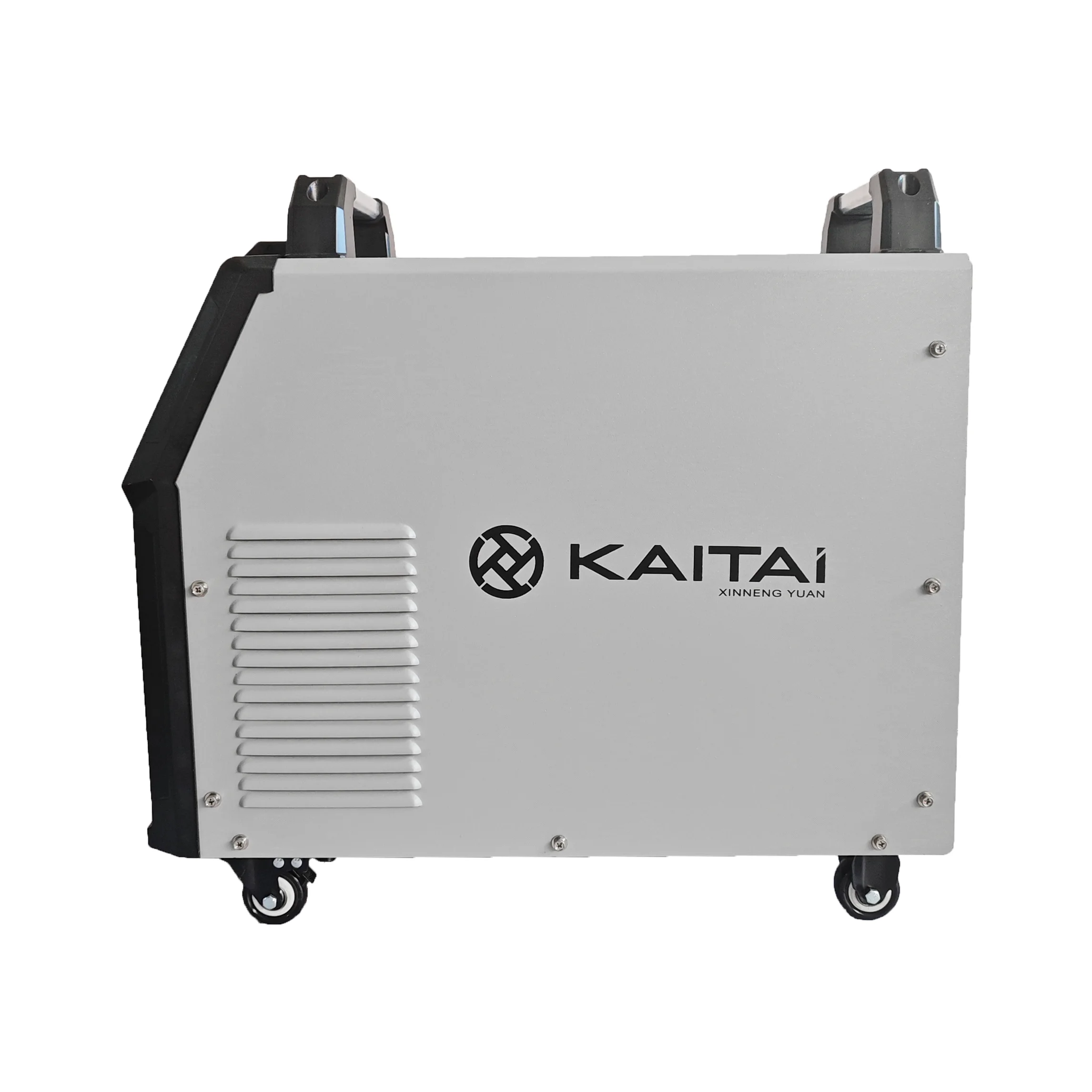

3Phase Heavy Duty IGBT Inverter HF DC TIG Welding Machine Pulse TIG WSM 400 MMA/TIG Welder 380Amp
- Category: >>>
- Supplier: ZHEJIANG KAITAI AMPEREX TECHNOLOGY CO. LTD
Share on (1601255219908):
Product Overview
Description
Products Description
Model: | WSM-400 |
Input Voltage(V) | 3phase 380v 50/60Hz |
Input Capacity(KVA) | TIG: 12 MMA: 13.3 |
Input Current(A) | TIG: 18.4 MMA: 27 |
Duty cycle (%) | 60 |
No-load Voltage(V) | 65V |
Output Current range(A) | TIG: 10A-380 MMA: 10-320 |
Output Voltage Adjusting Range(V) | 26 |
Protection Class | IP21S |
Insulation Class | F |
Machine Size(mm) | 590*290*560 |
Packing Size(mm) | 655*340*595 |
Weight(Kg) | 35 |
Features:
☑ HF DC TIG/Pulse TIG/MMA Multifunction.
☑ Excellent performance with Pulse TIG, especially for thin material welding.
☑ Stable arc with no spatter, good shaping and less deformation.

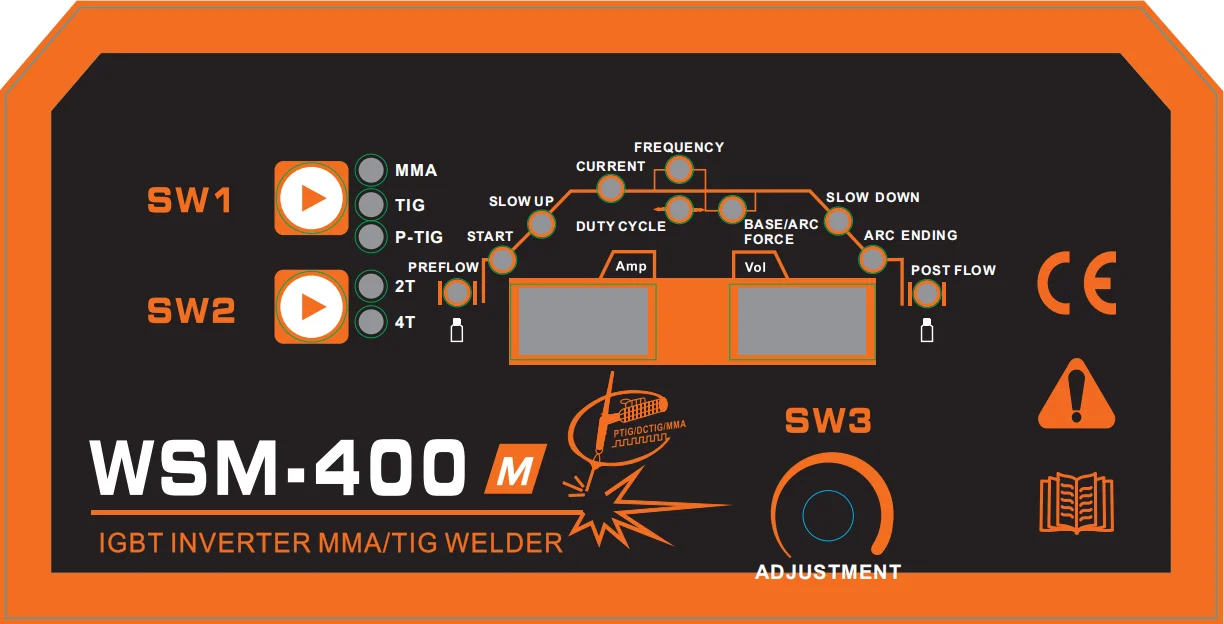

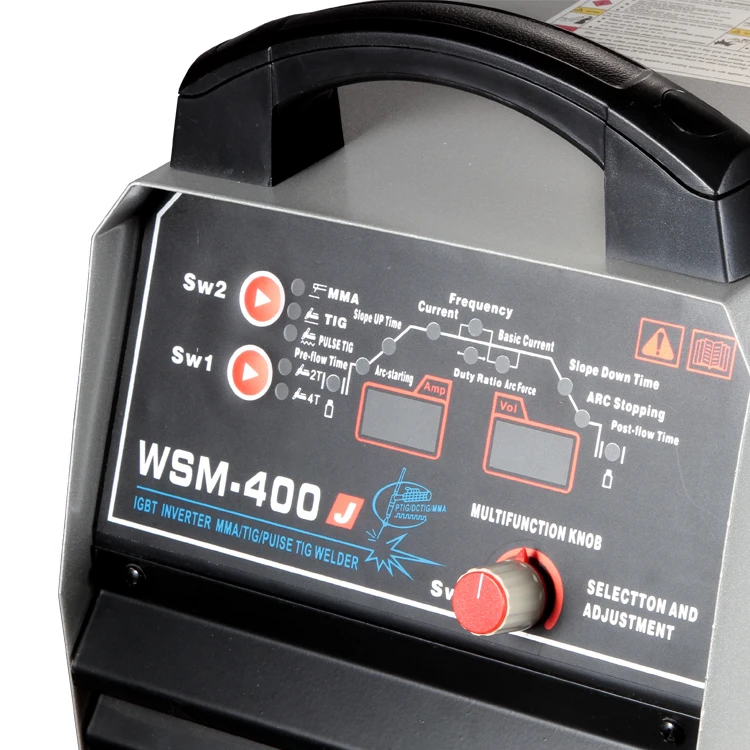

☑ Digital Human Machine Interface, precise welding process parameter adjustment: Gas preflow, Slow-up, Frequency, Peak/Base amp, Post flow, etc.
☑ VRD, over current/temperature protection.
☑ Excellent performance with Pulse TIG, especially for thin material welding.
☑ Stable arc with no spatter, good shaping and less deformation.
☑ Digital Human Machine Interface, precise welding process parameter adjustment: Gas preflow, Slow-up, Frequency, Peak/Base amp, Post flow, etc.
☑ VRD, over current/temperature protection.
Details Images
Product packaging

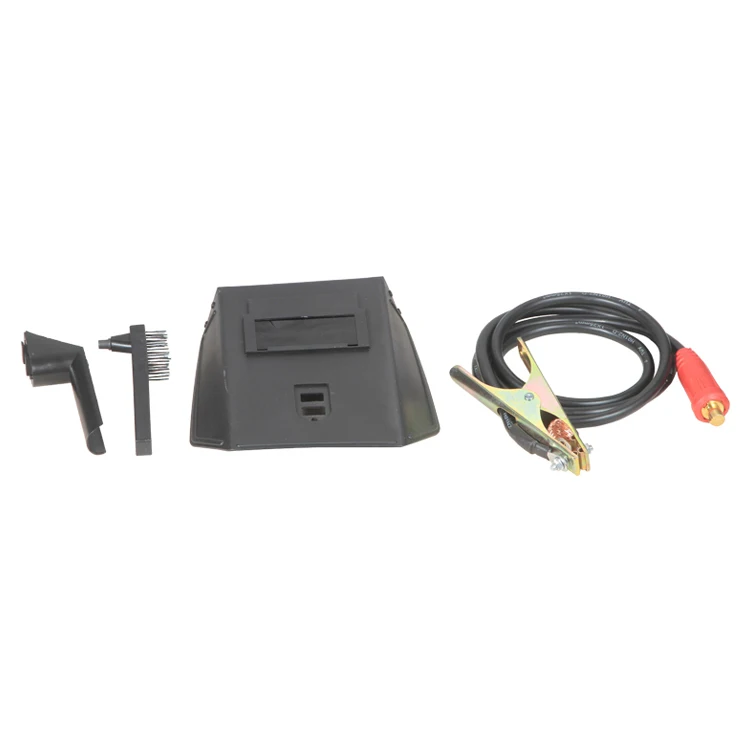

Included:
5m WP18,
1.2m 50² 500A earth clamp,
Mask,
Hammer
