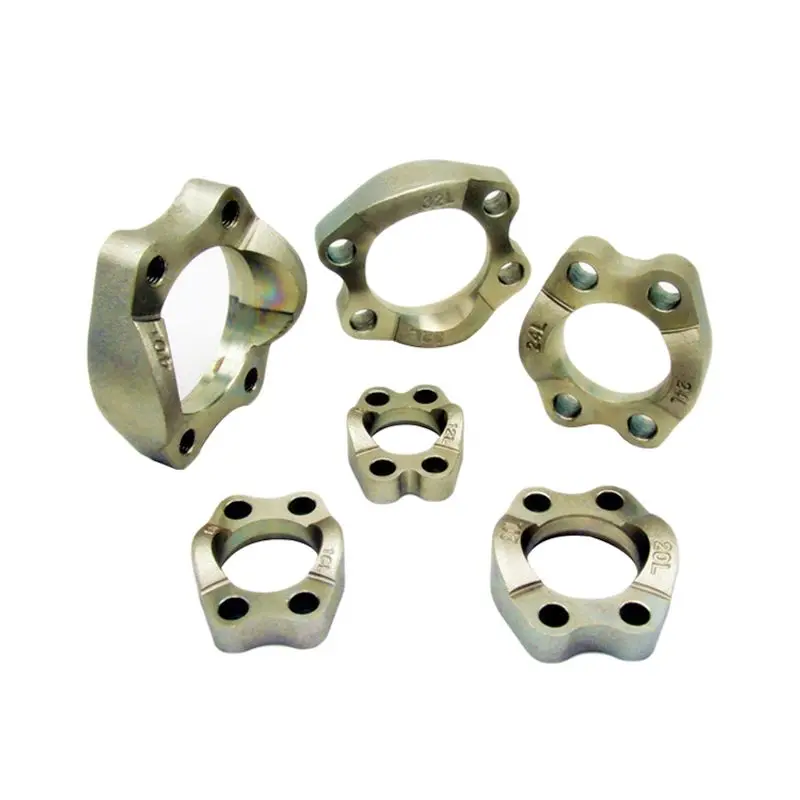

Factory Direct Sale Professional Manufacture Flange Clamps Series Hydraulic Band Clamp Flange Ring
- Category: >>>
- Supplier: Yuyao Swintool Co. Ltd.
Share on (1601255279068):
Product Overview
Description
Instruction for code 61 Flange Clamps one piece type:
1. Working pressure of SAE code 61 series flange clamps is 3000 PSI, 3,5 MPa (35 bar) to 35MPa (350 bar).
2. SAE Flange clamps dimensions is according to ISO 6162-1:2012.
ISO Nominal Size: DN 13;DN 19; DN 25; DN 32; DN 38; DN 51; DN 64; DN 76; DN 89; DN 102; DN 127;
Inch size: 1/2"；3/4"；1"；1 1/4"；1 1/2"；2"；2 1/2"；3".
3. Material of SAE one-piece flange clamp is made of carbon steel C45 ,Stainless steel 304,316 or 316L.
4. The external surface Corrosion protection of all carbon steel flange clamps,shall beprotected with an appropriate coating to
pass a minimum 72-h salt spray test in accordance with ISO 9227.
5. Test requirement for pressure/temperature:
1. Working pressure of SAE code 61 series flange clamps is 3000 PSI, 3,5 MPa (35 bar) to 35MPa (350 bar).
2. SAE Flange clamps dimensions is according to ISO 6162-1:2012.
ISO Nominal Size: DN 13;DN 19; DN 25; DN 32; DN 38; DN 51; DN 64; DN 76; DN 89; DN 102; DN 127;
Inch size: 1/2"；3/4"；1"；1 1/4"；1 1/2"；2"；2 1/2"；3".
3. Material of SAE one-piece flange clamp is made of carbon steel C45 ,Stainless steel 304,316 or 316L.
4. The external surface Corrosion protection of all carbon steel flange clamps,shall beprotected with an appropriate coating to
pass a minimum 72-h salt spray test in accordance with ISO 9227.
5. Test requirement for pressure/temperature:
Flange type connections conforming to this part of ISO 6162 shall be subjected to
the burst and cyclic endurance tests specified in ISO 19879 to verify that they meet the specified pressure/temperature
requirements.
6. Designation of one piece flange clamps connections
One-piece flange clamp of size DN 25: Clamp ISO 6162-1, FC×25
Swintool company use FL-16(dash size)W: SAE 3000 psi flange clamps size 1” inch.
Parker company use FUS3x(2,3,4,5,6,8, etc) and FCC (dash size FCCT1 )
Stauff company use BM-30x(1,2,3,4,5,6,7,8,9,10,11)
7. Dimensions of SAE Flange Clamps Code 61
the burst and cyclic endurance tests specified in ISO 19879 to verify that they meet the specified pressure/temperature
requirements.
6. Designation of one piece flange clamps connections
One-piece flange clamp of size DN 25: Clamp ISO 6162-1, FC×25
Swintool company use FL-16(dash size)W: SAE 3000 psi flange clamps size 1” inch.
Parker company use FUS3x(2,3,4,5,6,8, etc) and FCC (dash size FCCT1 )
Stauff company use BM-30x(1,2,3,4,5,6,7,8,9,10,11)

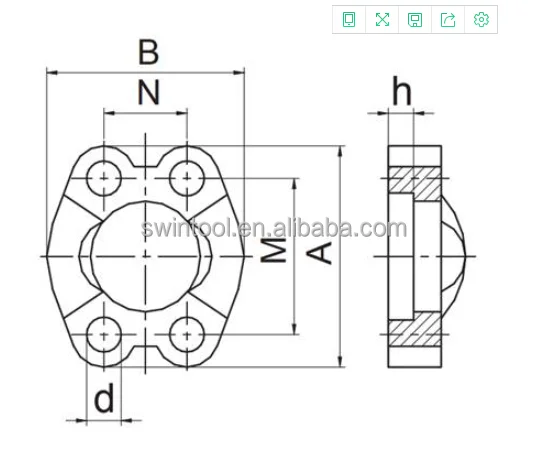

7. Dimensions of SAE Flange Clamps Code 61

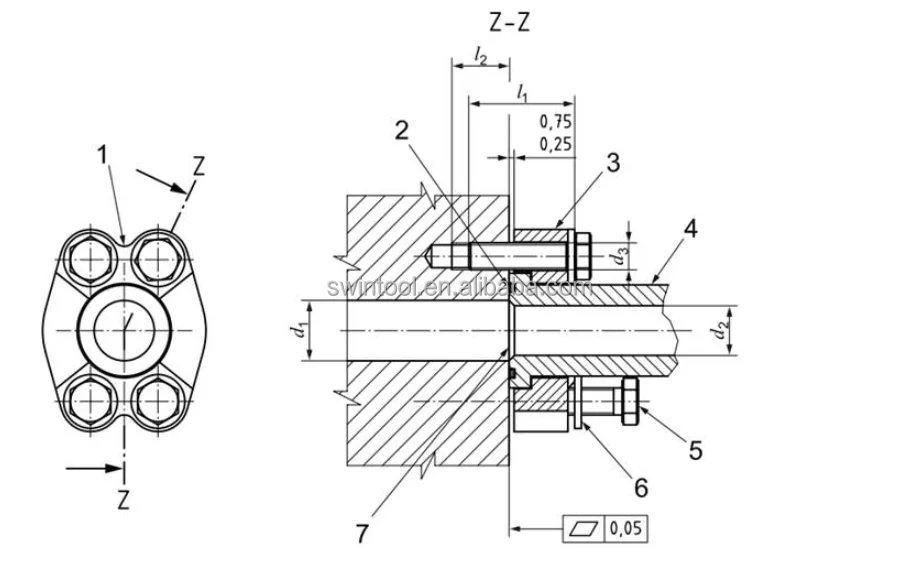

Assembled flange connection with one-piece flange clamp (FC or FCM)

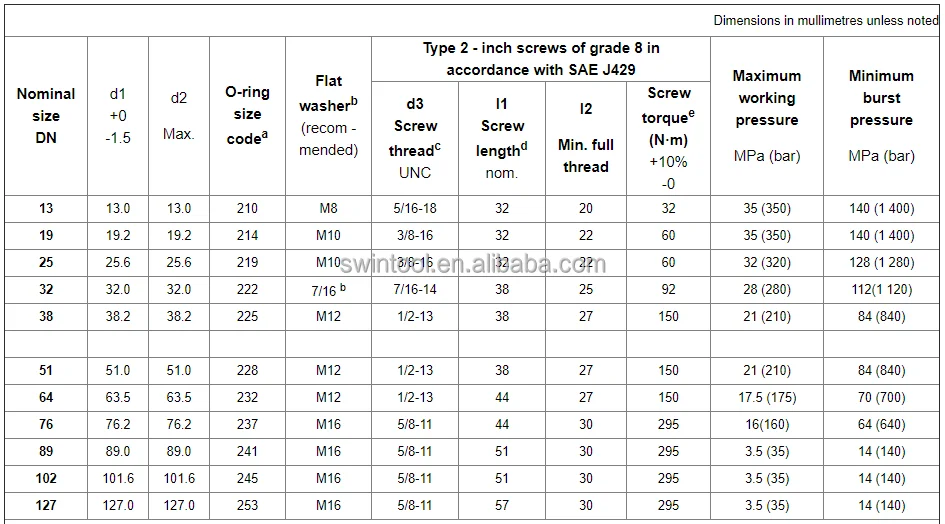

Dimensions, torques and maximum working pressures for one-piece flange assemblies for use with inch screws
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 30-45 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or againt the B/L copy.
If you have another question, pls feel free to contact us.
Q: What about shipping?
A: We ship small batches by air,or larger orders by container. In any event, we get quality product out the door quickly.
Q.I cannot find the products I want on your site. Are you able to help me to locate it?
A.We are not able to put every product we can do on this site. Telling us your requirement, we can send you the right products information and related products.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 30-45 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or againt the B/L copy.
If you have another question, pls feel free to contact us.
Q: What about shipping?
A: We ship small batches by air,or larger orders by container. In any event, we get quality product out the door quickly.
Q.I cannot find the products I want on your site. Are you able to help me to locate it?
A.We are not able to put every product we can do on this site. Telling us your requirement, we can send you the right products information and related products.
