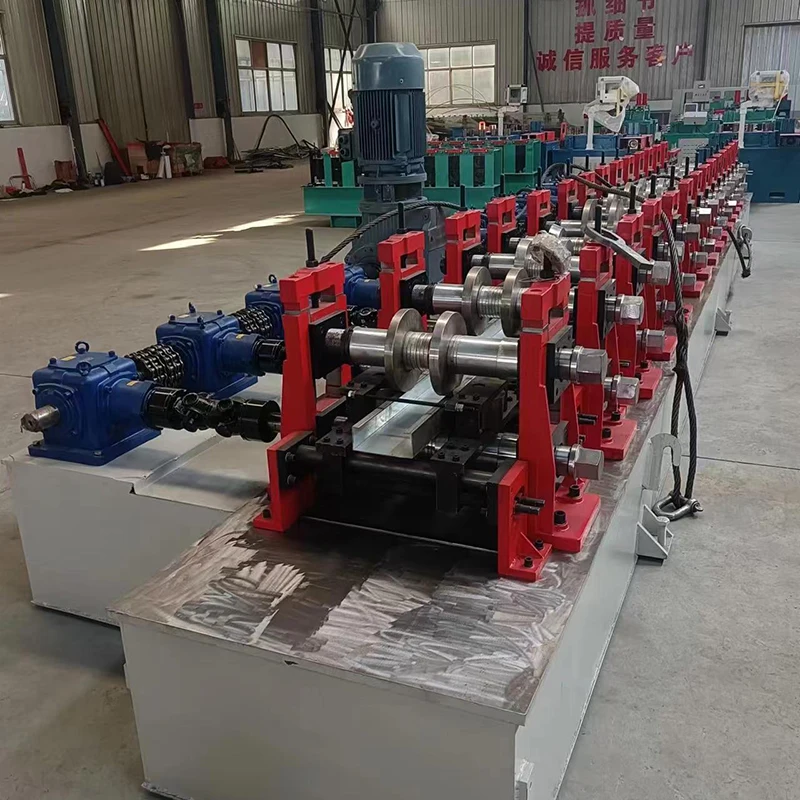

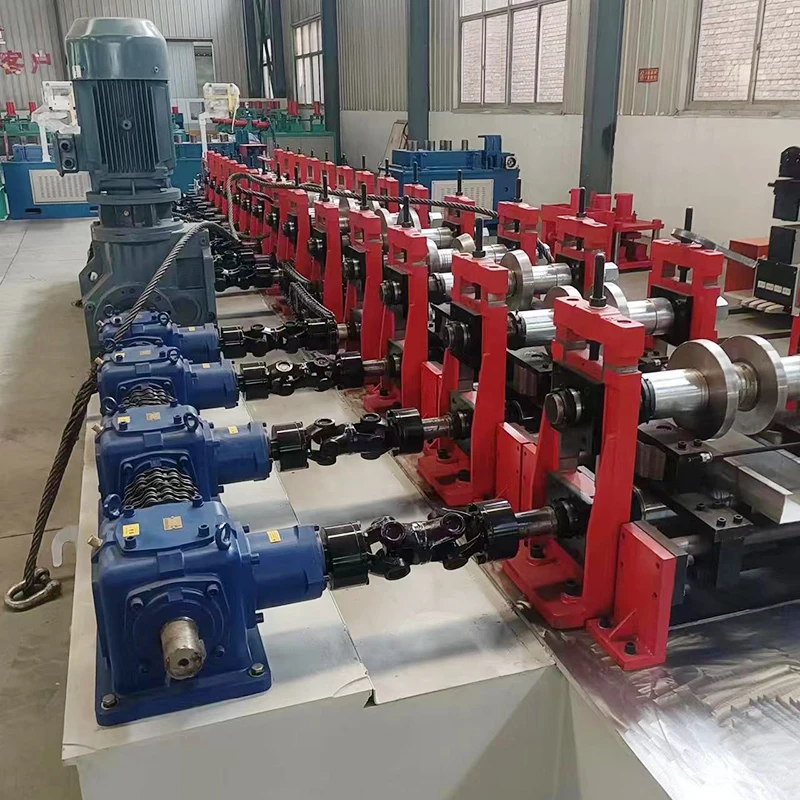

C/U Solar Panel Strut Channel Unistrut C Channel Photovoltaic Support Roll Forming Machine
- Category: >>>
- Supplier: Cangzhou Guangchi Machinery Co. Ltd.
Share on (1601255297675):
Product Overview
Description
Product Overview

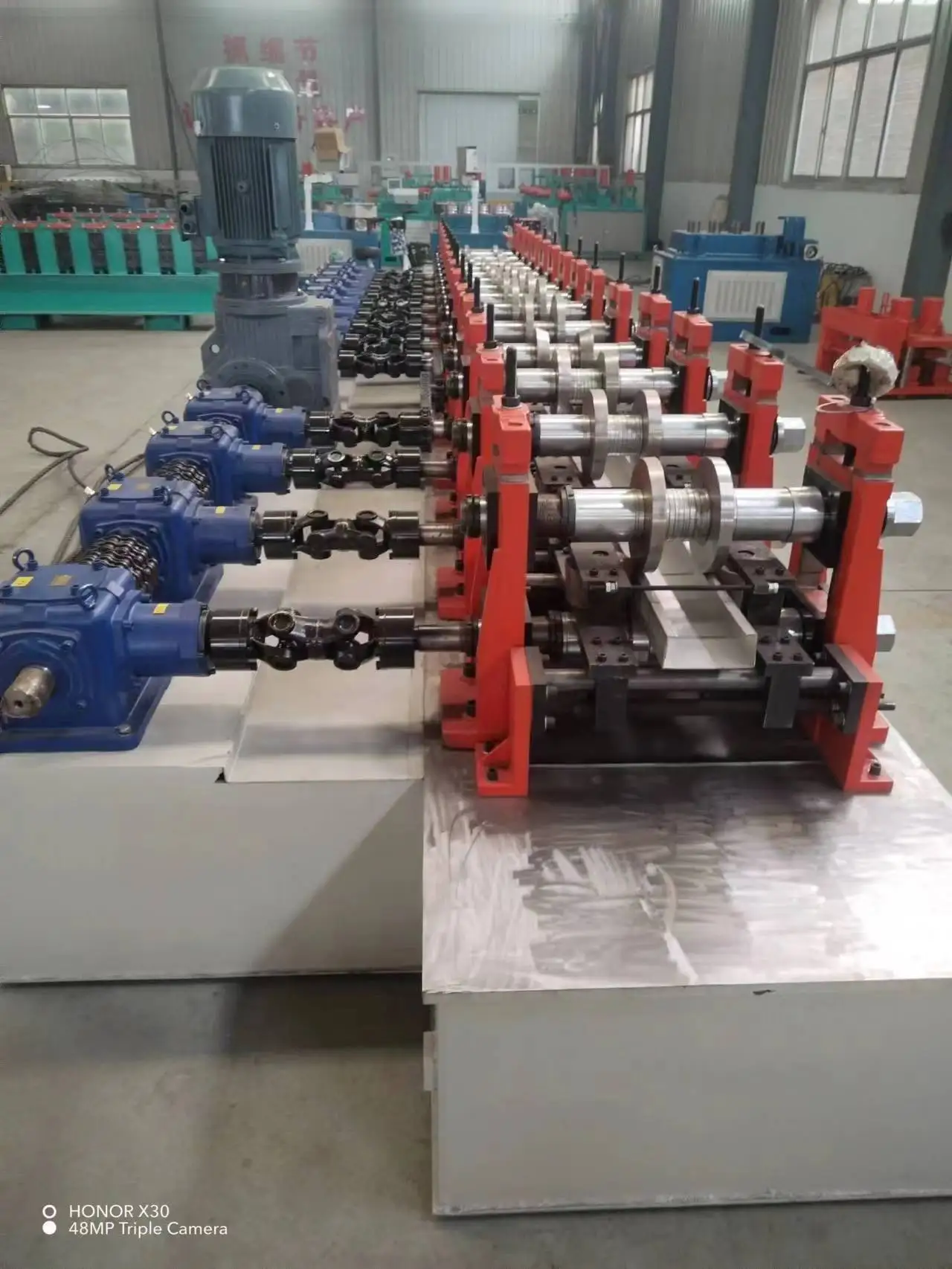

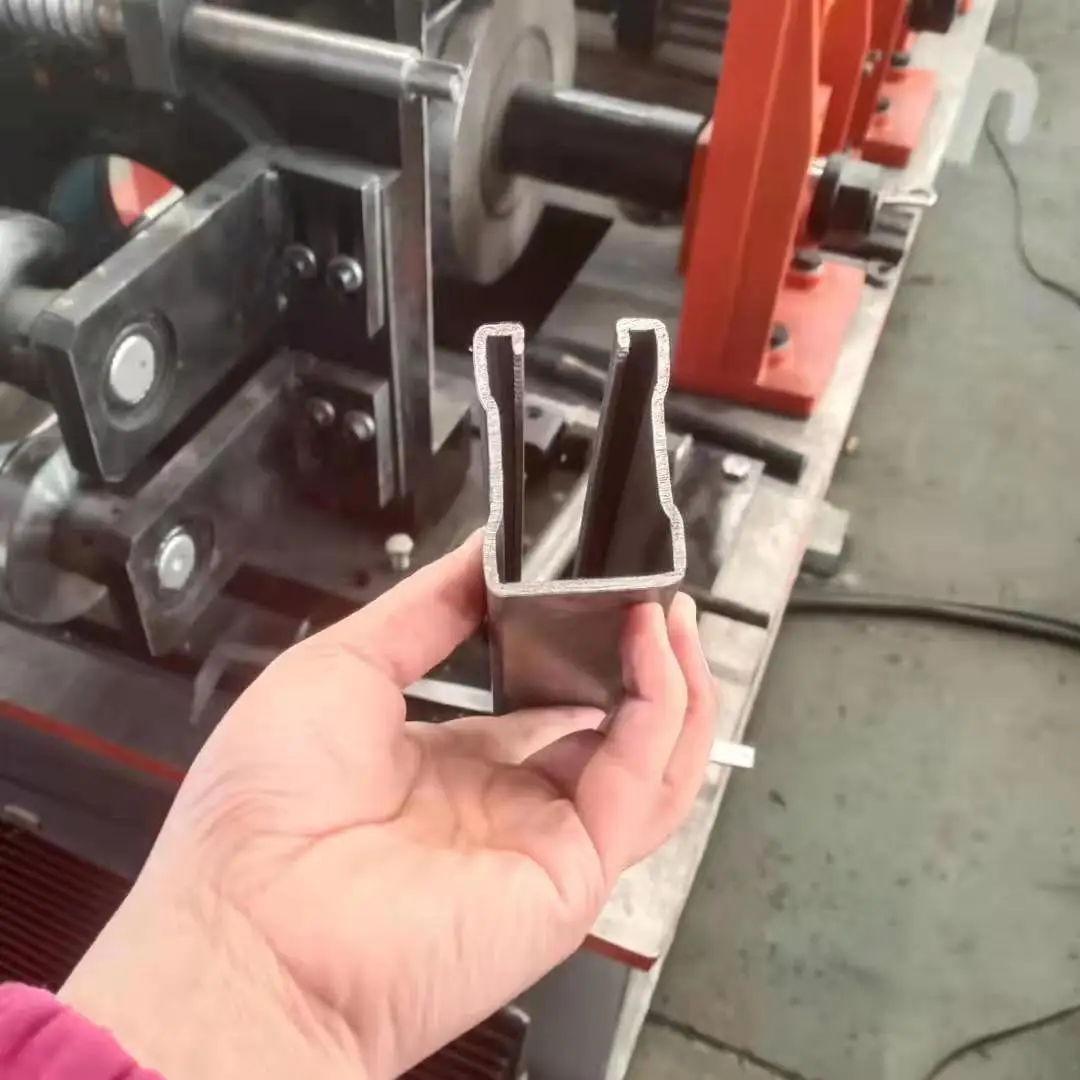

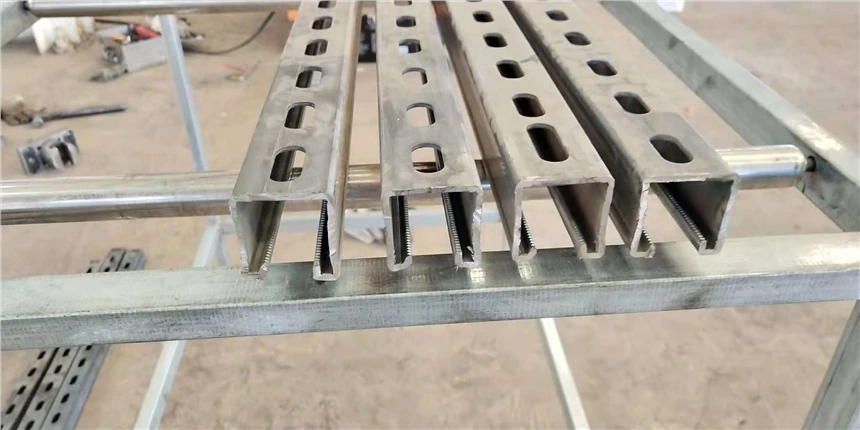

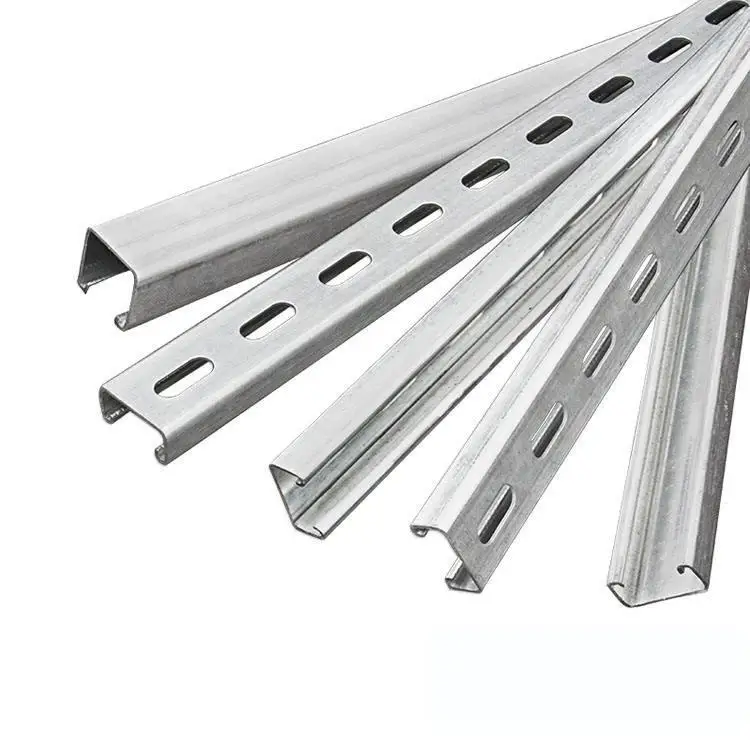

C-type strut channel roll forming machine
shaft diameter: 80mm
bearing:314NU
motor: 22KW-K107 reducer
cutting way:non-stop hydraulic mold cutting
roll material:Cr12 finishing & quenching
transmission way: by 170 Gearbox universal joint transmission

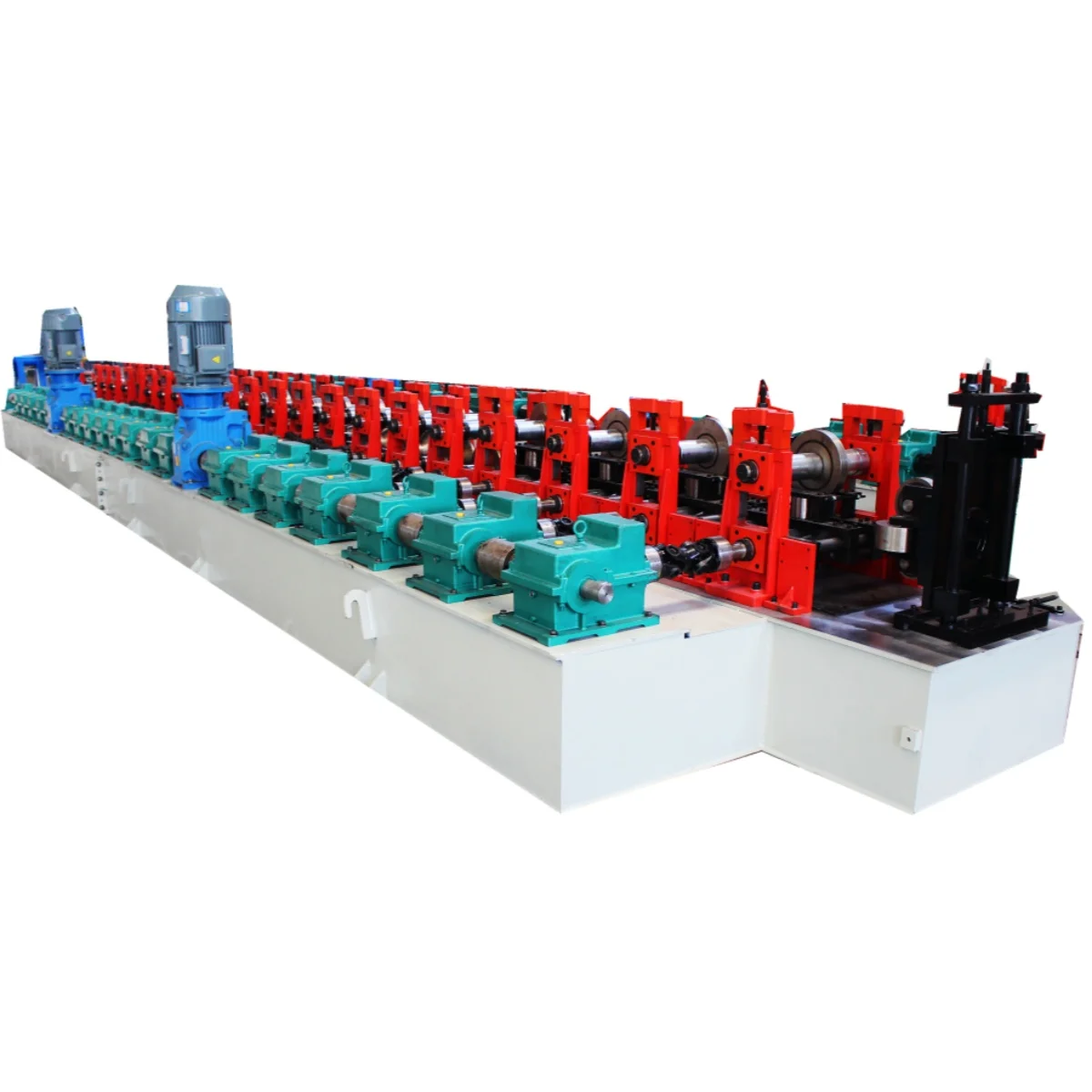

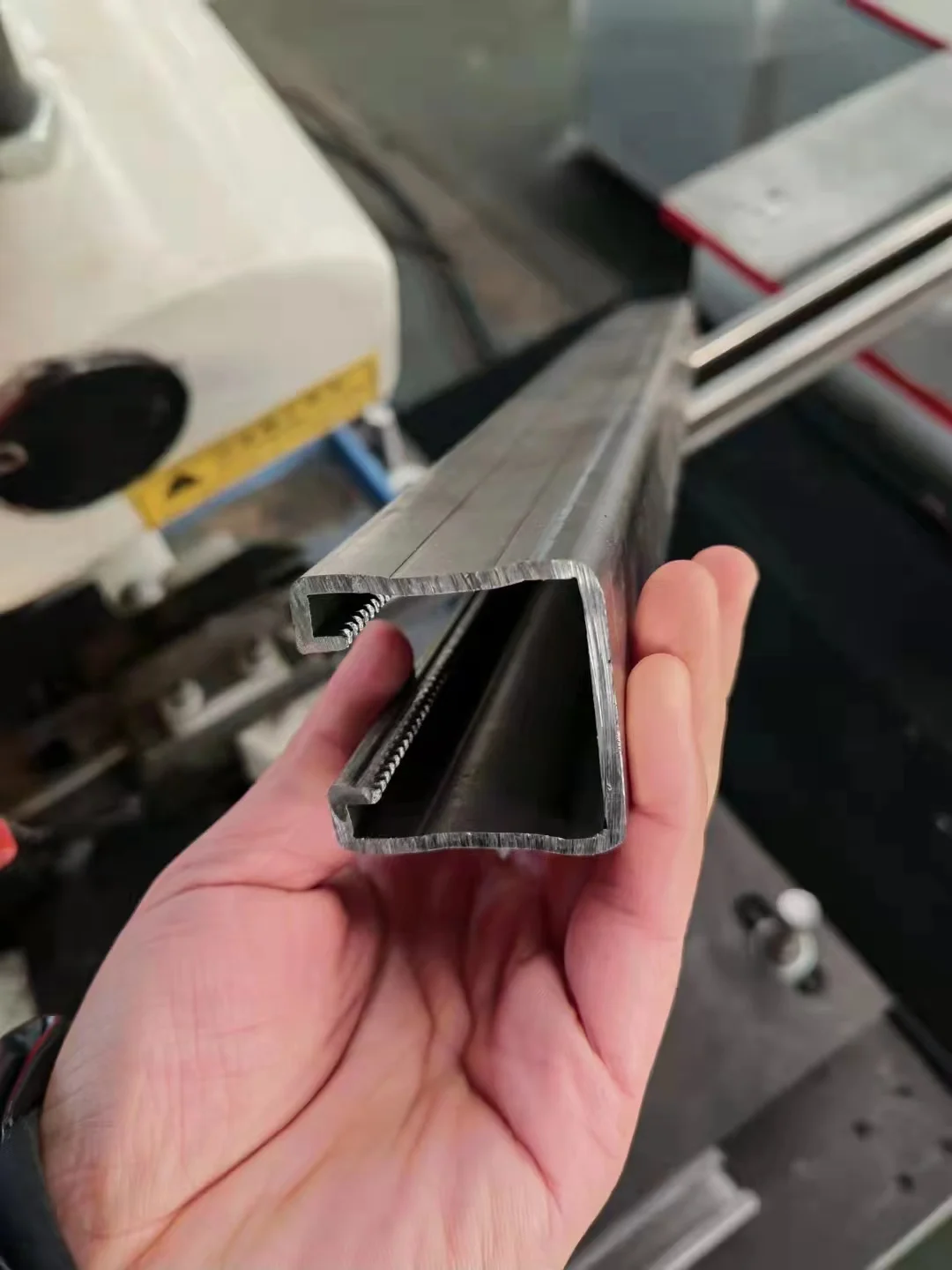

U-type strut channel roll forming machine
shaft diameter: 80mm, 45# steel
motor: 18.5KW+K97 reducer *2
roll material:Cr12, finishing & quenching
cutting way:Uninterrupted flying saw cutting
transmission way: by 170 garebox
forming thickness:2.0-2.75mm

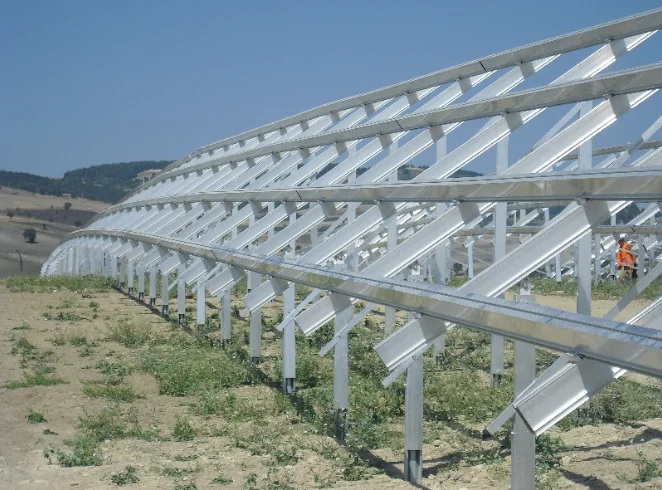

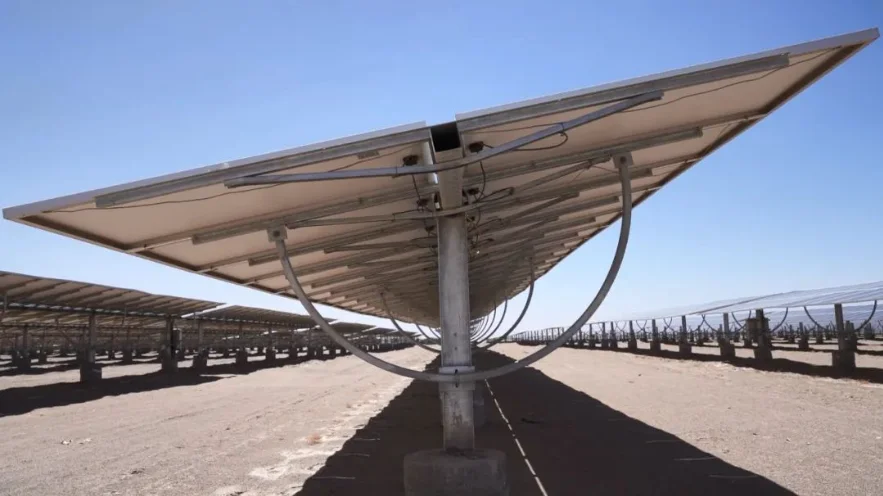

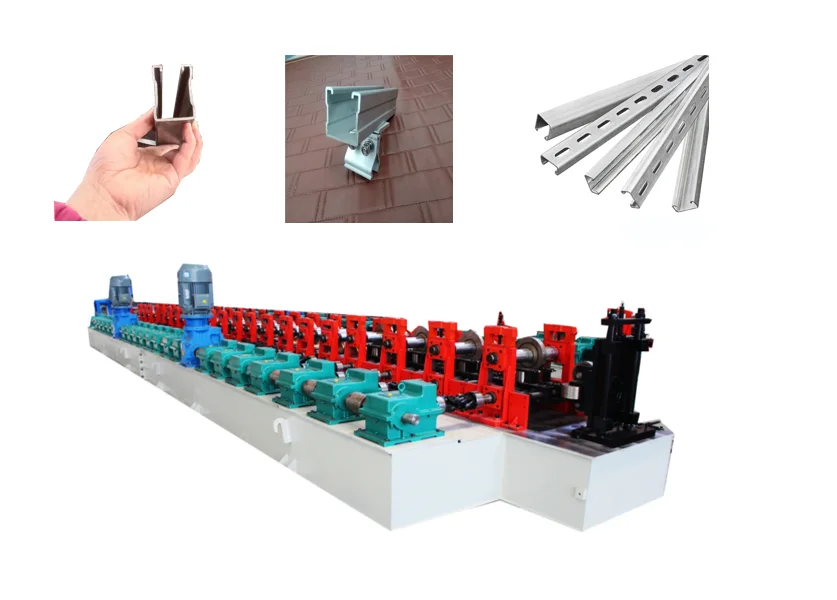

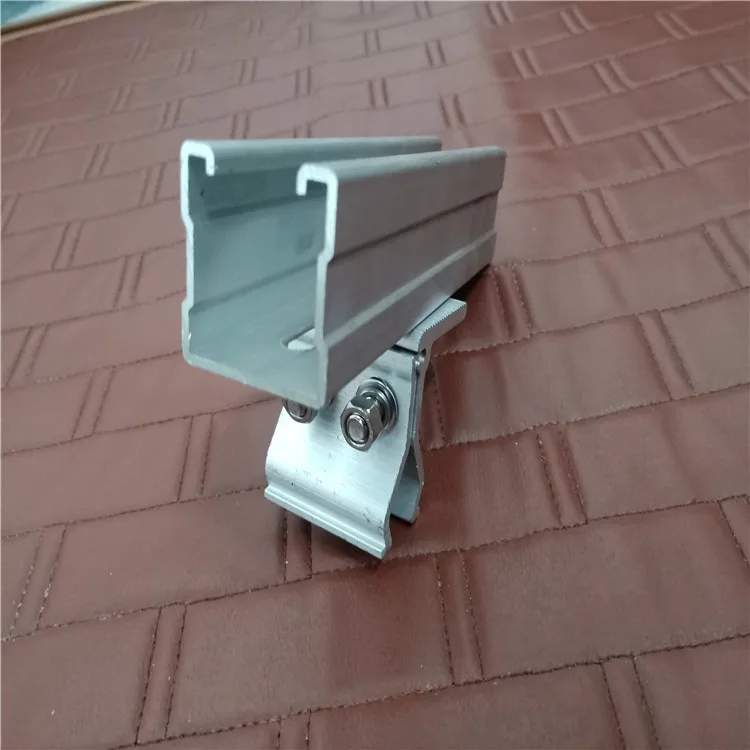

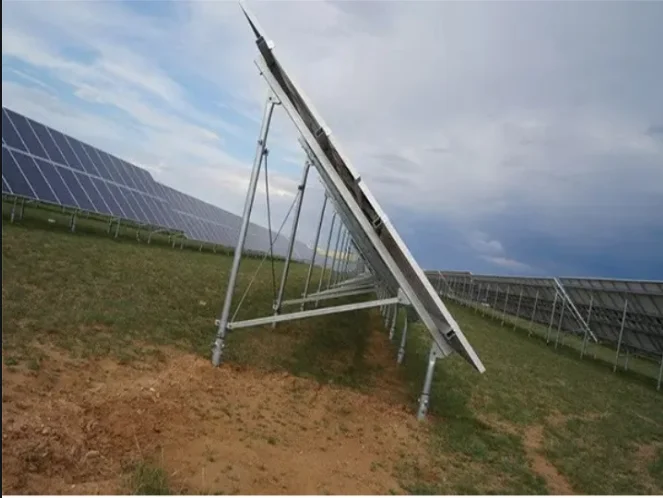

Photovoltaic Bracket Forming Machine

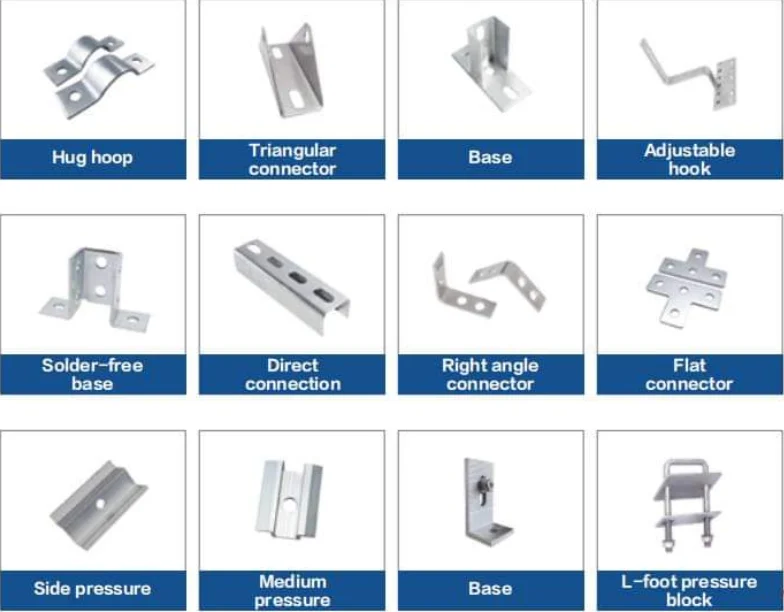

we are factory of making kinds of cold roll forming machines, especially for solar photovoltaic brackets which get Patent certificate for servo tracking system. we have our own design team with more than 15 years experiences. Of course, we can provide you with matching brackets, please let me know your purchase now.
USAGE

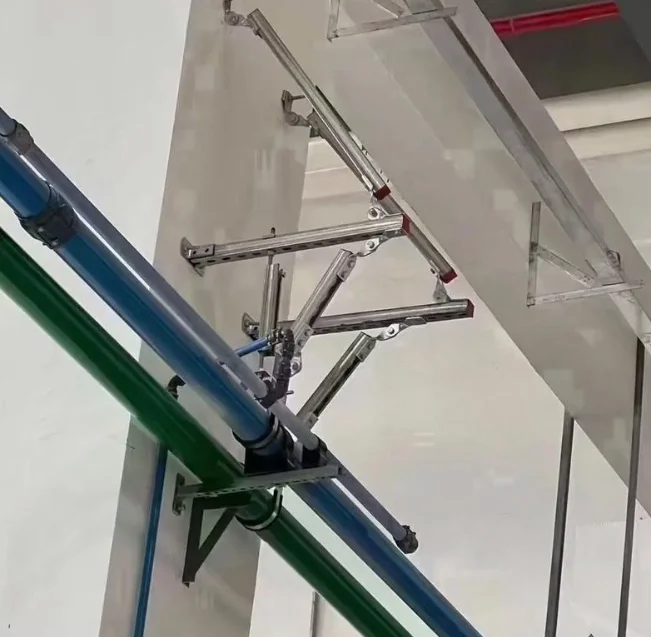

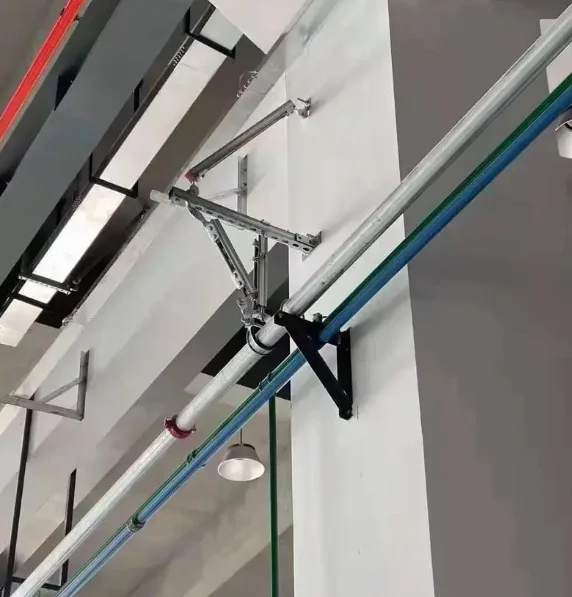

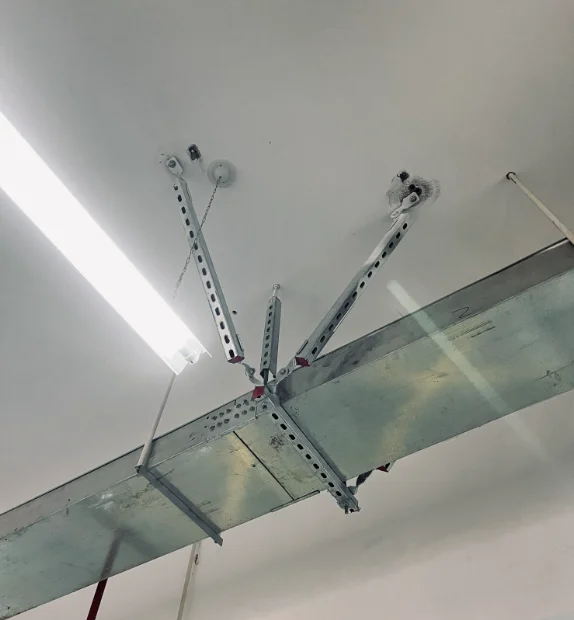

Seismic brackets
Seismic supports play a crucial role in earthquakes by limiting the displacement and controlling vibration of mechanical and electrical engineering facilities, ensuring that these facilities will not be damaged or detached due to vibration during earthquakes, thereby reducing secondary disasters caused by earthquakes, protecting the mechanical and electrical systems in buildings to quickly restore their working status after earthquakes, and reducing casualties and property losses. Specifically, seismic braces have a wide range of applications, including but not limited to large complex buildings such as airports, train stations, exhibition centers, sports arenas, commercial complexes, industrial plants, etc. The design of these brackets is based on the stability principle of triangles, which absorb and disperse the energy generated by earthquakes through unique structural design, ensuring the safety of electronic facilities during earthquakes.
In summary, seismic supports play an irreplaceable role in protecting the mechanical and electrical facilities inside buildings and reducing the impact of earthquake disasters, and are one of the indispensable safety measures in modern buildings.
In summary, seismic supports play an irreplaceable role in protecting the mechanical and electrical facilities inside buildings and reducing the impact of earthquake disasters, and are one of the indispensable safety measures in modern buildings.

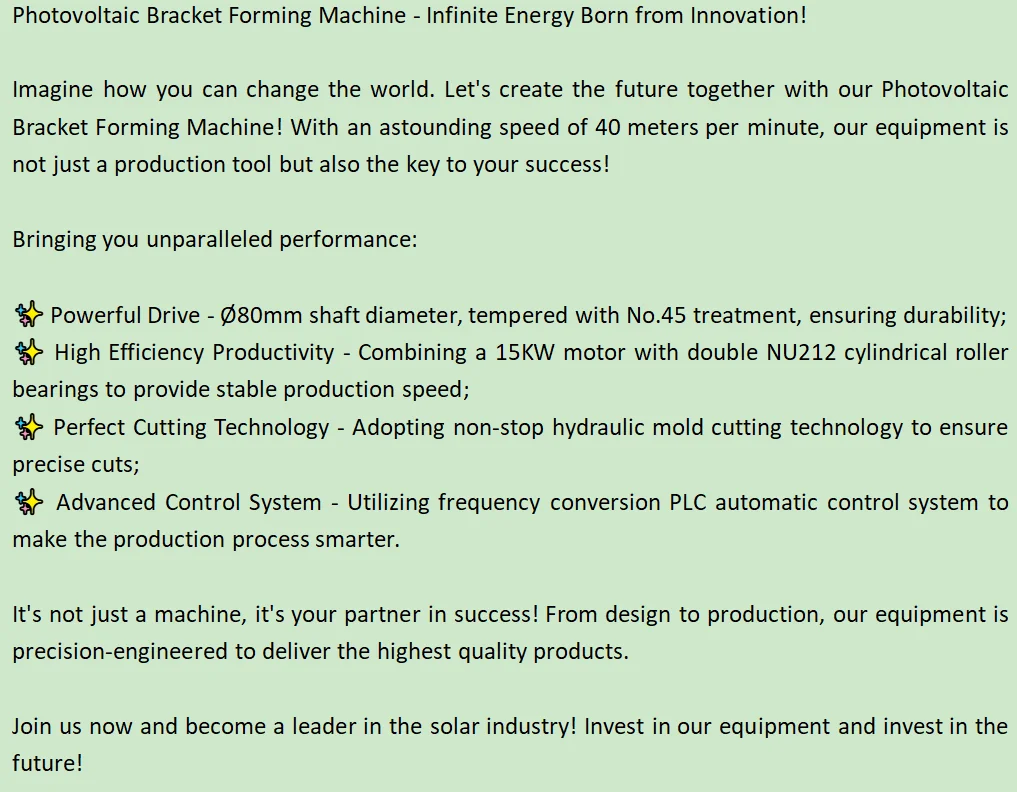

Why PHOTOVOLTAIC BRACKET forming machines are so popular in the world?

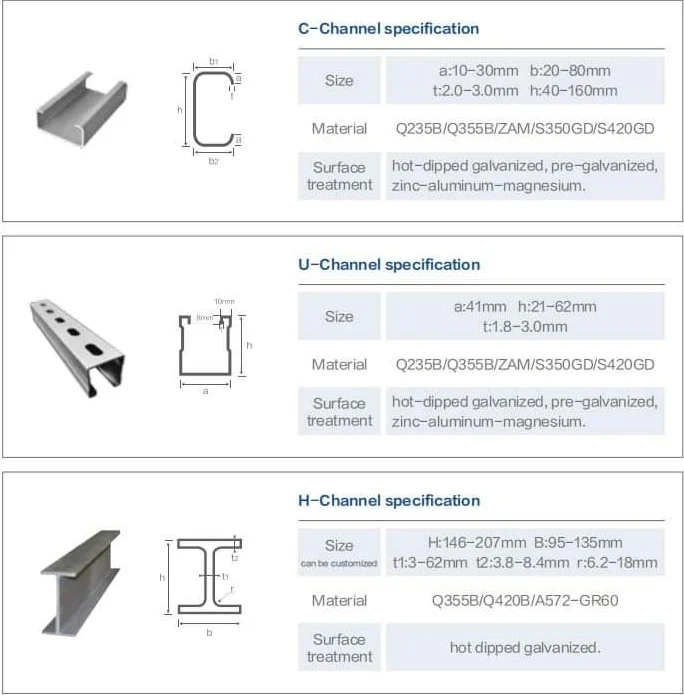

PRODUCT SPECIFICATIONS

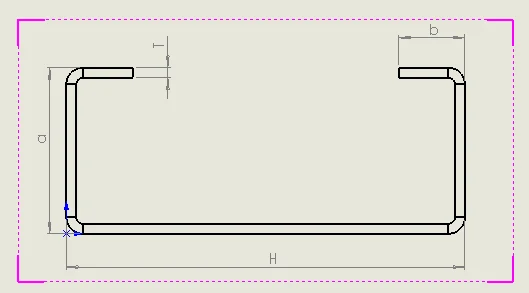

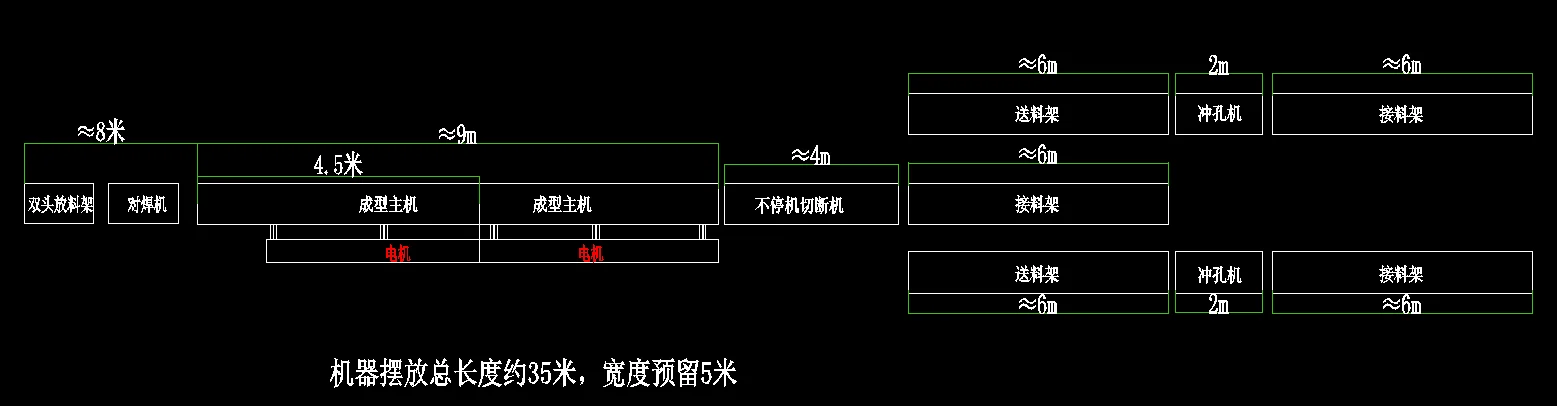

Space Occupied
No | Item | Data | |
1 | Forming Rows | 23 | custmazation |
2 | Material Thickness | 1.5-3mm | custmazation |
3 | Diameter of Shafts | 80mm | custmazation |
4 | Material of Shafts | 45# quenched steel | custmazation |
5 | Material of Rolls | Cr12 quenched & finished | custmazation |
6 | Main Power | 18.5KW+K97*2 | custmazation |
7 | Hydraulic Power | 7.5KW | custmazation |
8 | Transmission Way | 170 Universal Joint of Gearbox | custmazation |
9 | Wall Panel Thickness | 50mm | custmazation |
10 | Bearing | NU212 cylinder | custmazation |
11 | Control System | PLC | custmazation |
12 | Speed | 25m/min | custmazation |

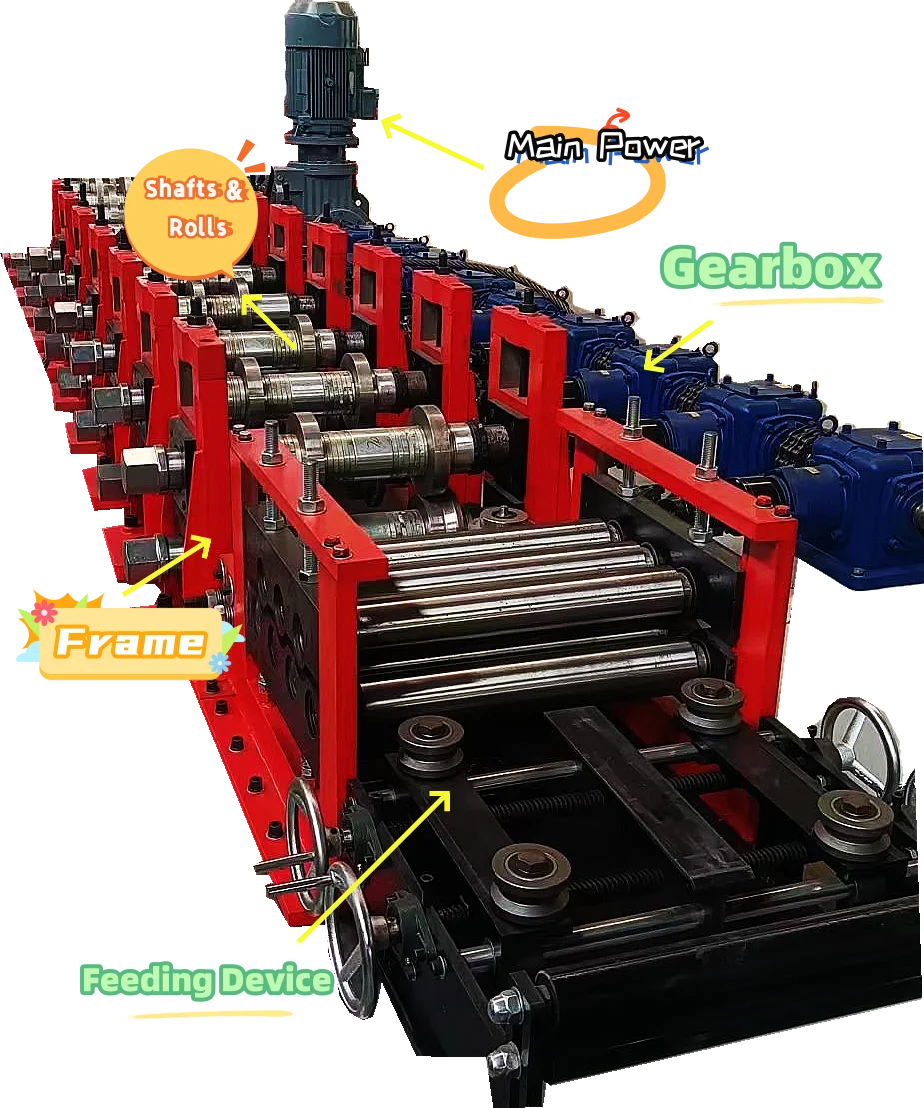

FEATURES AT A GLANCE
more details
Feeding device

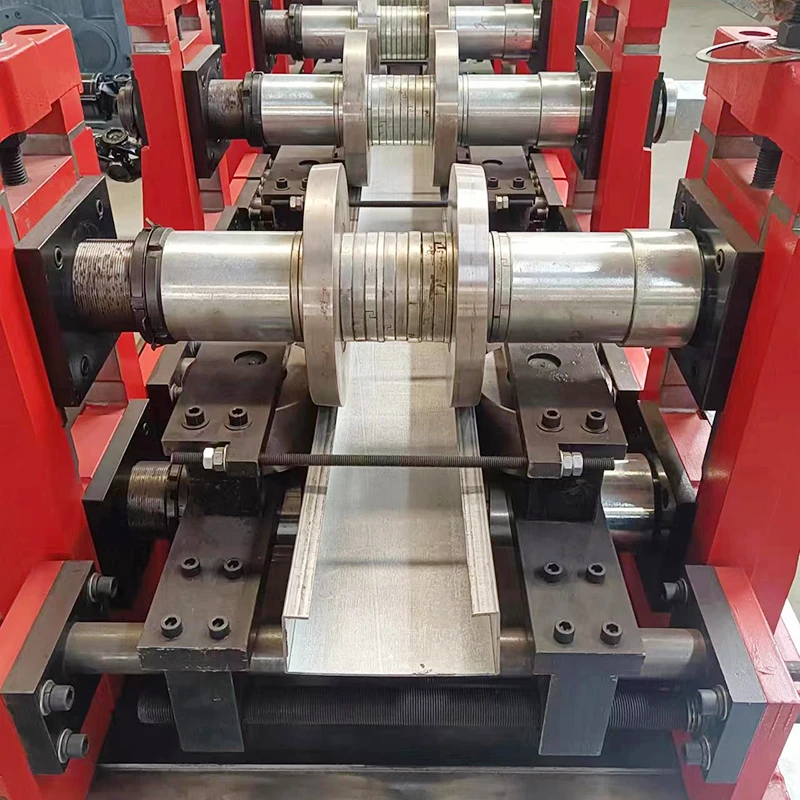

forming device

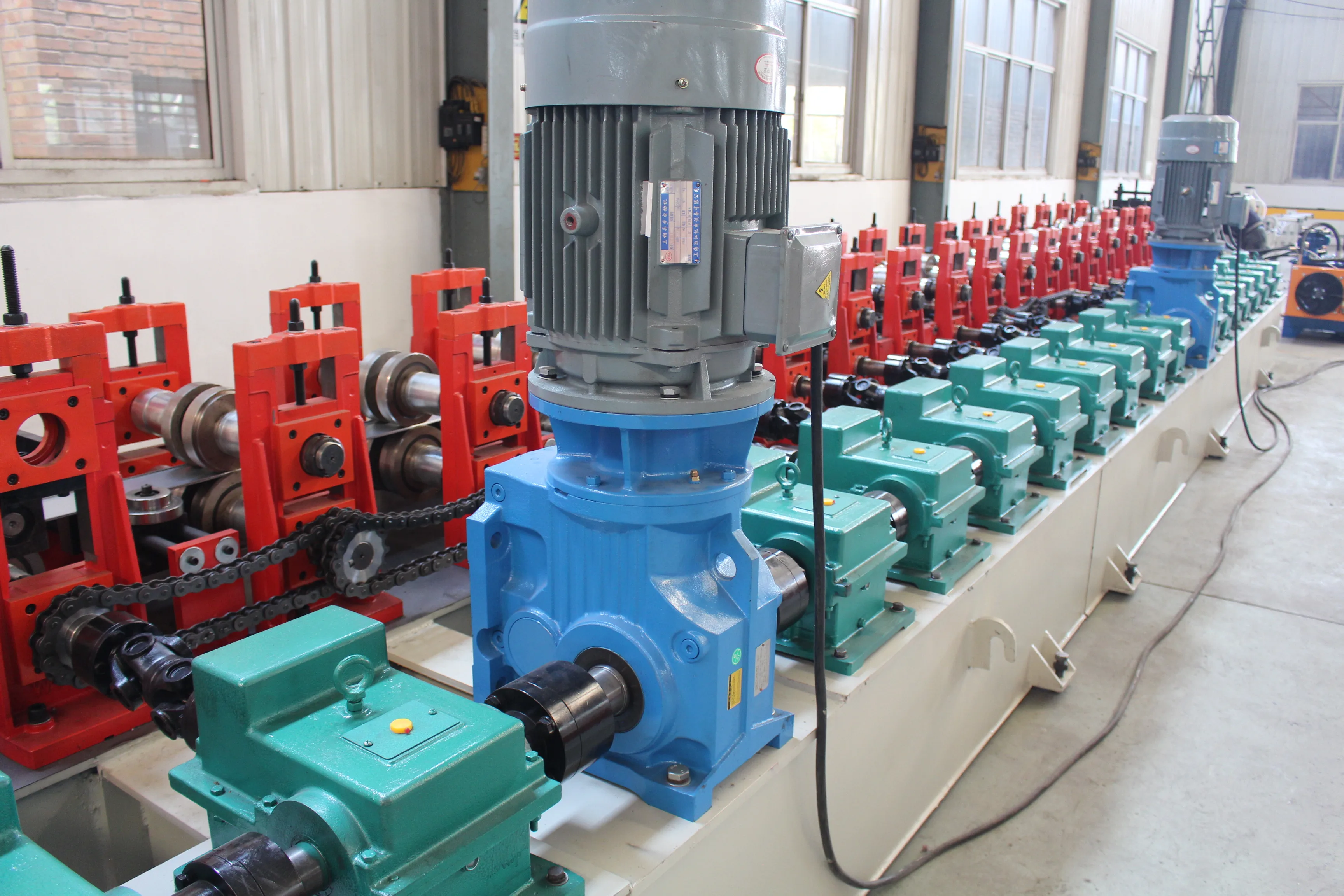

gearbox
Decoiler
Hydraulic Motor

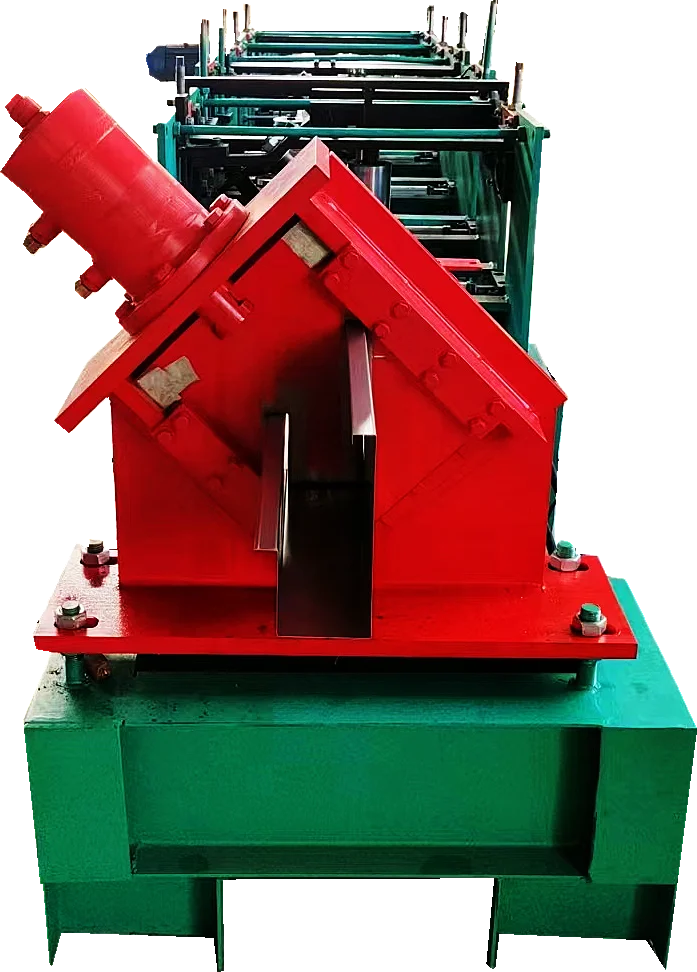

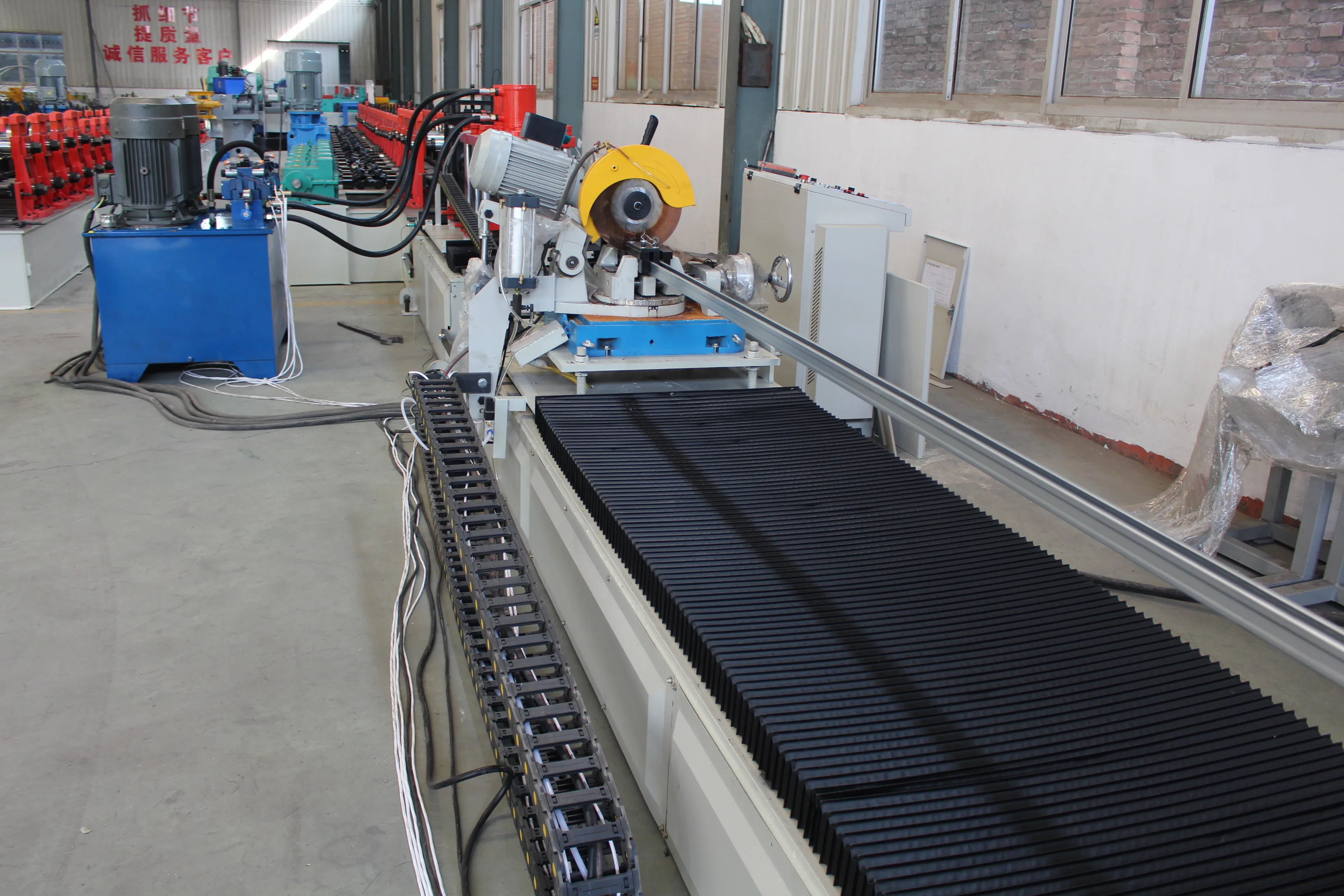

non-stop servo cutting system
Video
Why choose us?

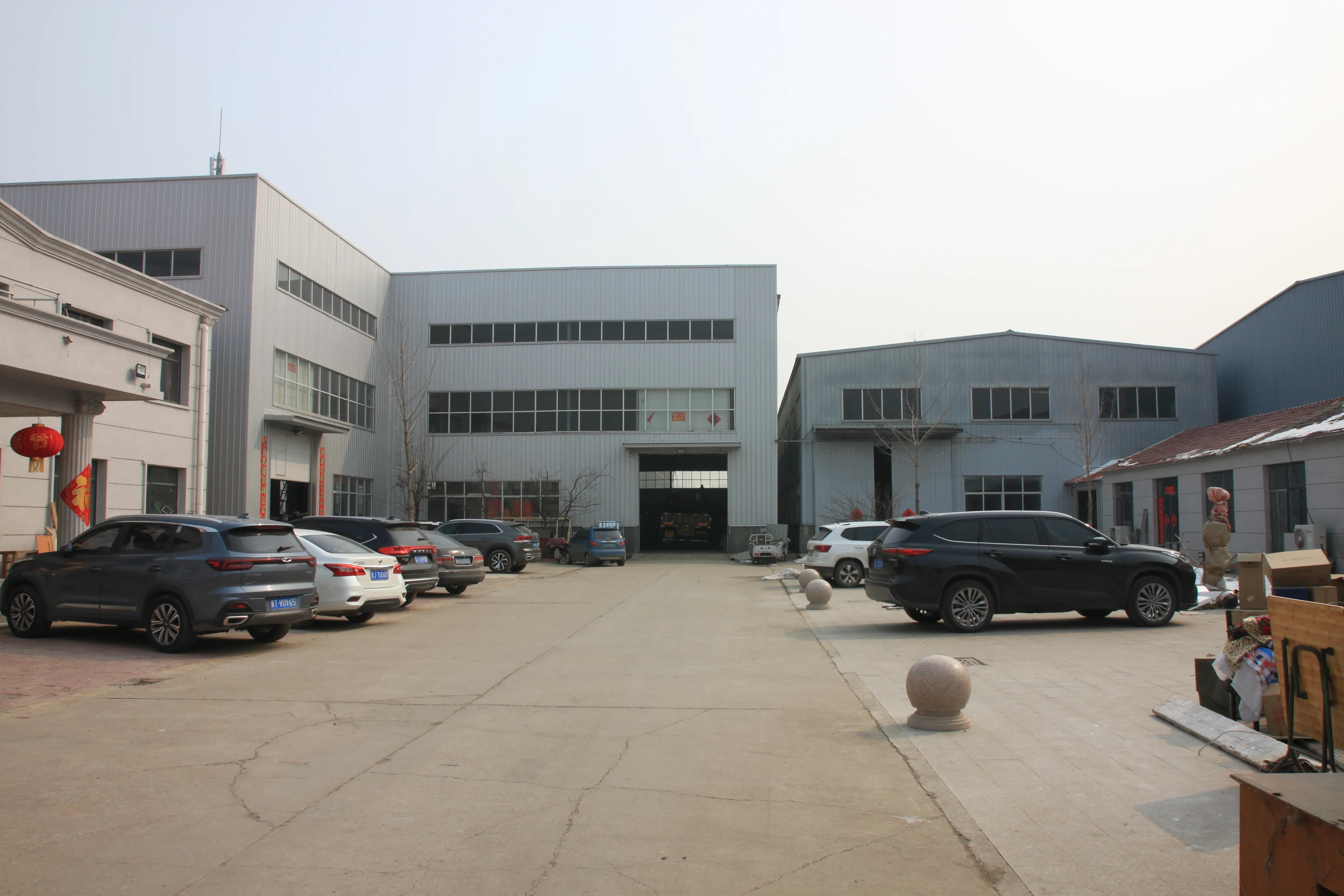

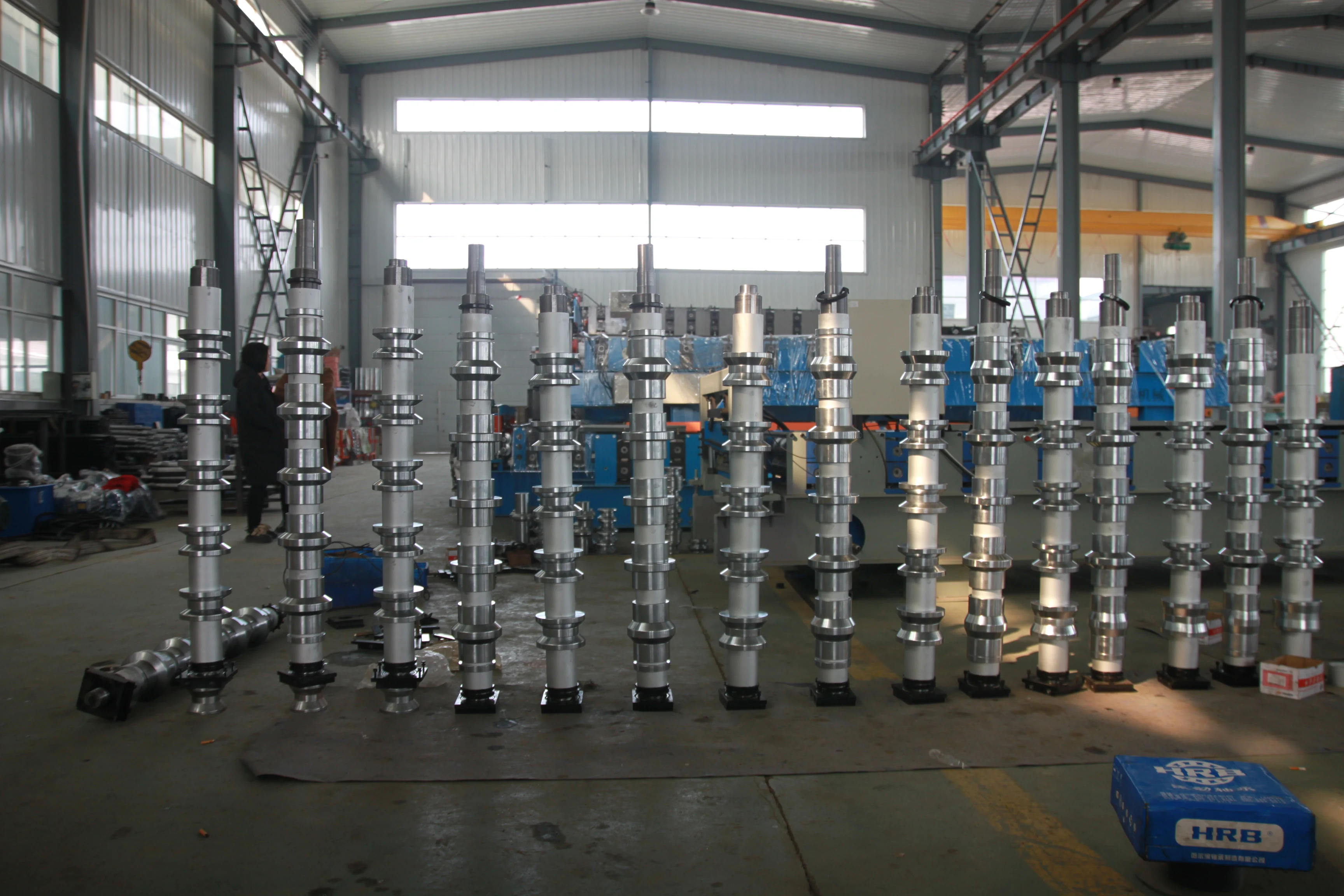

1. We have factory to produce each part of the machine, especially for shafts and rolls, which got highly praised from our customers.
2. We have import and export qualifications which can cooperate with foreign country customers directly. Not only convenient but
also save money.
3. Our boss is a professional designer who graduated from university . She has more than 20 years mechanical design experiences which can provide you professional suggestions about your products, and help you get top sales.
4. We' ve provided kinds of metal machines to many customers including many international trade companies.
