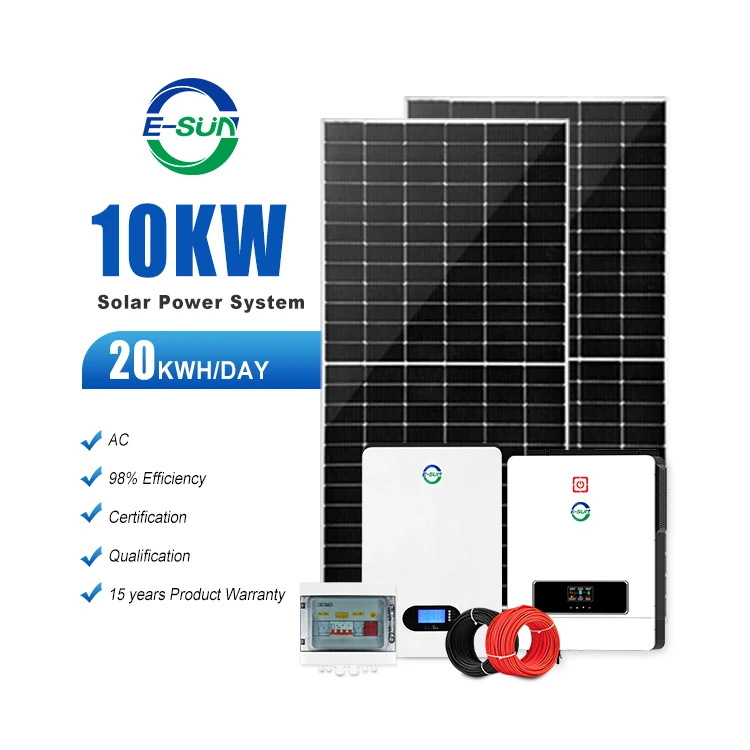

Home generators 25 year lifespan 5KWH 5KW lifepo4 100ah battery solar panel energy system 10KW 10KWH 220V high efficiency
- Category: >>>
- Supplier: Guangzhou E-Sun Technology Co. Ltd.
Share on (1601255334284):
Product Overview
Description

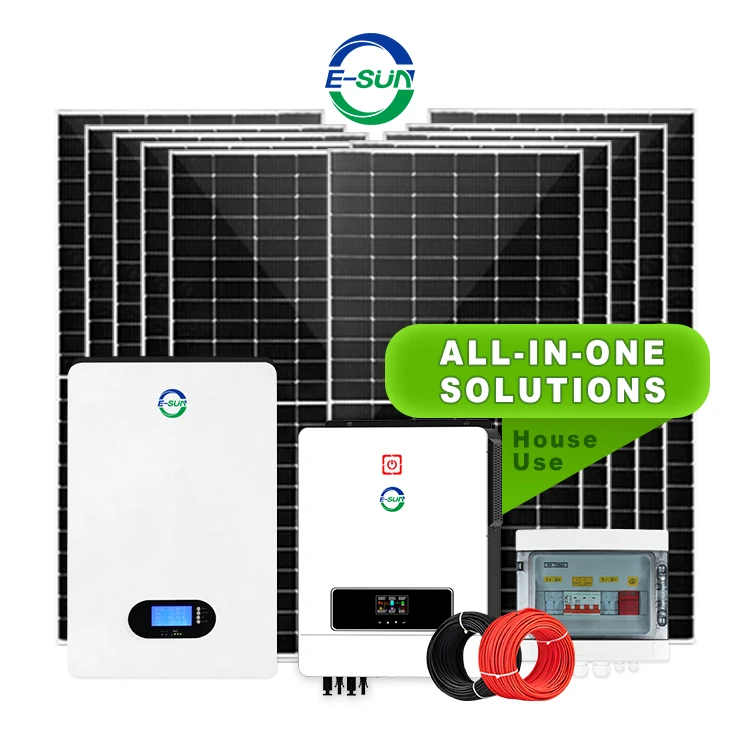

We can offer comprehensive hybrid solar energy systems, encompassing everything from solar panels, hybrid inverters, and batteries to combiner boxes, mounting brackets, PV cables, and MC4 connectors. Our one-stop service includes free system design, detailed installation manuals and instructional videos, a full range of after-sales accessories, and online technical support.
Product Paramenters

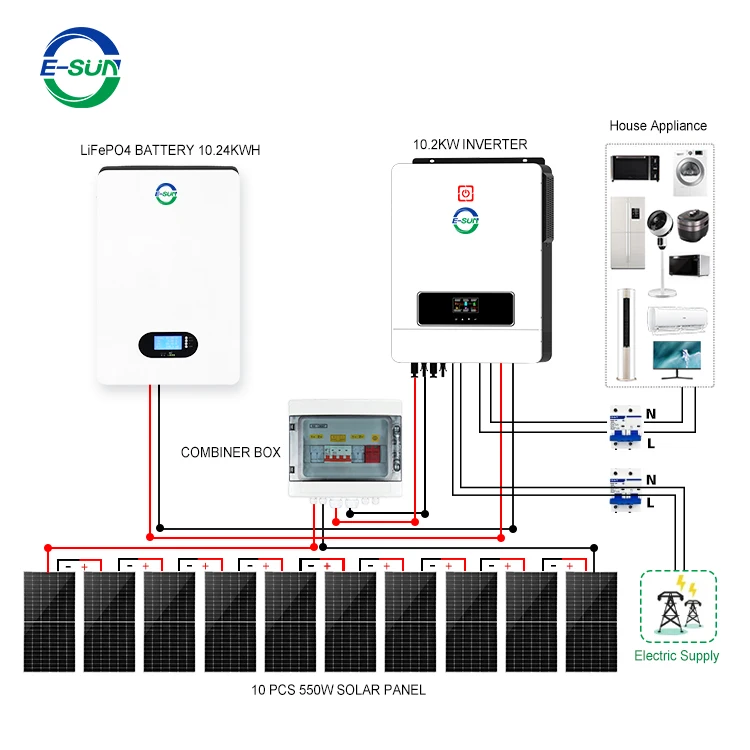

Home Use Off-gird Solar Energy Storage System | ||||
Model | 5KW-5KWH Solar LiFePO4 System | 10KW-10KWH Solar LiFePO4 System | ||
Solar Panel Type | 550W Mono Panels*6 | 550W Mono Panels*10 | ||
COMBINE BOX | IP65 | |||
Solar Inverter | 5.5KW | 10.2KW | ||
LiFePO4 Lithium Battery | 51.2V100Ah | 51.2V200Ah | ||
Place of Origin | Guangdong,China | |||
Warranty | 3-10YEARS | |||
Brand Name | ESUN | |||
Application | Home | |||
Battery Type | Lithium Ion | |||
Controller Type | MPPT | |||
Mounting Type | Color Steel Tile/Tin Pitched Roof, Flat Roof, Cement/Soil Ground, Carport, etc | |||
Output Voltage (V) | 110V/220V | |||
Output Frequency | 50/60HZ | |||
Work Time (h) | 24 Hours | |||
Certificate | TUV /ISO/INMETRO | |||
Pre-sales project design | YES | |||
PV Cables | 100m 6MM2 | |||
Application level | Class A | |||
Connector | MC4 Connecter | |||
Feature | High Efficiency | |||
Battery Cable | 25 MM² | |||
Mounting System | Roof/Ground Support | |||
If you need other capacity, please contact us
Product Description

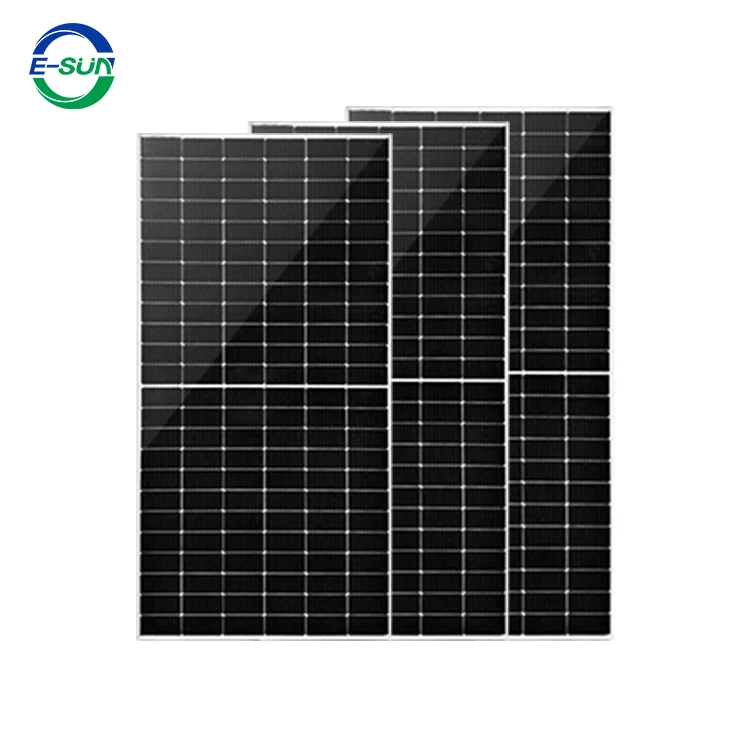

A-Grade High Efficiency Mono Solar Panel
1. Model: ES-SP-550
2. Max Power Voltage: 34.2V
3. Max Power Current:13.15A
4. Open Circuit Voltage: 49.95V
5. Short Circuit Current: 13.95A
6. Dimensions:2279*1134*35mm
7. Weight: 28.5KG
7. Weight: 28.5KG

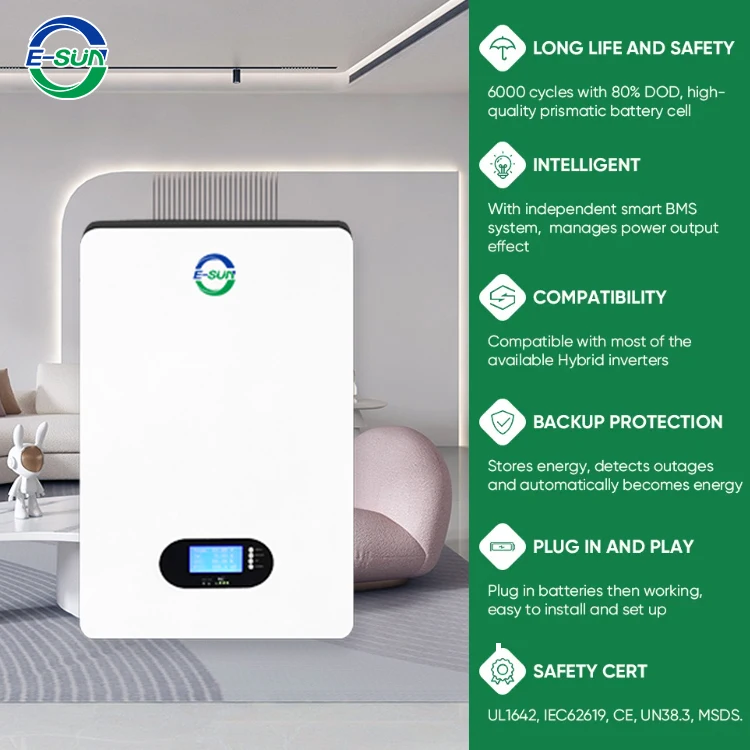

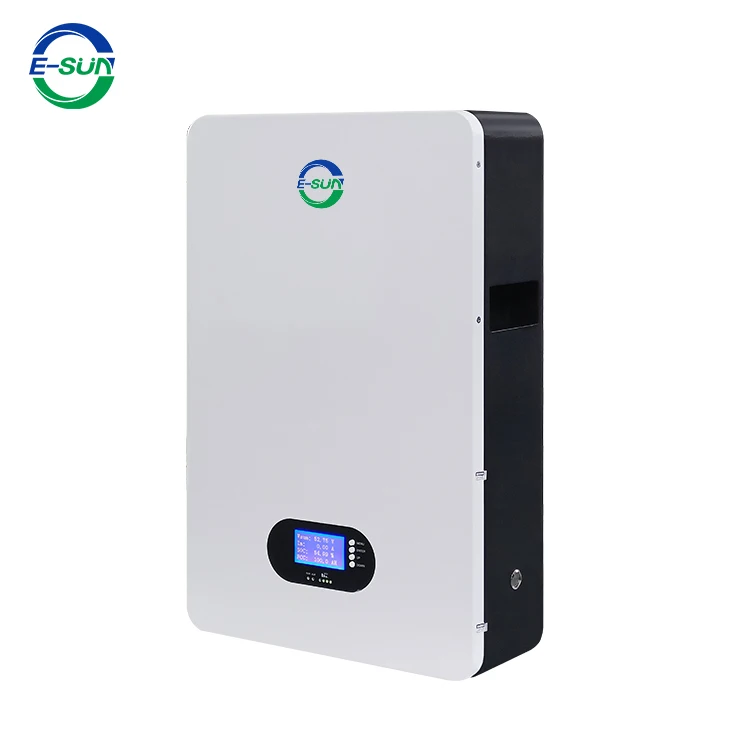

1. ES-PW-51.2V100Ah
2. Type:LiFePO4 Lithium Battery
3. Nominal Votage: 51.2V
4. Capacity: 5.12kWh
5. Lifespan: 10 Years
6. BMS Max discharging Current:100A

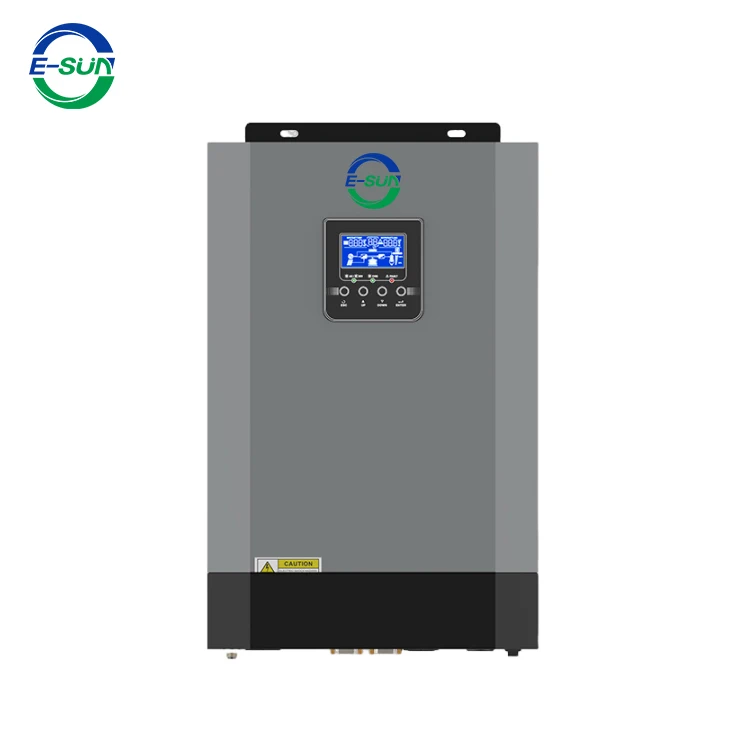

1. ESUN 48V 5.5KW Solar Inveter
2. 48V 5.5KW
3. PV Input:500V 100A
4. Output:220V 50Hz
5. Performance And Extend Lifecycle
6. High Efficiency Pure Sine Wave Inverter

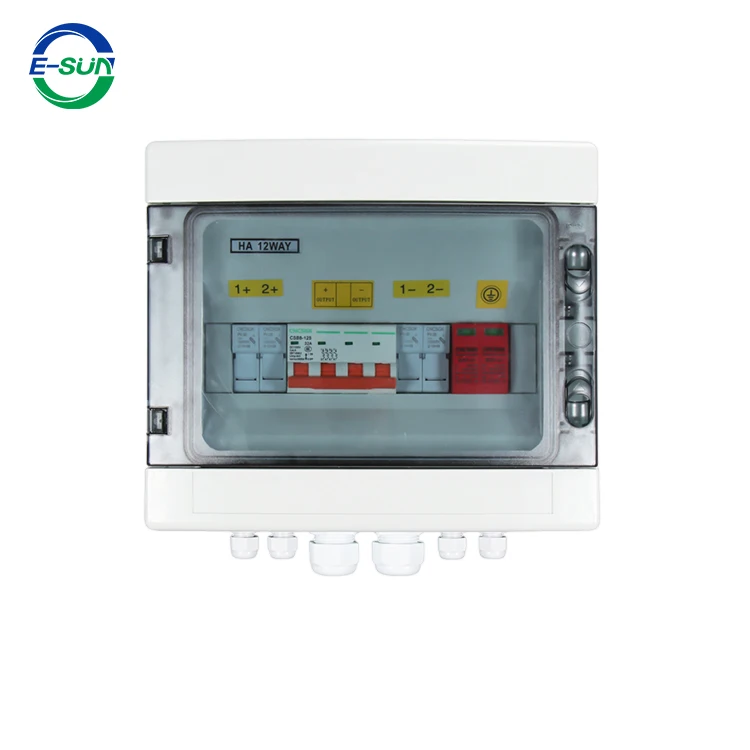

COMBINE BOX
1.Dc circuit breaker: DC1000V 4P16A *2
2.DC fuse:DC1000V 1P15A*4
3.Surge Protective Device:DC1000V 2P40KA*2
2.DC fuse:DC1000V 1P15A*4
3.Surge Protective Device:DC1000V 2P40KA*2
4.ip65

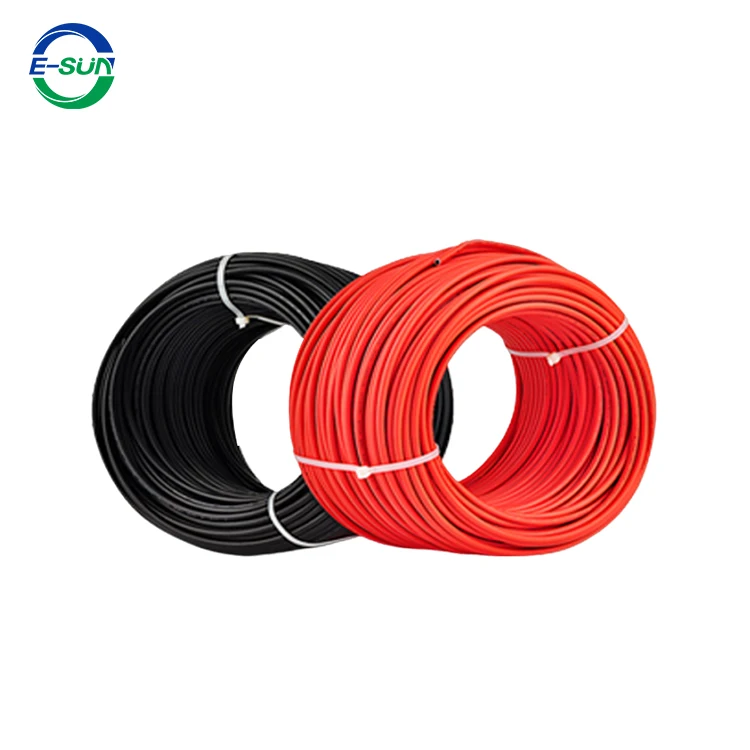

1. Solar Cable 100m
2. Type:RVV1*6mm2
3. Material:Pure Copper
4. Temperature Rating:-40°C-120°CMore than 25 Years
3. Material:Pure Copper
4. Temperature Rating:-40°C-120°CMore than 25 Years
Company Profile

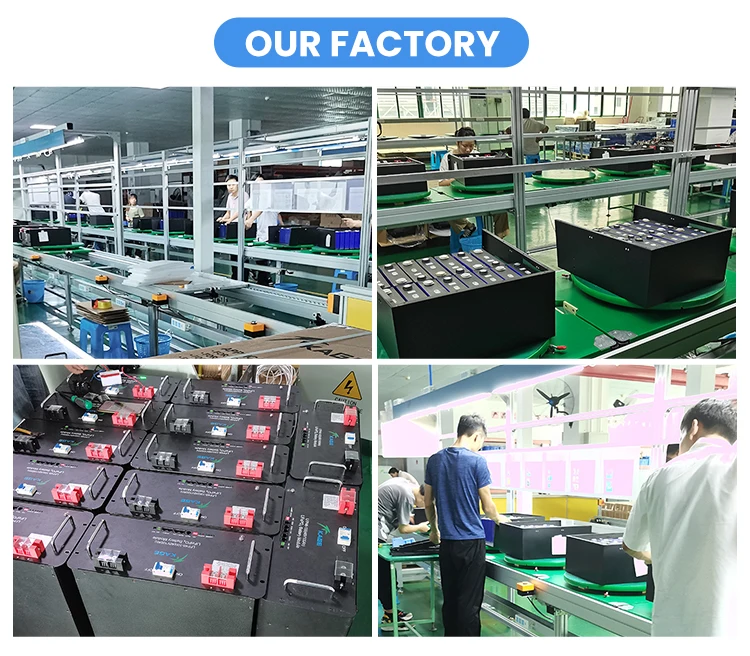

After years of dedicated effort, ESUN has successfully established manufacturing bases for solar cells, PV modules, and integrated PV systems. This industrial integration has positioned ESUN for rapid growth and development, driving the enterprise towards high-speed advancement.
We accept OEM/ODM orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.
for more information, please send an inquiry or contact us directly.
for more information, please send an inquiry or contact us directly.
