Automatic Paper Sheet Laminating Machine With Glue Laminating Thermal Laminating
- Category: >>>
- Supplier: Ruian Wity Machinery Co. Ltd.
Share on (1601255358966):
Product Overview
Description
Product Description

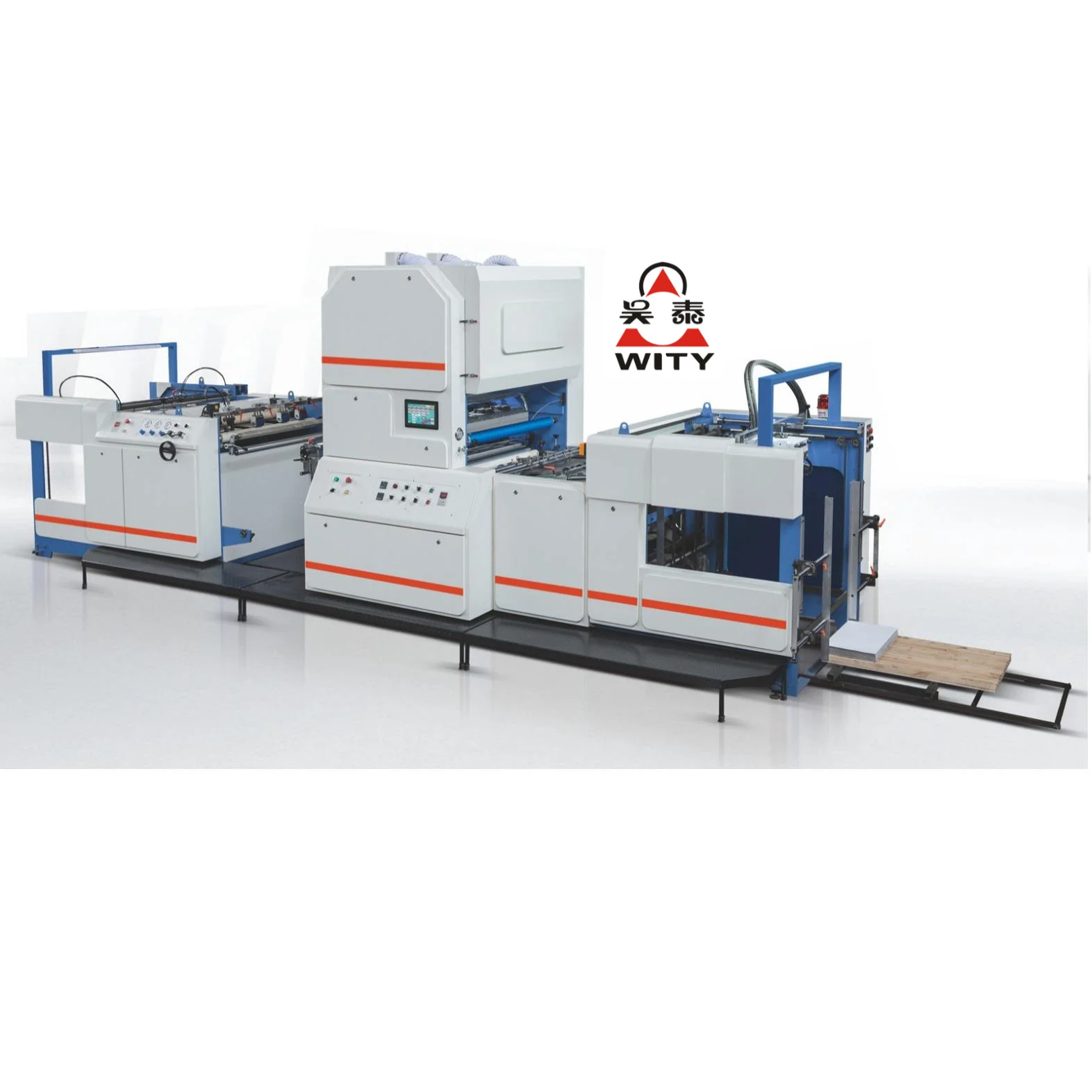

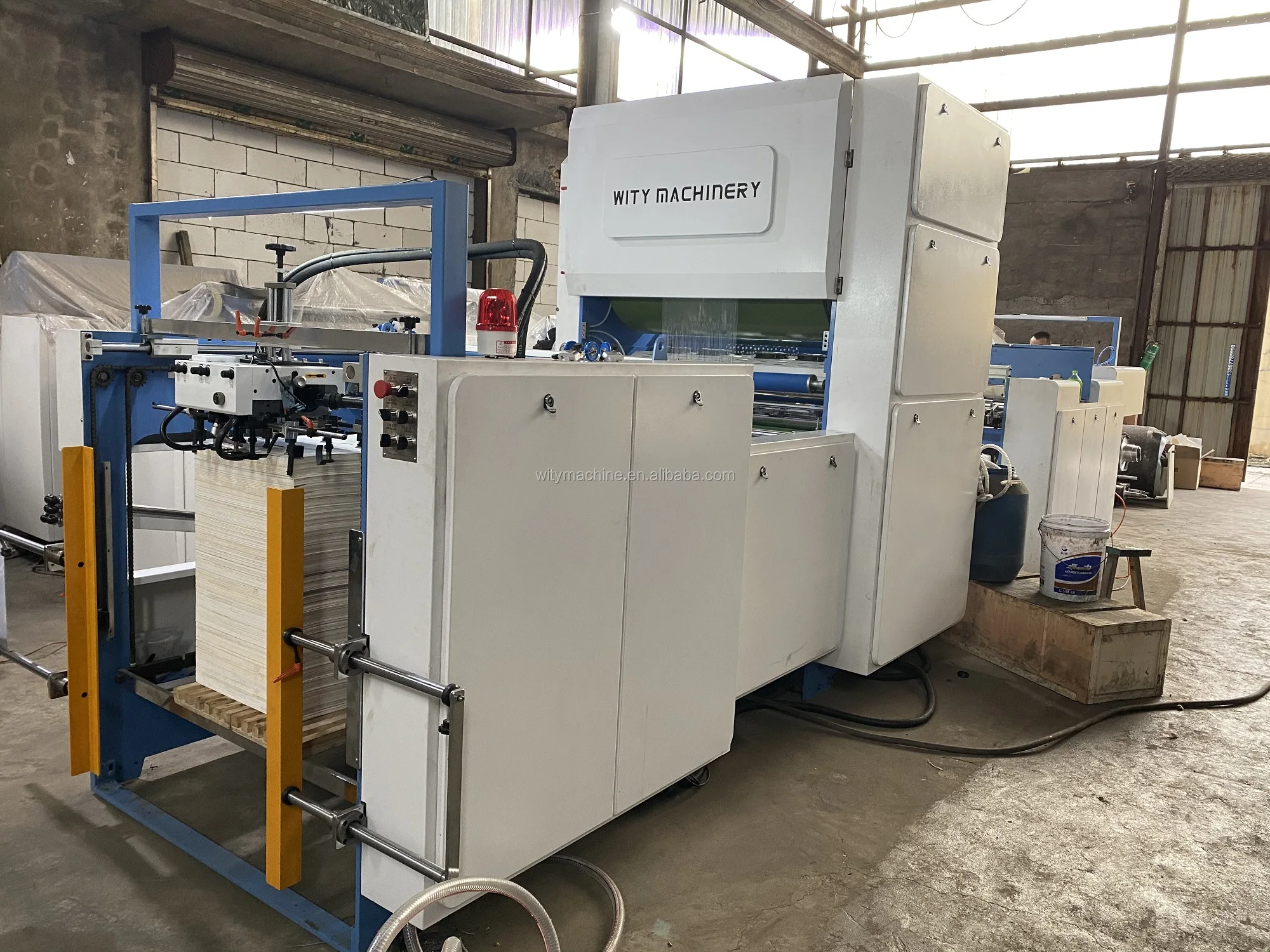

Vertical Laminating Machine
JTLFM-1100 laminating machine has the advantages of compact structure, smooth operation, ultra-high precision, easy operation and maintenance. Suitable for water-based, oil-based, thermal lamination film and glueless film laminating process, it is a multi-purpose machine. It can be used for postcards, posters, books, brochures, posters, color box packaging, handbag, cigarette box, etc.
Specification
Model | JTLFM-1100 |
Max feeding width | 1080 mm |
Min.feeding width | 300 mm |
Paper thickness | 80-500g/㎡ |
Speed | 10-100m/min |
Heating roller diameter | ￠320mm，1120mm width |
Rubber roller diameter | ￠300mm，1120mm width |
Max pressing pressure | 10T |
Heating temperature | 0～130℃ |
Drying drum diameter | ￠730mm，1120mm width |
Max unwinding diameter | ￠1200mm |
Max rewinding diameter | ￠1500mm |
Laminate electromagnetic heating power | 20kw |
Drying drum heating power | 18kw |
Drying oven power | 12kw |
Total power | 66.5kw |
Overall dimension | 6200*2100*2800mm |
Weight | 7000kg |

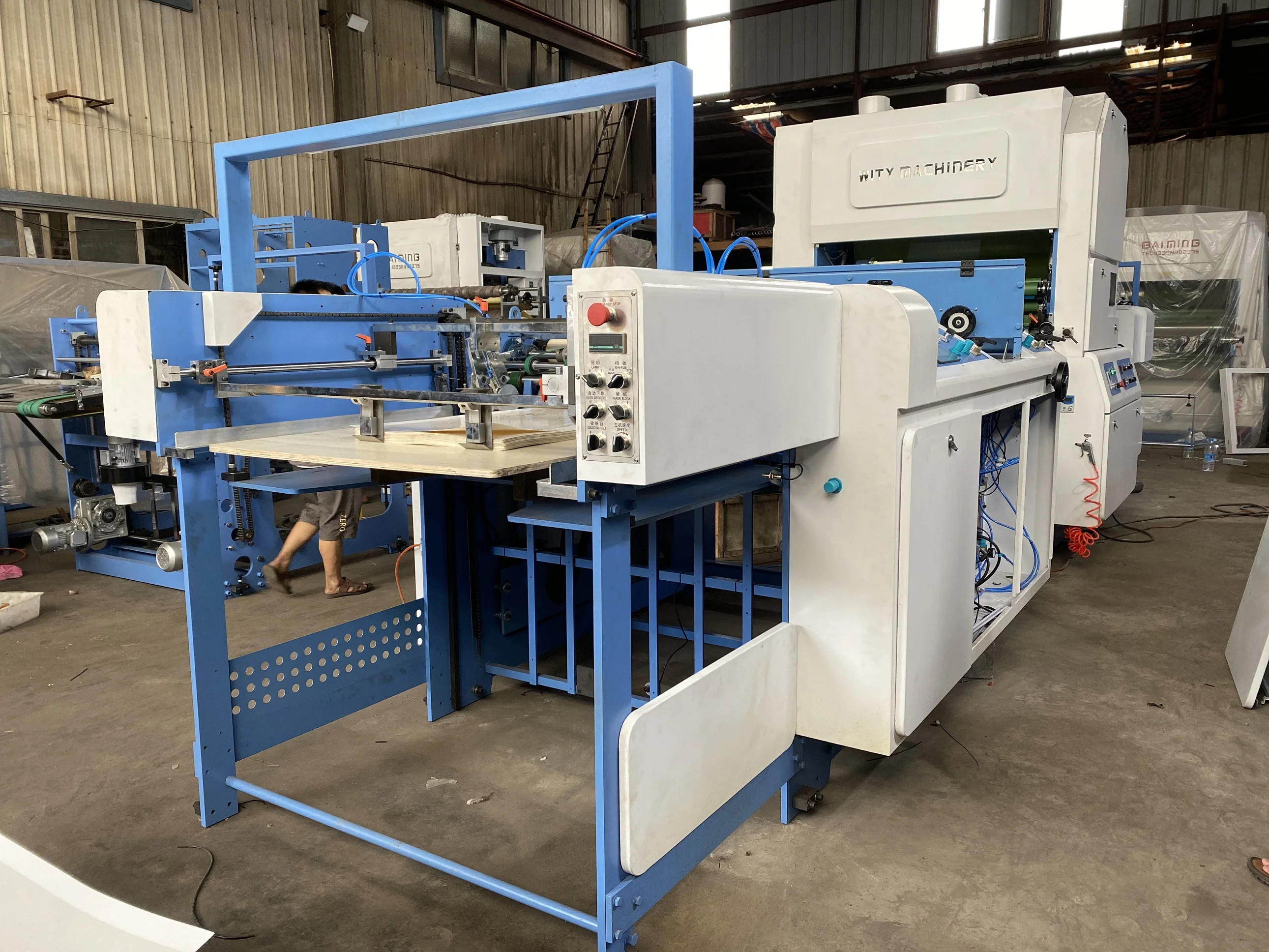

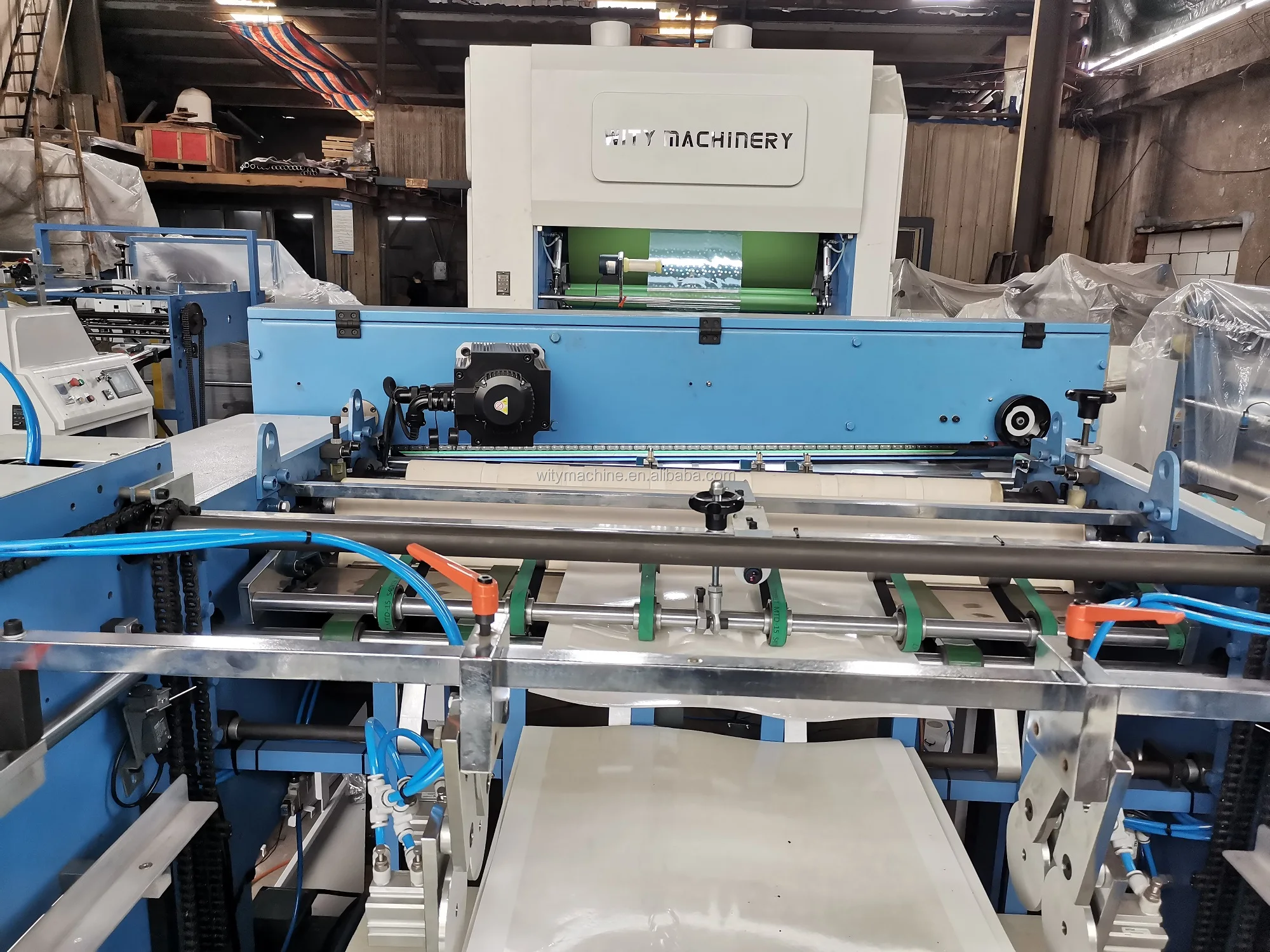

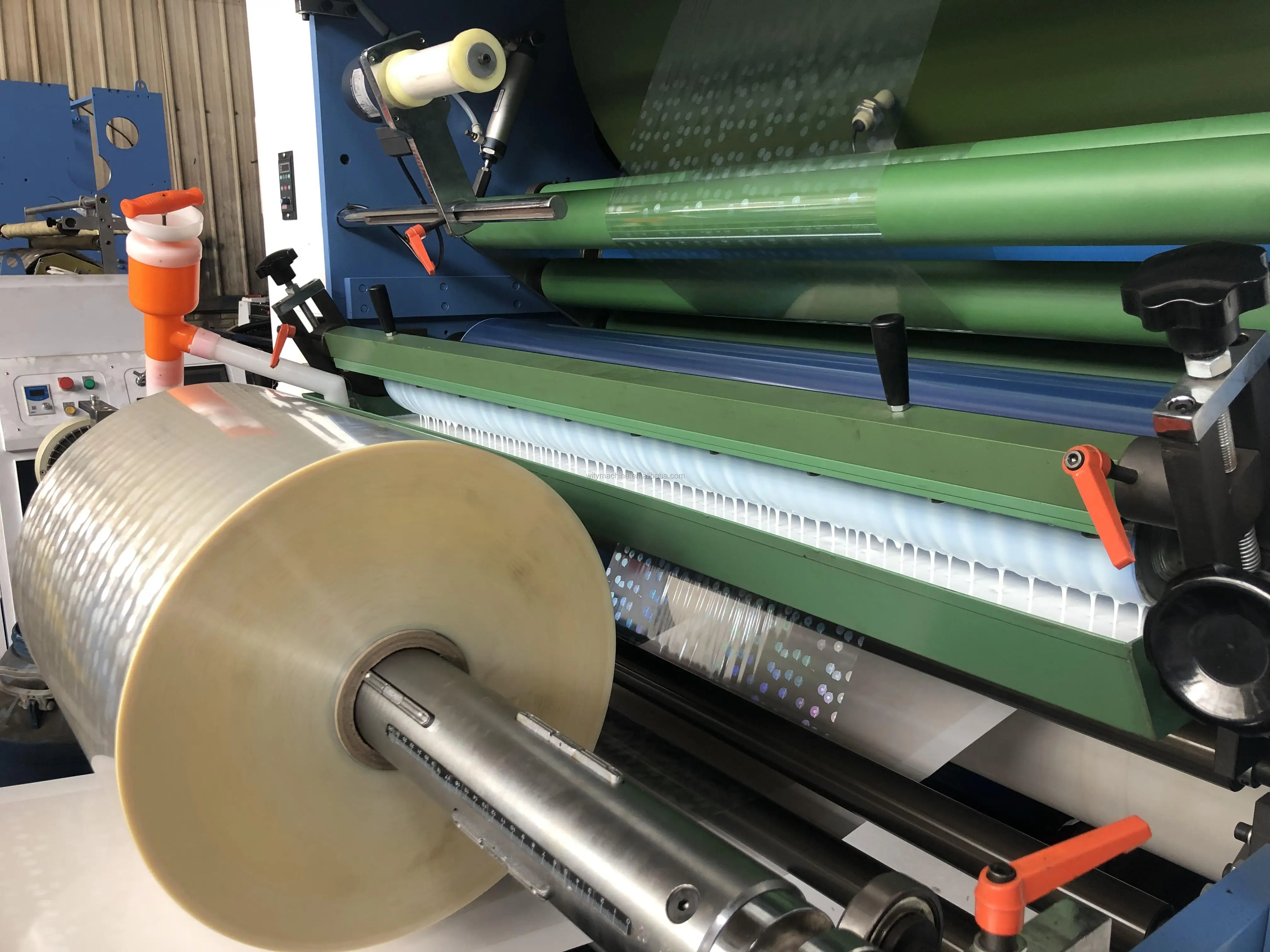

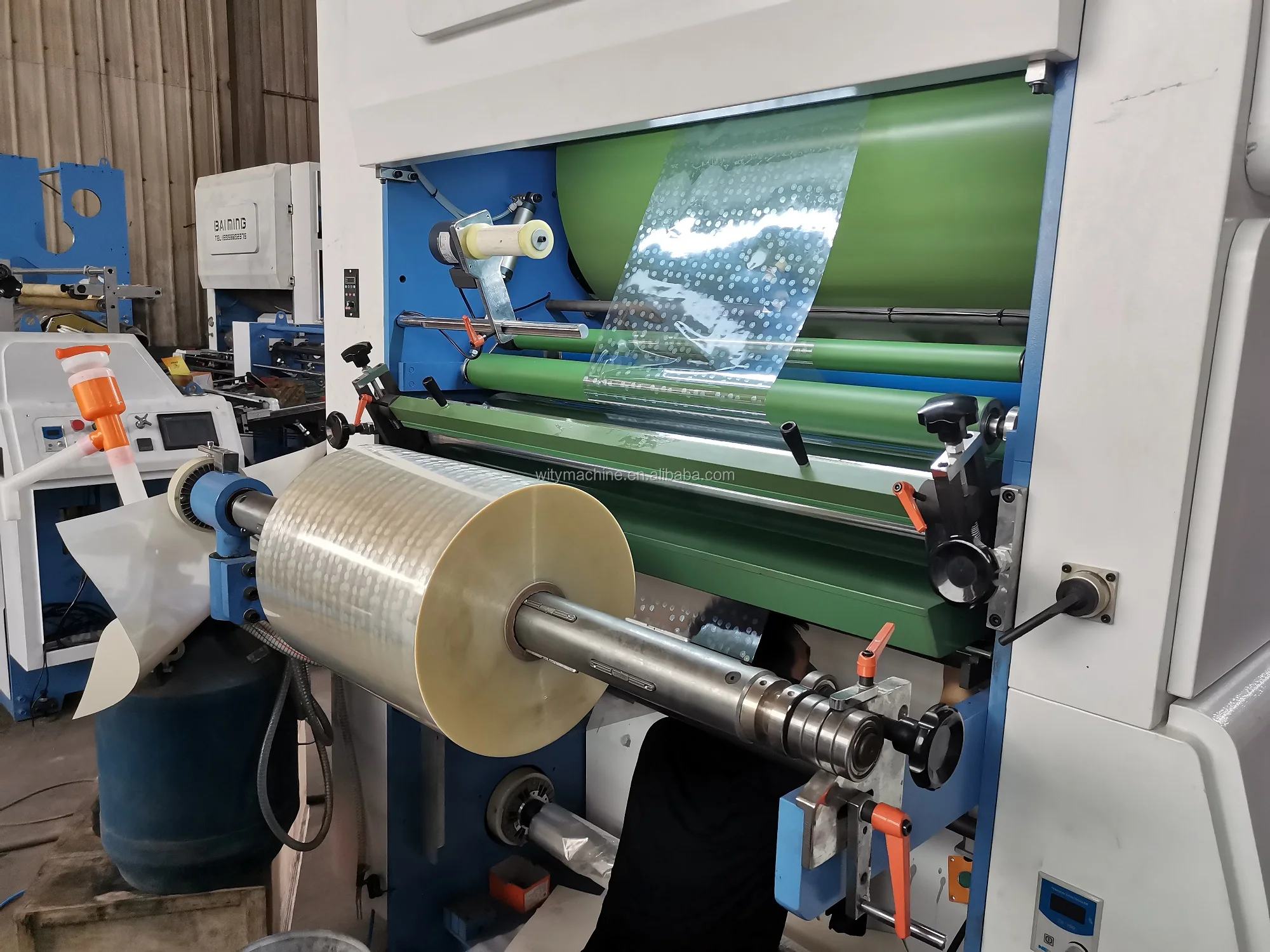

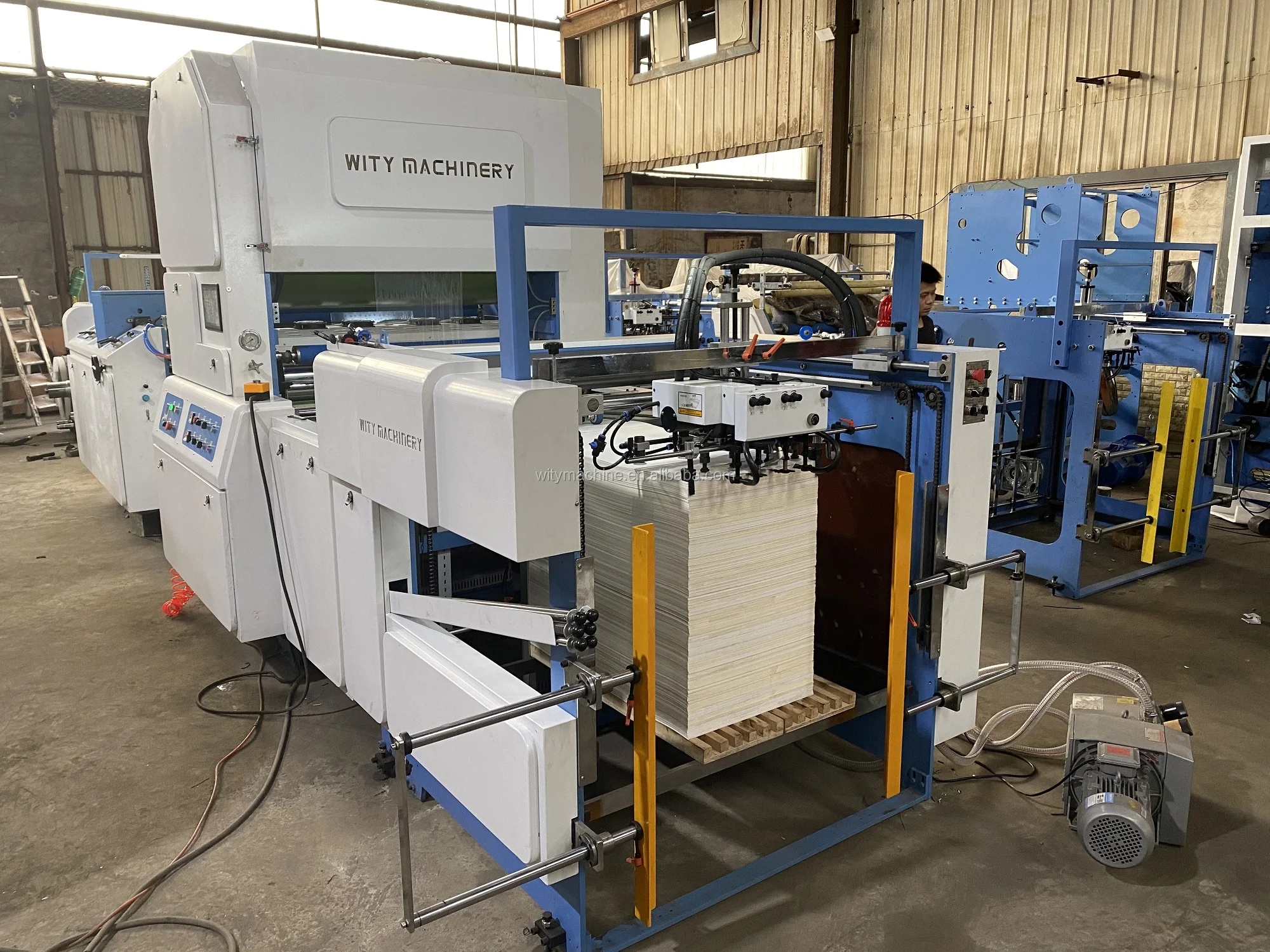

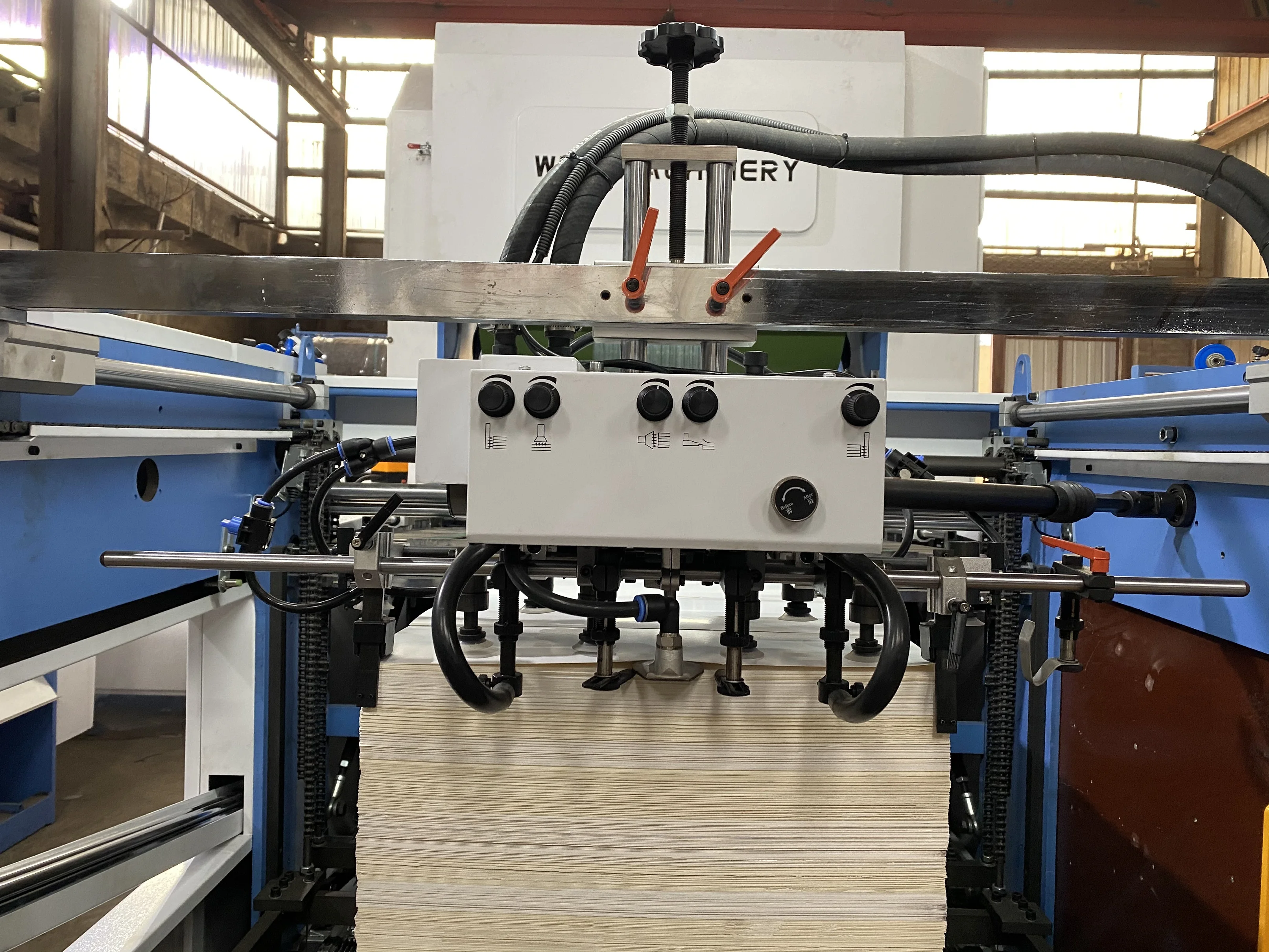

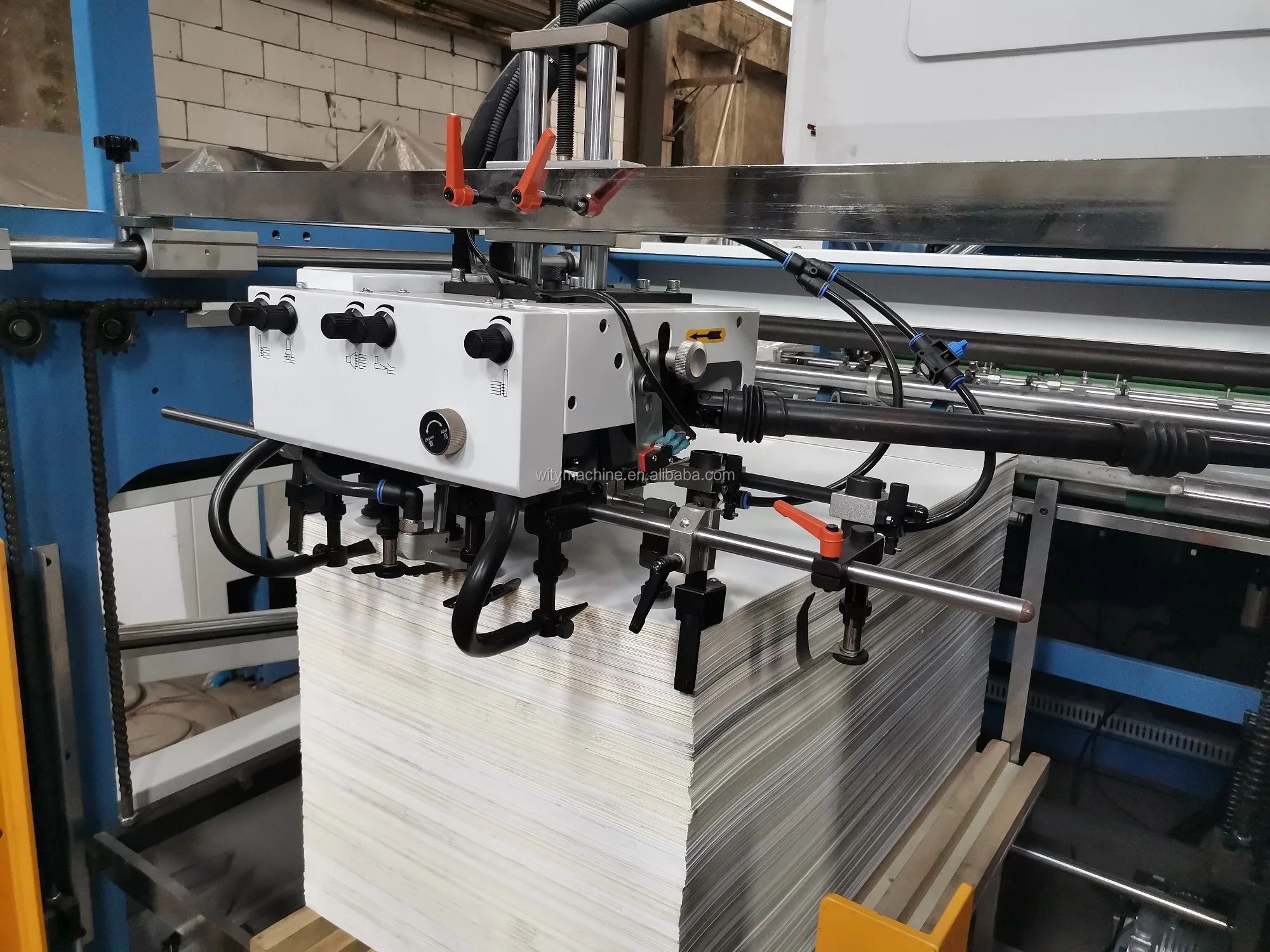

Details Images

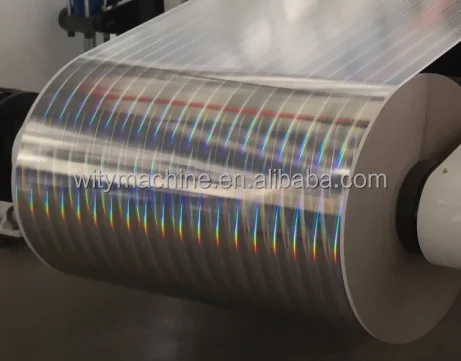

Samples
Package&Shipment
