Quality Guaranteed E100W LED Emergency Kit IP30 Emergency Power 10 100W Full Power Supply For Gymnasium
- Category: >>>
- Supplier: Jiangmen City Pengjiang District Qihui Lighting Electrical Appliances Co. Ltd.Jiangmen Ltd.
Share on (1601255492034):
Product Overview
Description
Product Description
E100W LED Emergency Kit
Model | FAT-LED-E100W | Housing Material | aluminum alloy | ||
Emergency Power | 100% output | Emergency Switch Time | <2s | ||
Charge Time | 24 Hours | Emergency Time | 180 Mins Max. | ||
Battery | Lithium ion 18.5V | Working Voltage | AC85V-265V 50/60Hz | ||
AC Protection | 1A 250V | DC Protection | 5A 250V | ||
Battery cycle time | >5000 times | Working Temperature | 0℃-55℃ | ||
IP Rank | IP42 | Luminous Flux | > 1000lm | ||
Certificate | CE | Dimension | 300*105*50mm | ||
Type of Lamp | UFO high bay, floodlight, street light, batten light... | ||||

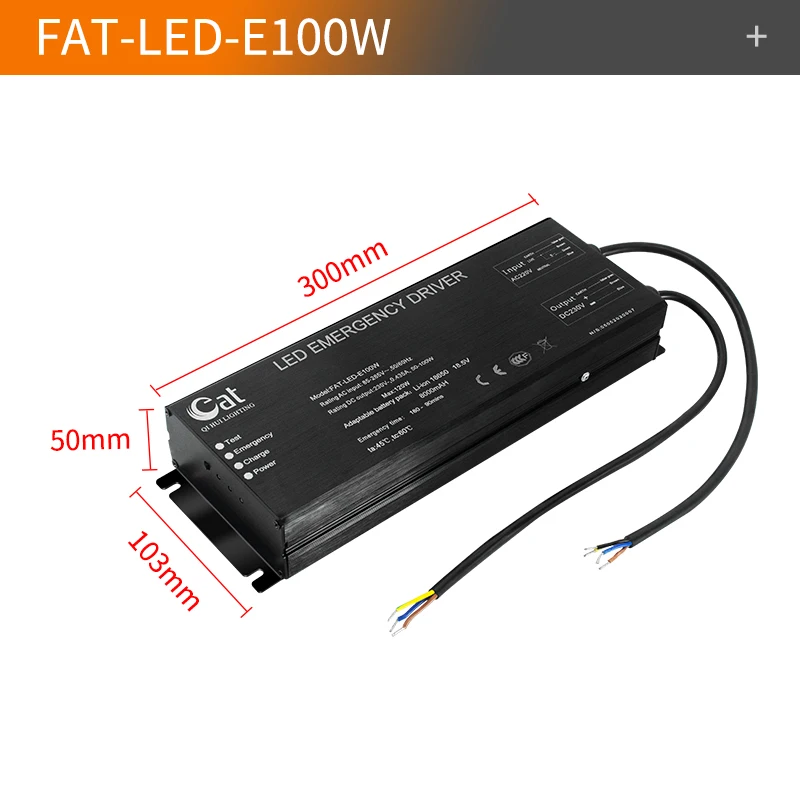

300mm*105mm*50mm

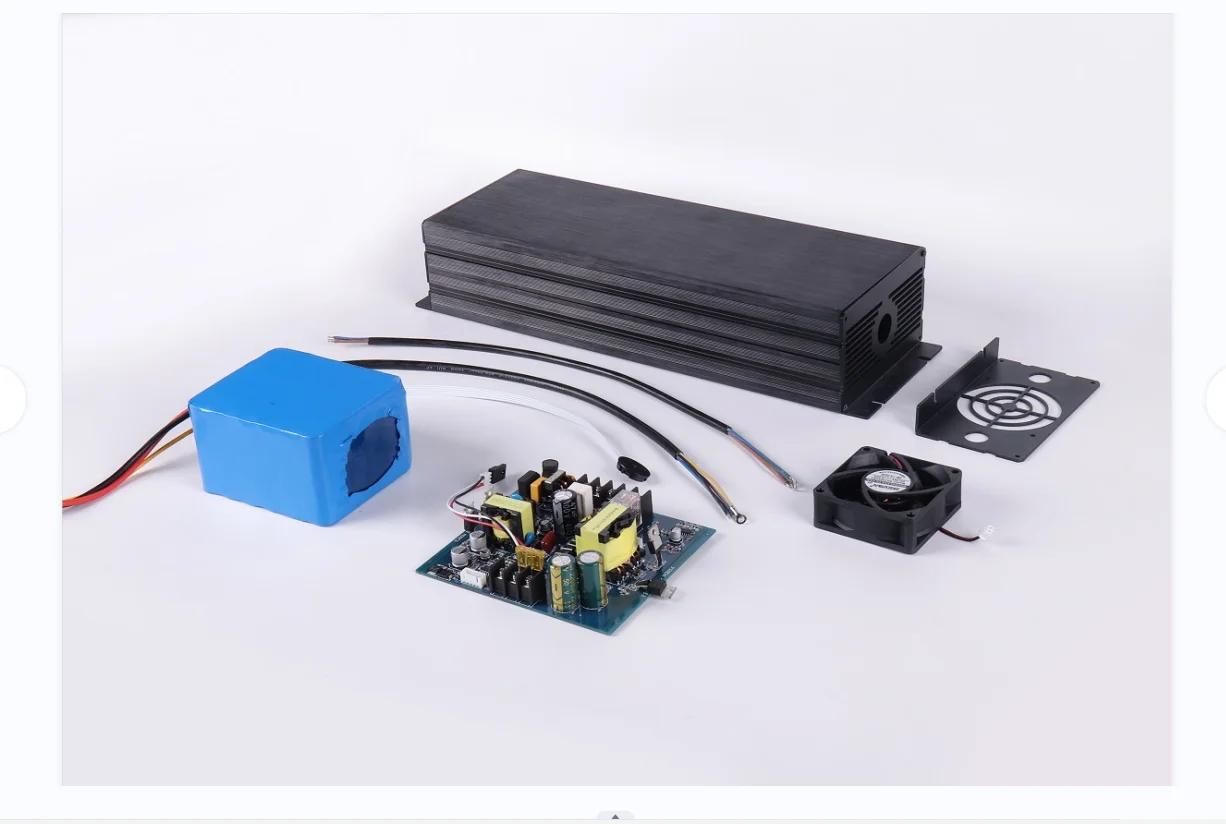

Structure introduction
·Product wiring
·Indicator light
·Material
Product functions and customization services
* IP42 protection level.
* Applicable to LED tunnel lamp, high bay light, flat lamp and other LED lamps.
* Wide voltage input AC85V-265V
* Overload protection
* Overload protection

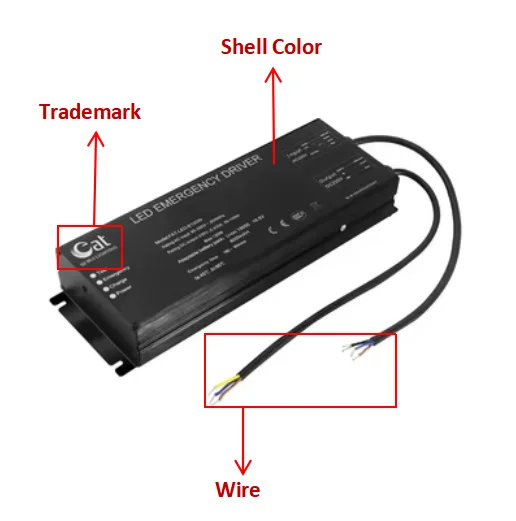

*Shell Color
*Wire
E100W Wiring Diagram
Battery and light source
Please change battery when discharging time is less than 100 minutes after being charged for 24 hours or battery leakage.
When changing battery, cut off the main power, take apart the lamp, removing the battery plug. The new battery must be the same specification.
Note:
The positive and negative of battery should not be connected reverse to avoid directly short-circuit.
Explosion will be caused if using unmatched battery.
LED lamps with external driver, please change to the same light source if light source is broken or brightness is not enough.
Warning!
As the inner PCB includes 220V/50HZ high voltage, so it must be unloaded/opened ONLY by professional technician
Please change battery when discharging time is less than 100 minutes after being charged for 24 hours or battery leakage.
When changing battery, cut off the main power, take apart the lamp, removing the battery plug. The new battery must be the same specification.
Note:
The positive and negative of battery should not be connected reverse to avoid directly short-circuit.
Explosion will be caused if using unmatched battery.
LED lamps with external driver, please change to the same light source if light source is broken or brightness is not enough.
Warning!
As the inner PCB includes 220V/50HZ high voltage, so it must be unloaded/opened ONLY by professional technician
Suitable For
Certification
Other productions
About Us
FAQ
1. who are we?
We are based in Guangdong, China, start from 2012,sell to South America(30.00%),Eastern Europe(20.00%),Western Europe(15.00%),Southern Europe(10.00%),Northern Europe(10.00%),Mid East(10.00%),Africa(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
LED Emergency Driver, LED Emergency Light, LED Emergency Bulb, LED Emergency Strip Light, LED Emergency Exit Tag
4. why should you buy from us not from other suppliers?
With a stellar team of design, production, management and marketing, Qihui lighting not only specializes in the up-to date technology, premium and functional product modeling, but also provides excellent after-sales service.
5. what services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW, FCA, DDP, Express Delivery；
Accepted Payment Currency: USD, EUR, HKD, CNY;
Accepted Payment Type: T/T,L/C, Money Gram , PayPal, Western Union, Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Guangdong, China, start from 2012,sell to South America(30.00%),Eastern Europe(20.00%),Western Europe(15.00%),Southern Europe(10.00%),Northern Europe(10.00%),Mid East(10.00%),Africa(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
LED Emergency Driver, LED Emergency Light, LED Emergency Bulb, LED Emergency Strip Light, LED Emergency Exit Tag
4. why should you buy from us not from other suppliers?
With a stellar team of design, production, management and marketing, Qihui lighting not only specializes in the up-to date technology, premium and functional product modeling, but also provides excellent after-sales service.
5. what services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW, FCA, DDP, Express Delivery；
Accepted Payment Currency: USD, EUR, HKD, CNY;
Accepted Payment Type: T/T,L/C, Money Gram , PayPal, Western Union, Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
